NEW DRILLING RIGS


Massenza Drilling Rigs was first founded and consolidated in Italy and then developed worldwide through its extensive network of distributors, partners and agents. To this day, the widespread diffusion of our name places us in relation to multiple fields and applications.

Our fields of application are mainly water research, geotechnical, geothermal, seismic and mining exploration.

Our drill rigs are equipped with absolute versatility, in addition they are able to work in any type of terrain.
Our machines can drill with different working methods, among which we mention: direct circulation by mud, direct circulation by DTH hammer, reverse circulation with both air and mud, and core drilling.

Our machines are eternal, they know no ageing except from normal wear and tear or innovation. We still sporadically sell perfectly functioning used machines, which do not suffer any depreciation on the market thanks to the quality that has always distinguished us.

Aprile 1, 2018

PROBING RIG MSPT

- Dynamic probing DPL, DPM, DPH
- SPT test
- Split spoon, window and liner sampling
Luglio 14, 2018

DRILLING RIG Mi1

- DPL, DPM, DPH and SPT test
- Hydraulic Breaker and Drop Weight Unit
- Coring Device and Rotary Head
Ottobre 10, 2018

DRILLING RIG Mi2

- Pull up 2,650 daN (5,958 lbf)
- Maximum torque 5,490 Nm (4,049 lbfft)
- Maximum speed 756 Rpm
Ottobre 10, 2018

DRILLING RIG Mi3

- Pull up 3,600 daN (8,093 lbf)
- Maximum torque 6,000 Nm (4,425 lbf ft)
- Maximum speed 798 Rpm
Ottobre 10, 2018

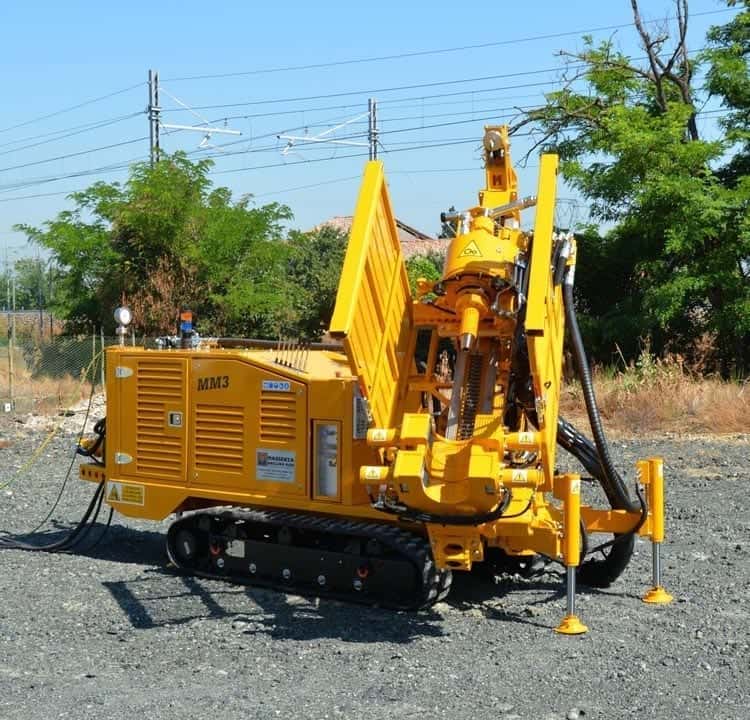

DRILLING RIG MM3

- Pull up 3,600 daN (8,093 lbf)
- Maximum torque 5,693 Nm (4,199 lbf·ft)
- Maximum speed 992 Rpm
Ottobre 10, 2018

DRILLING RIG Mi4

- Pull up 5,200 daN (11,690 lbf)
- Maximum torque 10,164 Nm (7,496 lbfft)
- Maximum speed 1,001 Rpm
Ottobre 25, 2018

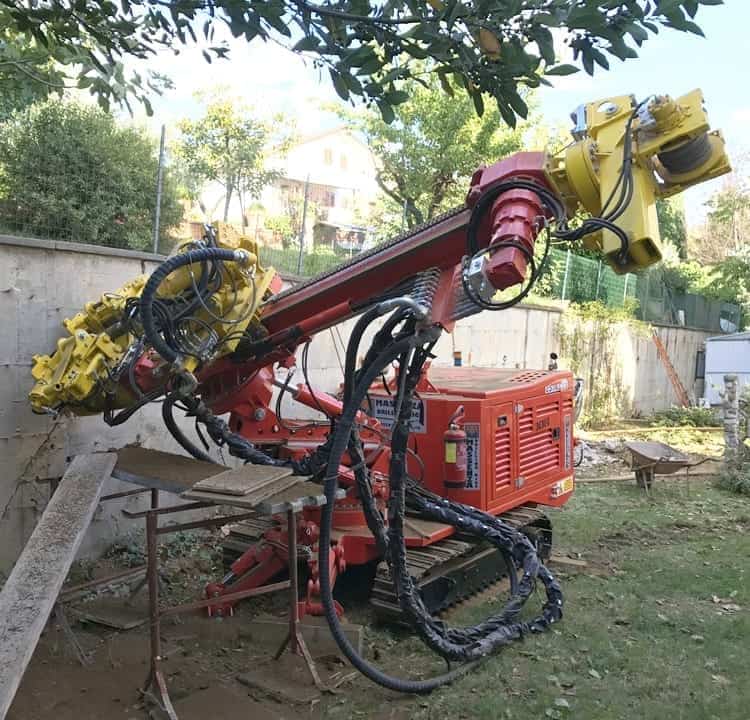

DRILLING RIG MM4

- Pull up 4,500 daN (10,115 lbf)
- Maximum torque 10,164 Nm (7,496 lbf·ft)
- Maximum speed 650 Rpm
Ottobre 25, 2018

DRILLING RIG Mi5

- Pull up 8.000 daN (17,984 lbf)
- Maximum torque 14,460 Nm (10,665 lbfft)
- Maximum speed 1,001 Rpm
Ottobre 25, 2018

DRILLING RIG Mi8

- Pull up 15,000 daN (33,708lbfft)
- Maximum torque 18,307 Nm (13,305 lbfft)
- Maximum speed 1,345 Rpm
Ottobre 26, 2018

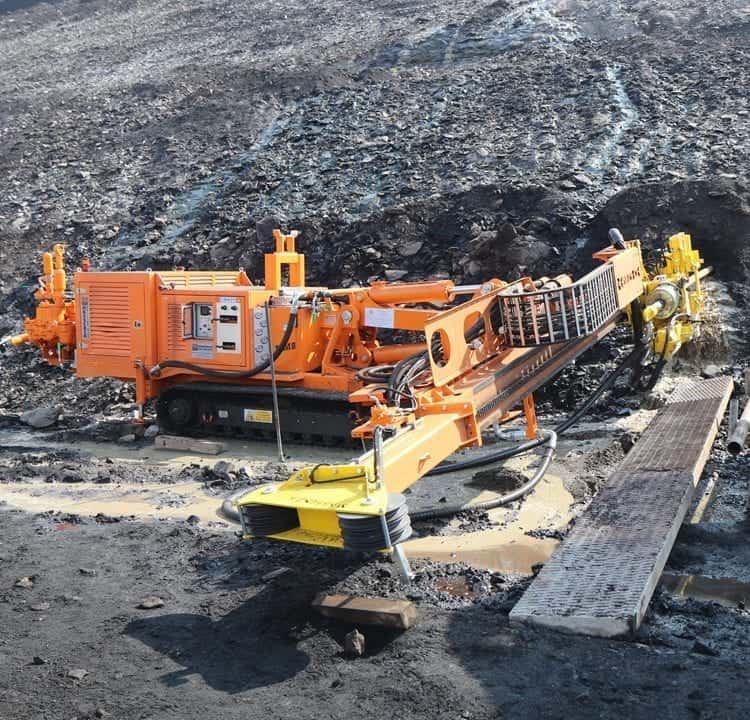

DRILLING RIG MM8

- Pull up 11,900 daN (26,742 lbf)
- Maximum torque 22,750 Nm (16,780 lbf·ft)
- Maximum speed 1,200 Rpm
Ottobre 26, 2018

DRILLING RIG Mi12

- Pull up 15,000 daN (33,721 lbf)
- Maximum torque 18,307 Nm (13,502 lbfft)
- Maximum speed 1,345 Rpm
Ottobre 26, 2018

DRILLING RIG Mi20

- Pull up 24,000 daN (53,954 lbf)
- Maximum torque 27,000 Nm (19,914 lbfft)
- Maximum speed 1,400 Rpm
Ottobre 26, 2018

DRILLING RIG Mi28

- Pull up 34,300 daN (77,109 lbfft)
- Maximum torque 35,380 Nm (26,094 lbfft)
- Maximum speed 1,400 Rpm
Ottobre 26, 2018

DRILLING RIG Mi40

- Pull up 38,000 daN (85,432 lbf)
- Maximum torque 35,380 Nm (26,094 lbfft)
- Maximum speed 1,400 Rpm
Ottobre 26, 2018

DRILLING RIG Mi45

- Pull up 45,000 daN (101,170 lbf)
- Maximum torque 35,380 Nm (26,094 lbfft)
- Maximum speed 1,200 Rpm
Ottobre 30, 2018

DRILLING RIG Mi50

- Pull up 50,000 daN (112,410 lbf)
- Maximum torque 35,380 Nm (26.094 lbfft)
- Maximum speed 1,200 Rpm
Ottobre 30, 2018

DRILLING RIG Mi55

- Pull up 56,000 daN (125,900 lbf)
- Maximum torque 35,380 Nm (26.094 lbfft)
- Maximum speed 1,200 Rpm
Ottobre 30, 2018

DRILLING RIG Mi60

- Pull up 59,300 daN (446,578 lbf)
- Maximum torque 37,500 Nm (27,658 lbfft)
- Maximum speed 1,200 Rpm
Ottobre 30, 2018

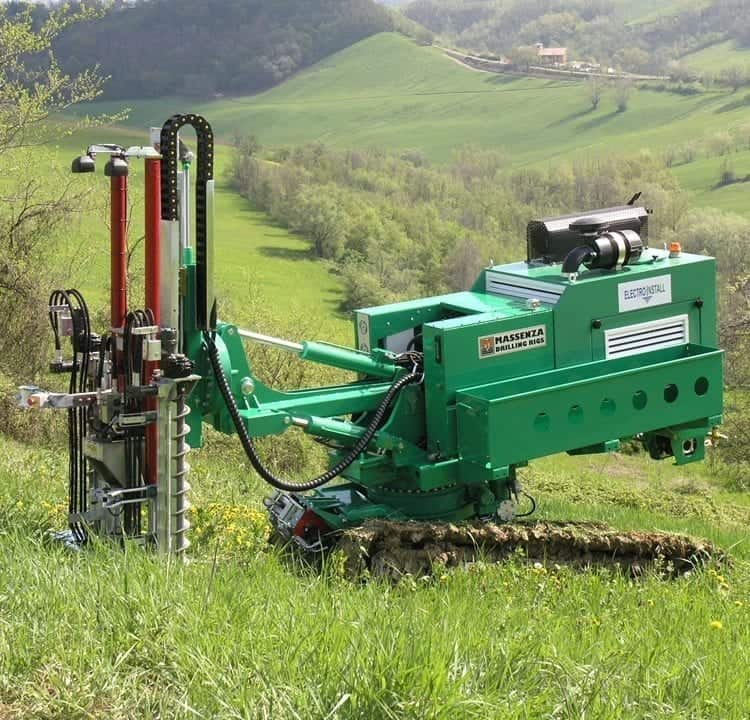

DRILLING RIG MiP MODEL

Perforatrice per ricerche idriche e minerarie, sismica, carotaggi e geotermia ad elevate profondità.
Ottobre 30, 2018

MUD PUMP PM200 – 7”1/2X8”

Duplex double-acting piston pump, consisting of delivery body and steel connecting rods.
Ottobre 30, 2018

SERVICE AND REHABILITATION RIG FOR WATER WELLS – MSR

Duplex double-acting piston pump, consisting of delivery body and steel connecting rods.
