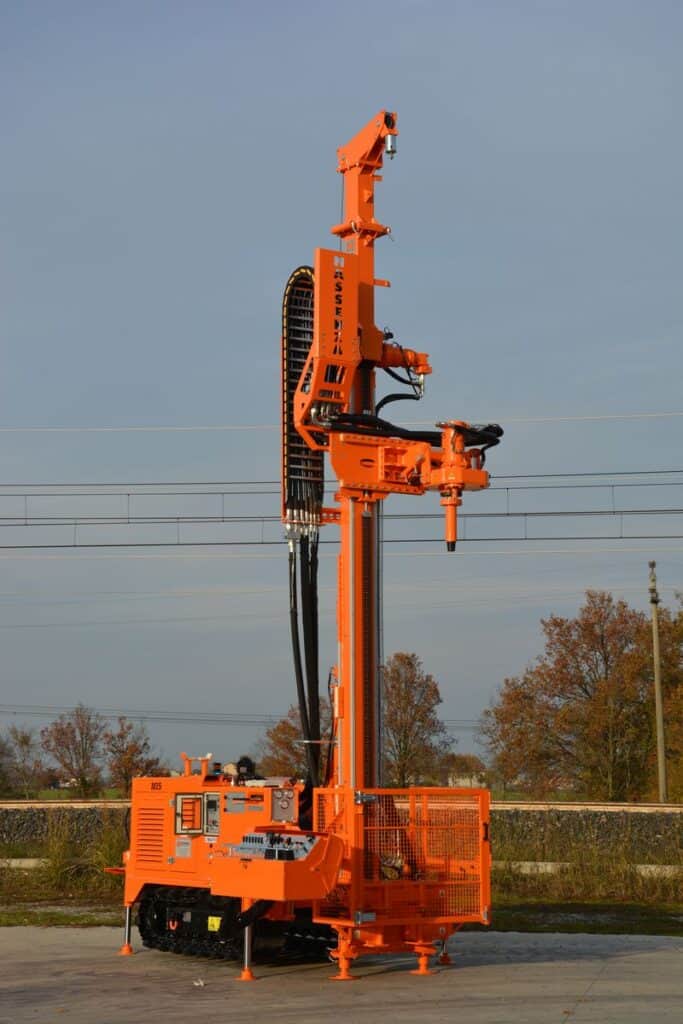

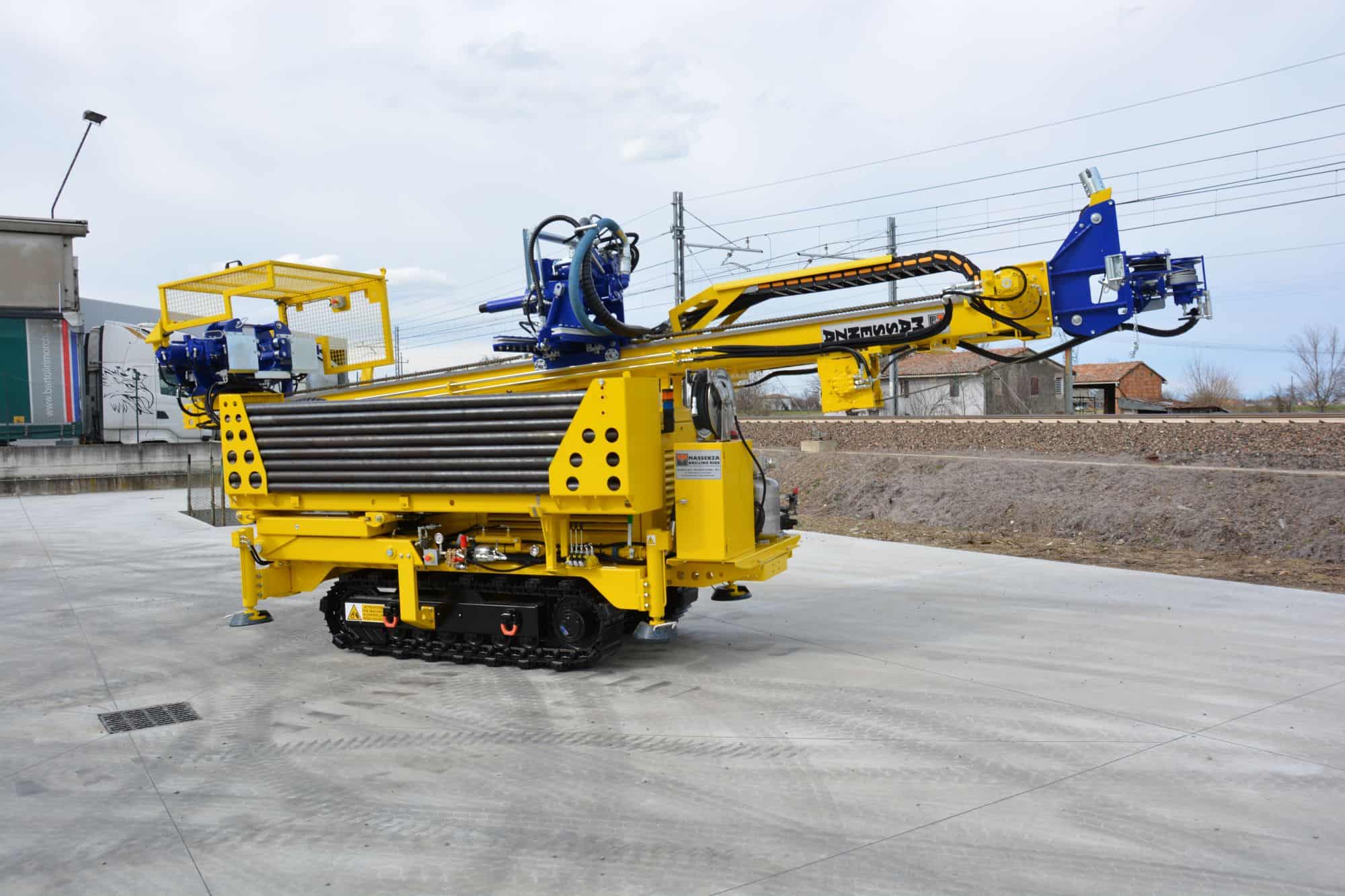

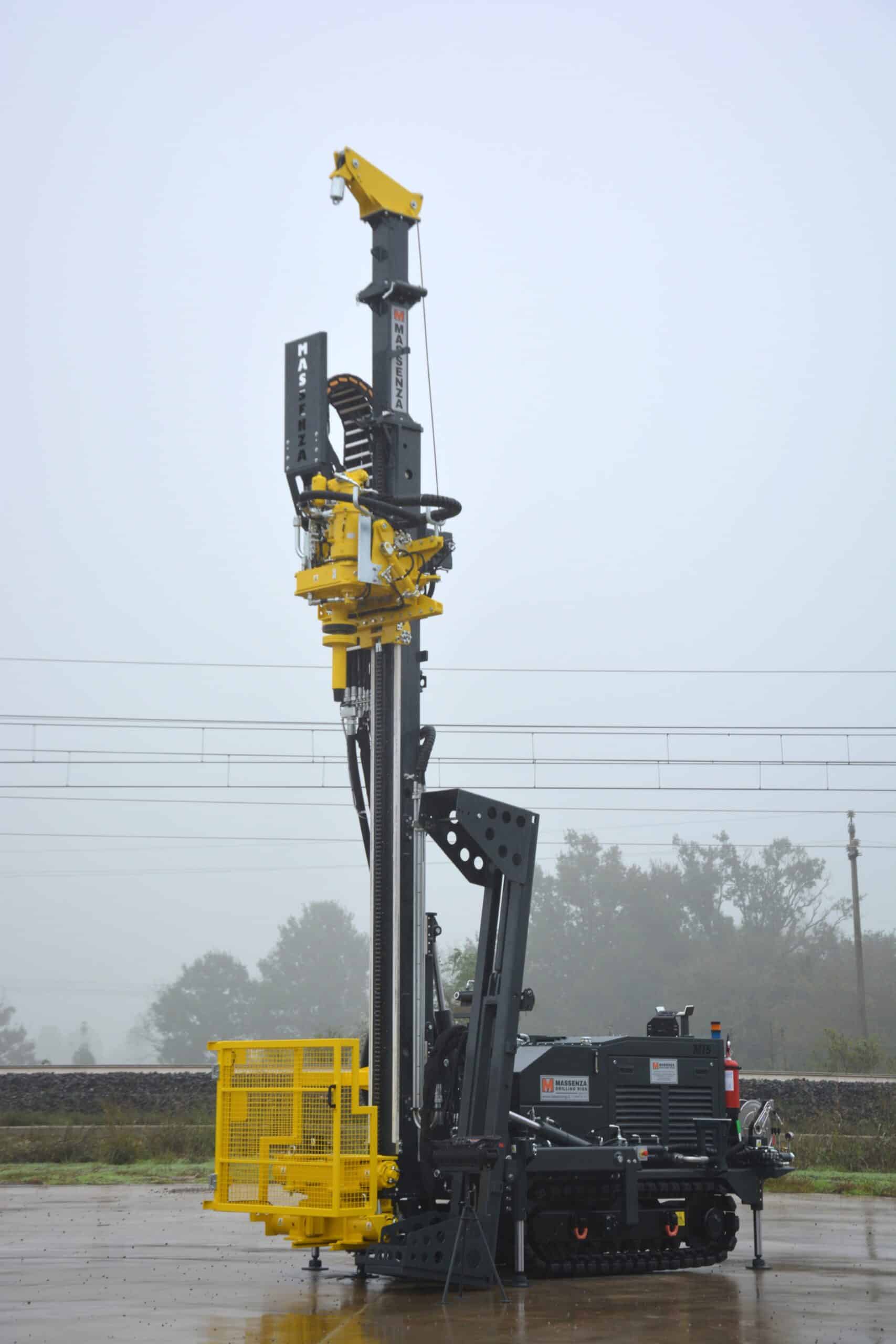

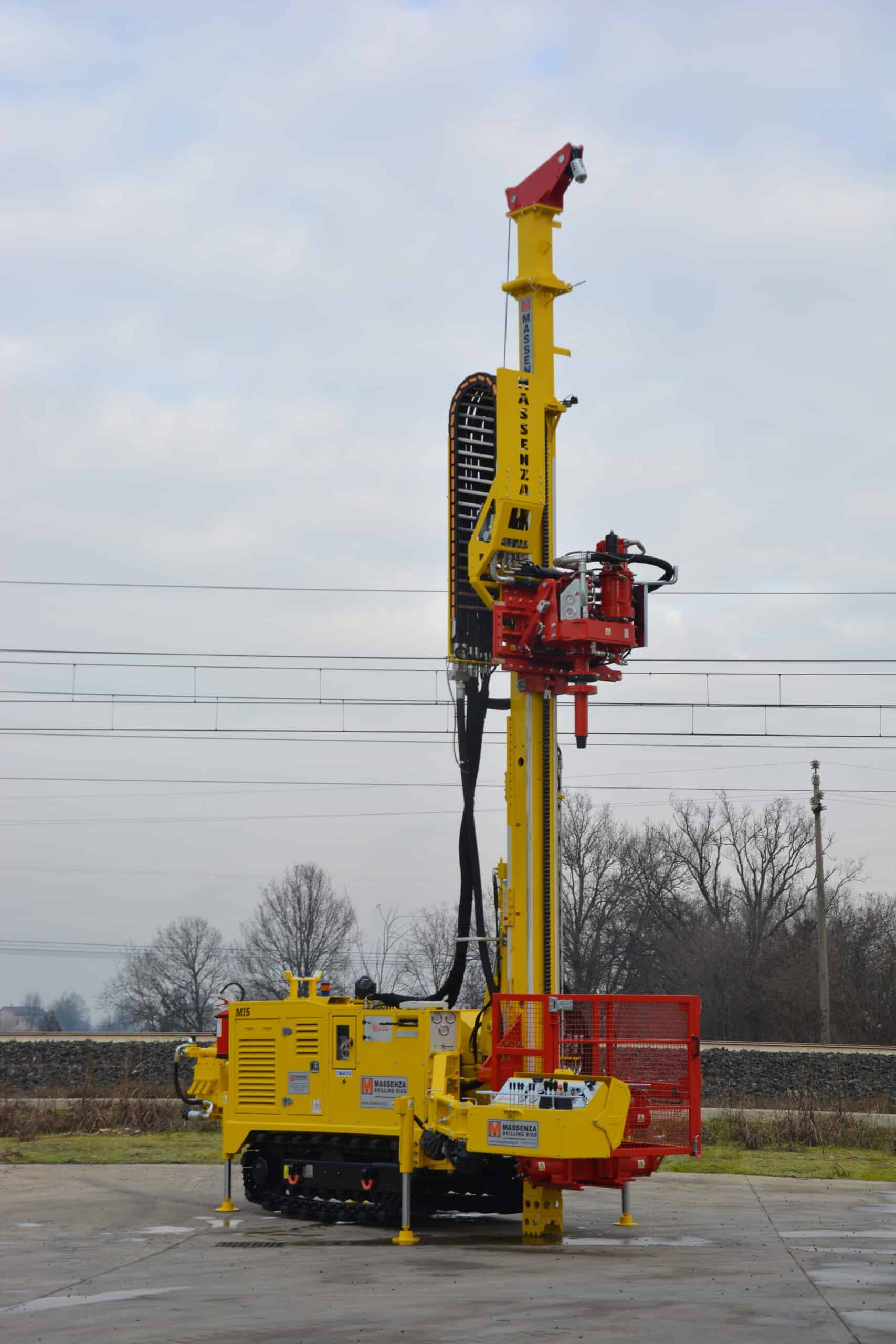

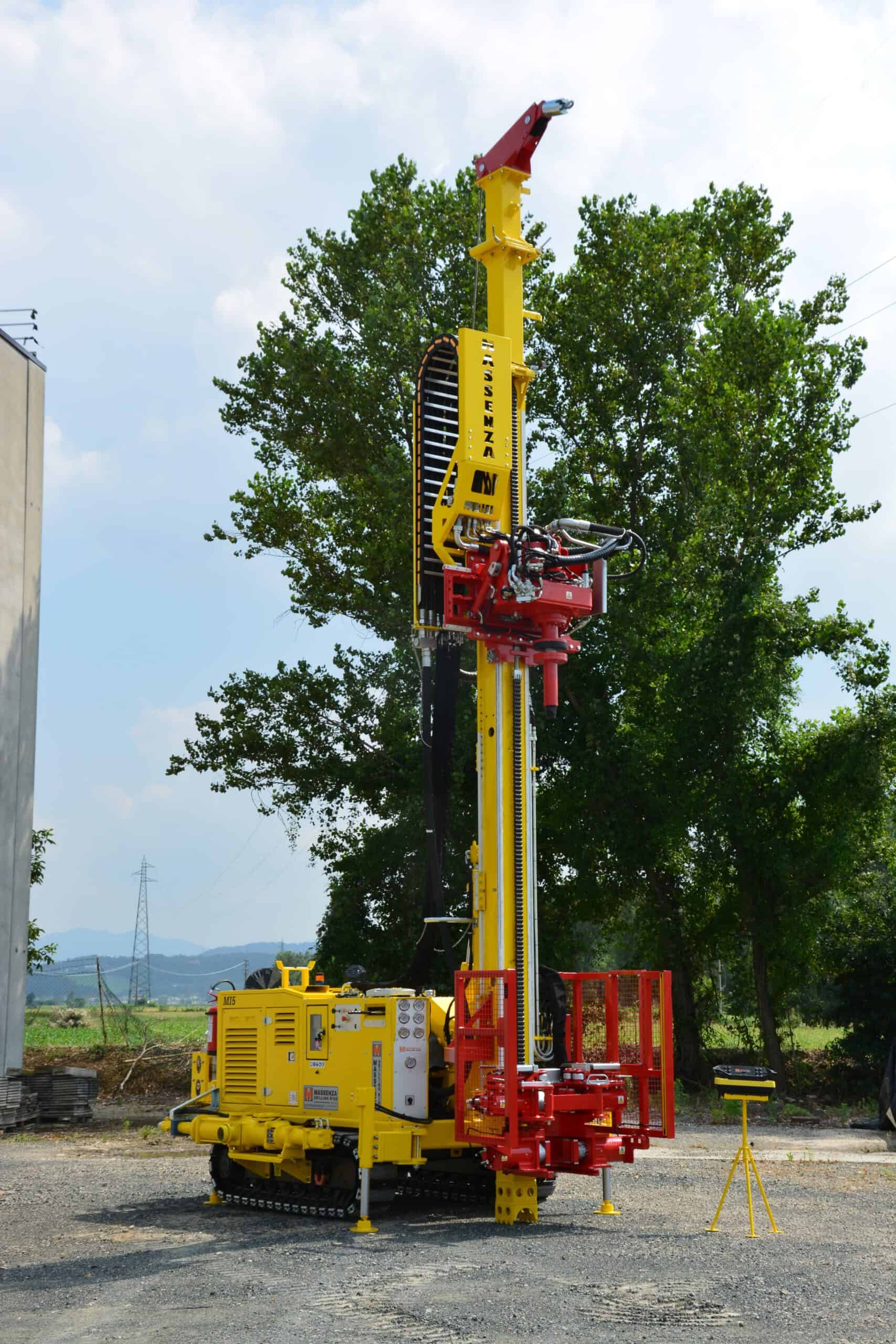

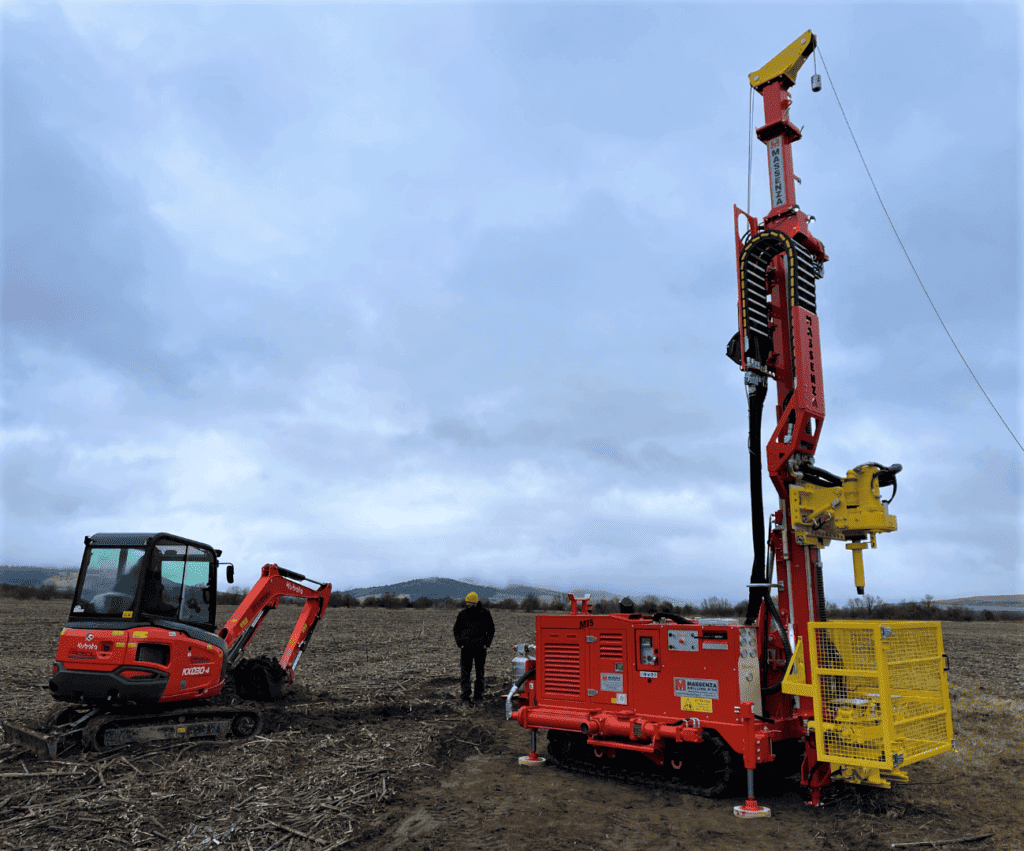

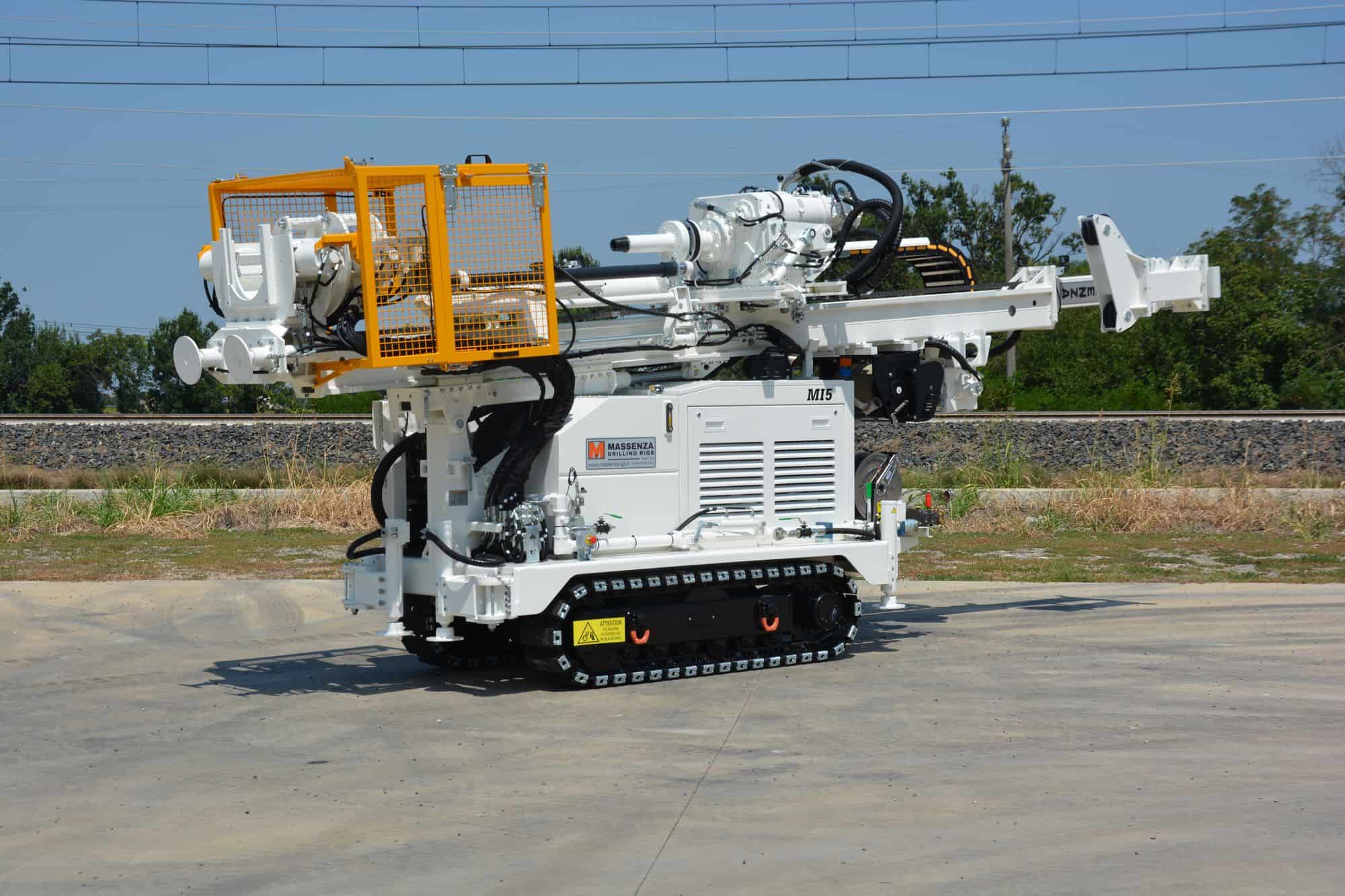

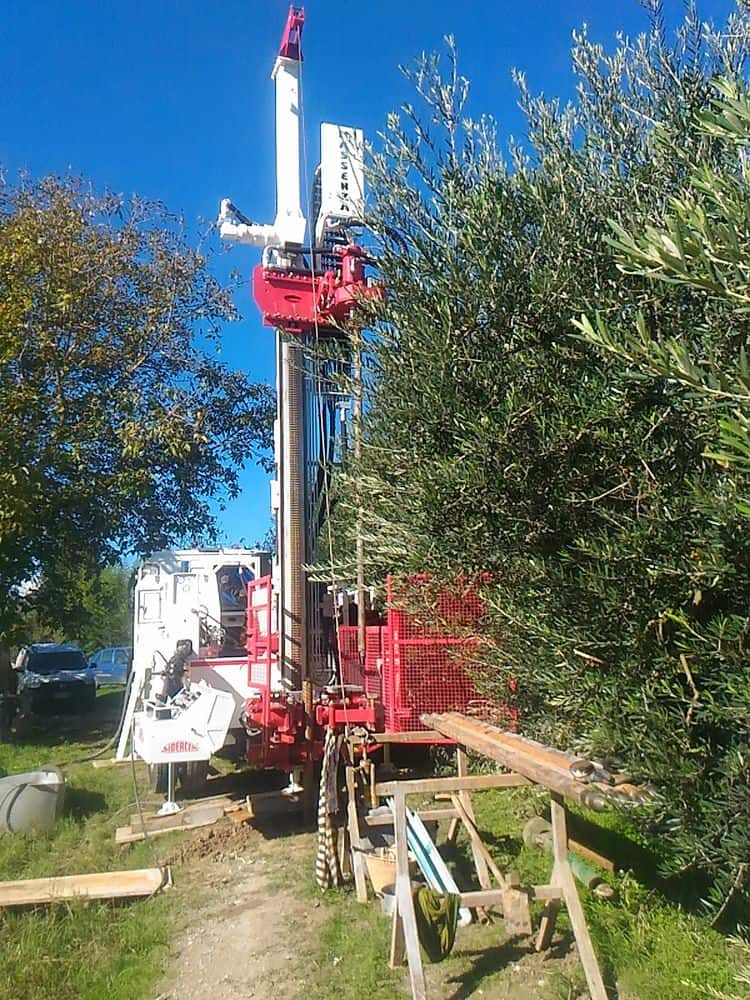

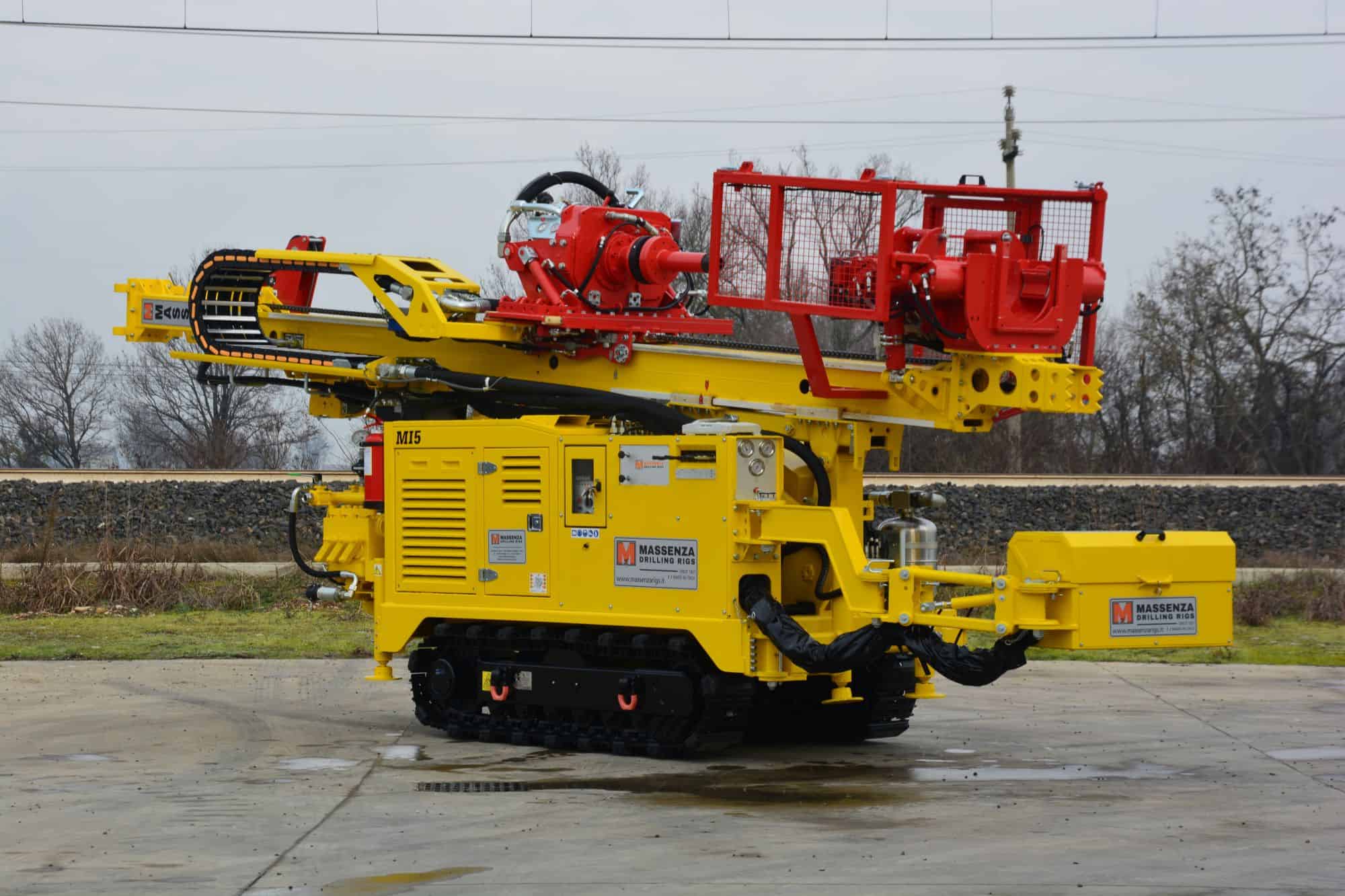

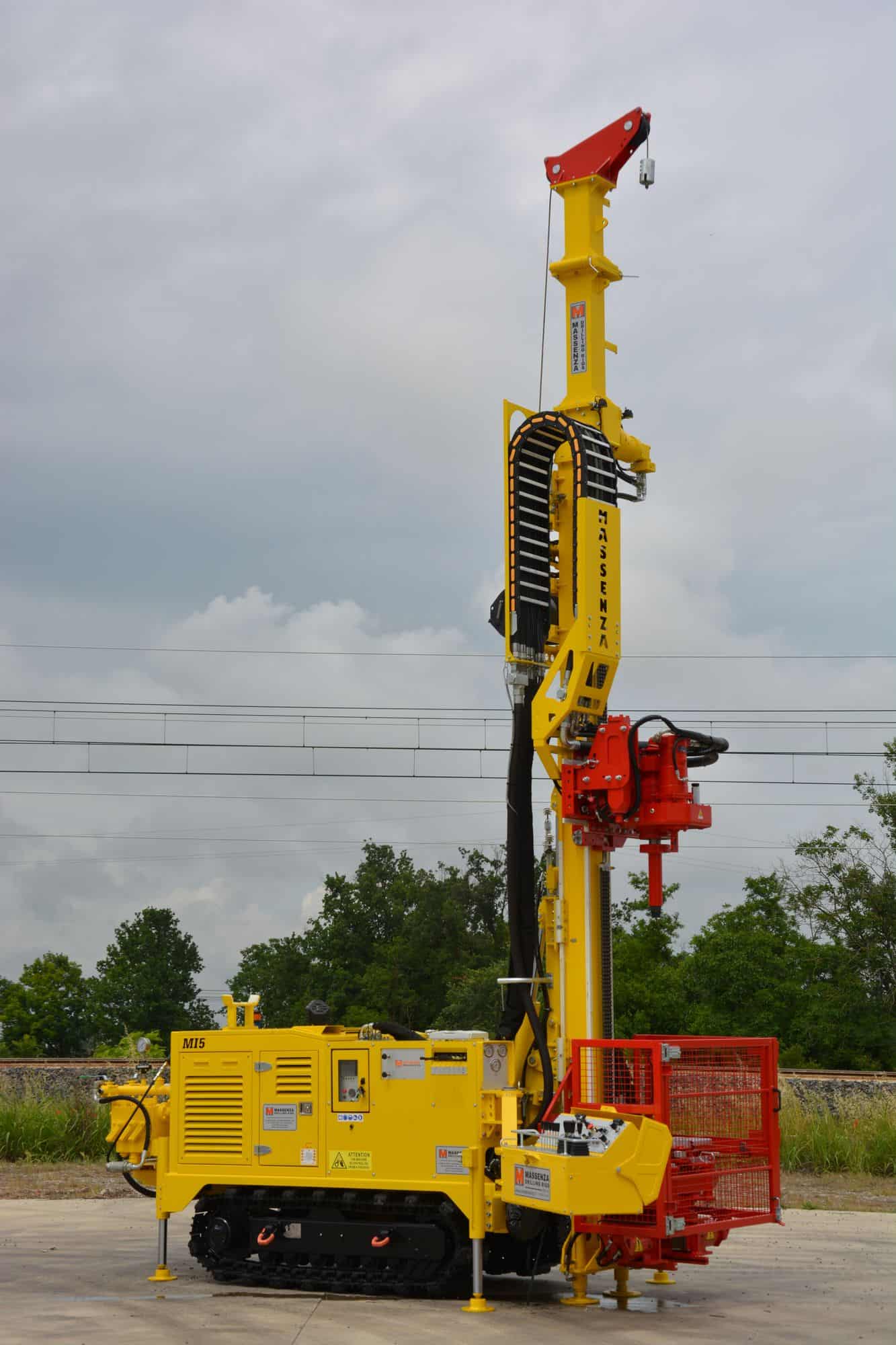

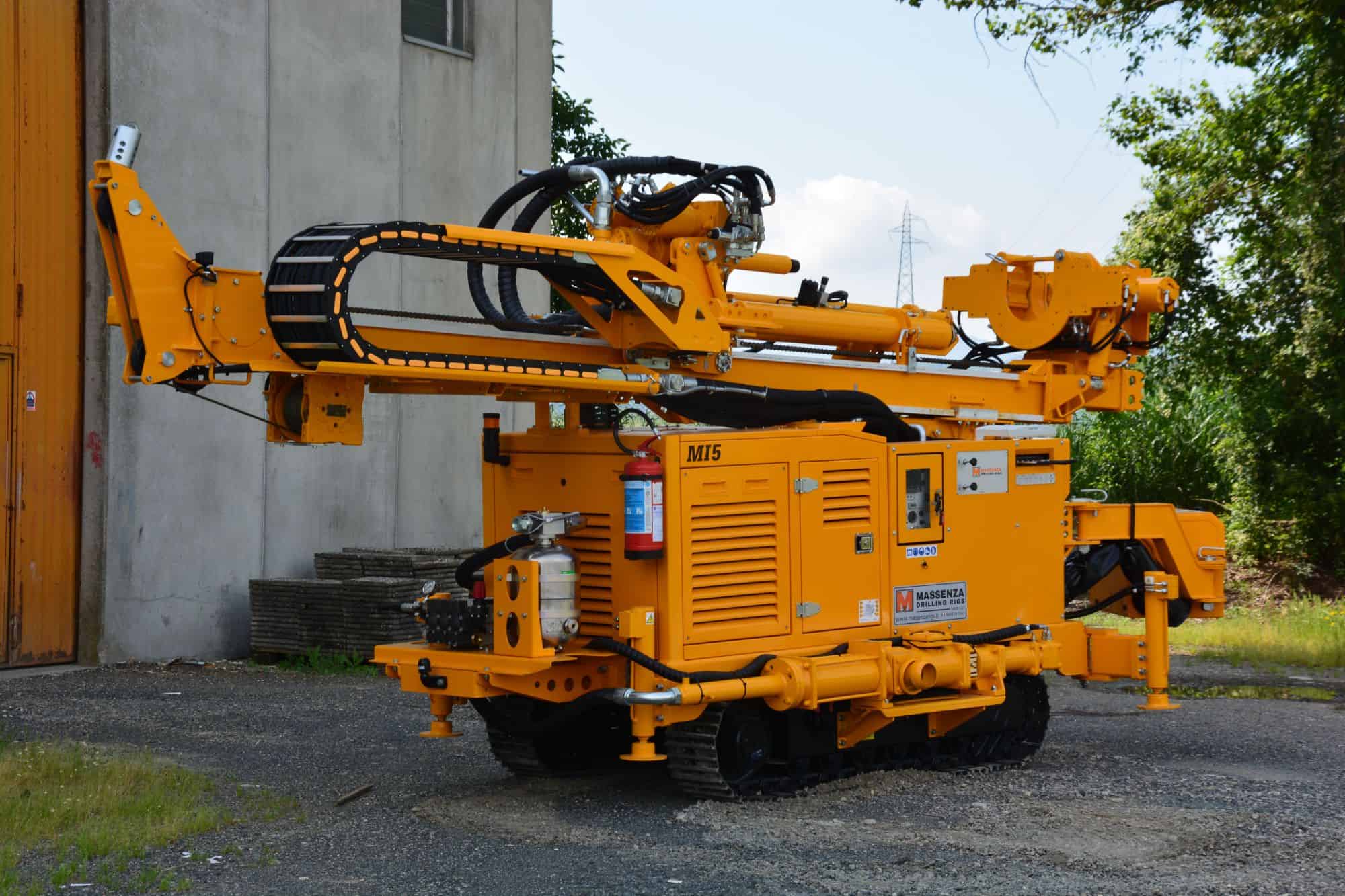

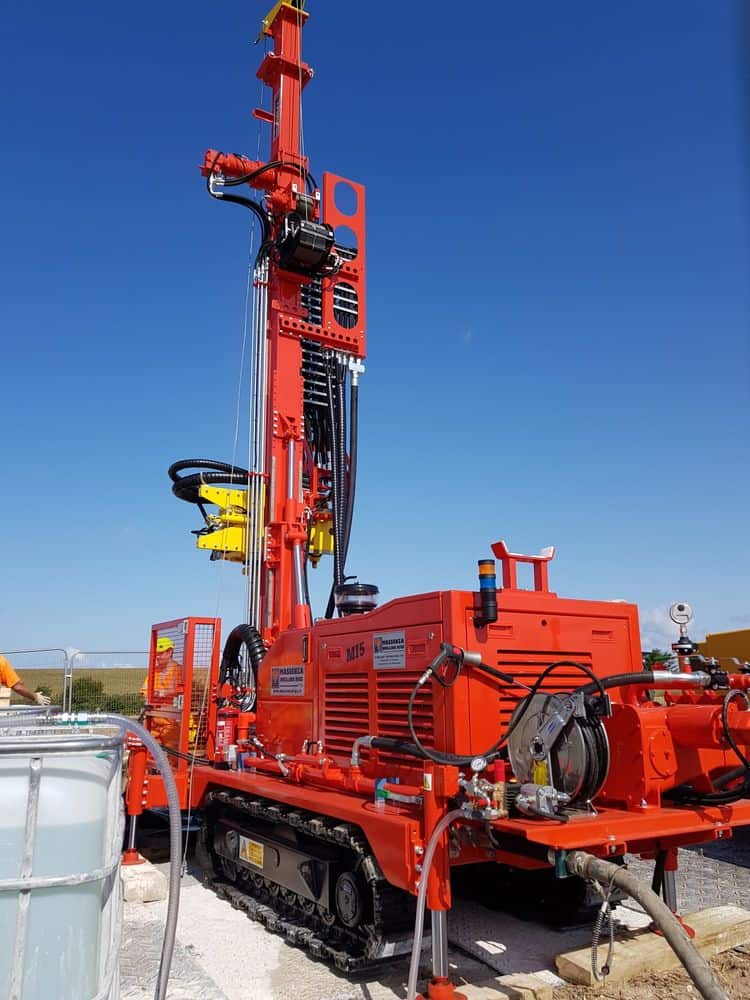

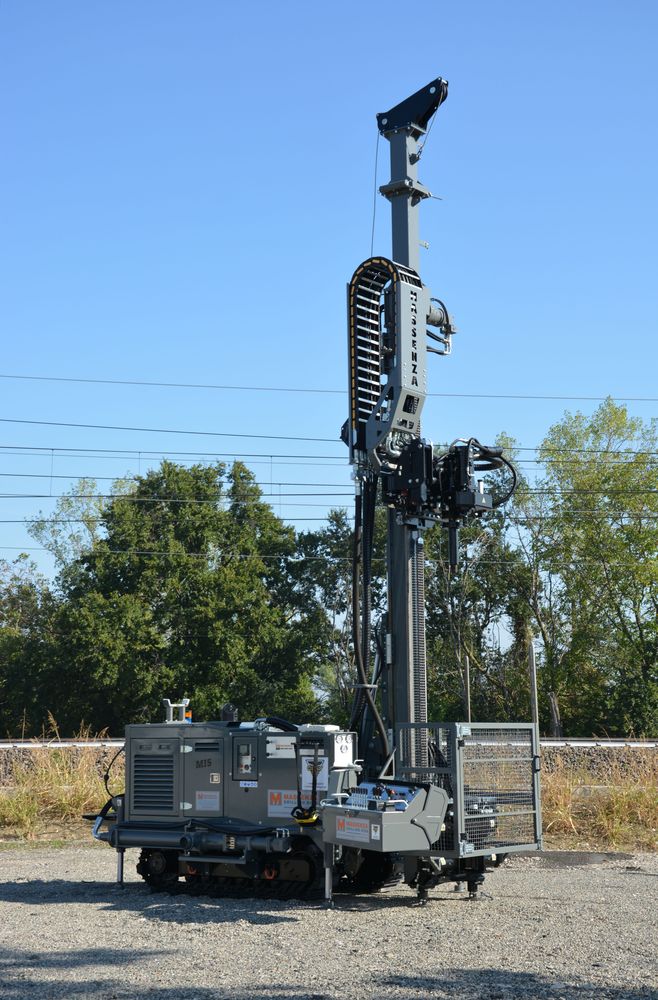

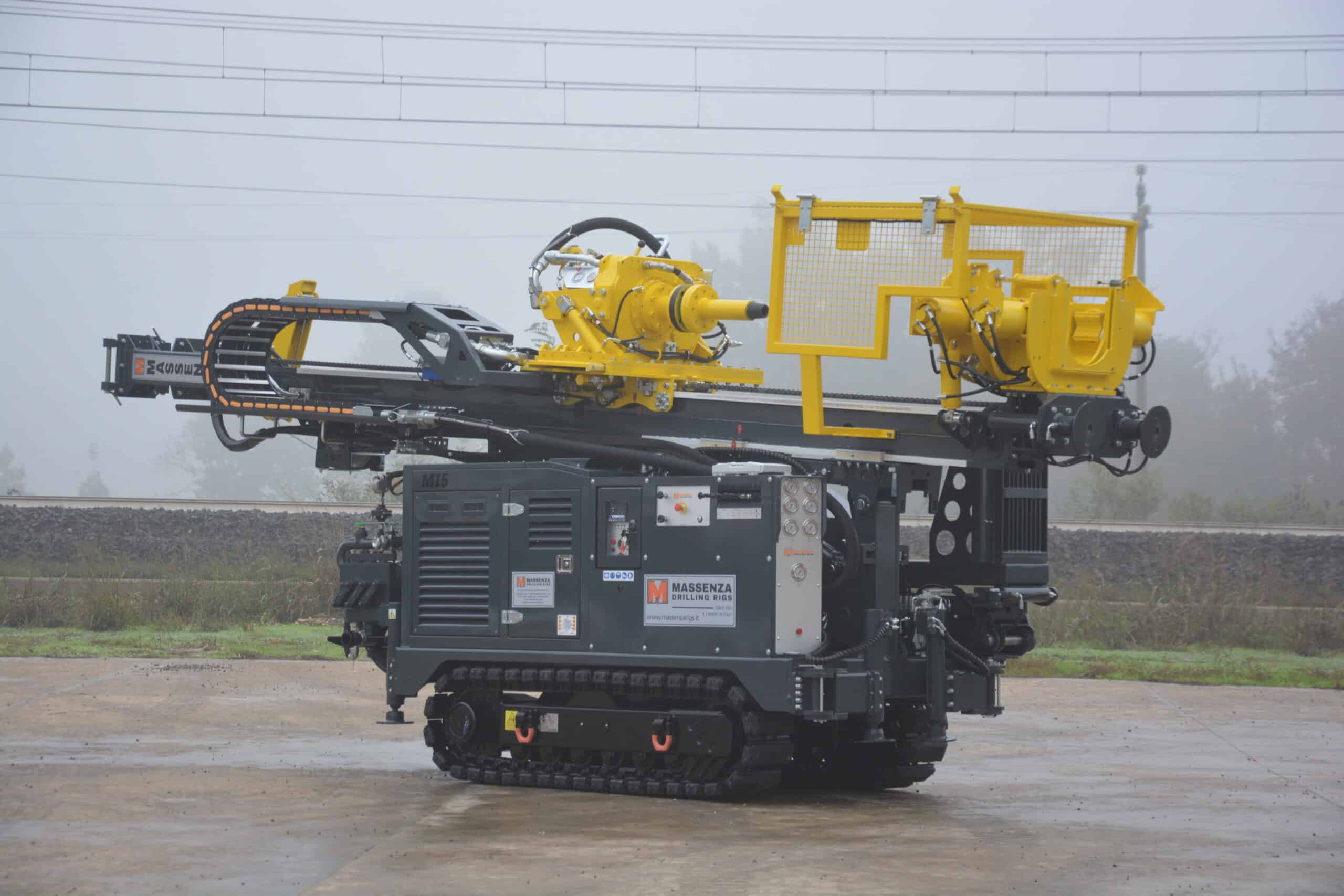

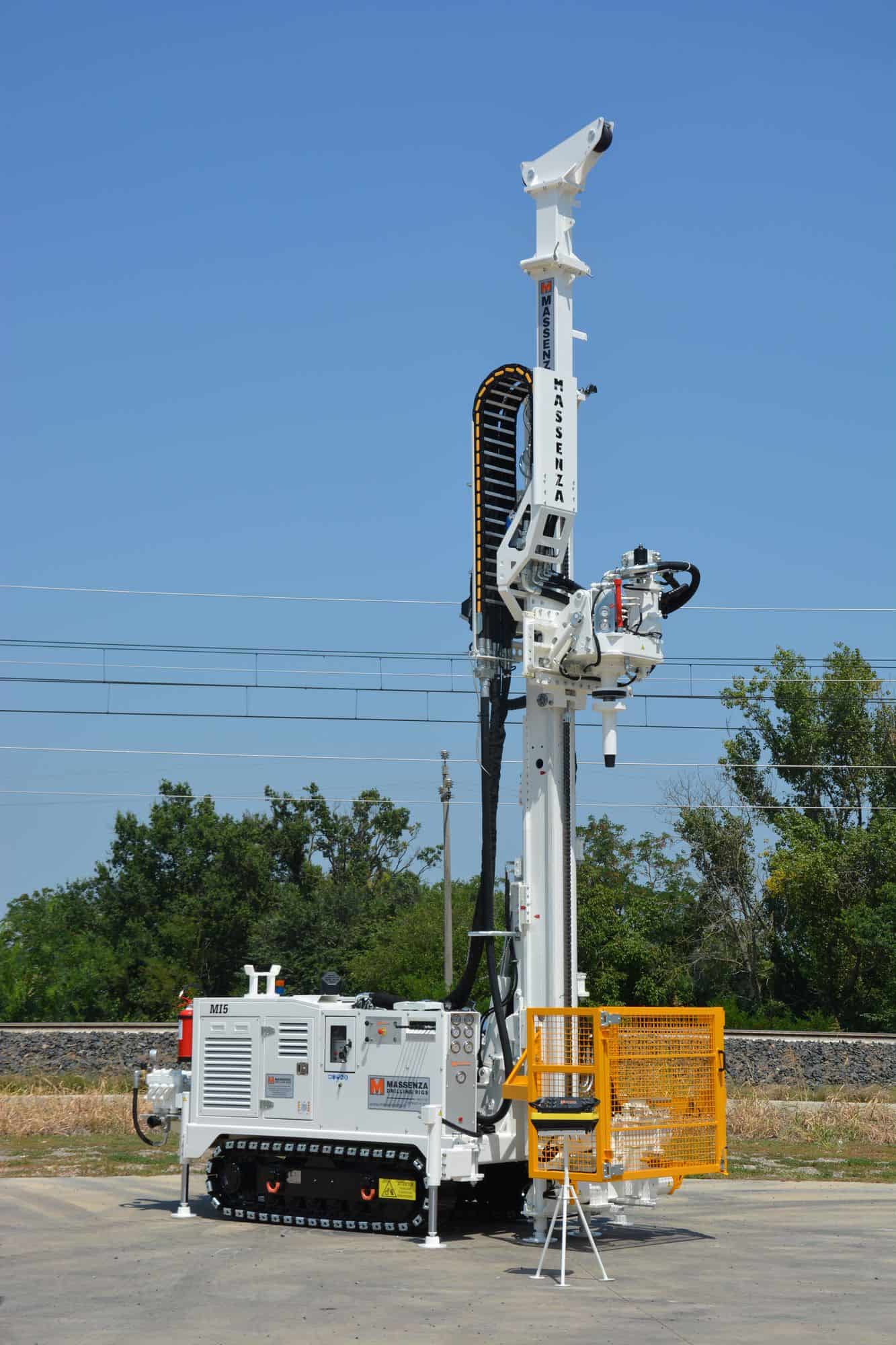

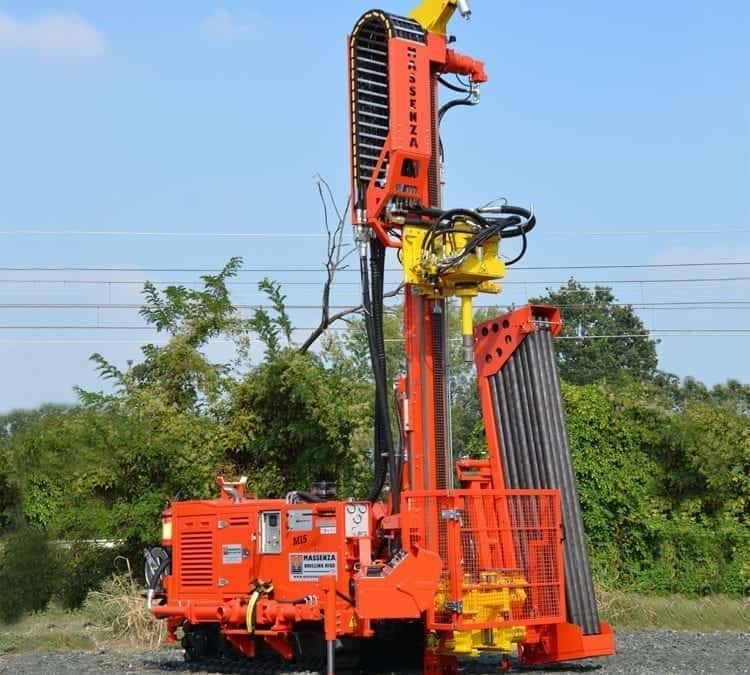

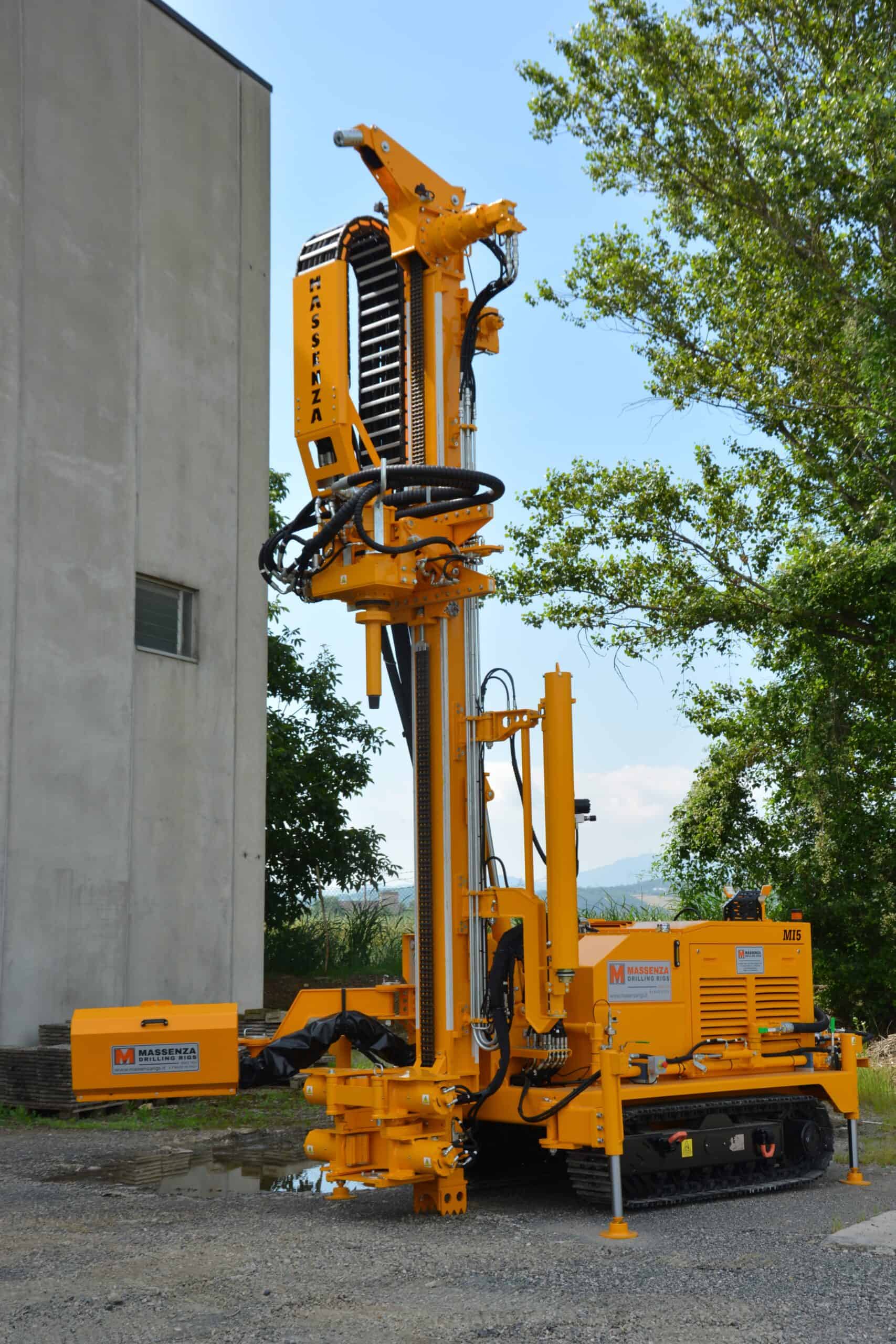

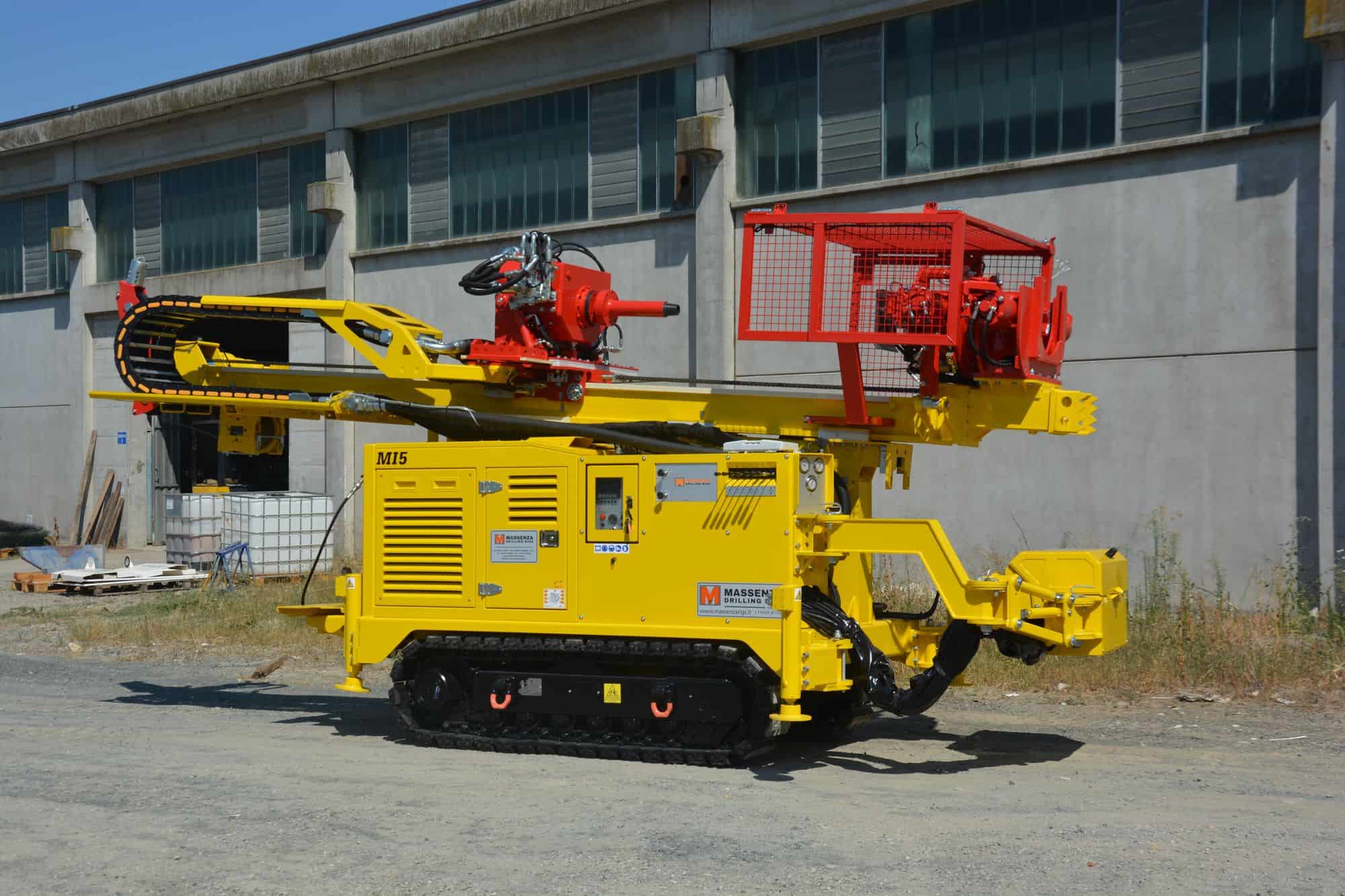

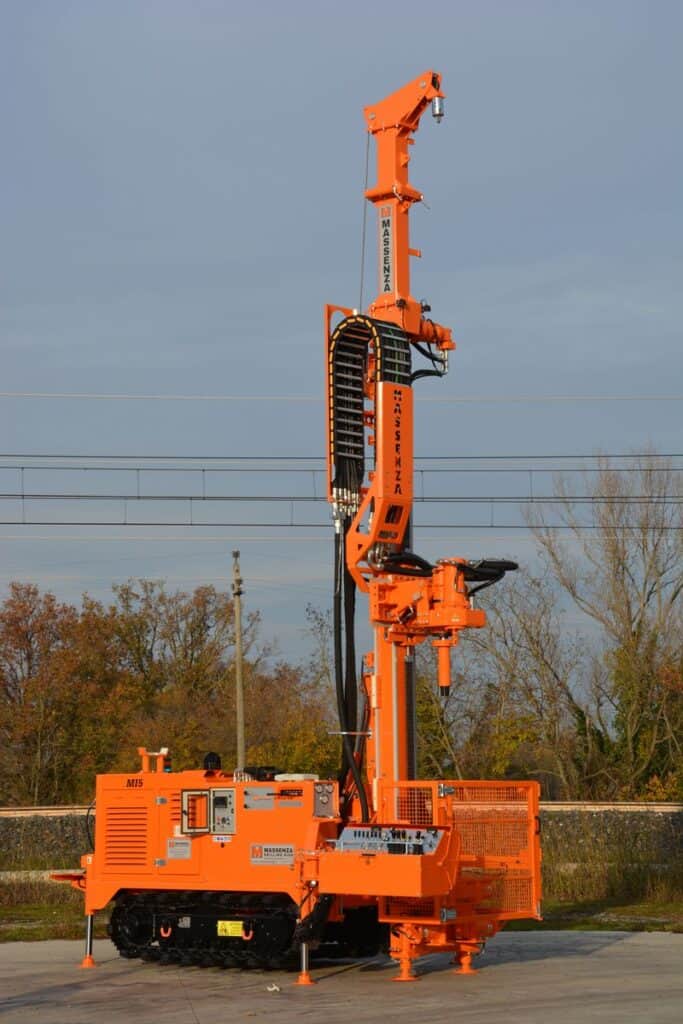

DRILLING RIG Mi5
DESCRIPTION

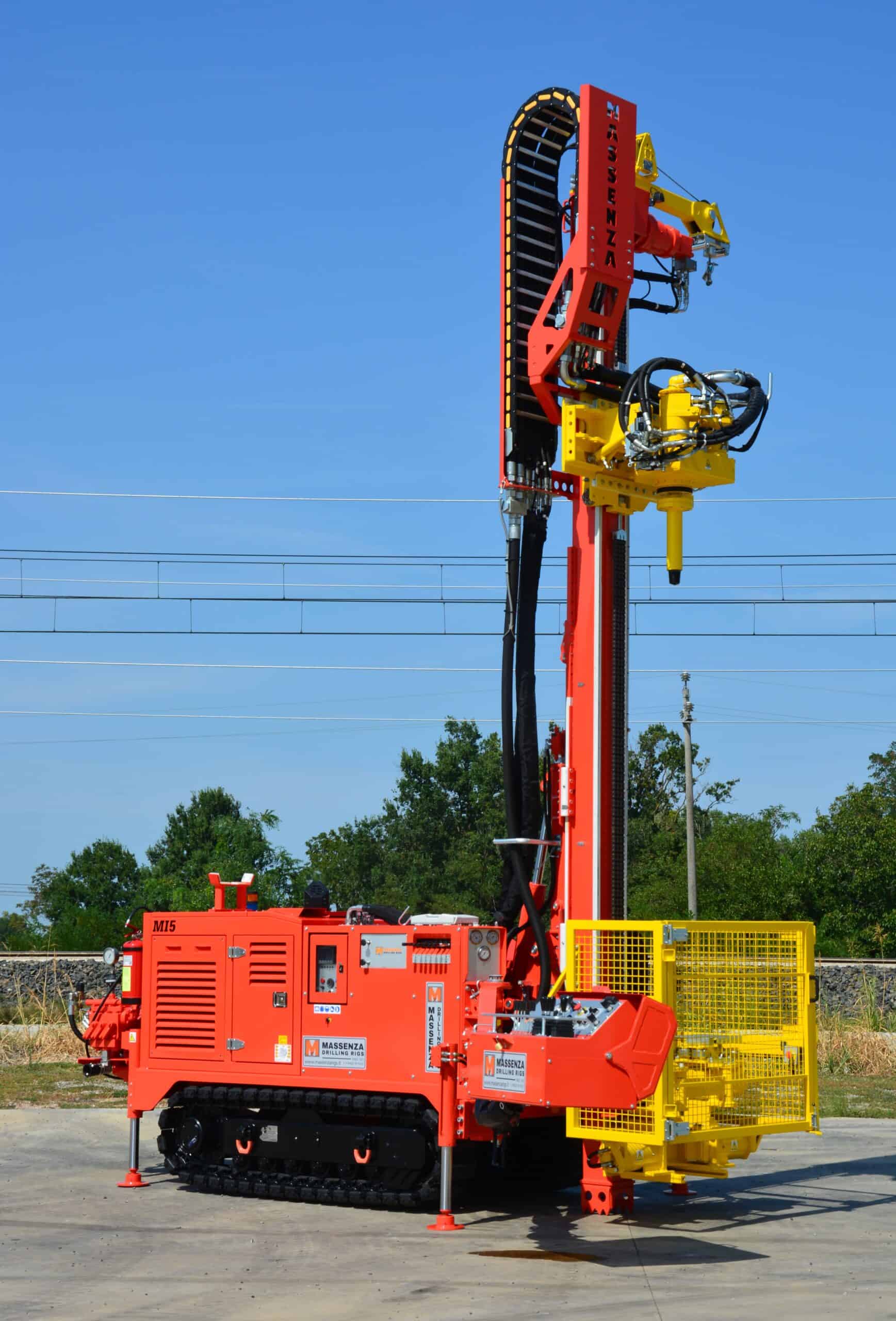

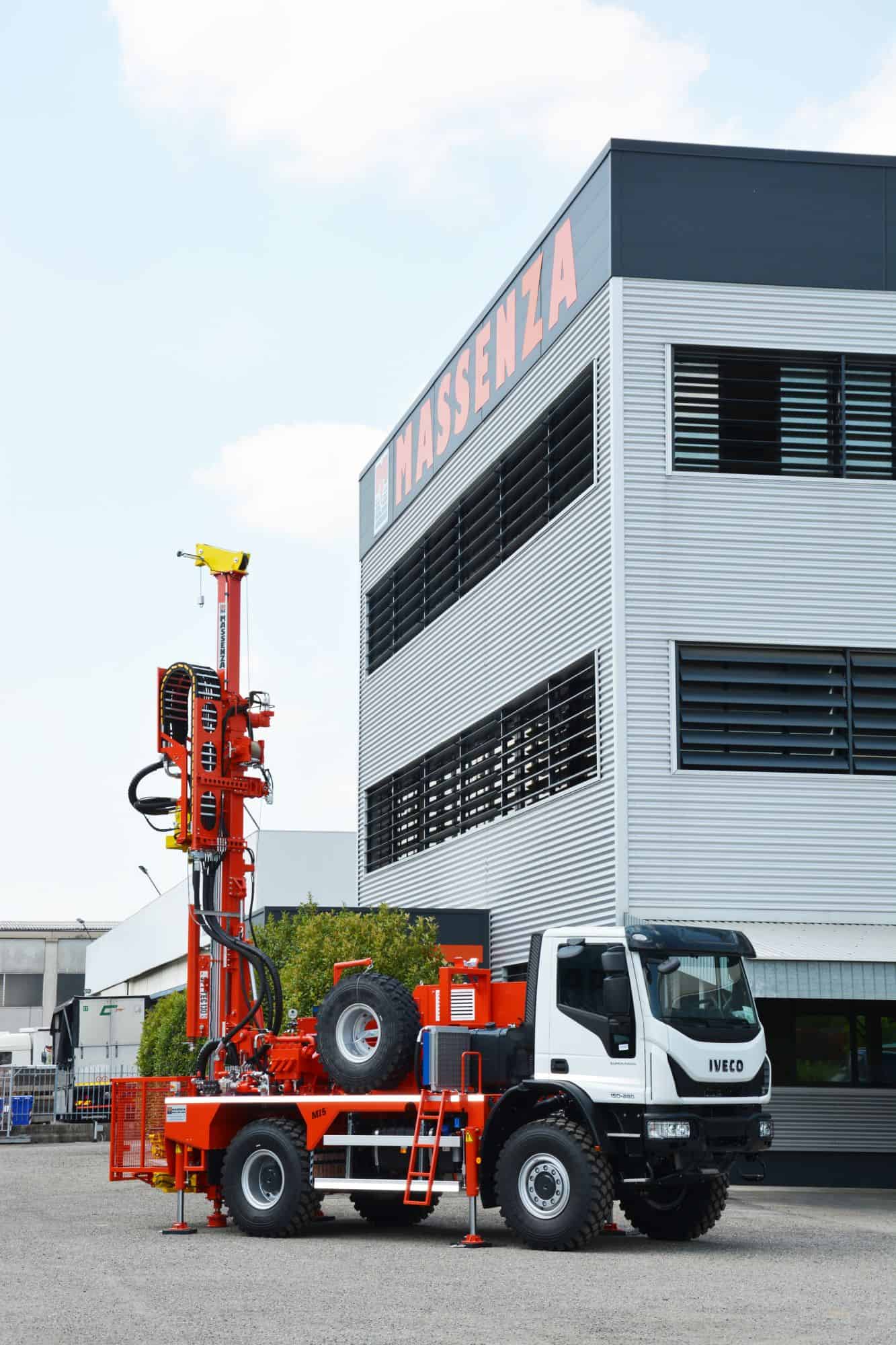

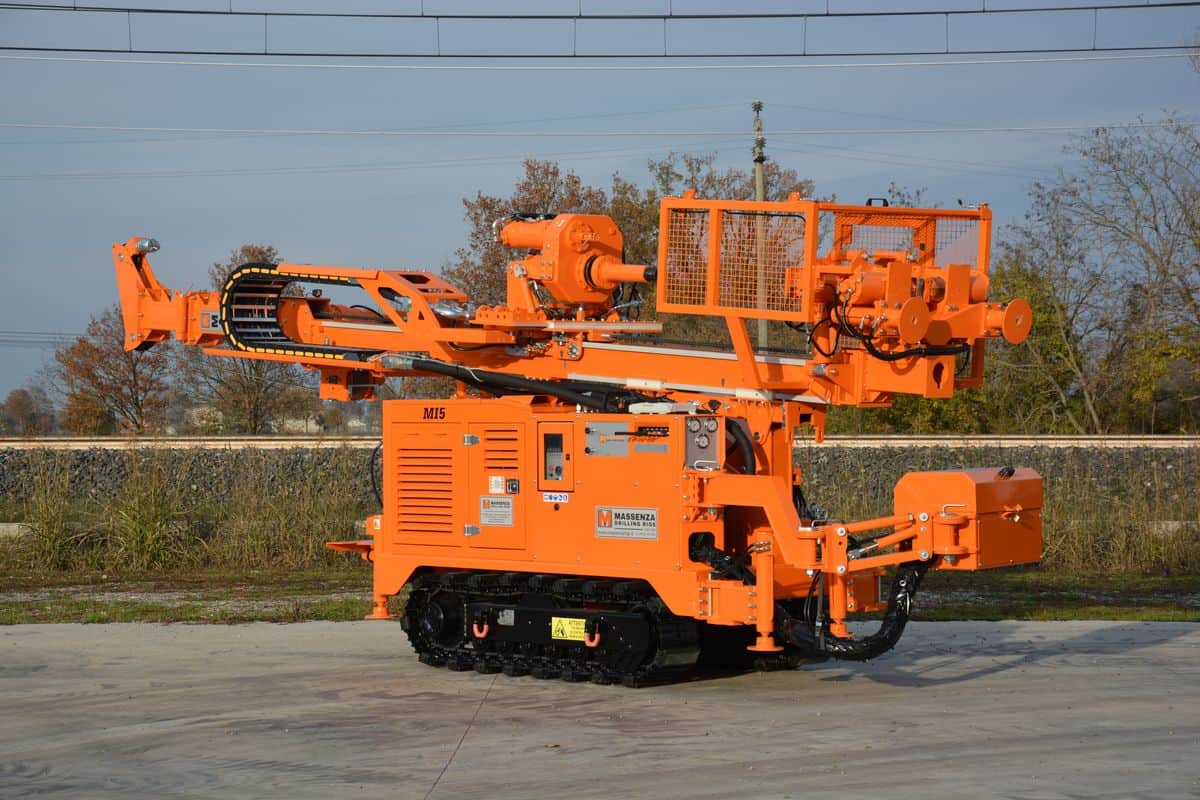

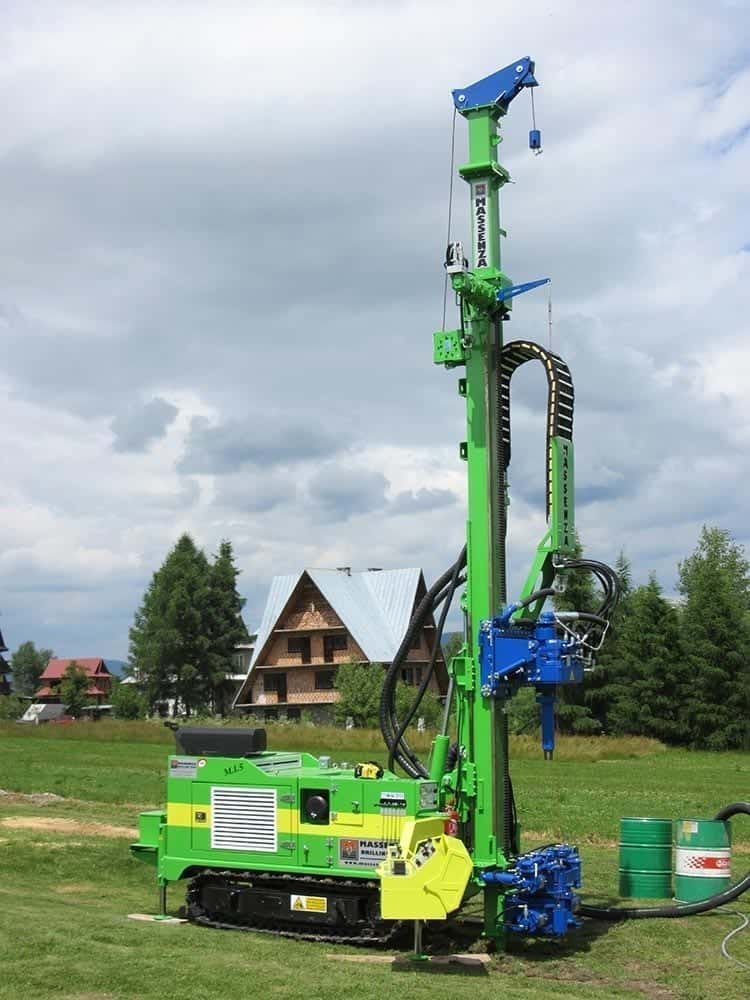

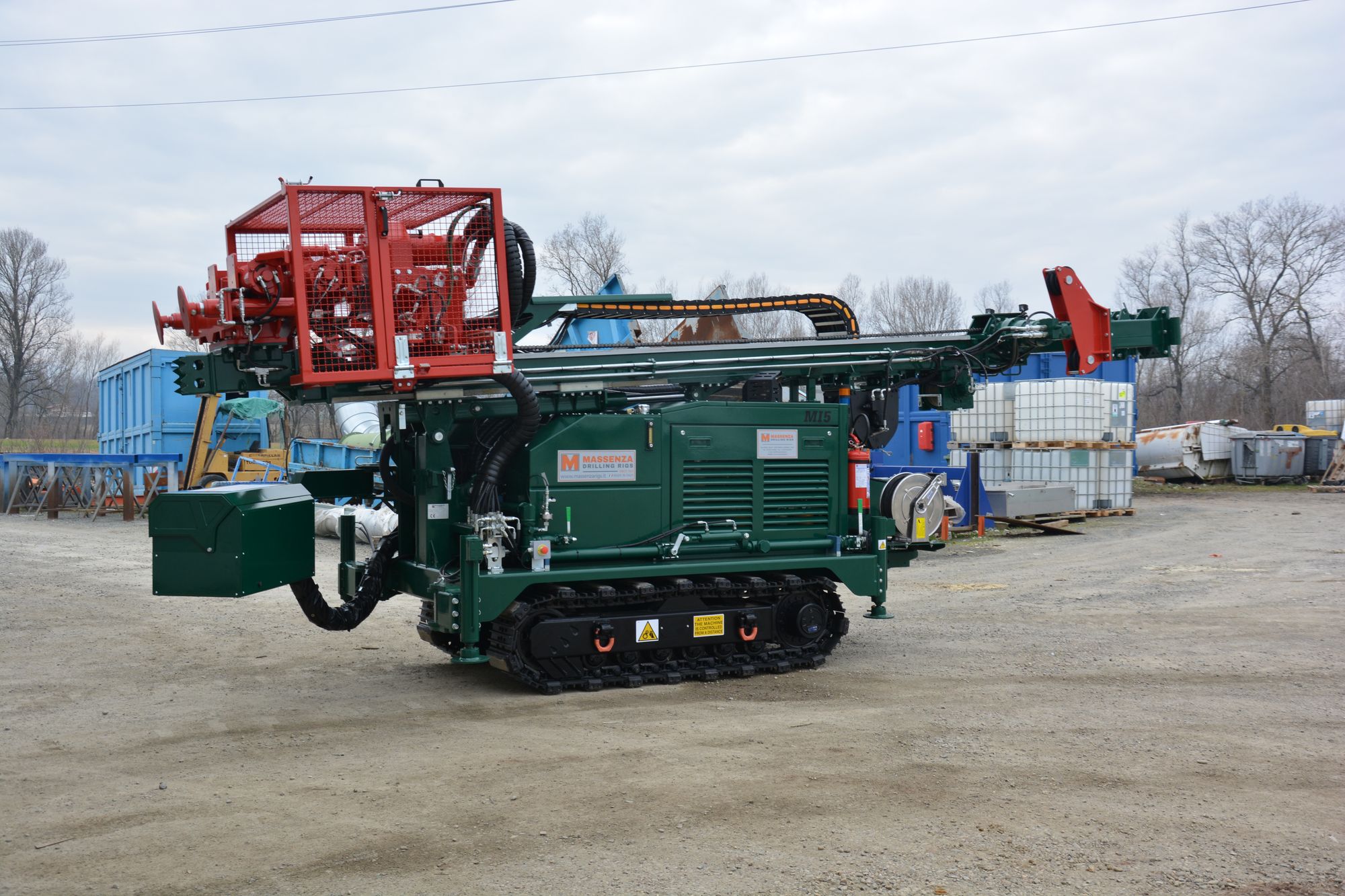

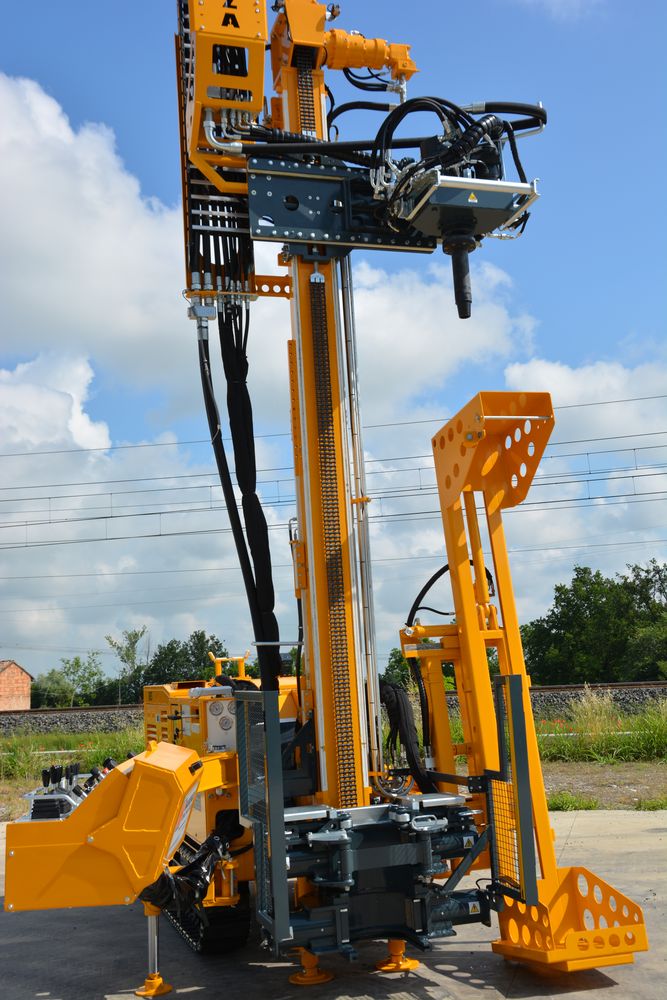

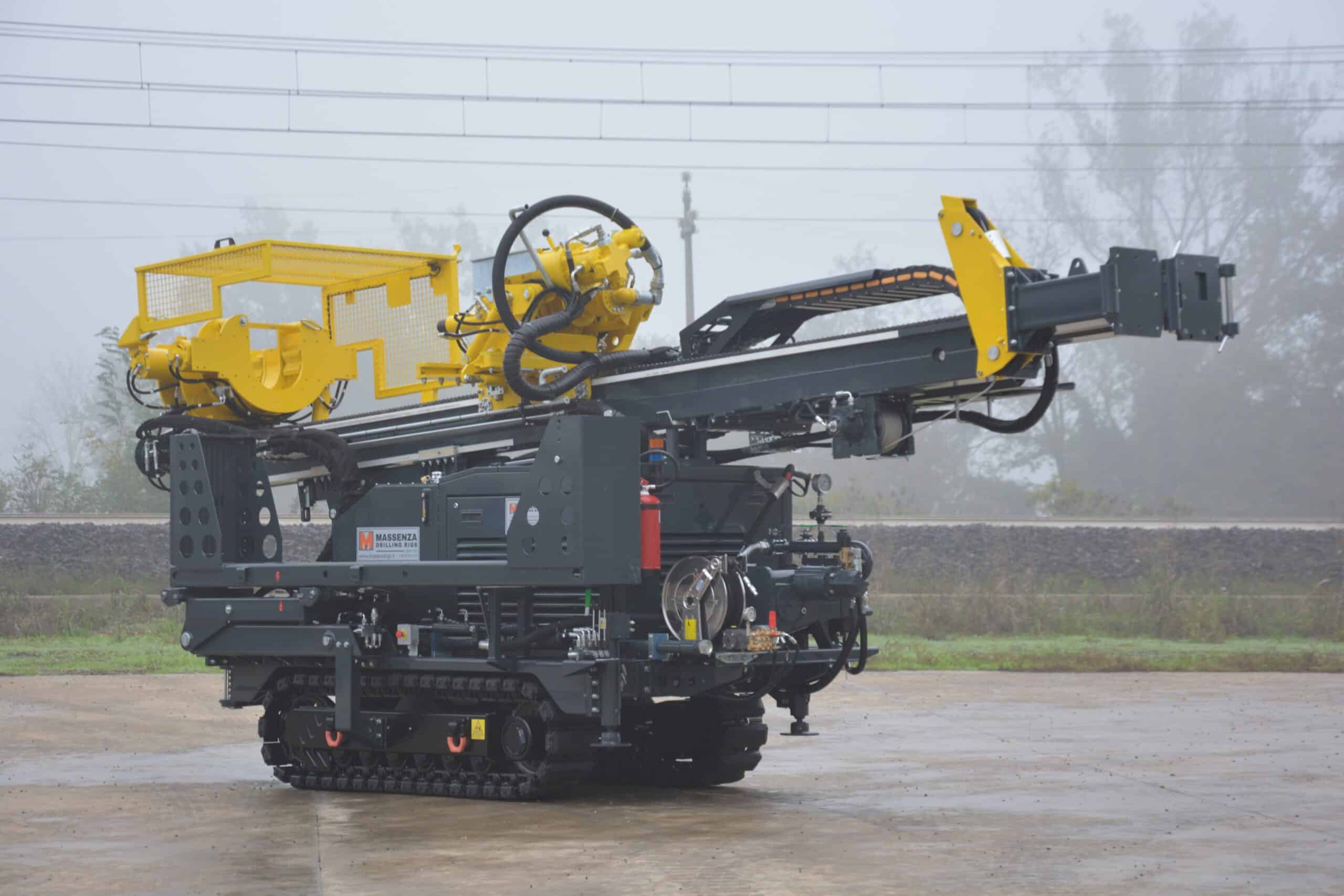

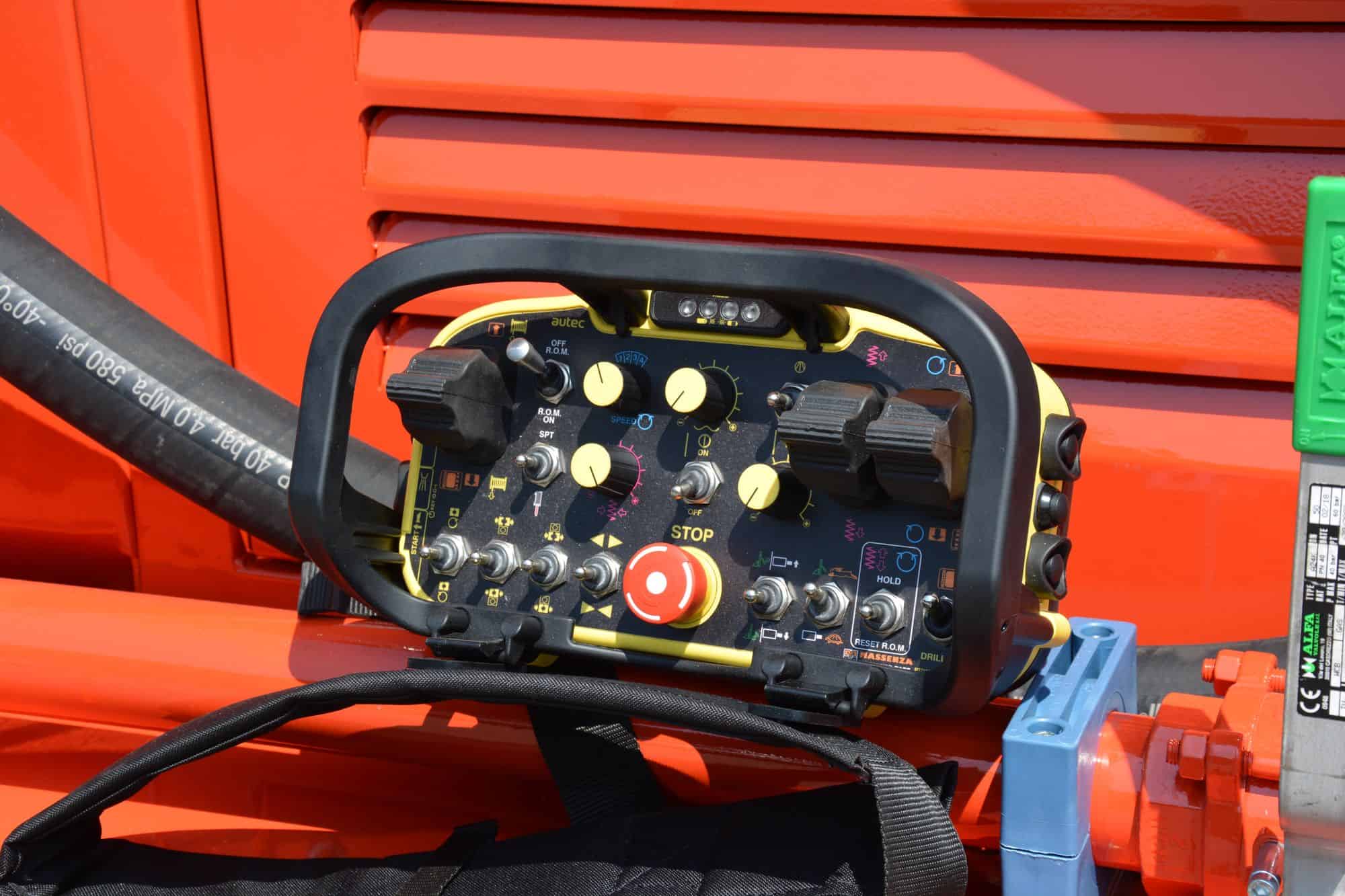

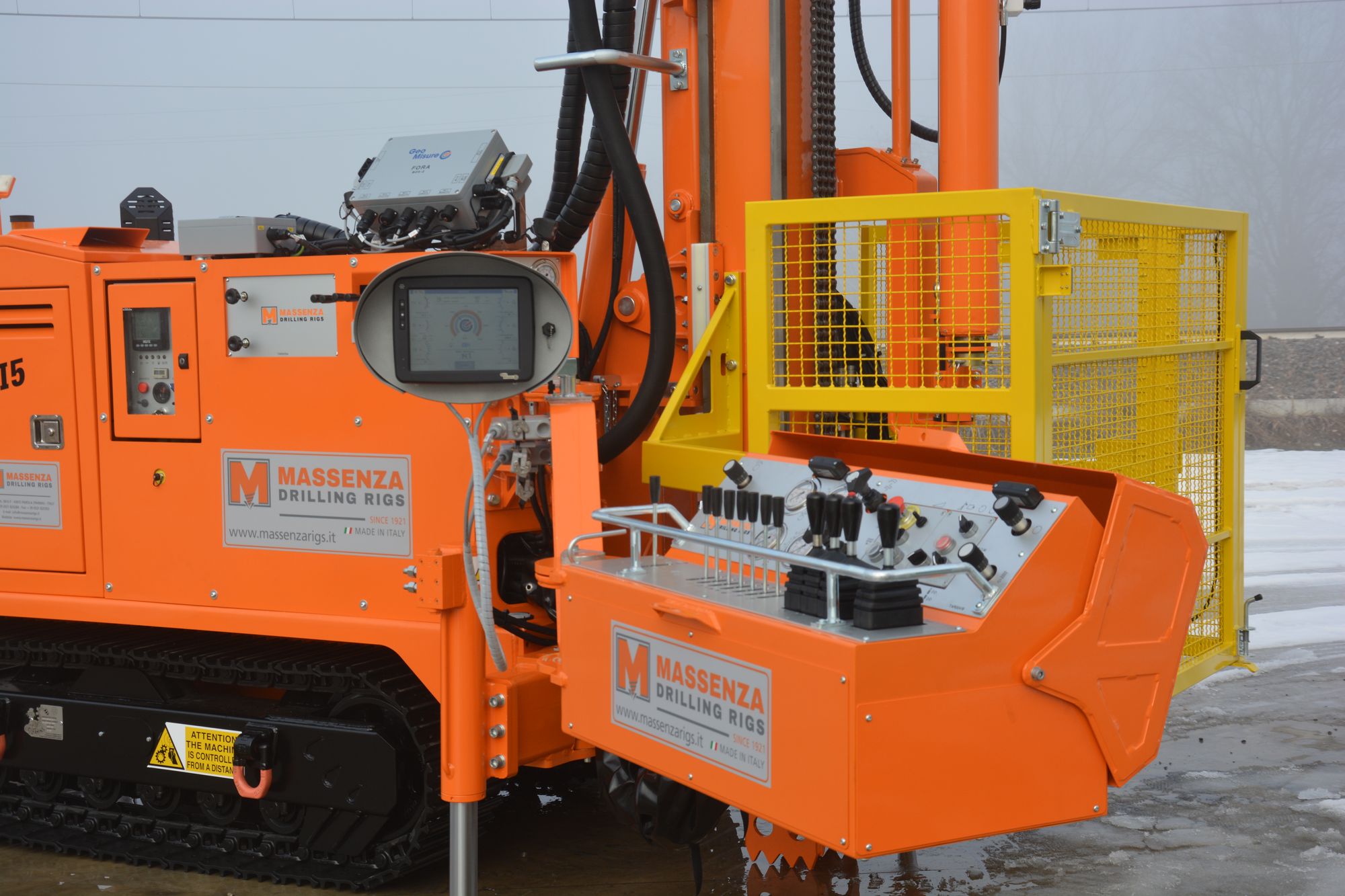

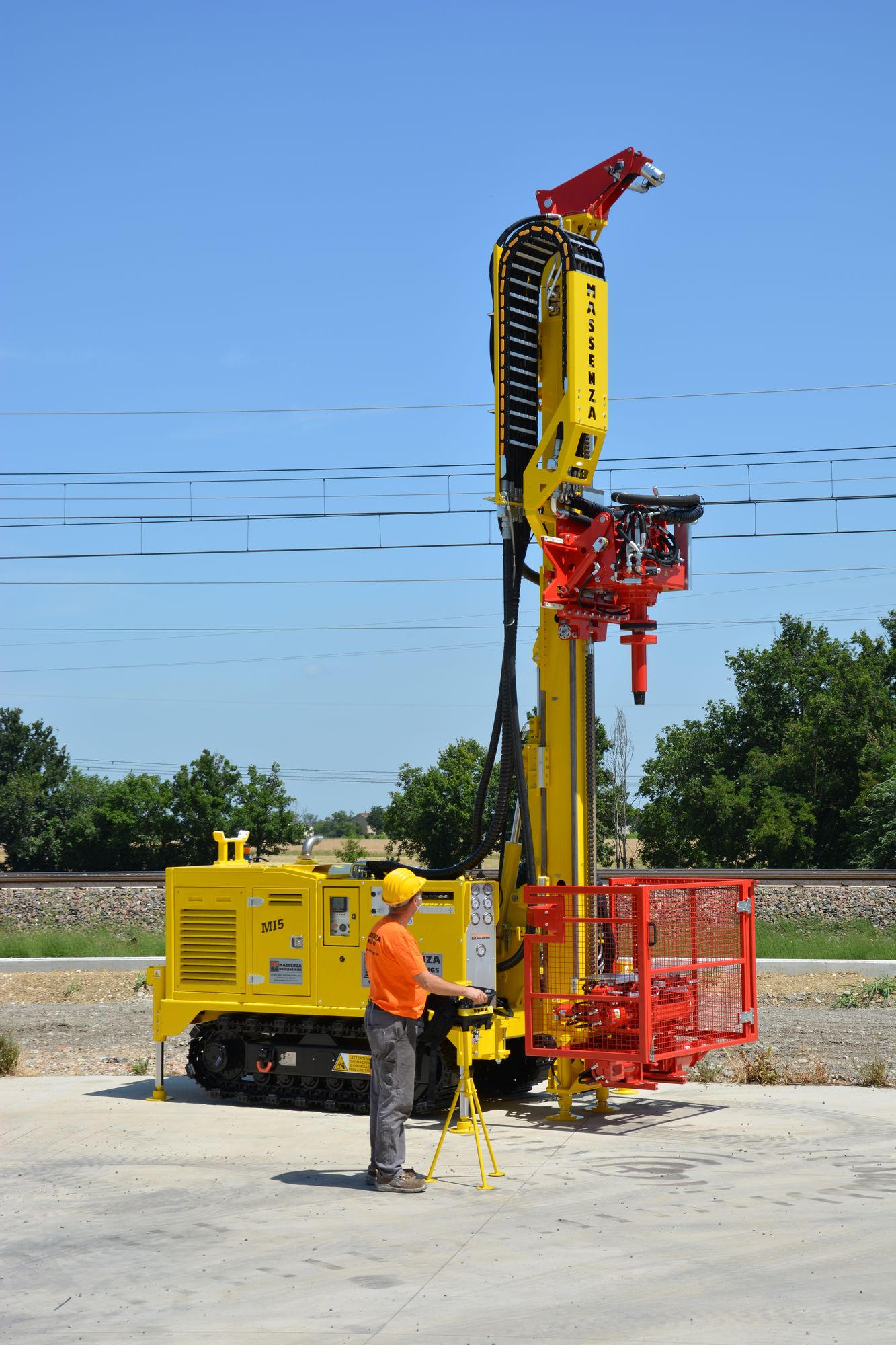

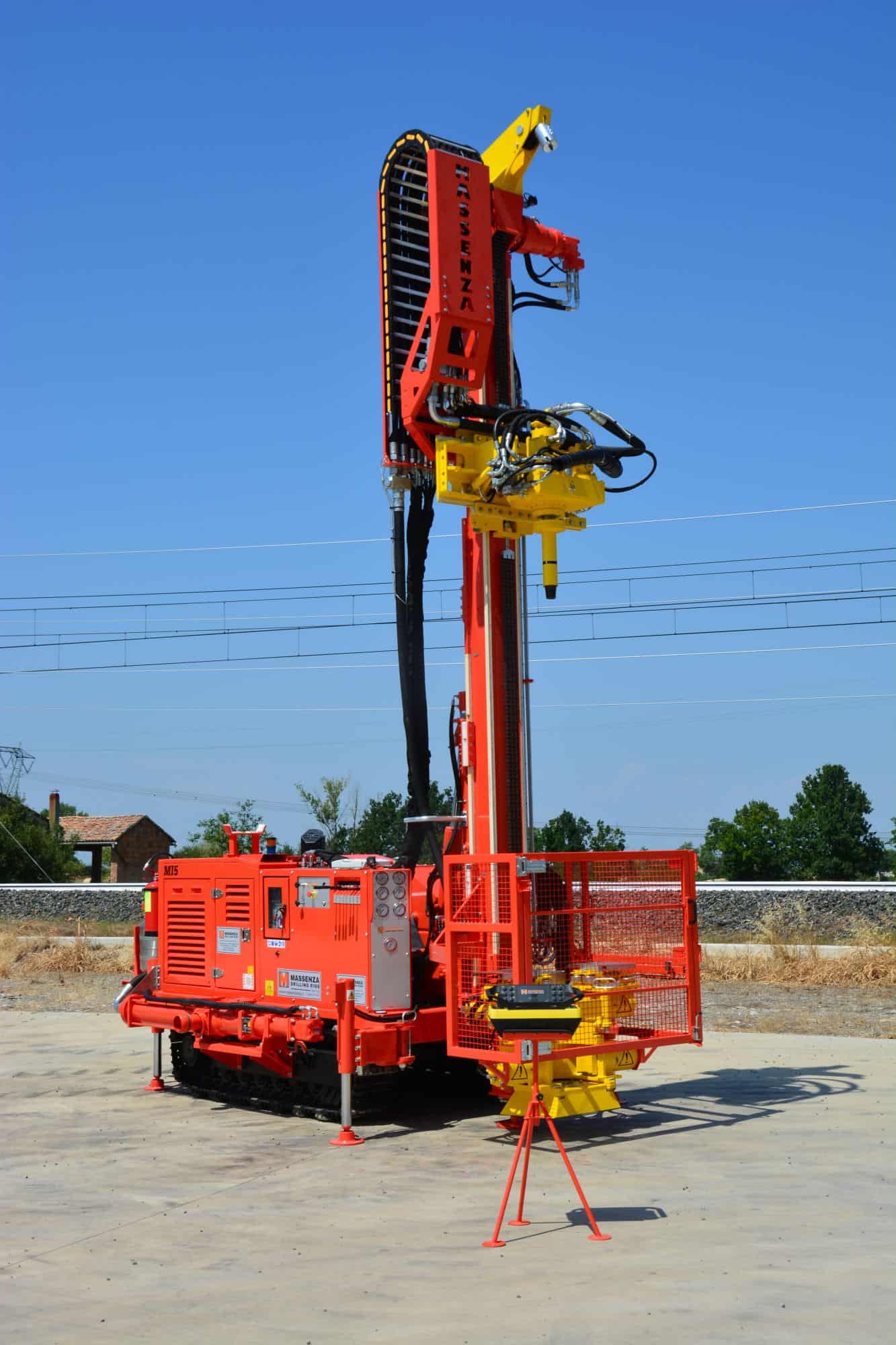

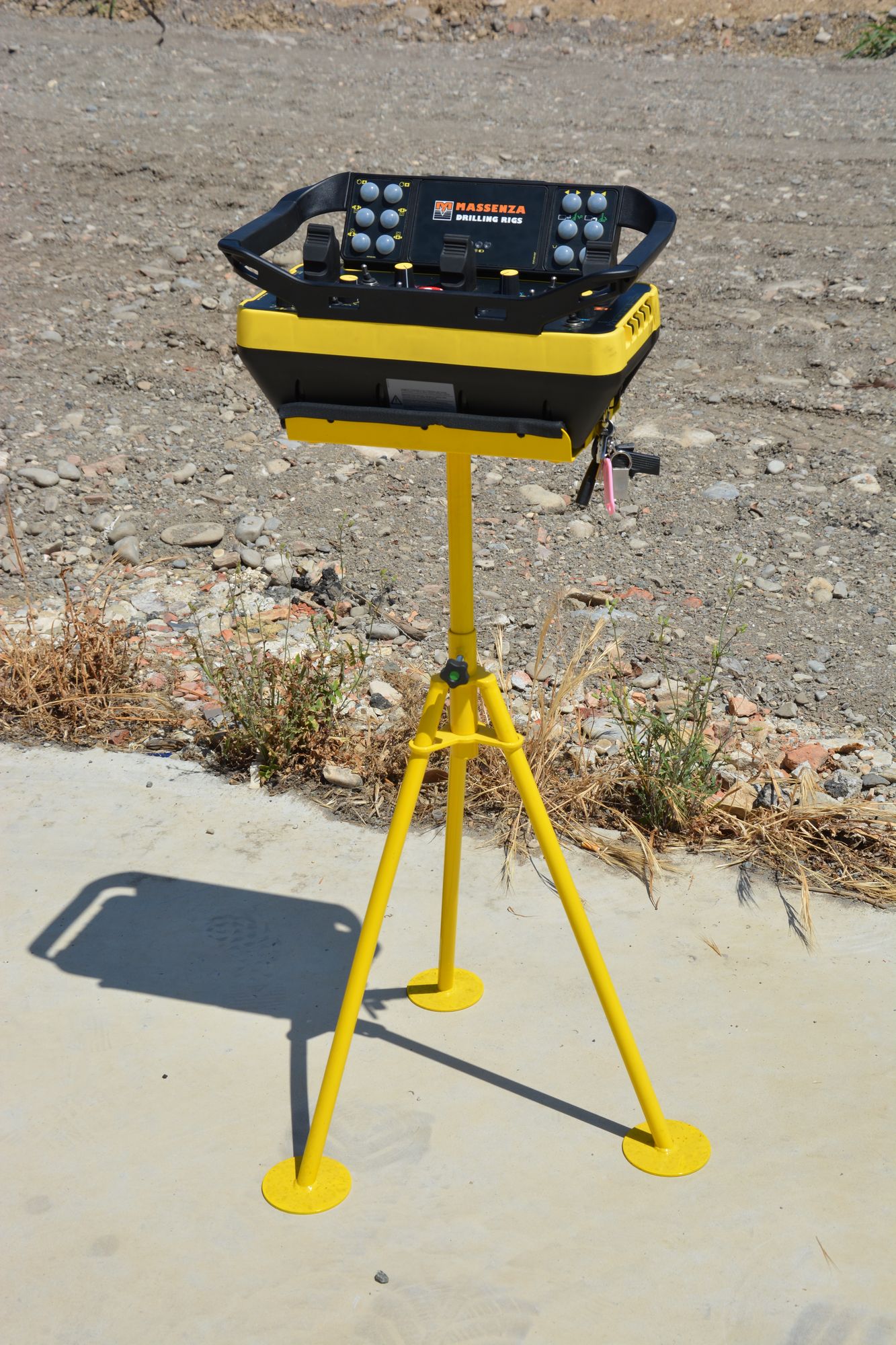

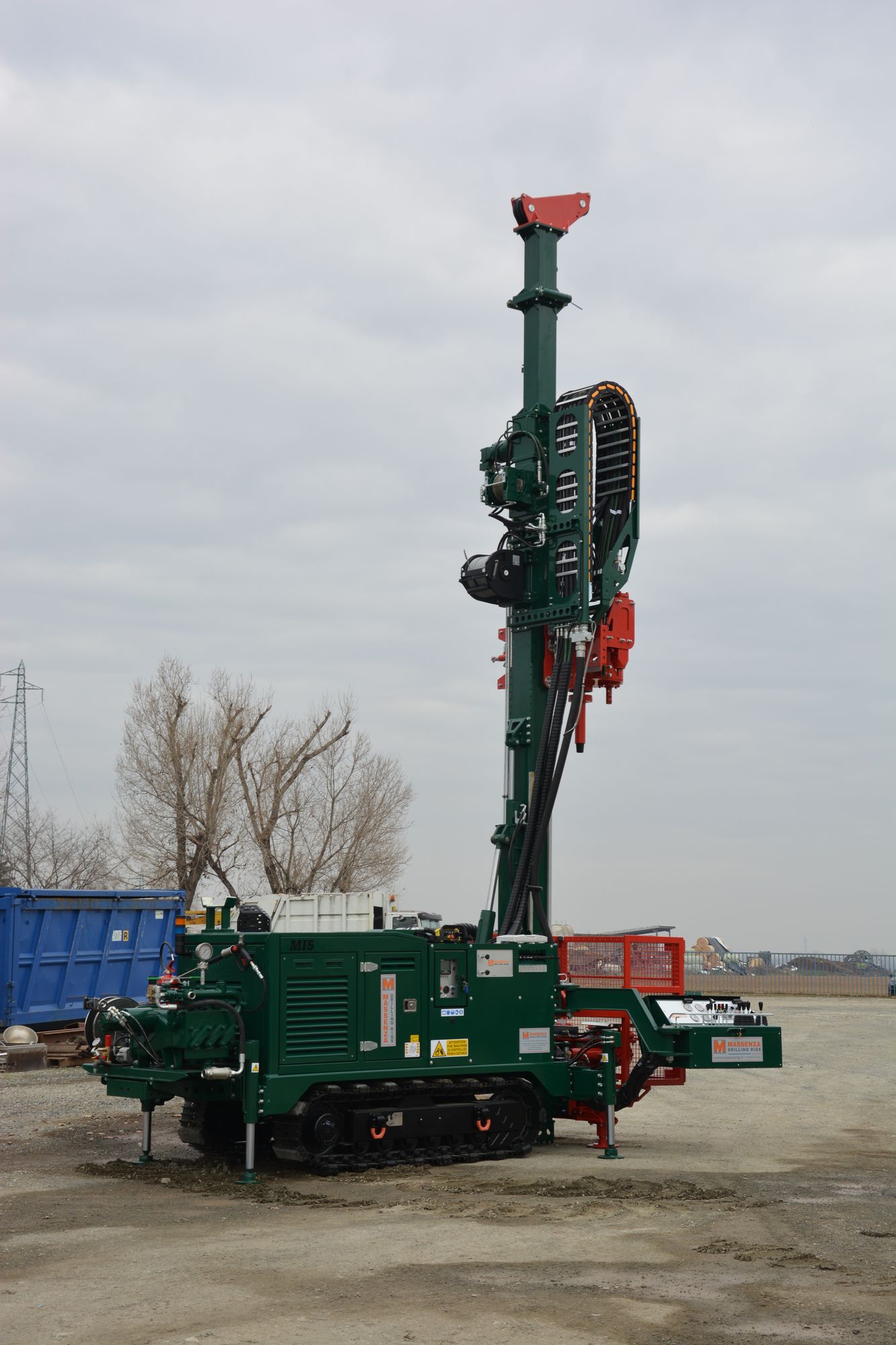

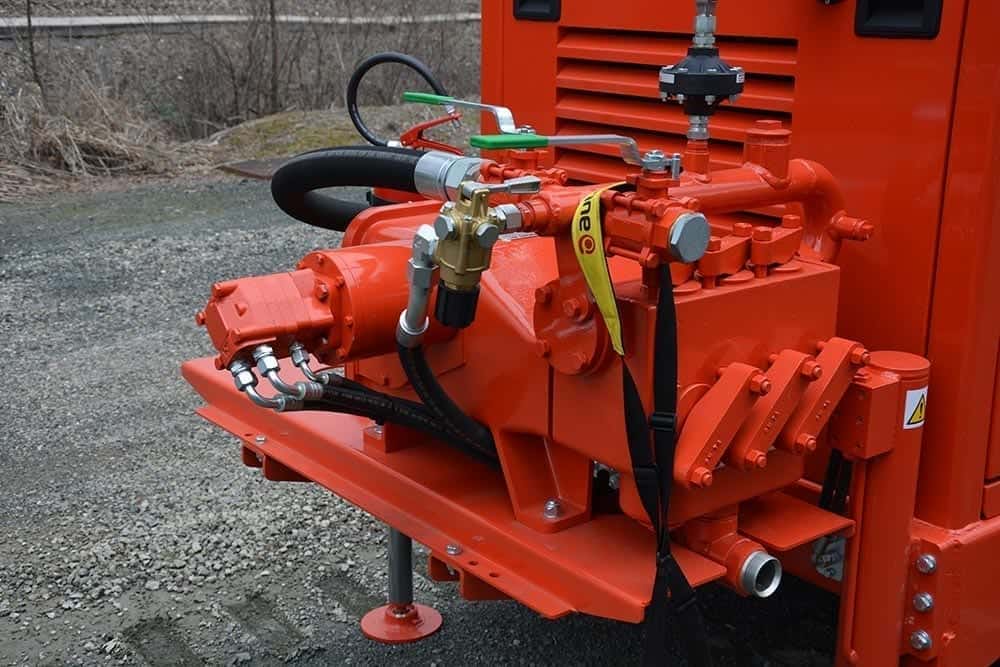

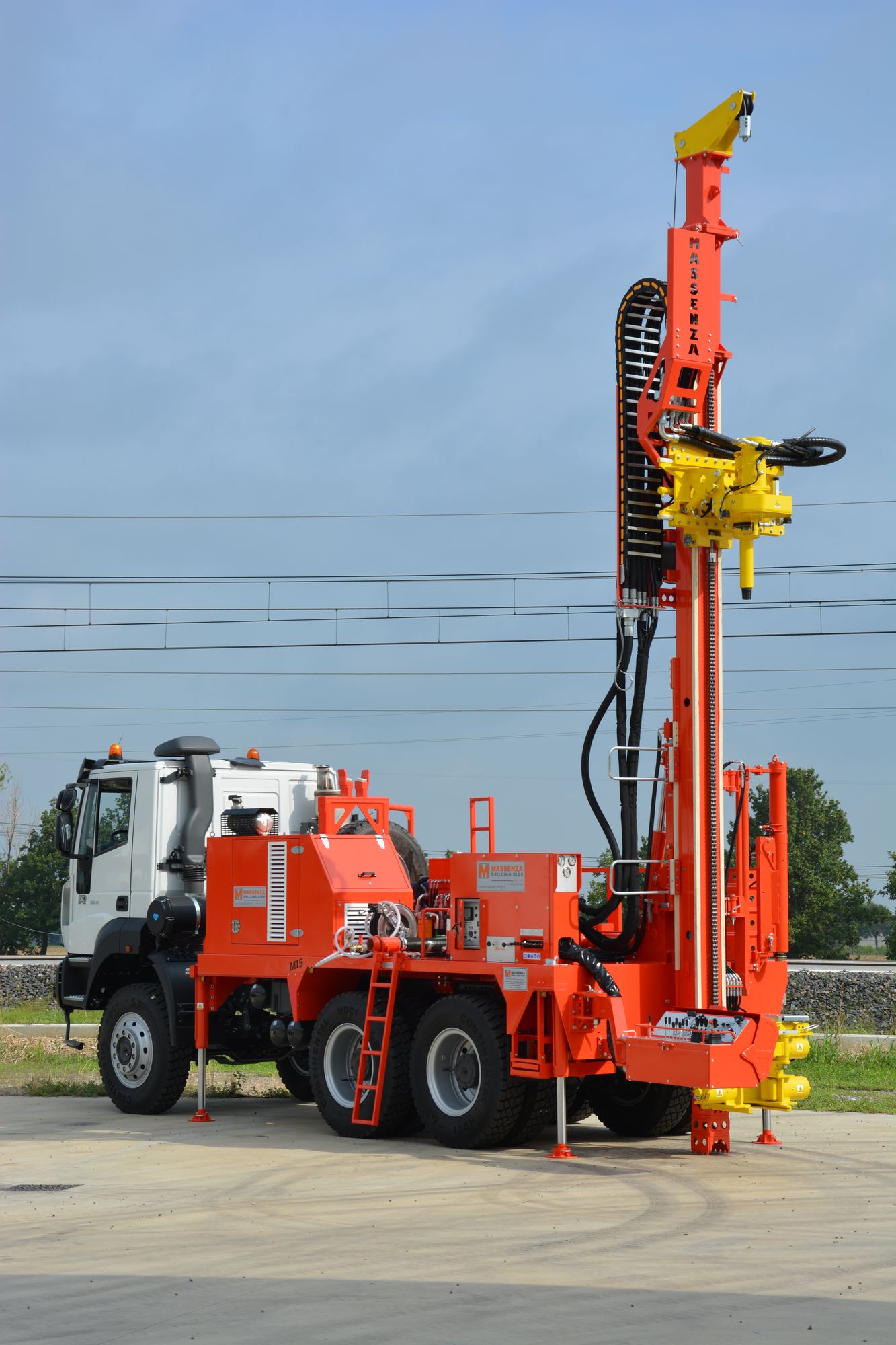

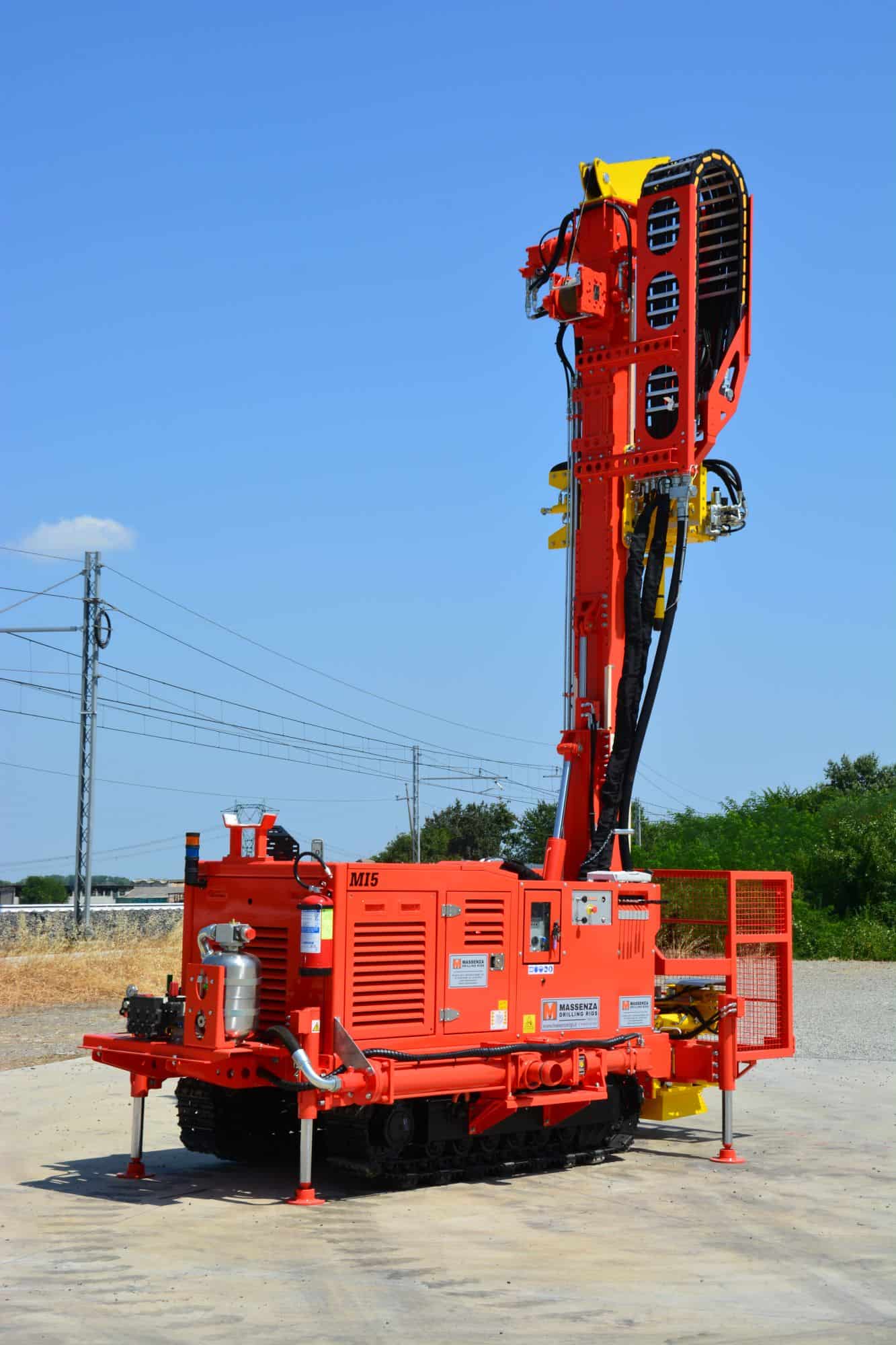

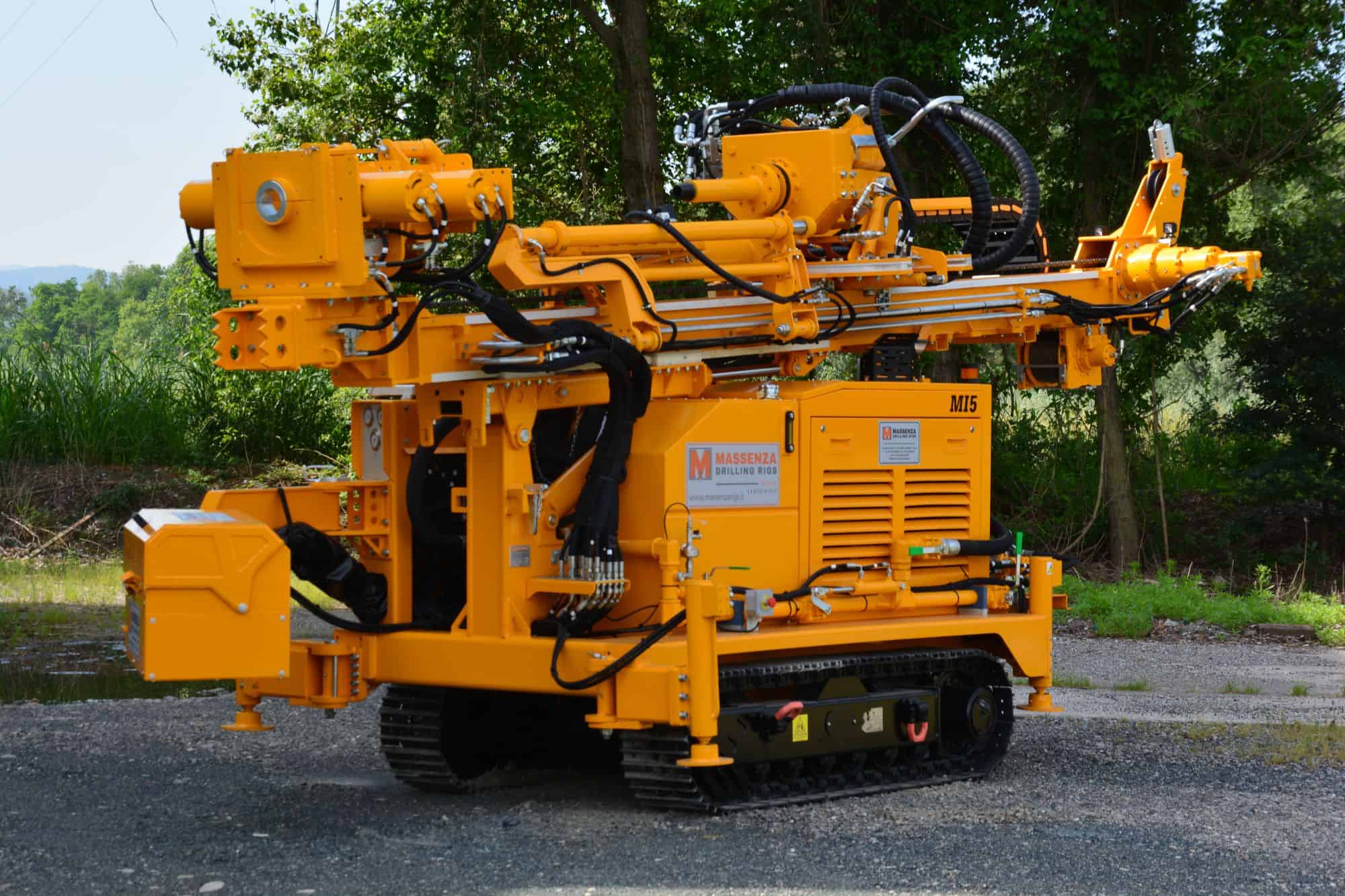

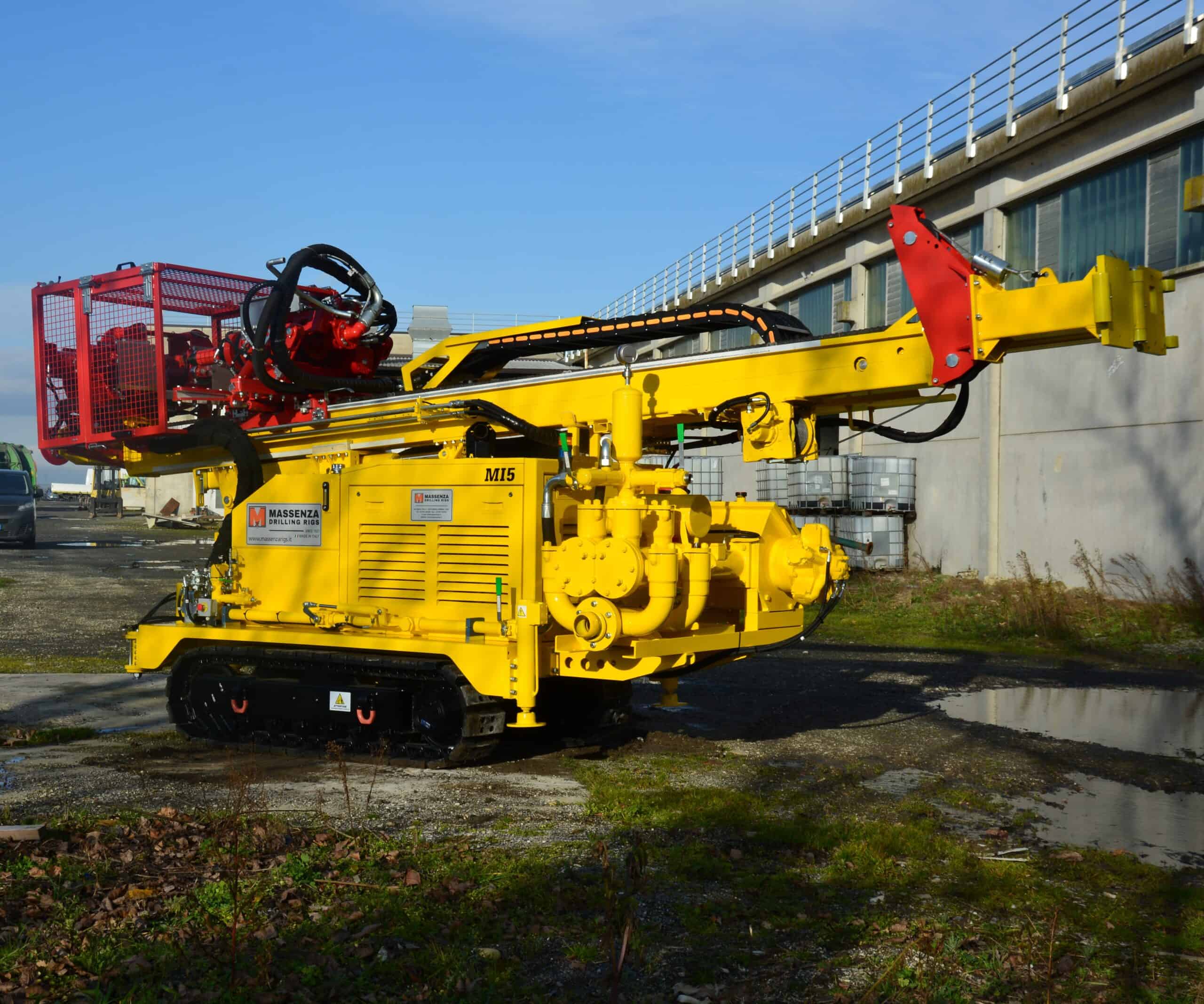

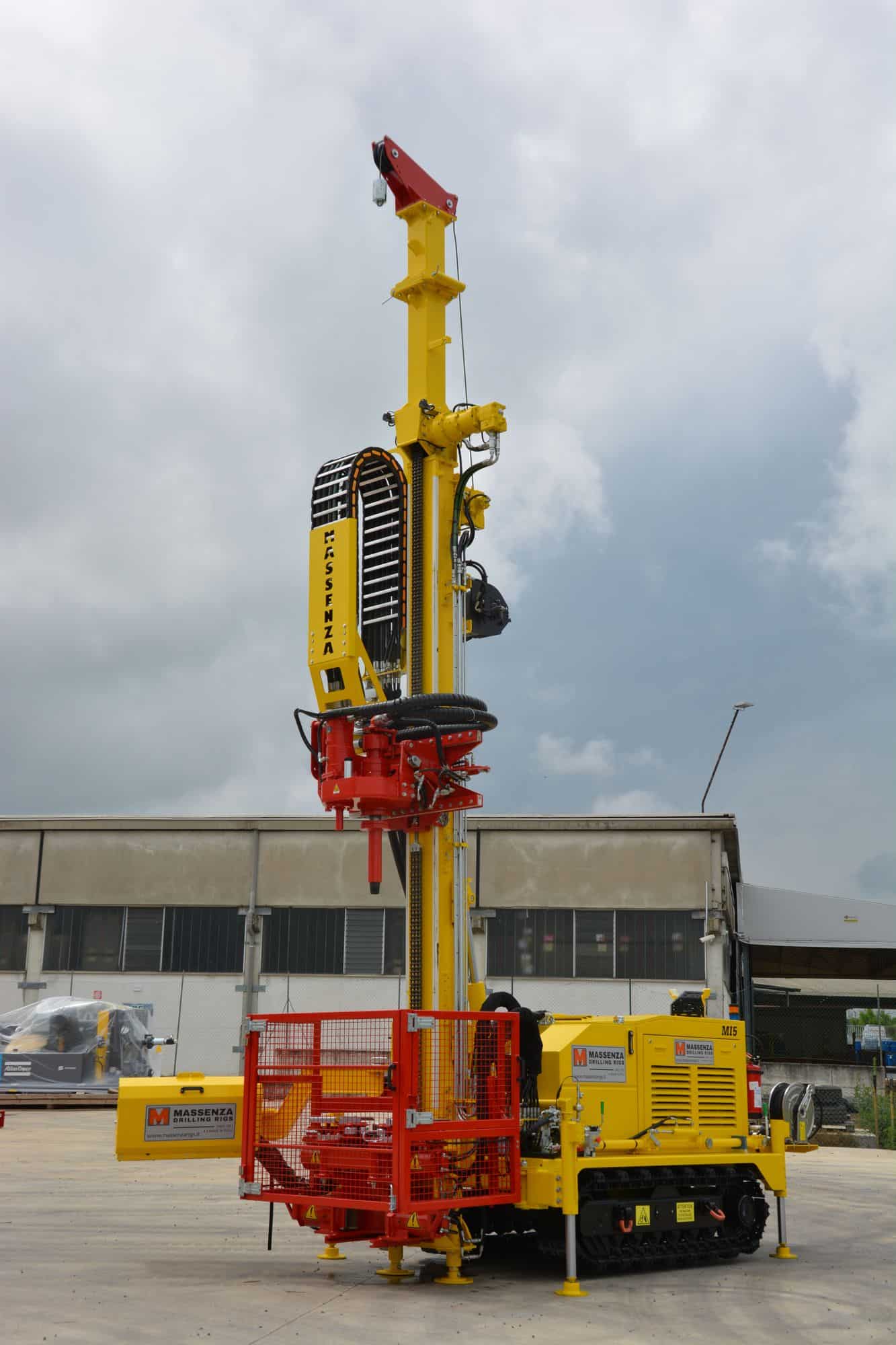

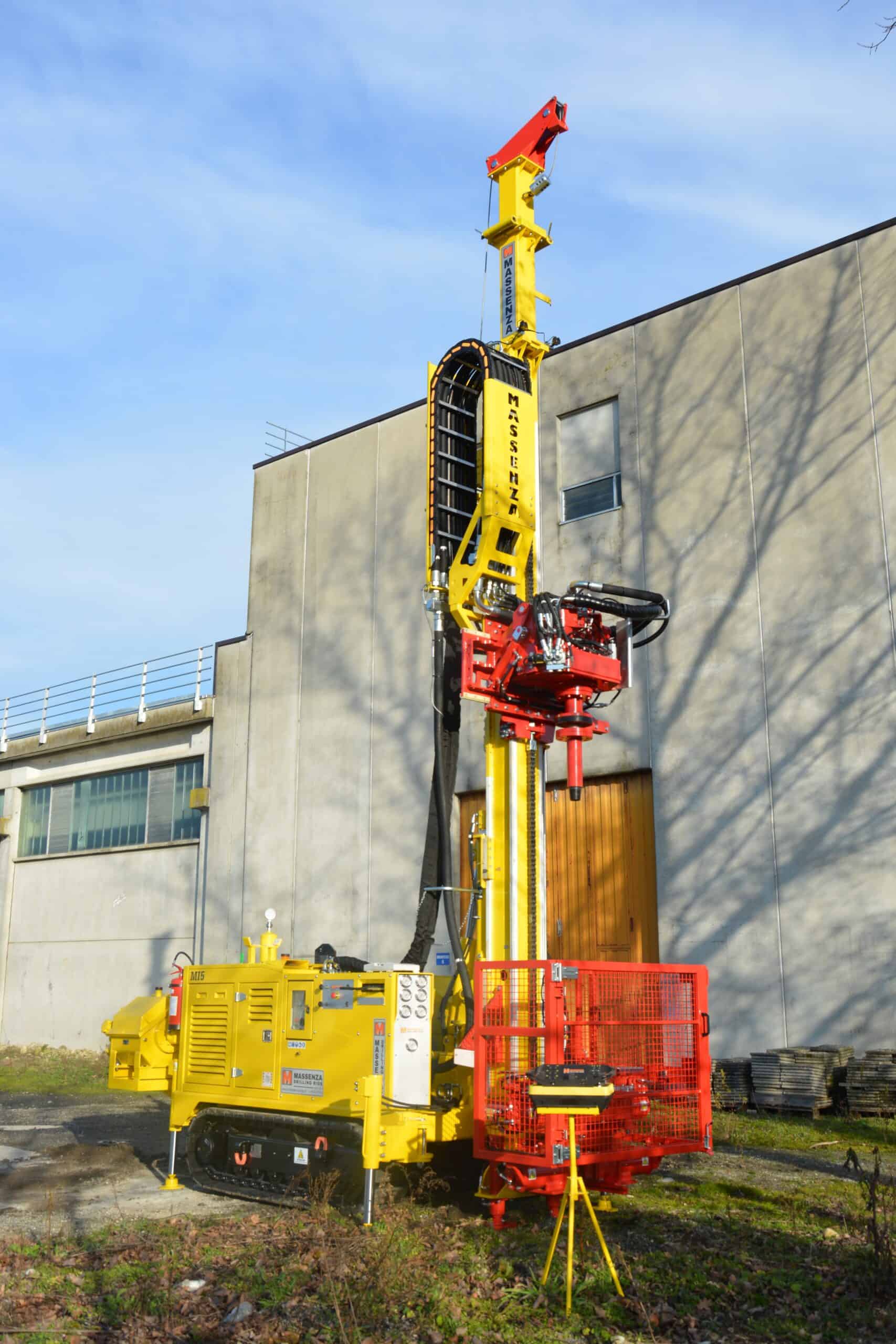

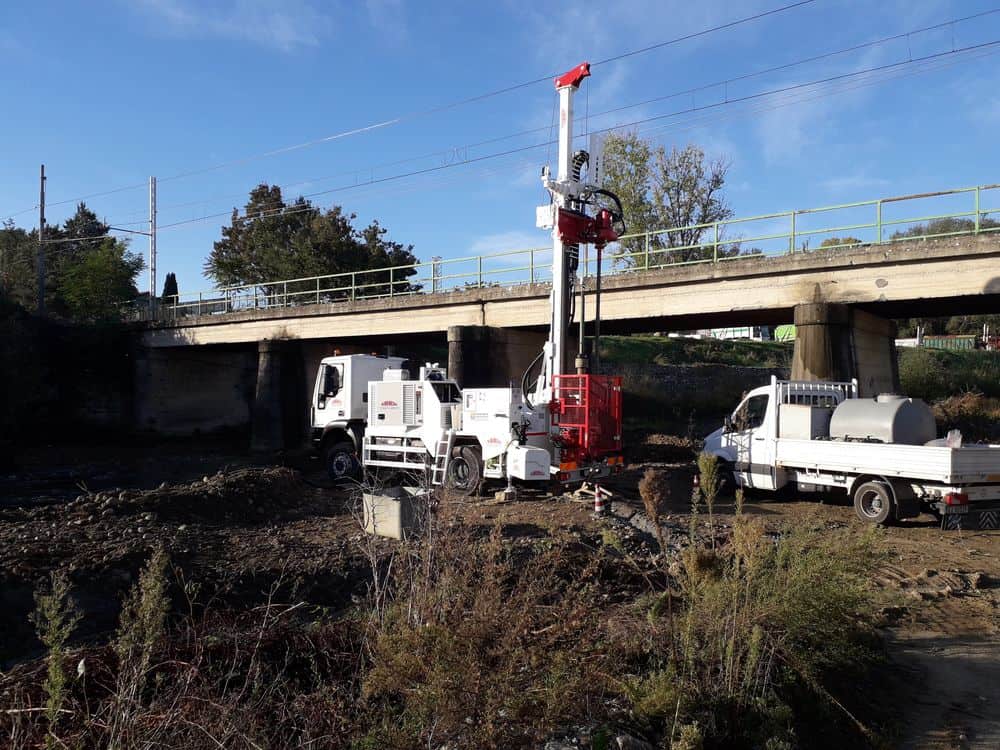

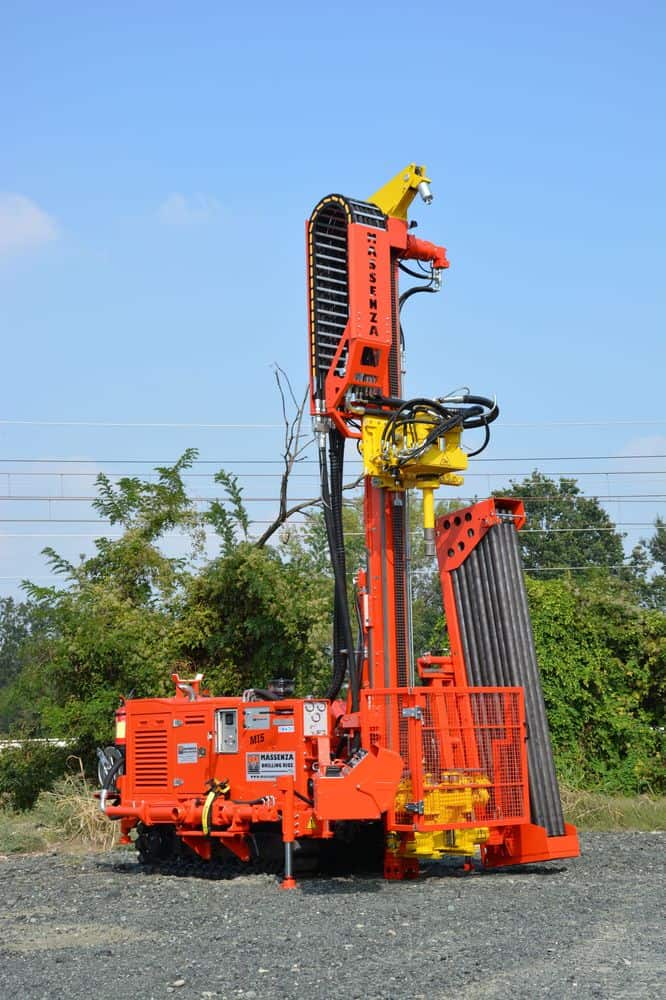

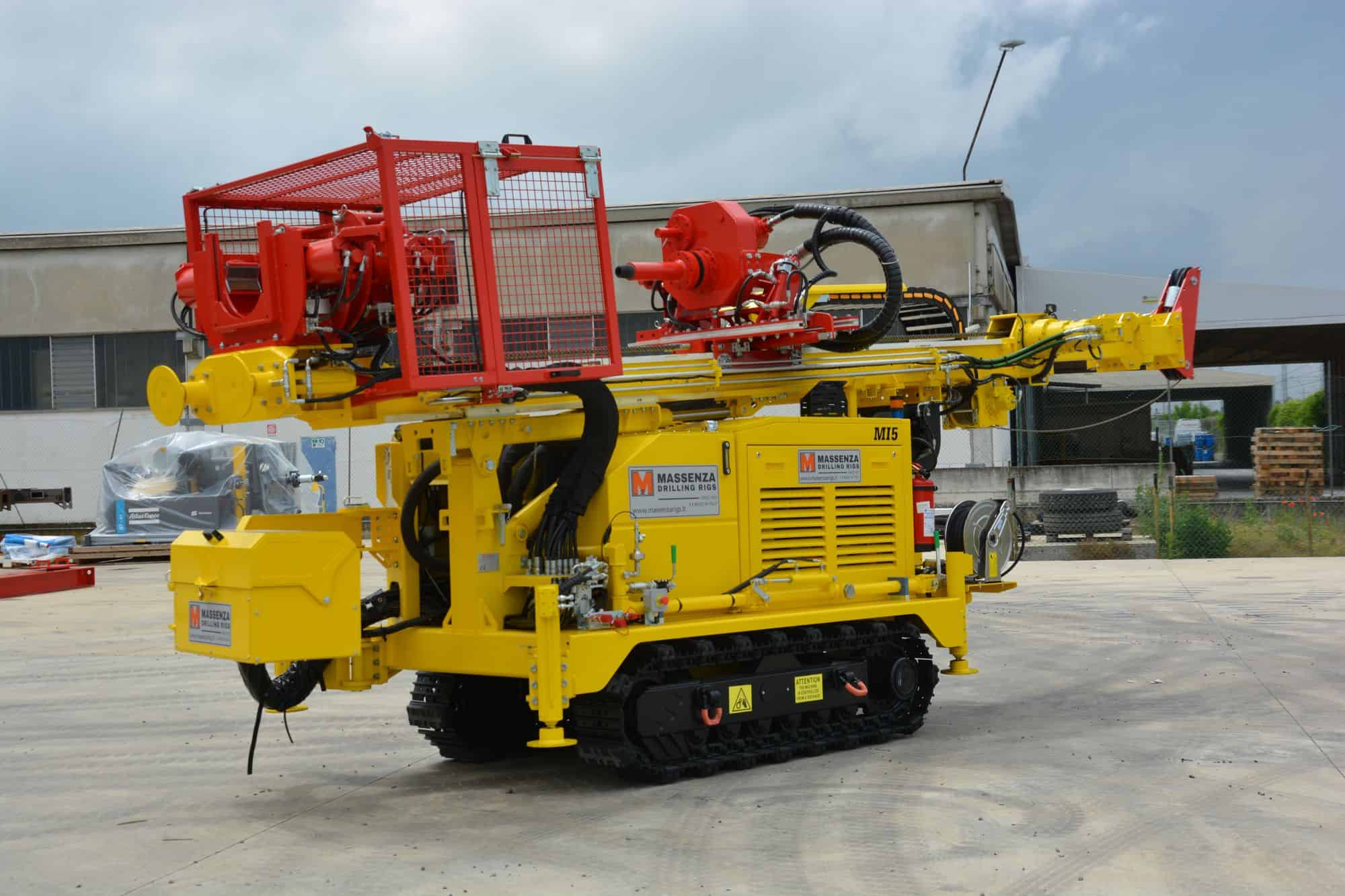

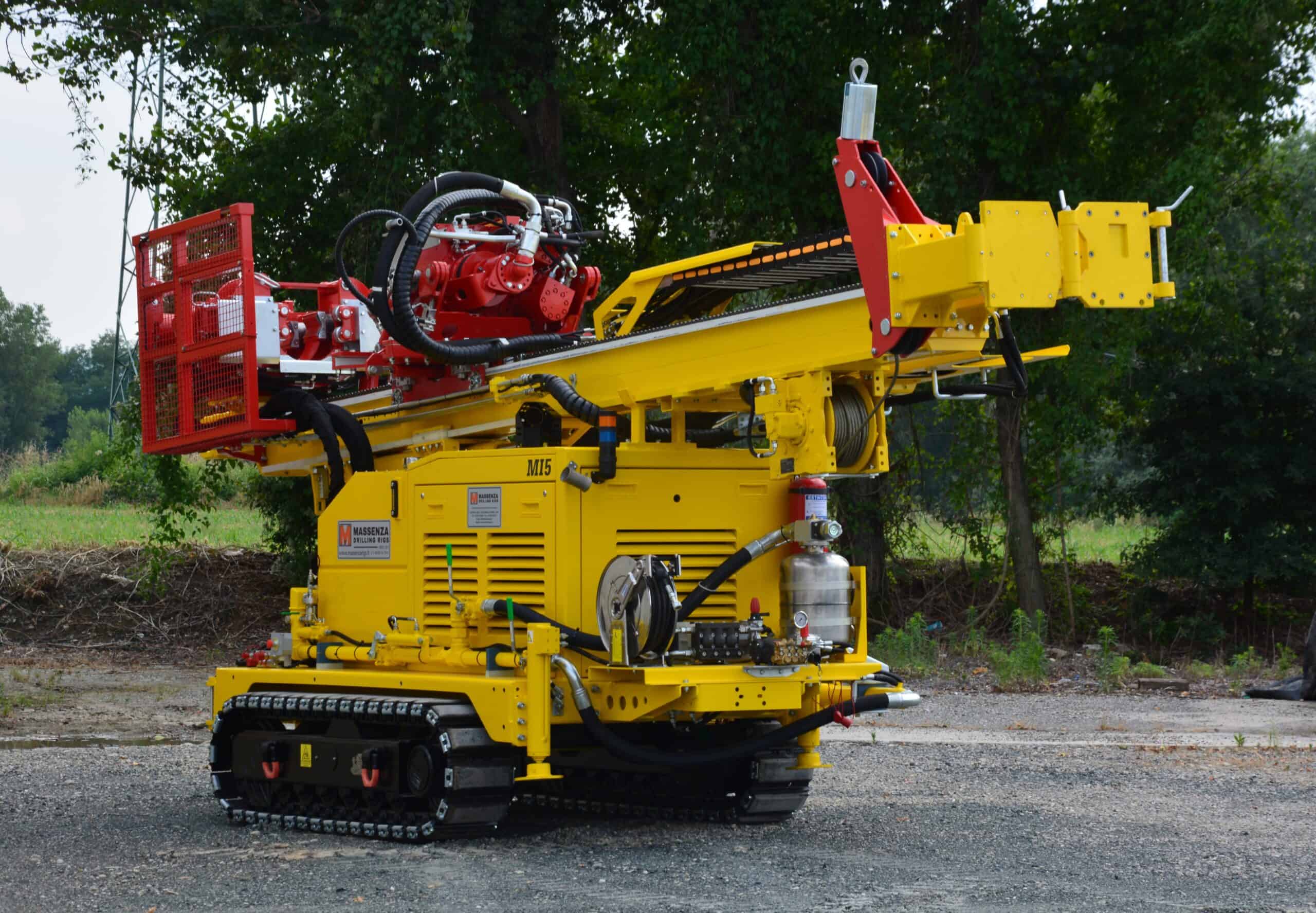

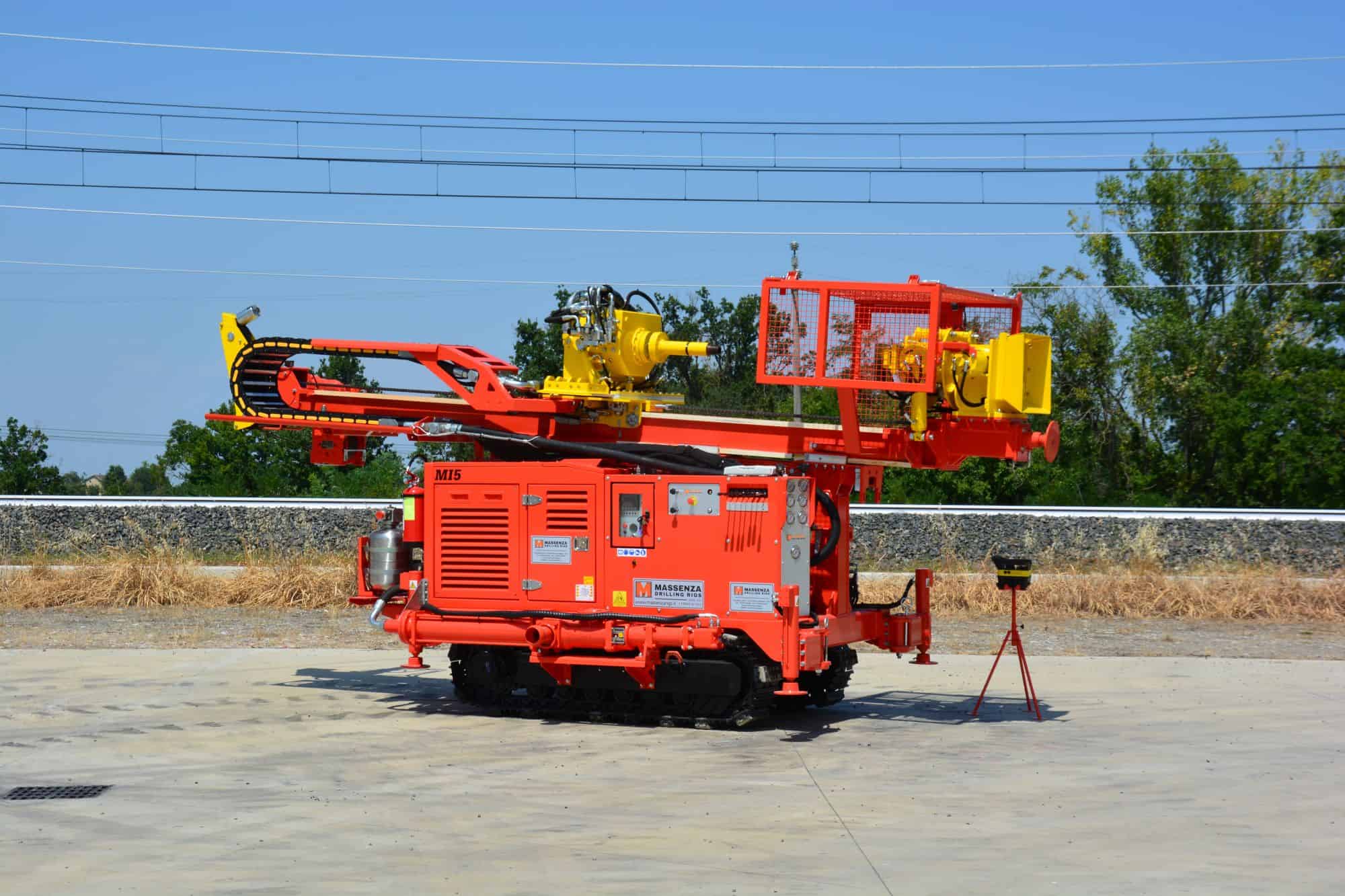

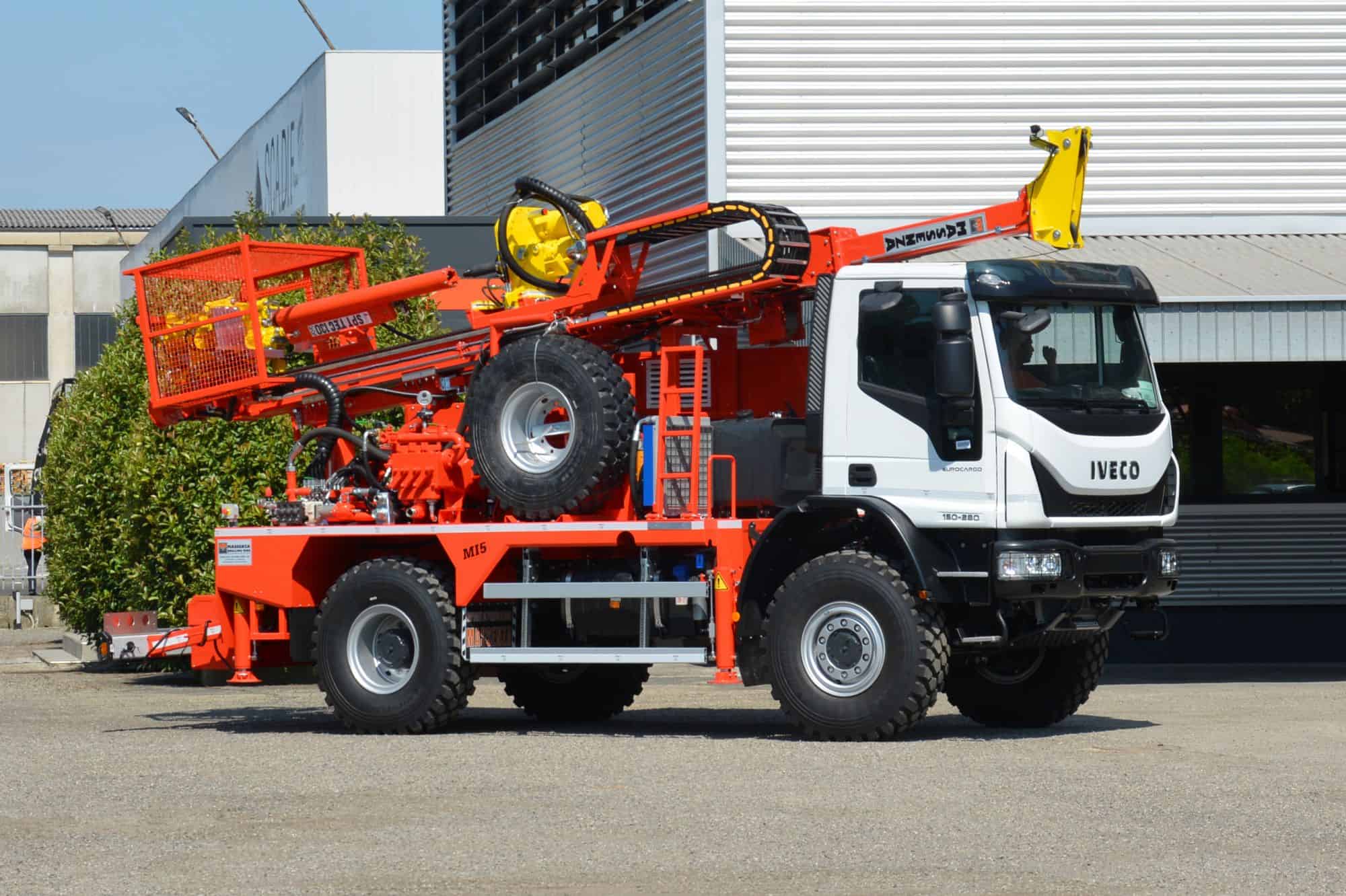

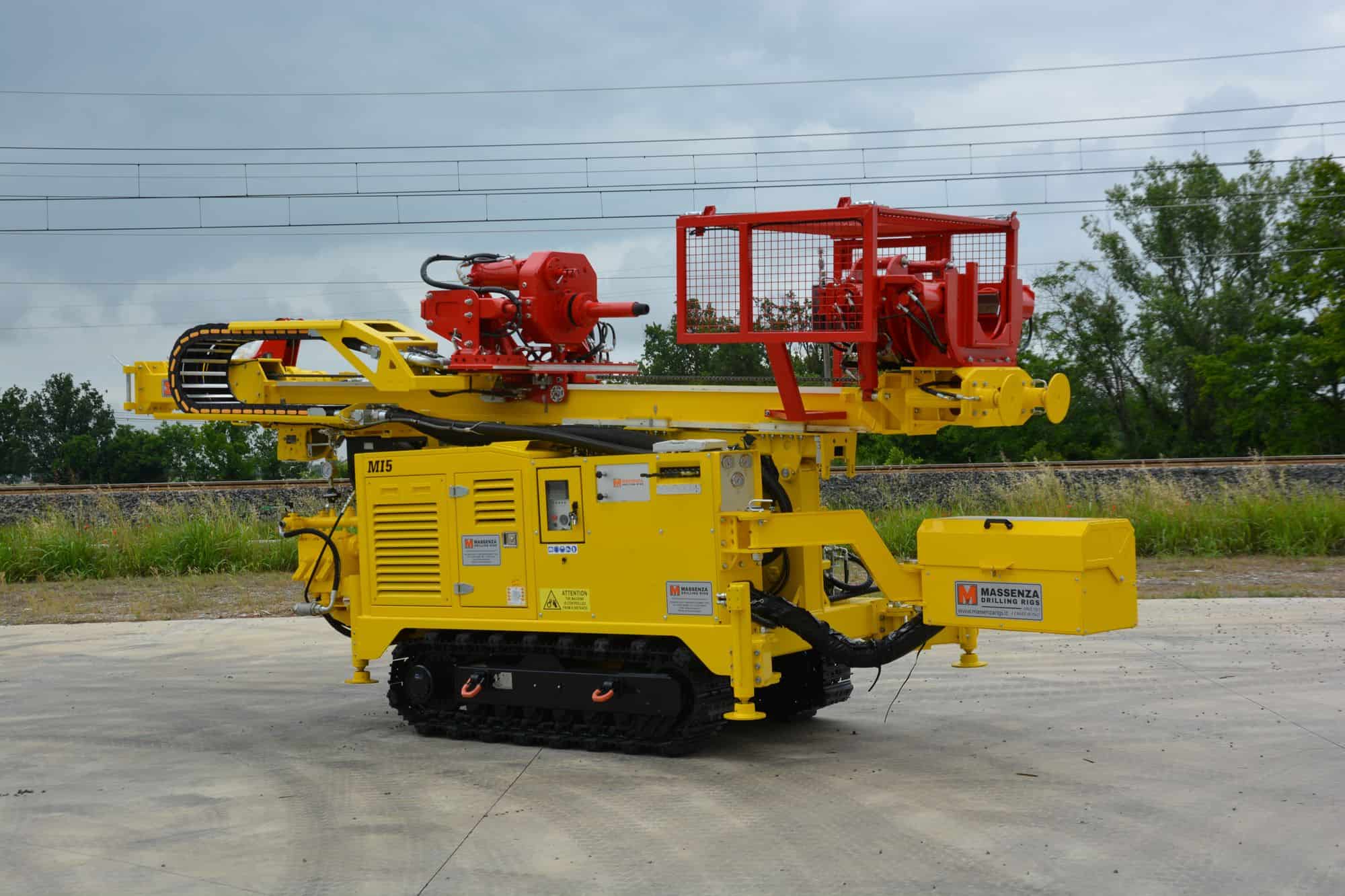

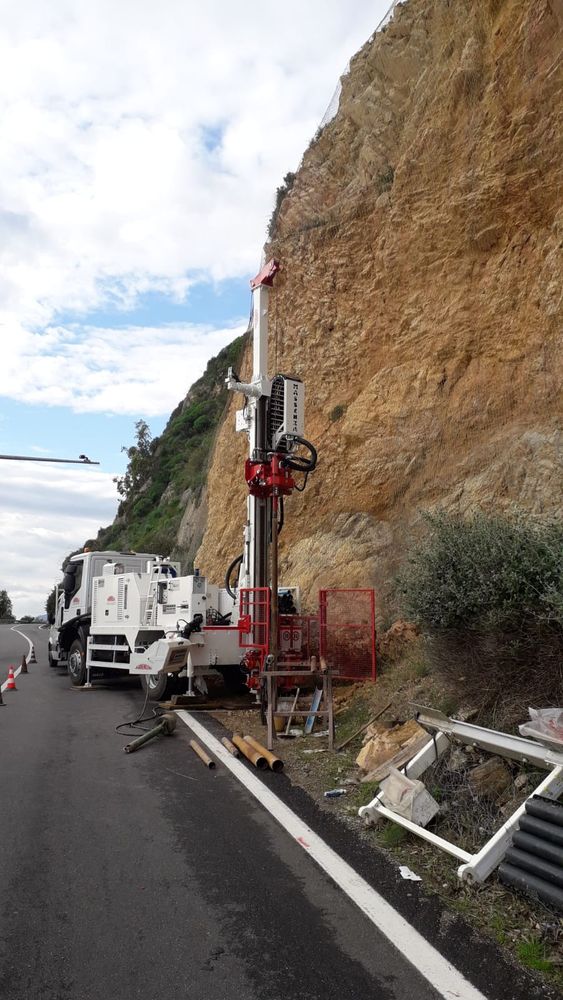

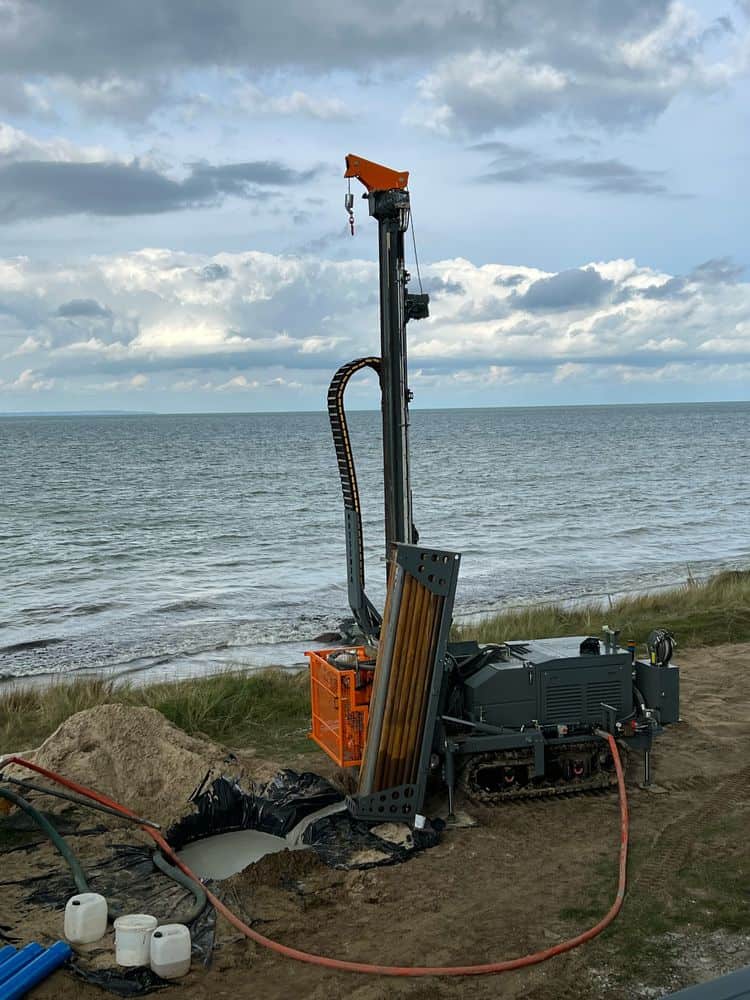

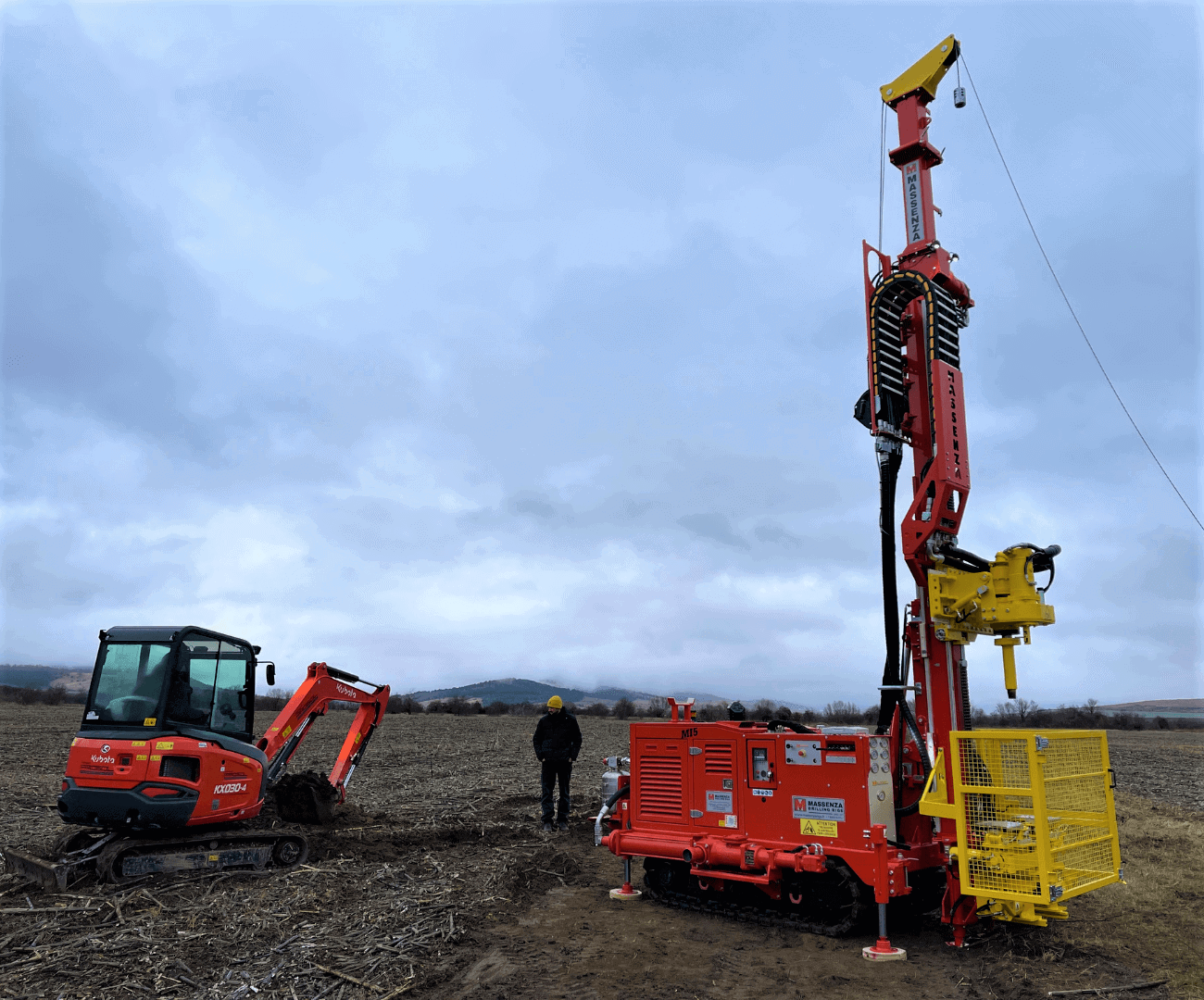

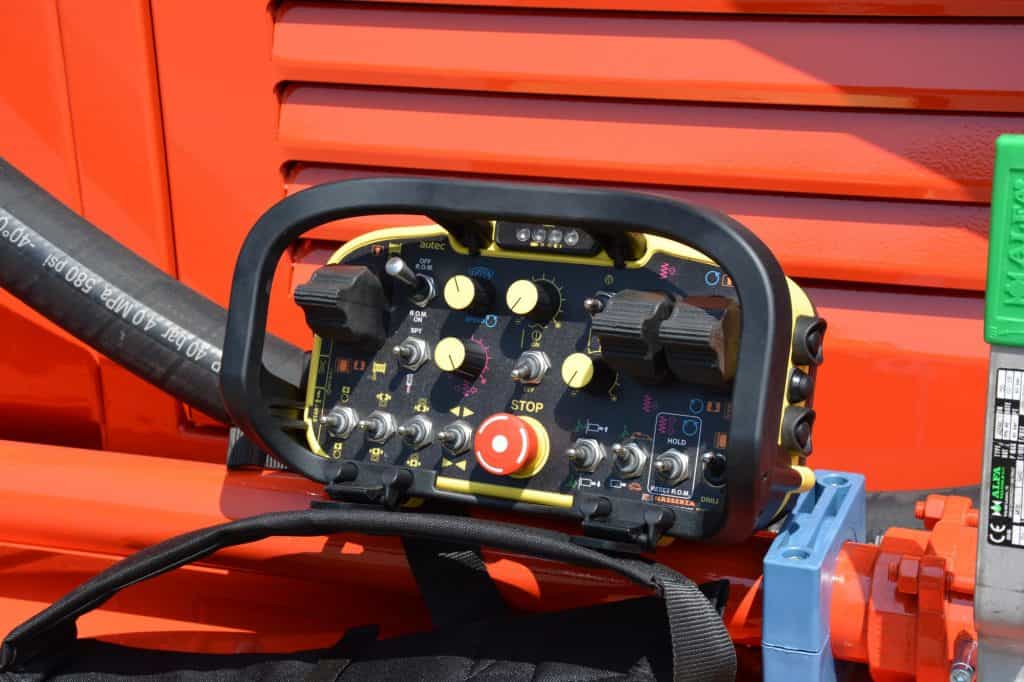

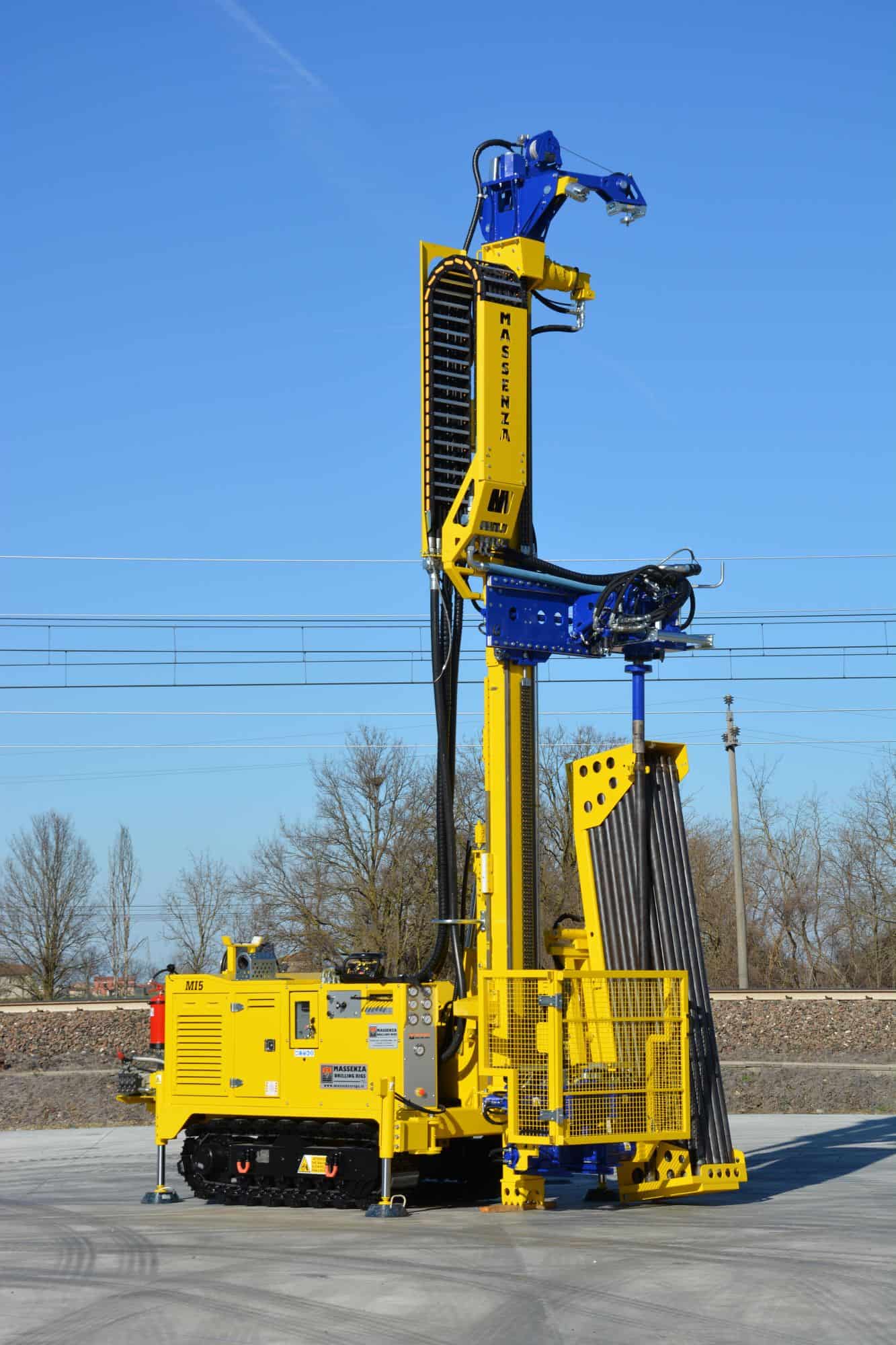

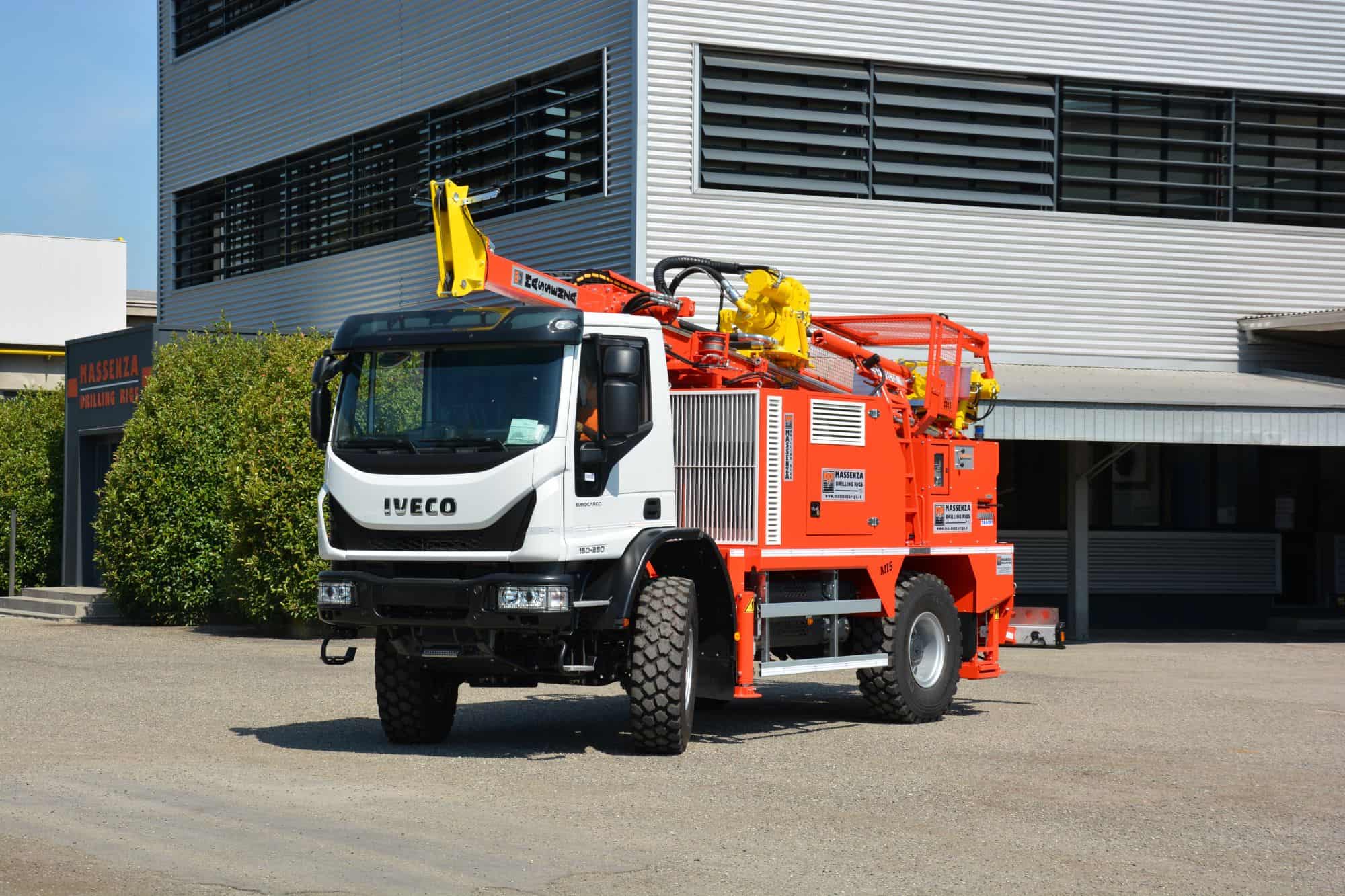

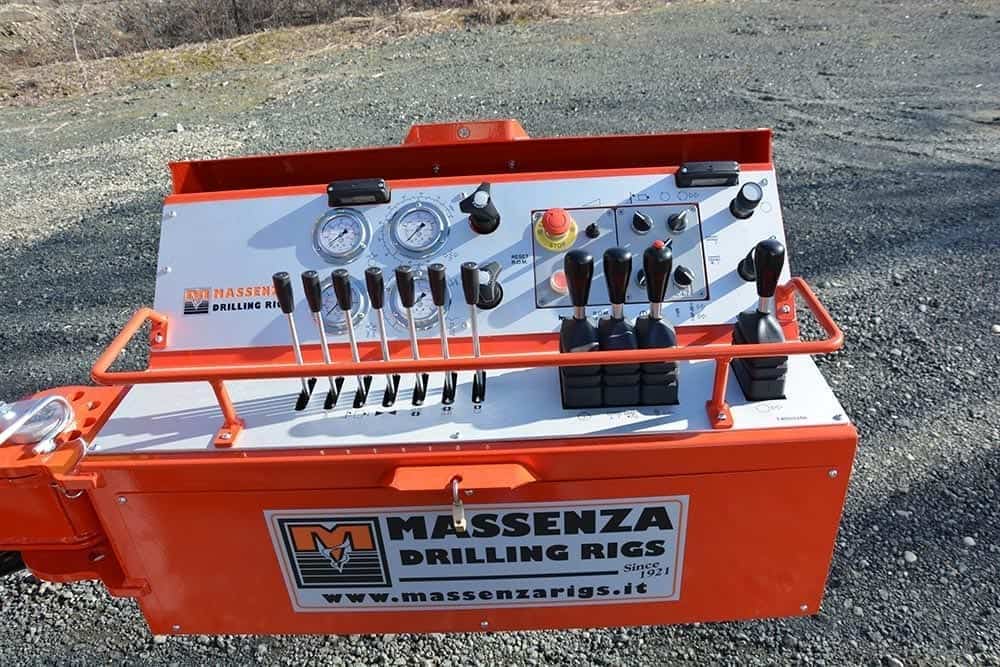

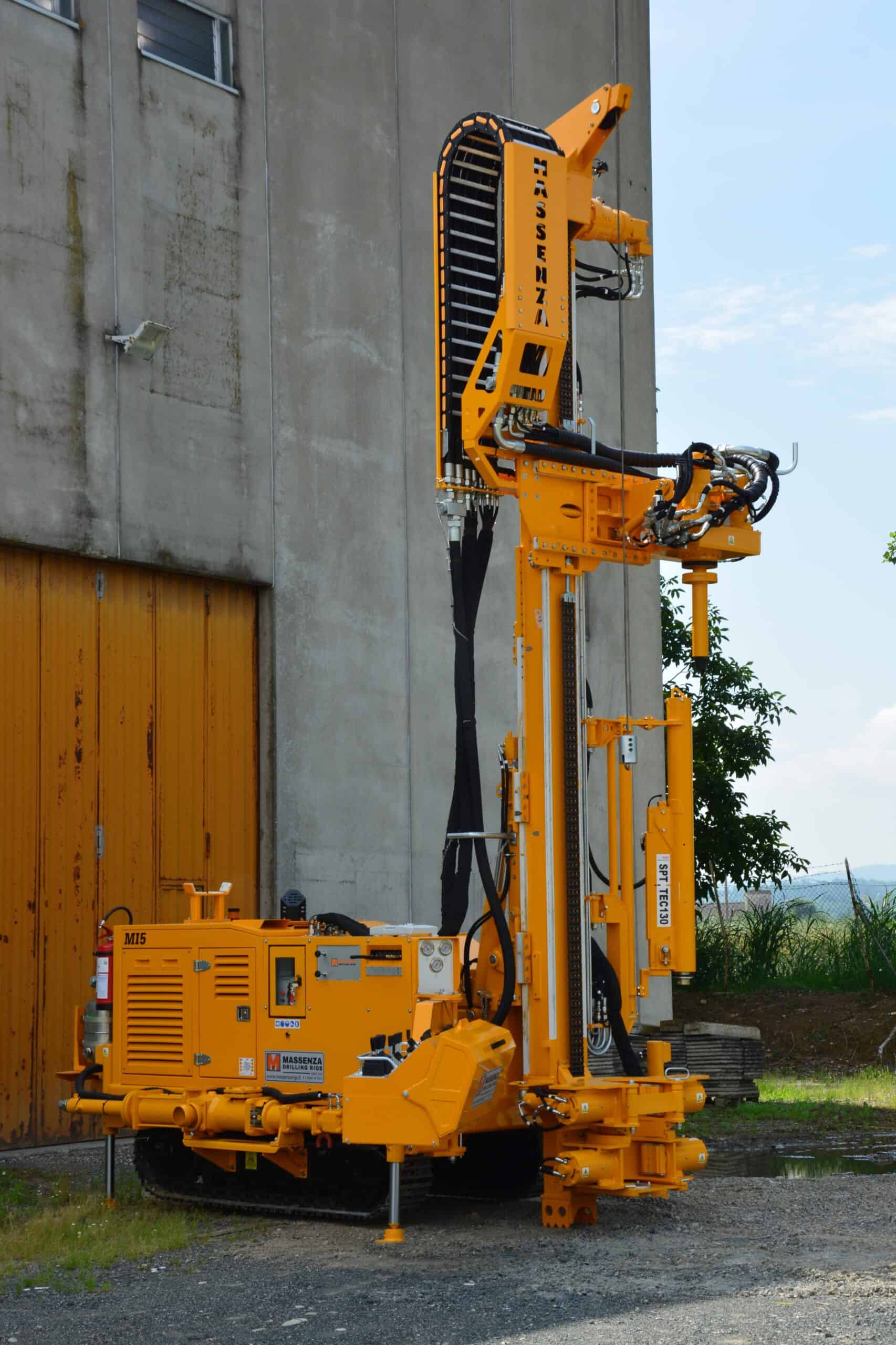

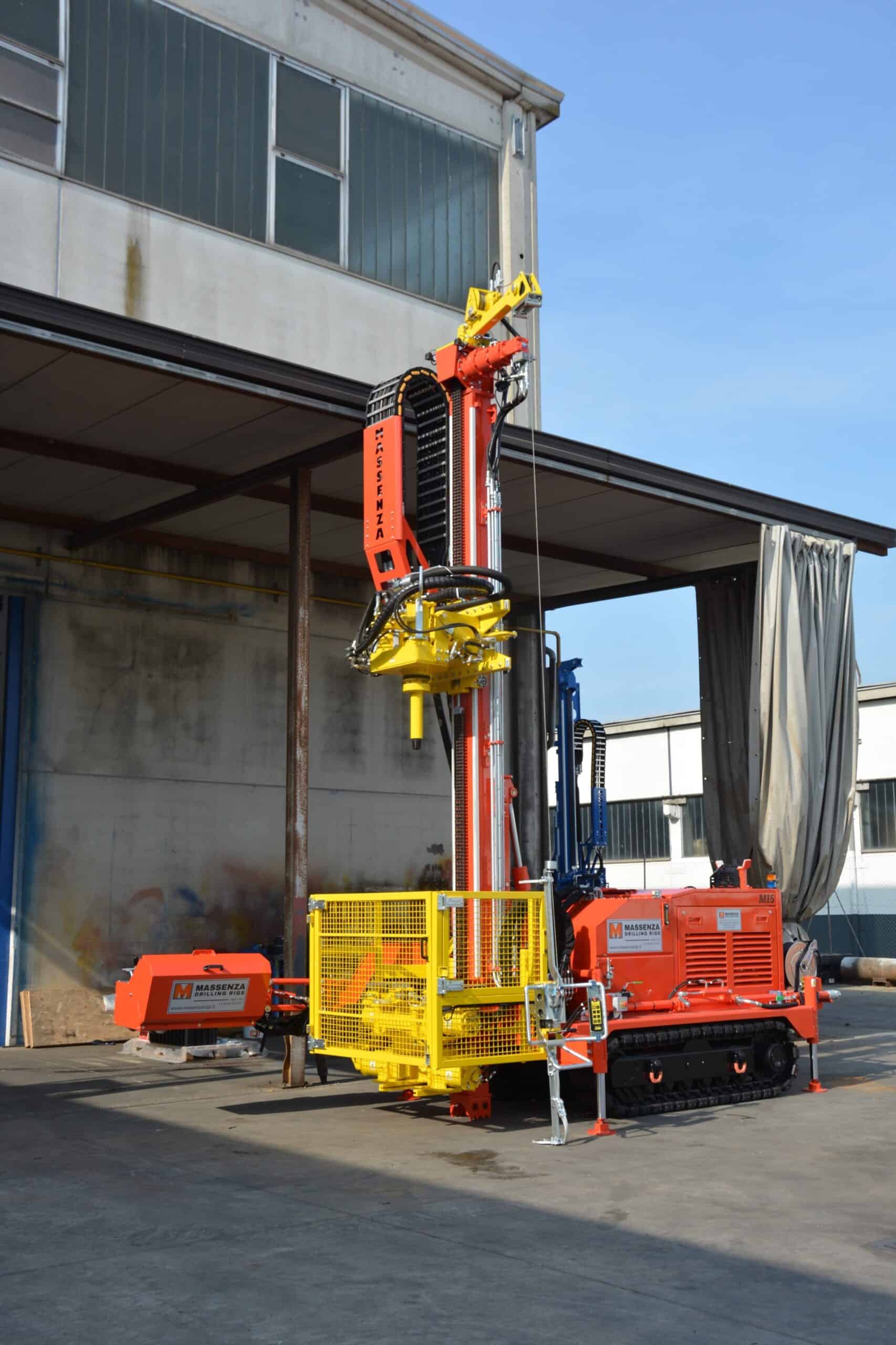

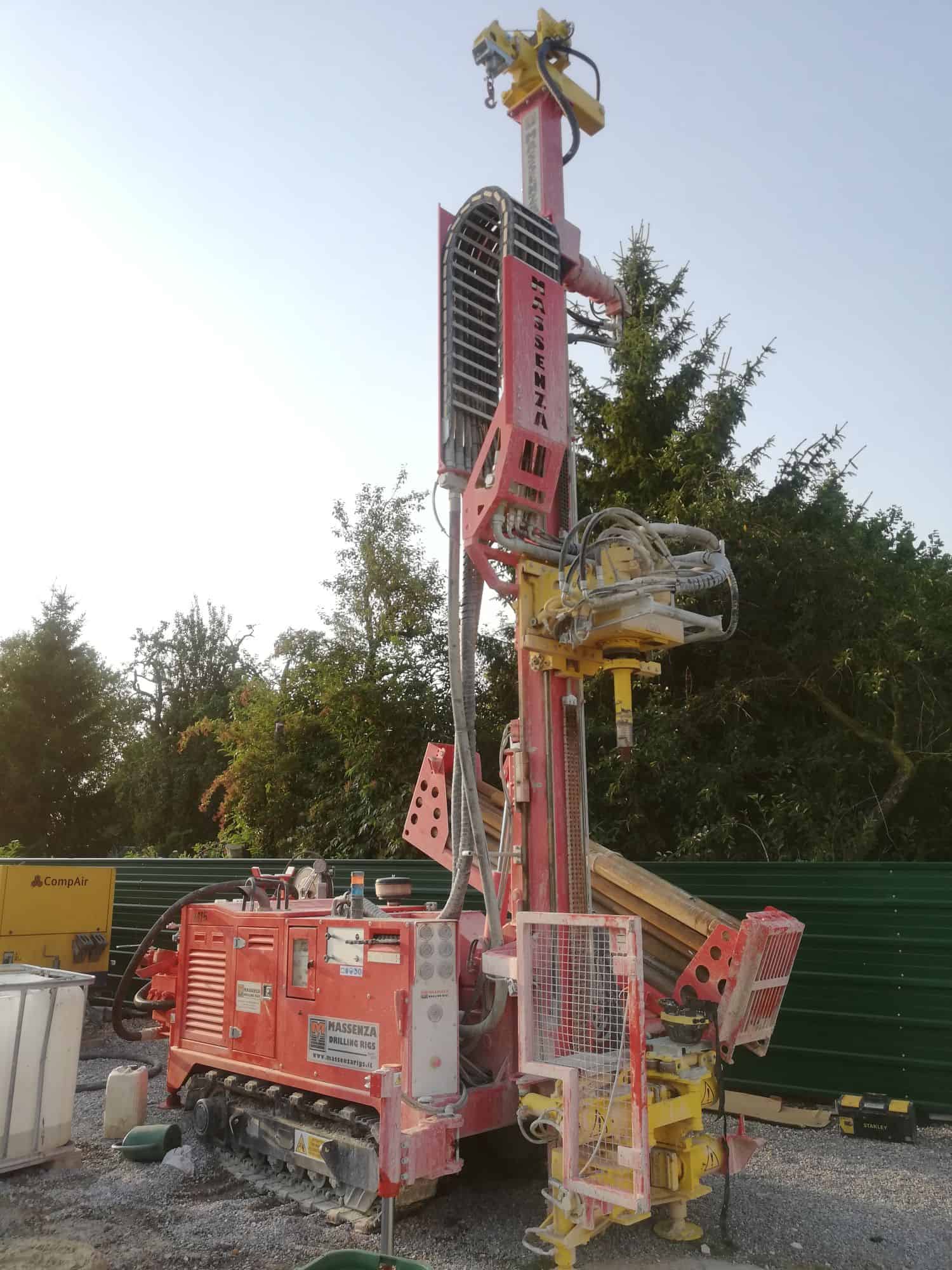

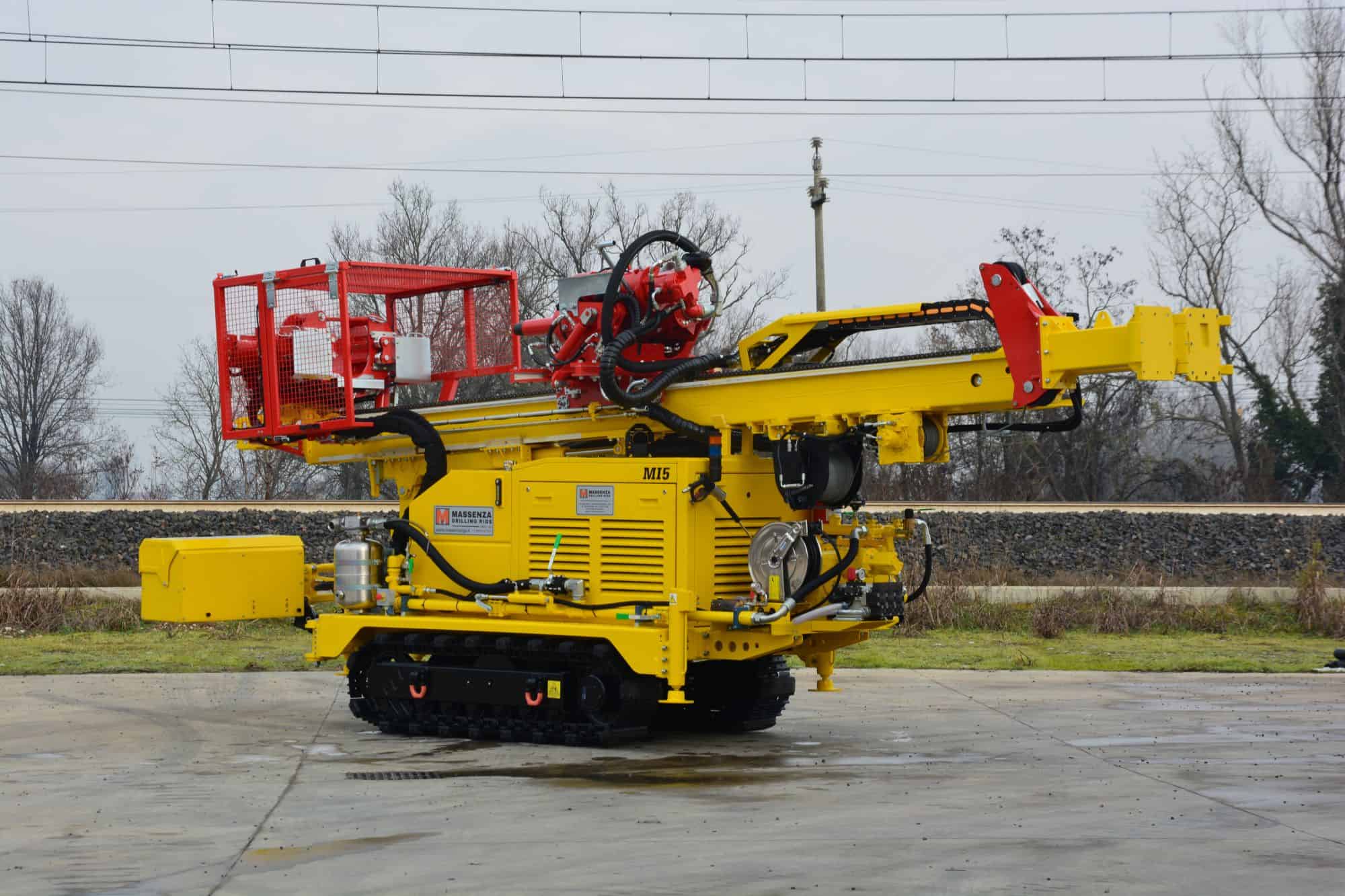

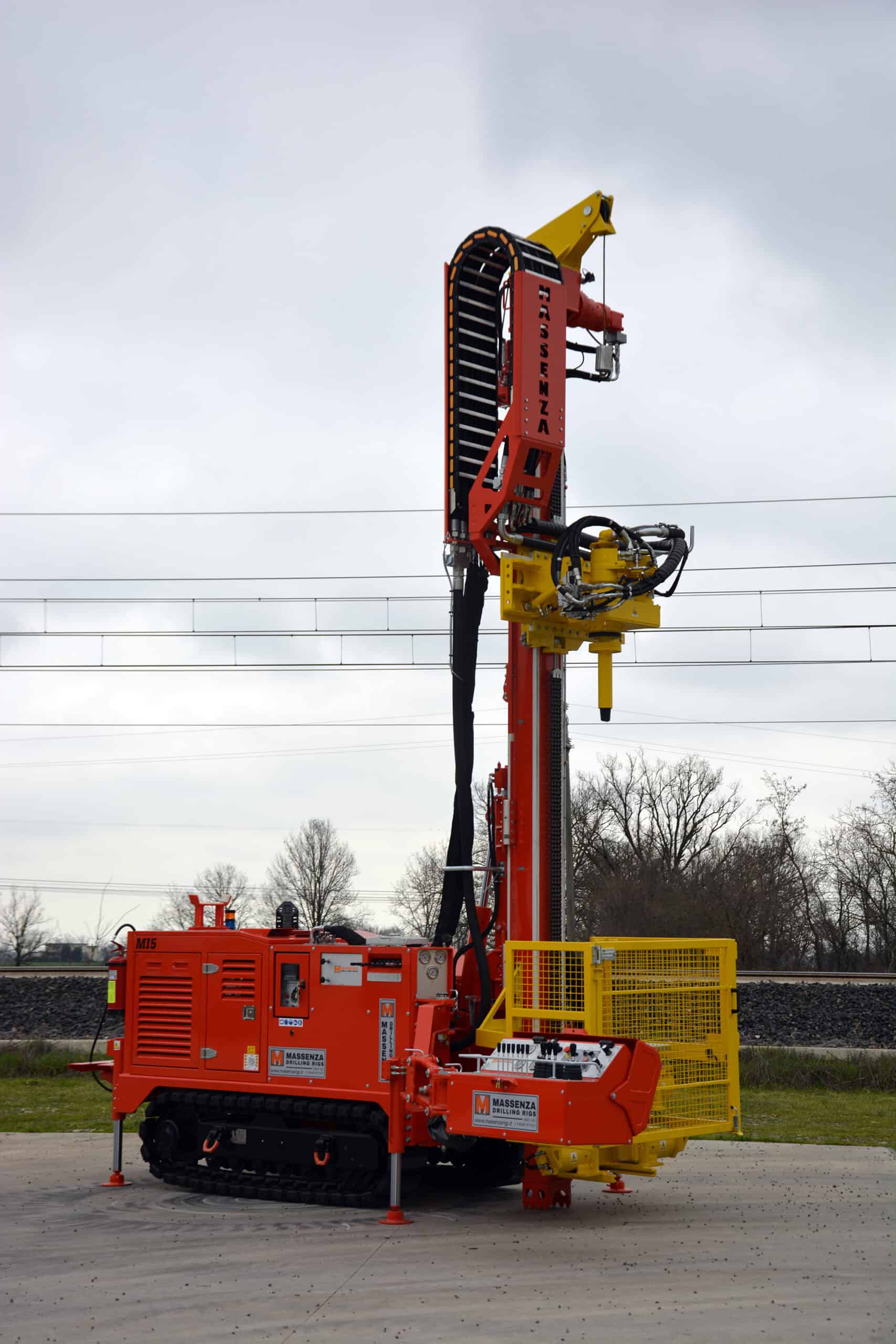

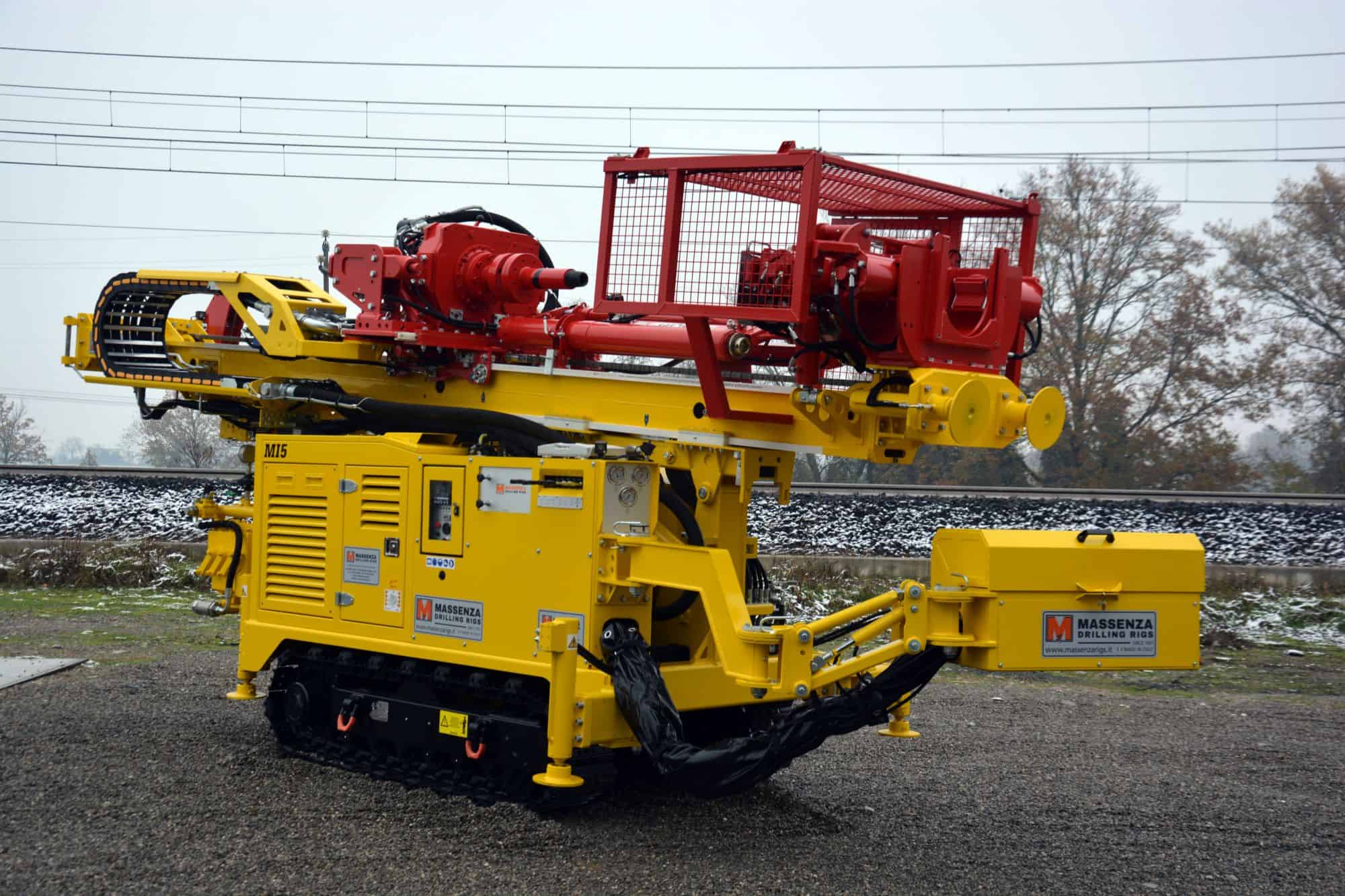

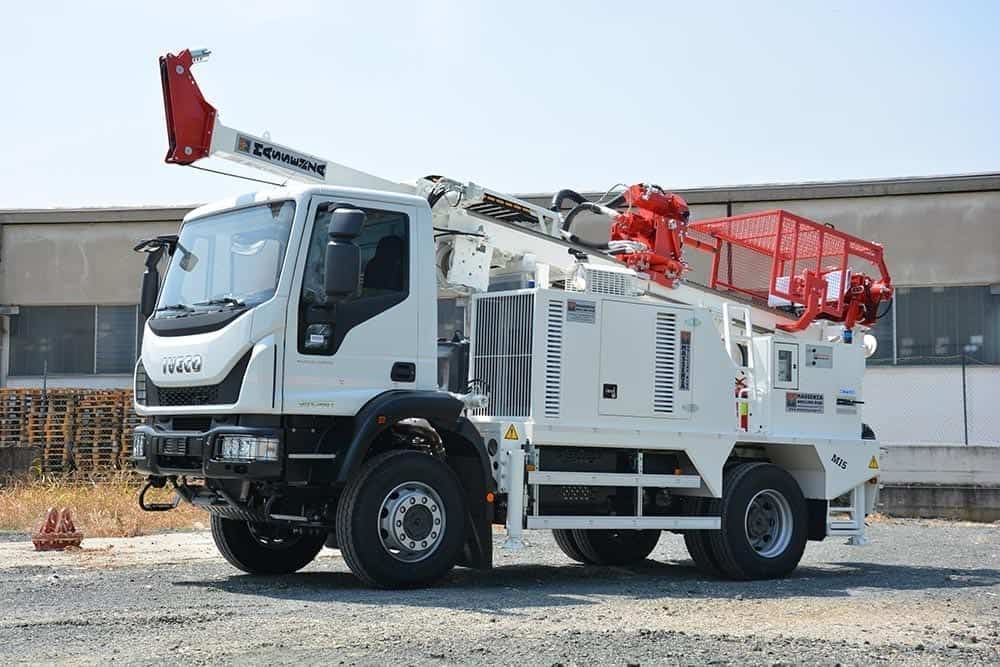

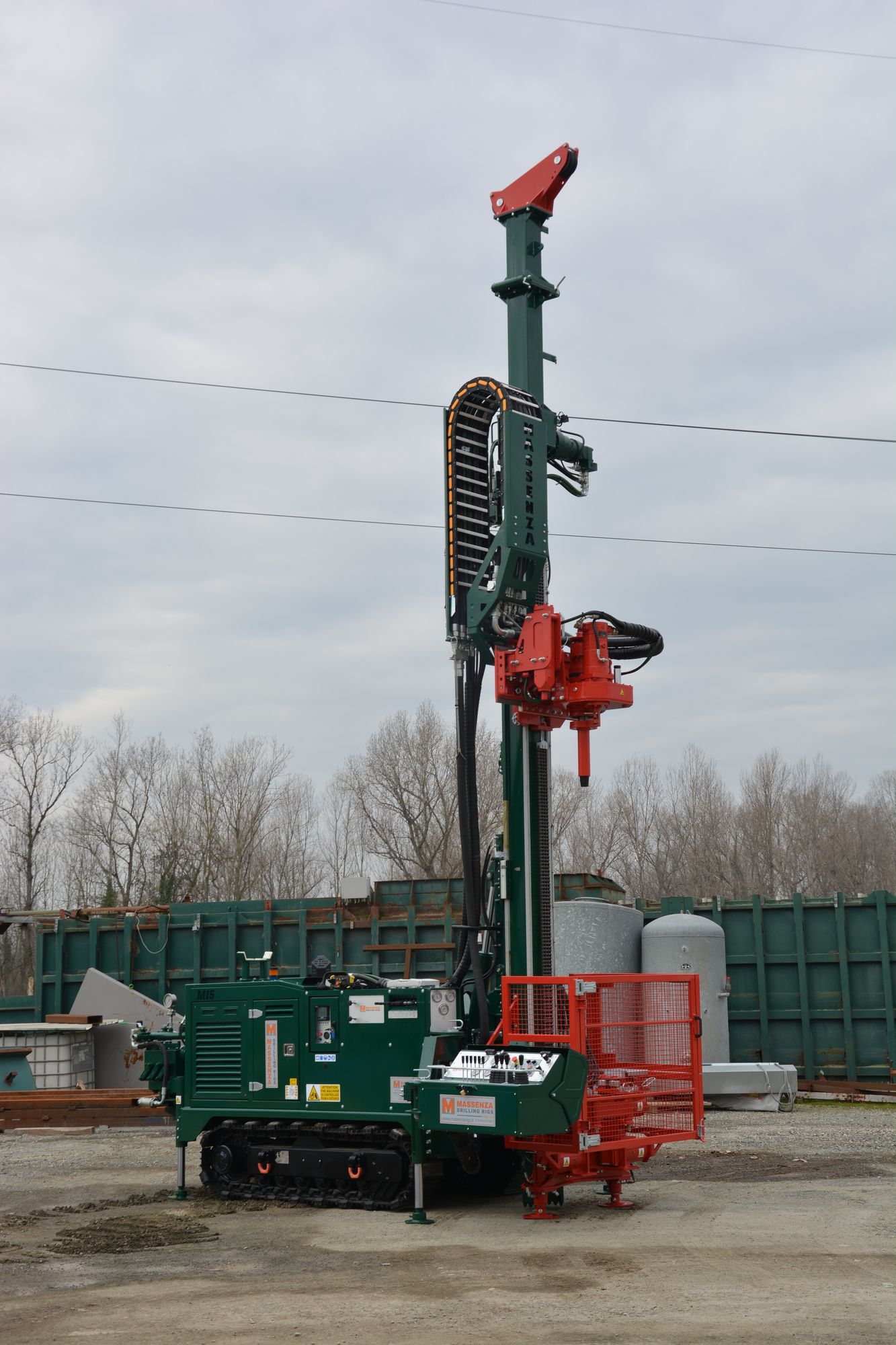

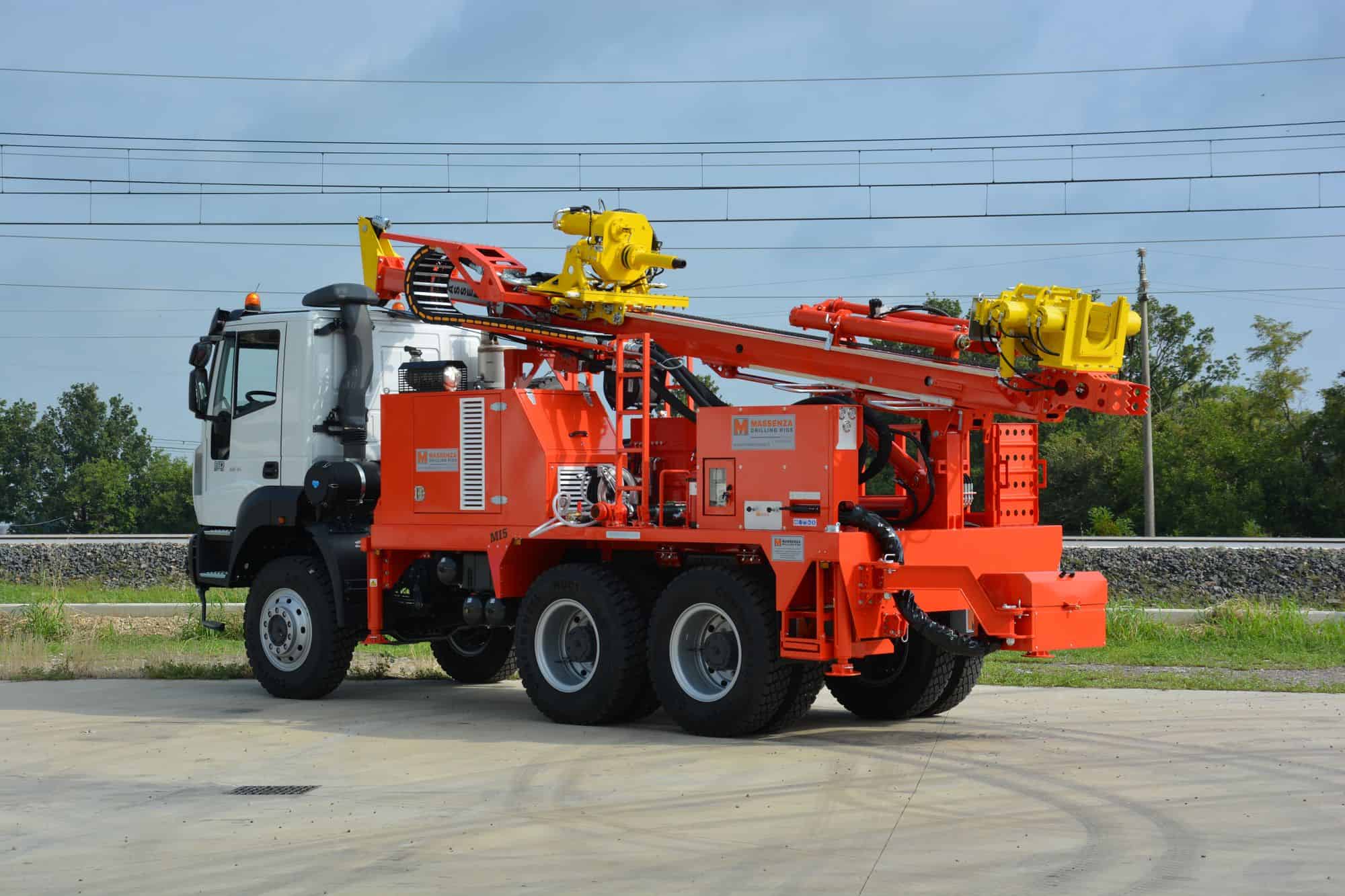

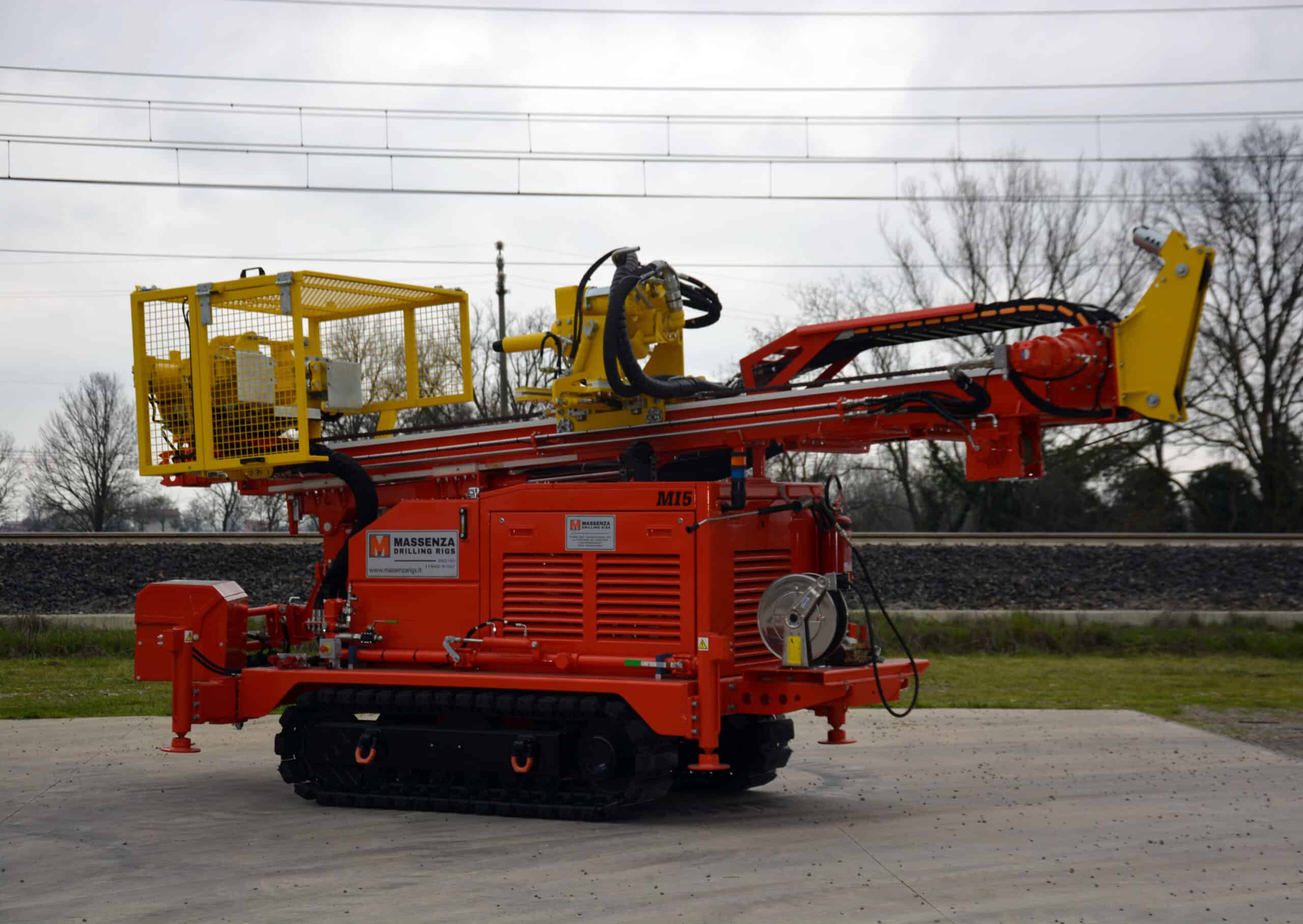

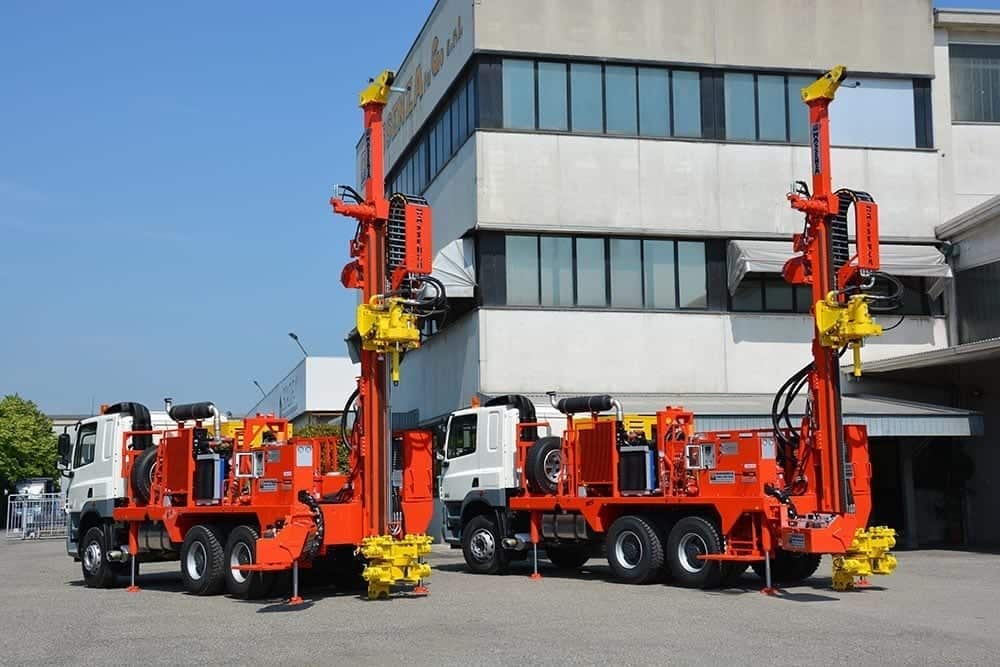

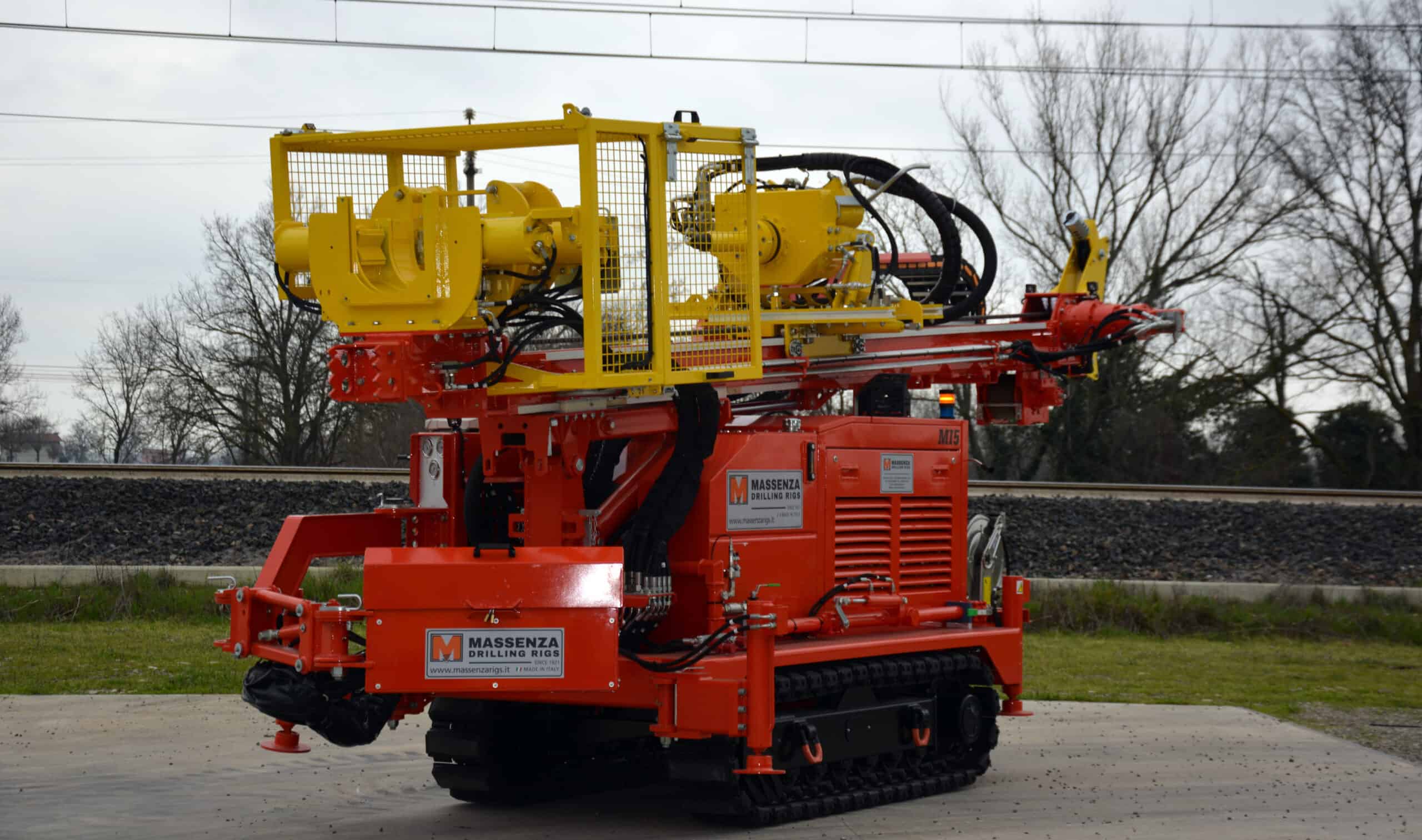

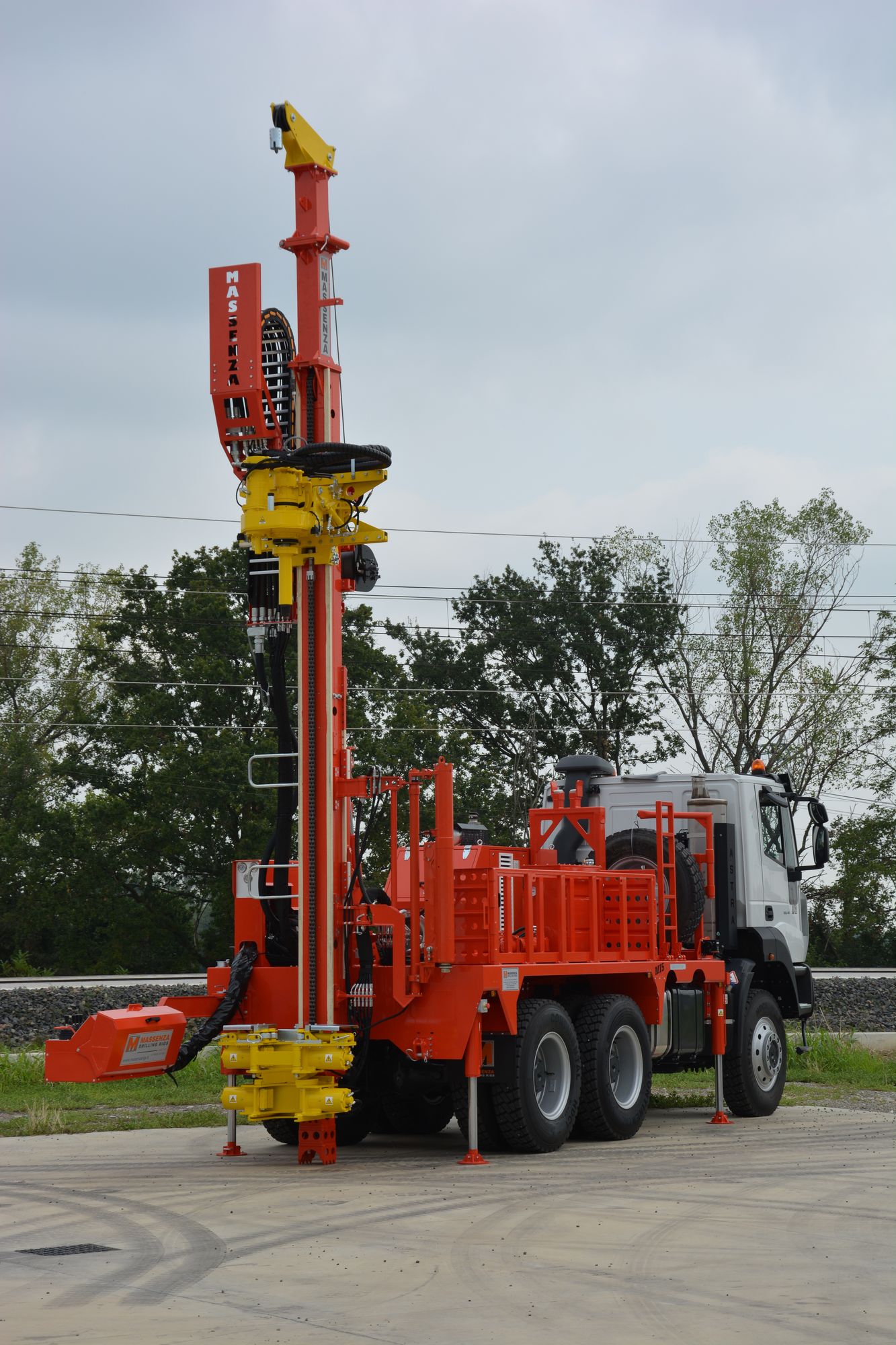

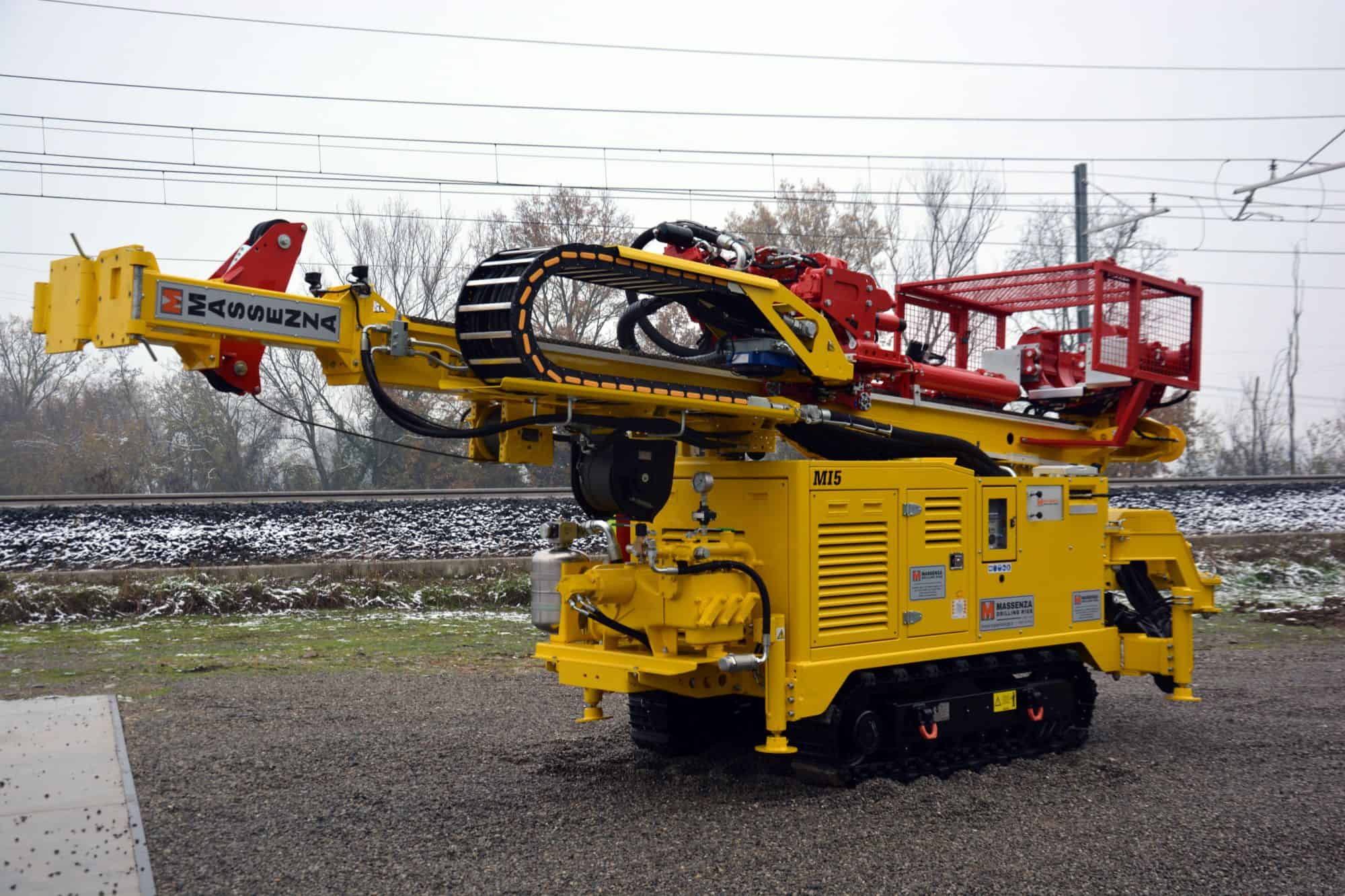

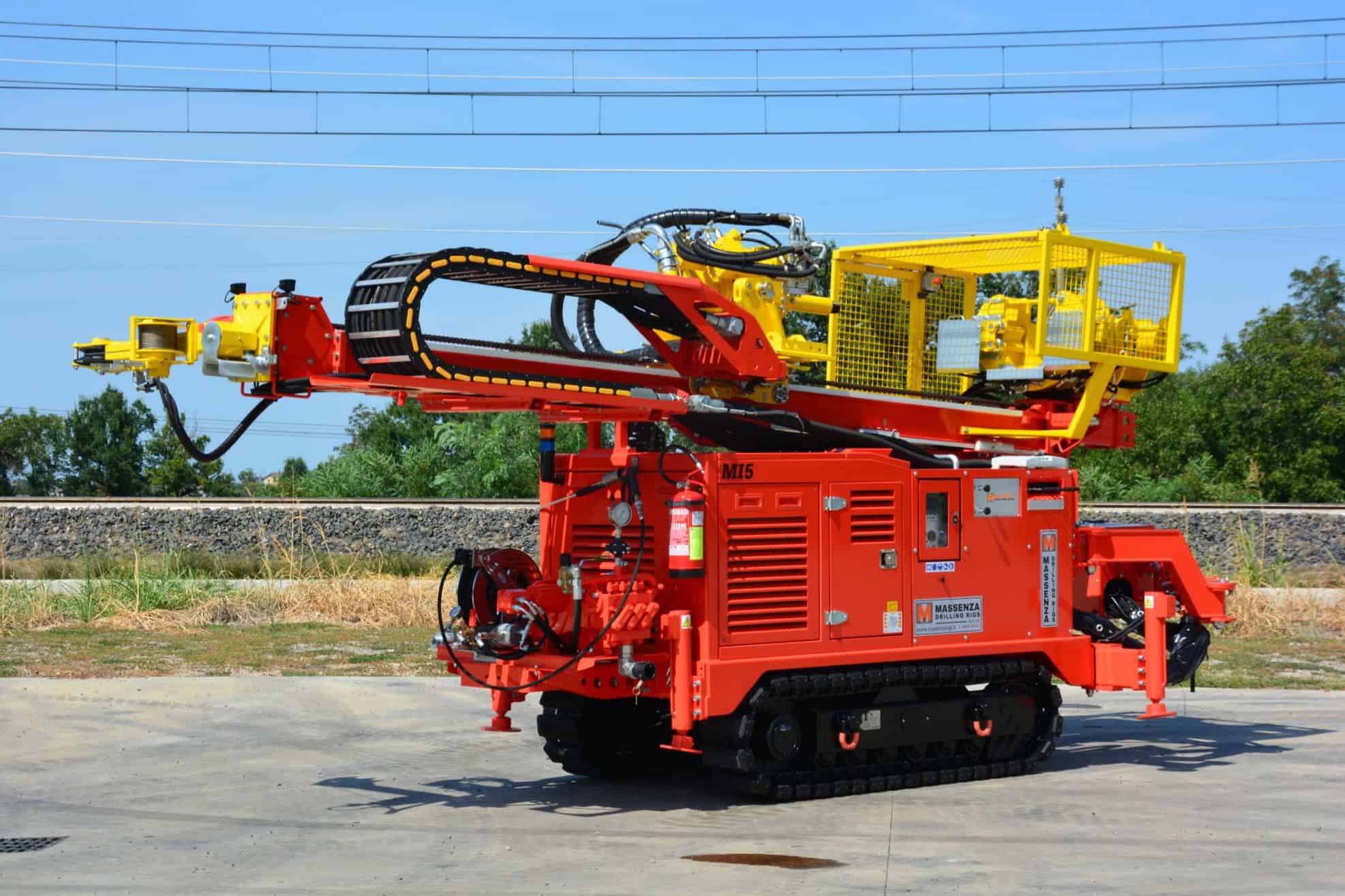

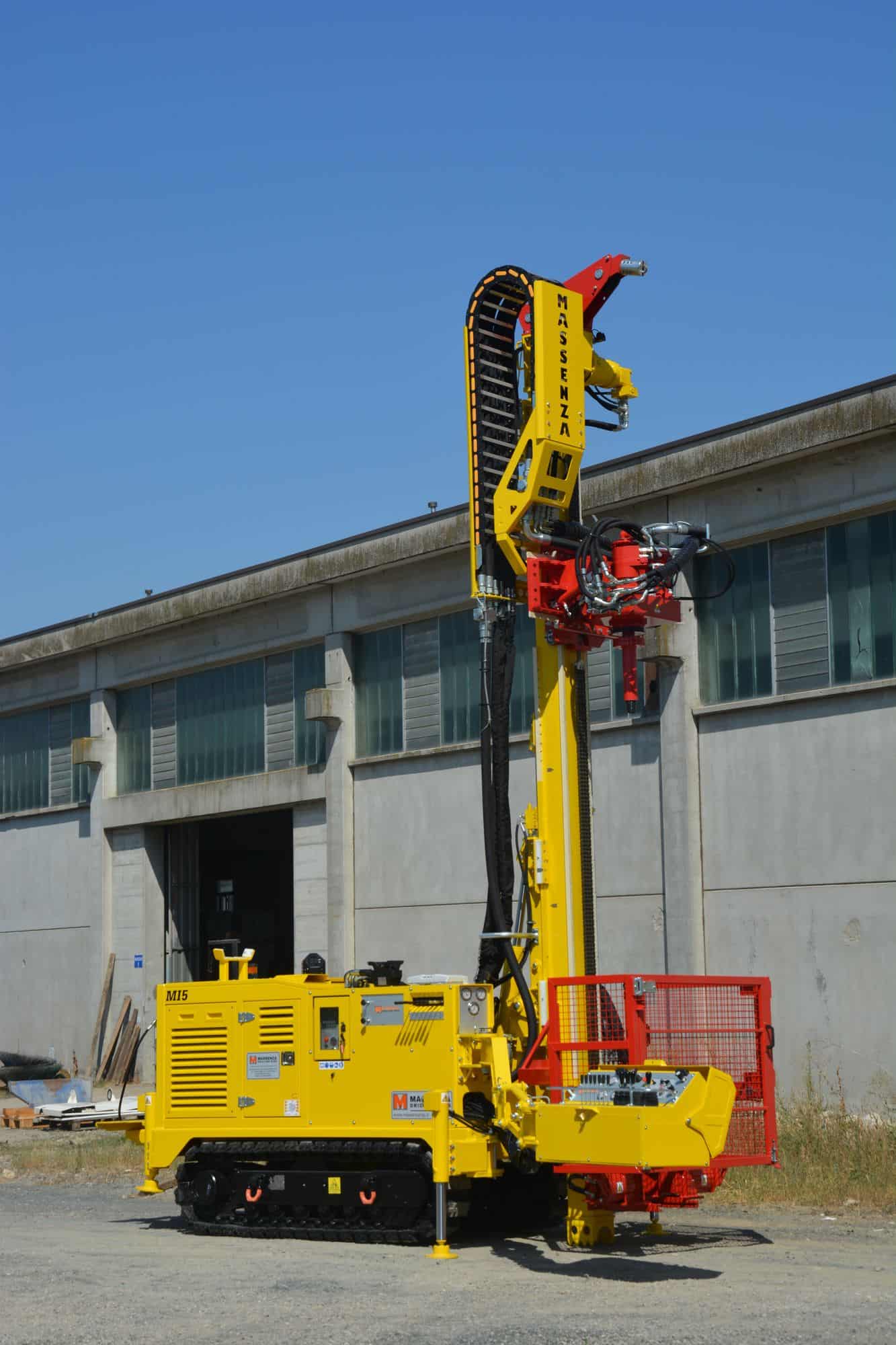

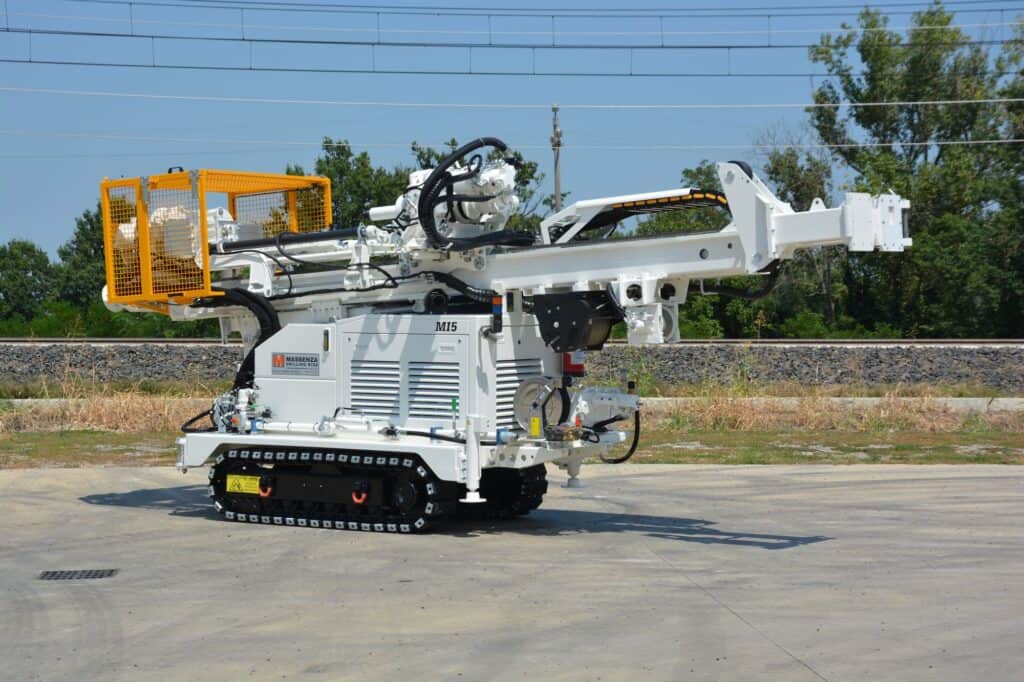

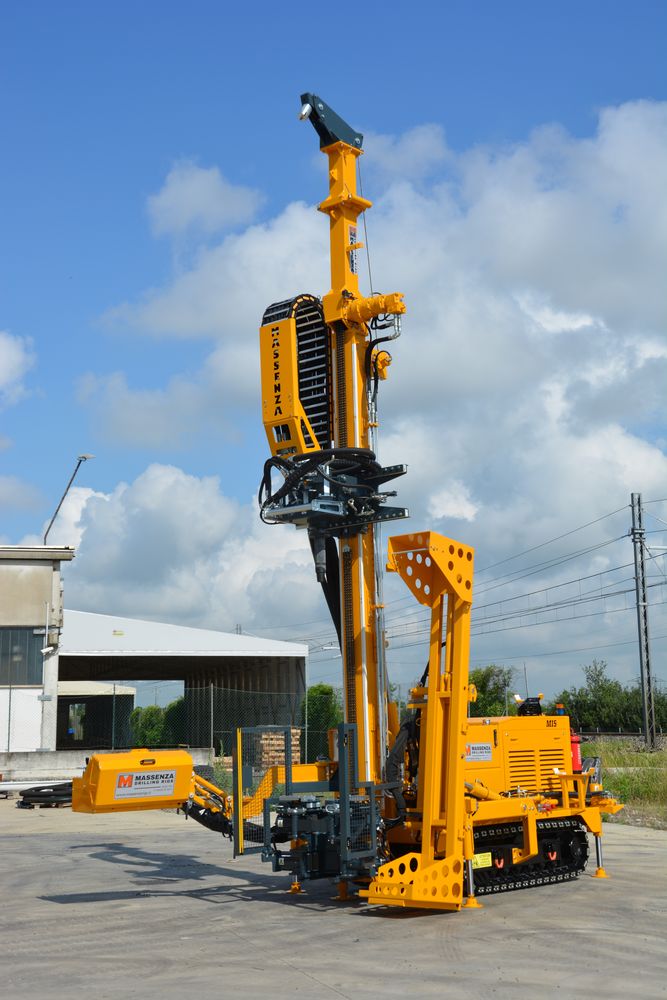

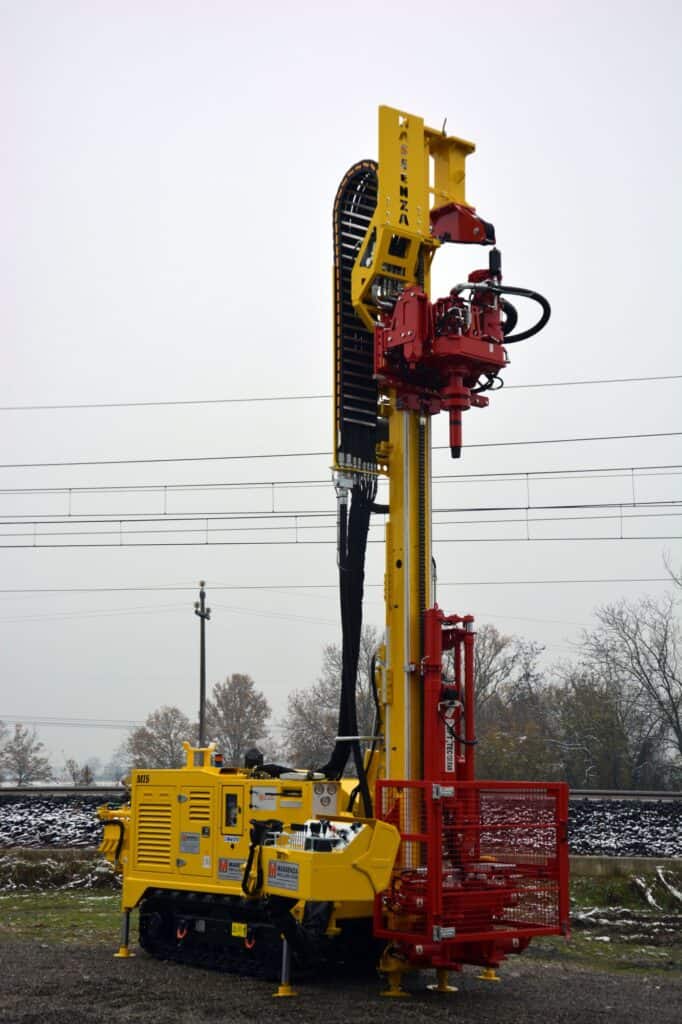

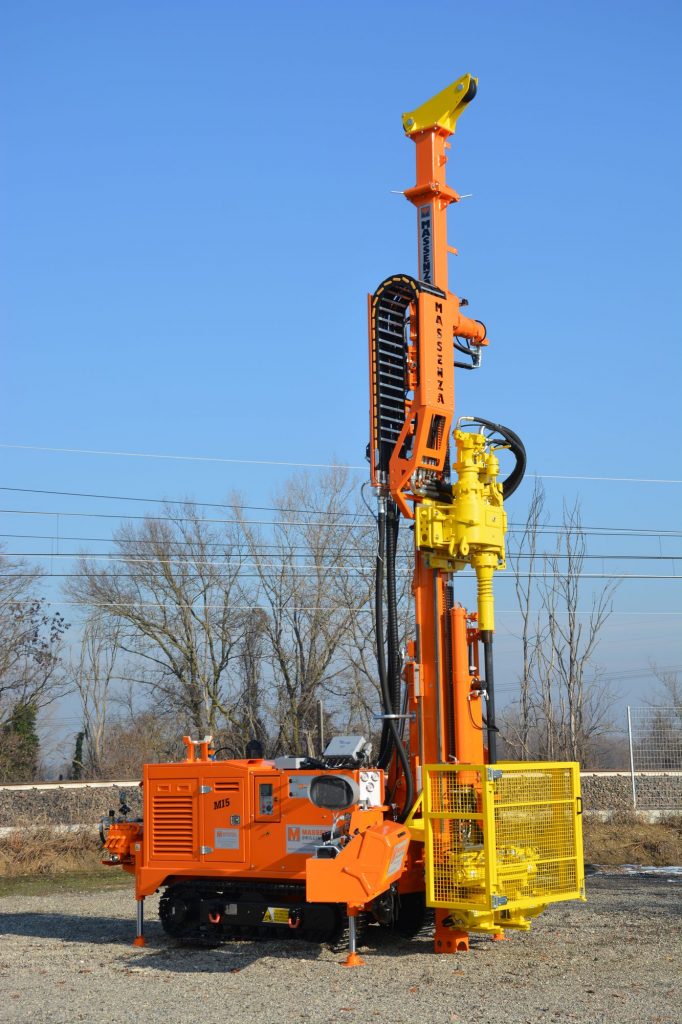

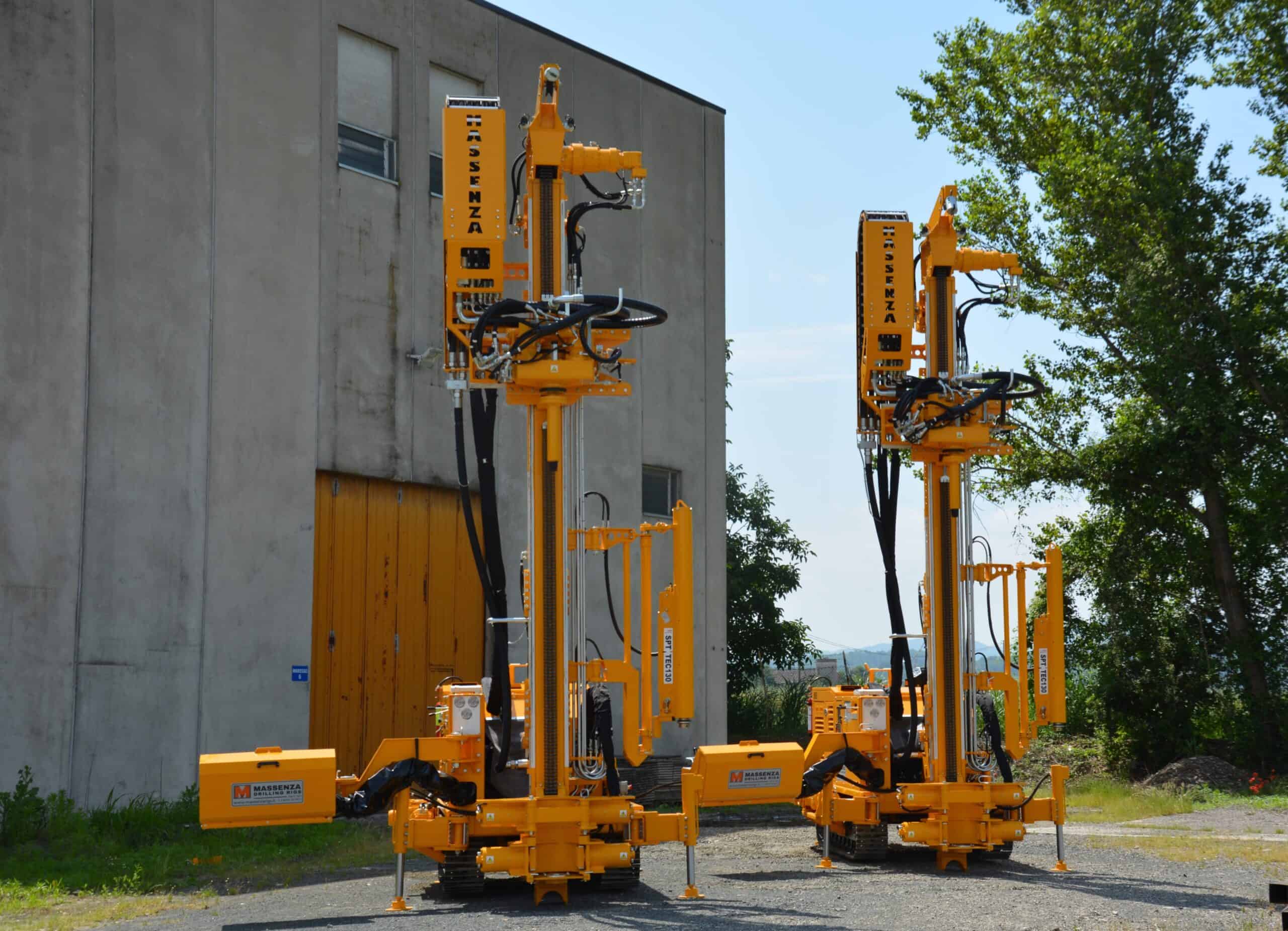

The rig is very compact with moderate dimensions and high technical specification. This permits the rig to be used for various applications: water wells, micro piles geothermal and geotechnical drilling. The rig can be either crawler or truck mounted. It is designed to work with several drilling methods: direct circulation, coring, down the hole hammer drilling and augering. All controls are located for ease of operation and safety with the rig positioning controls on a fixed panel and the drilling controls on a remote rotating arm. Numerous options are available to personalize the rig for most drilling requirements including mast extensions (folding or telescopic), SPT penetrometer, various foam and mud piston pumps and fixed or hydraulically tilting drill pipe boxes.| WORK METHODS |
|---|
| - Rotation with direct or reverse circulation - Rotation with down the hole hammer - Coring - Auger |
| POWER PACK |
| Engine power max 134 Hp (100 kW) |
| FUEL TANK |
| Capacity 115 litri (30 gal) |

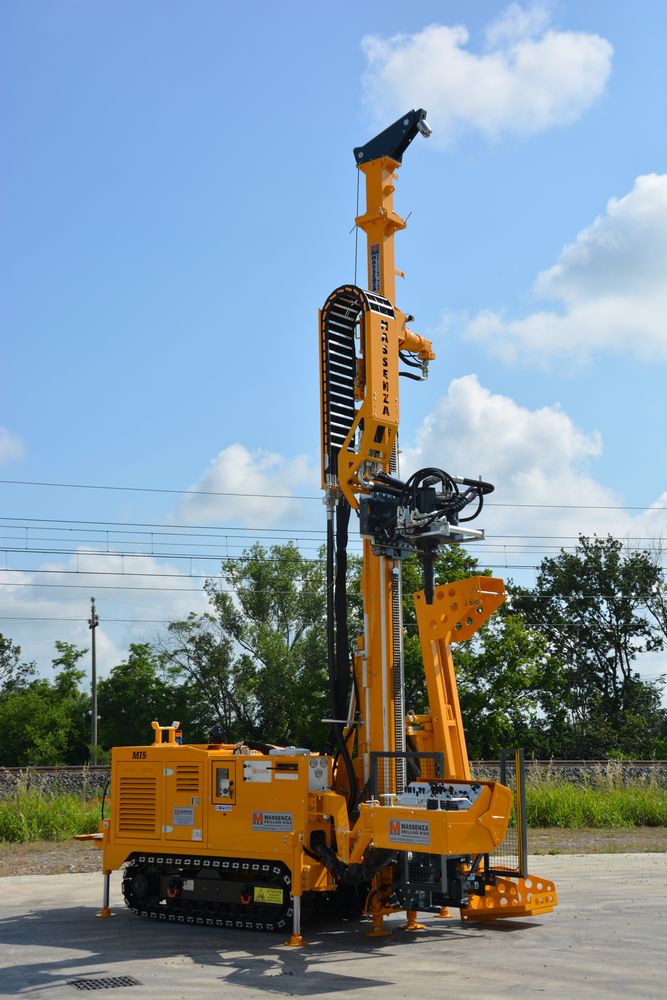

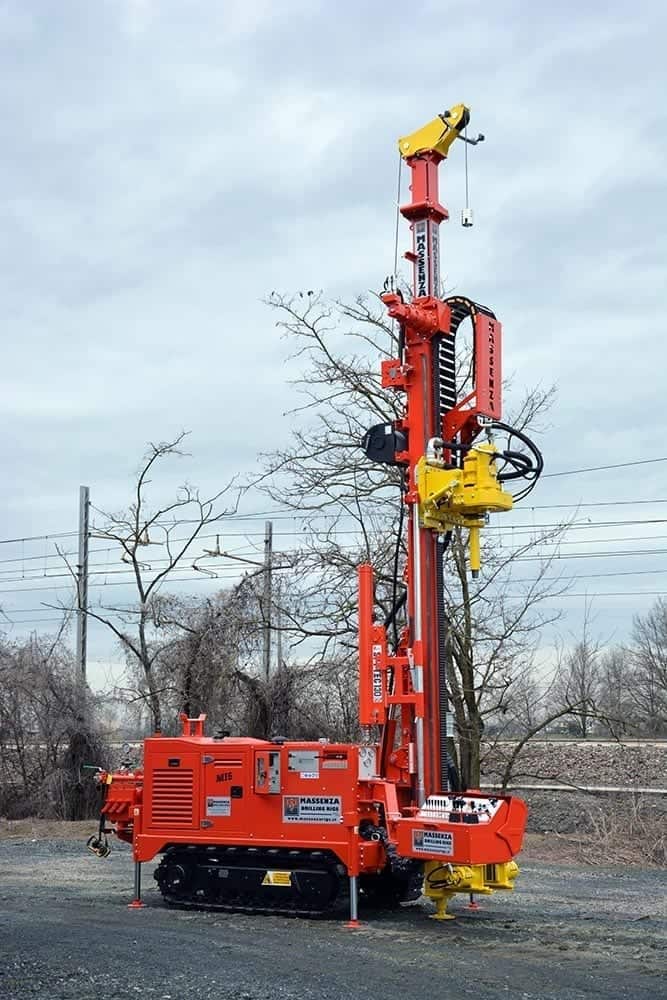

| MAST |
|---|
| Standard:pull up and down 6,400 daN (14,390 lbf) Optional: pull up 8,000 daN (17,985 lbf) |

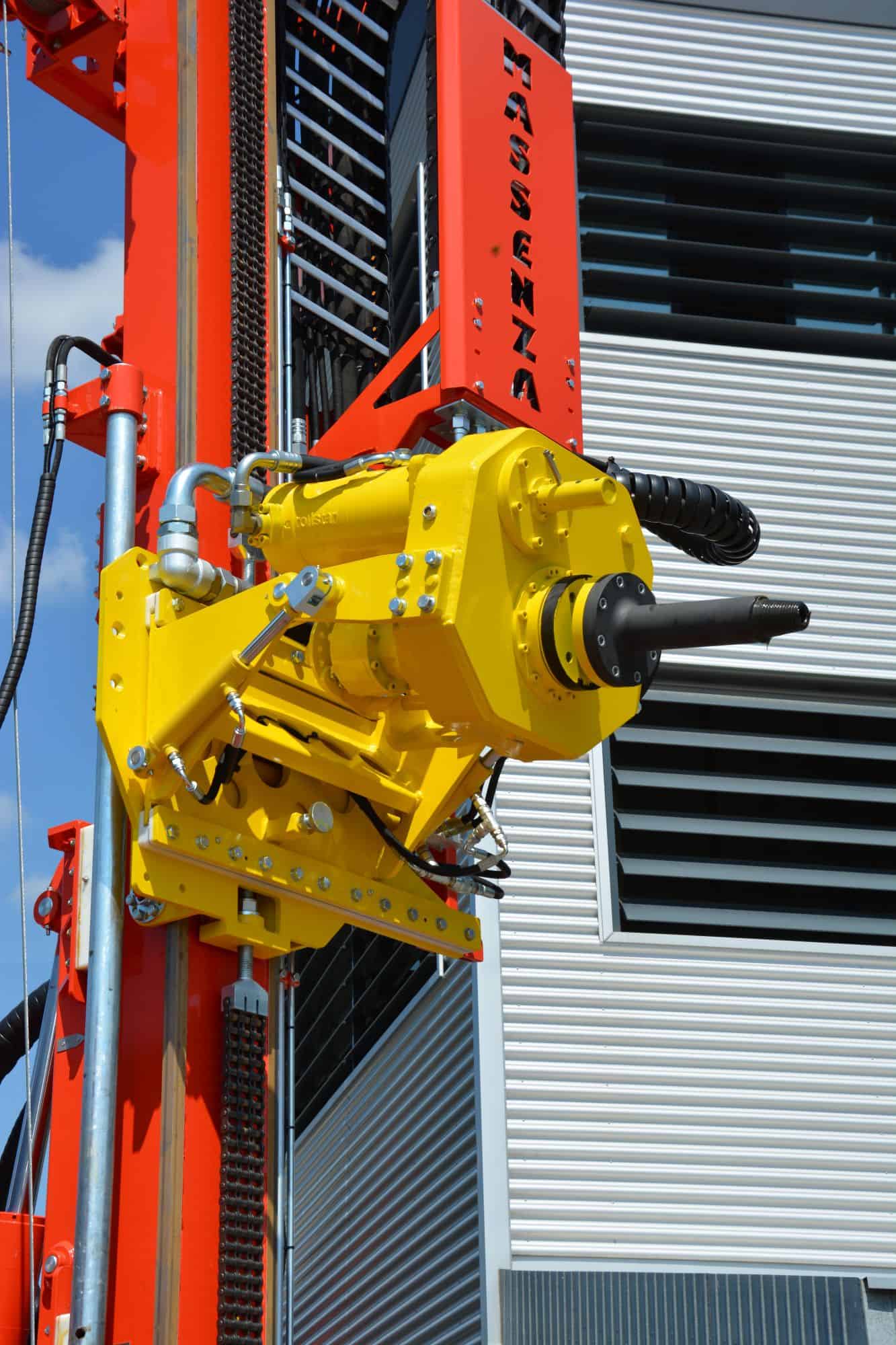

| ROTARY HEAD |
| Maximum torque 14,460 Nm (10,665 lbf•ft) Maximum speed 1,001 Rpm |

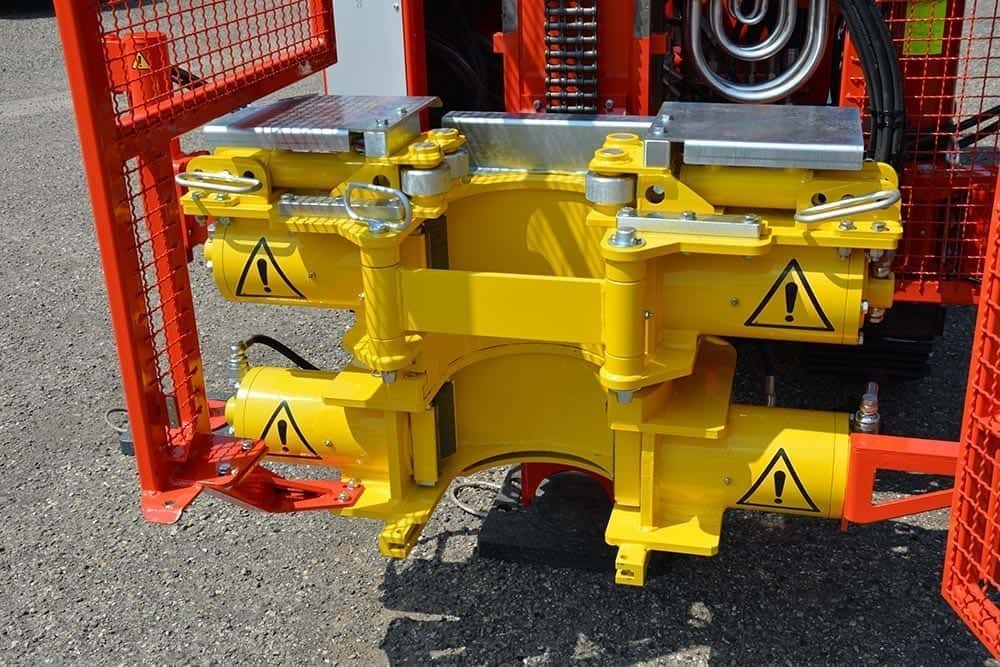

| DOUBLE HYDRAULIC CLAMP |
| Model MS300: maximum passage 305 mm (12”) Model MS360: diametro maximum passage 370 mm (14-1/2”) |
