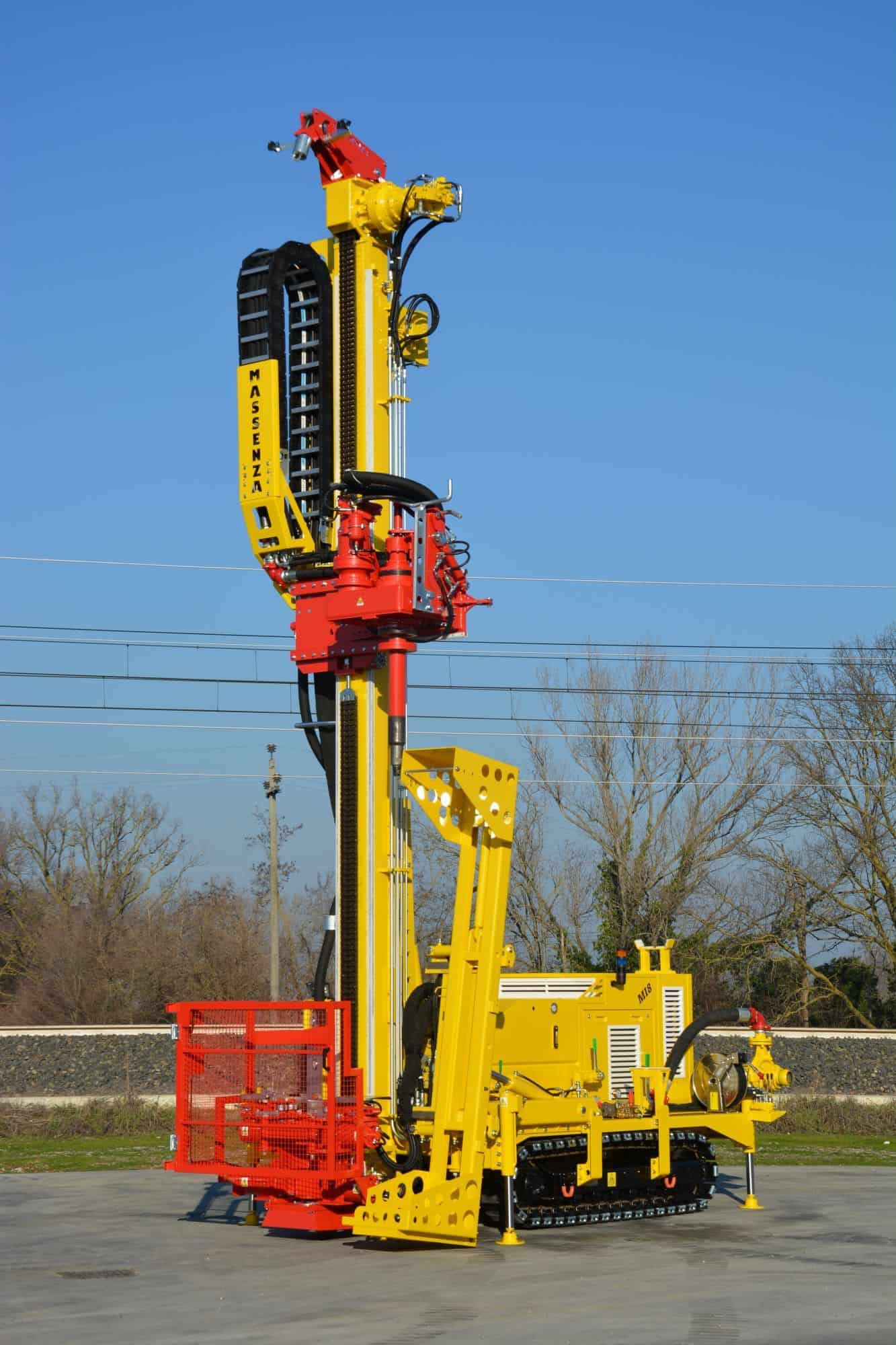

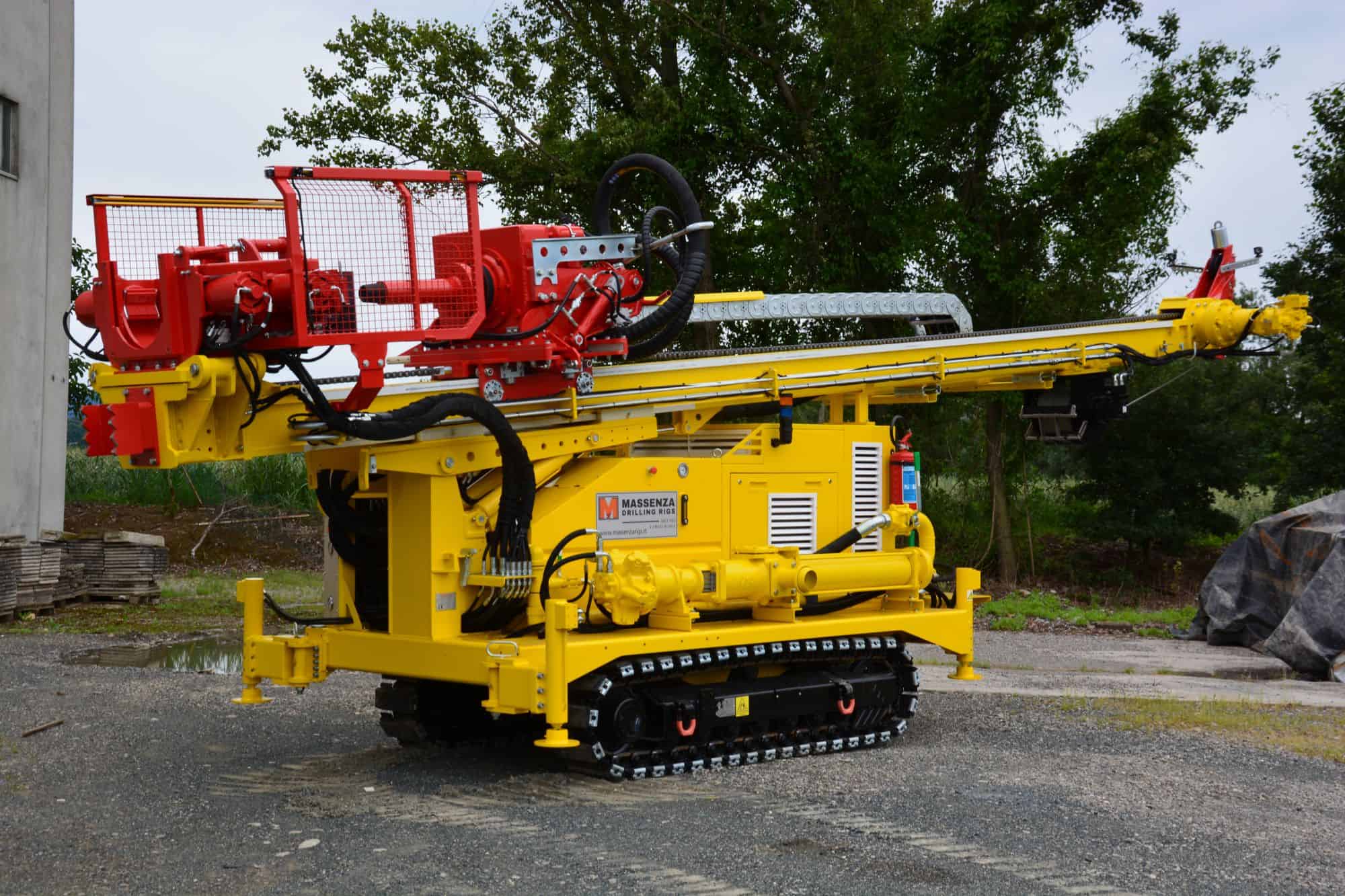

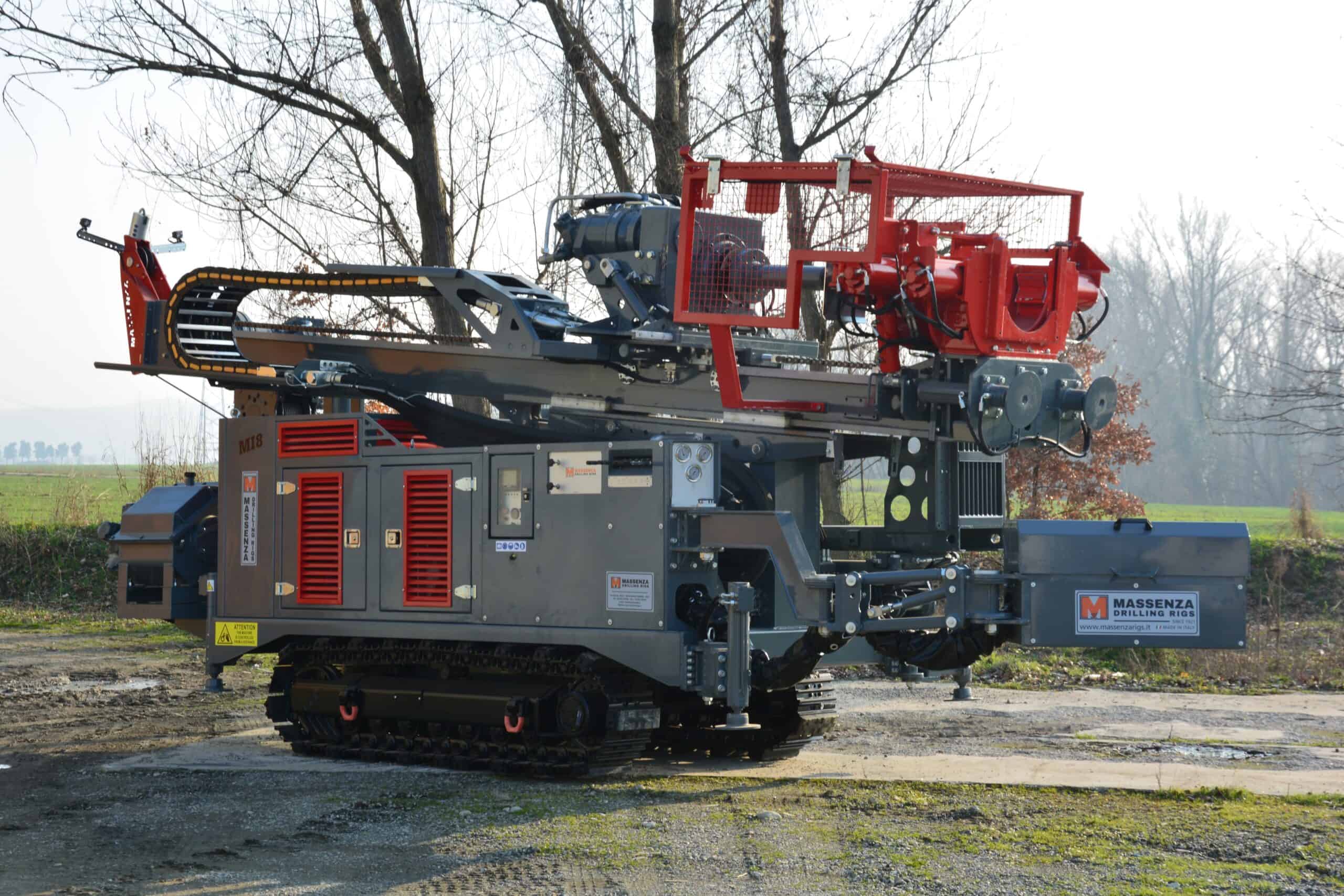

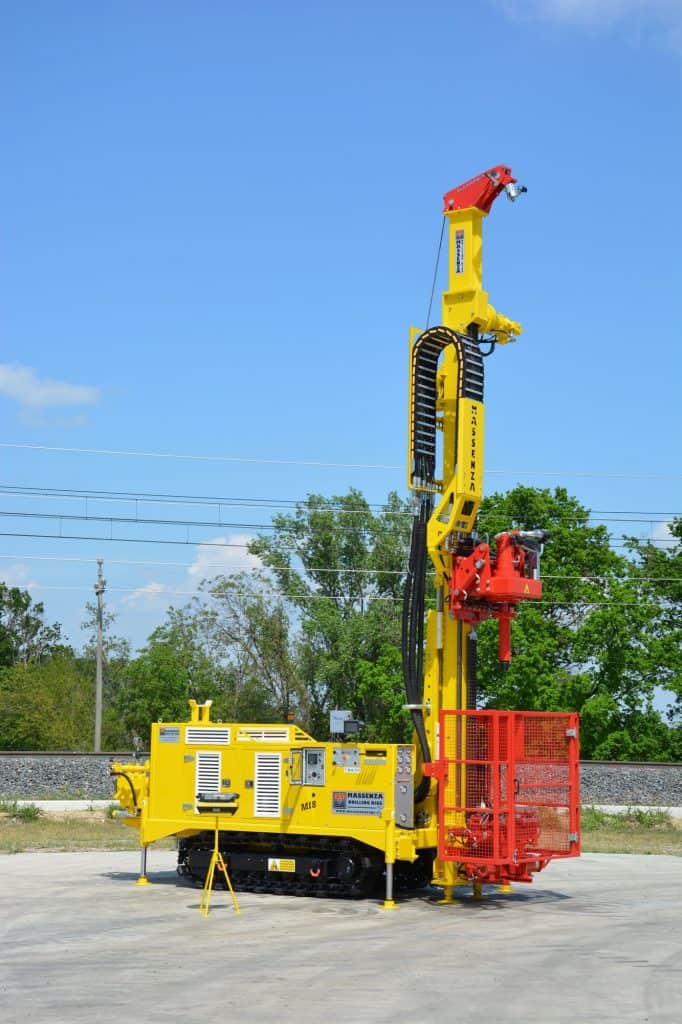

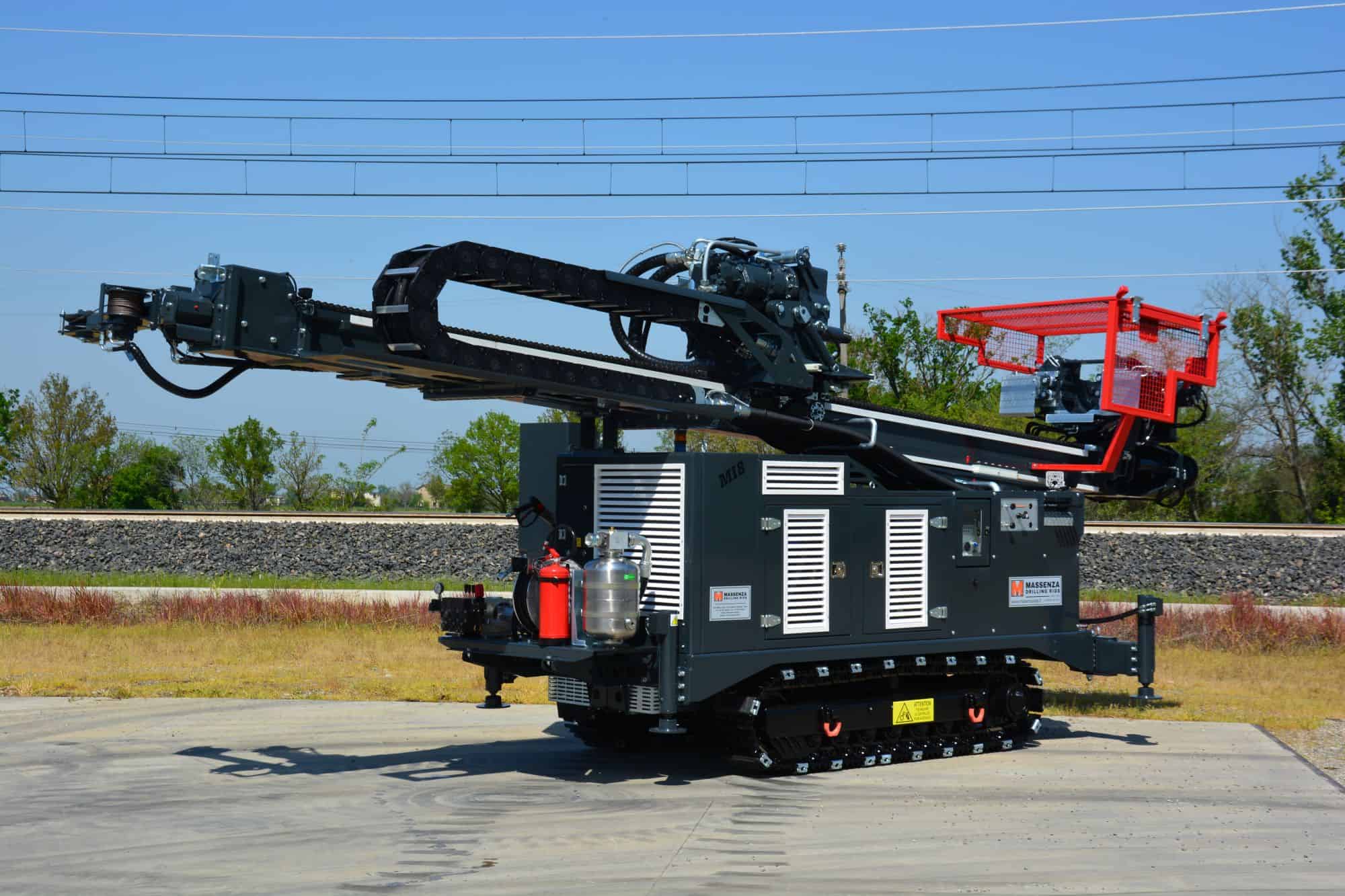

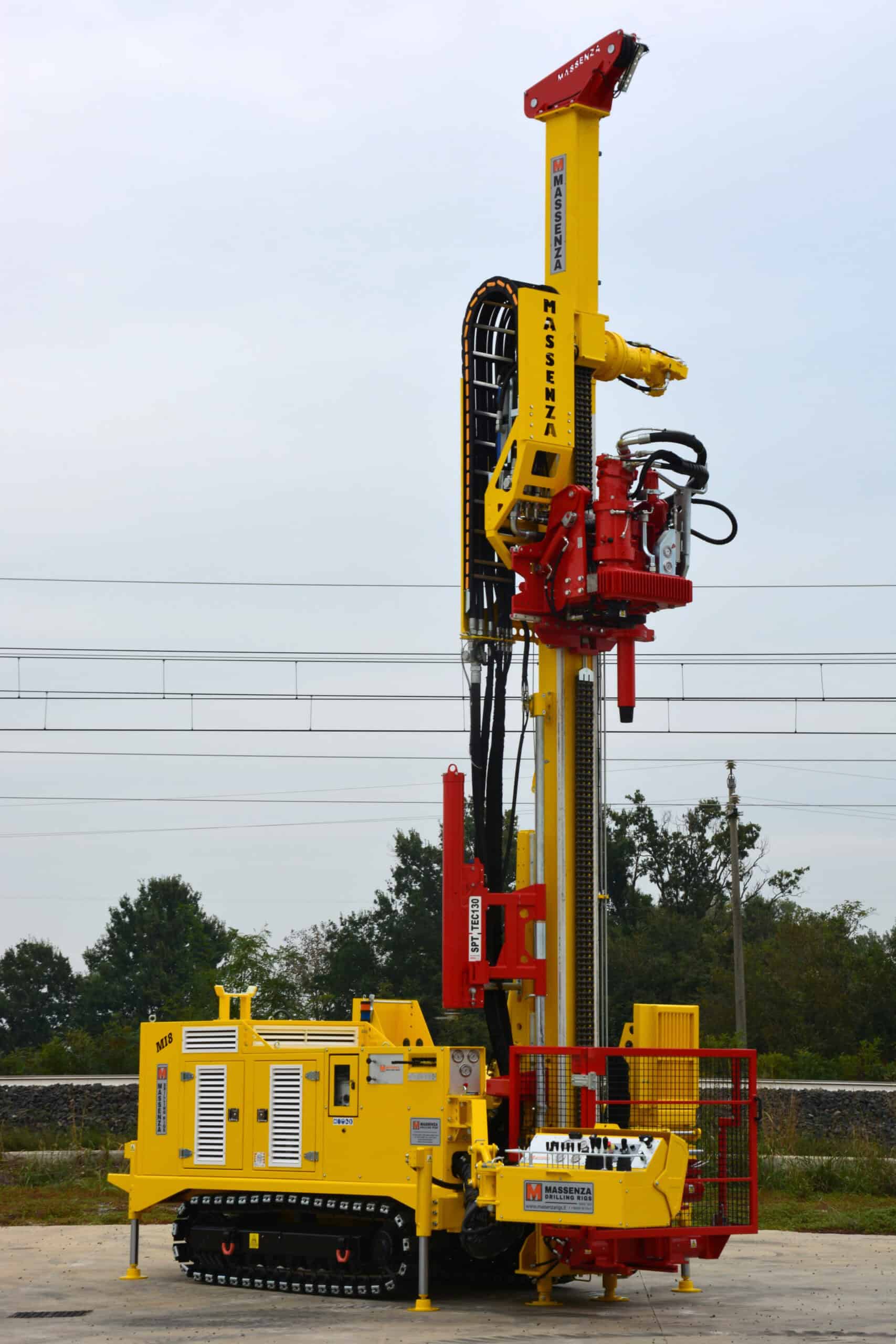

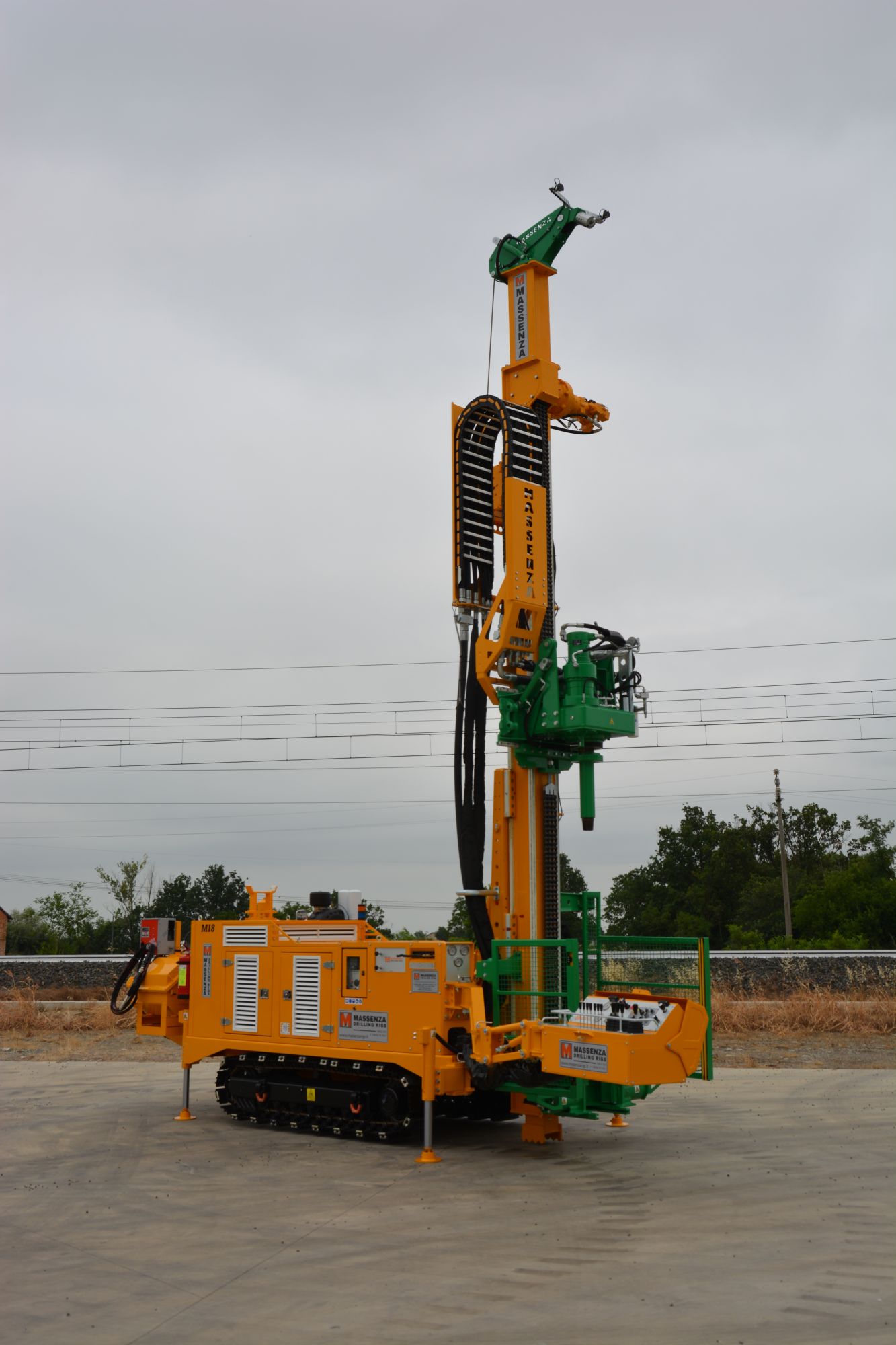

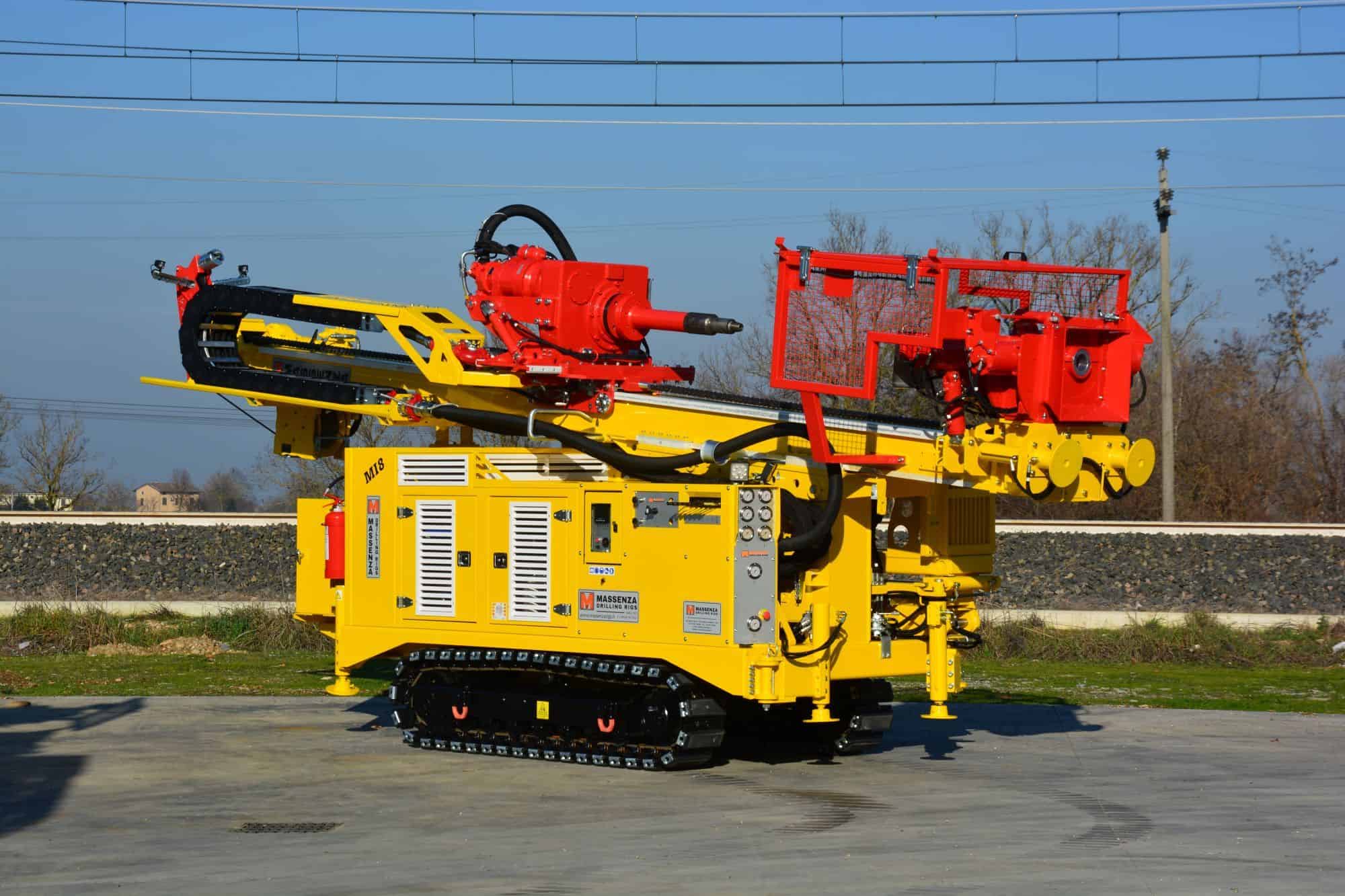

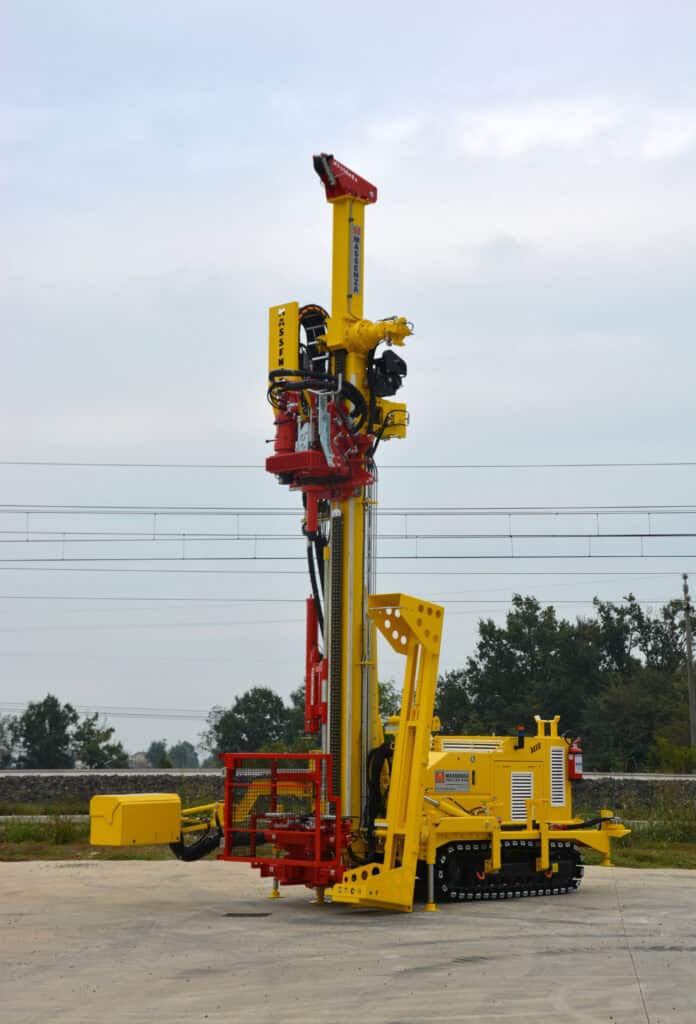

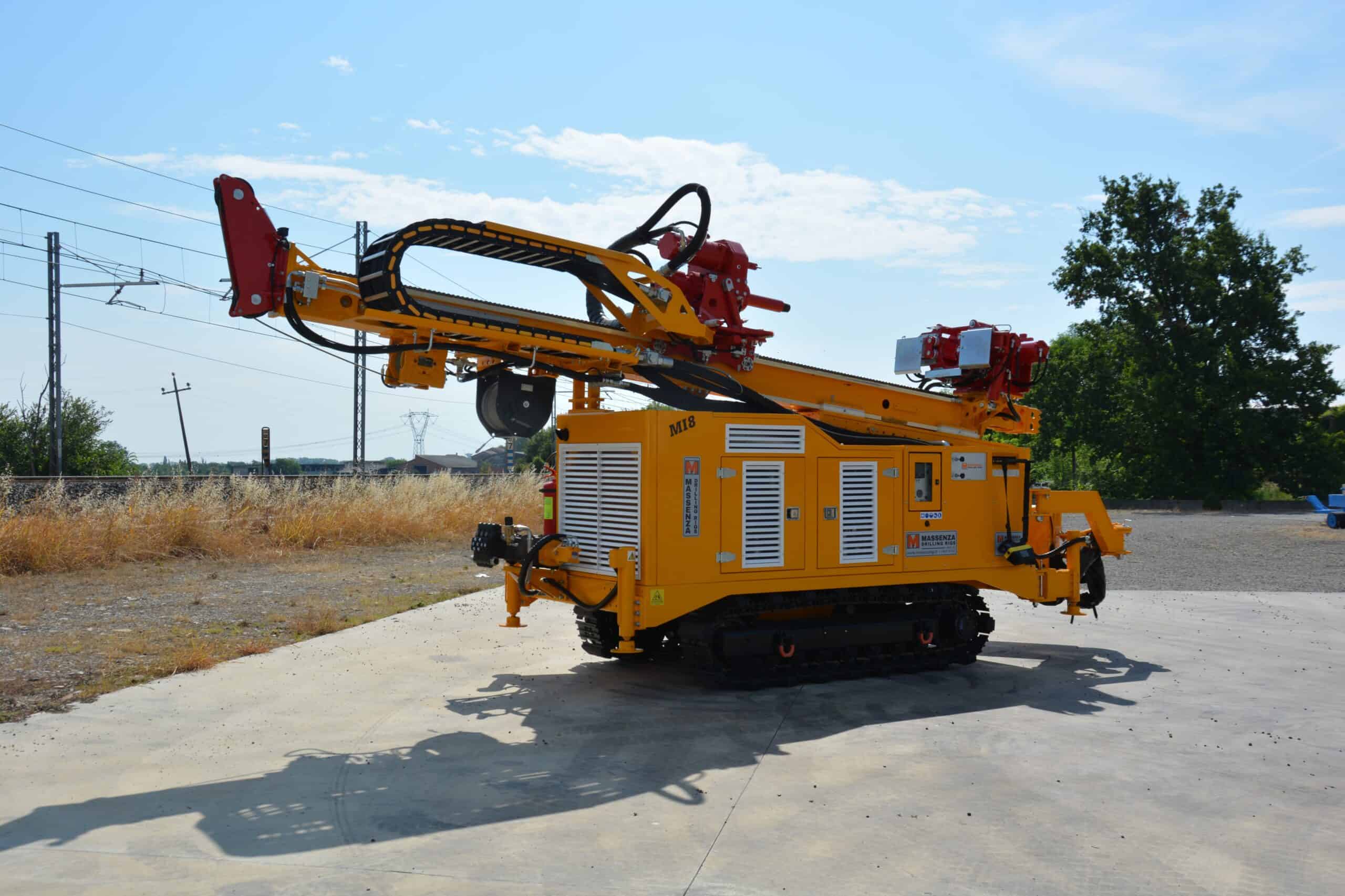

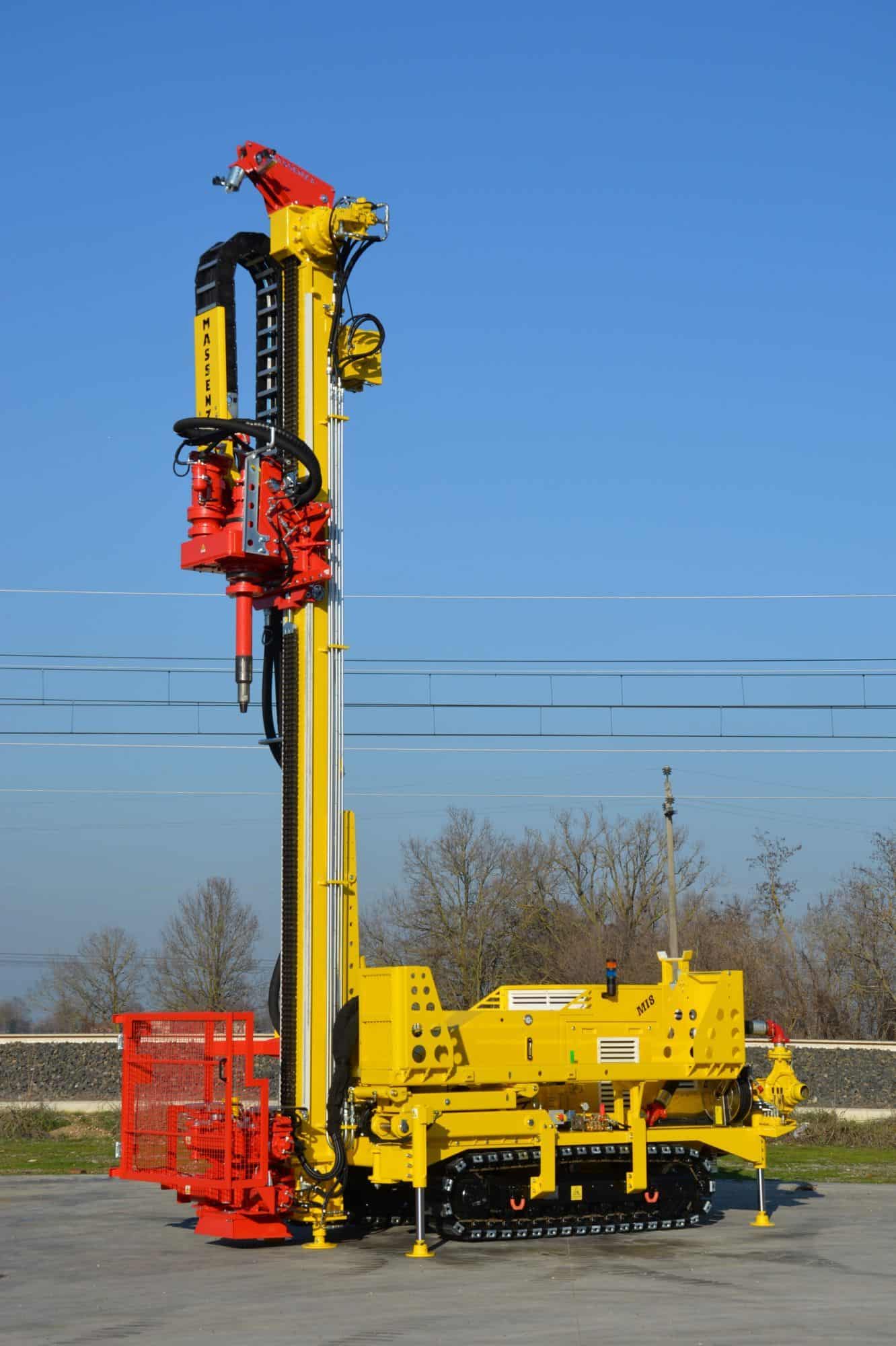

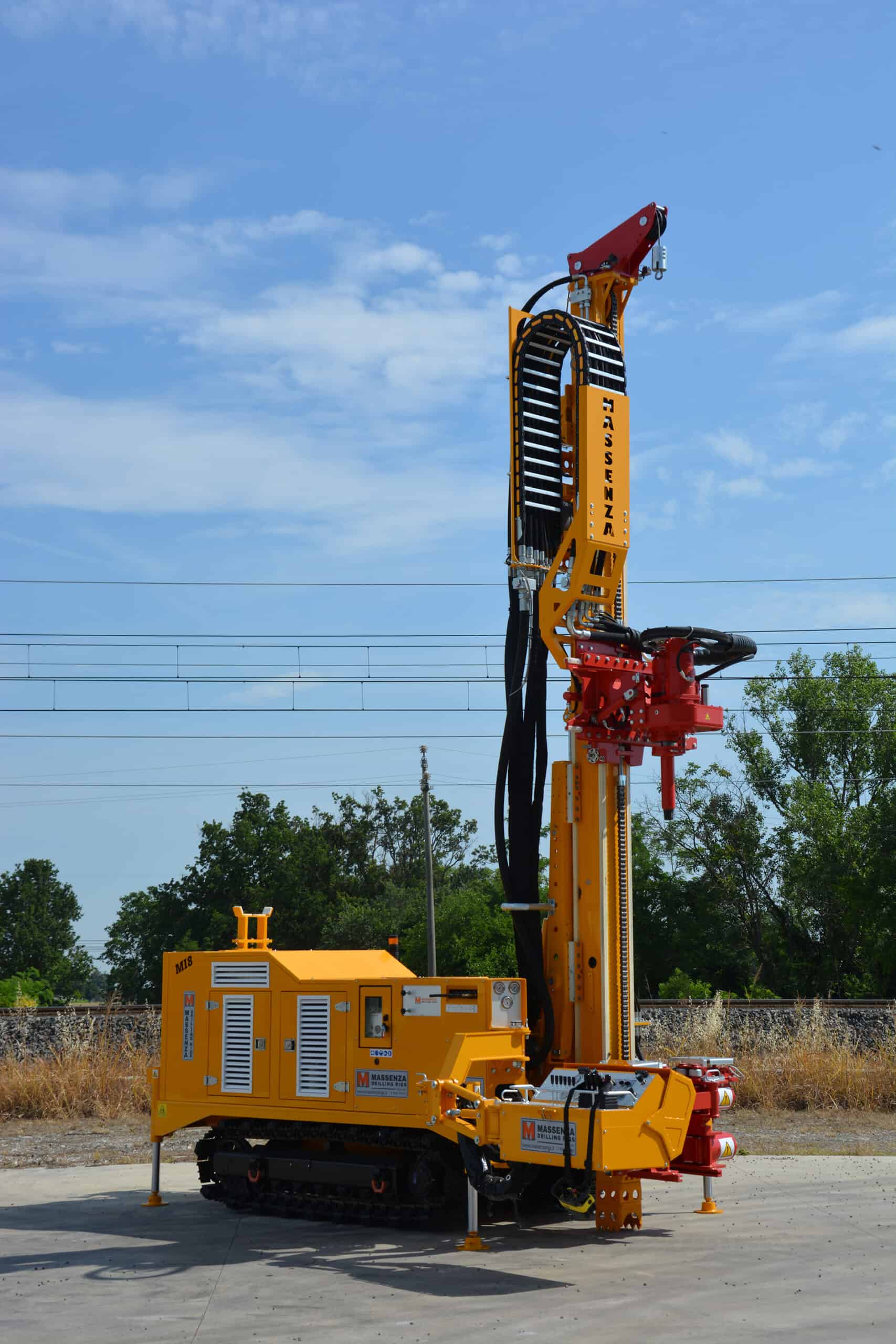

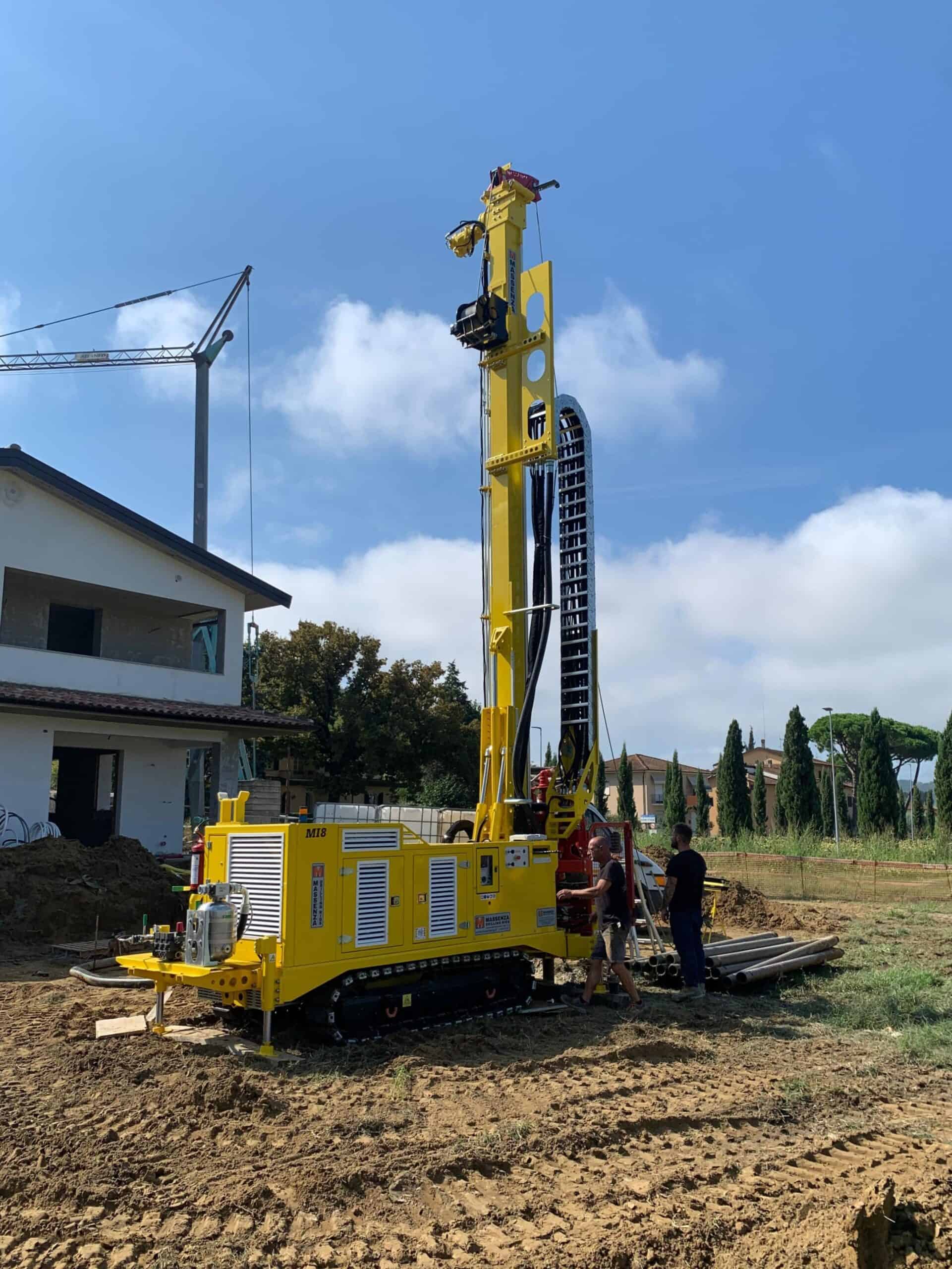

DRILLING RIG Mi8
DESCRIPTION

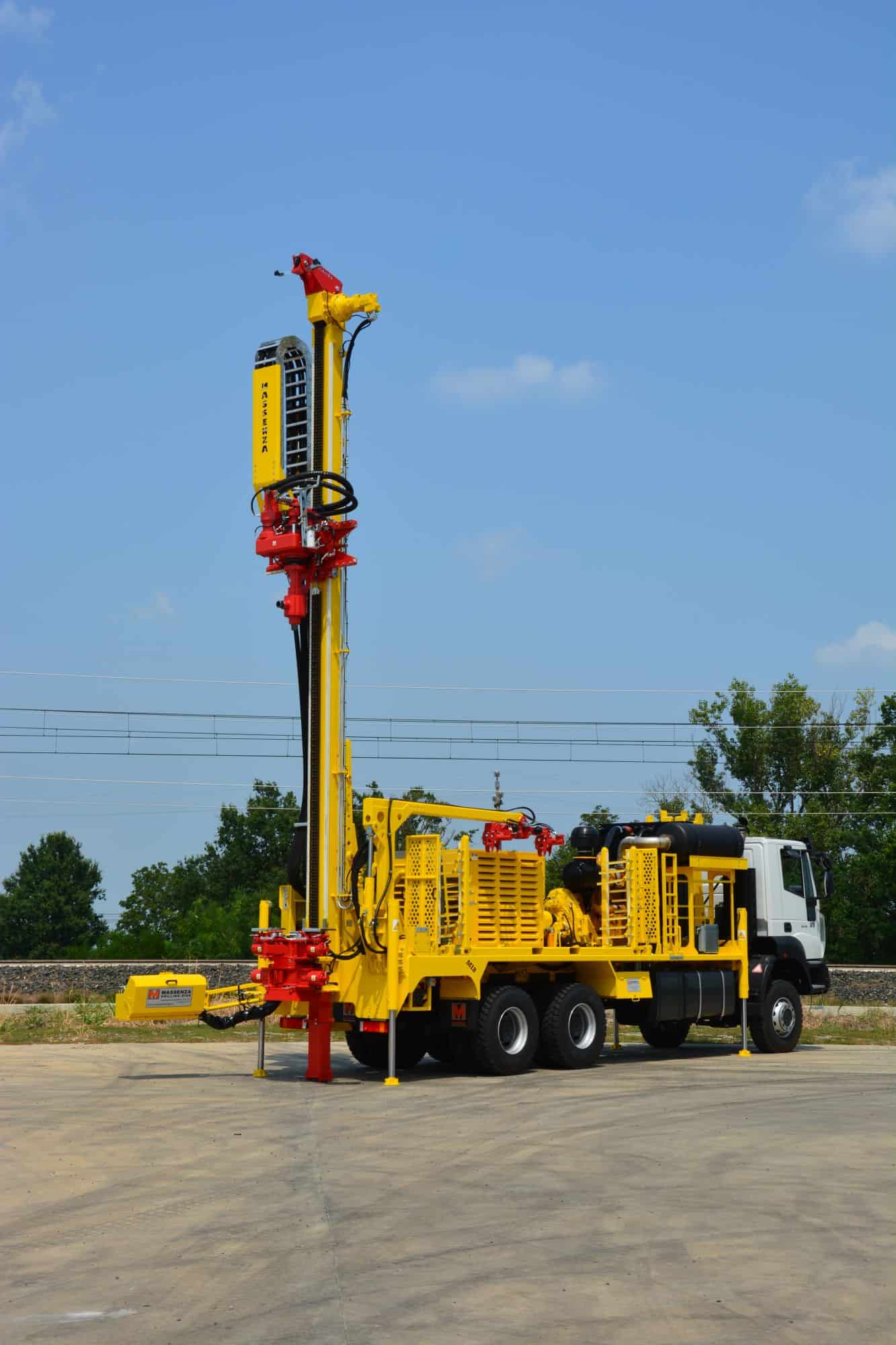

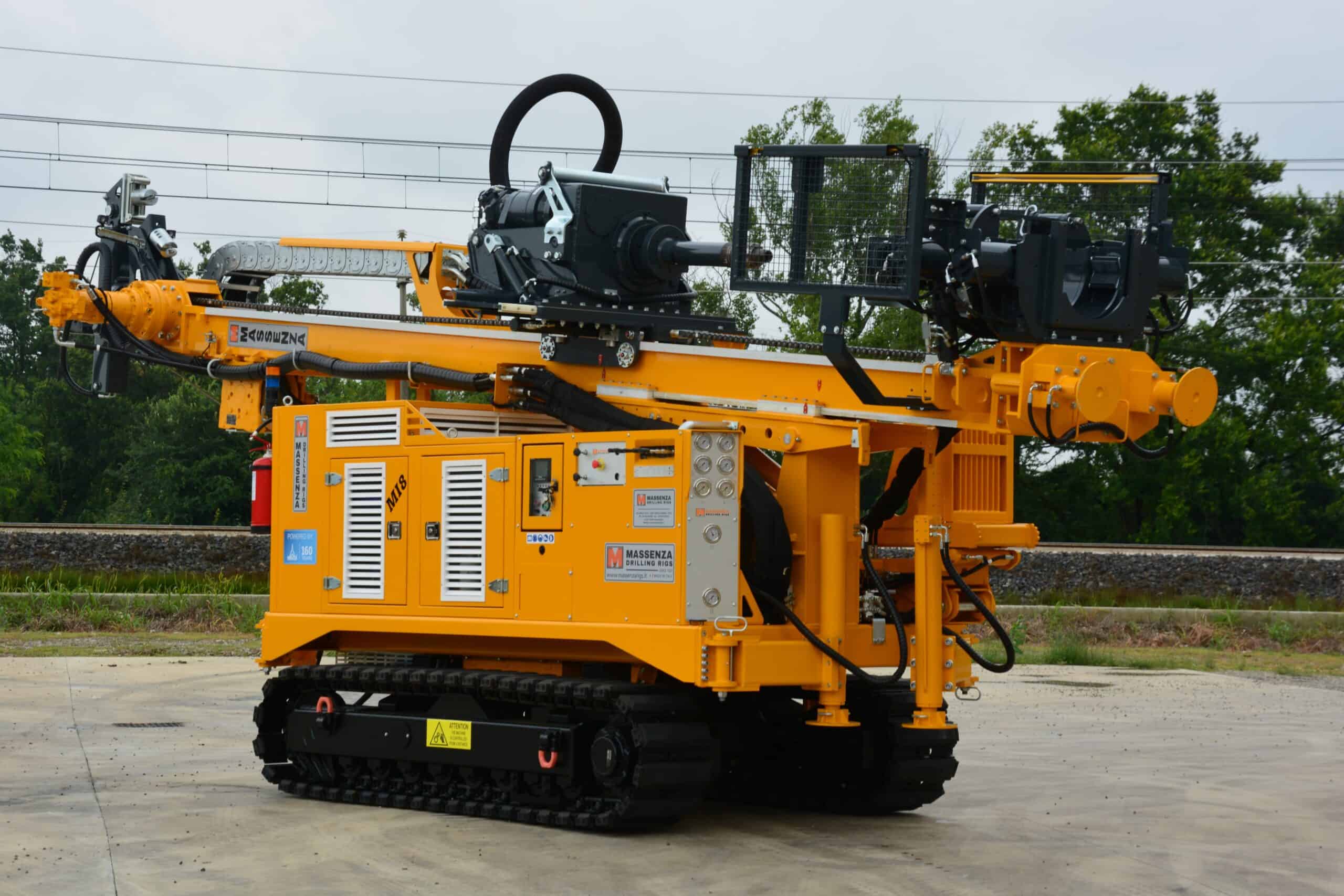

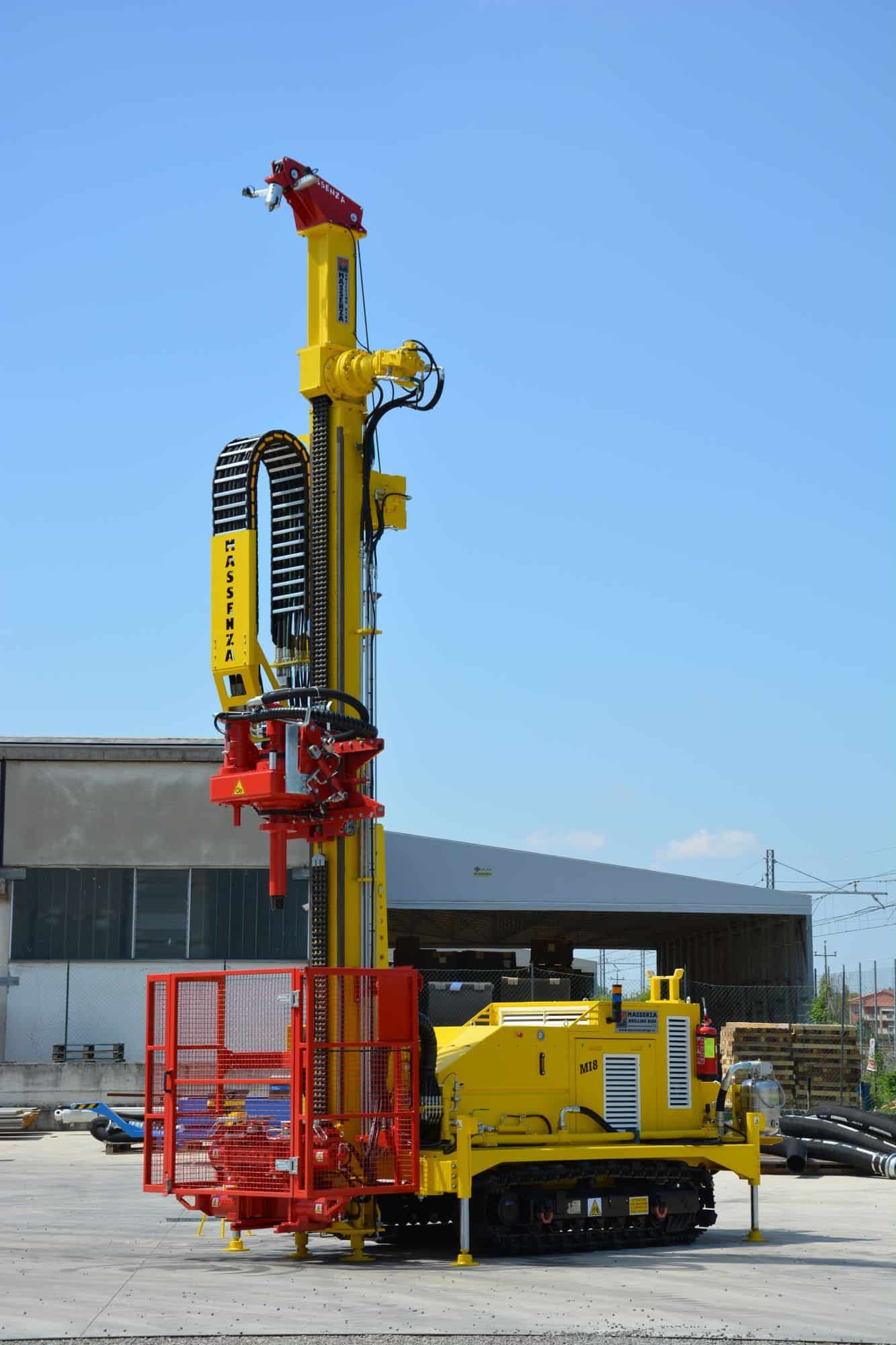

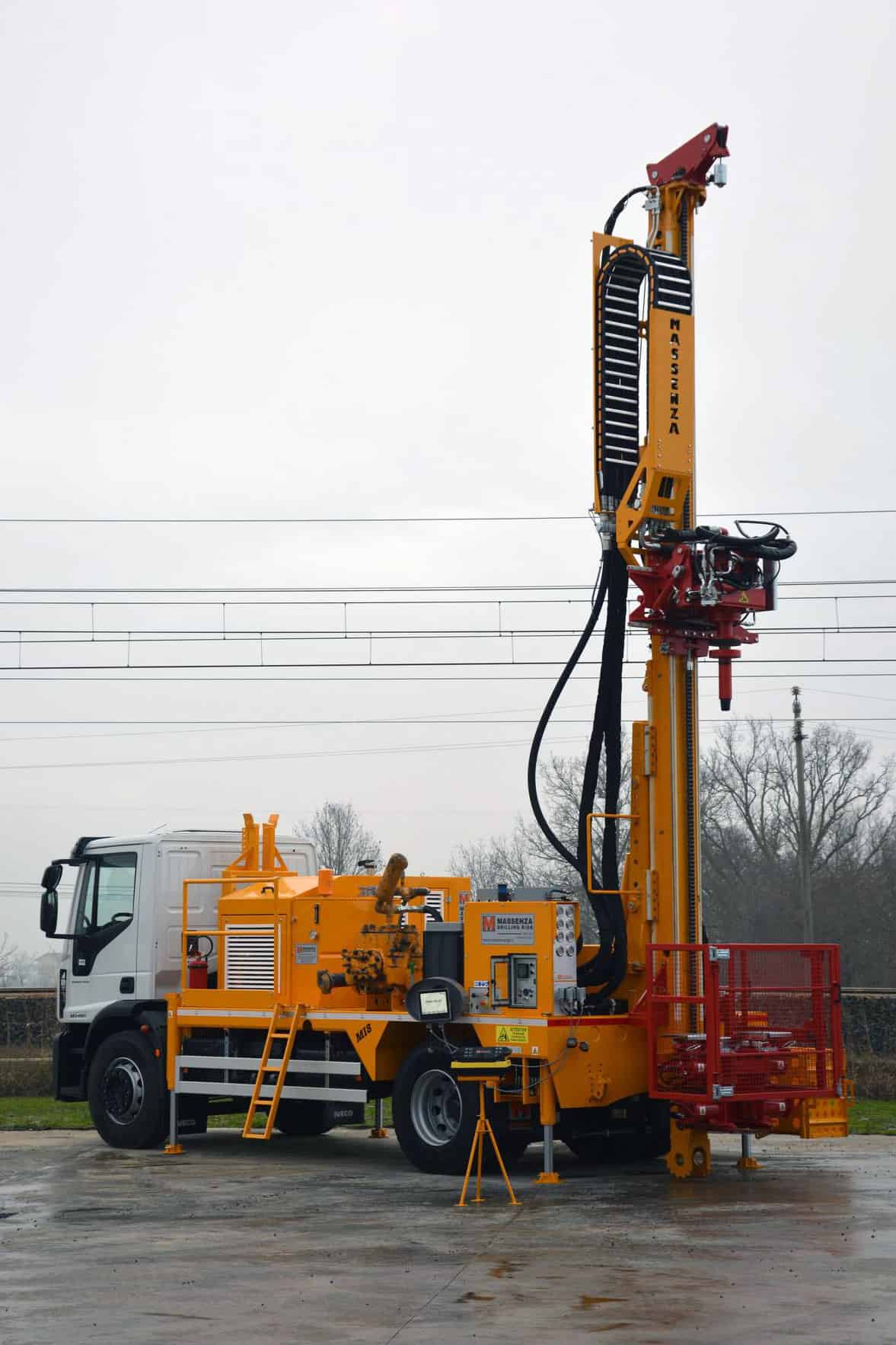

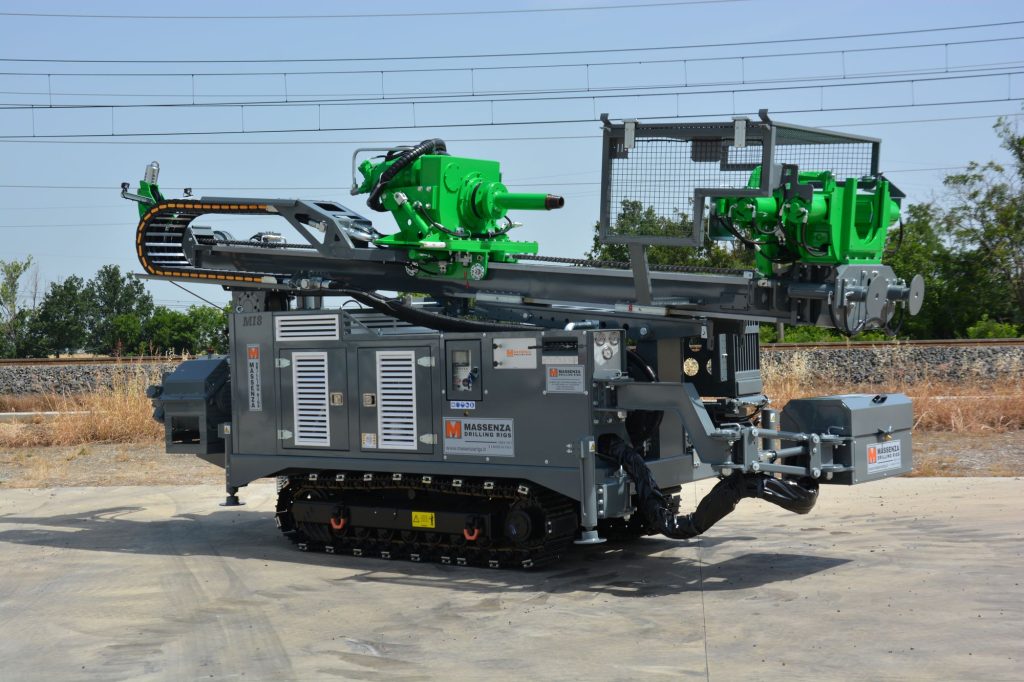

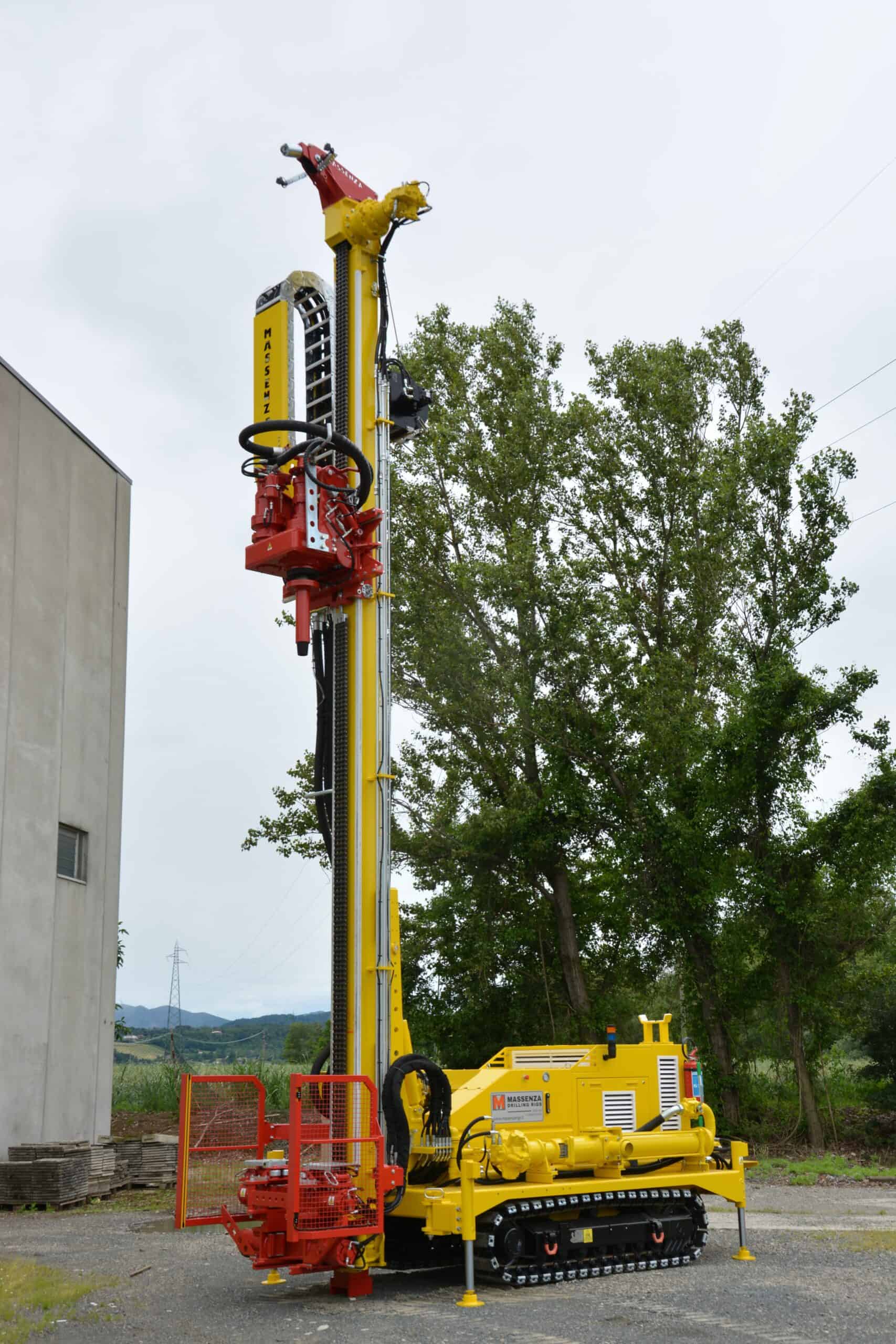

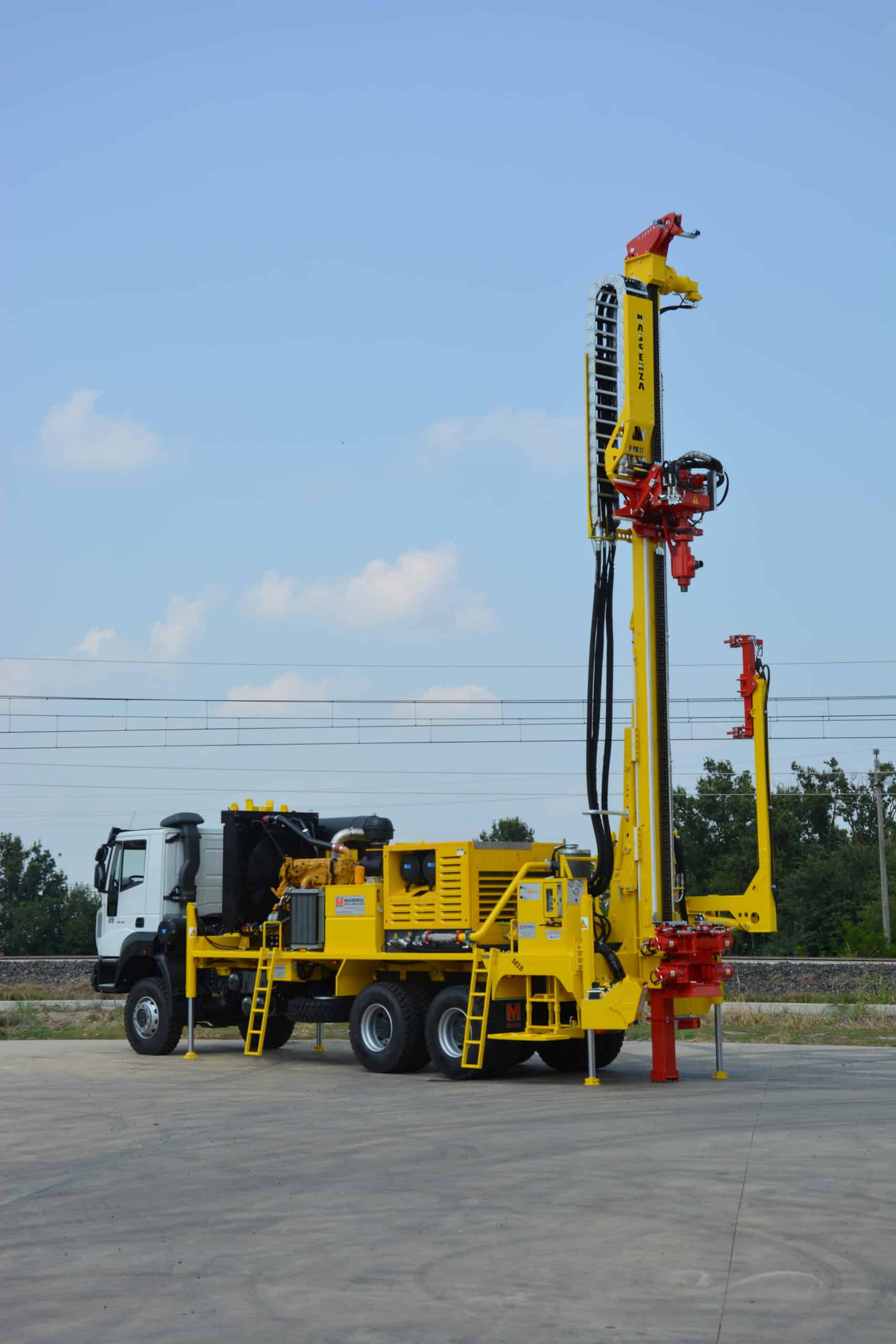

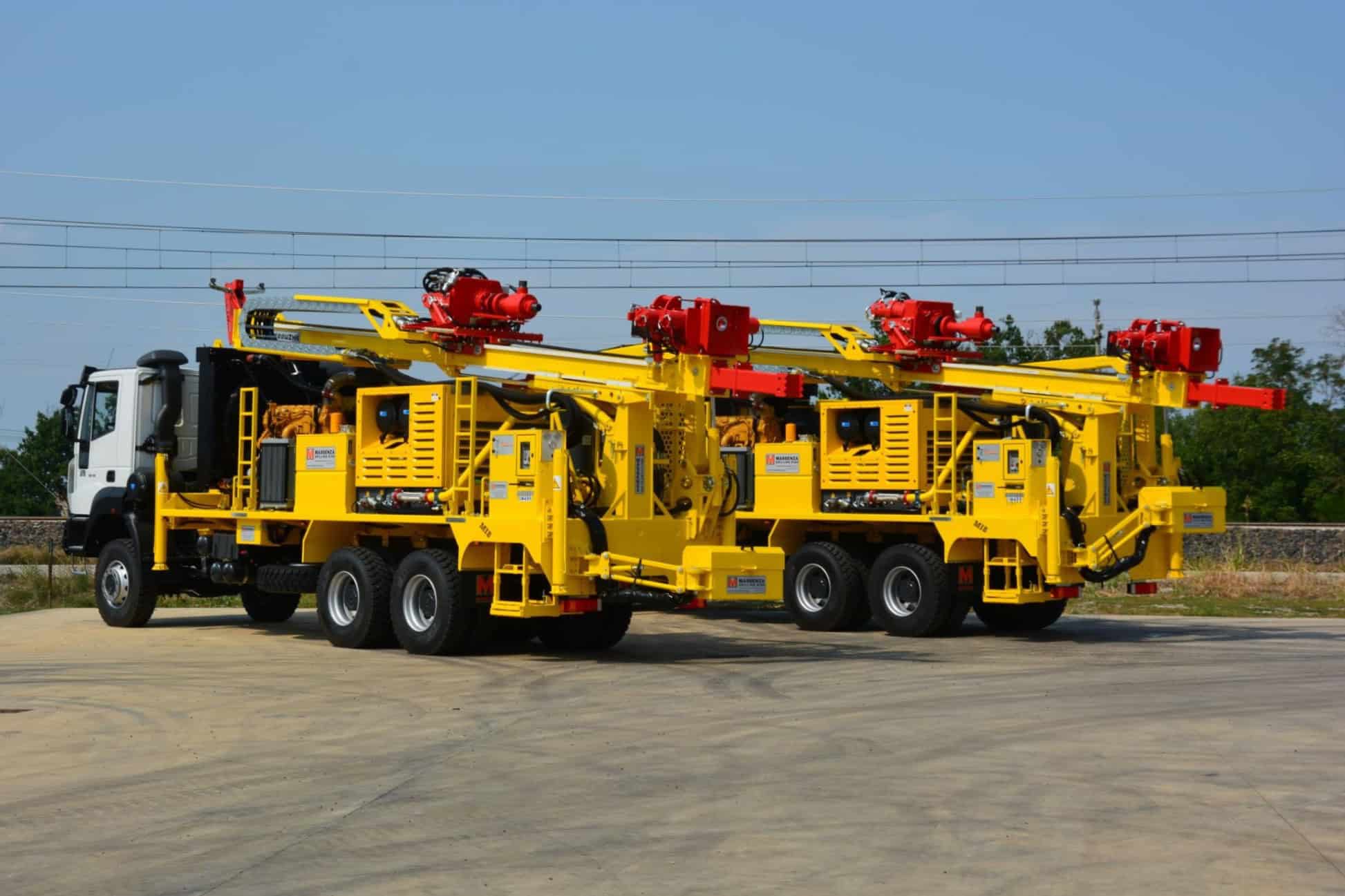

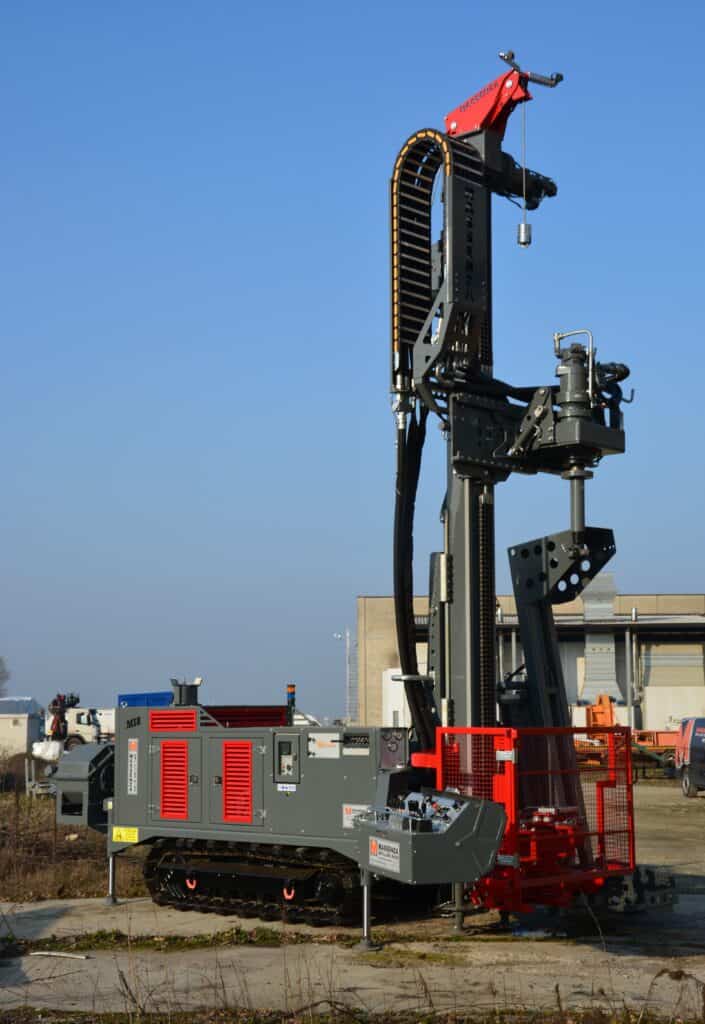

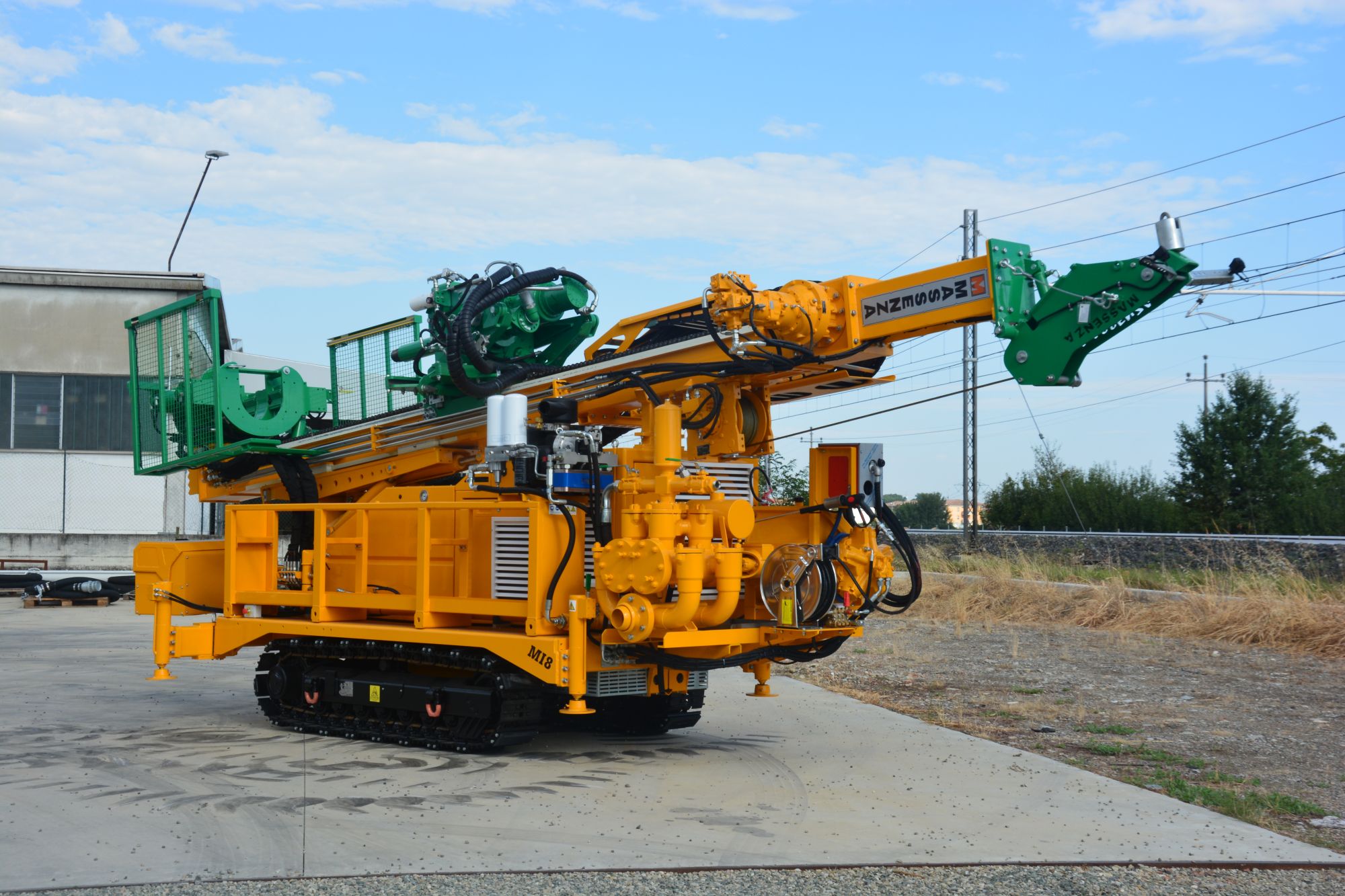

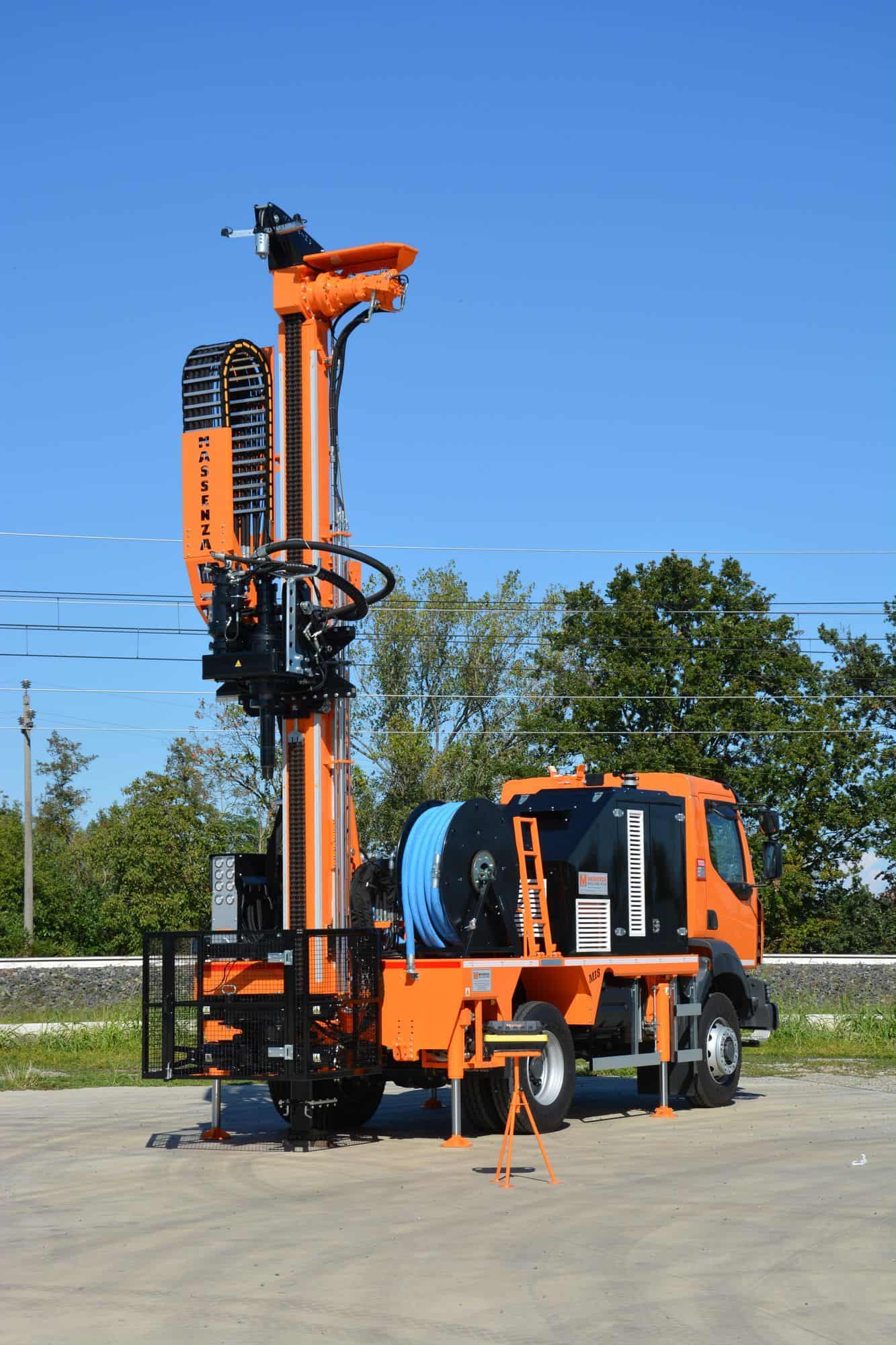

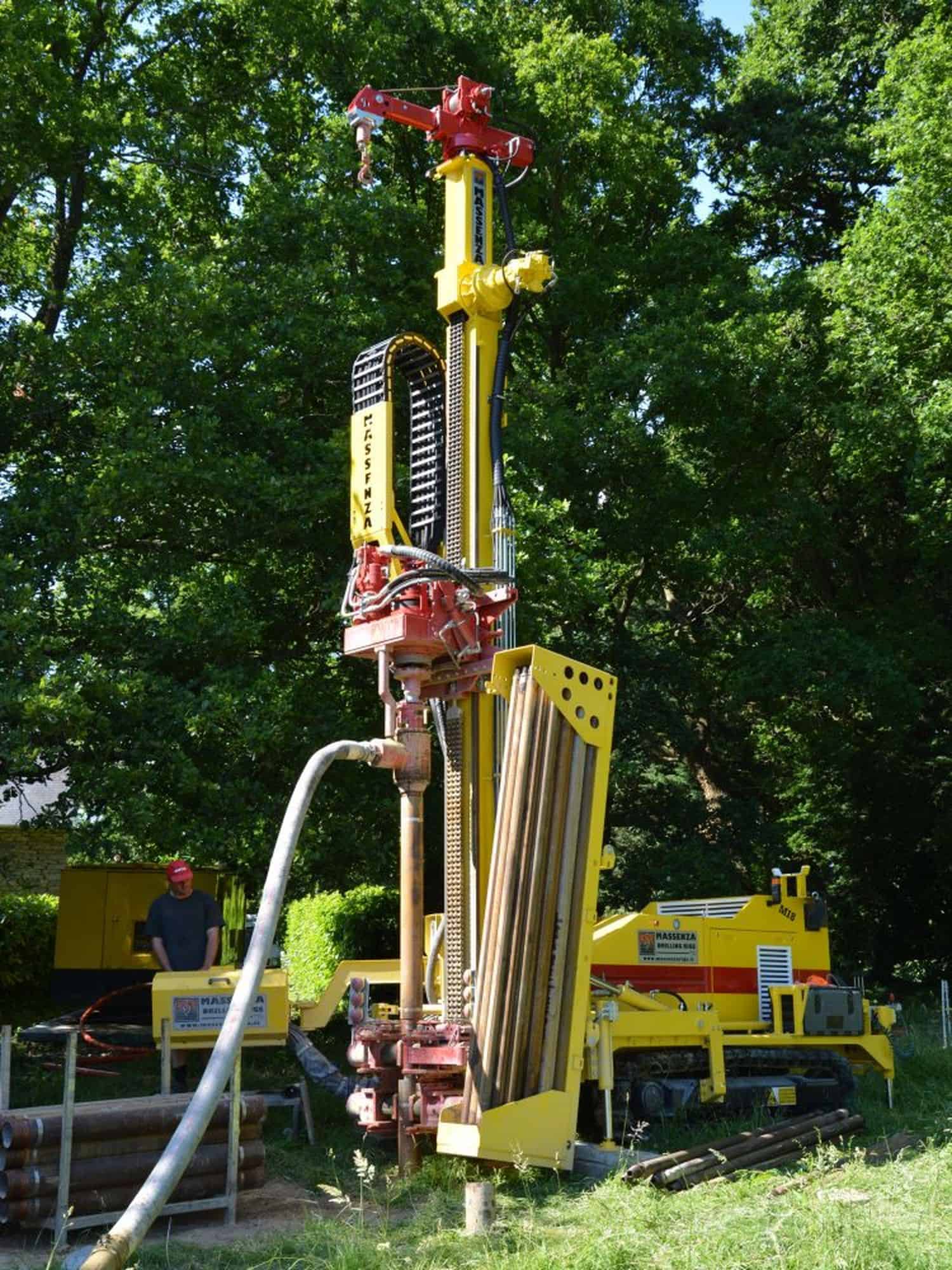

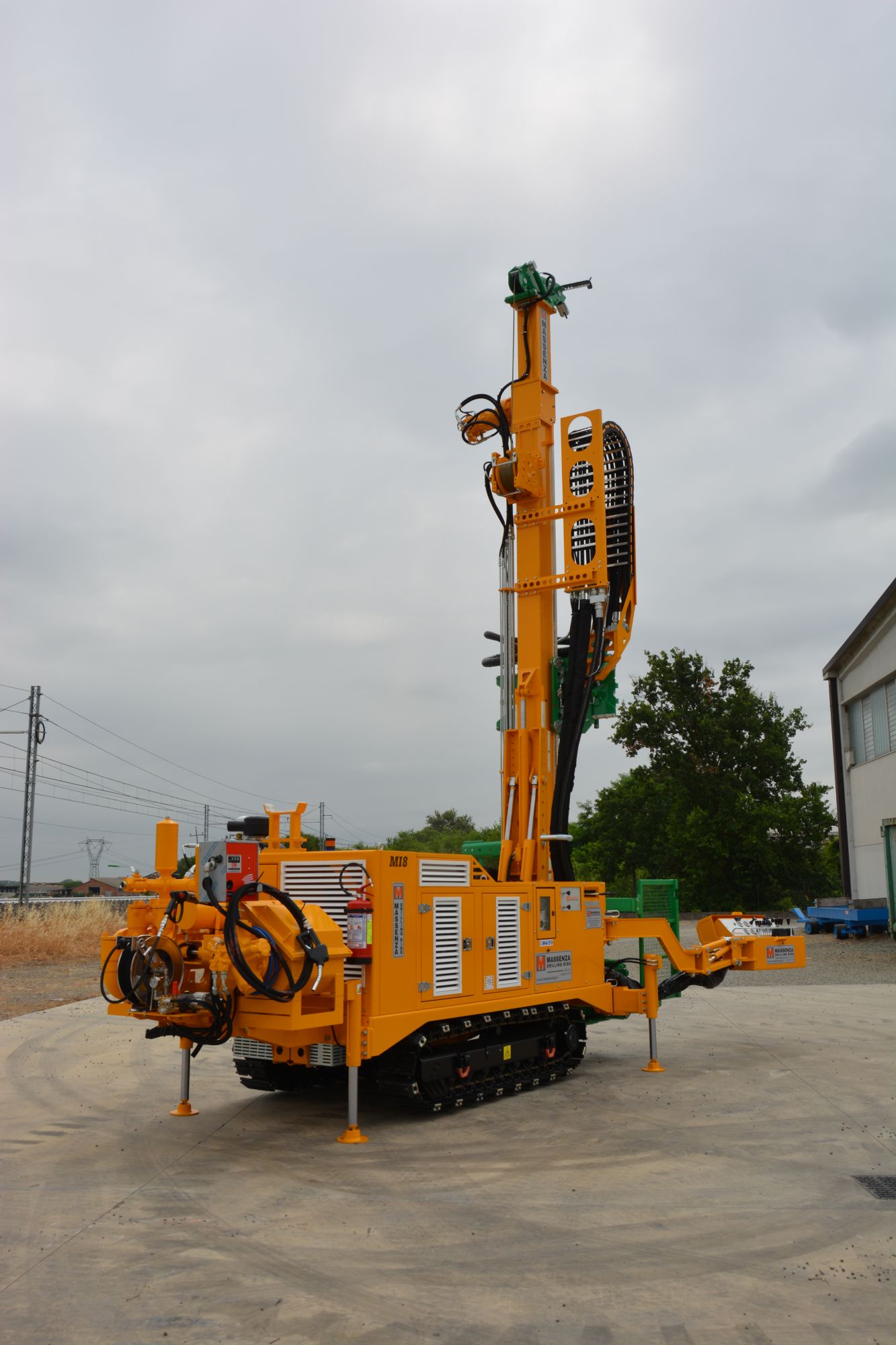

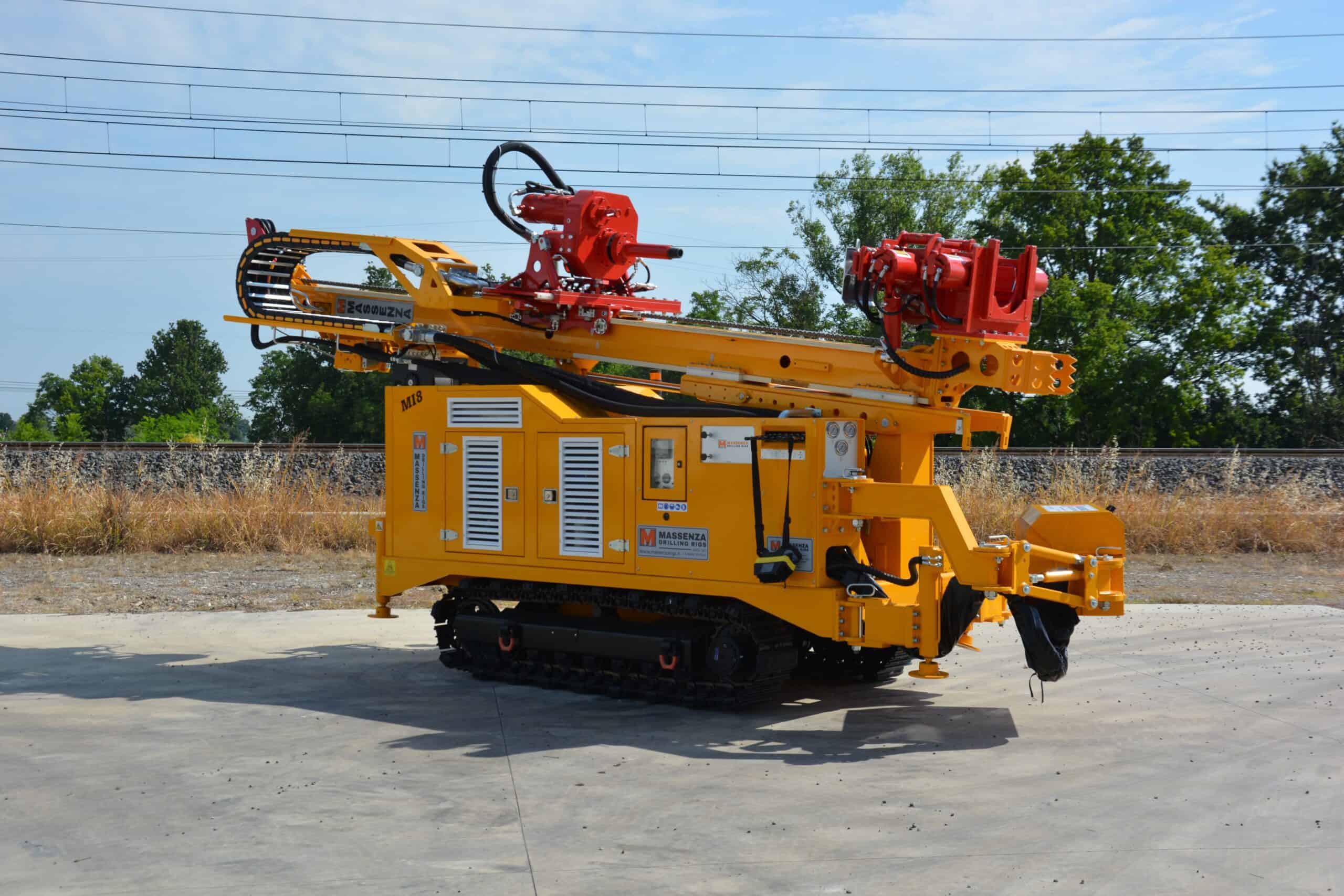

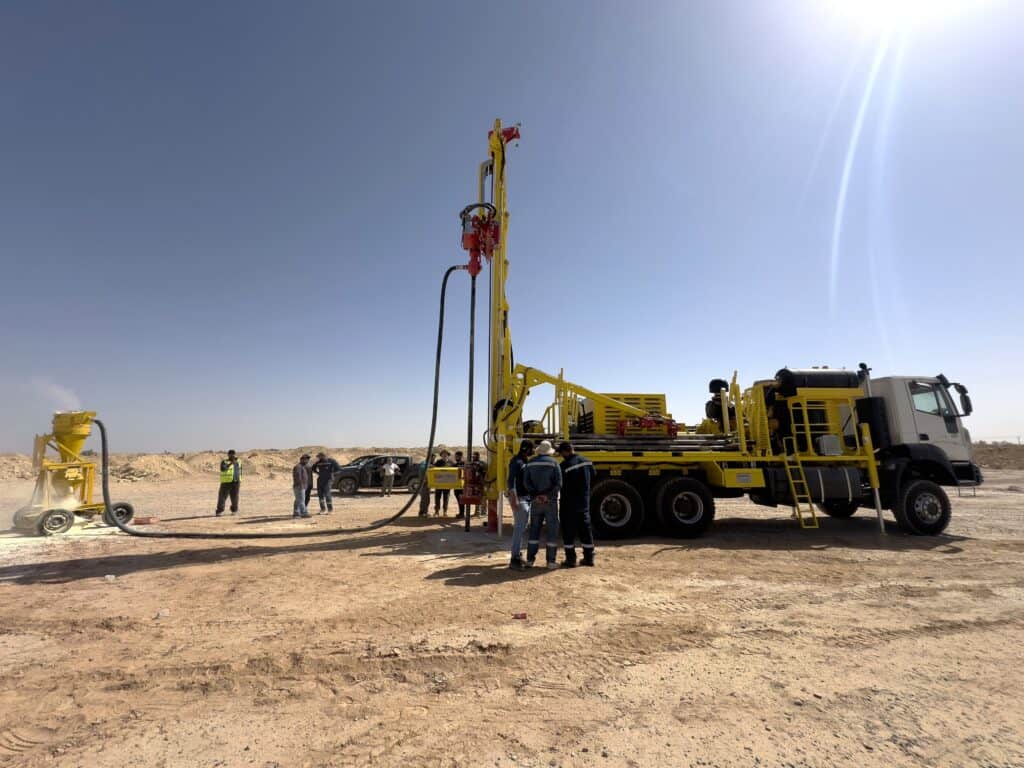

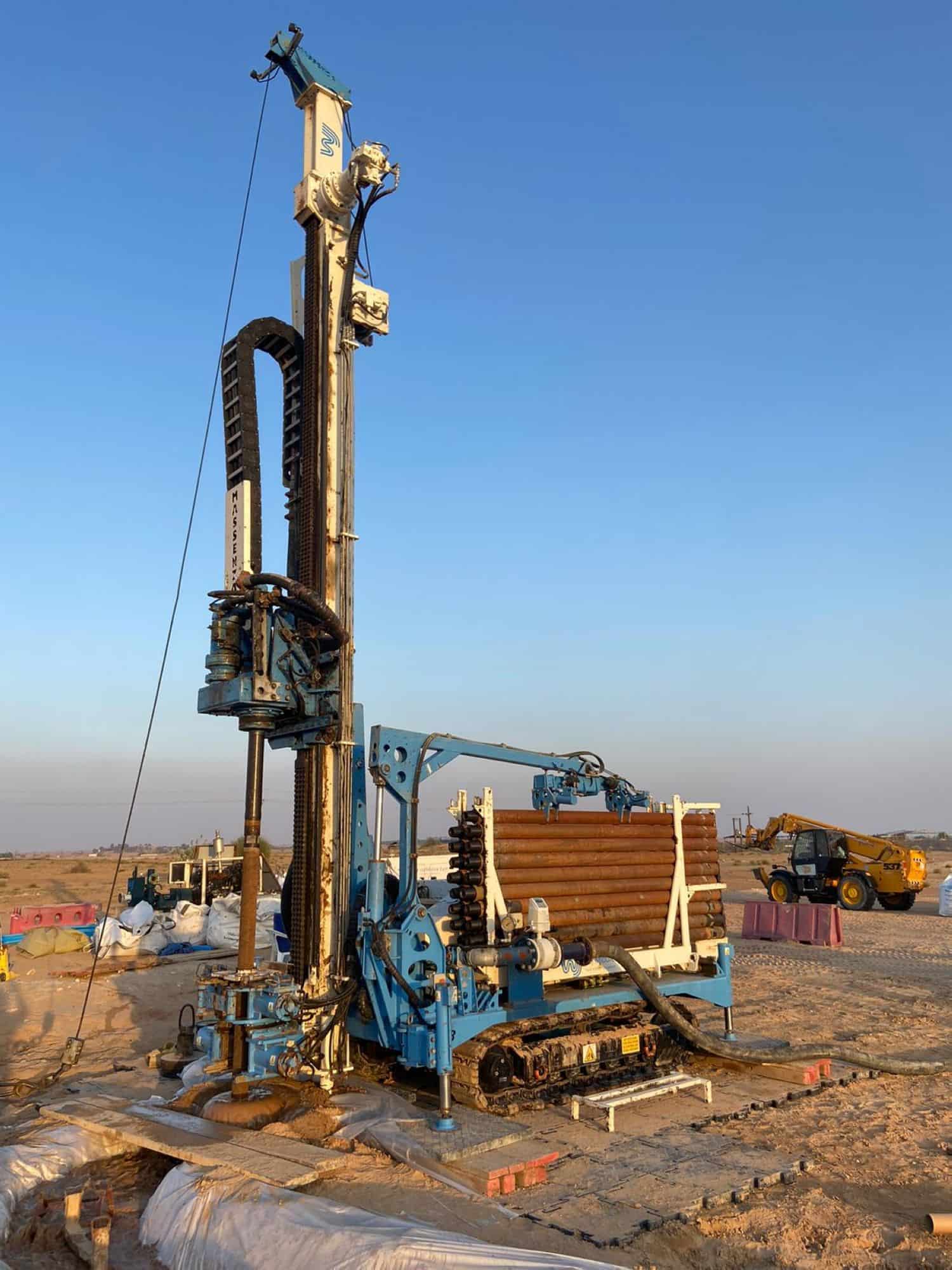

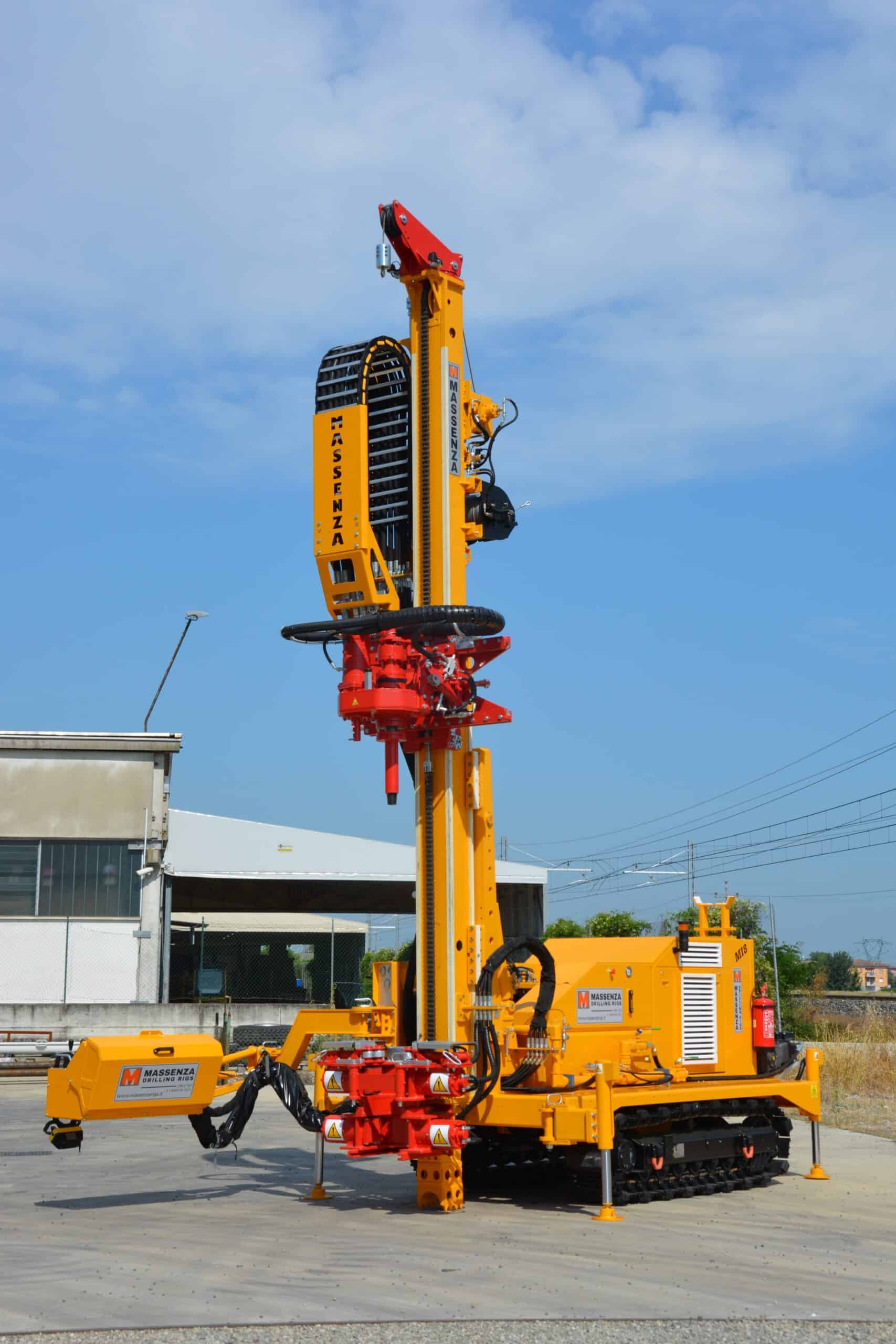

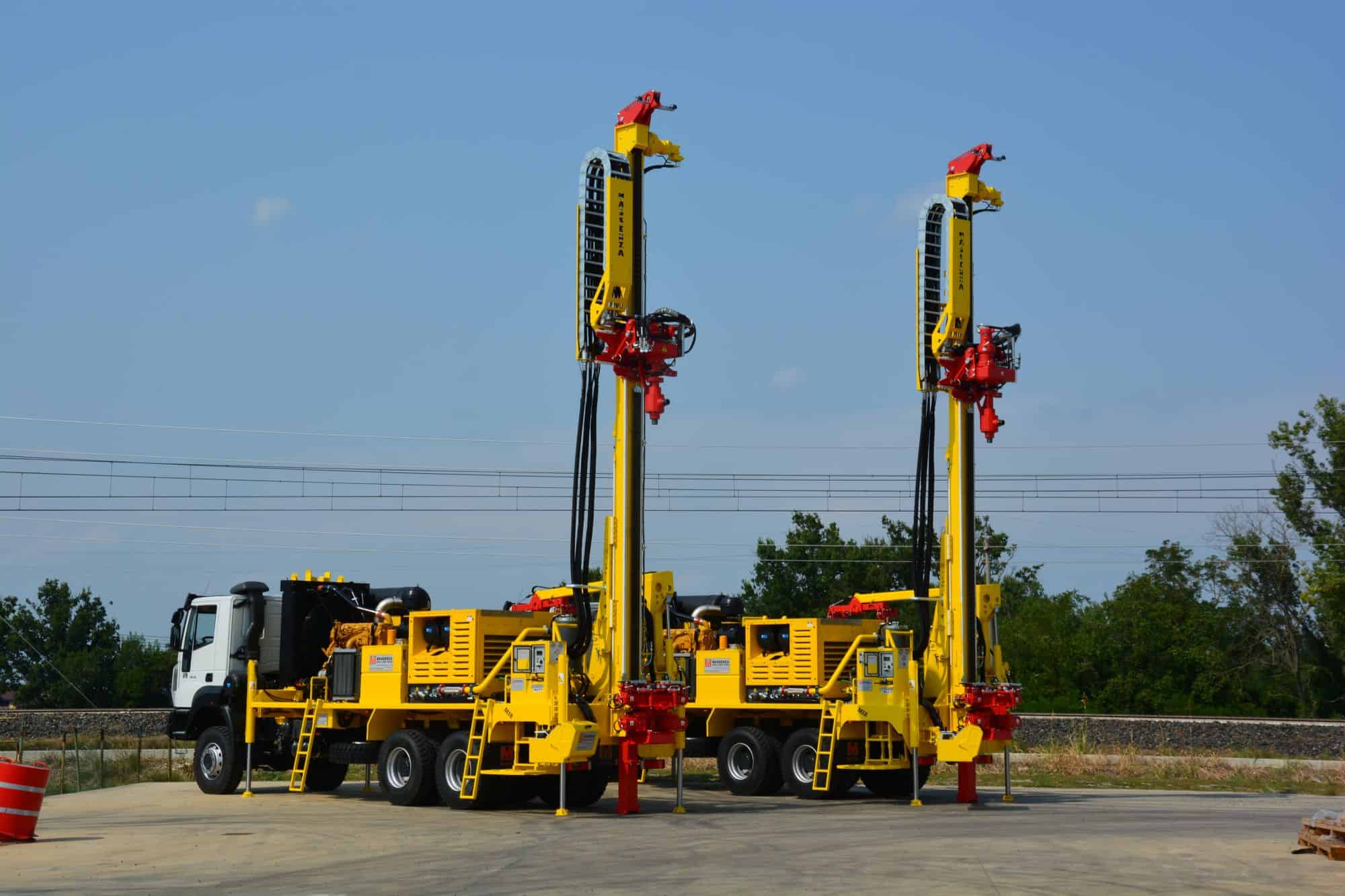

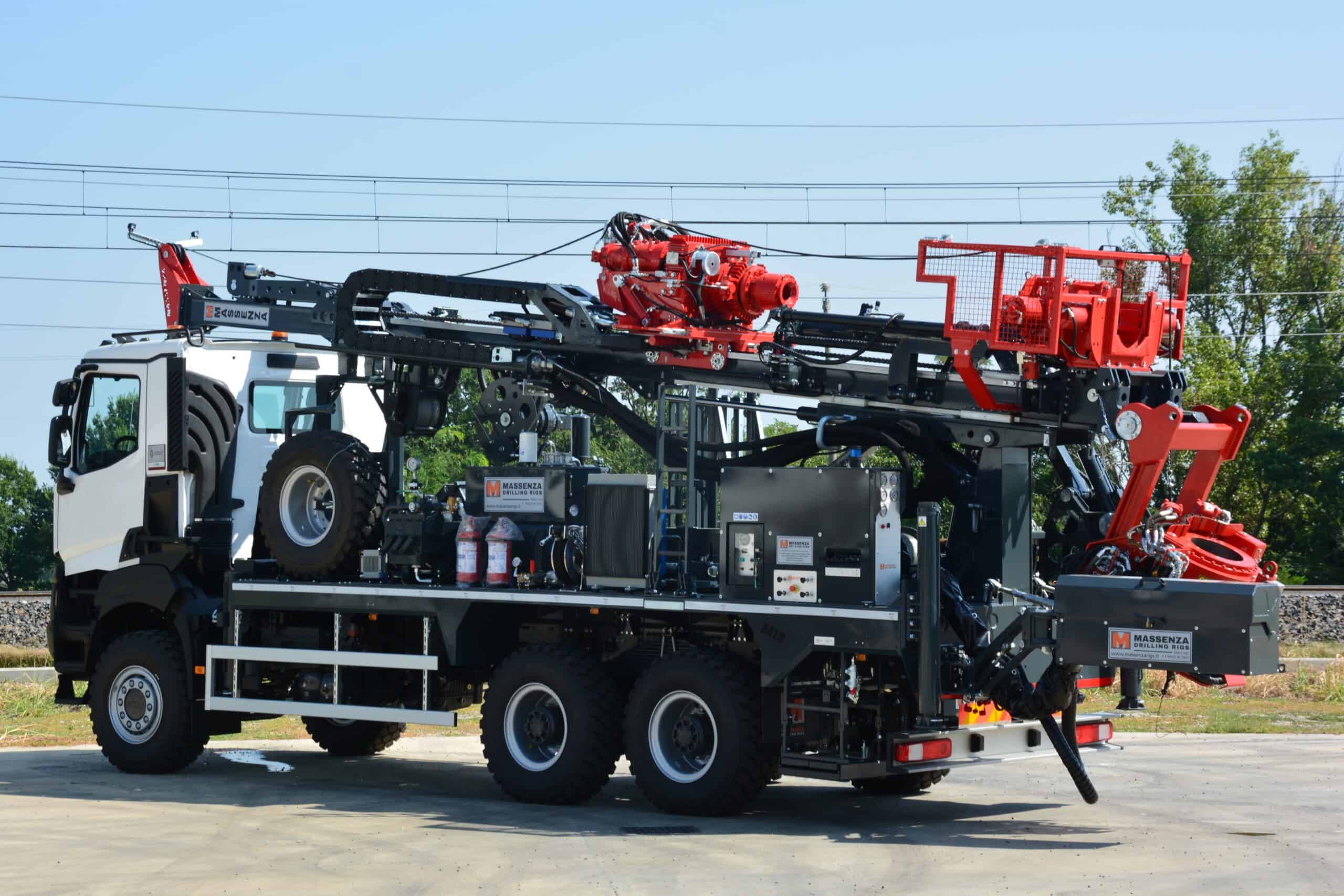

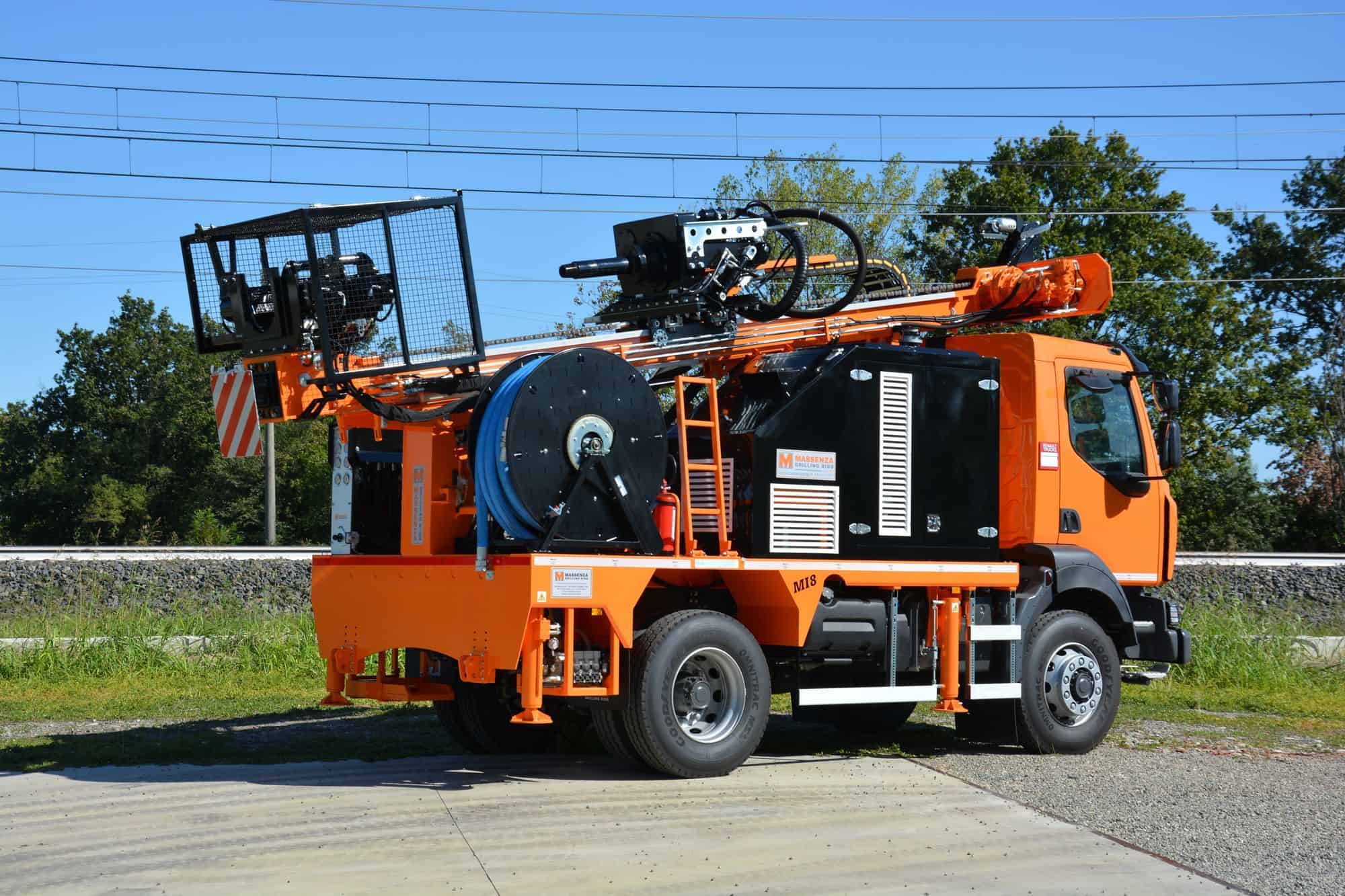

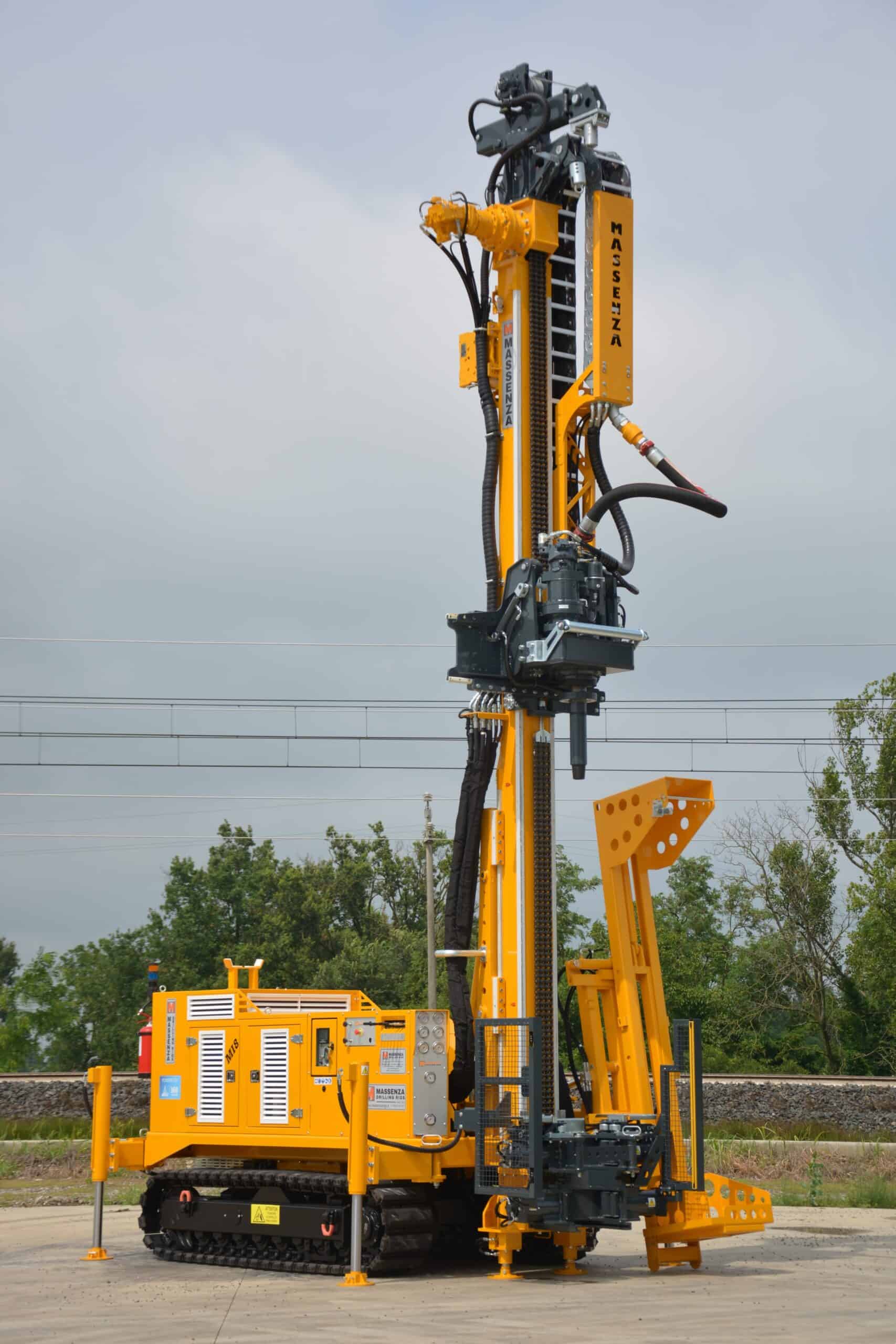

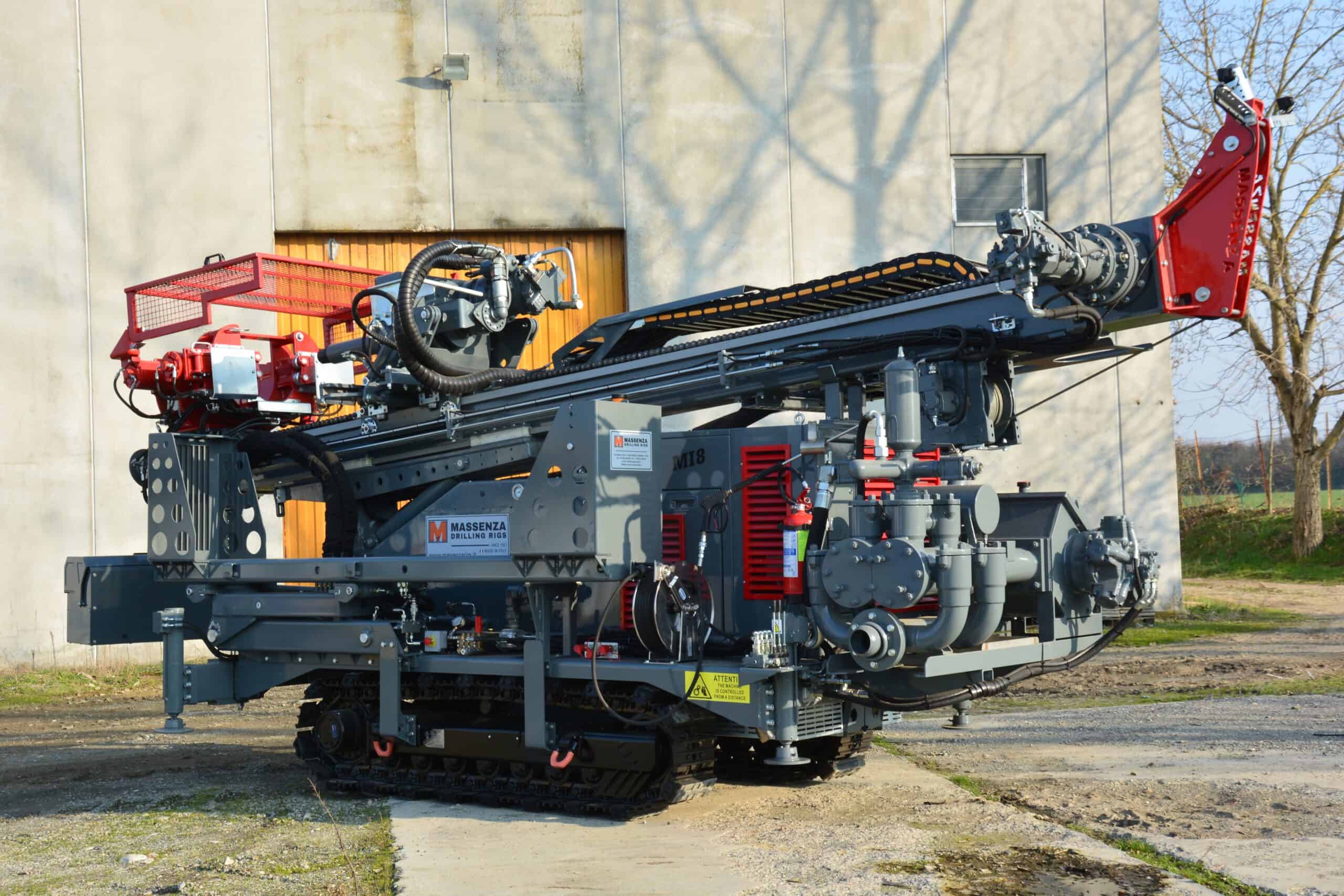

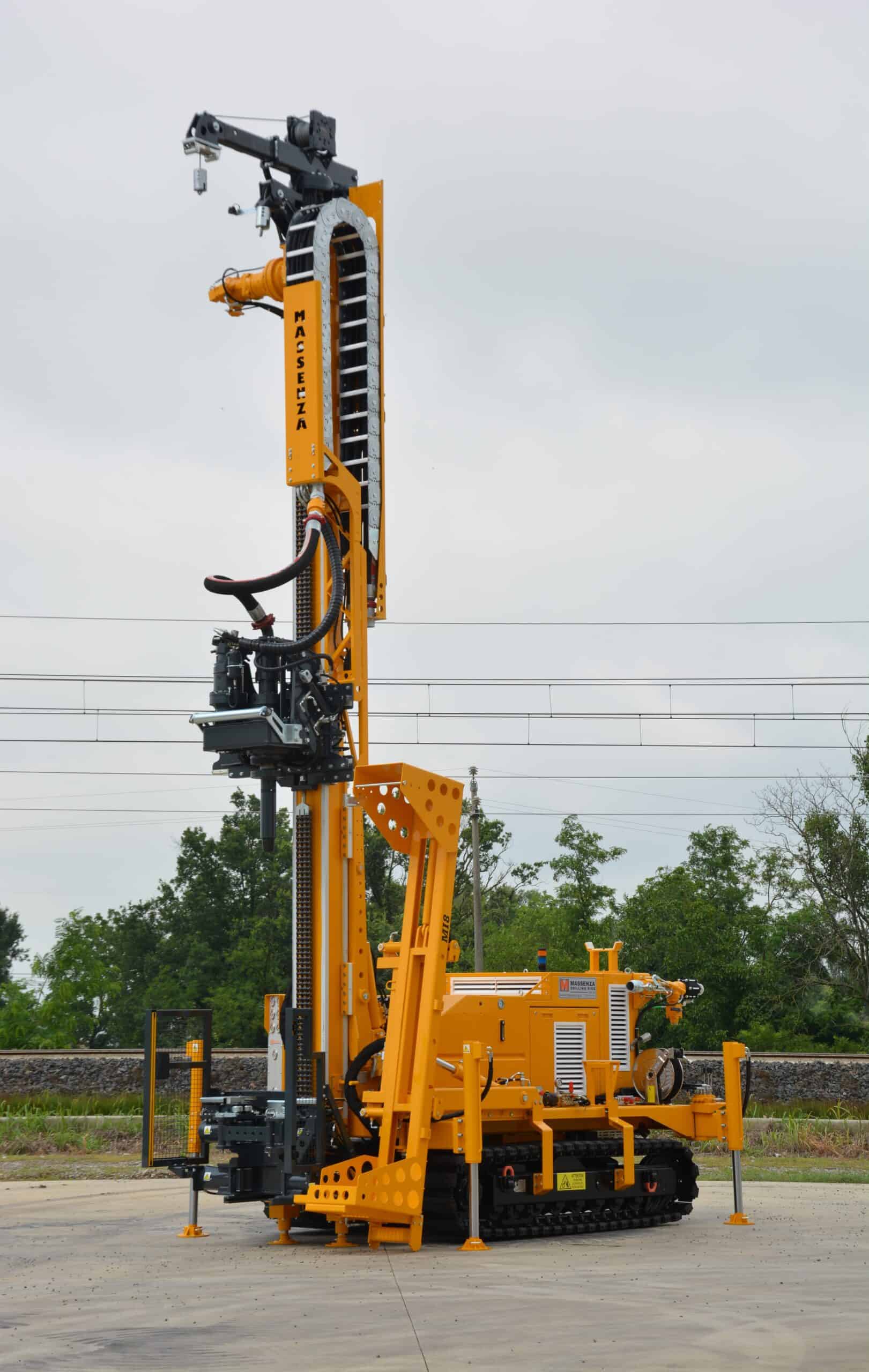

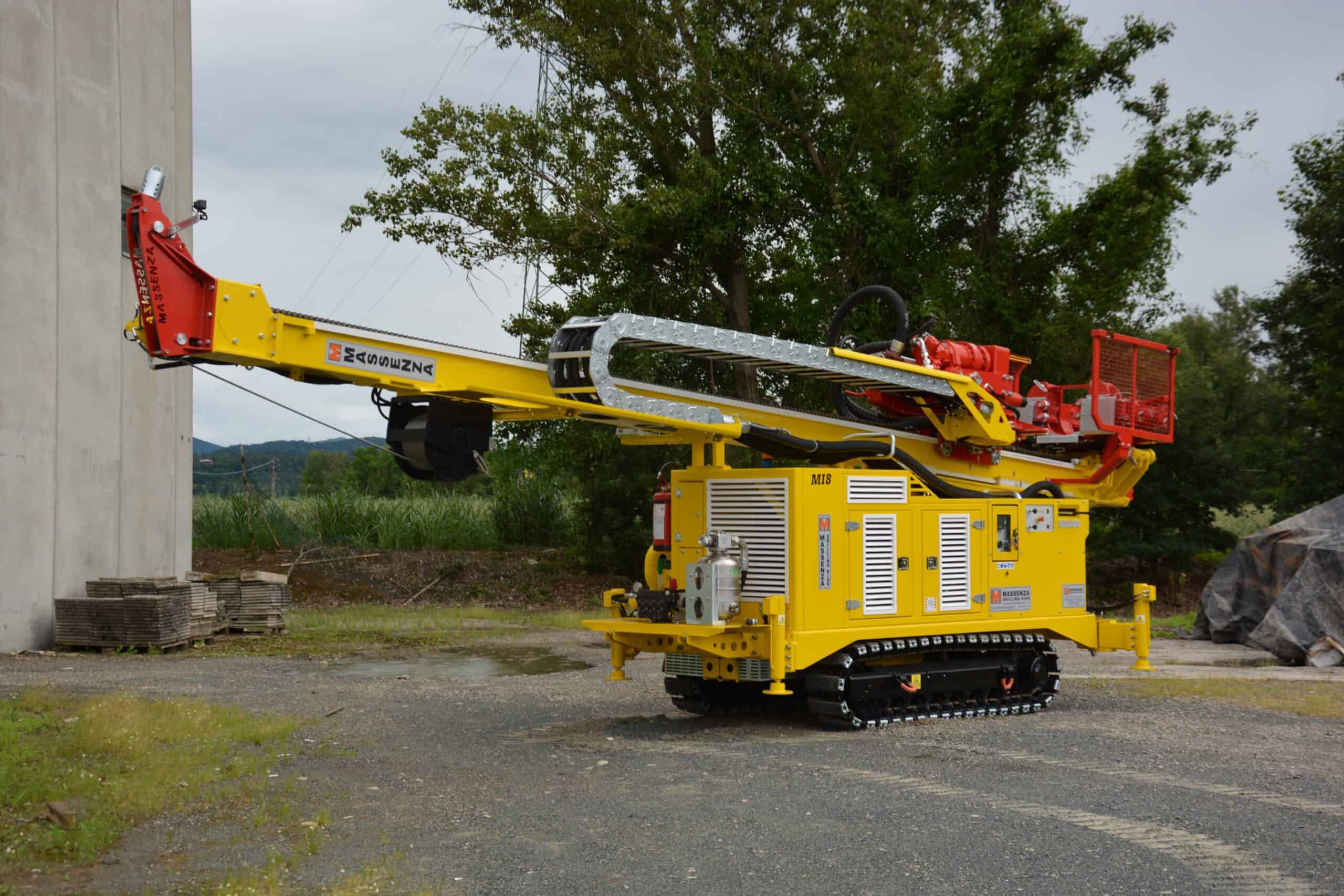

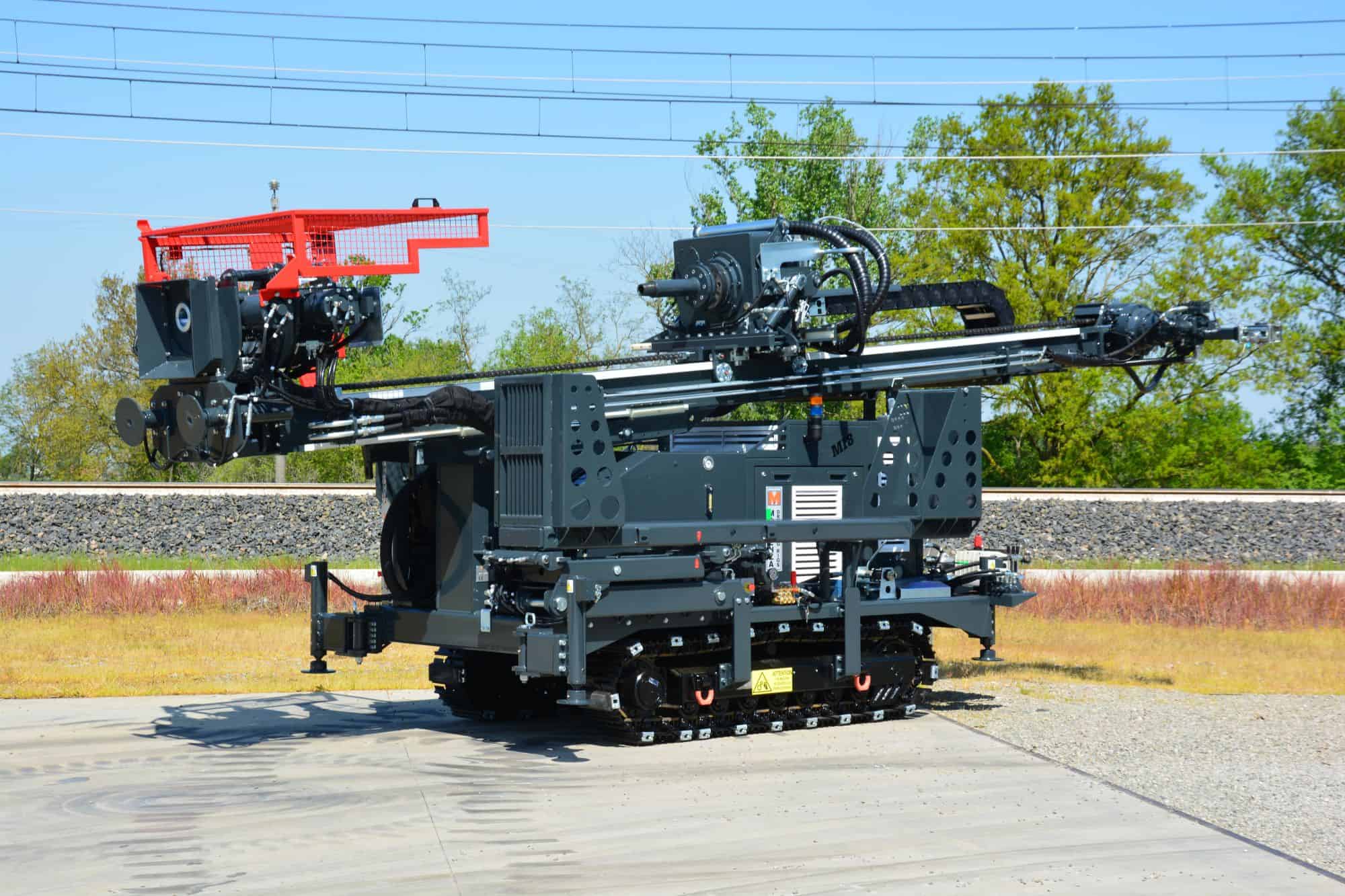

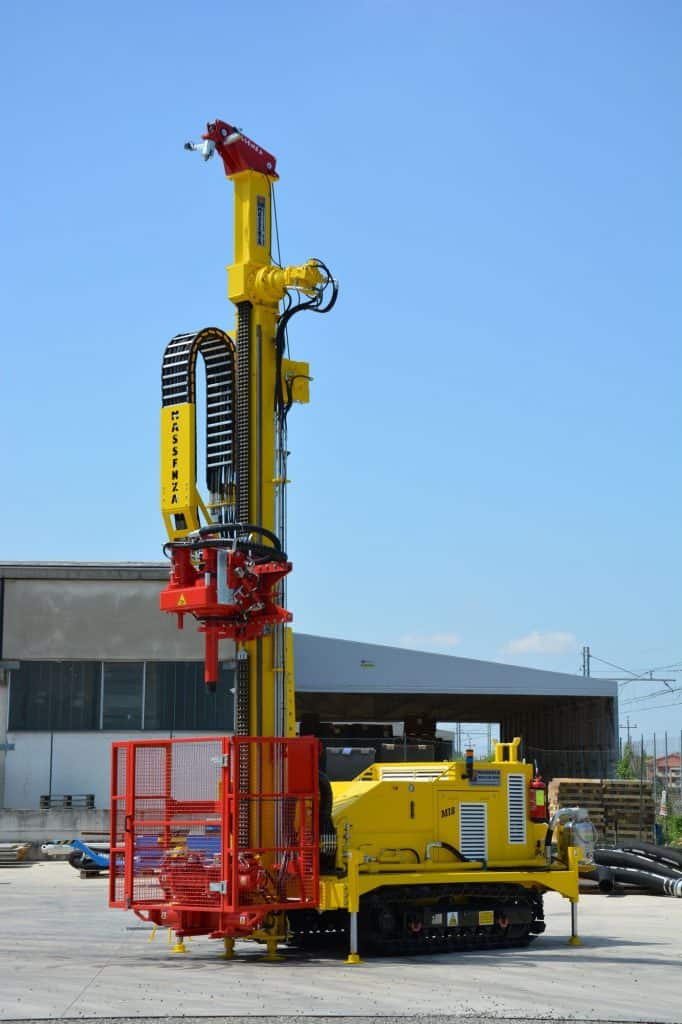

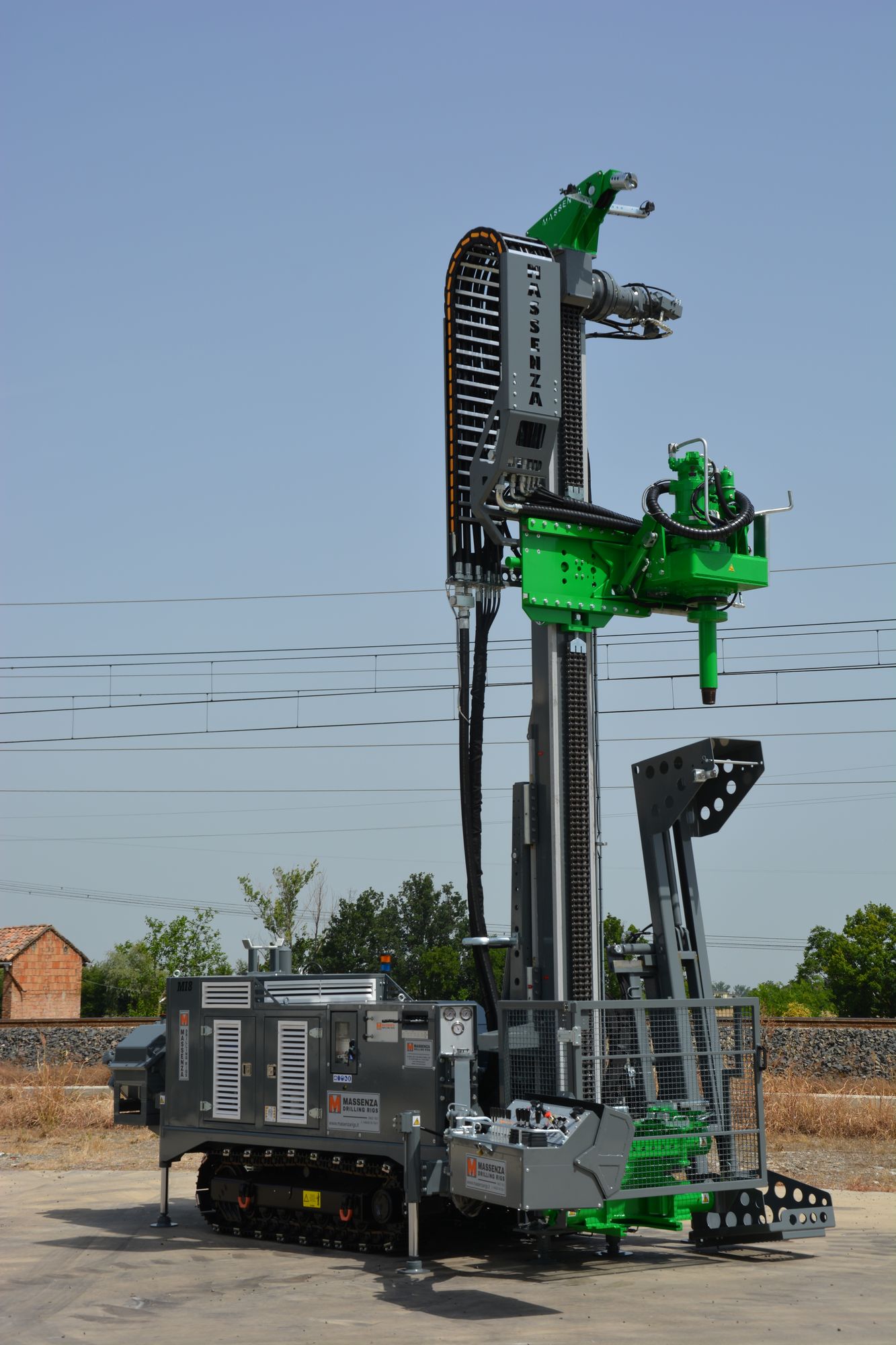

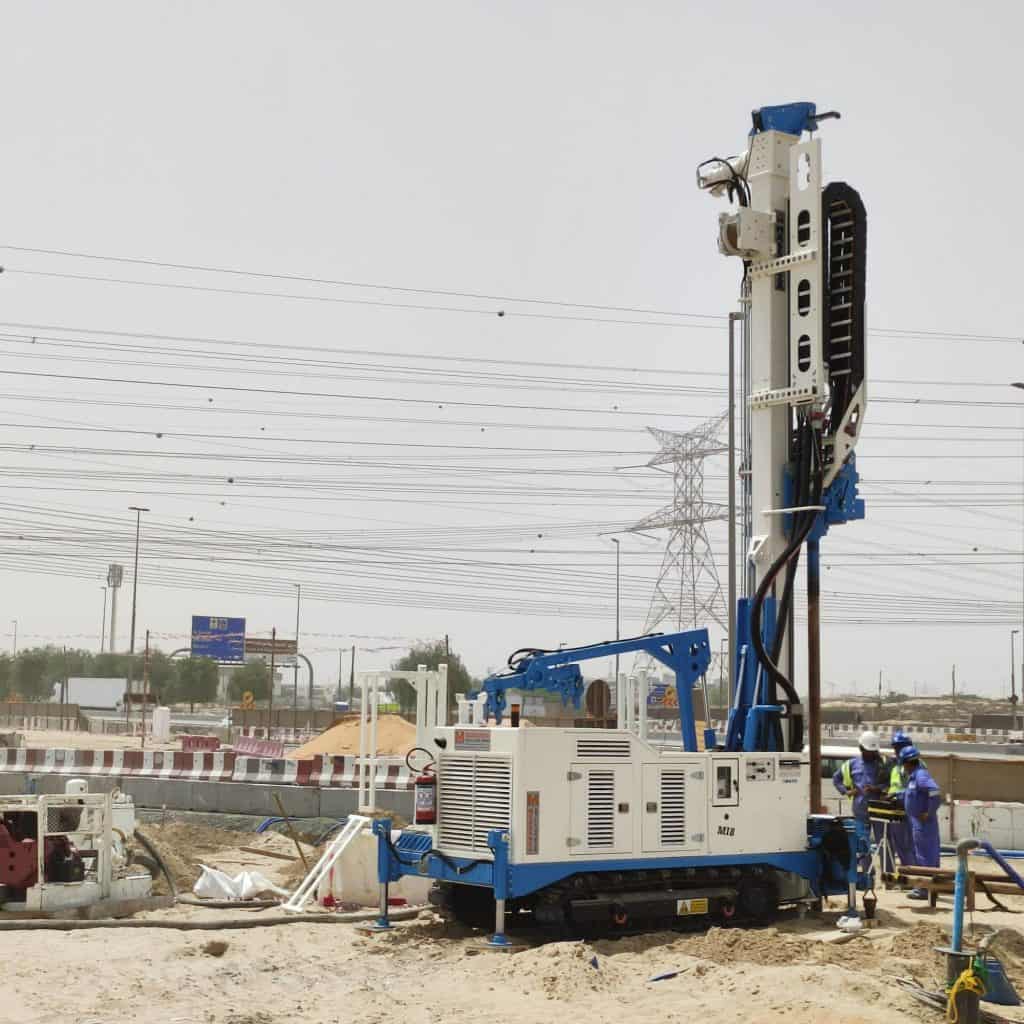

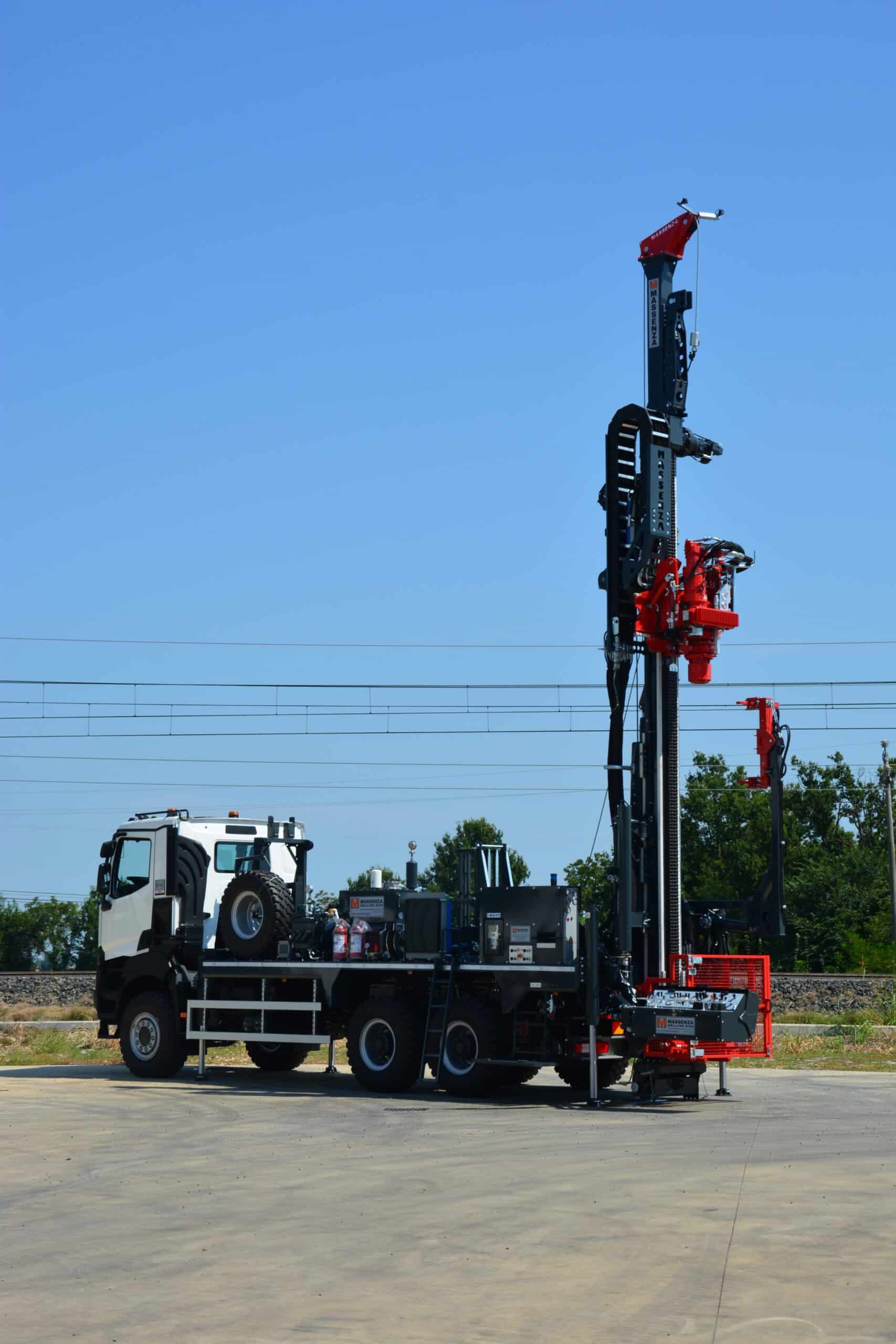

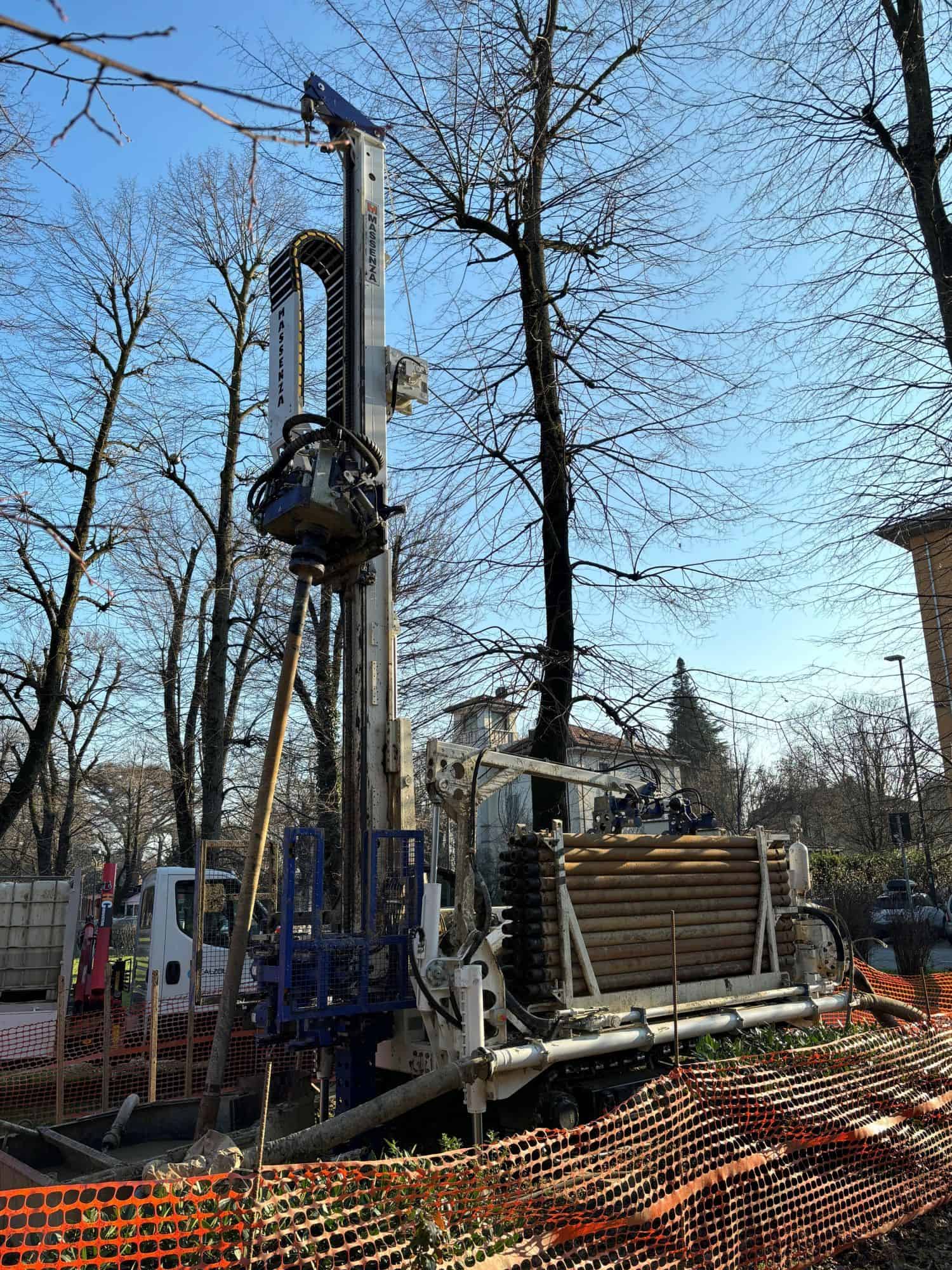

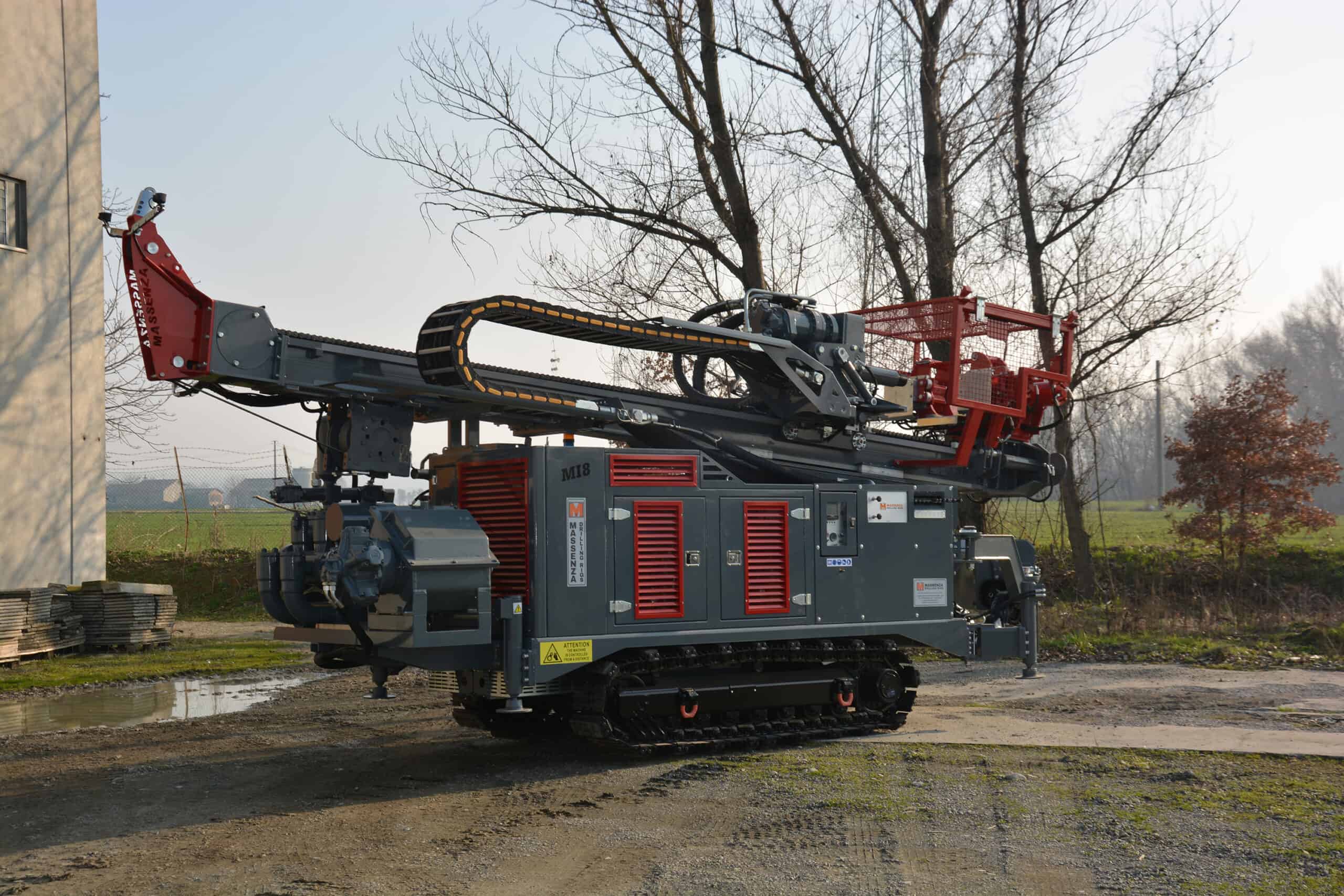

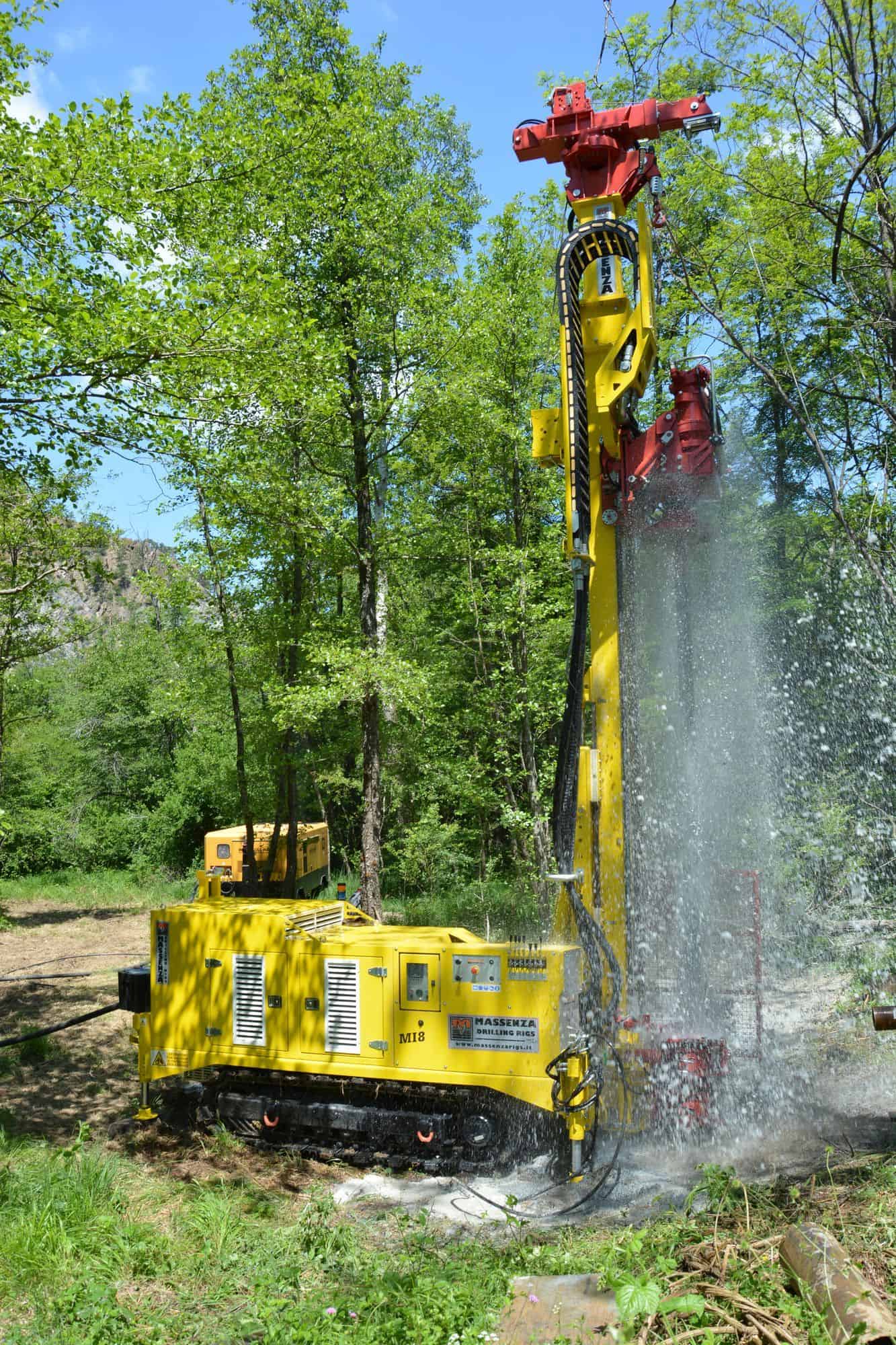

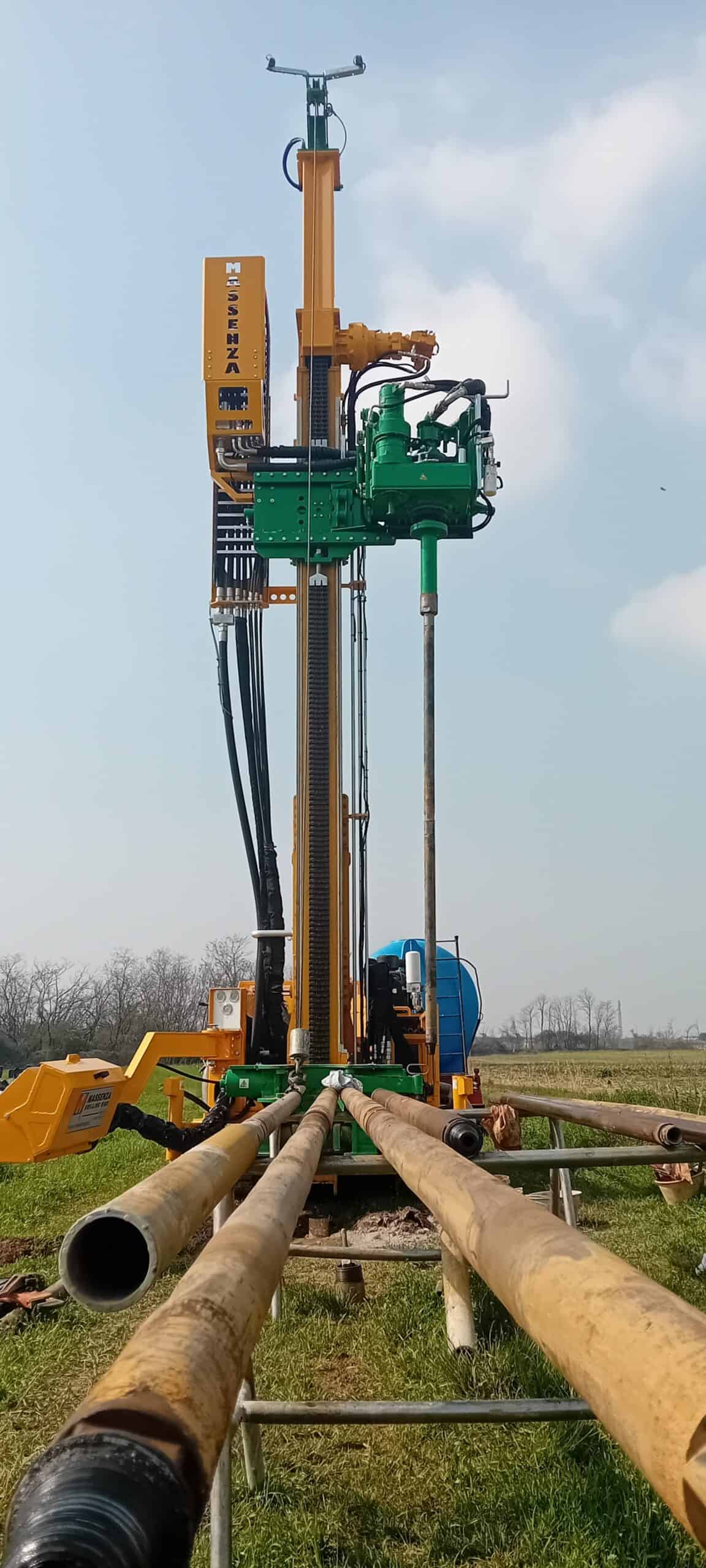

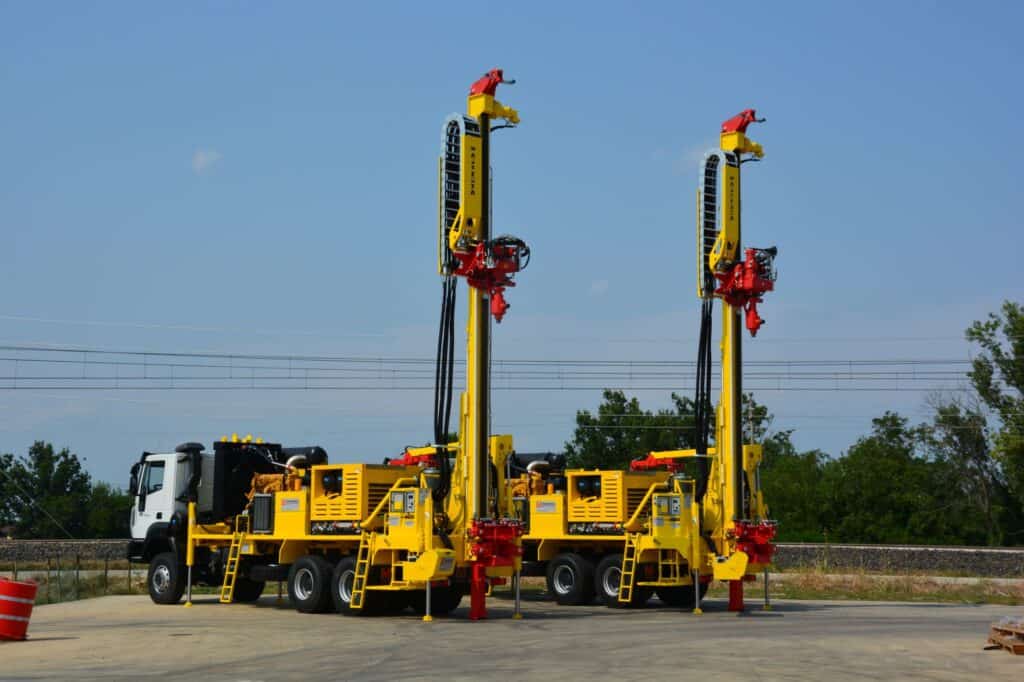

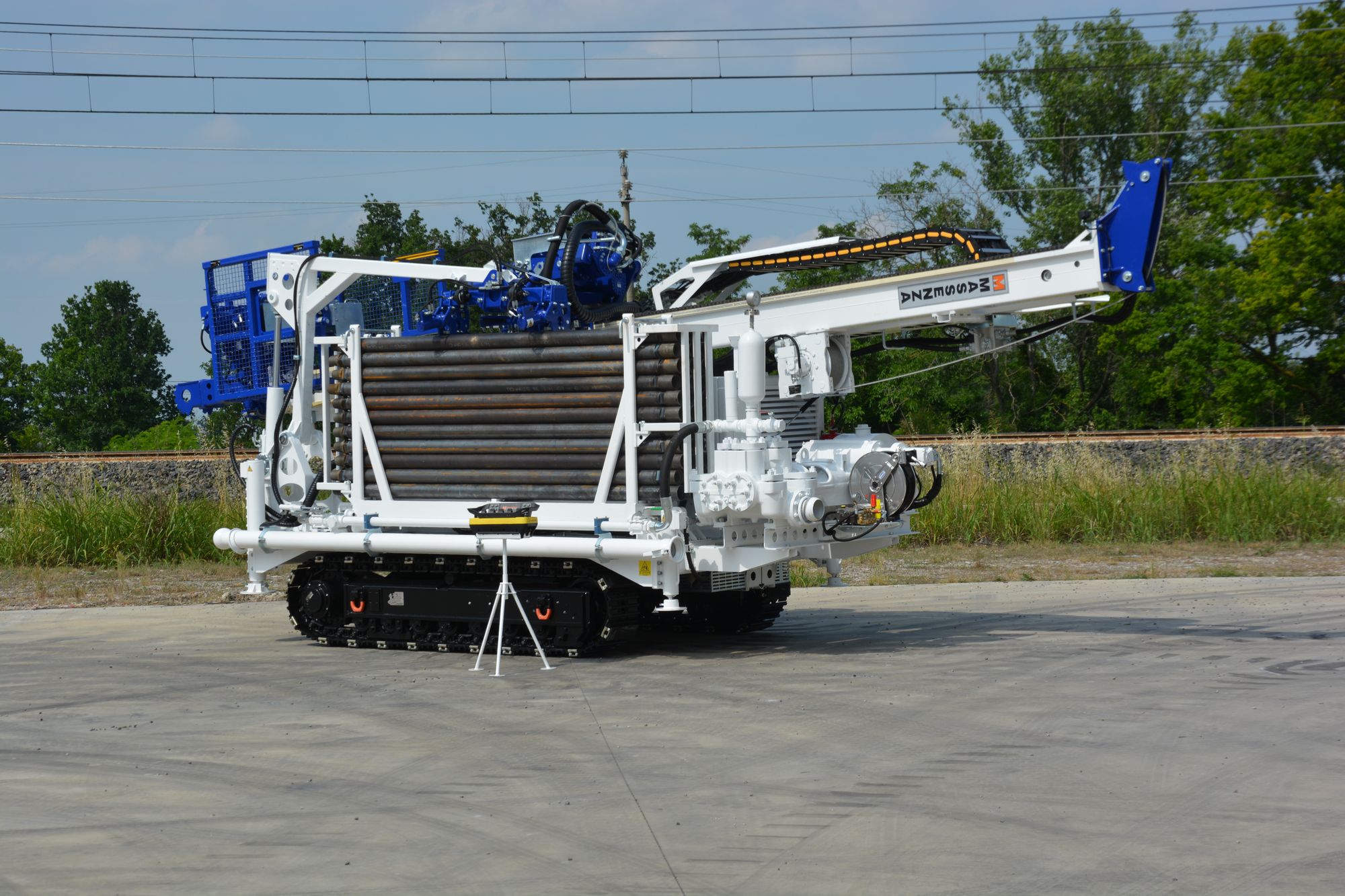

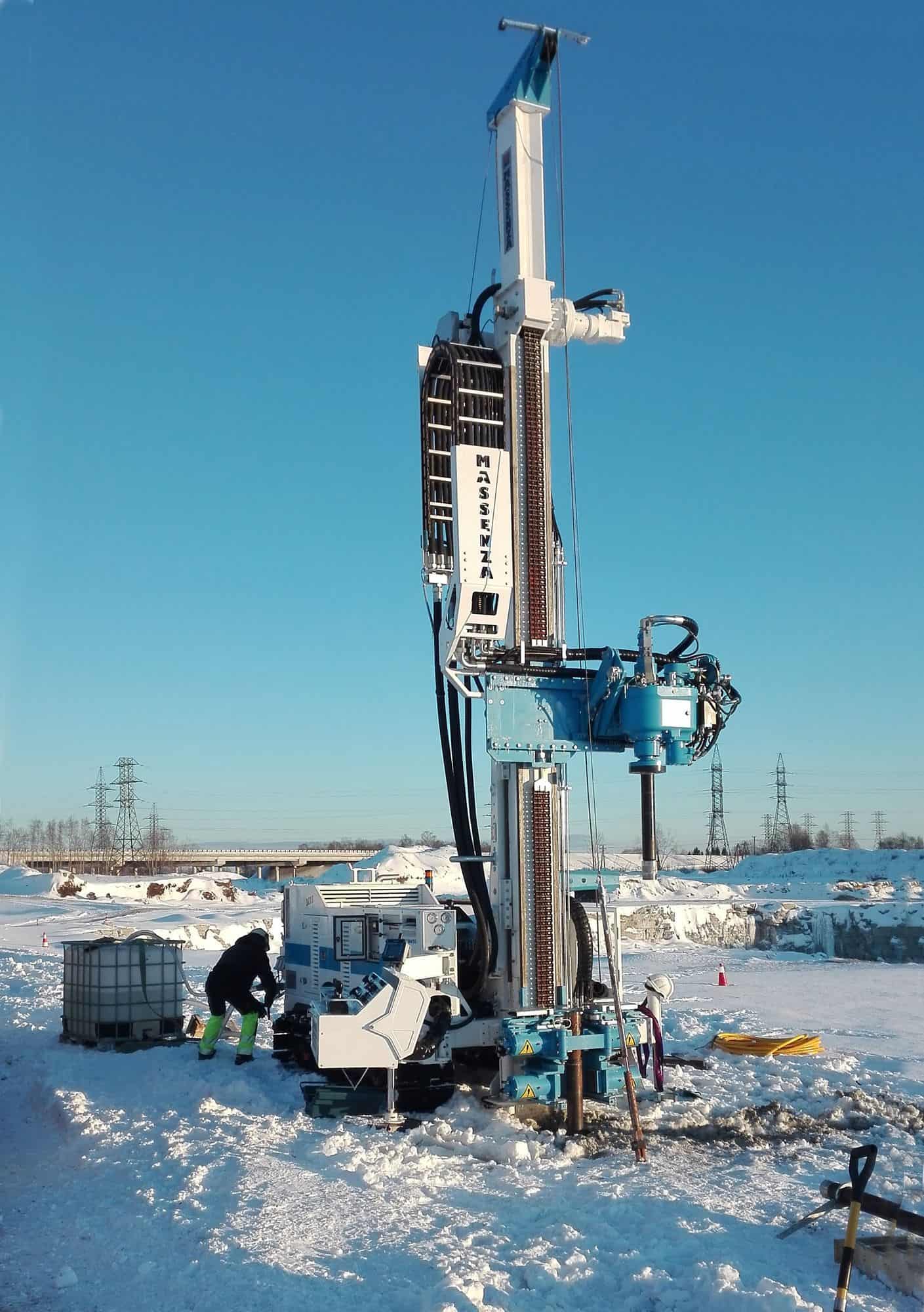

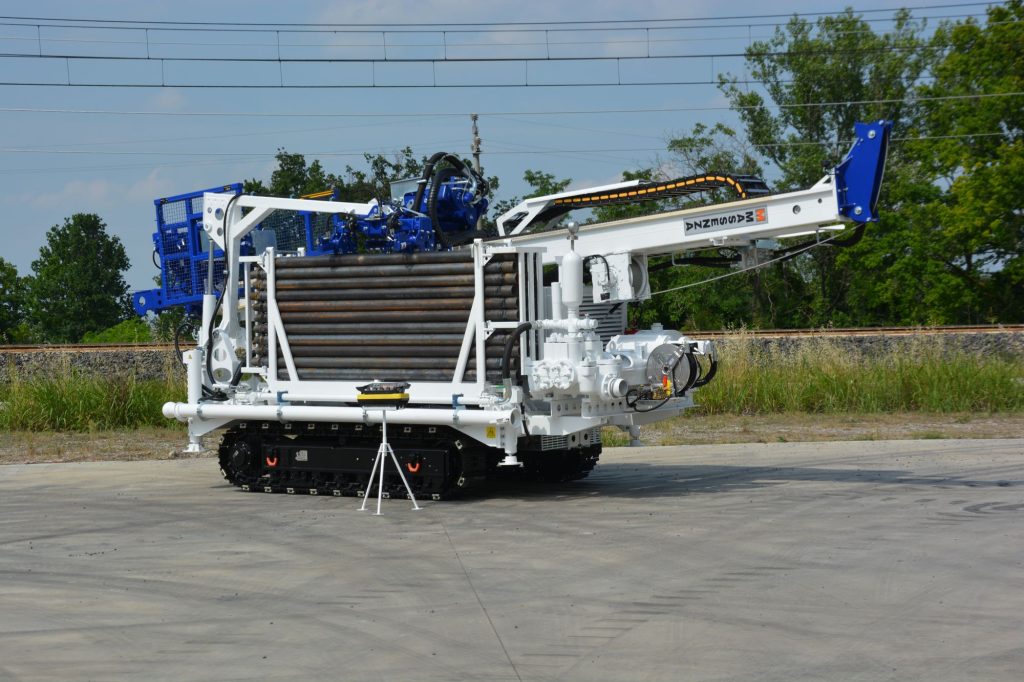

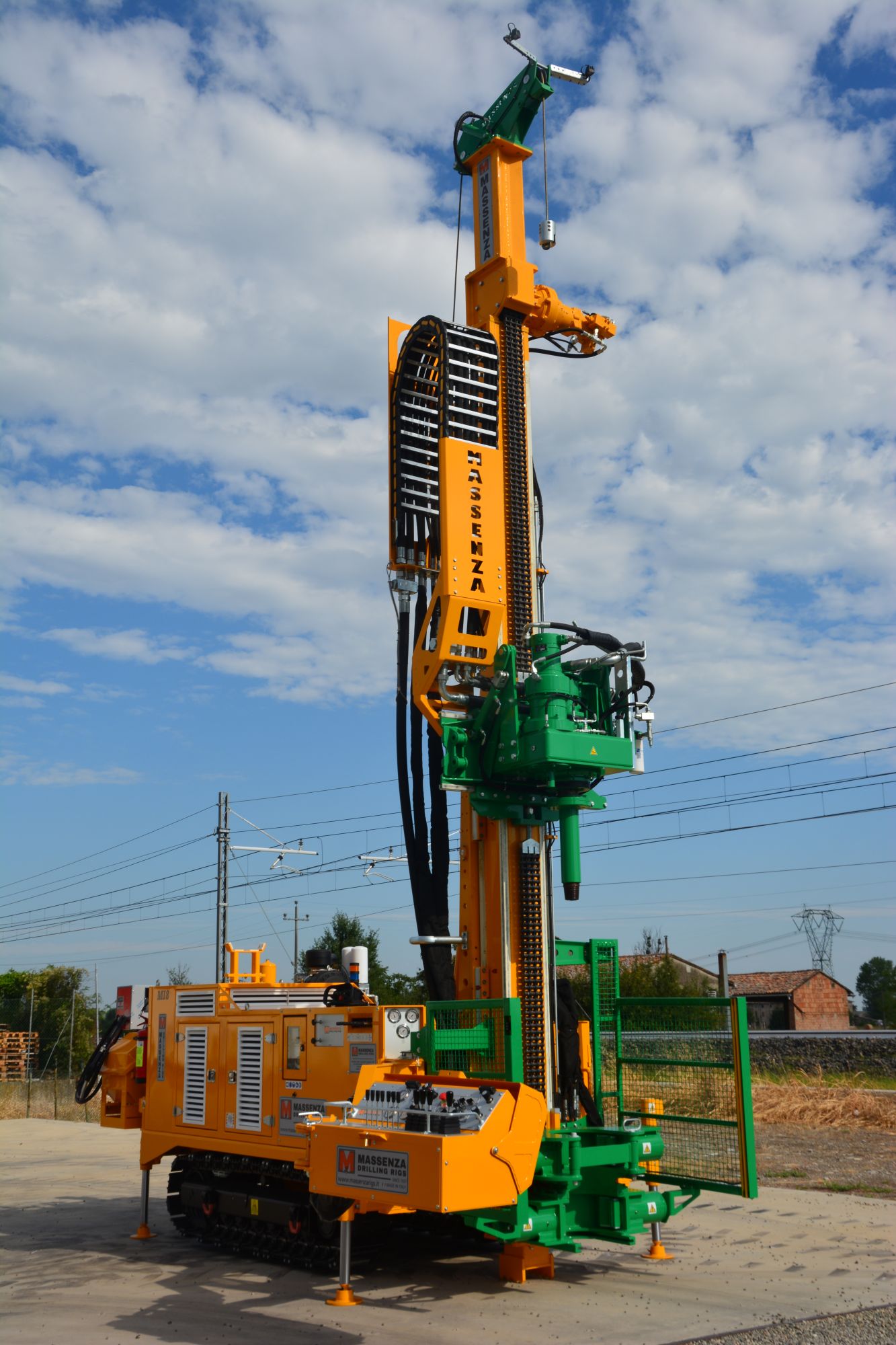

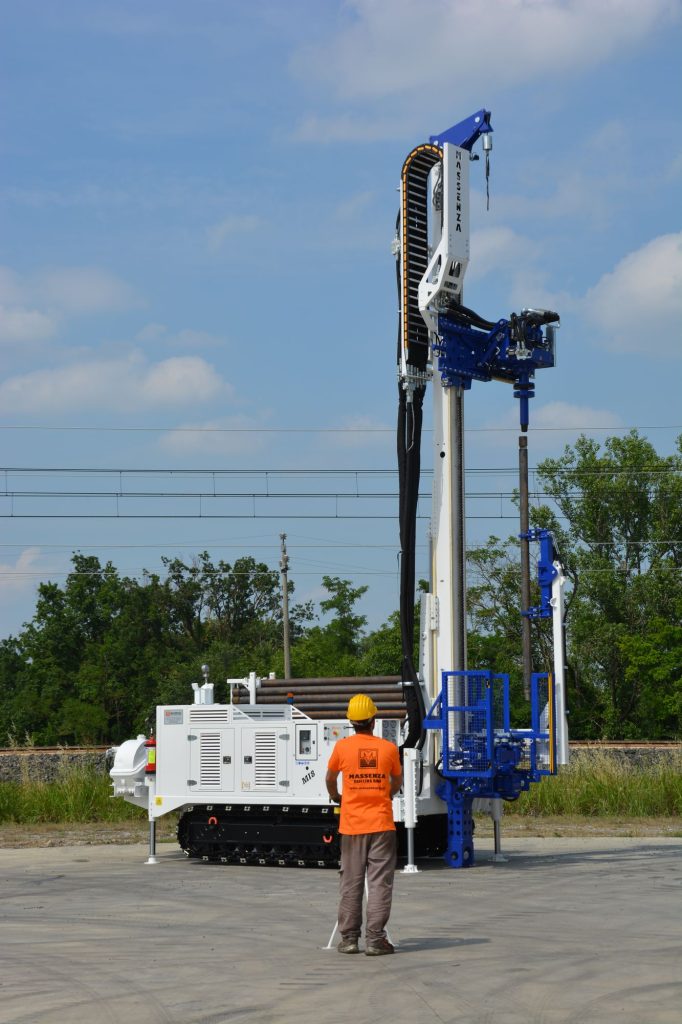

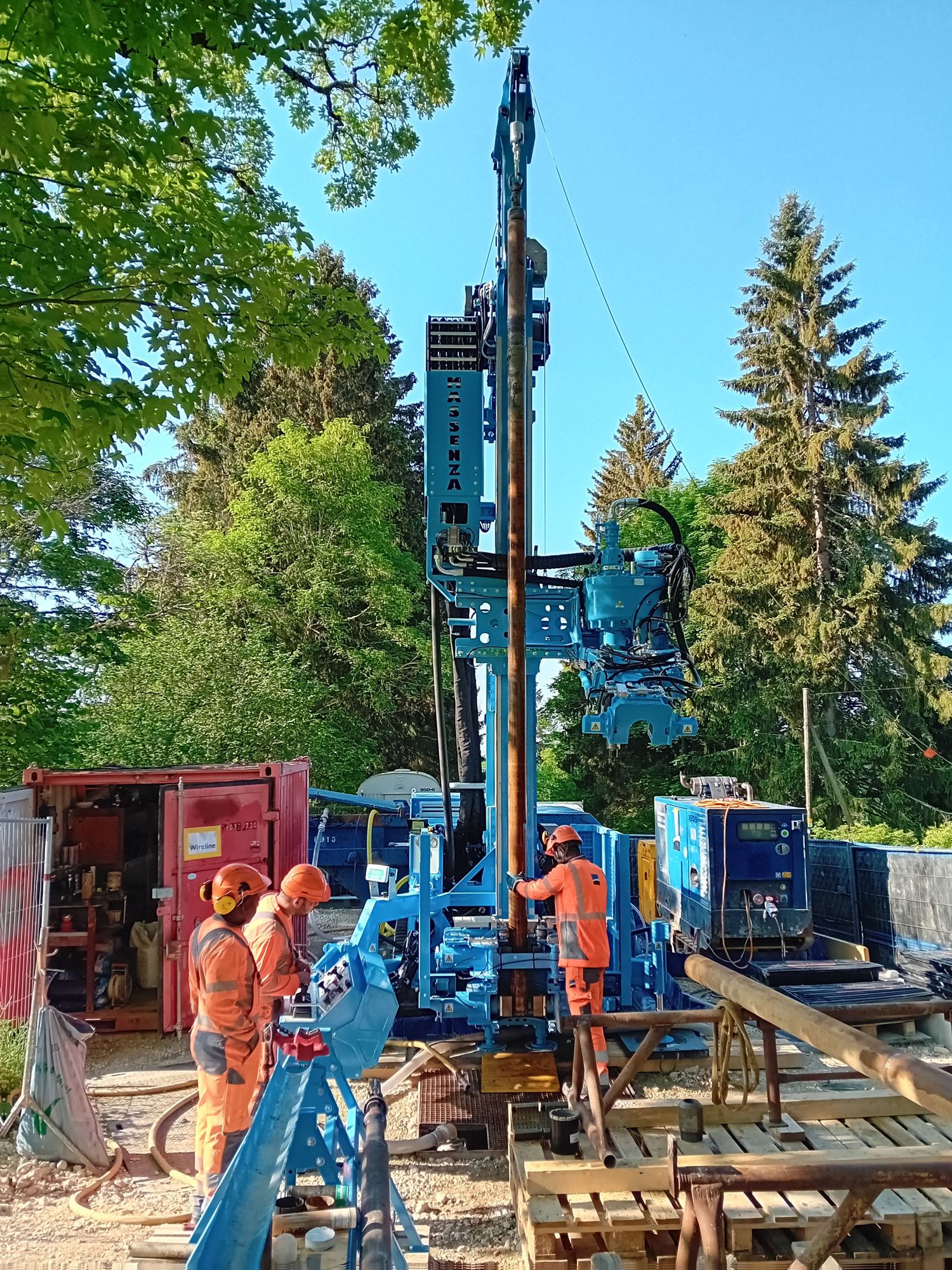

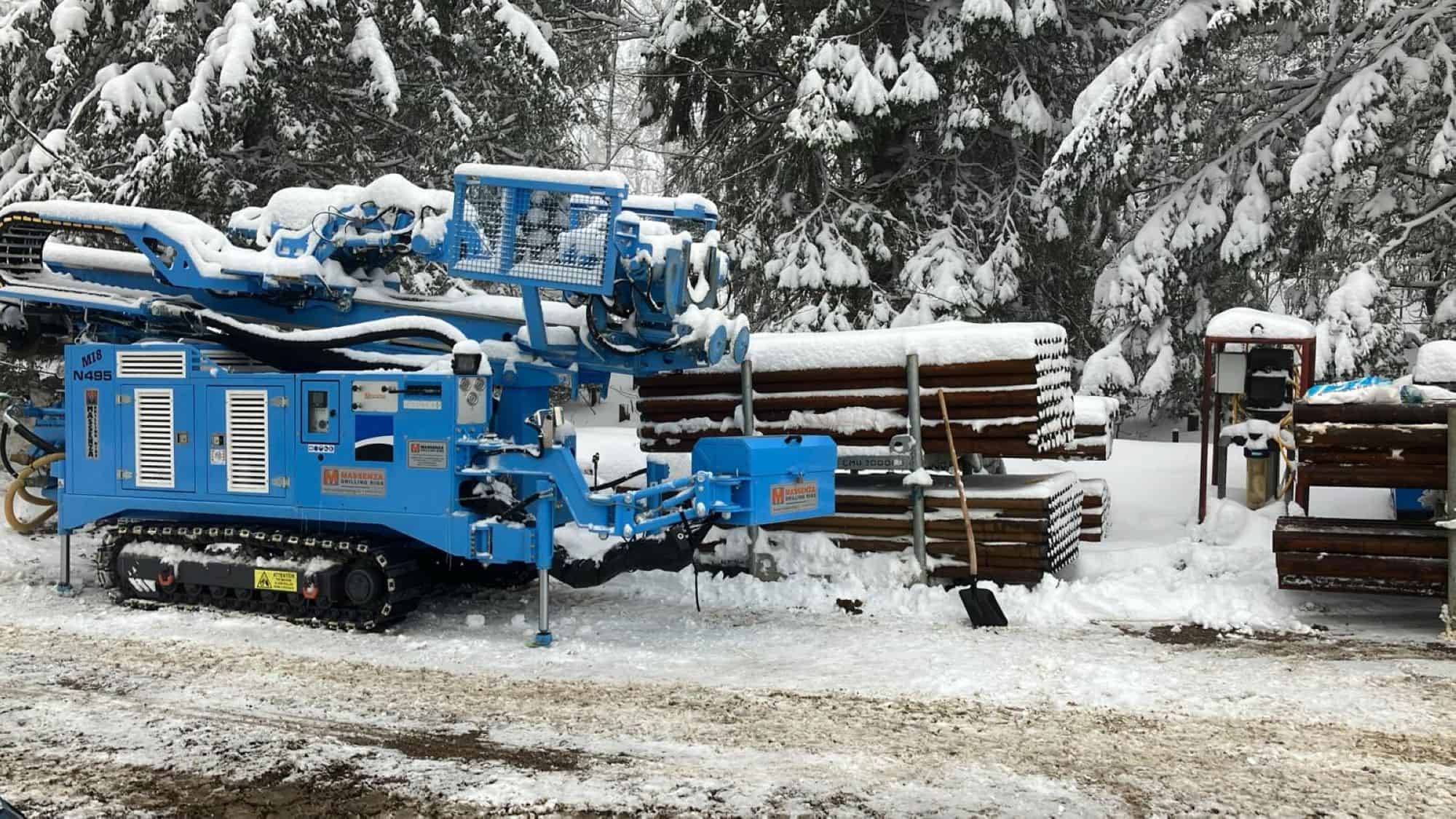

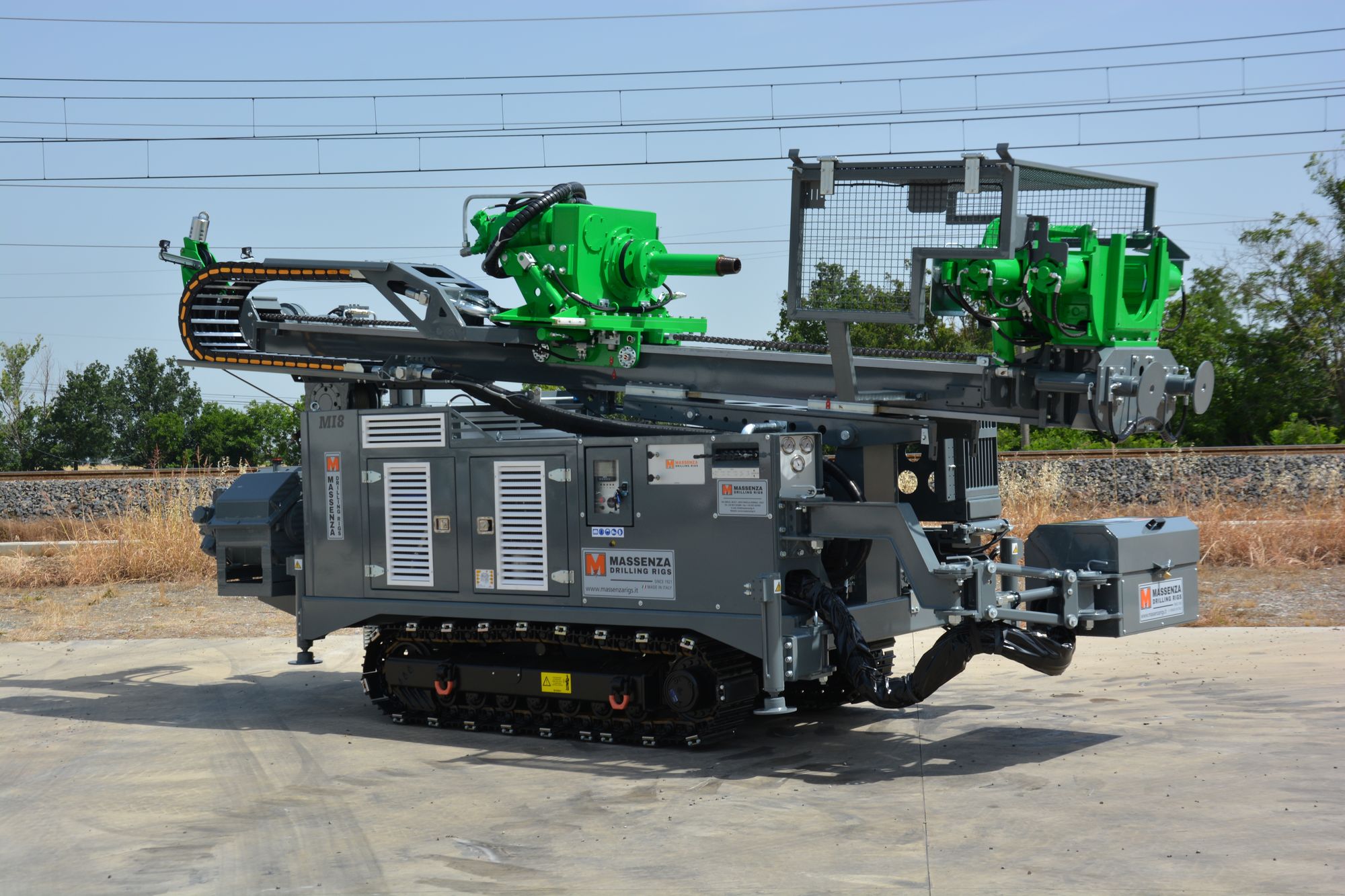

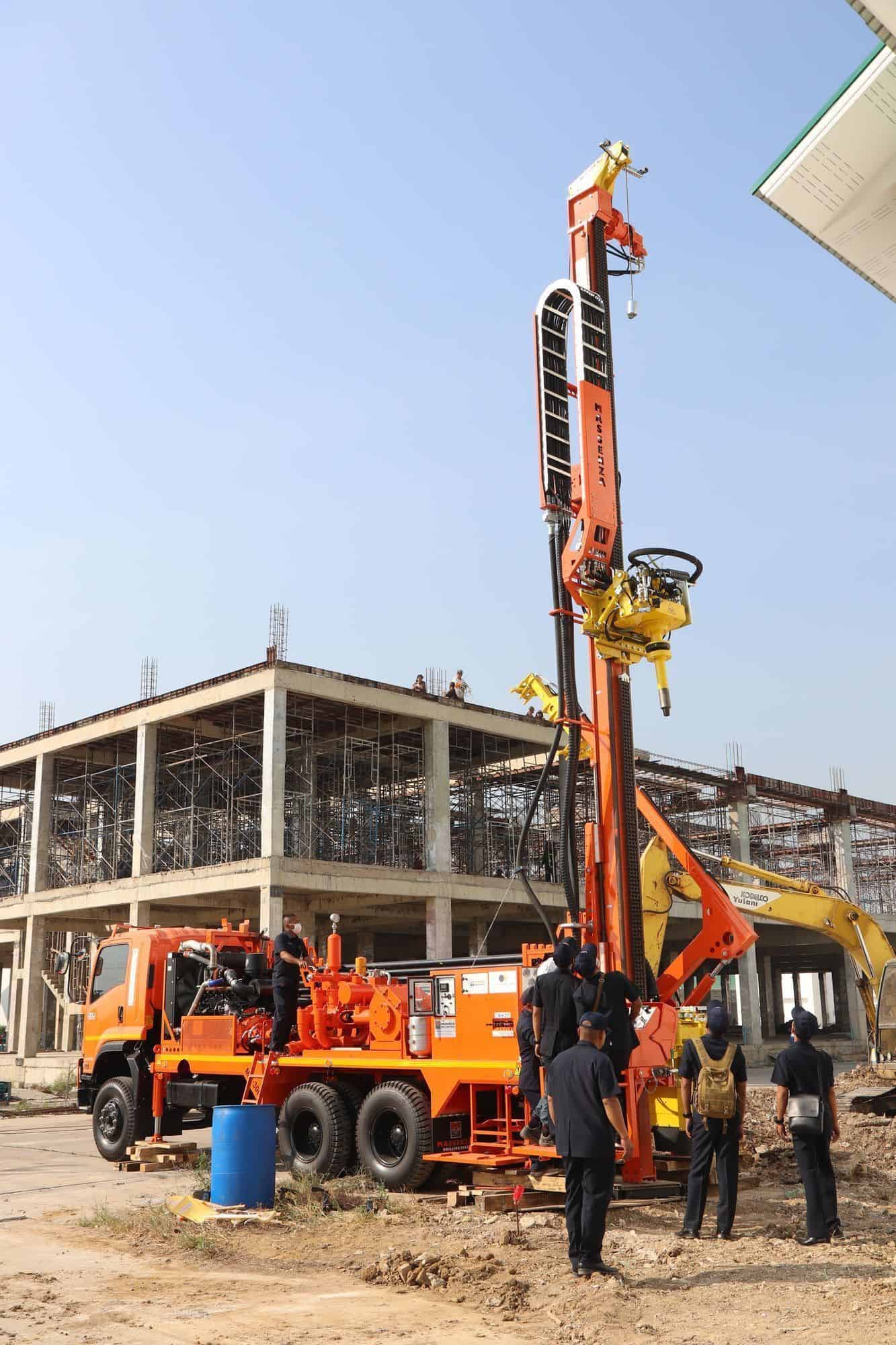

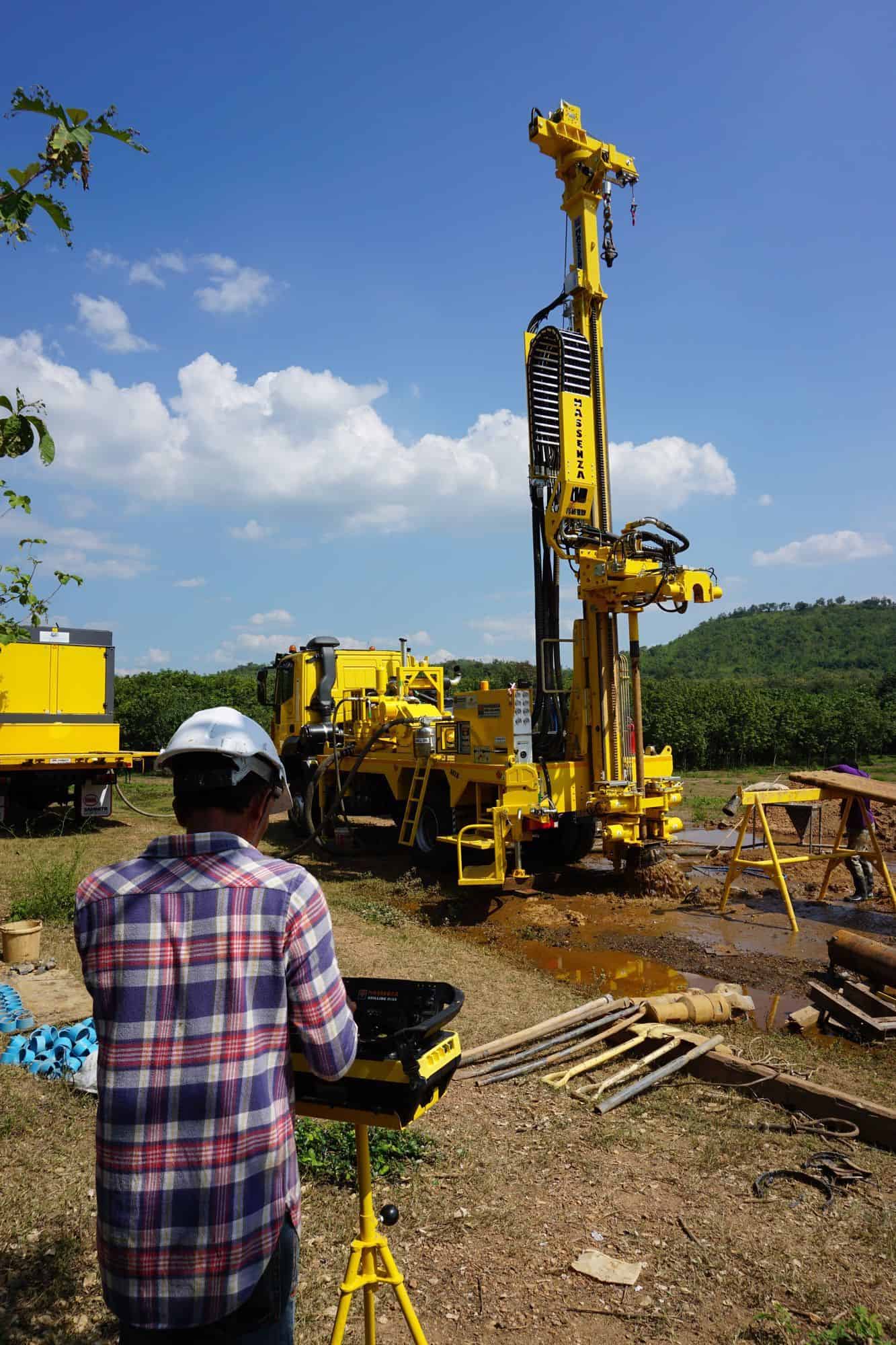

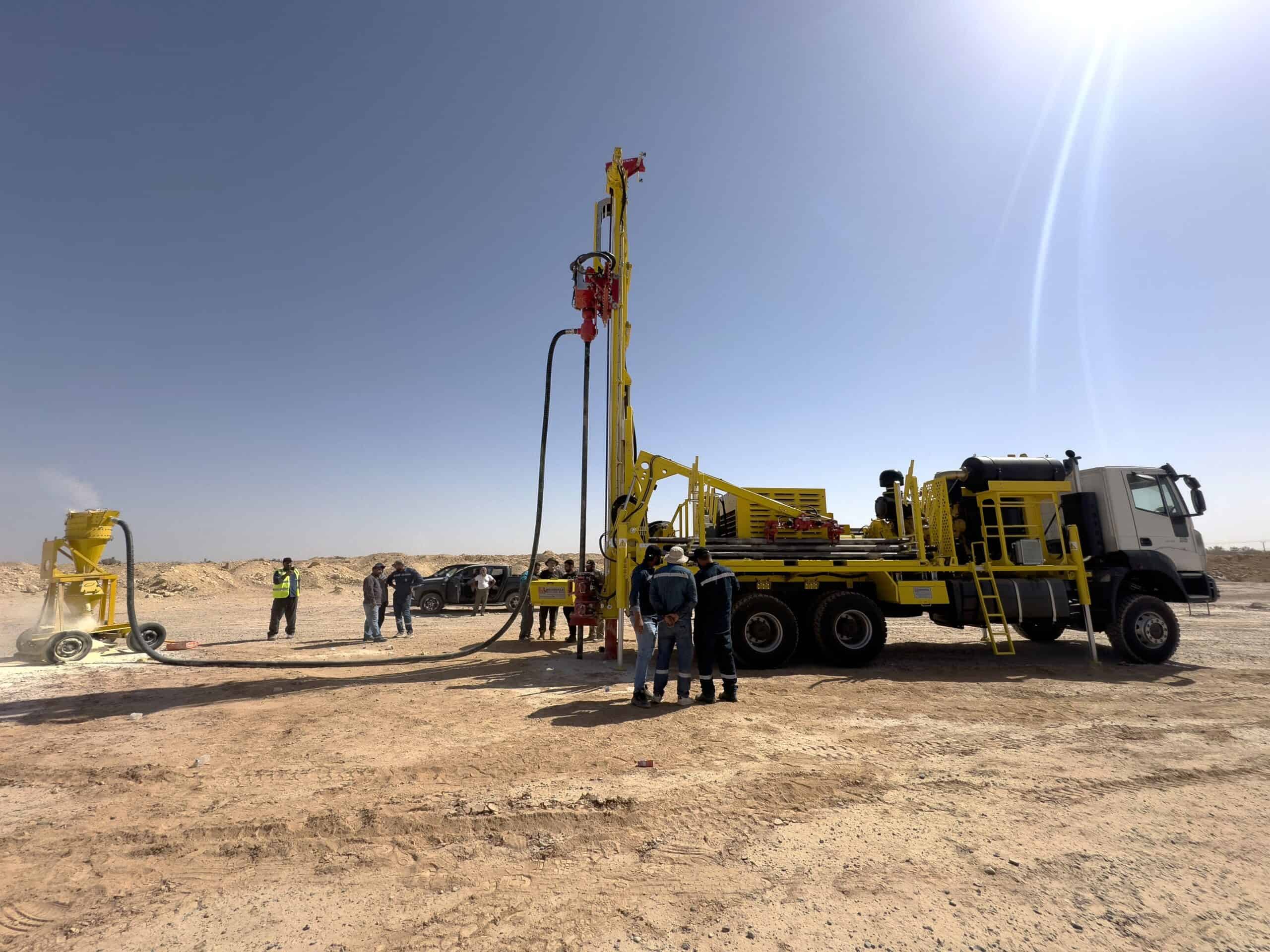

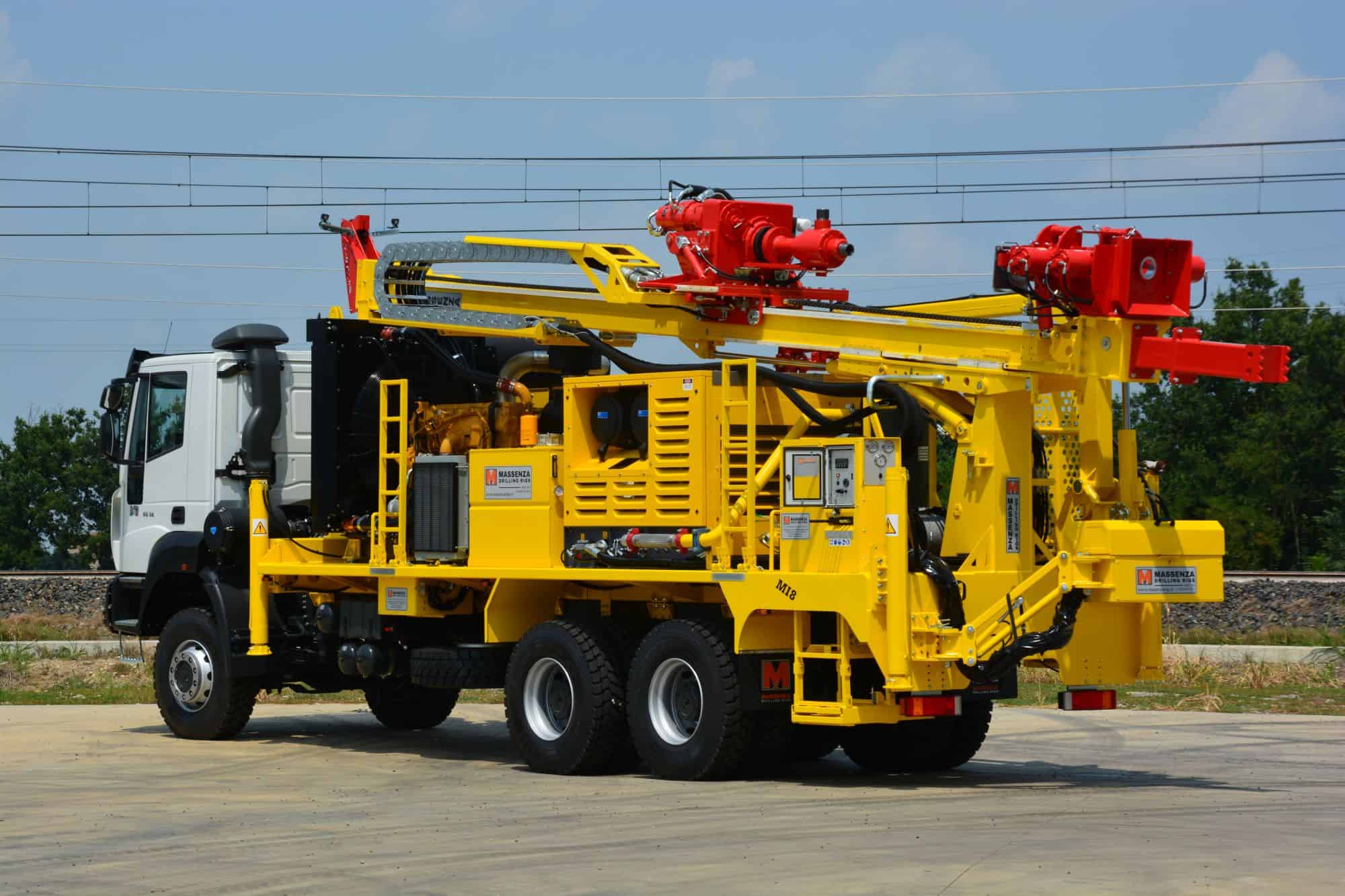

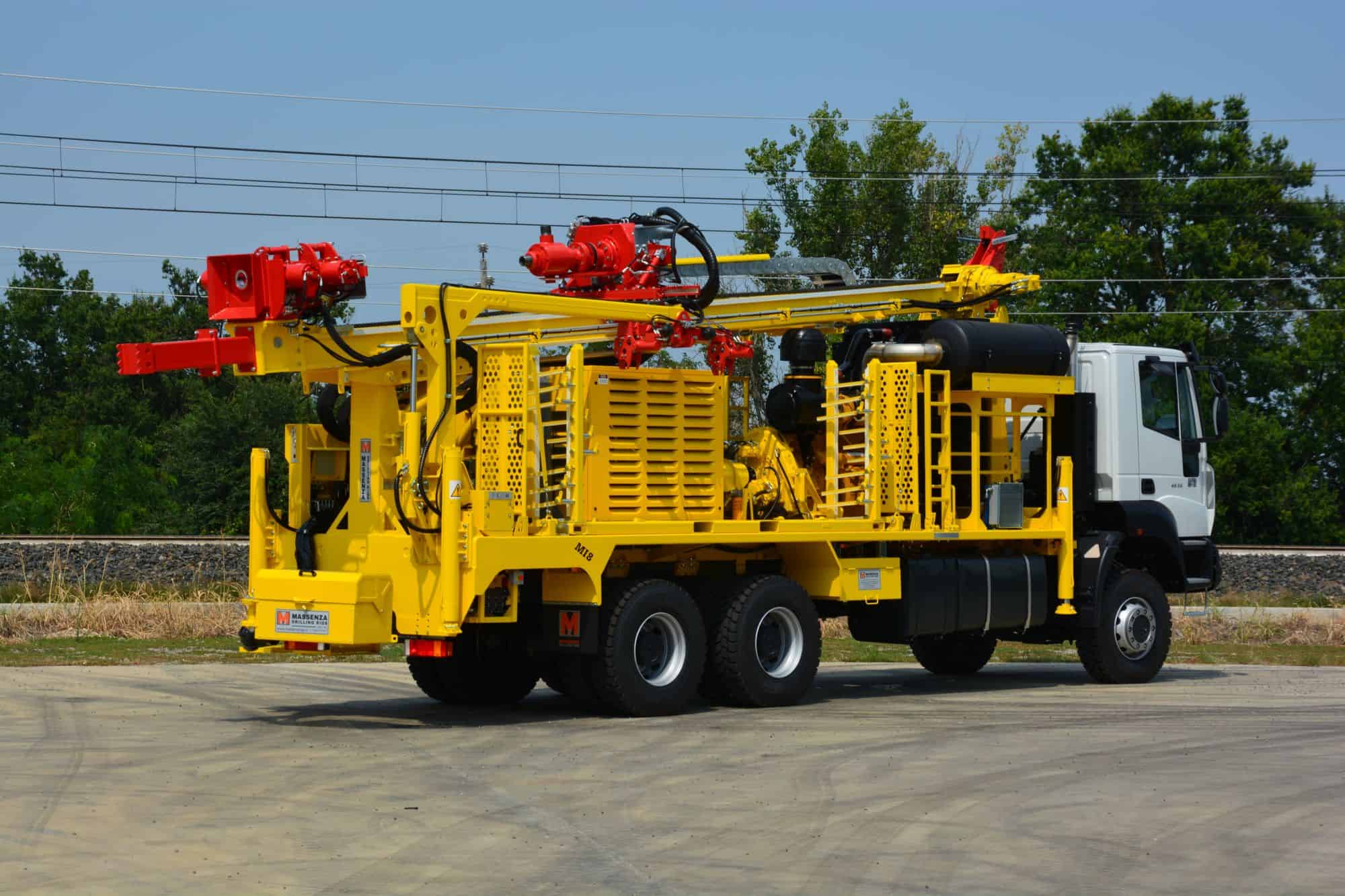

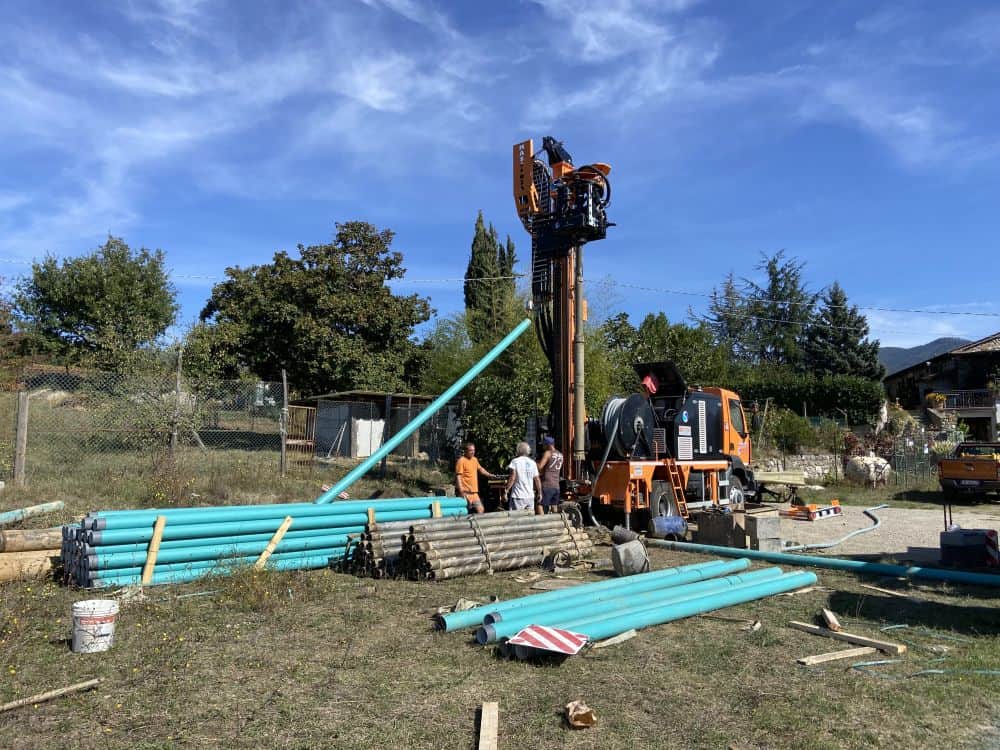

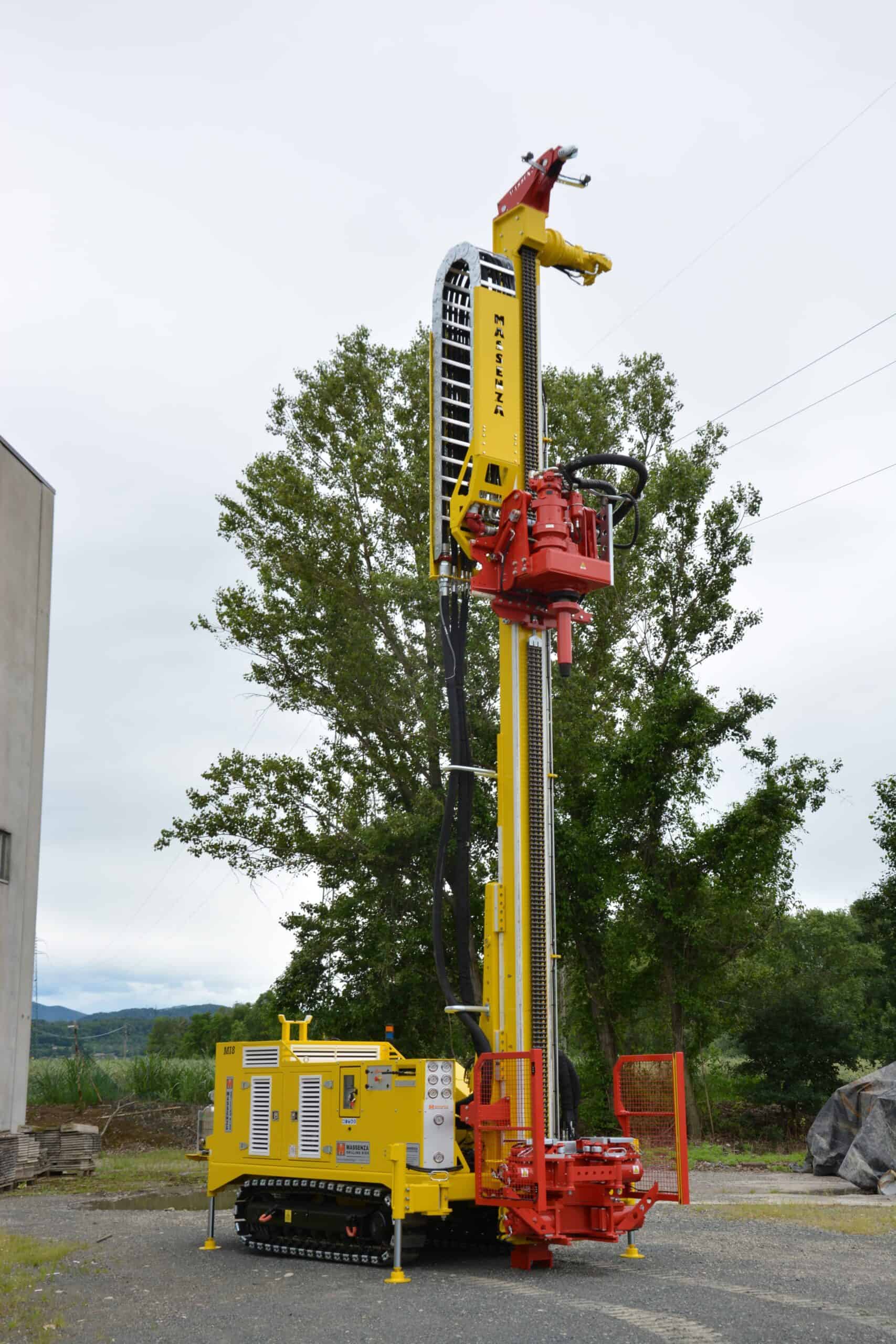

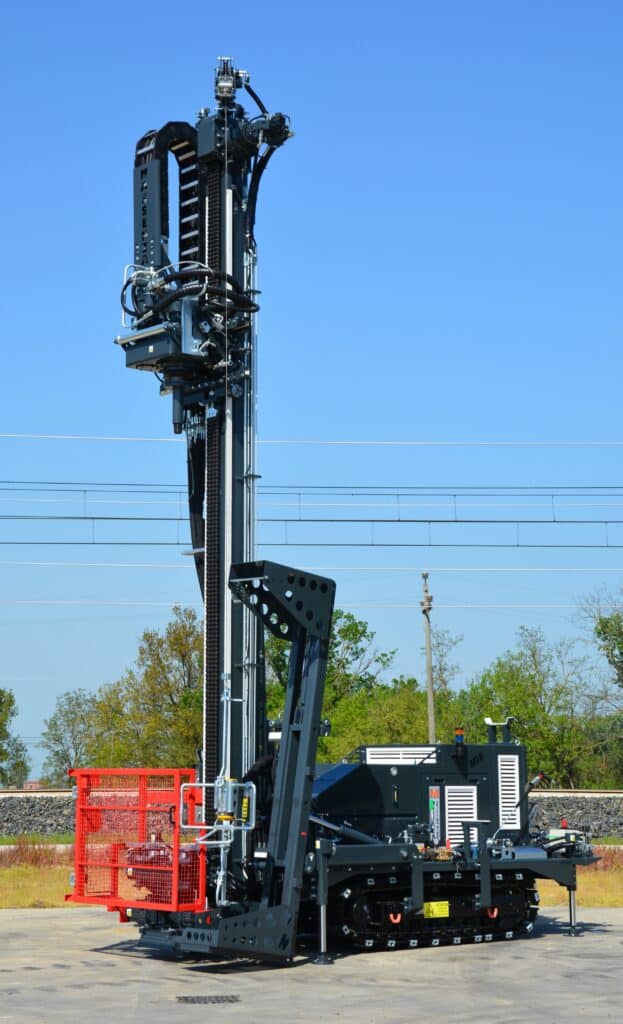

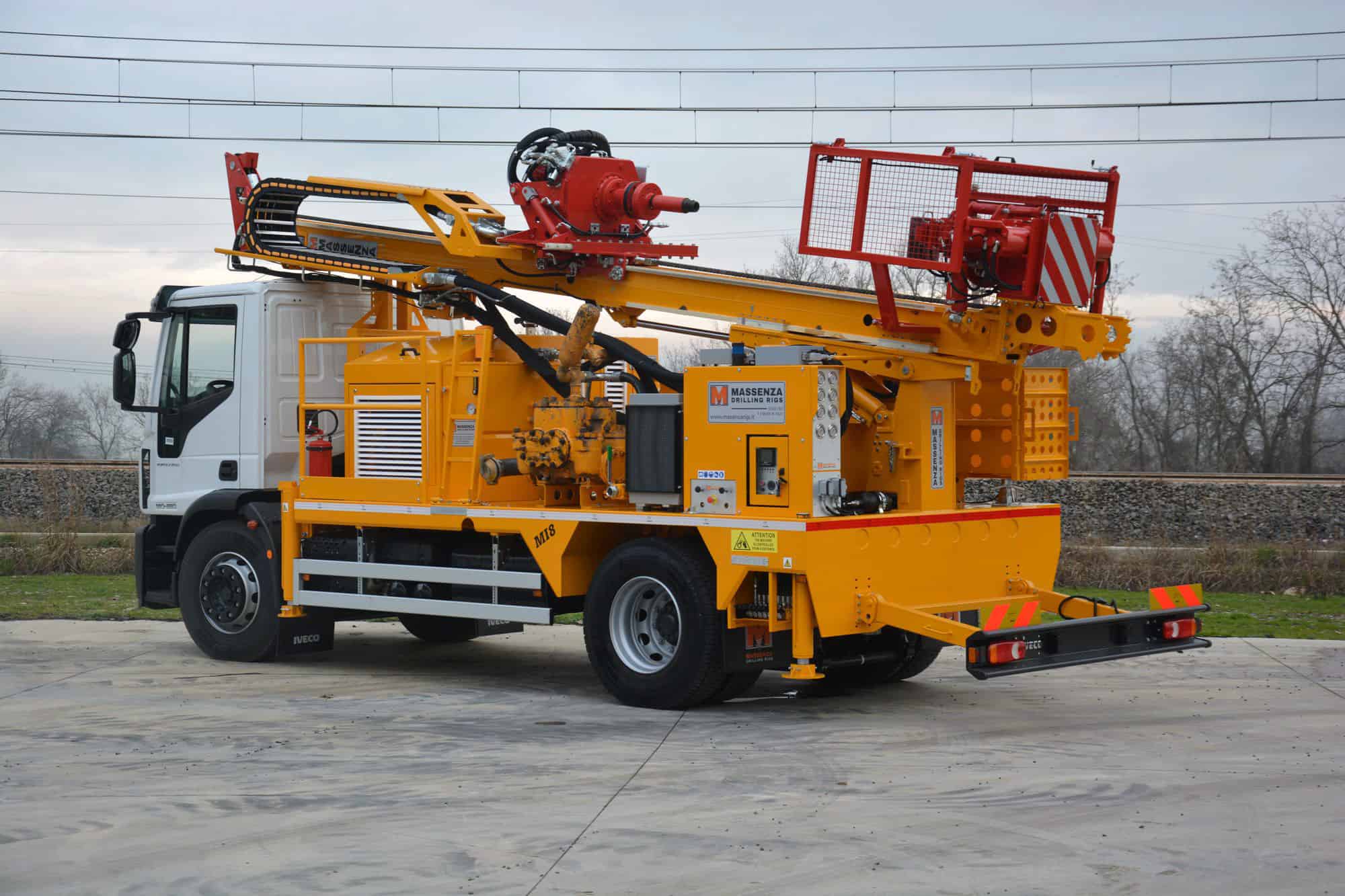

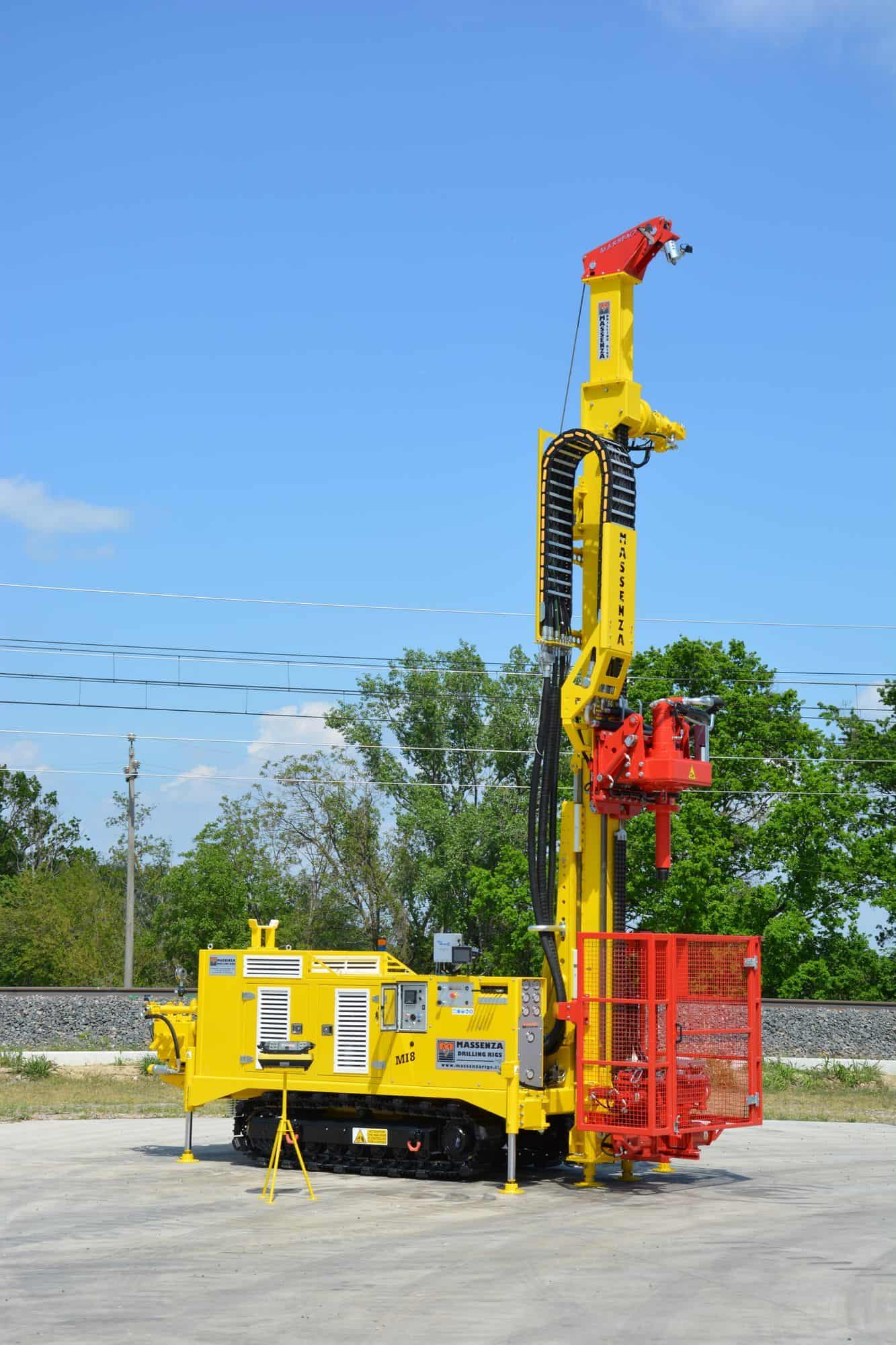

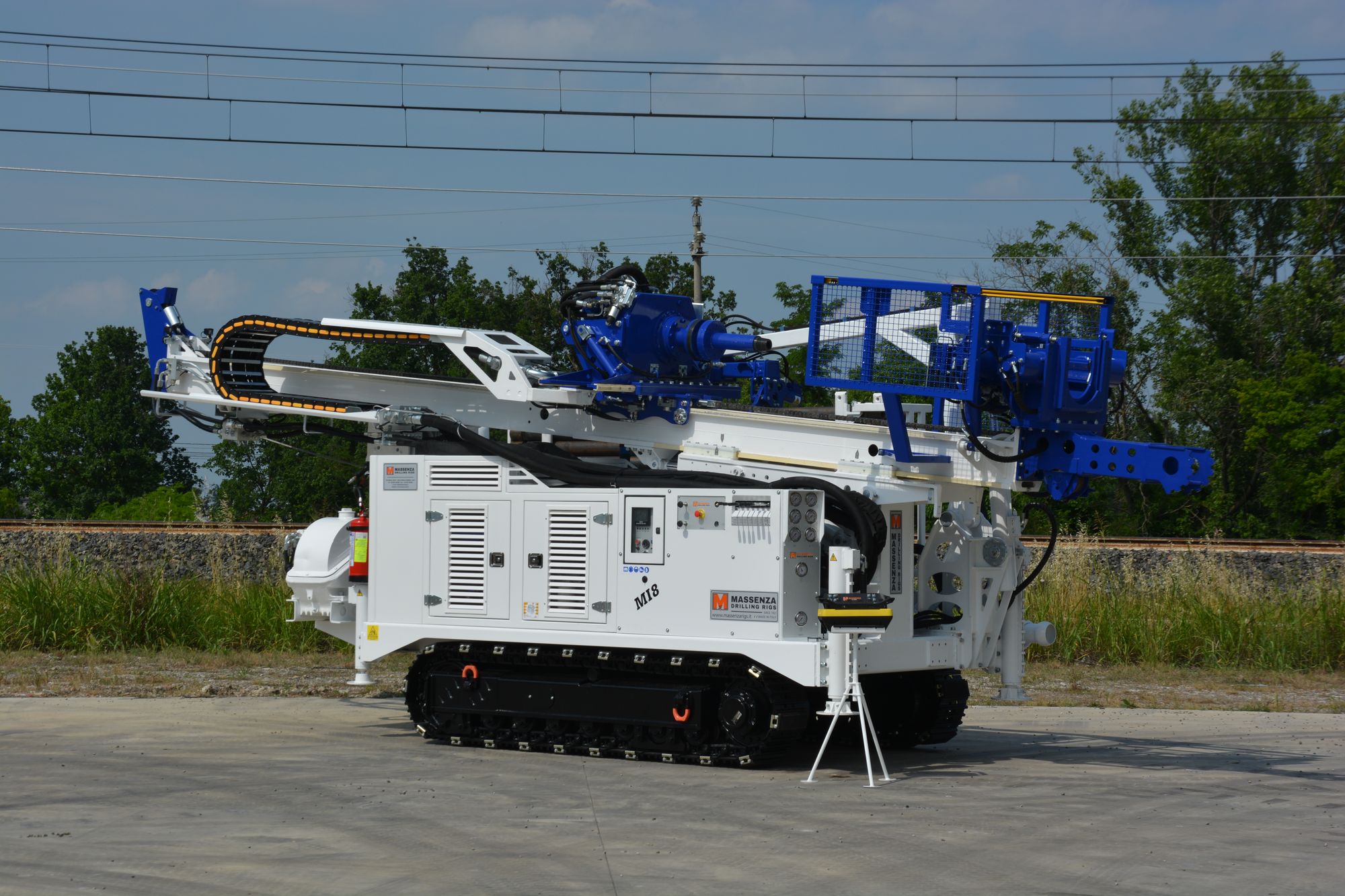

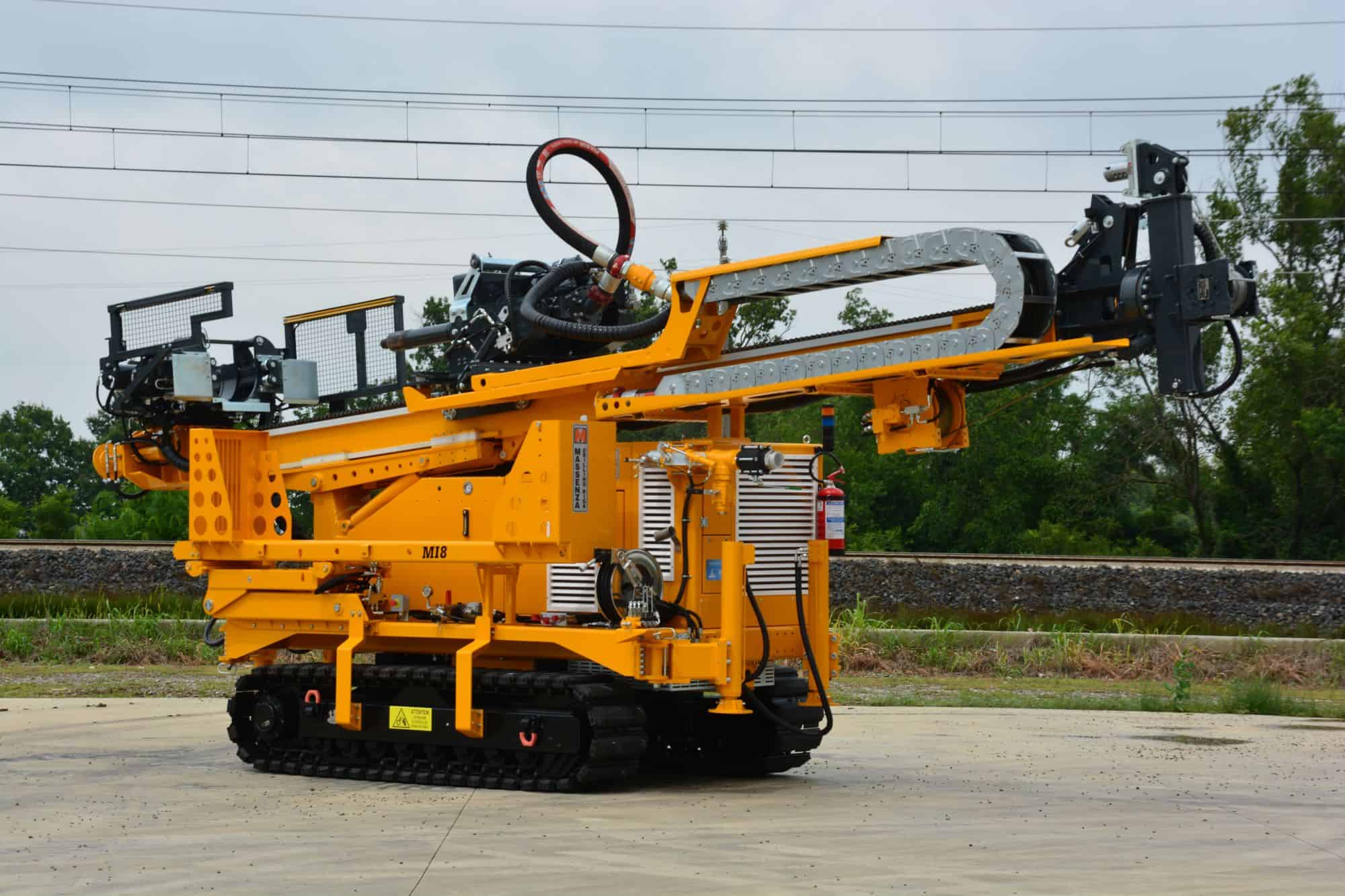

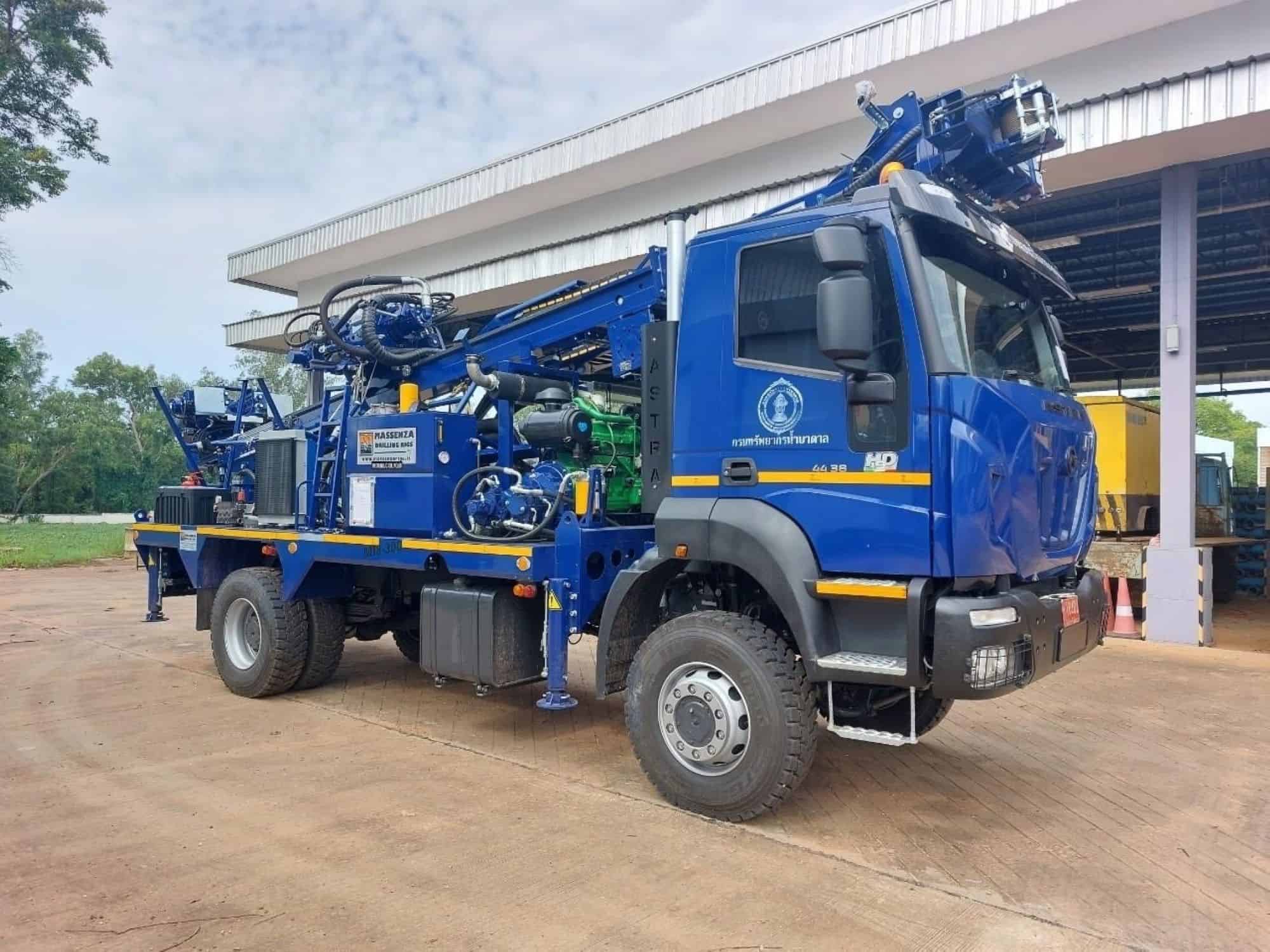

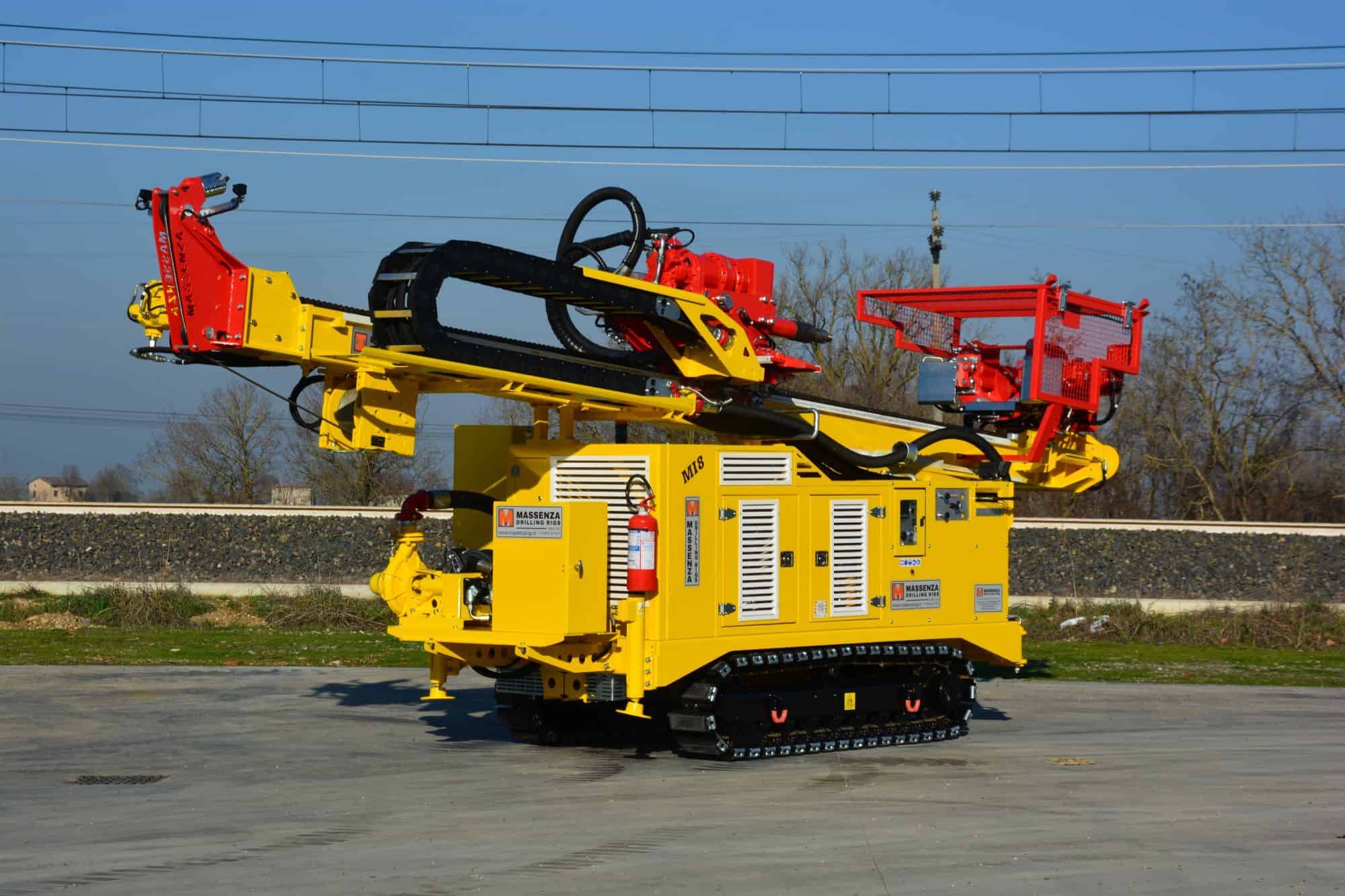

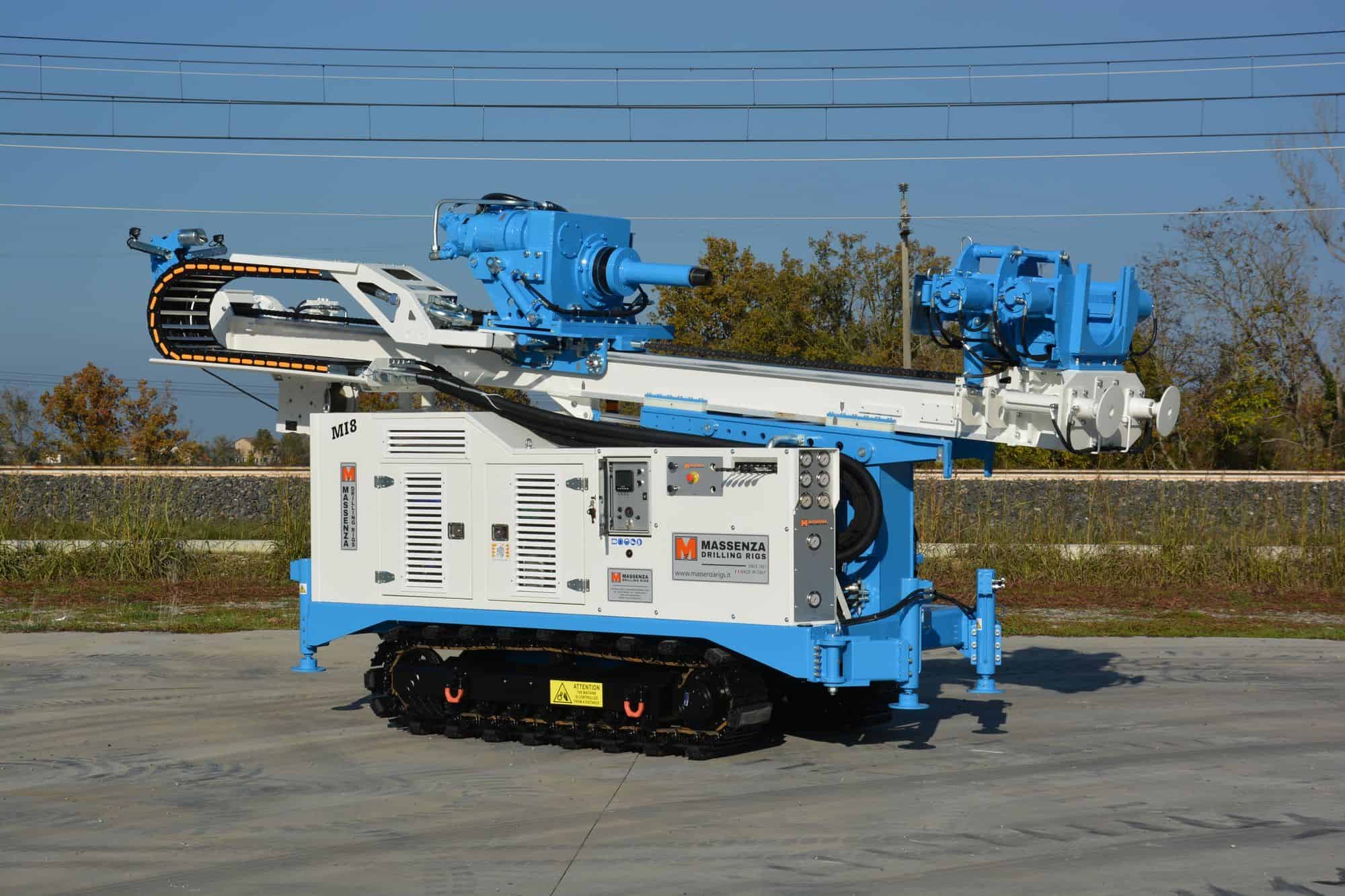

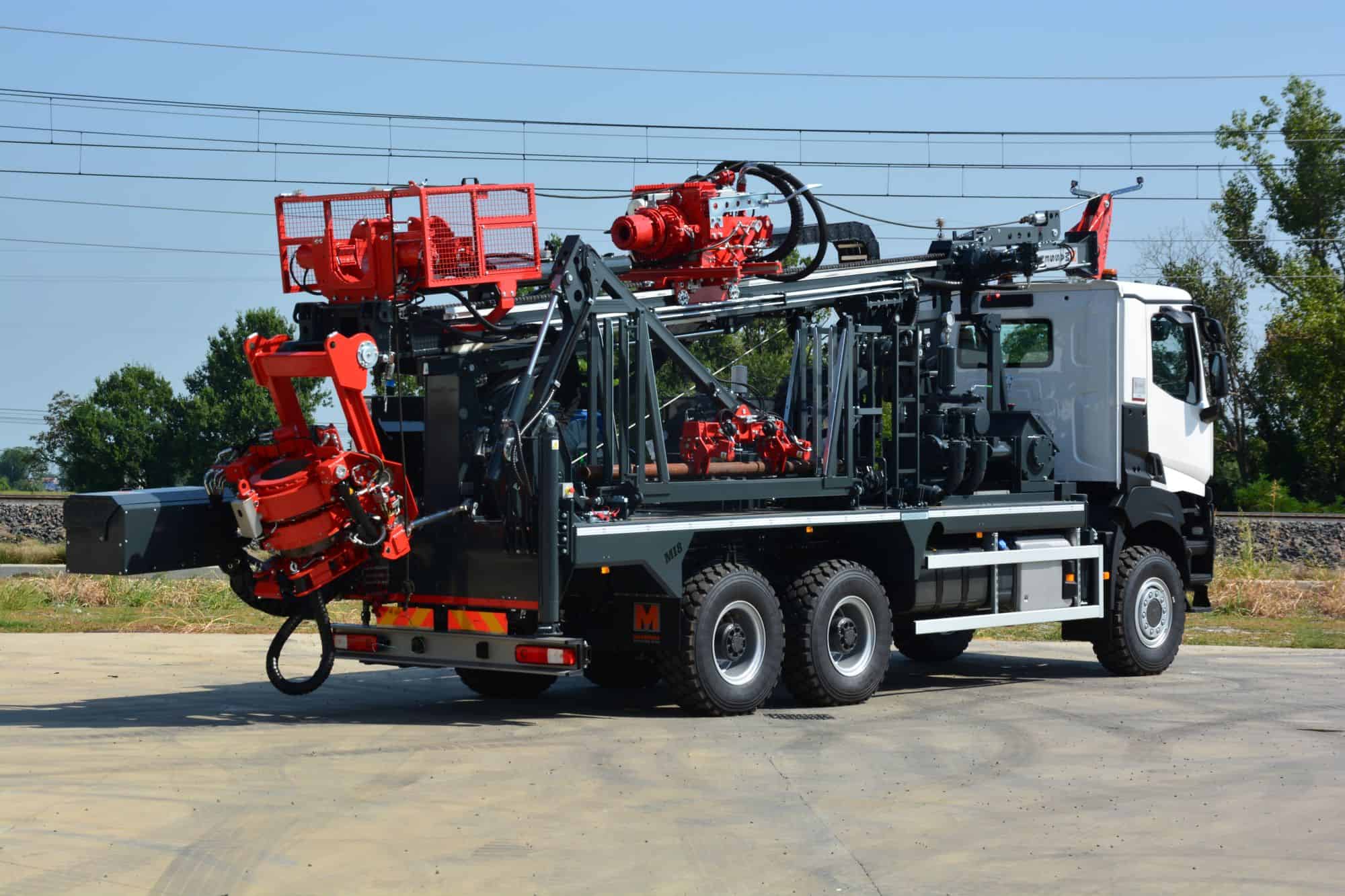

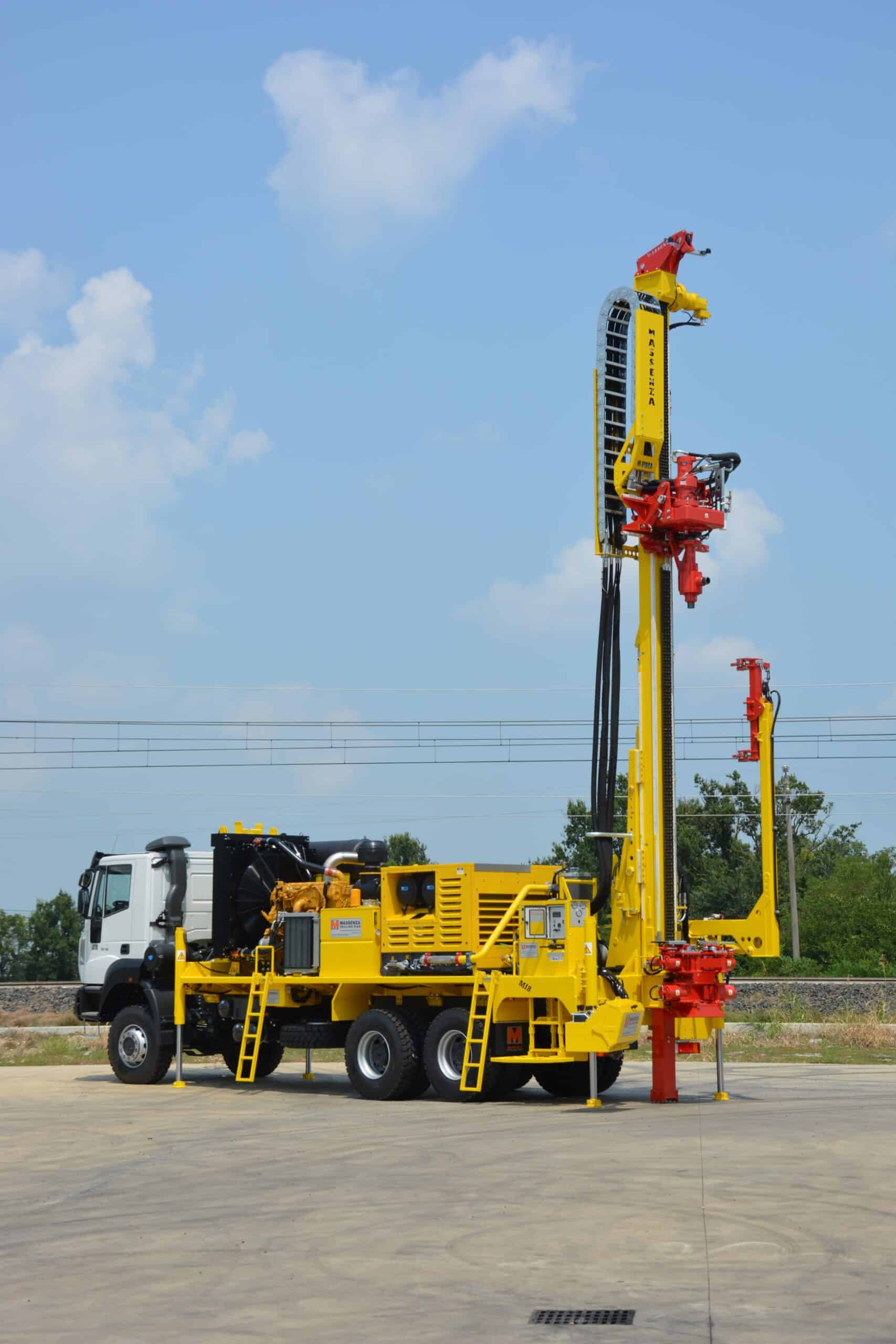

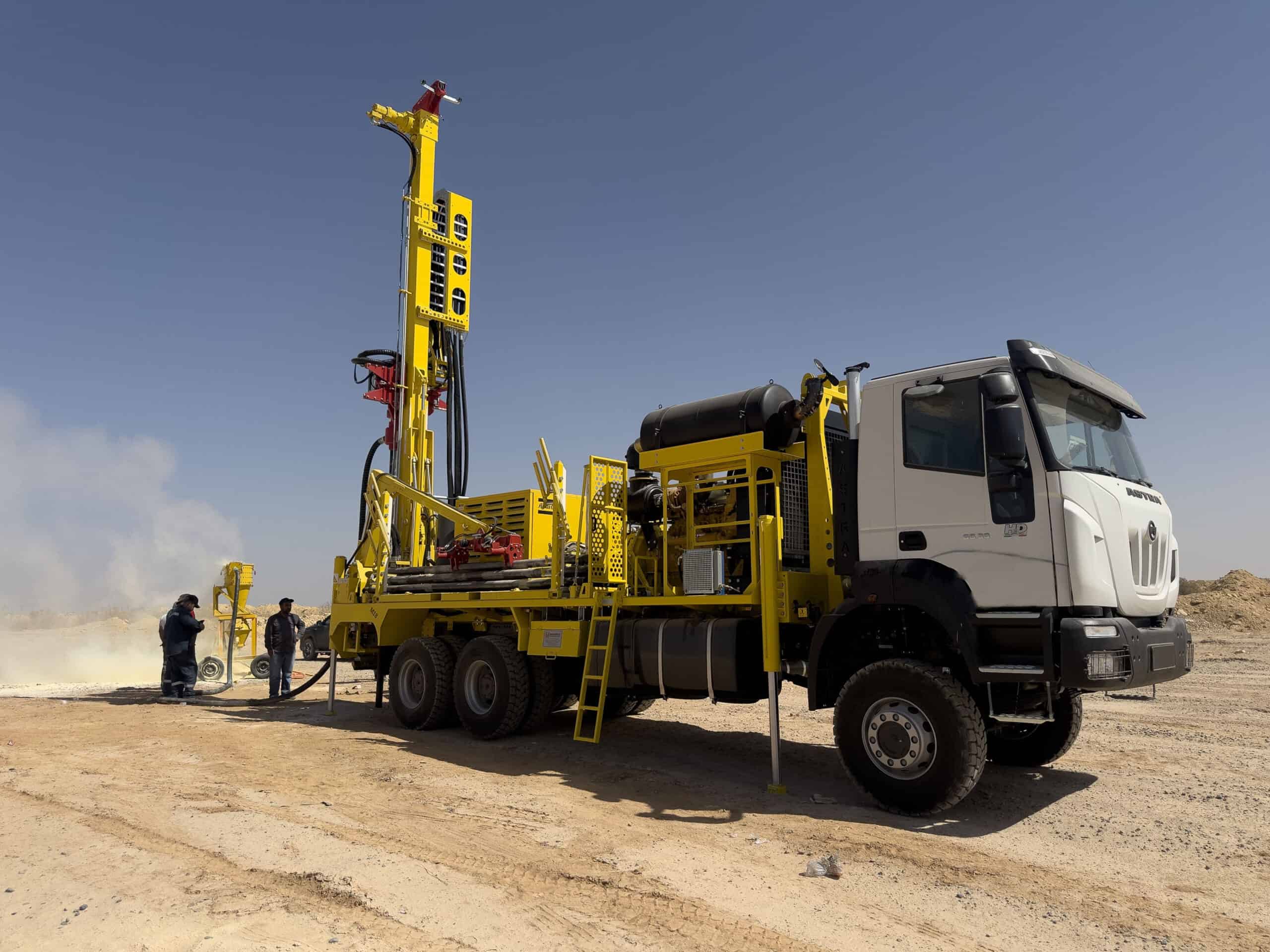

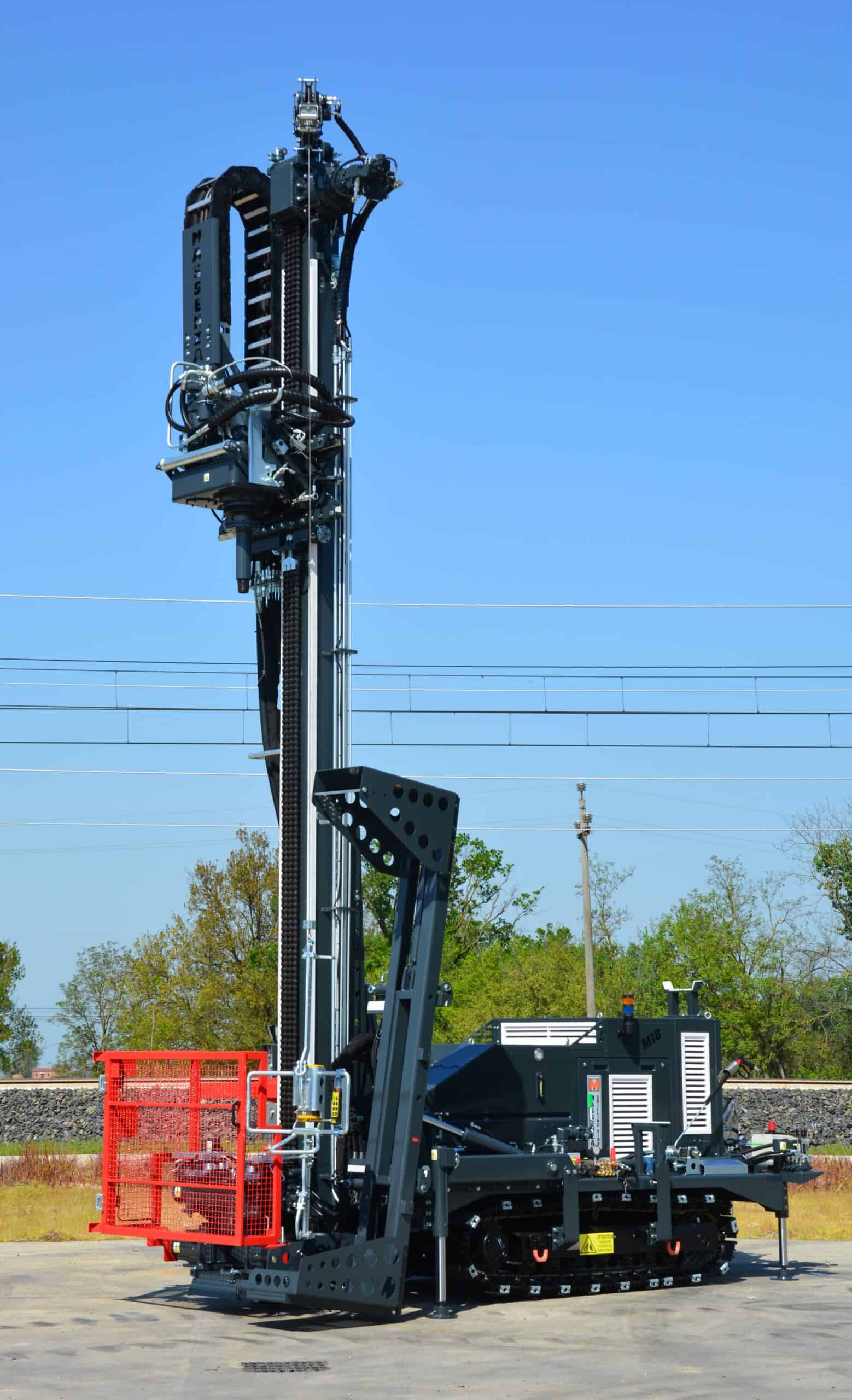

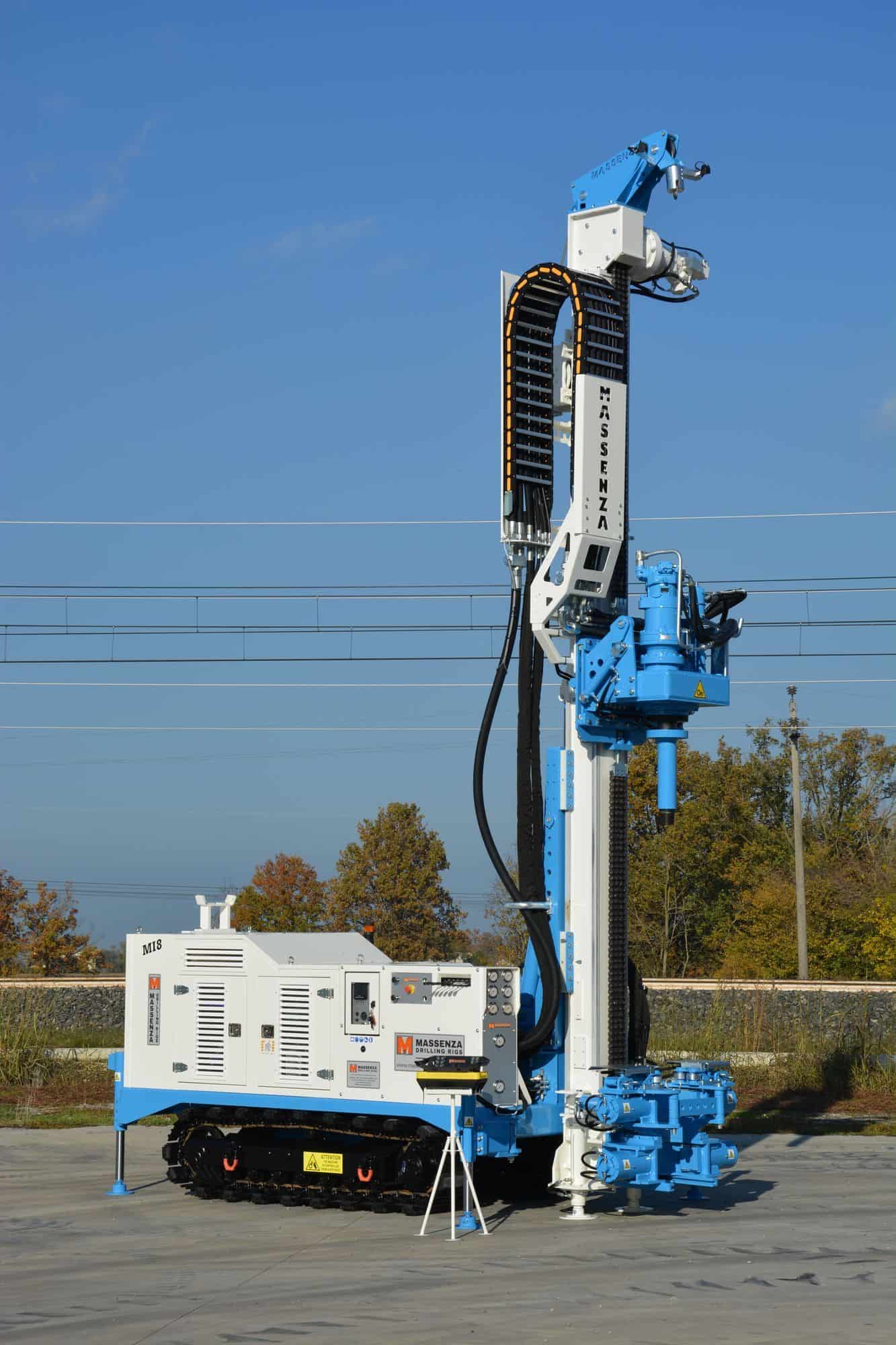

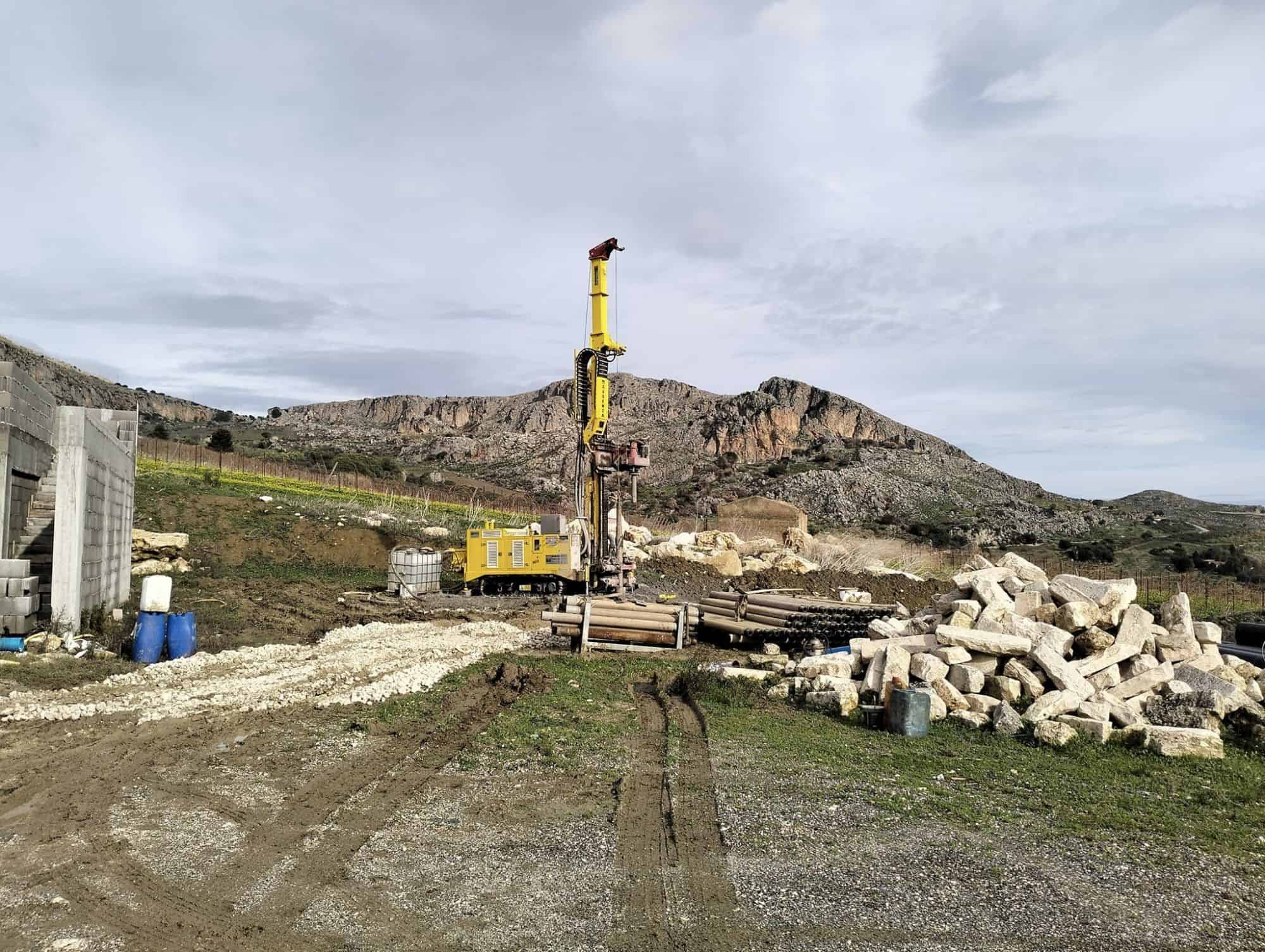

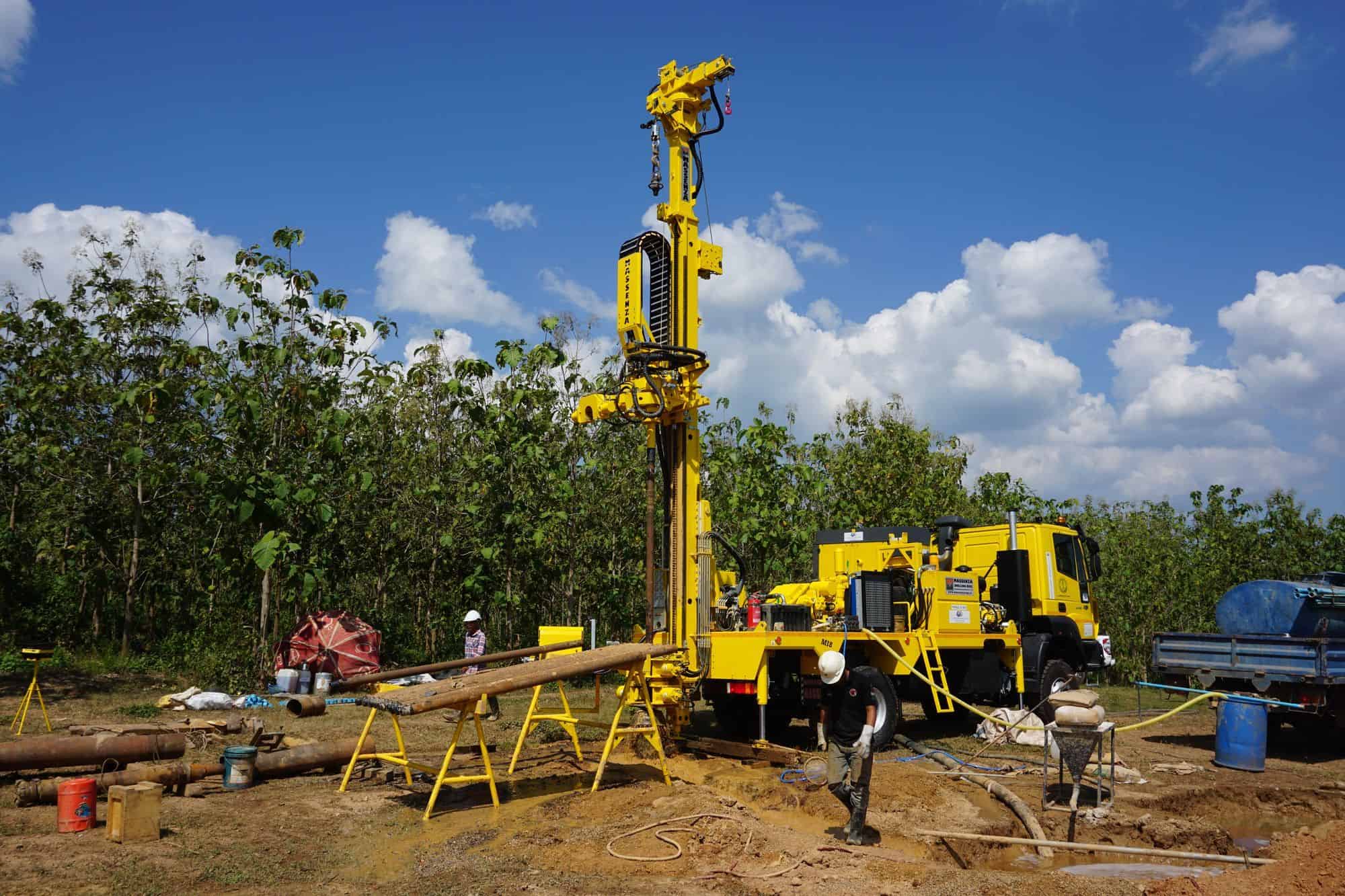

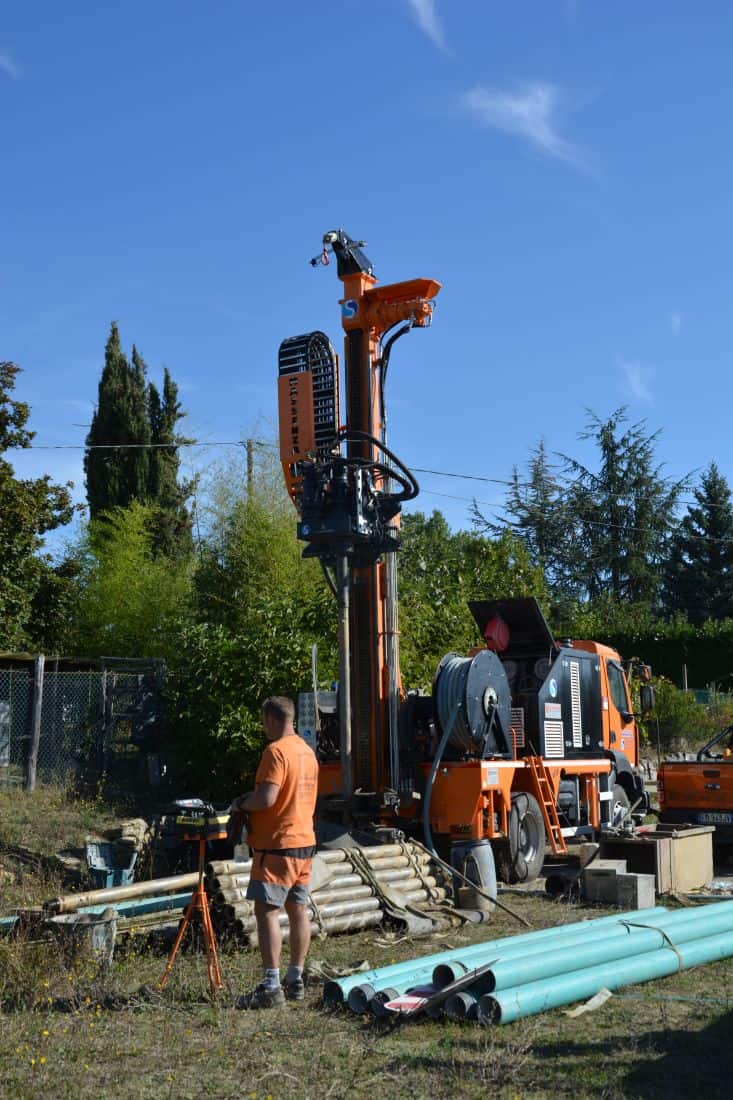

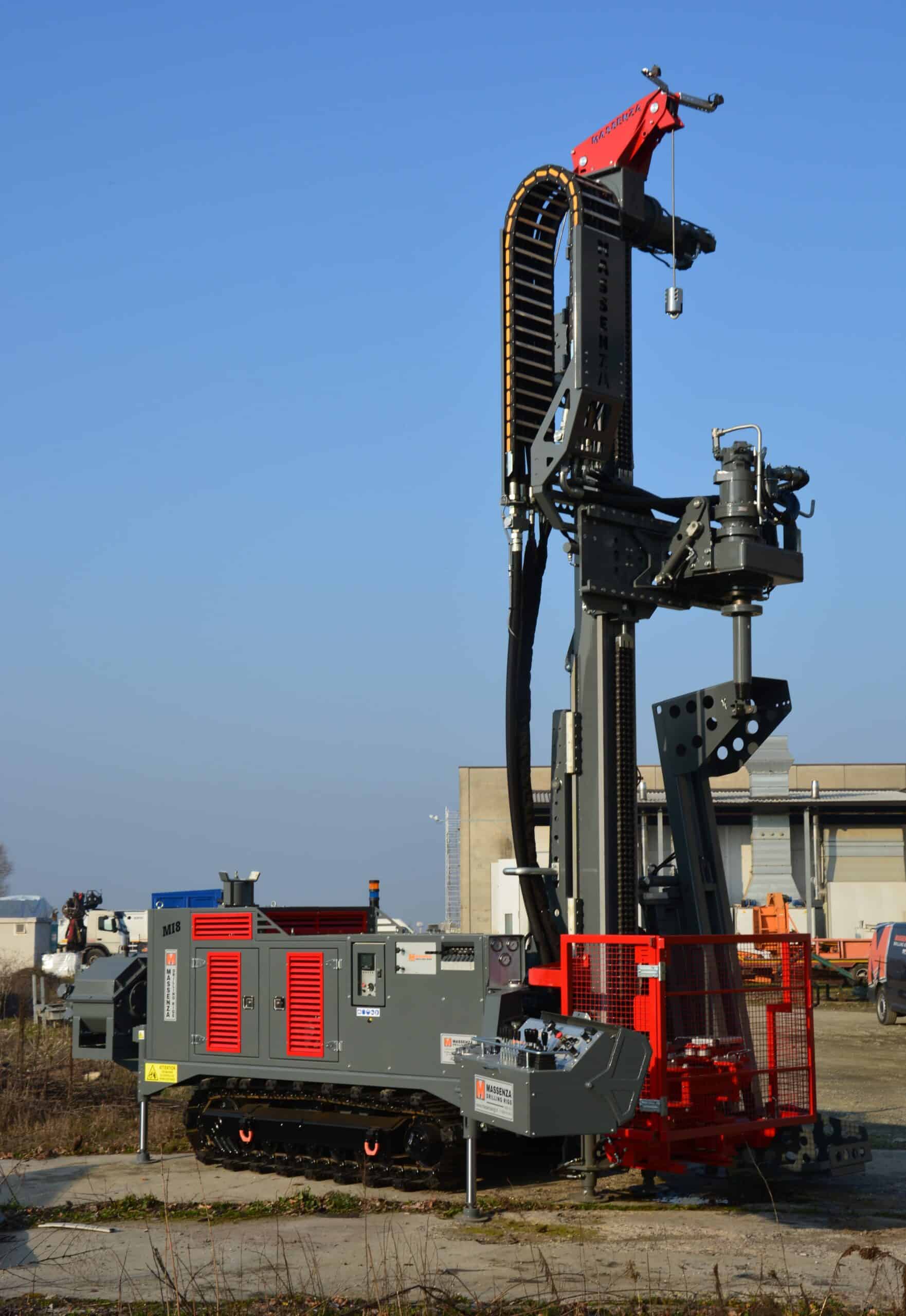

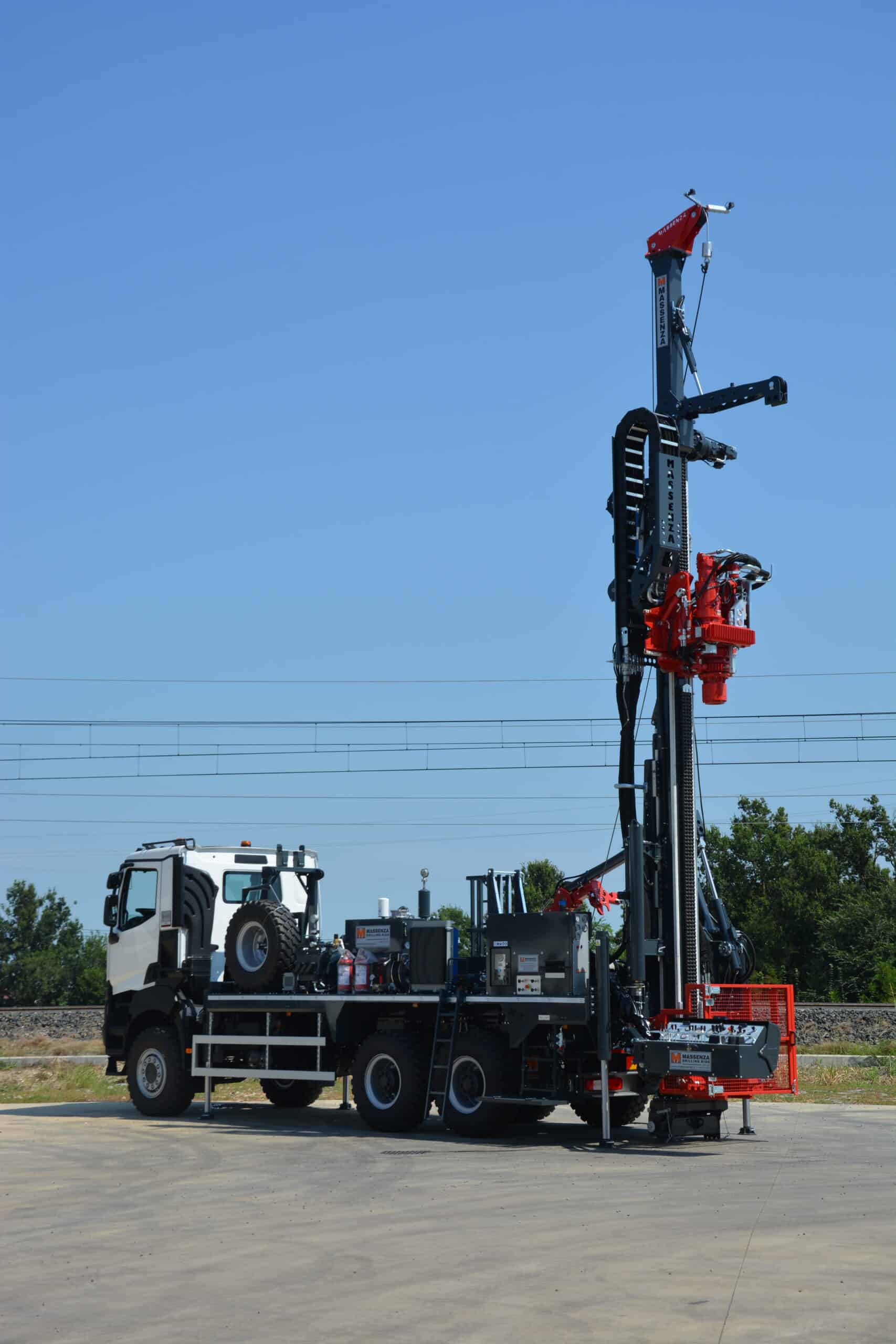

Although the rig is of moderate dimensions, which allows it to operate in restricted locations, it is extremely powerful. Due to its robust engineering and reliability it is capable of drilling in difficult conditions to depths normally beyond a rig of this size. The rig can be set up in various configurations, depending on the client’s need. It is possible to install on board duplex mud pumps, centrifugal pumps and lubricators for down the hole hammers. The rig can be either crawler or truck mounted with the option of Massenza’s automatic drill pipe changer. The rig is designed to work with several drilling methods: direct circulation, down the hole hammers and augers. It is suitable for water well, geotechnical, geothermal drilling applications and coring for mineral research.| WORK METHODS |
|---|
| - Rotation with direct circulation. - Nucleus destruction with bleeding by water, mud and foam. - Coring |
| POWER PACK |
| Engine power max 154 Hp (115 kW) |
| FUEL TANK |
| Capacity 150 litri (39.6 gal) |
| SLIDING MAST |
| Stroke 900 mm (3 ft) |
| MAST |
|---|
| Maximum stroke of rotary head 6,1 m (12 ft 2”) Maximum pull and down: 15,000 daN (33,708 lbf) |
| ROTARY HEAD |
| Maximum torque 18,307 Nm (13,503 lbf•ft) Maximum speed 1,345 Rpm |
| WINCH |
| Standard: maximum line pull 2.200 daN (4,946 lbf) Optional: maximum line pull: 3.100 daN (6,970 lbf) Wire-line: direct pull max 600 daN (1,350 lbf) – 302 m (991 ft) of rope – 107 m/min (351 ft/min) |
| DOUBLE HYDRAULIC CLAMP |
| Model MS360: maximum passage 360 mm (14”) Model MS410: max passage 410 mm (16”) |
DO YOU NEED MORE INFORMATION
ABOUT THE Mi8?
Video

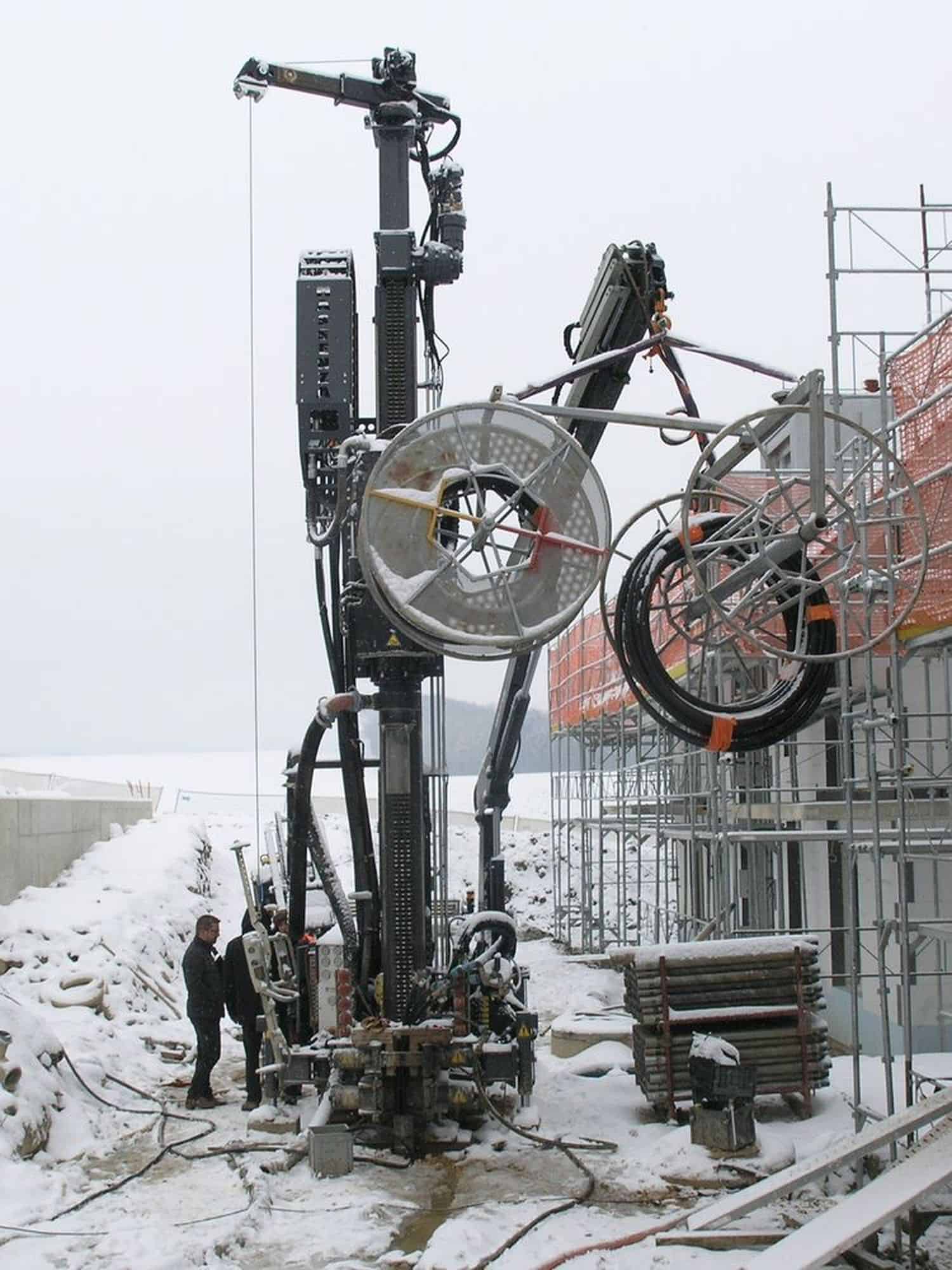

DRILLING RIG Mi8 for geothermal boreholes with casing drive system
