MiP SERIES

DESCRIPTION

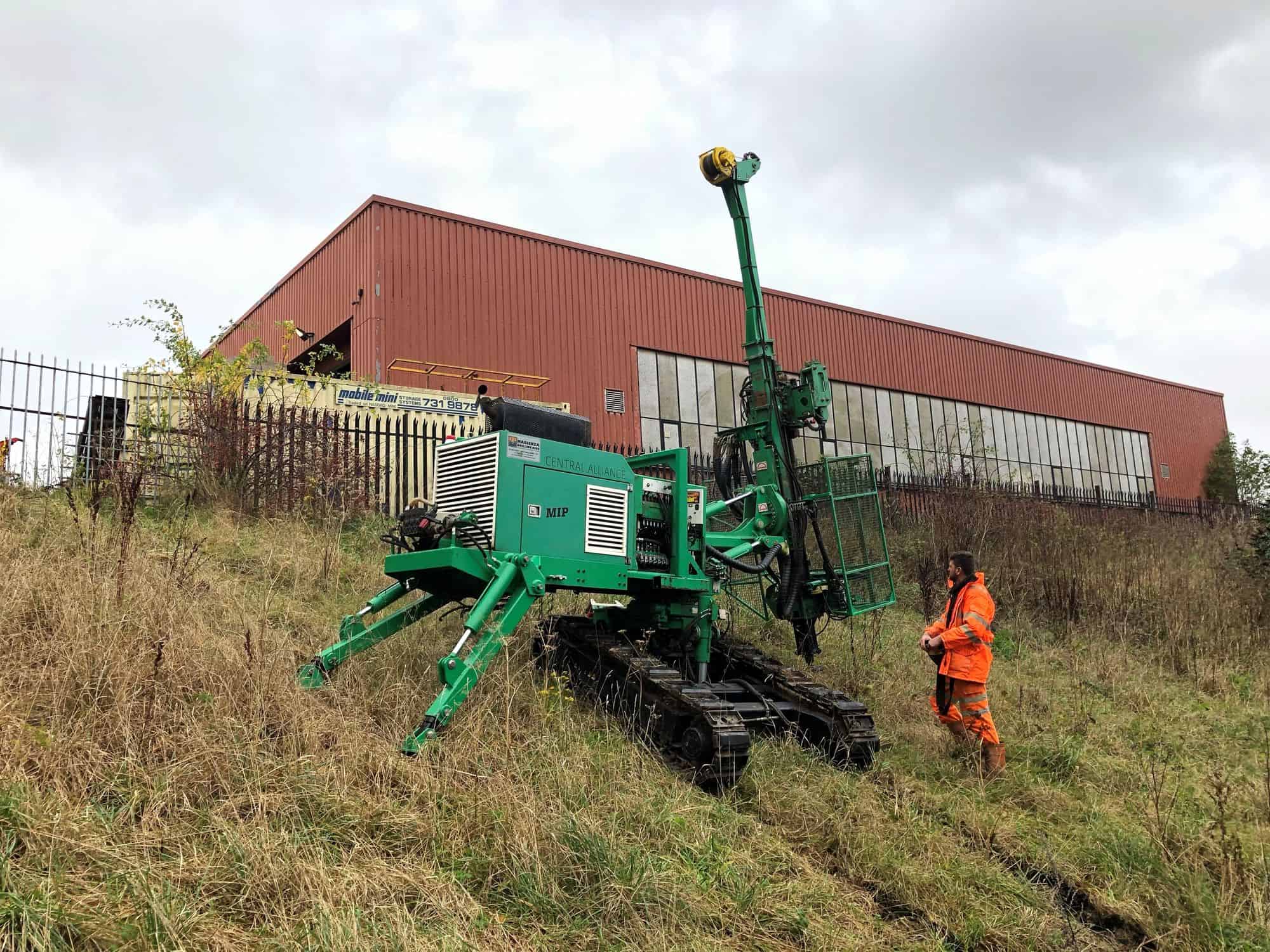

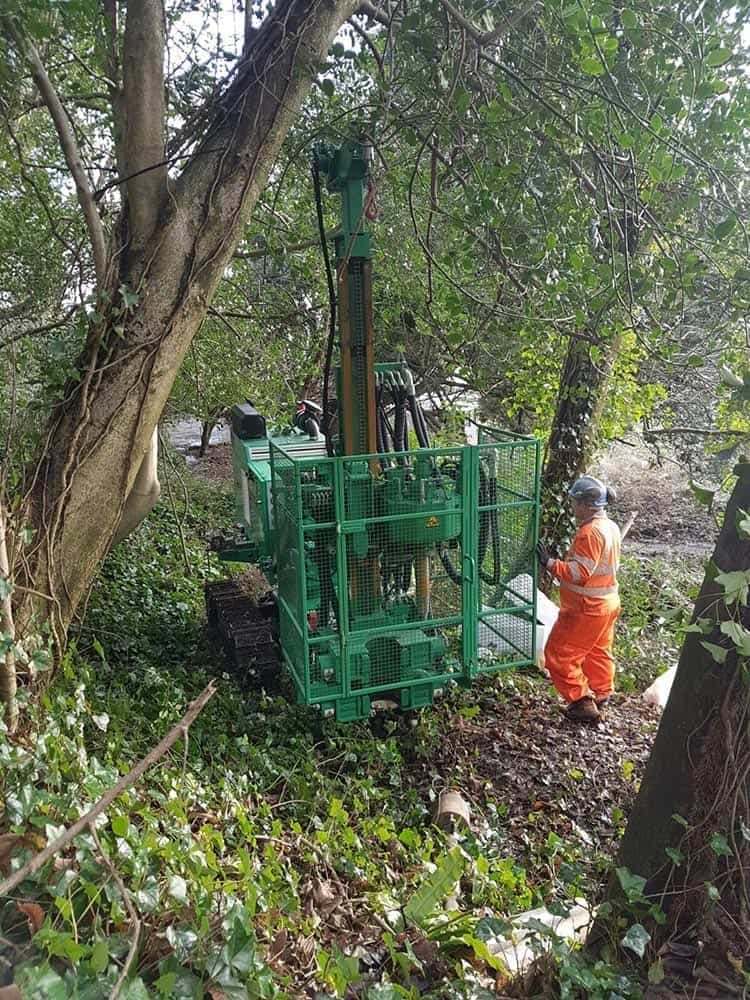

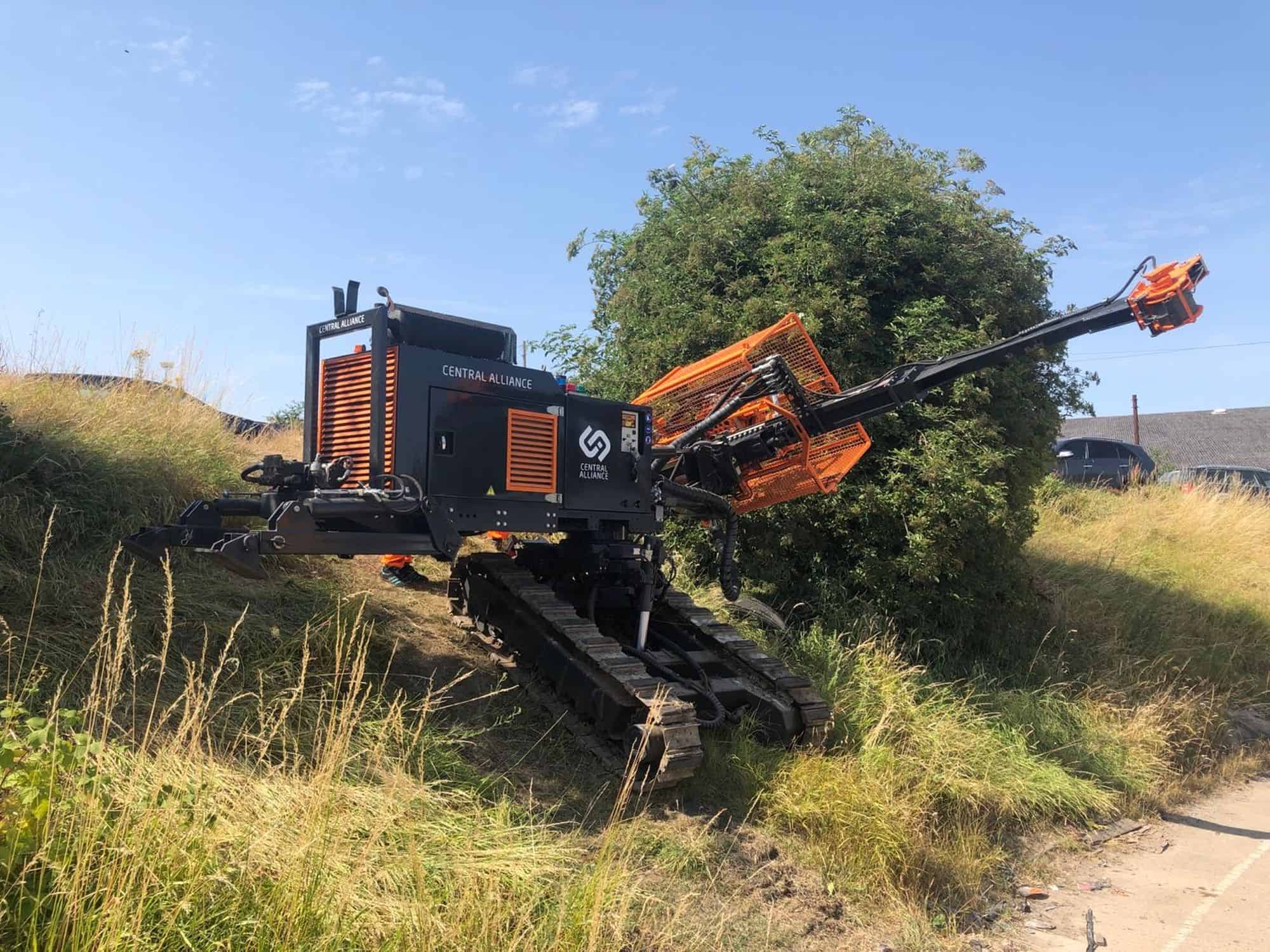

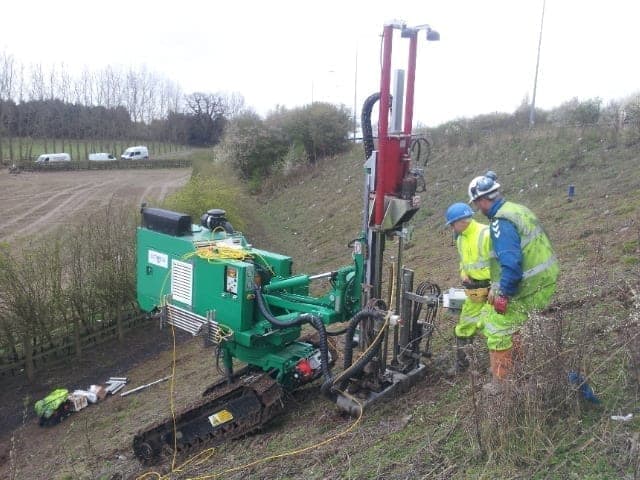

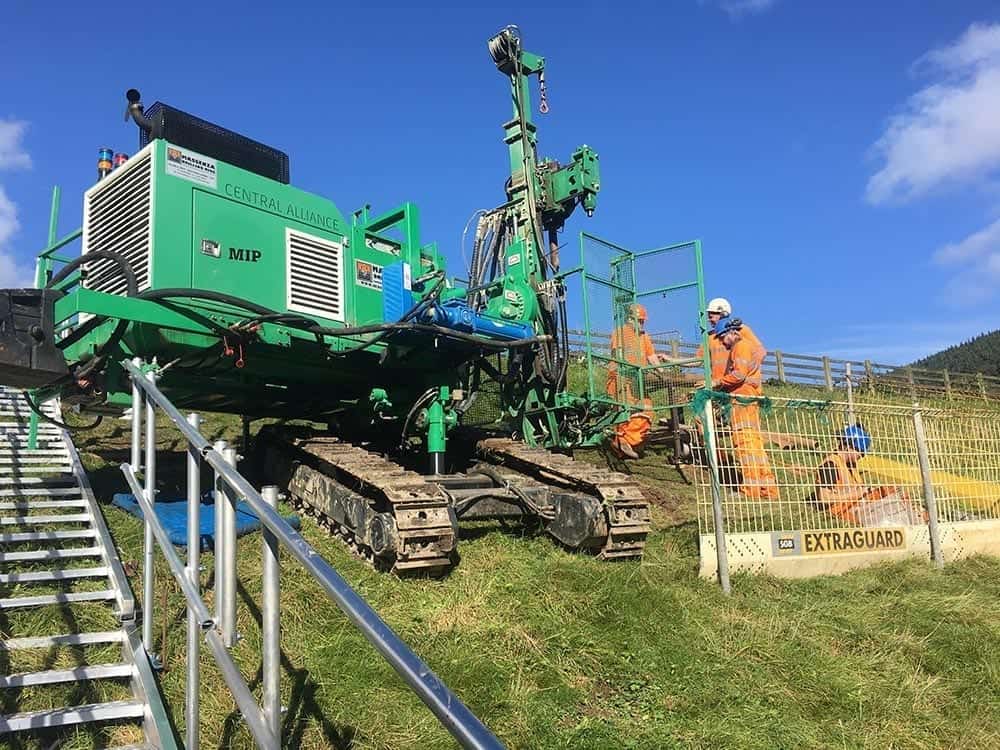

The MIP Series of drills Massenza is designed to perform work on slopes with inclination up to 45 °. Thanks to the special design in fact both the antenna and the camera body can turn on themselves completely, allowing to drill in all directions. The anchoring system incorporated in the antenna provides maximum stability and the radio control, which controls all the operation of the machine, allows the operator to stay in the position of maximum visibility and safety.

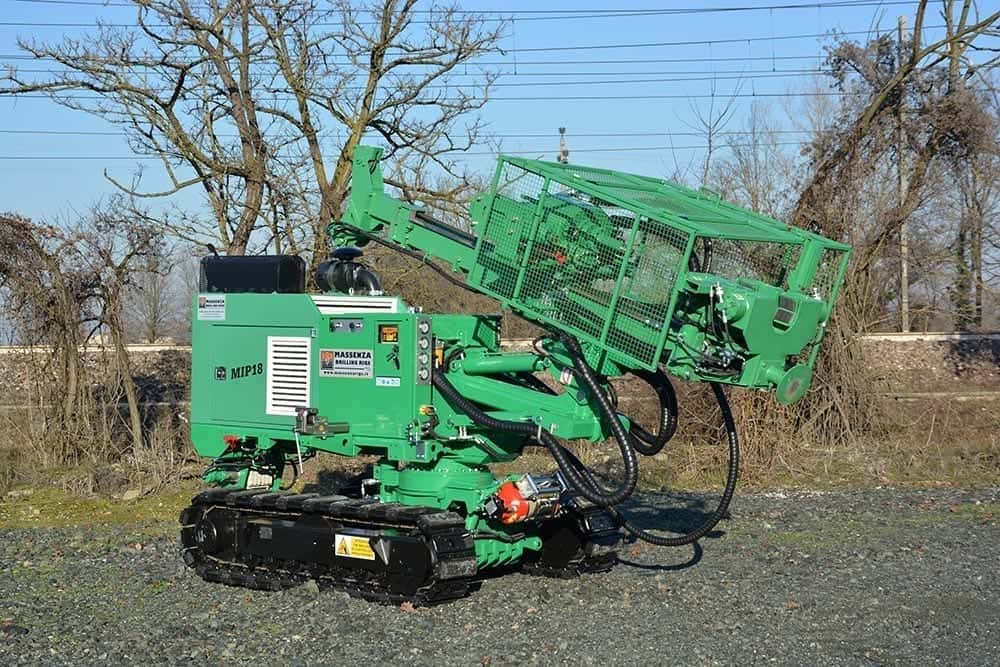

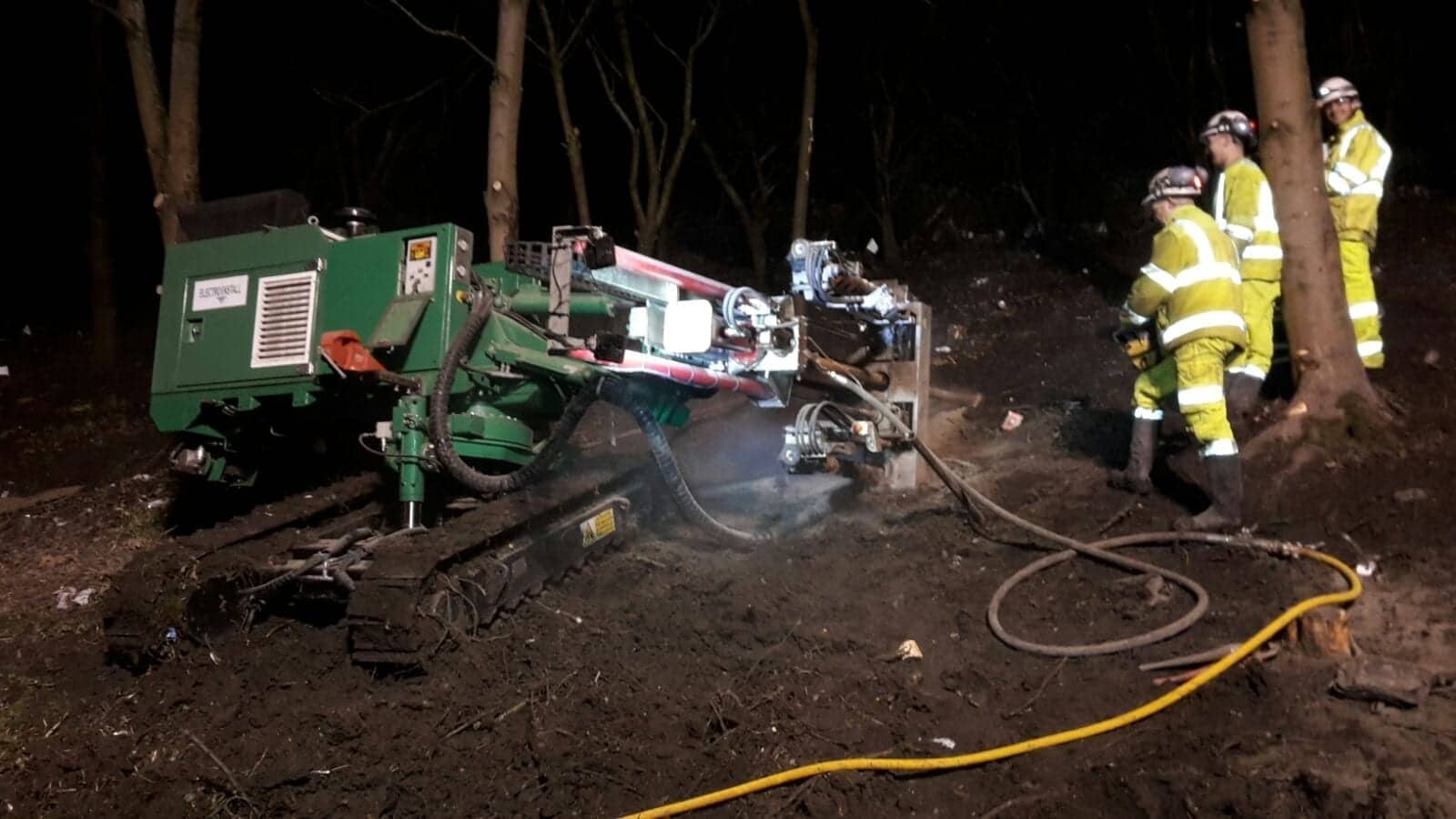

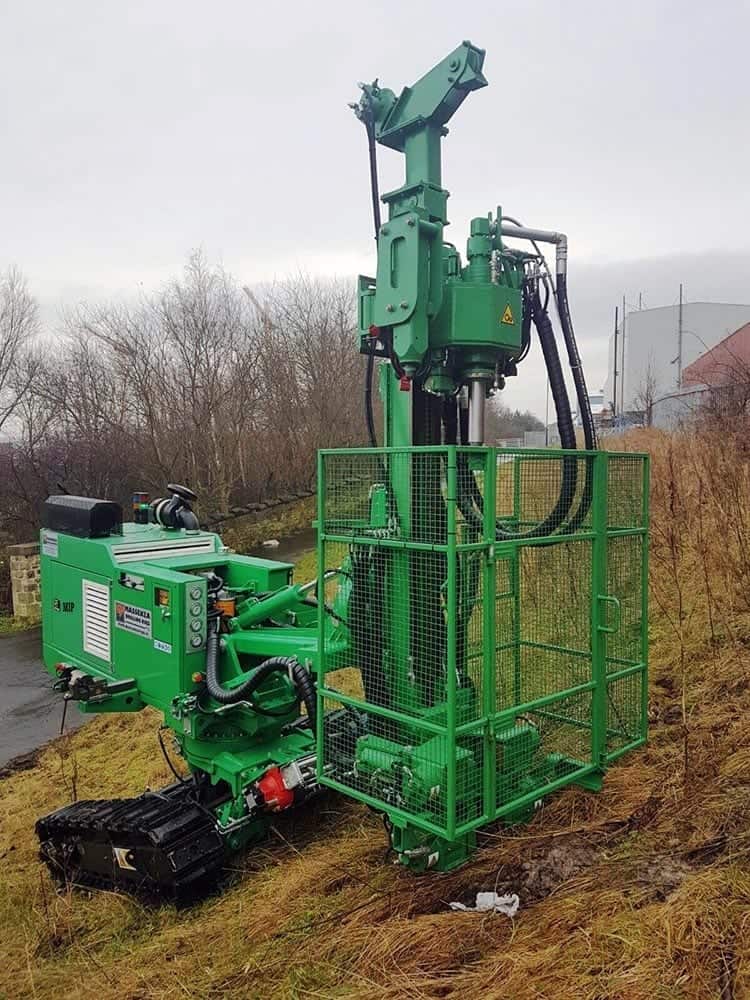

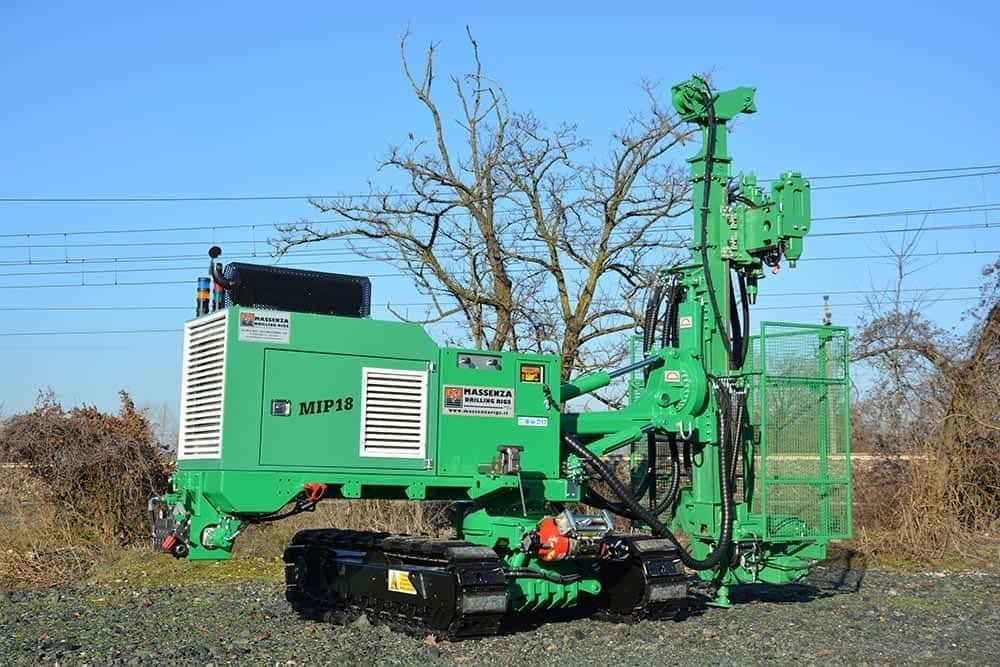

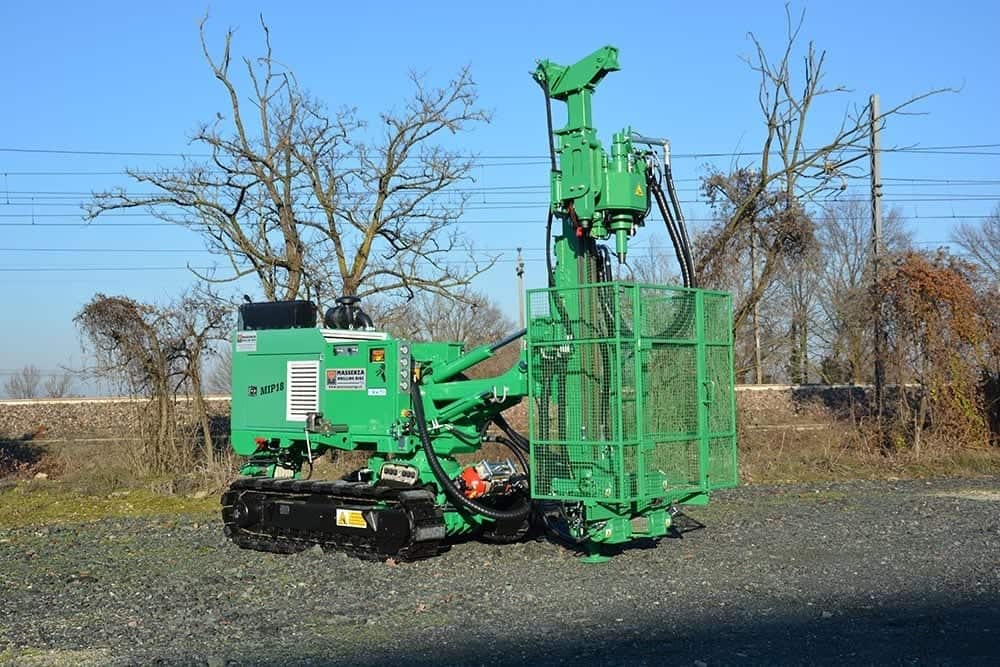

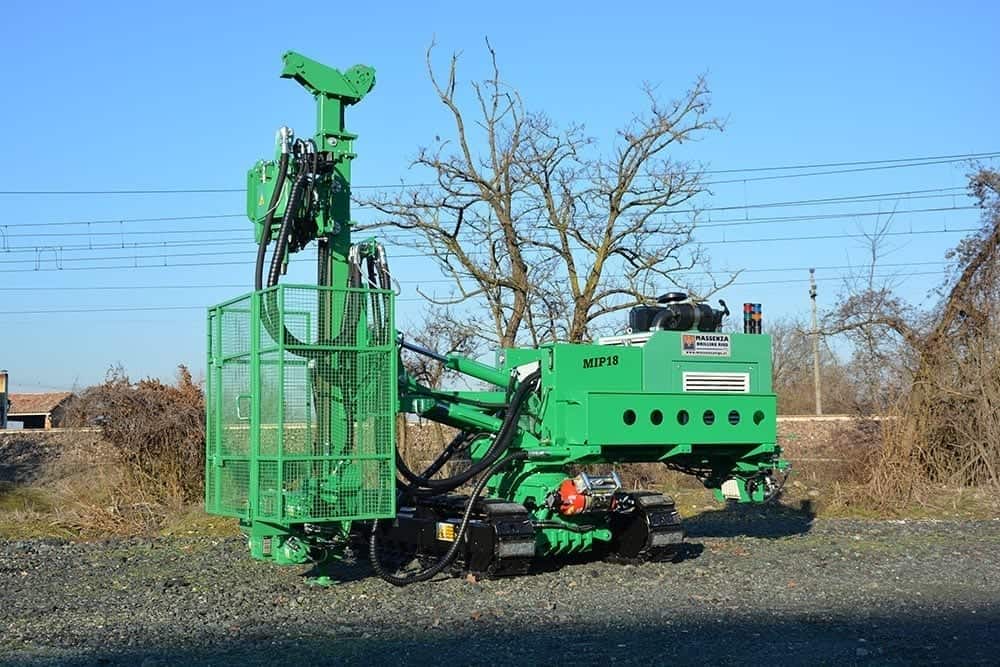

MIP18 with Pagani mast

• Driving inserction force: 18.000 kg
• Extraction force: 16.000 kg
• Rotary drilling
• Triplex pump
• Winch
• Automatic anchoring system for dynamic and static tests (CPT/SPT/DP)
• Test CPT/CPTu
• Sampling to Class 1 BS EN 1997-2:2007 (o Eurocode 7)
• Self-leveling system

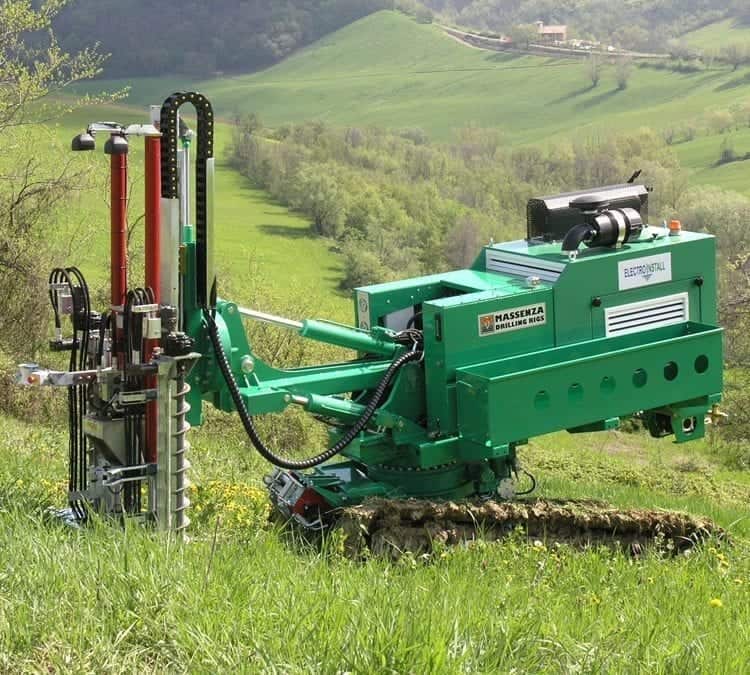

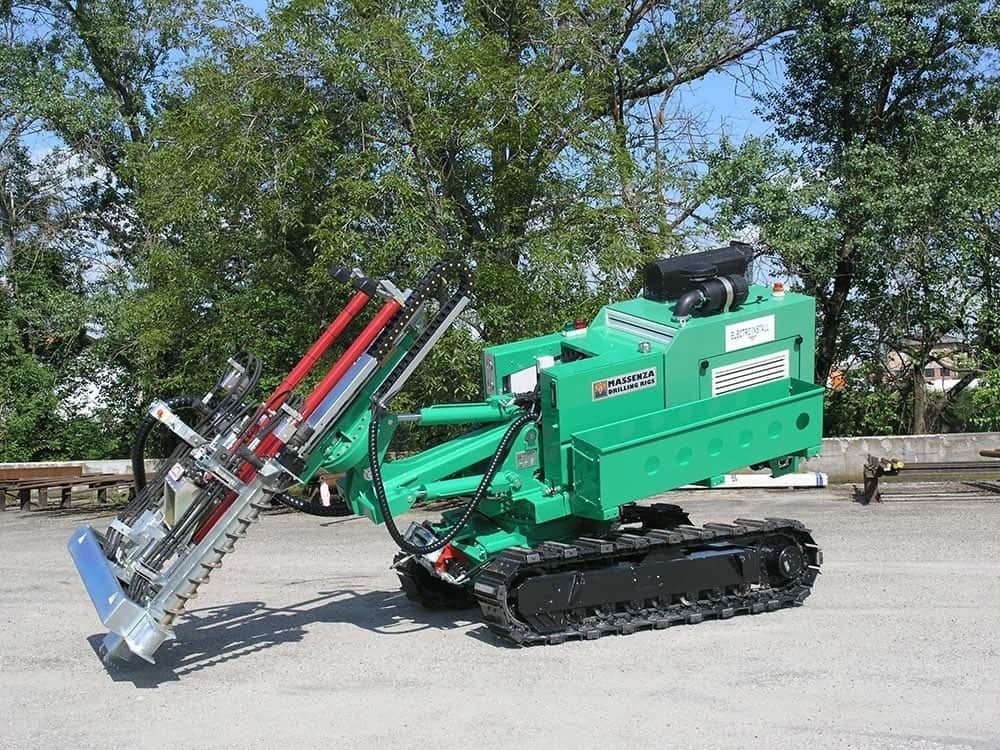

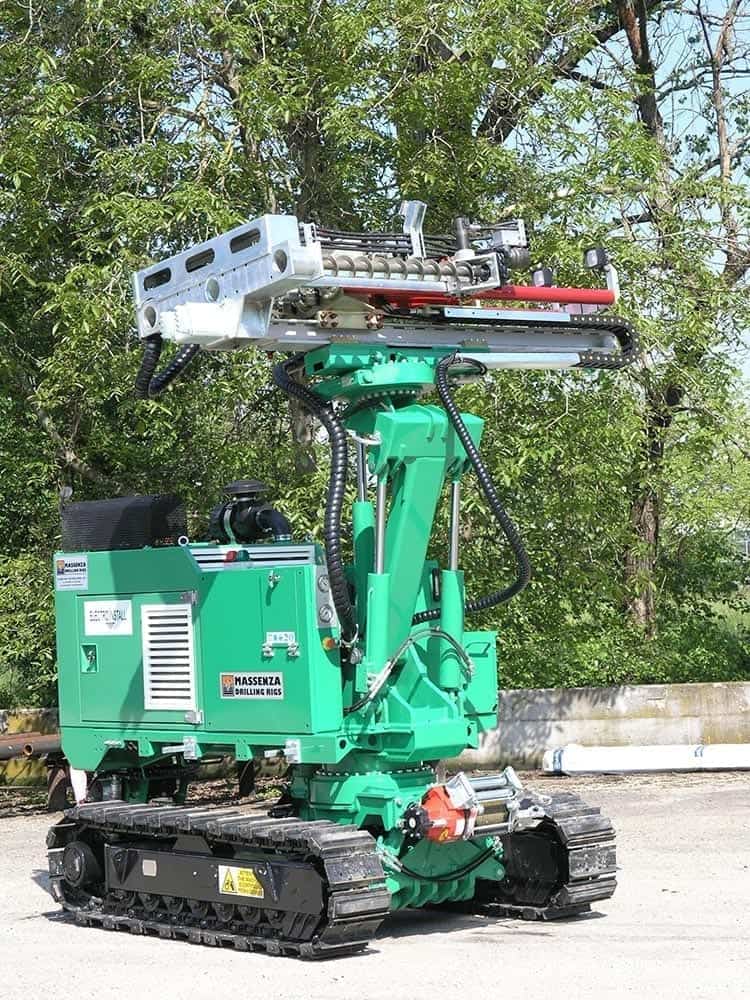

MIP3 with Massenza mast

• Pull up and down: 3.100 kg
• Continuous coating system
• Rotary drilling untill 400 giri/min (or 714 optional)
• Triplex pump
• Winch
• Double clamp with passagge 225 mm
• Dynamic sampling system with hydraulic hammer
• Self-leveling system
