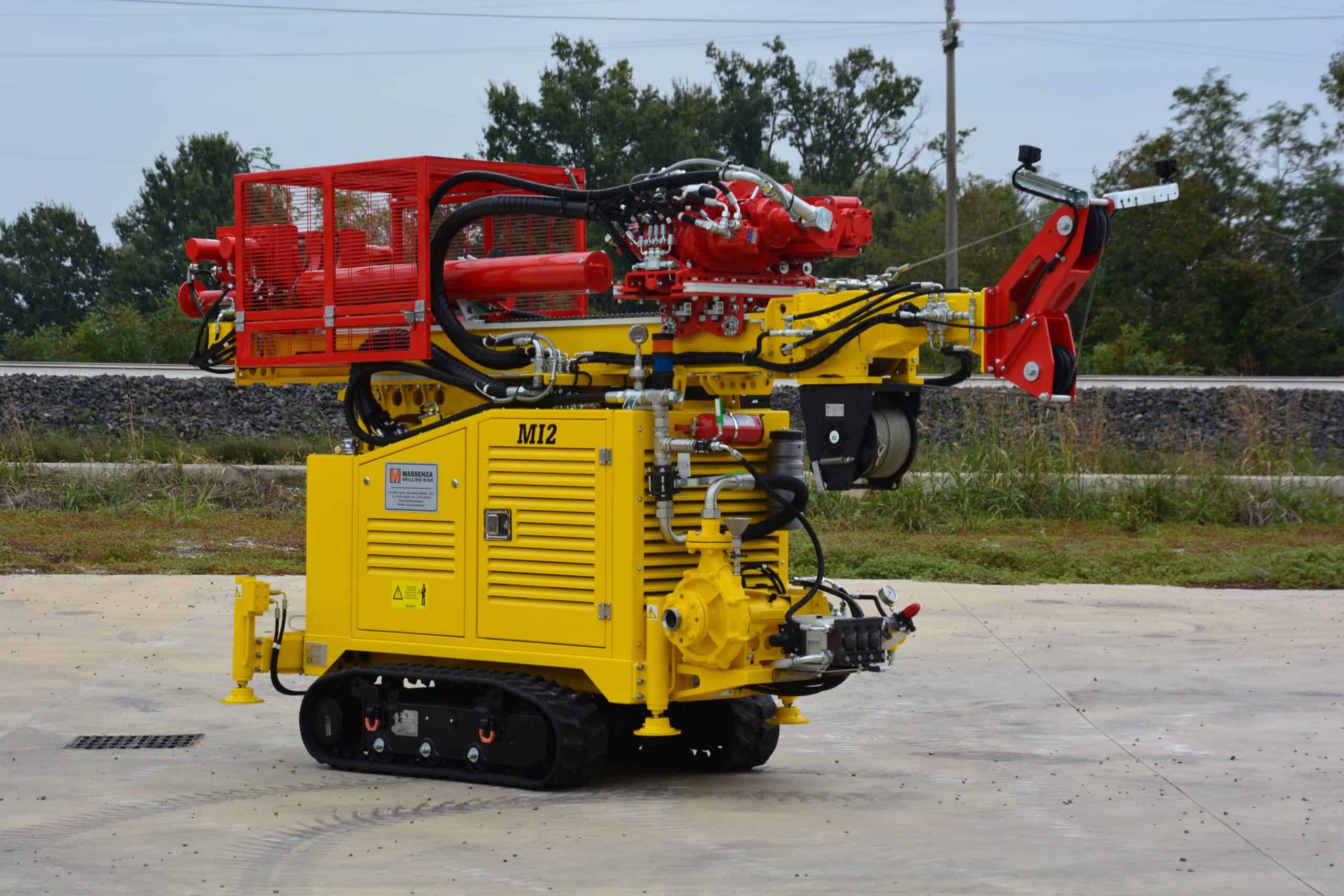

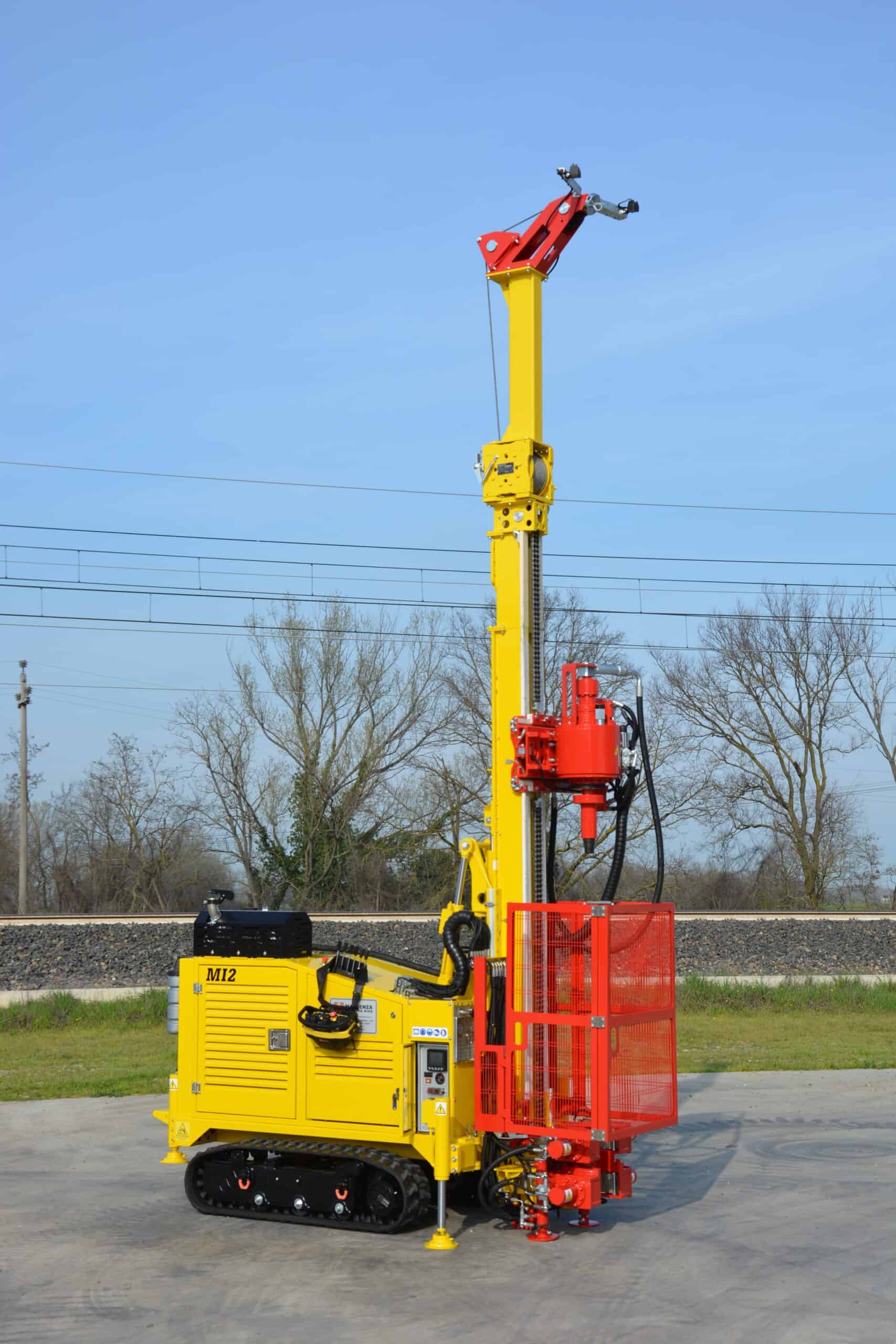

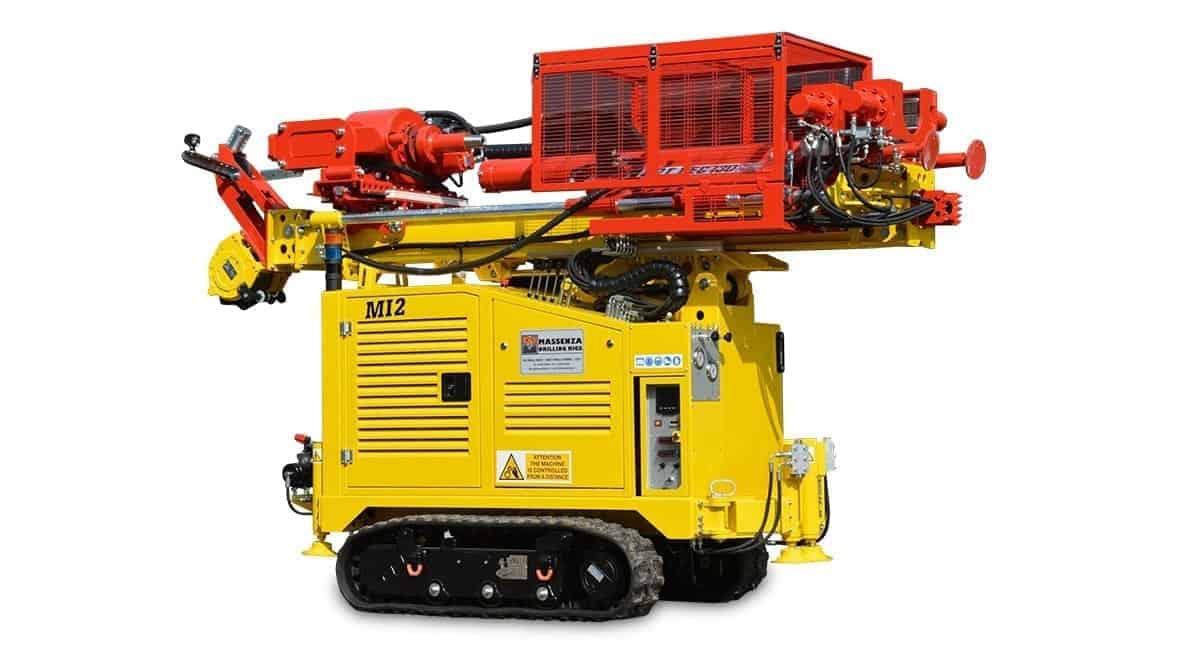

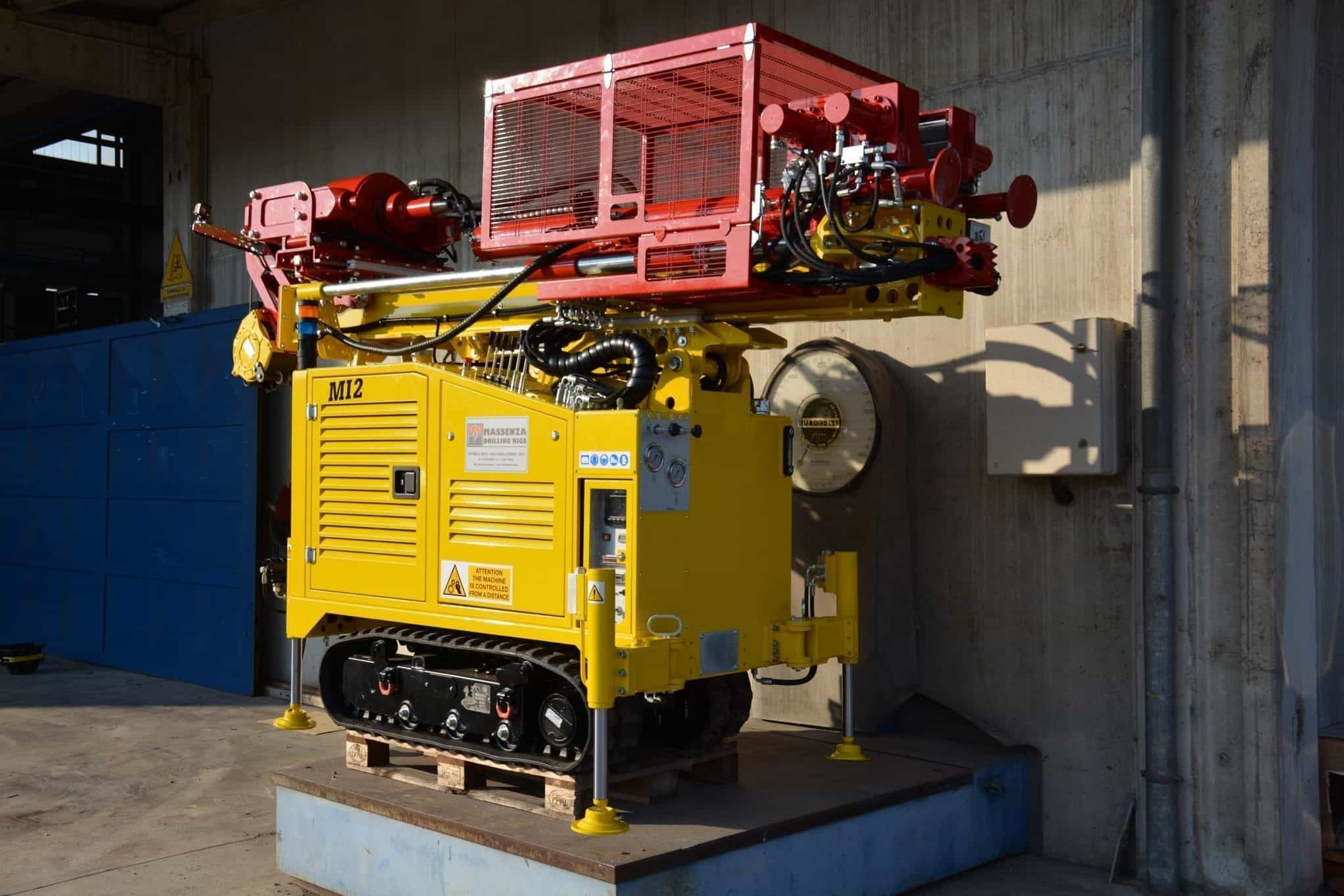

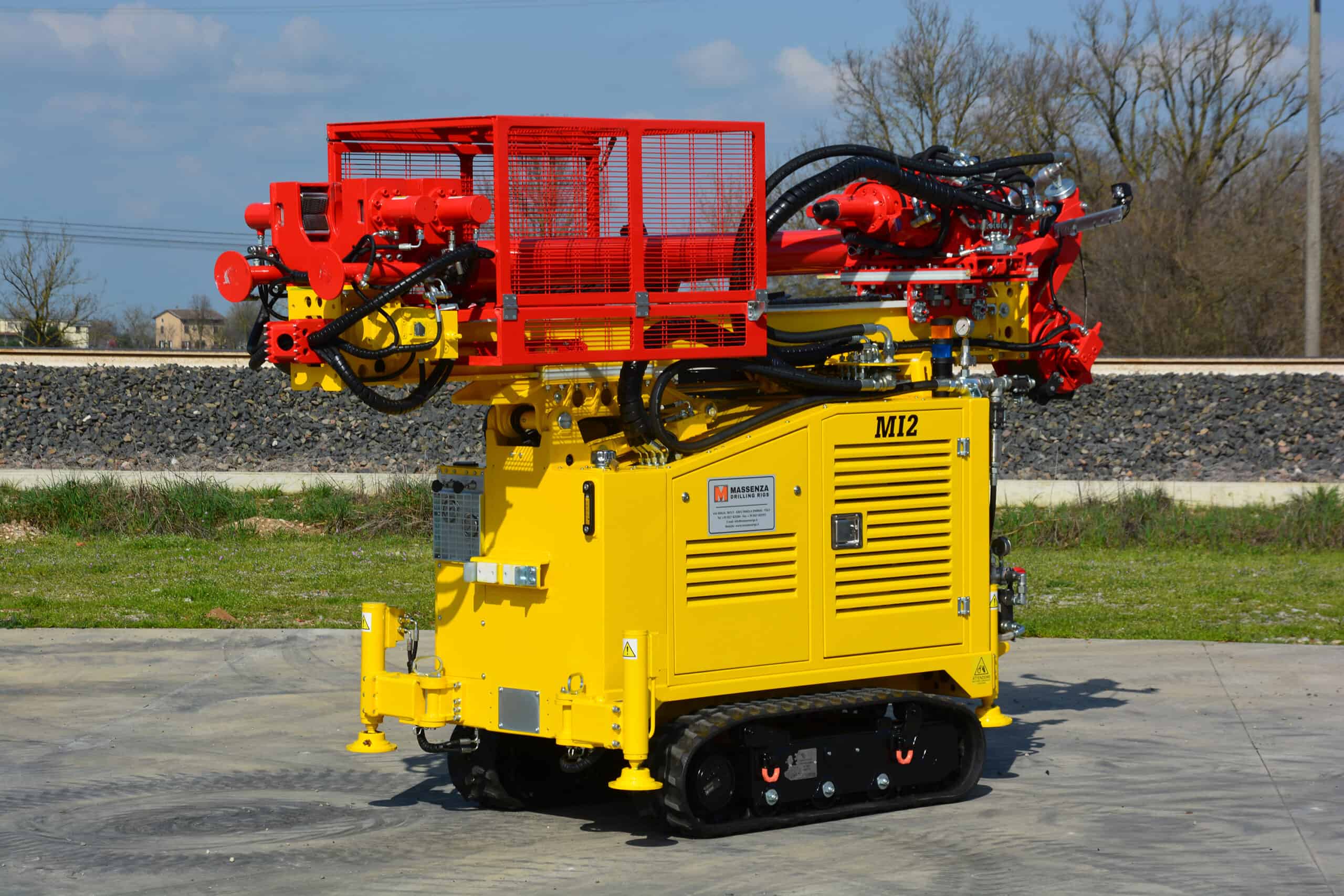

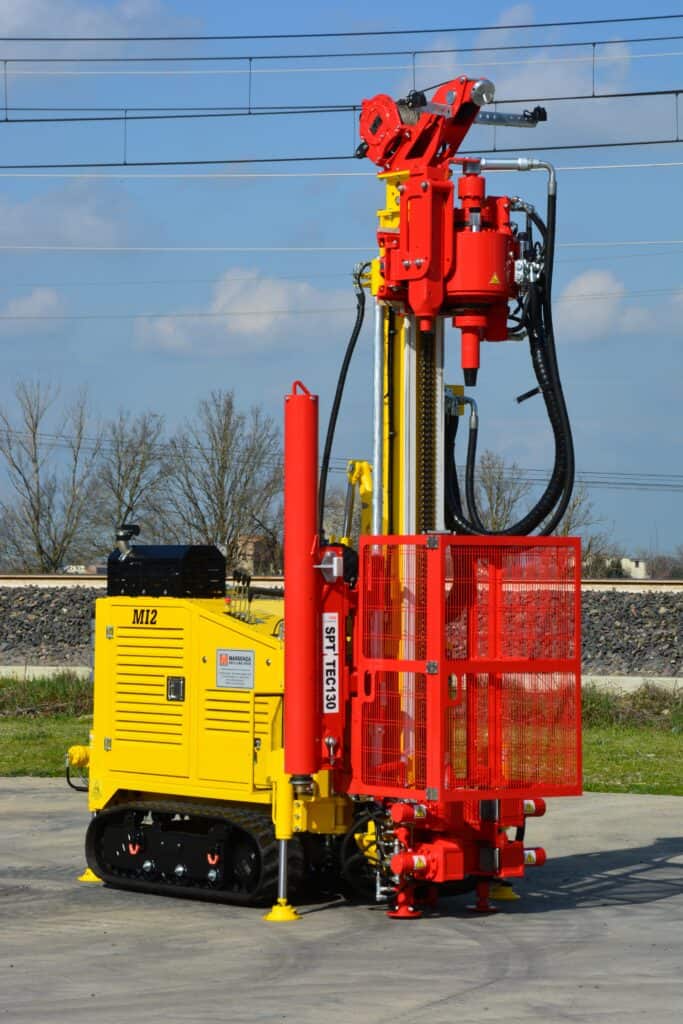

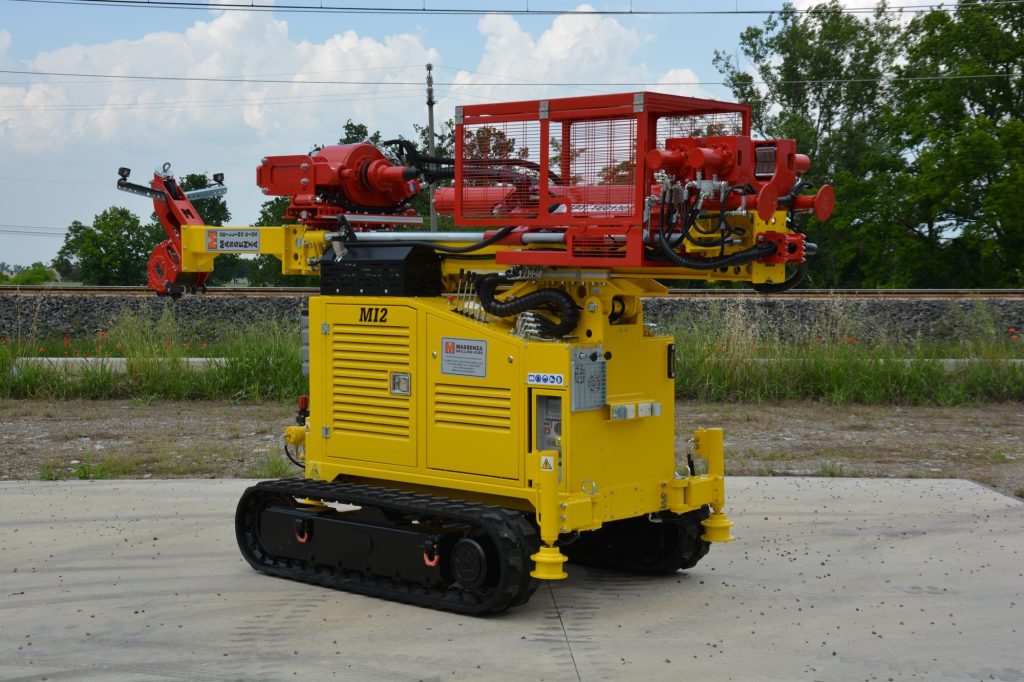

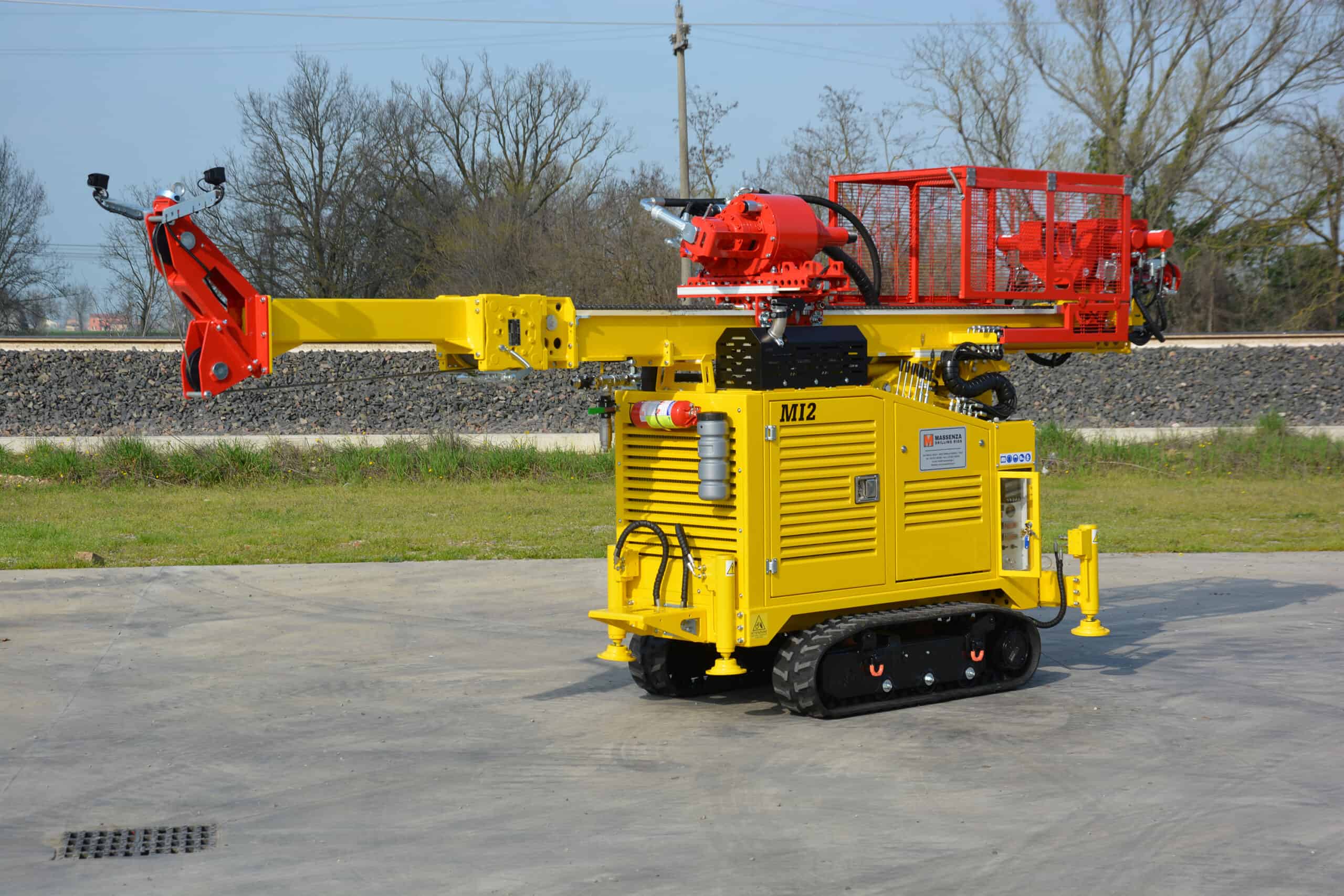

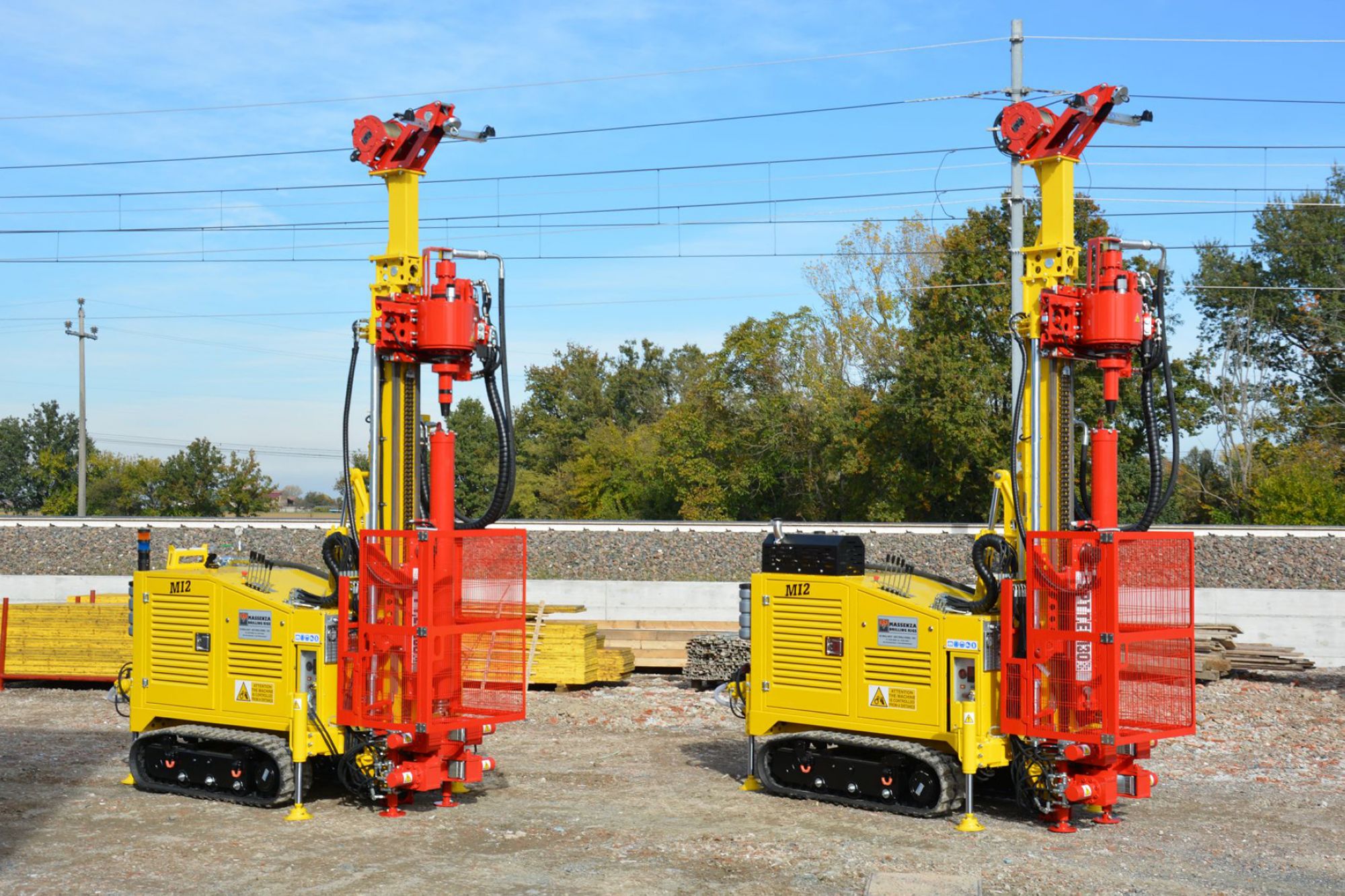

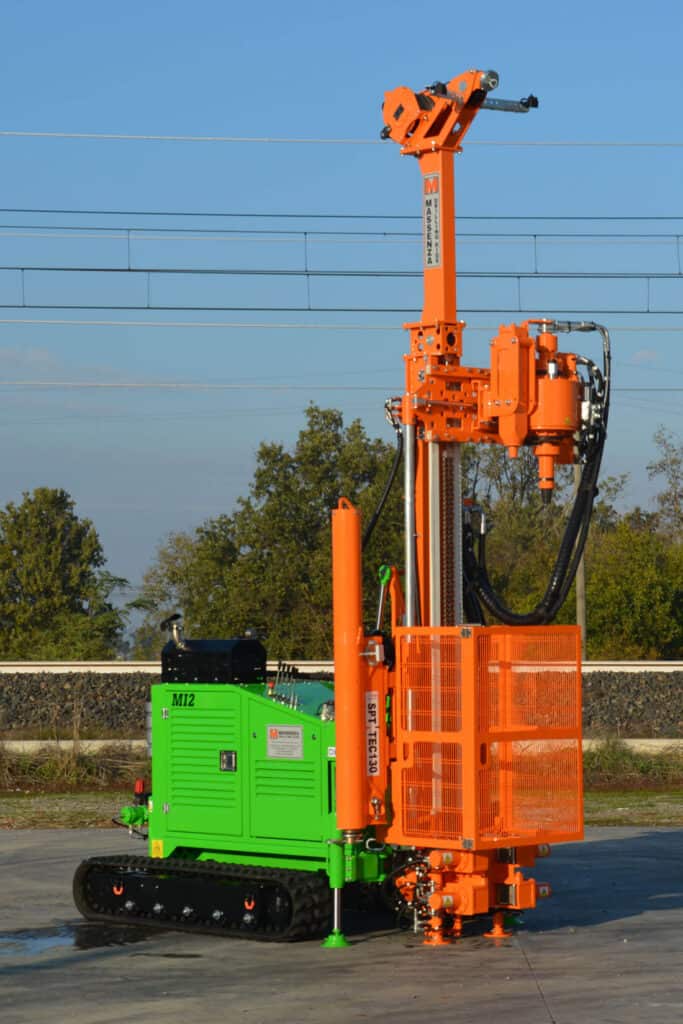

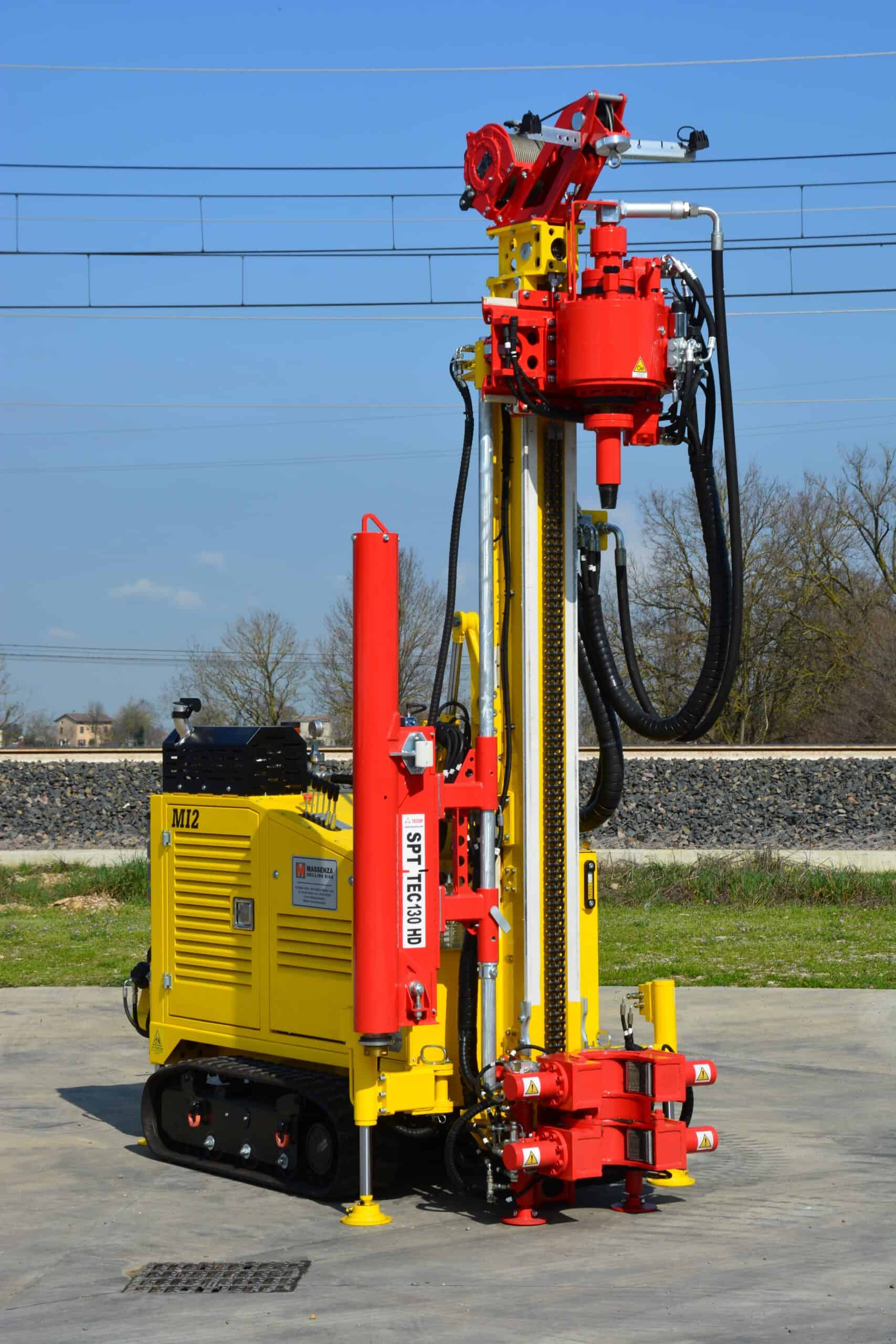

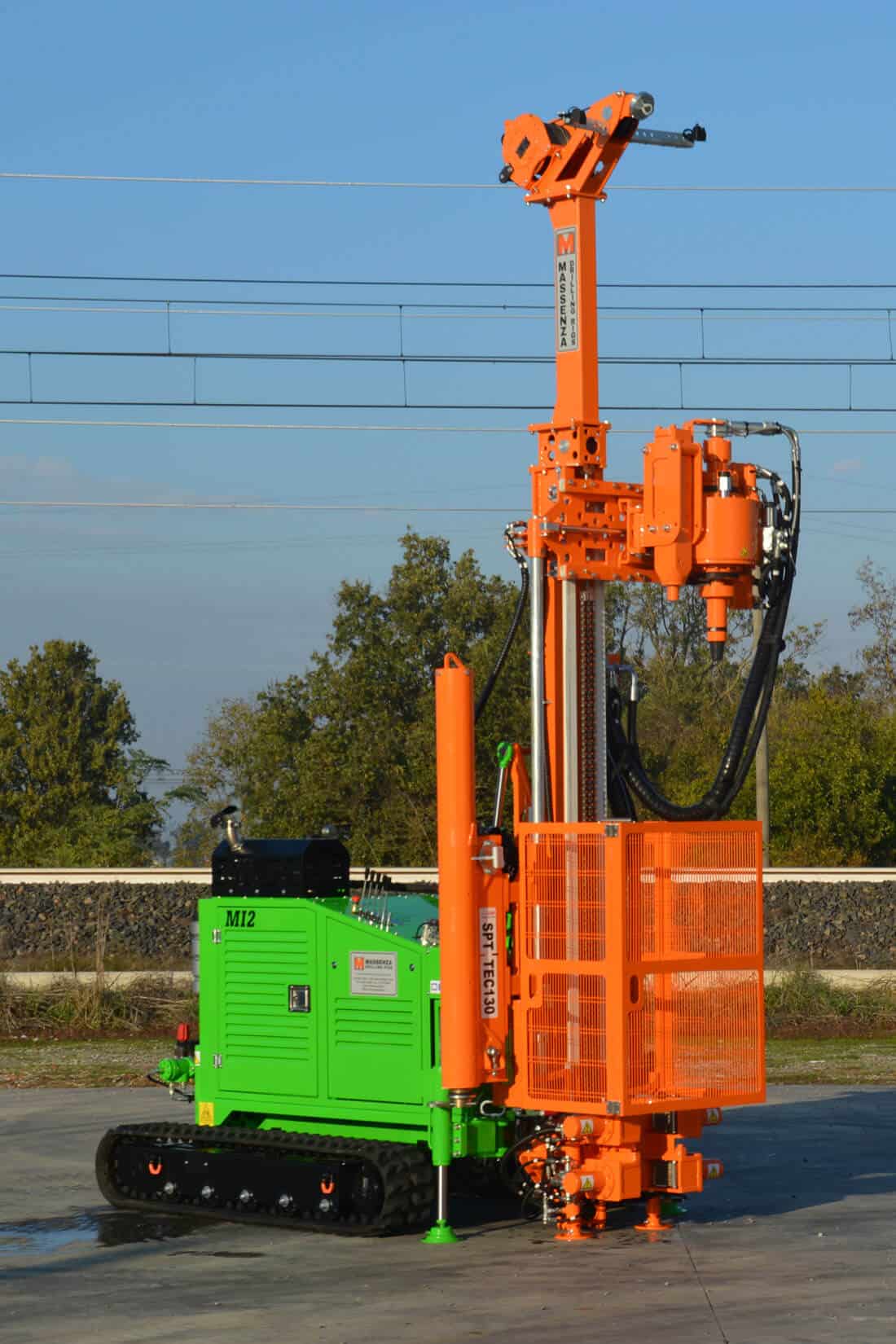

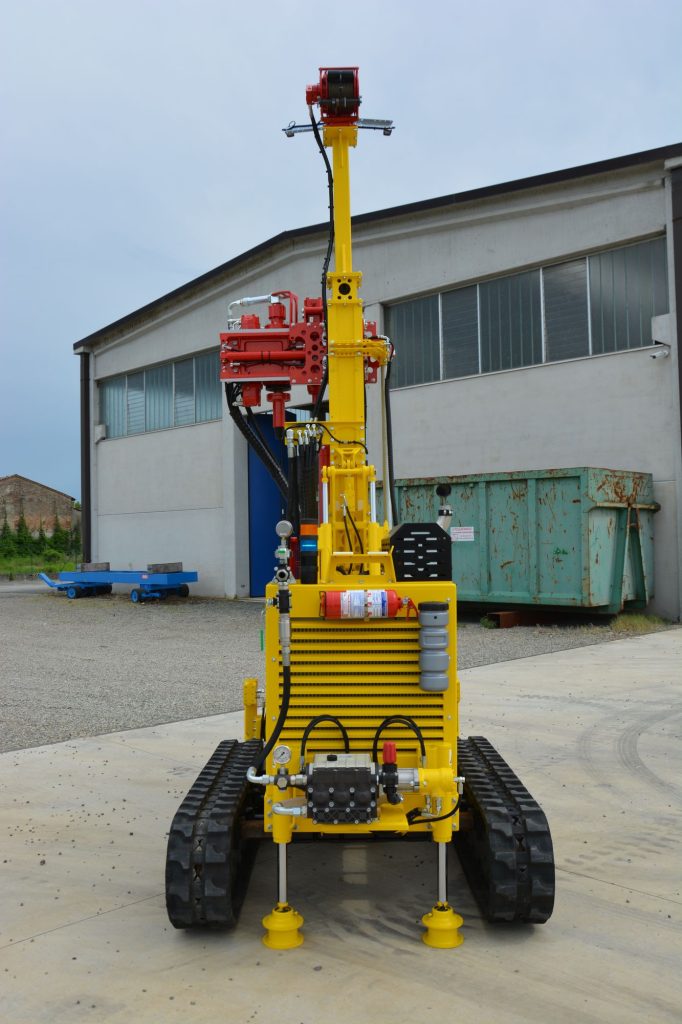

DRILLING RIG Mi2
DESCRIPTION

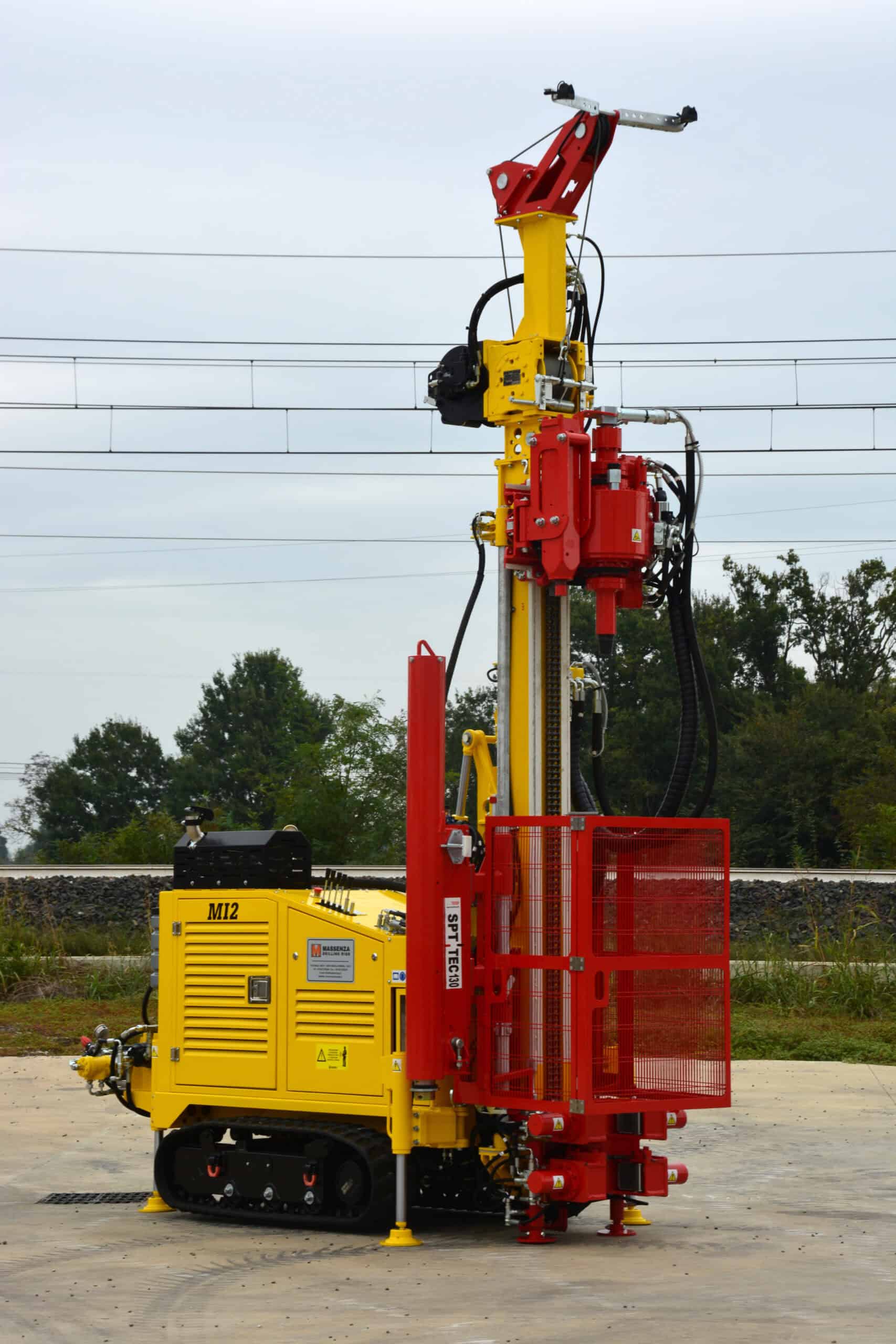

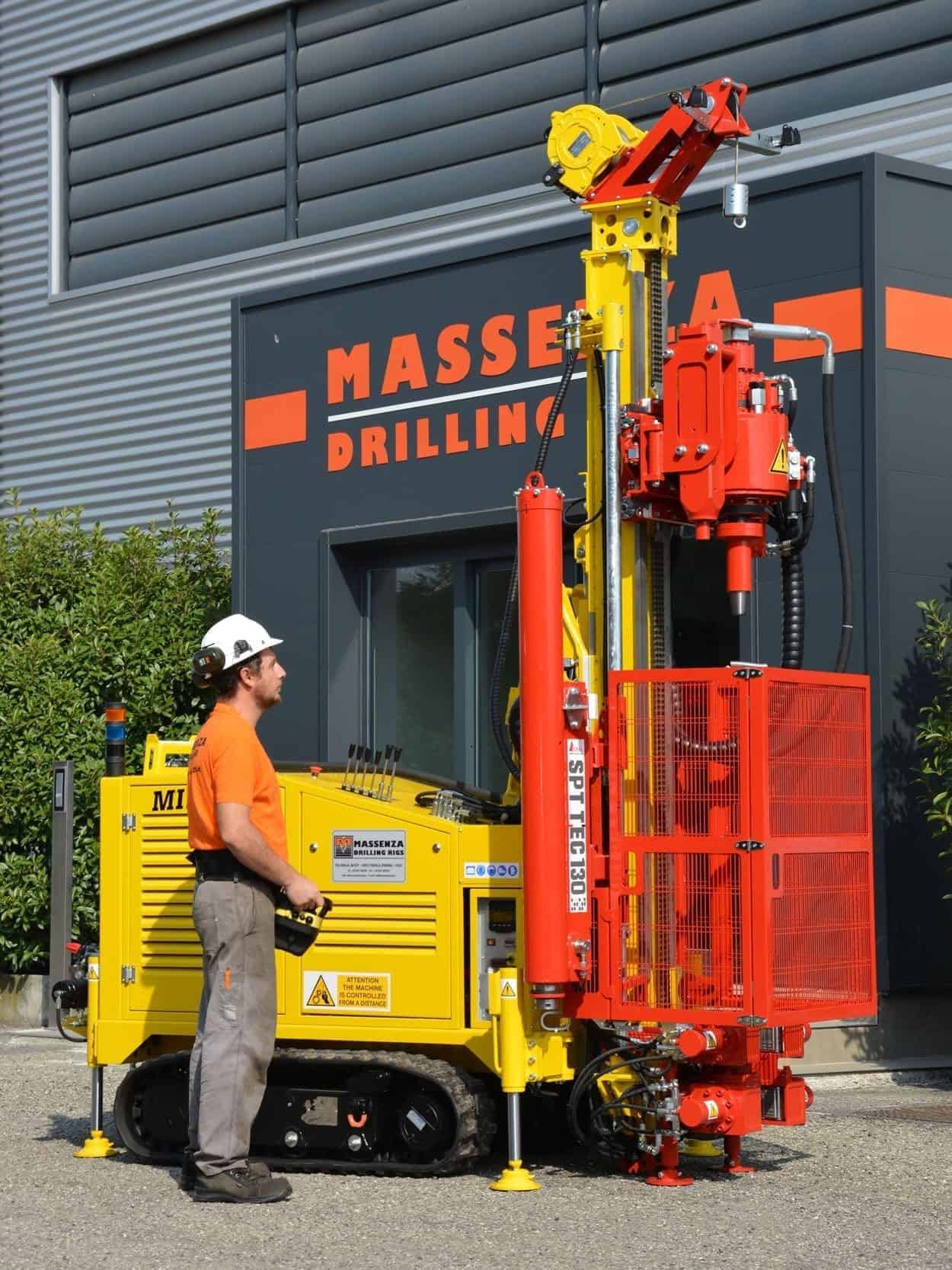

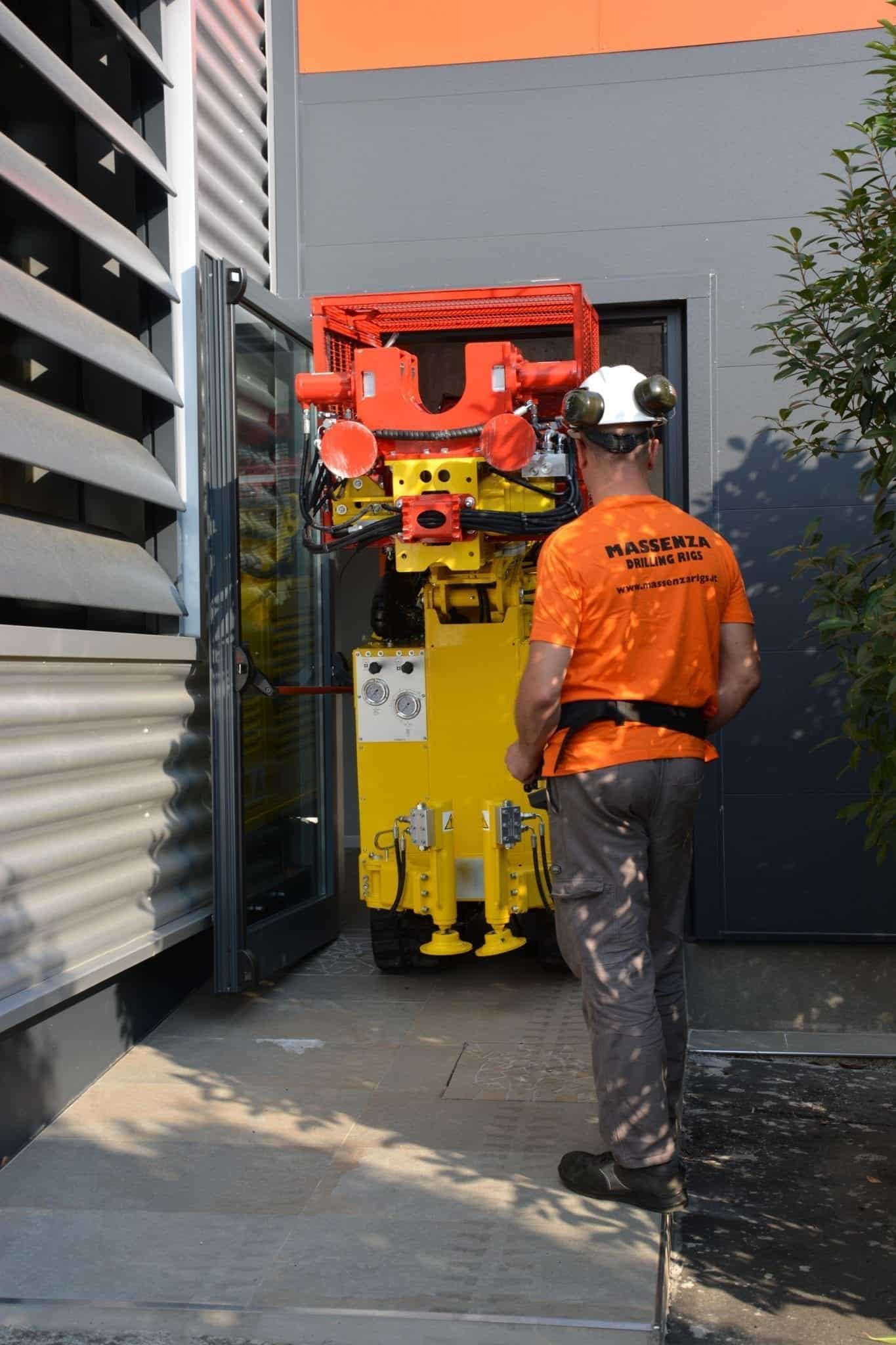

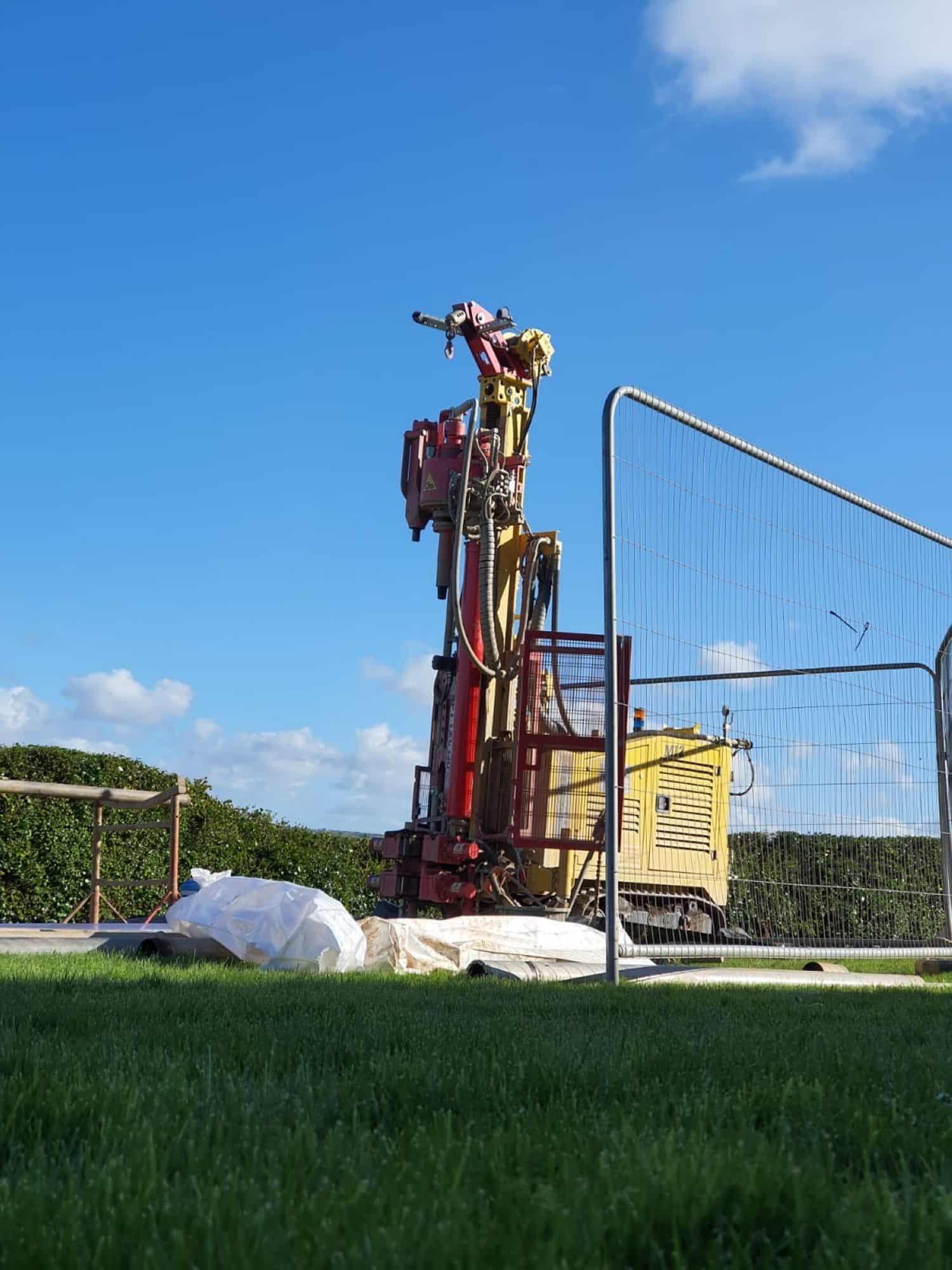

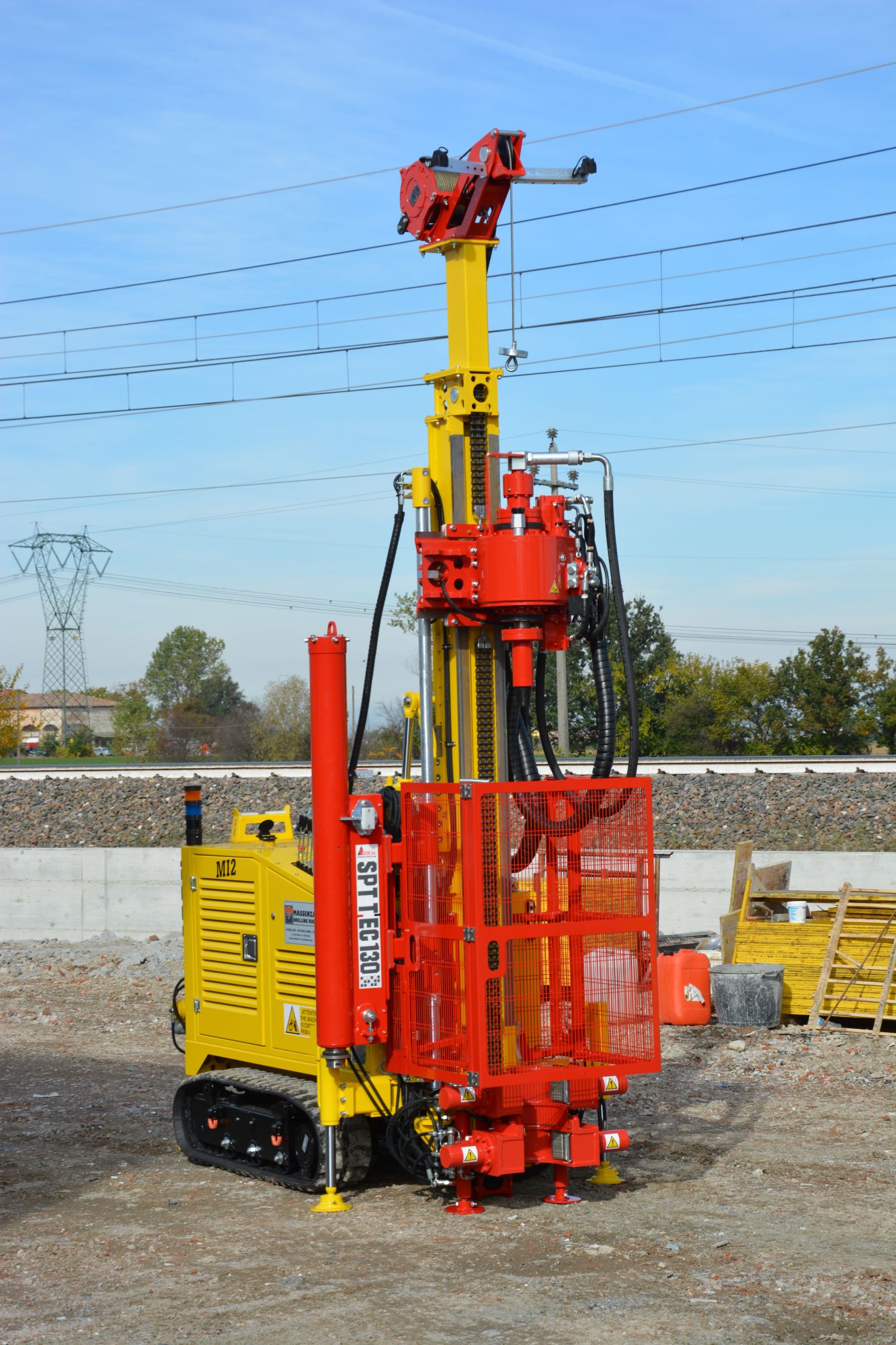

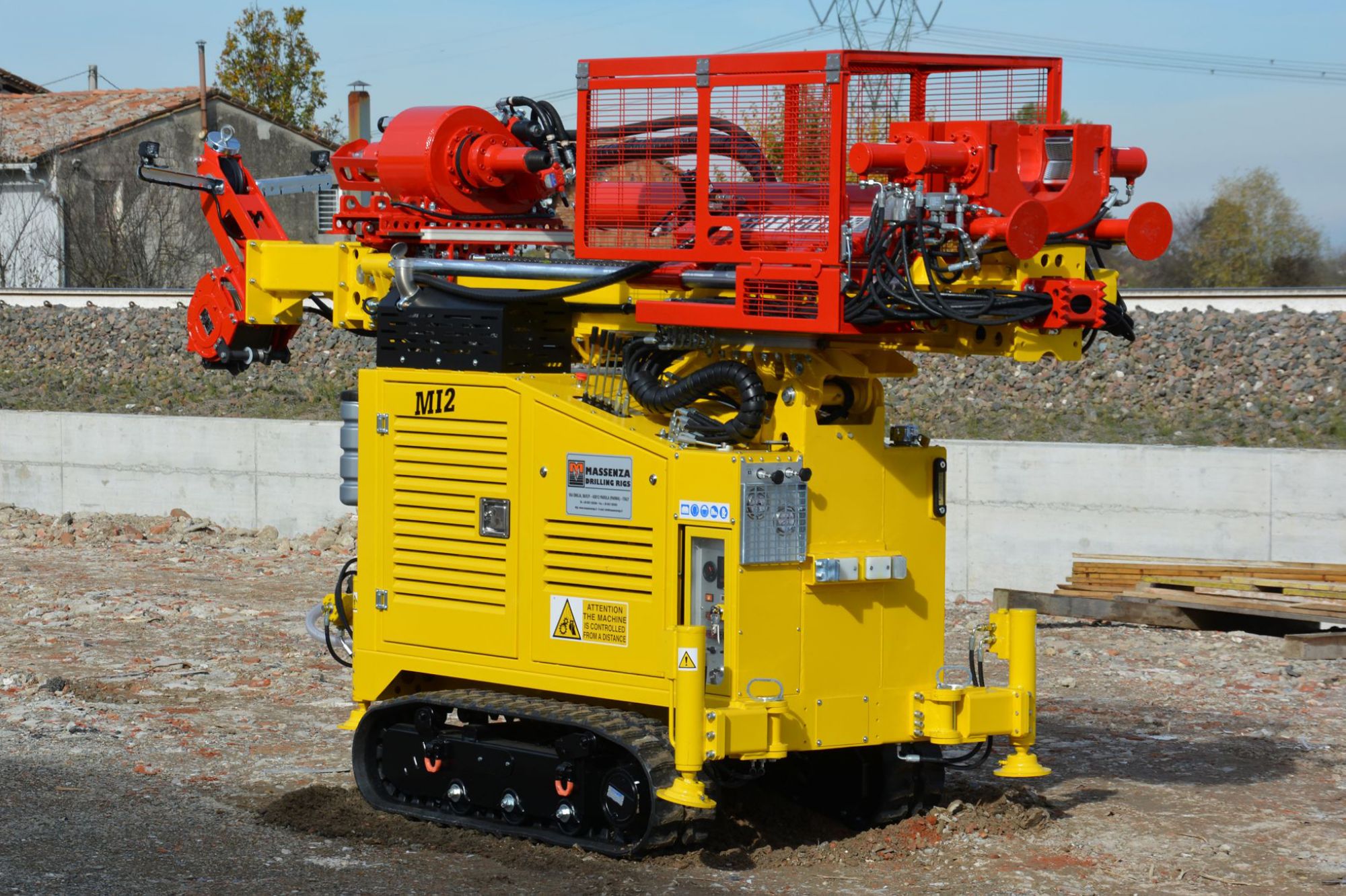

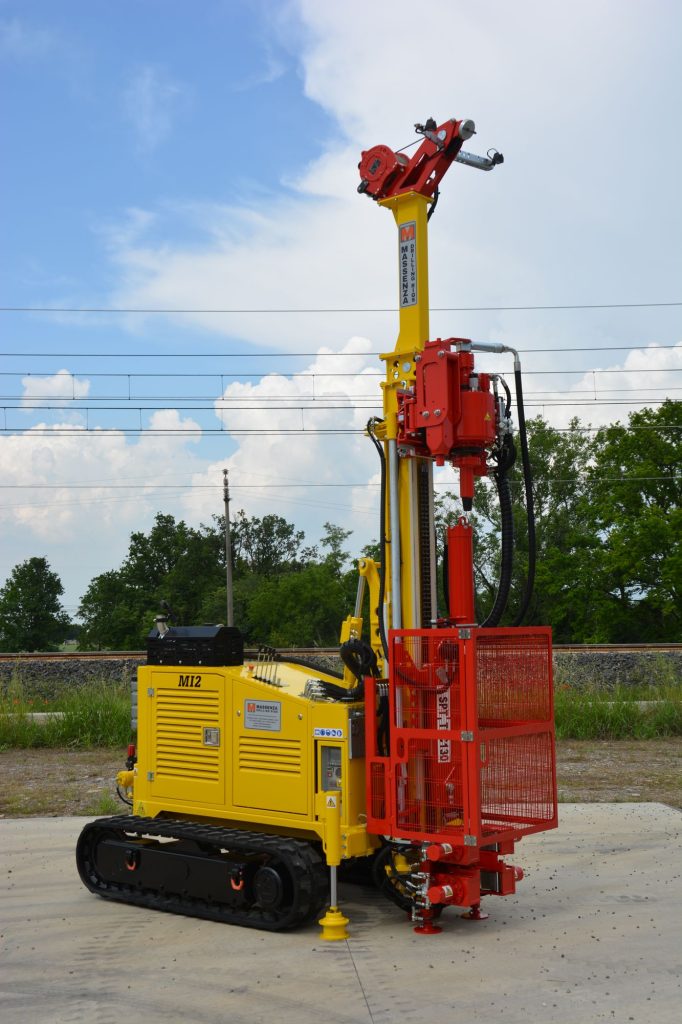

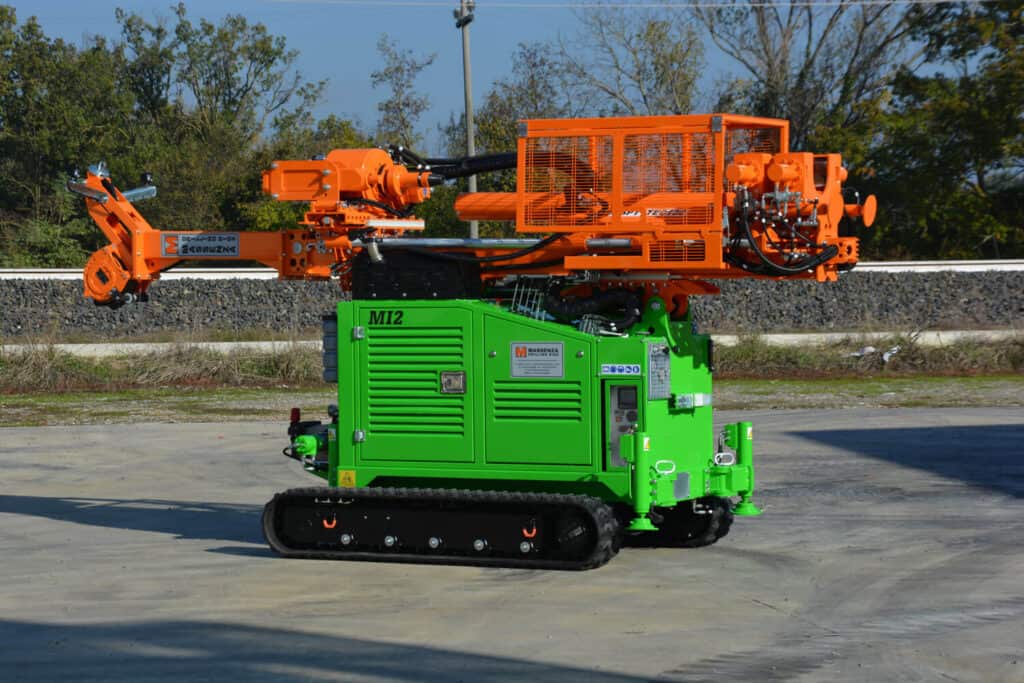

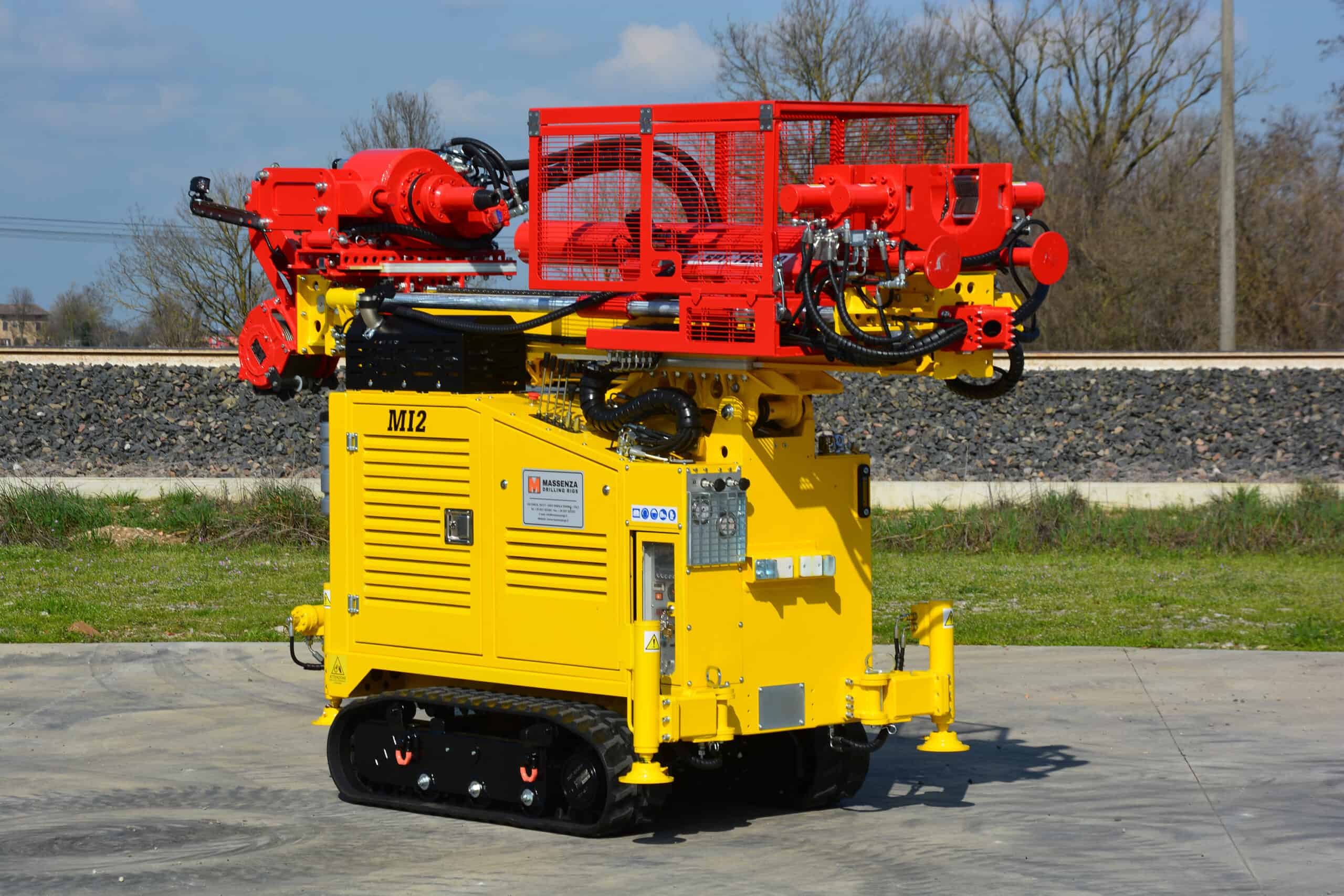

Drilling rig operated entirely by radio remote control and especially designed for the geotechnical and soil investigations sector.

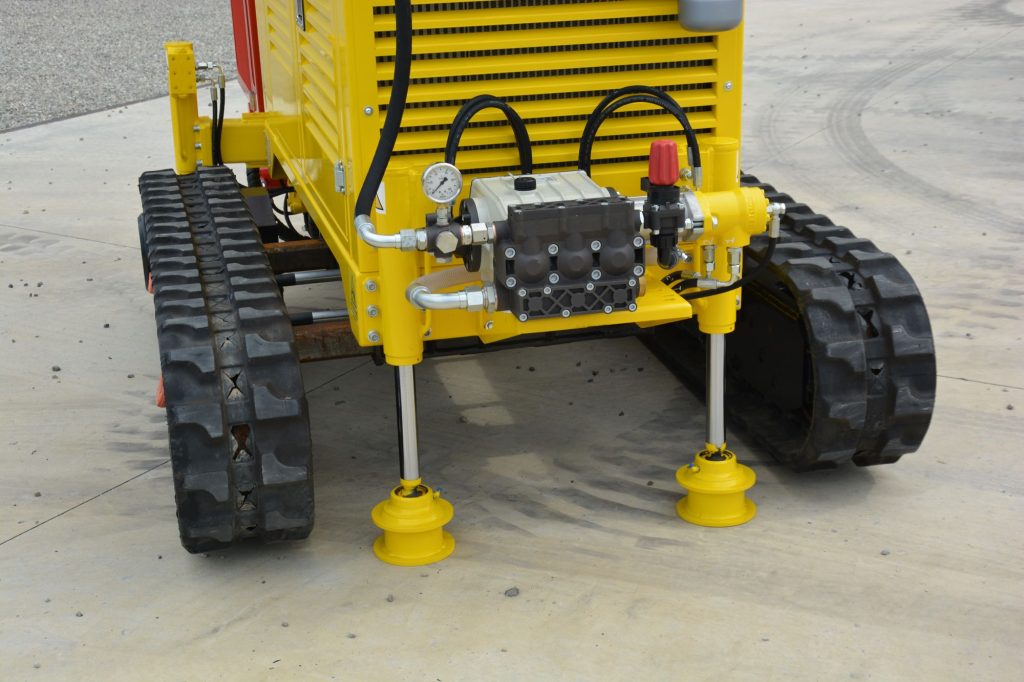

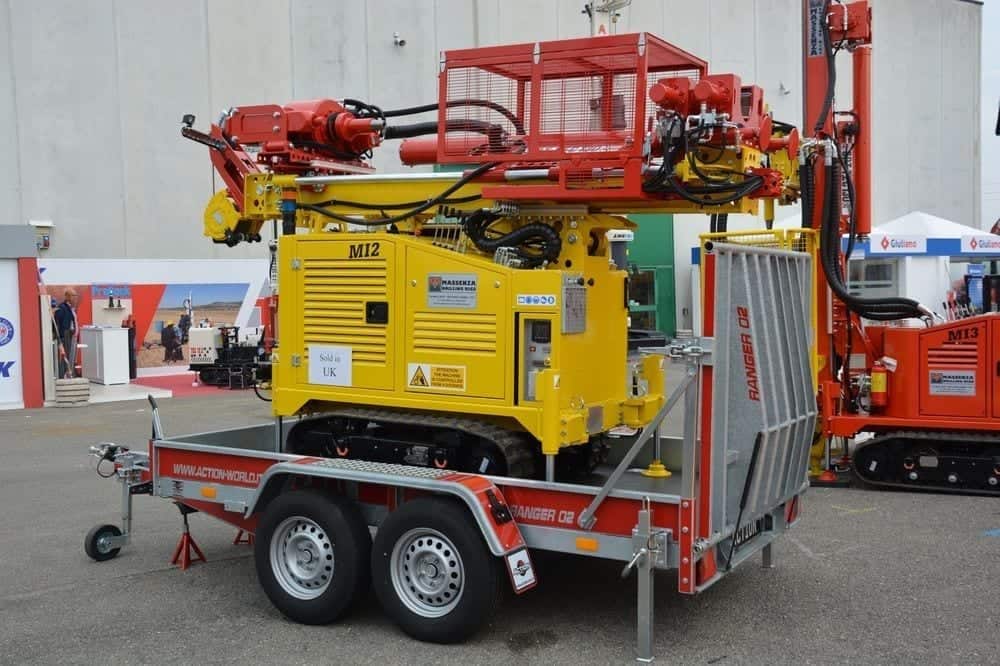

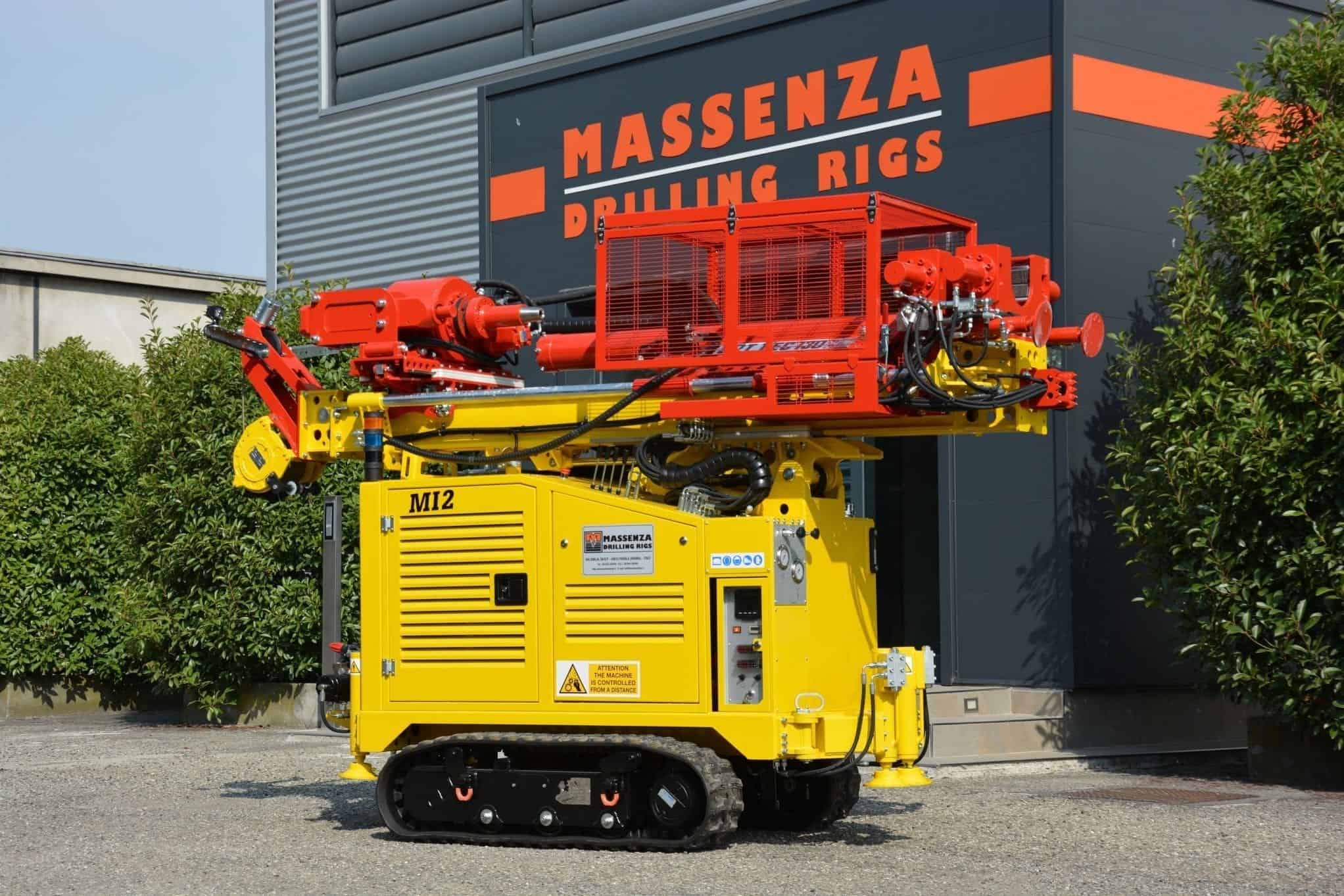

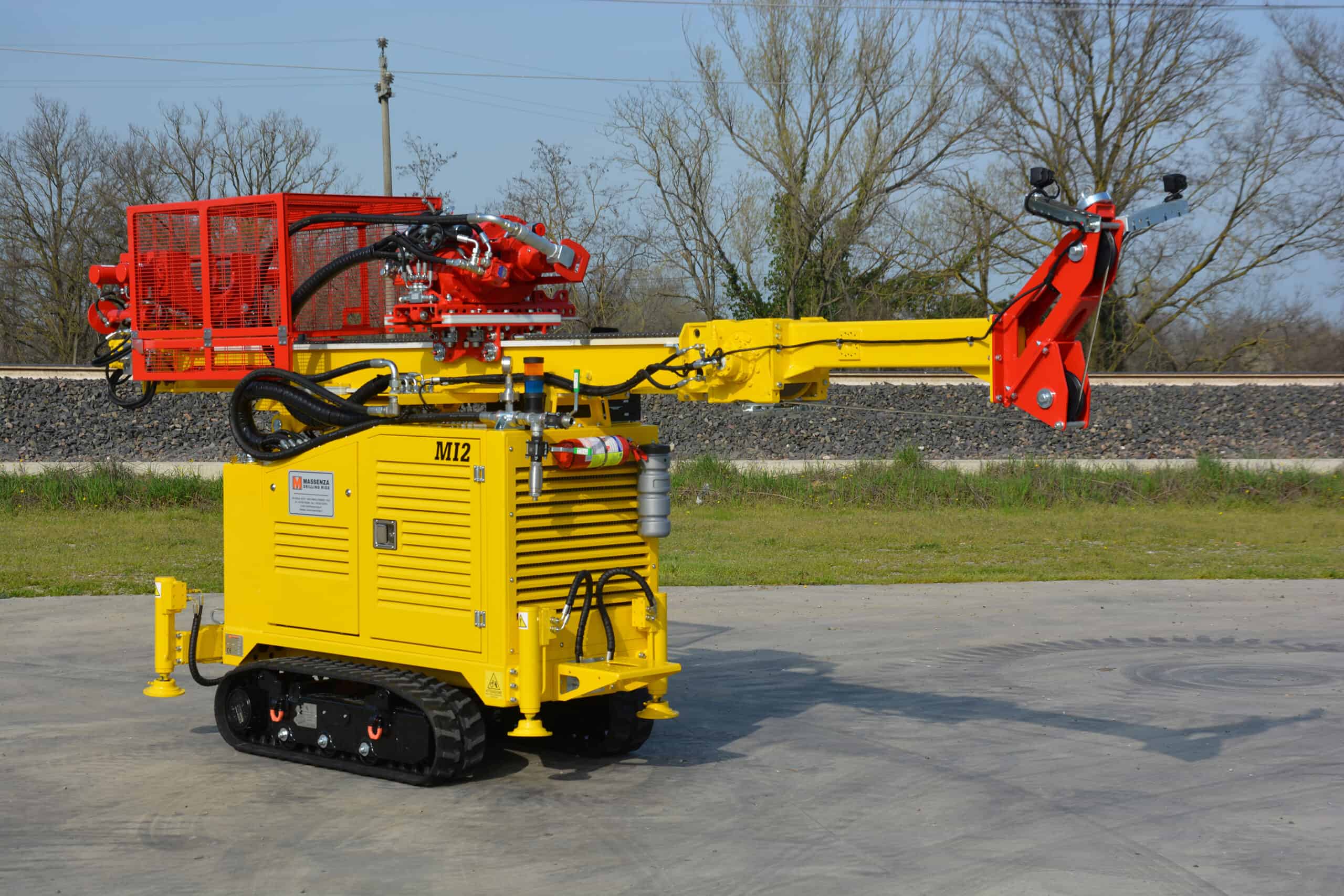

Complete with rotary head for coring, hydraulic hammer for dynamic sampling, automatic SPT and triplex water pump, the new MI2 has a weight of 2600 kg, allowing it to be easily transported on trailer with a gross weight of 3500 kg.
WORK METHODS
– Rotation with direct circulation by water, mud and foam.
– Rotation with down the hole hammer.
– Coring
– Percussion drilling
POWER PACK
– Engine power 55.2 Hp (41.2 kW) STAGE V
FUEL TANK
– Capacity 35 litri (9 gal)
MAST
– Maximum stroke of rotary head 2.8 m
– Pull up and down 2,650 daN (5,958 lbf)

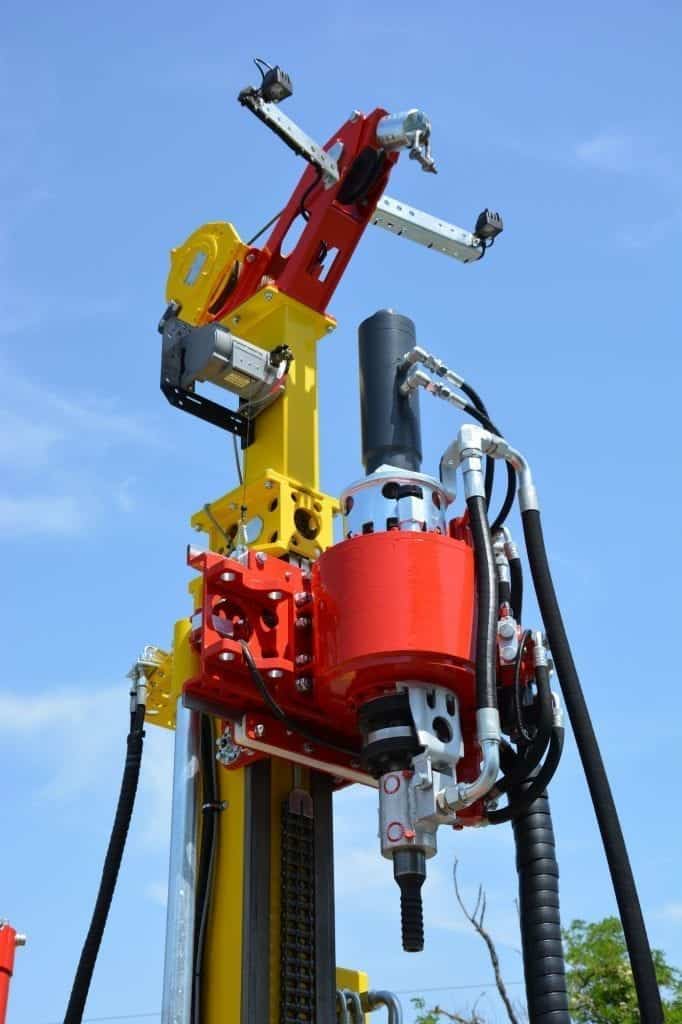

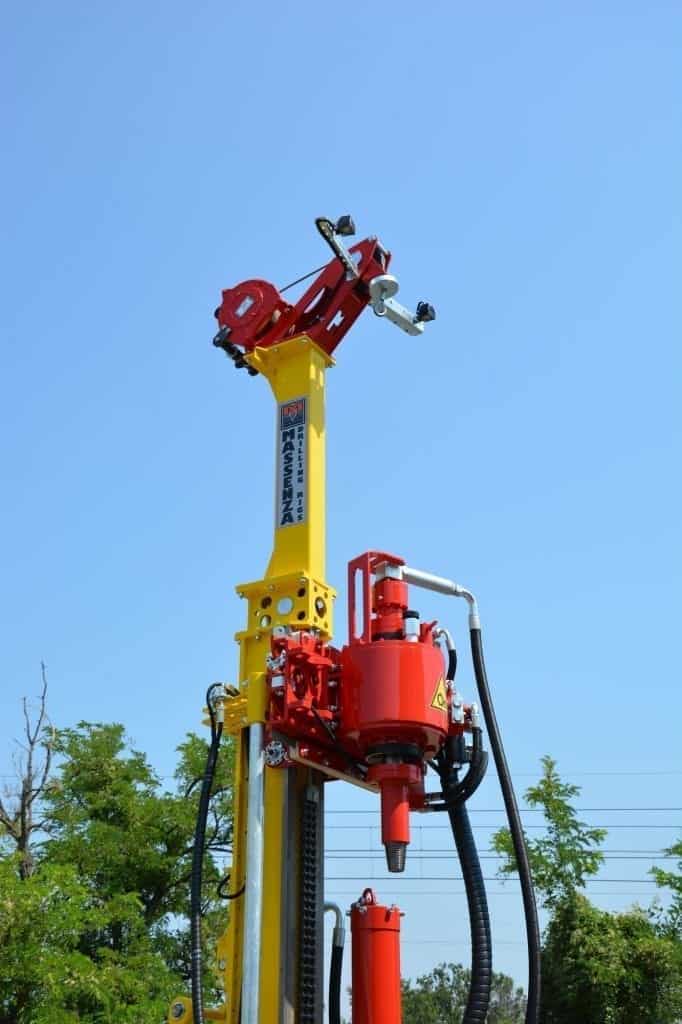

ROTARY HEAD
– Maximum torque 5,490 Nm (4,049 lbfft)
– Maximum speed 756 Rpm
WINCH
– Maximum line pull 1,000 daN (2,248 lbf)
DOUBLE HYDRAULIC CLAMP
– Maximum passage Ø 205 mm (7″)
