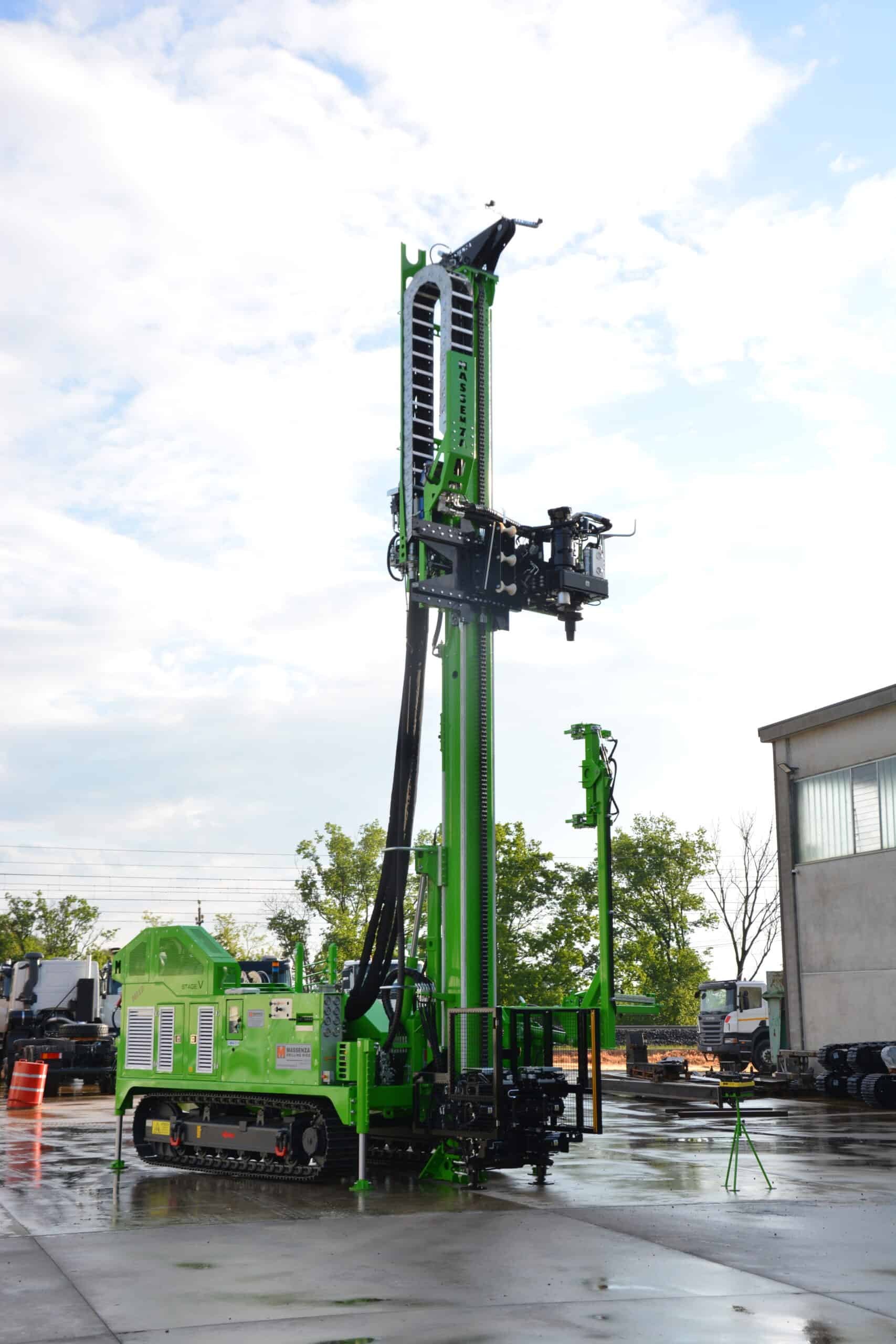

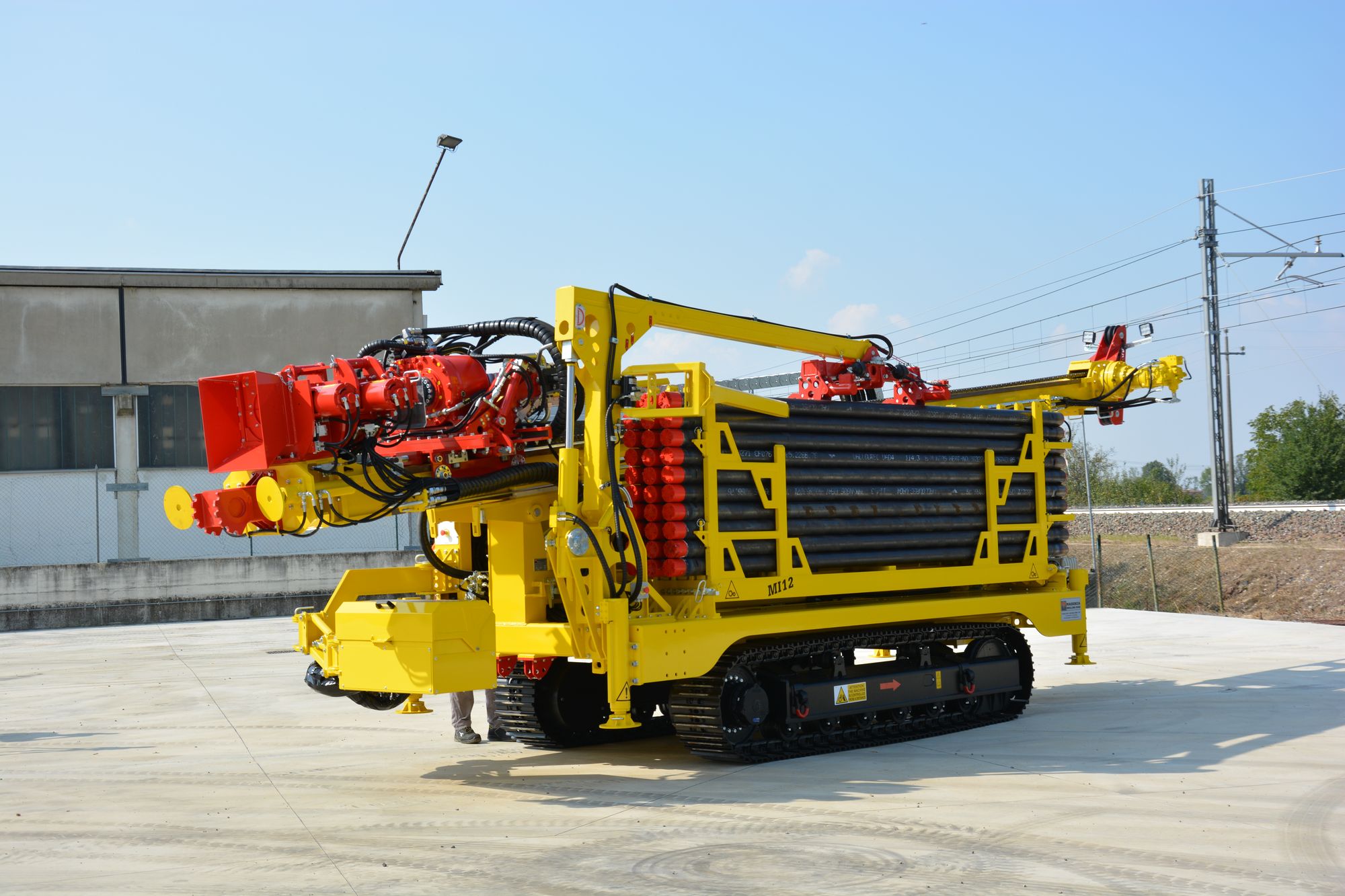

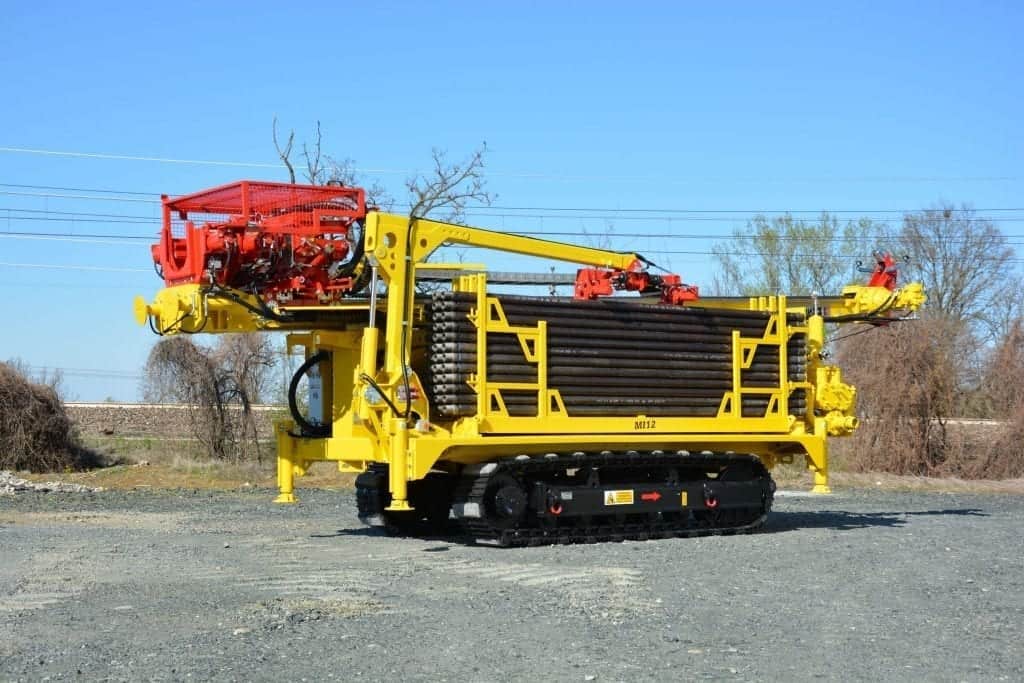

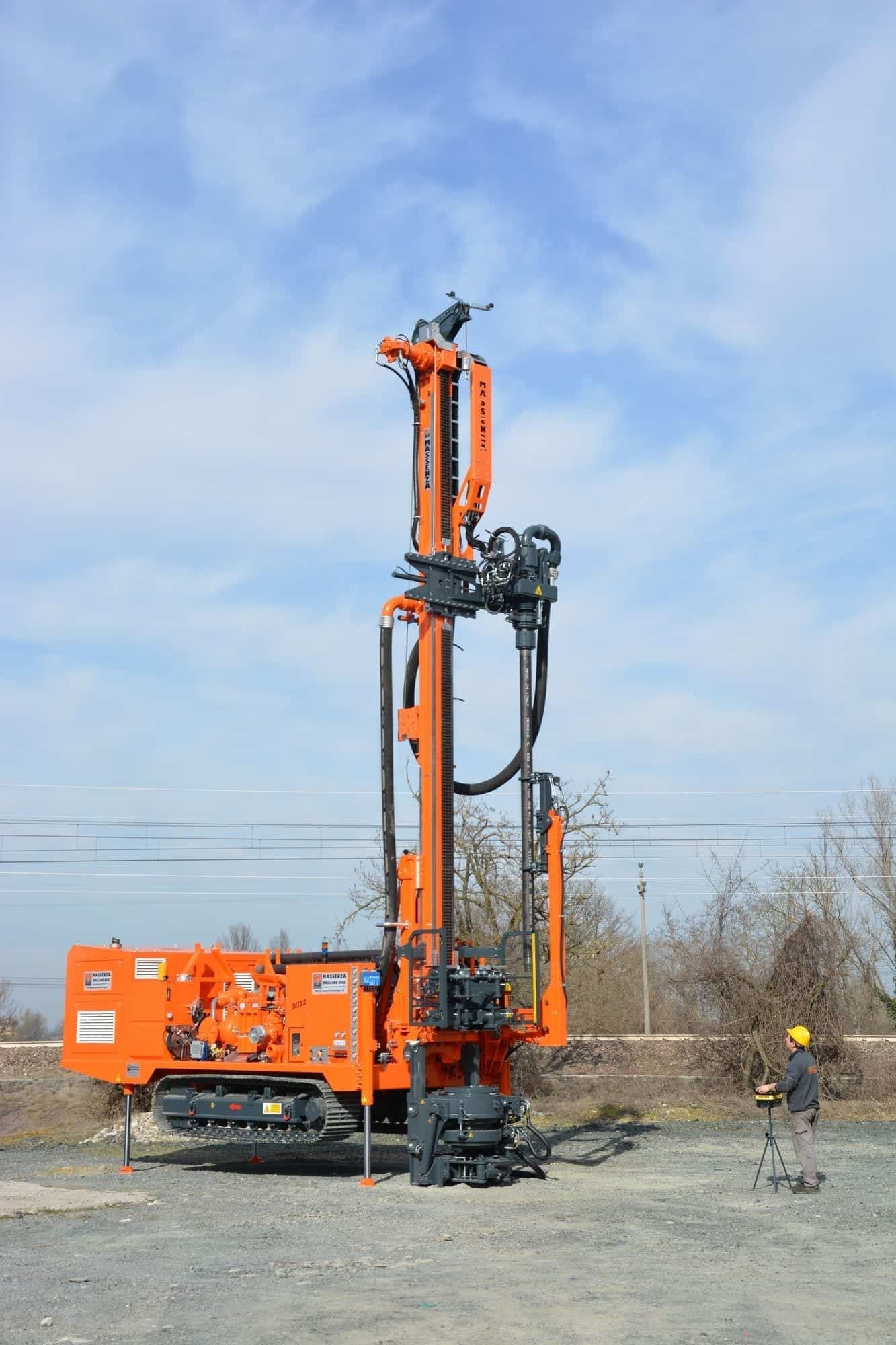

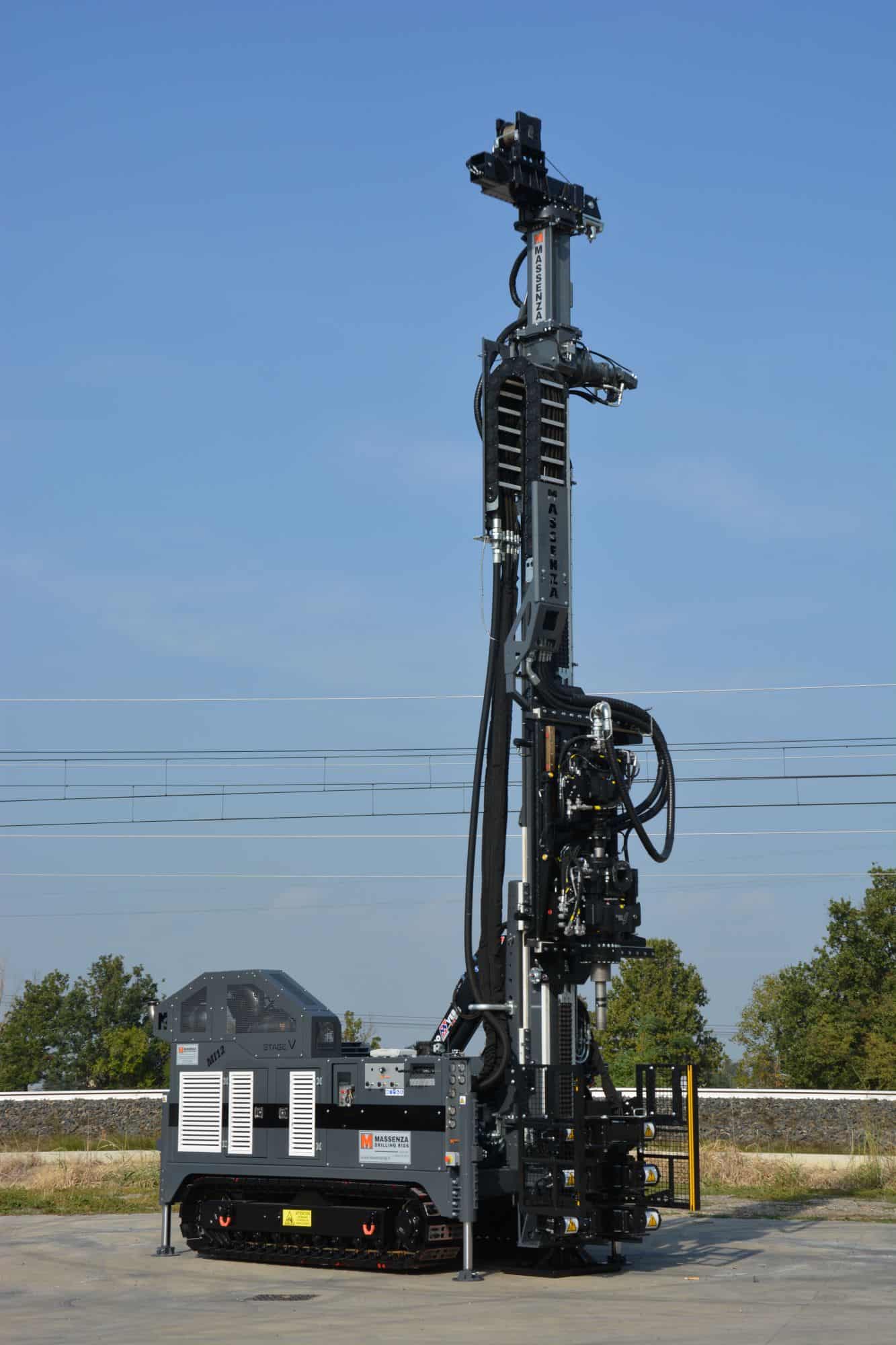

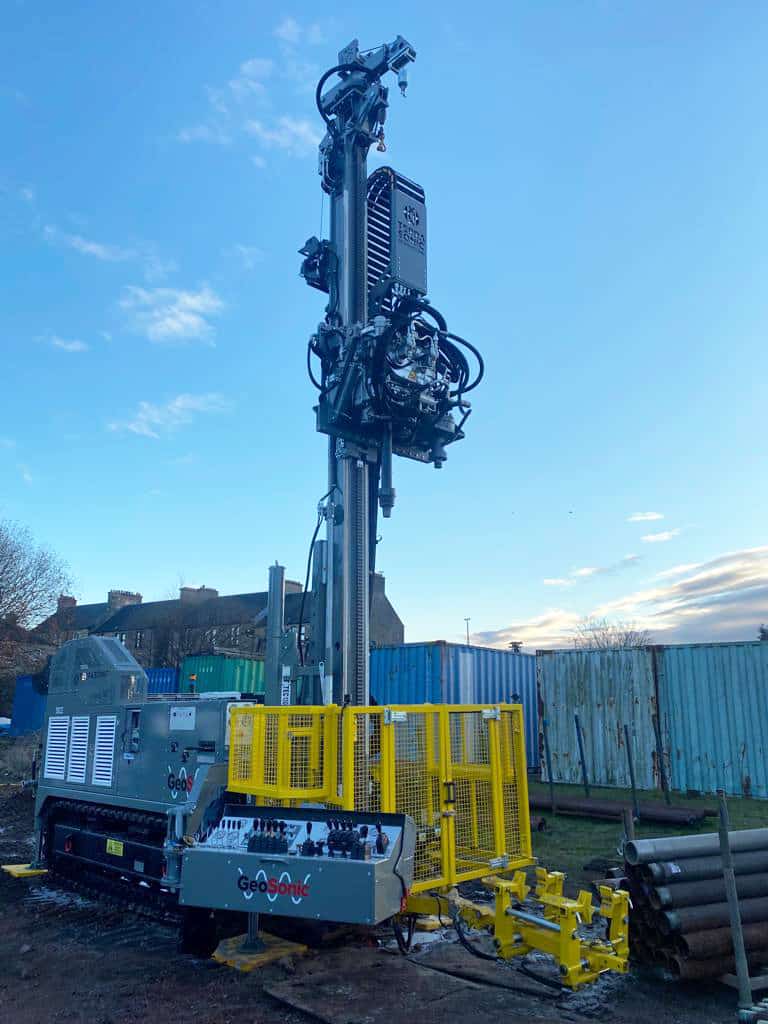

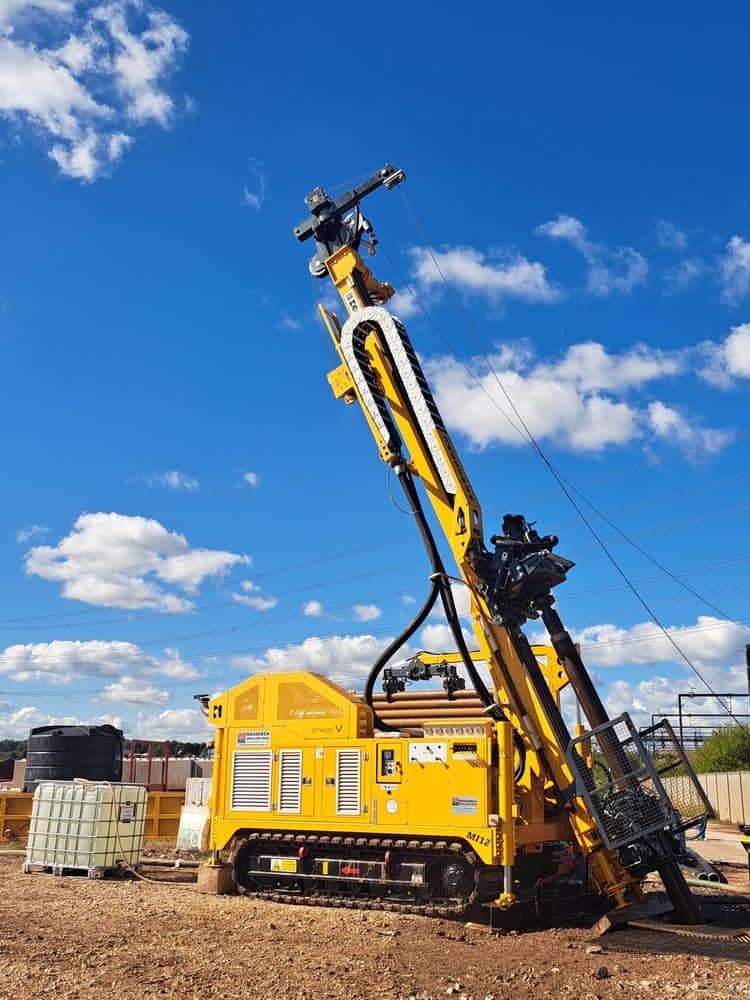

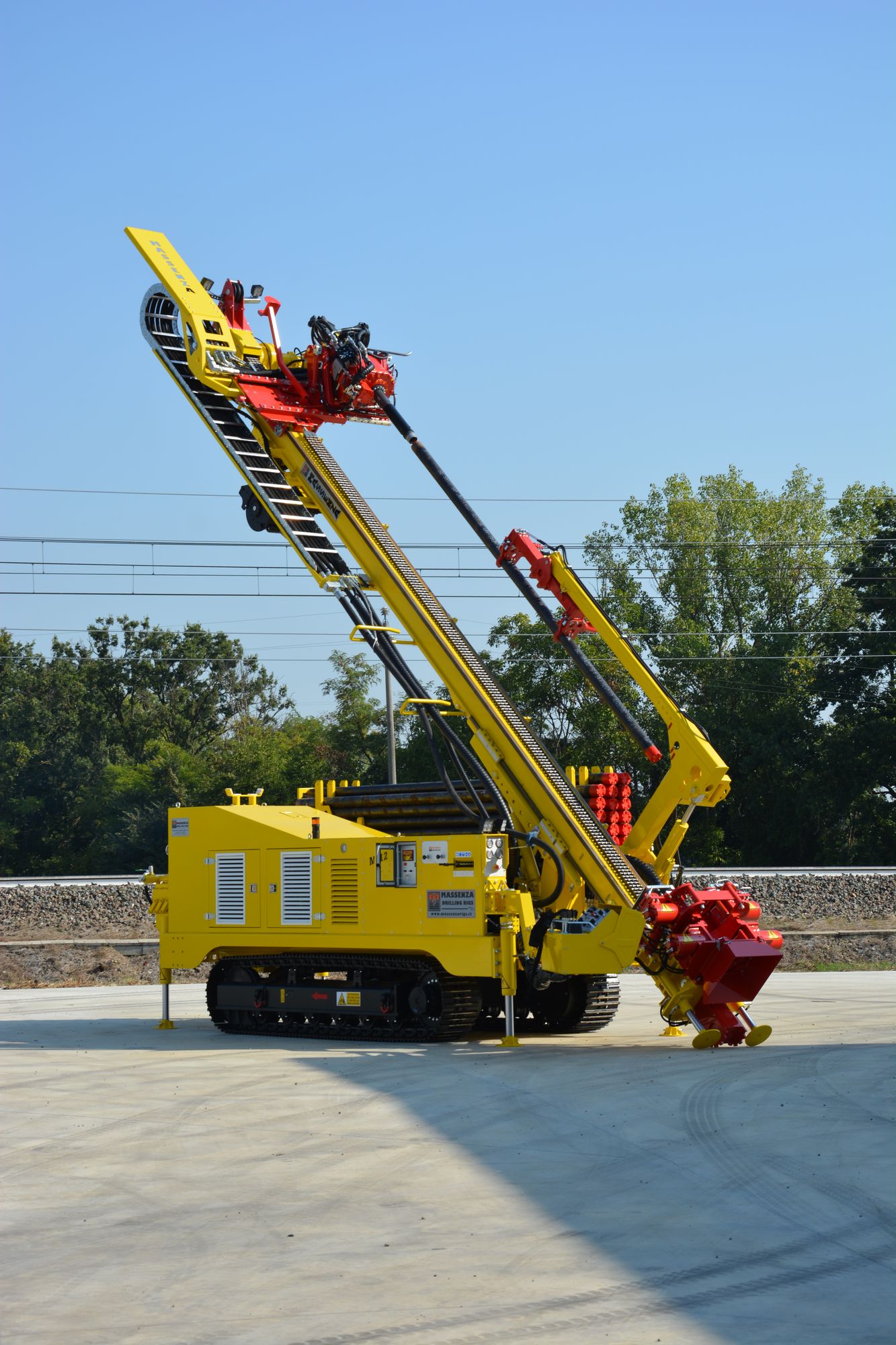

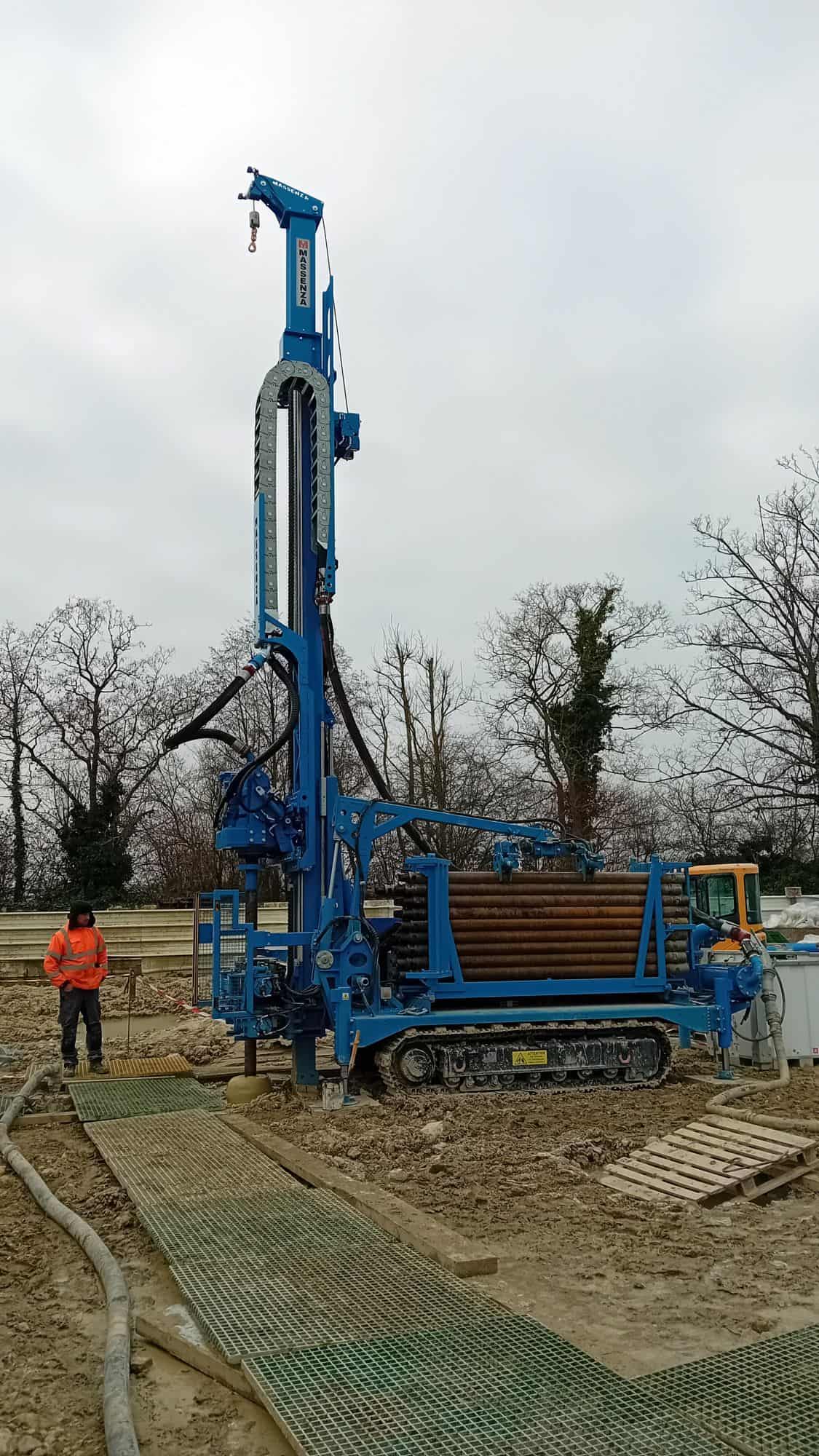

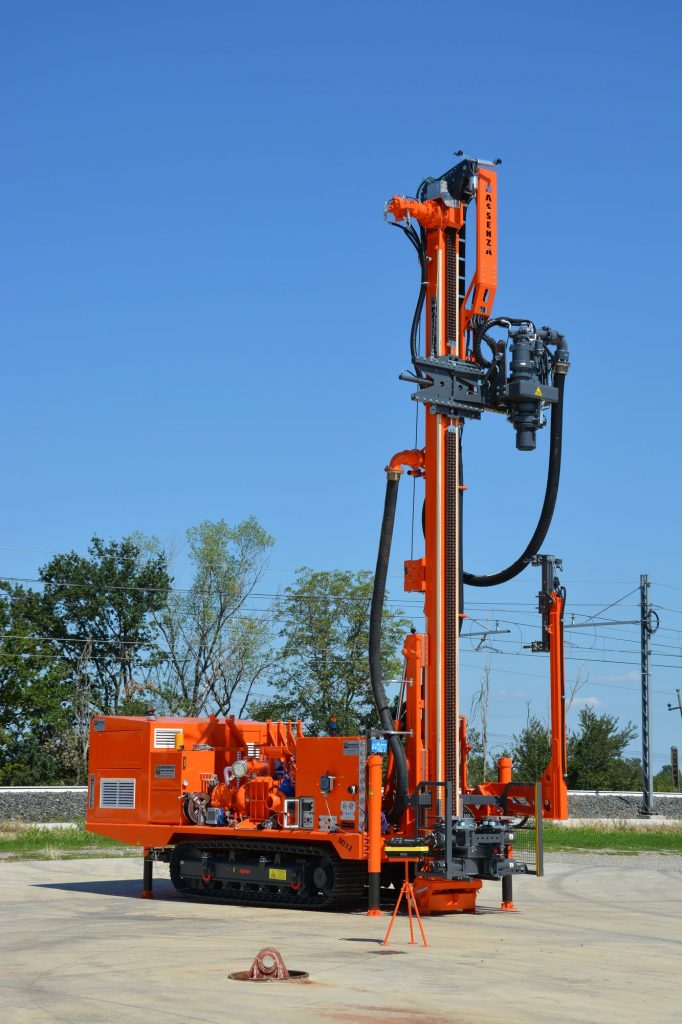

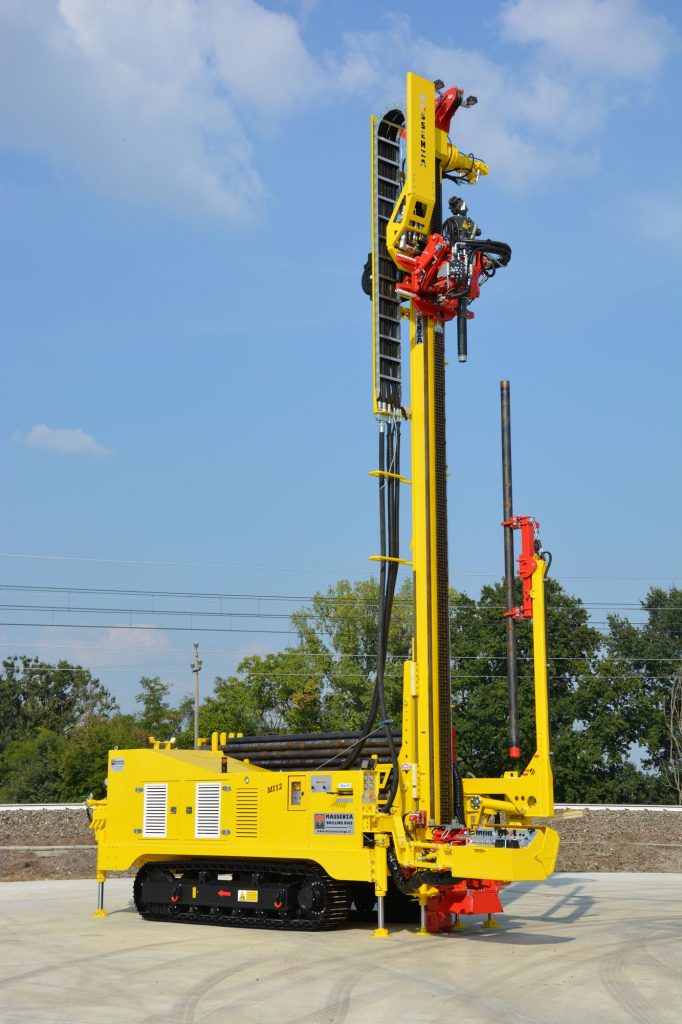

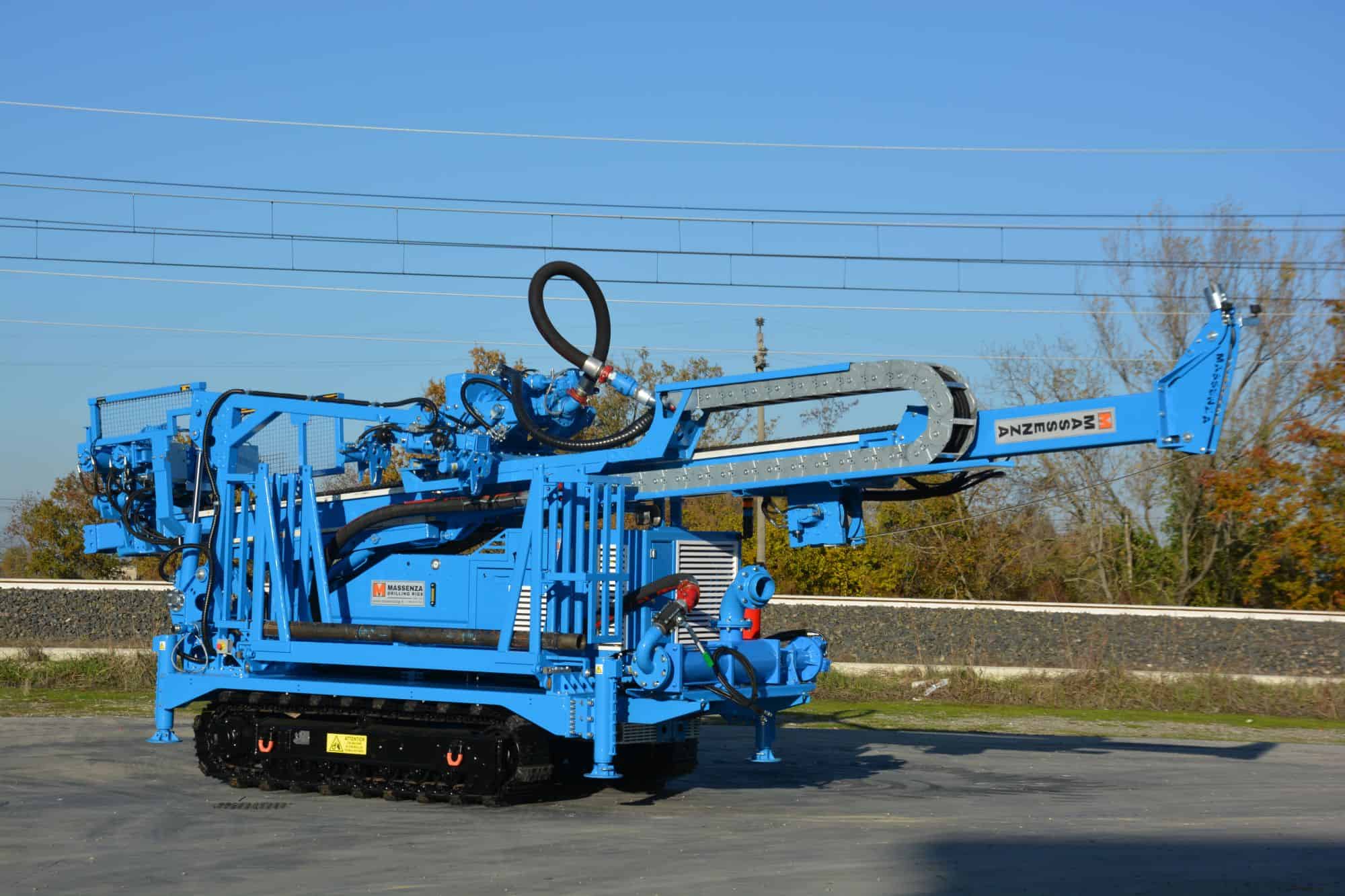

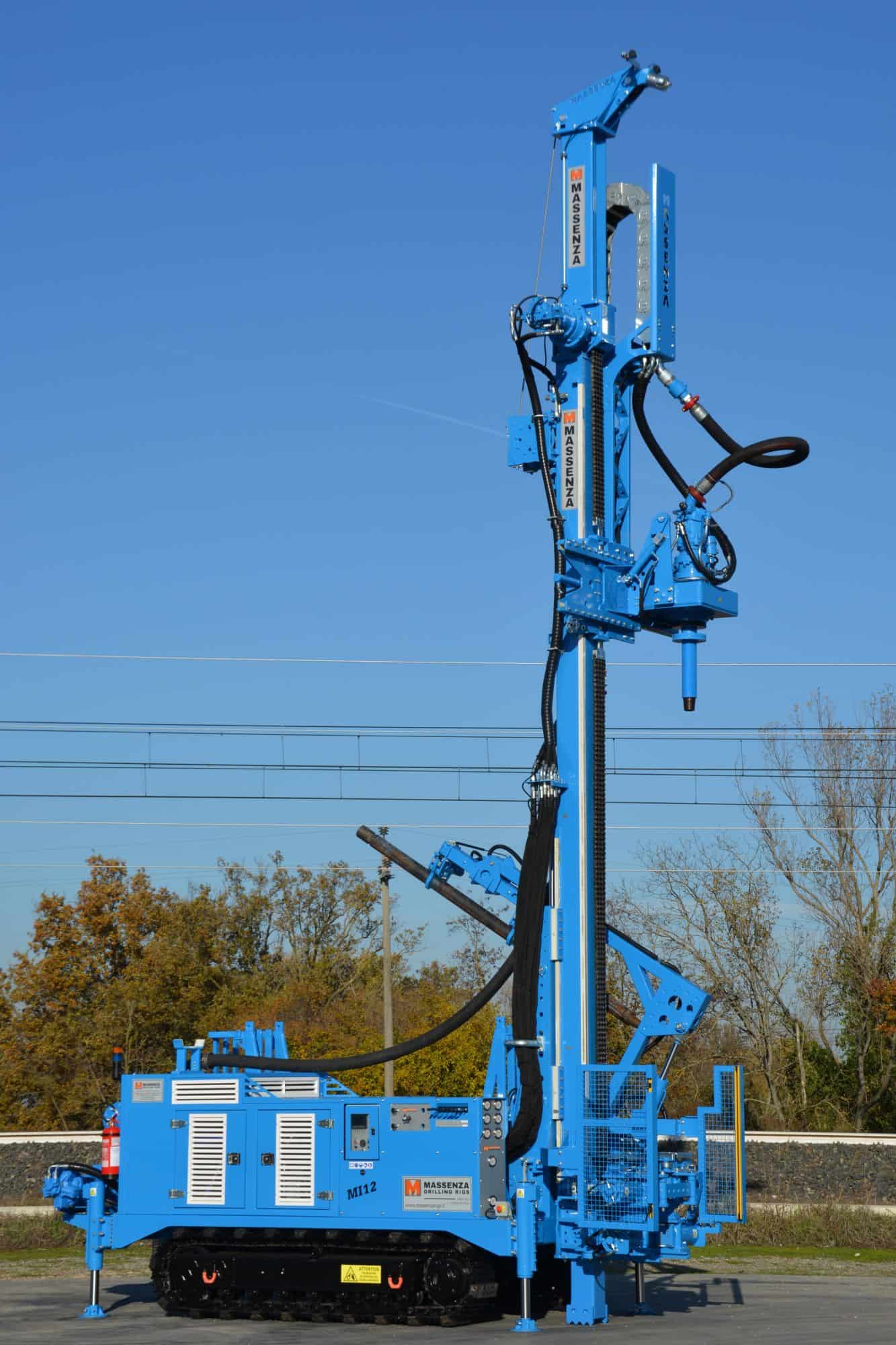

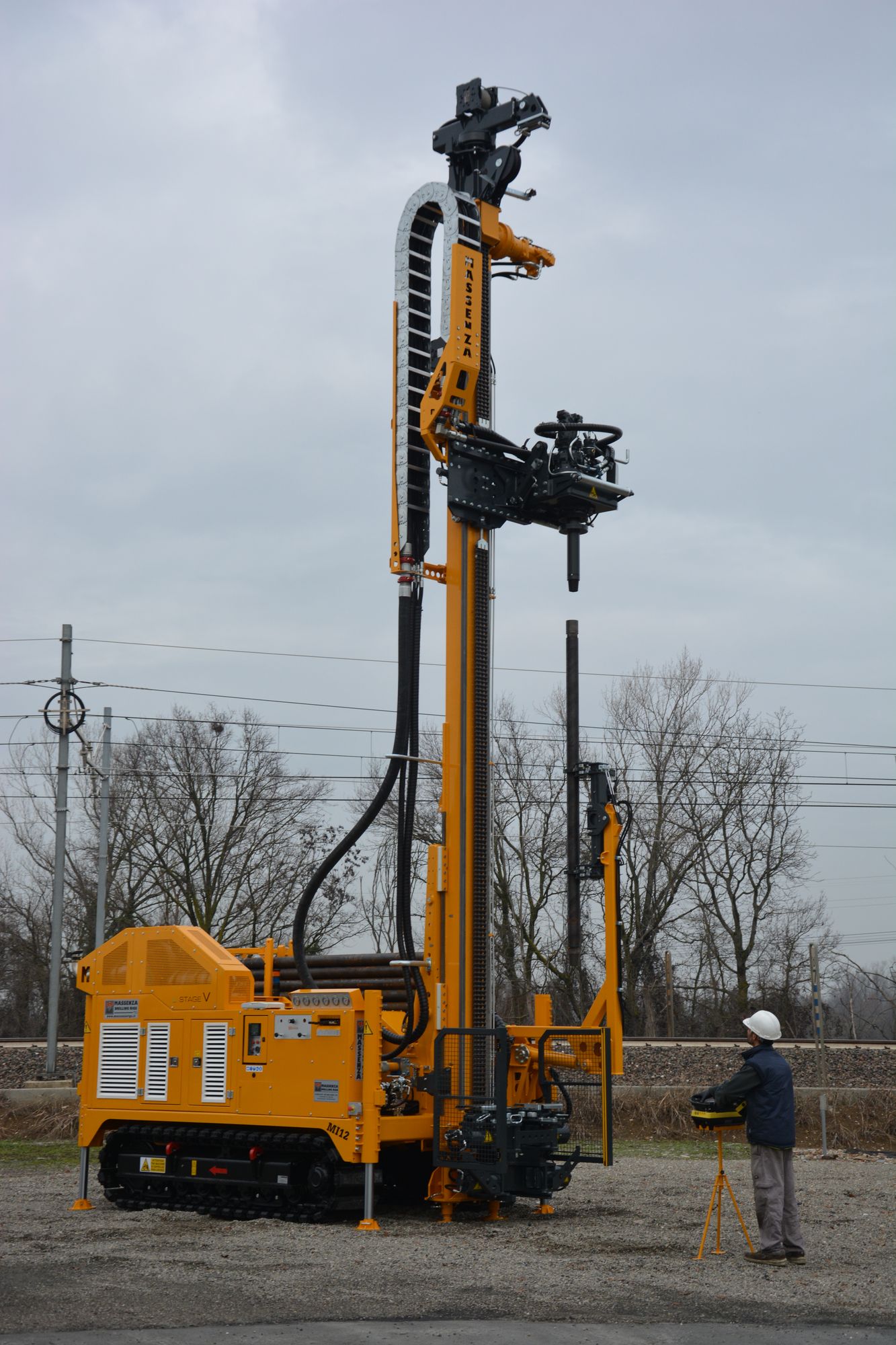

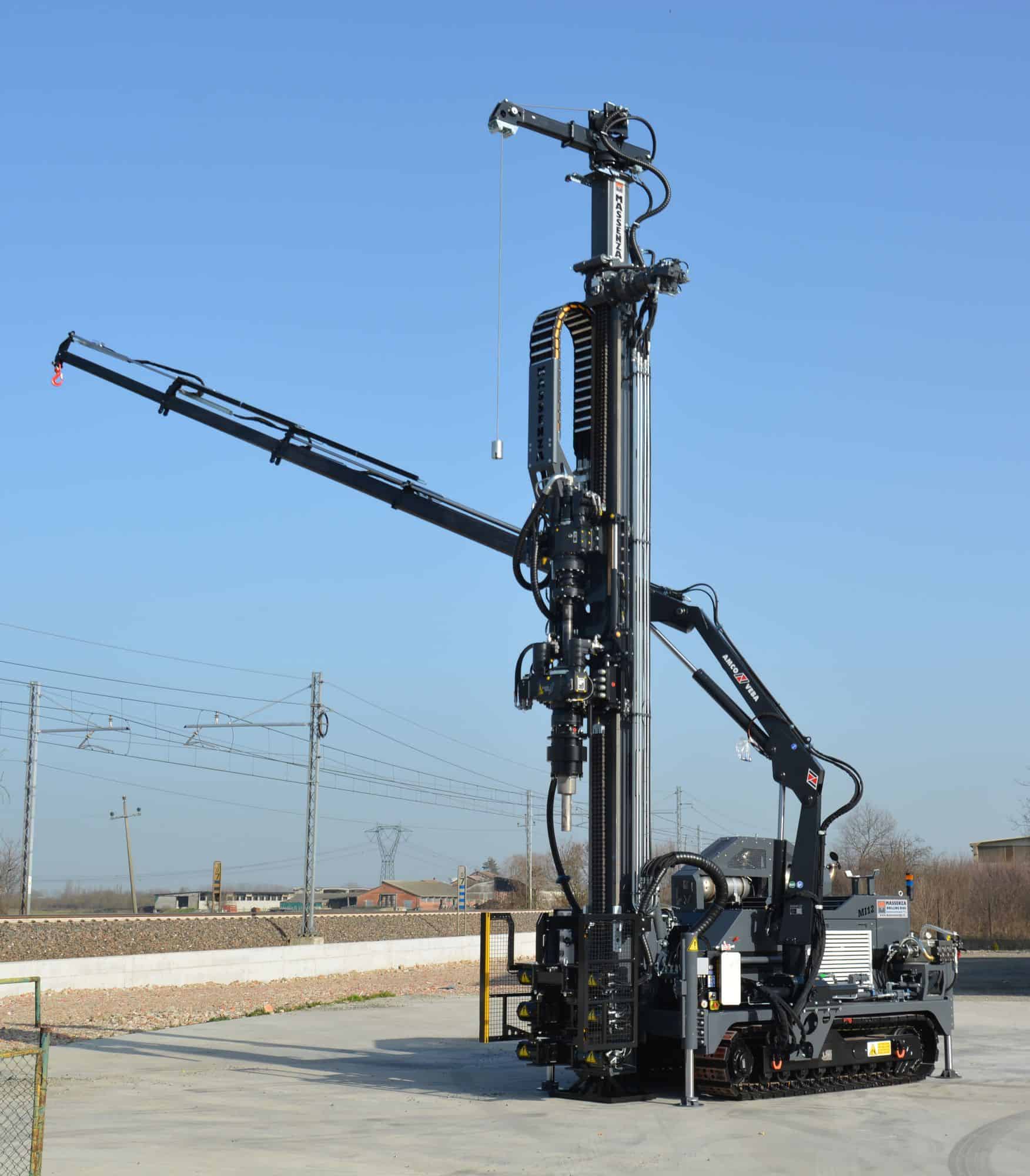

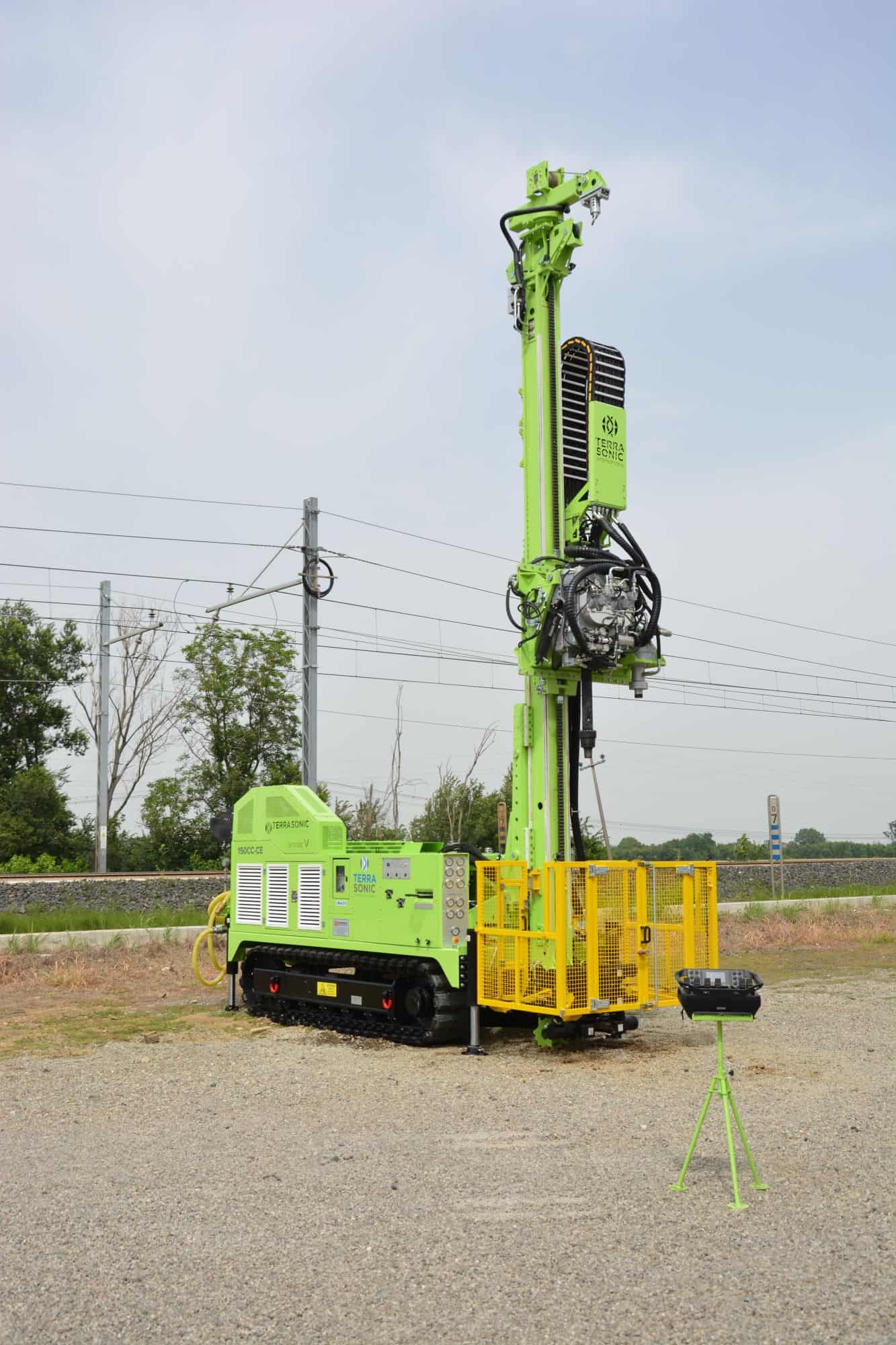

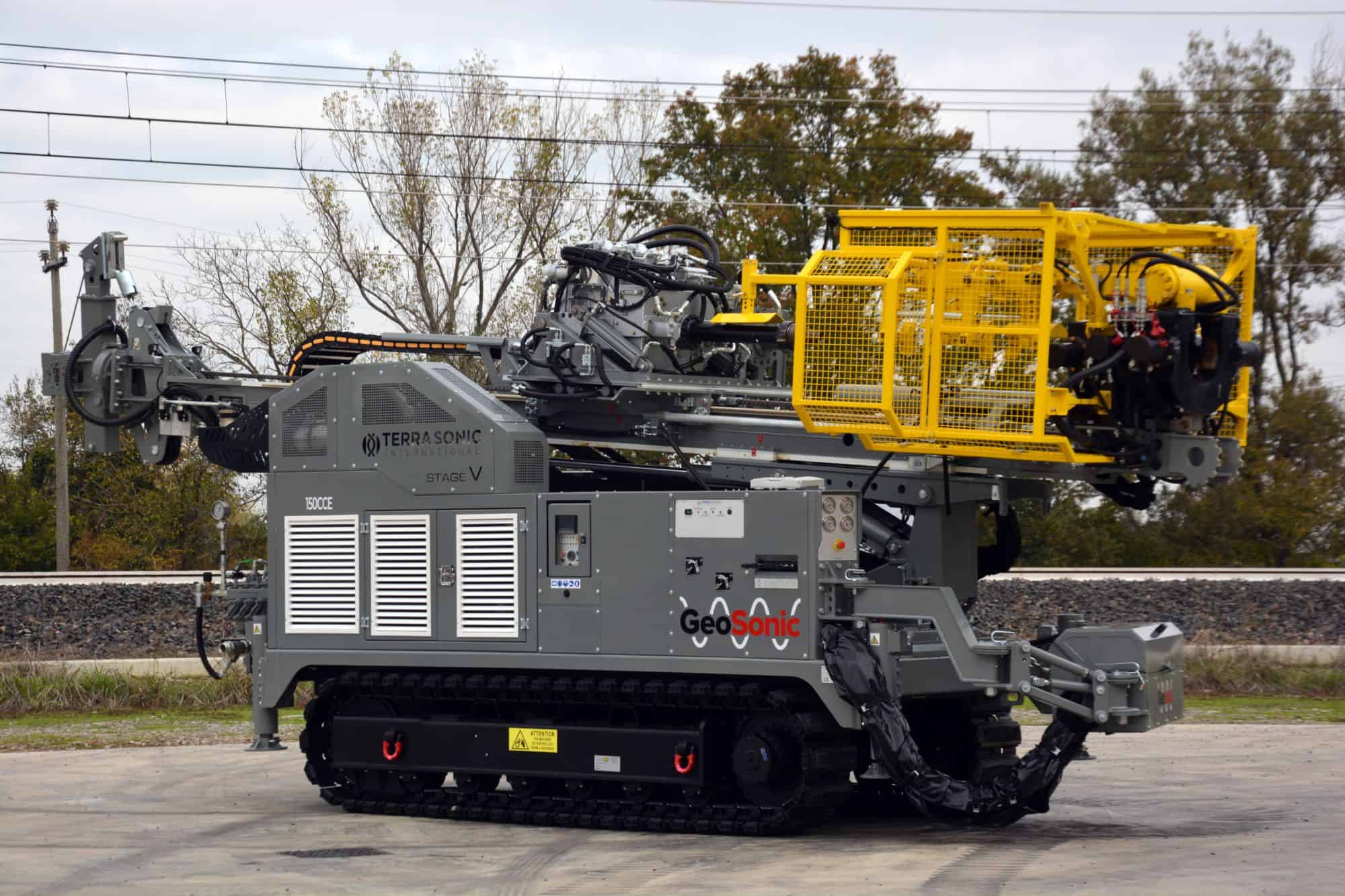

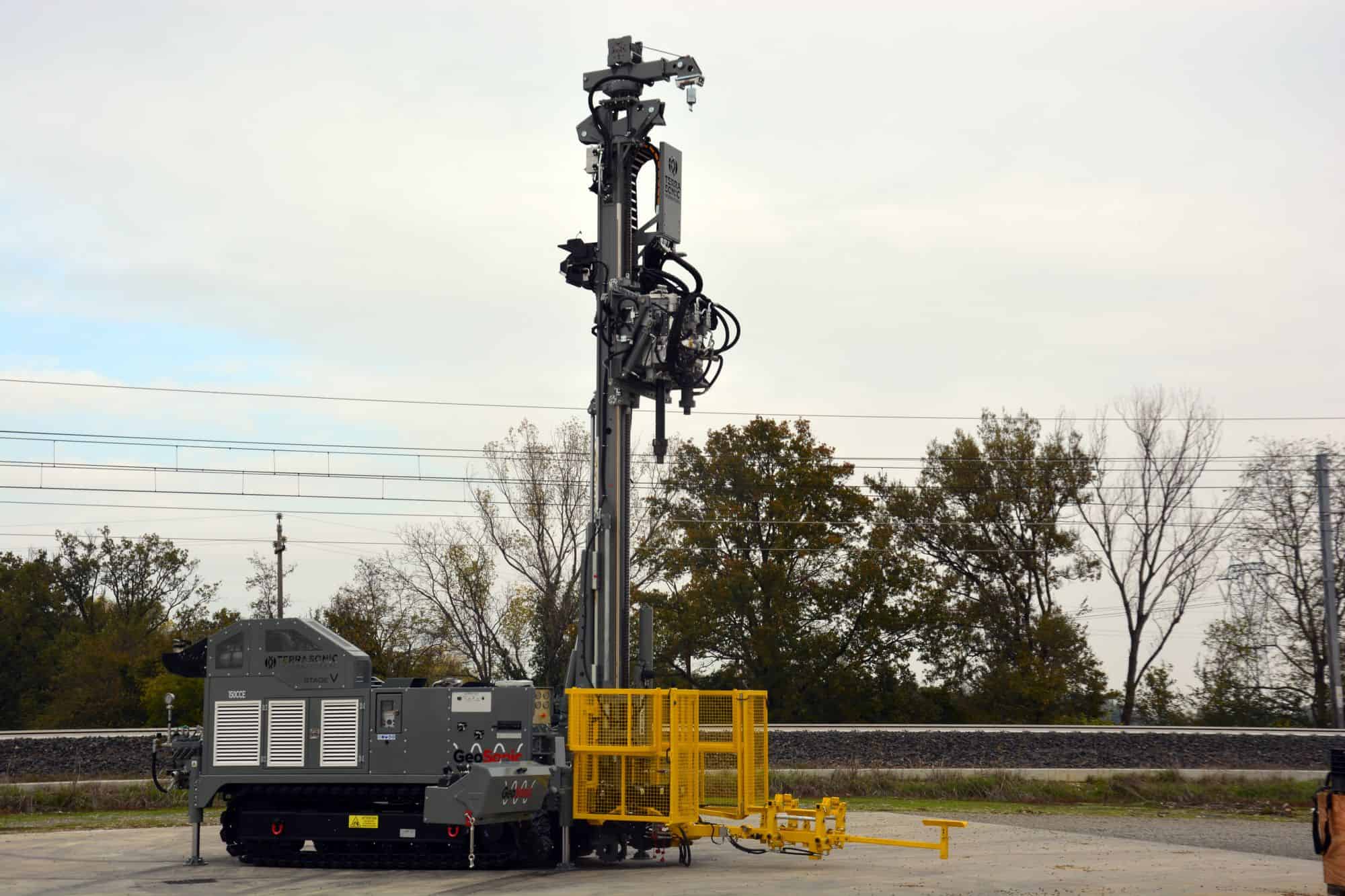

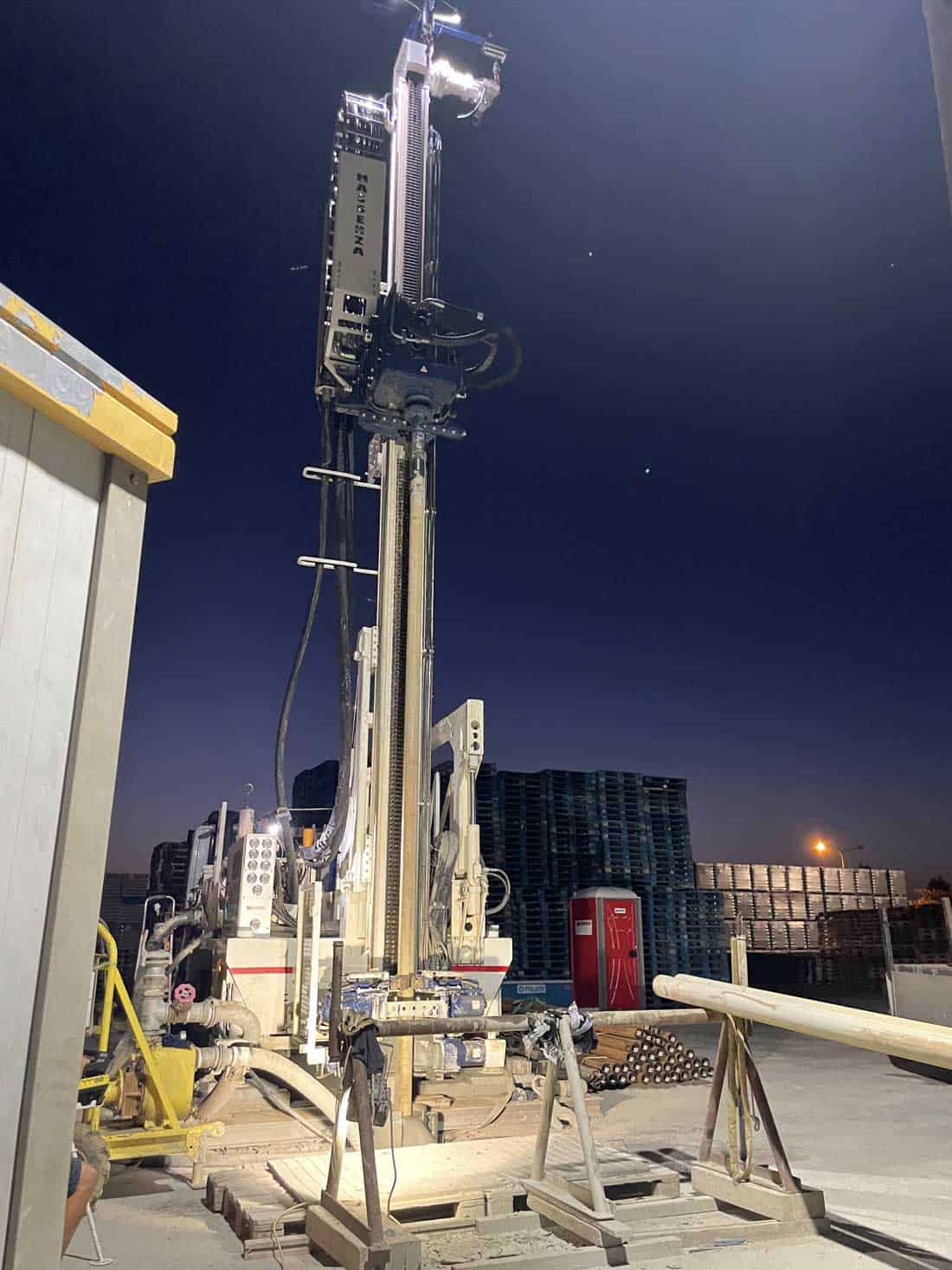

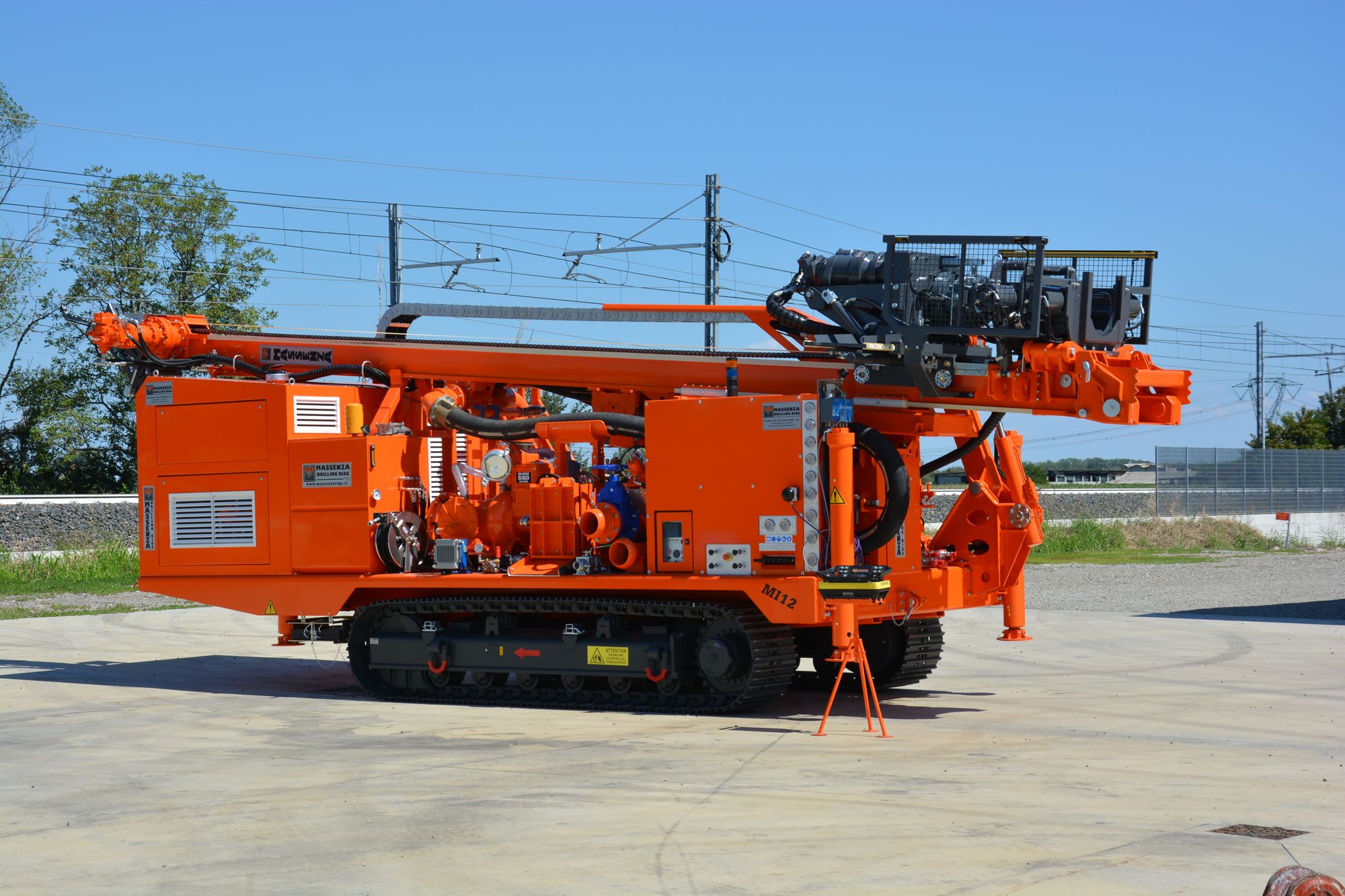

DRILLING RIG Mi12
DESCRIPTION

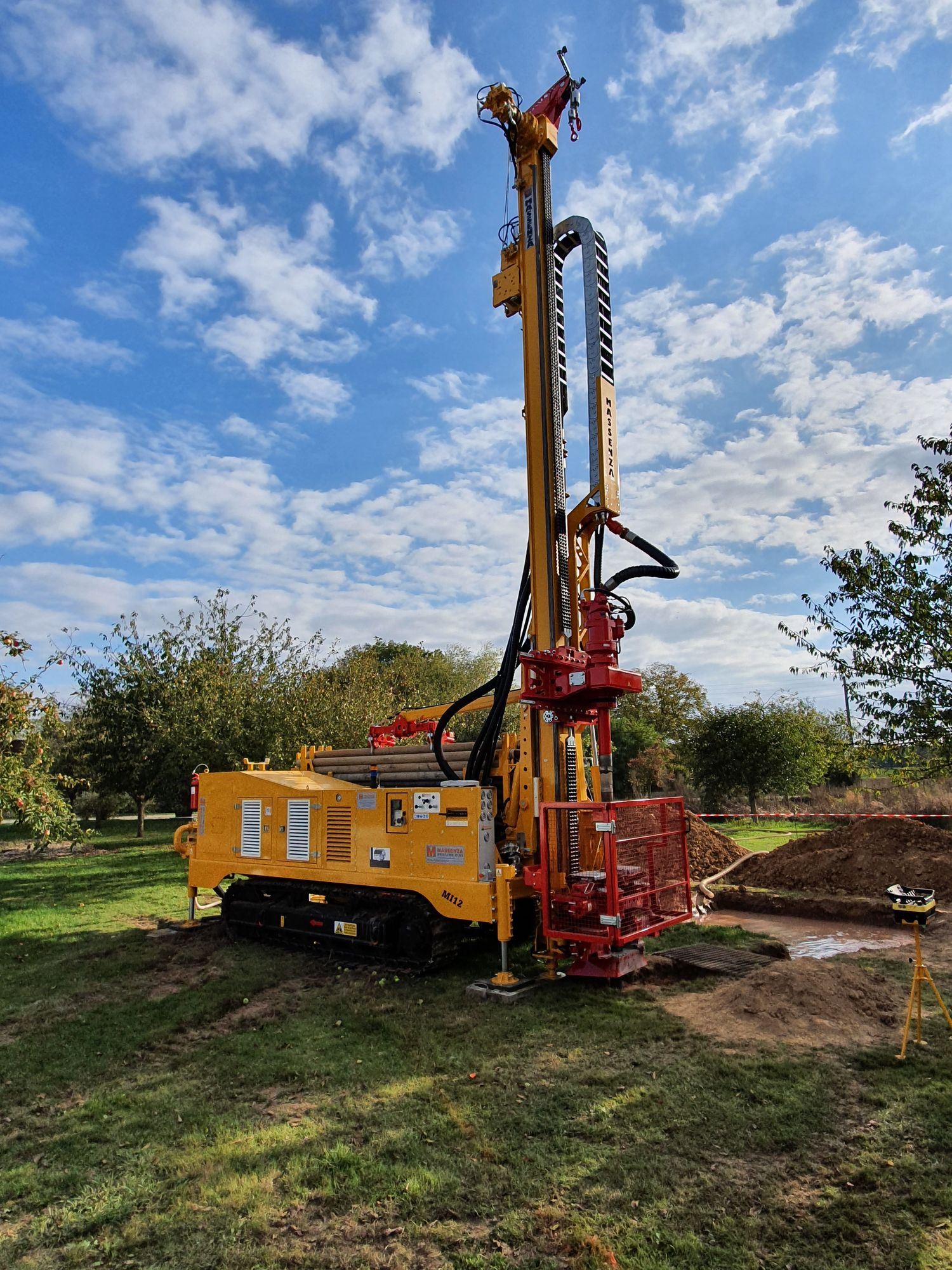

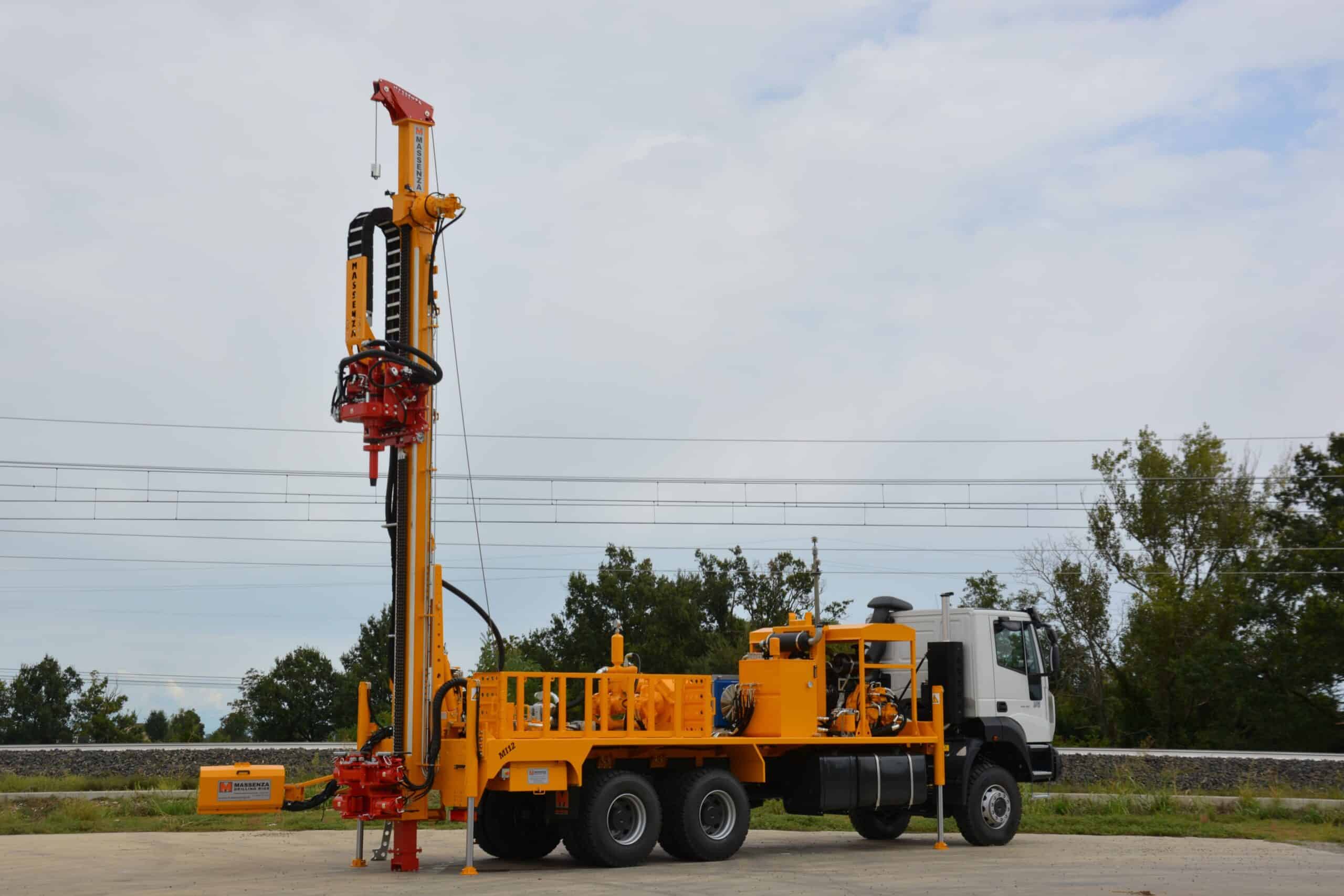

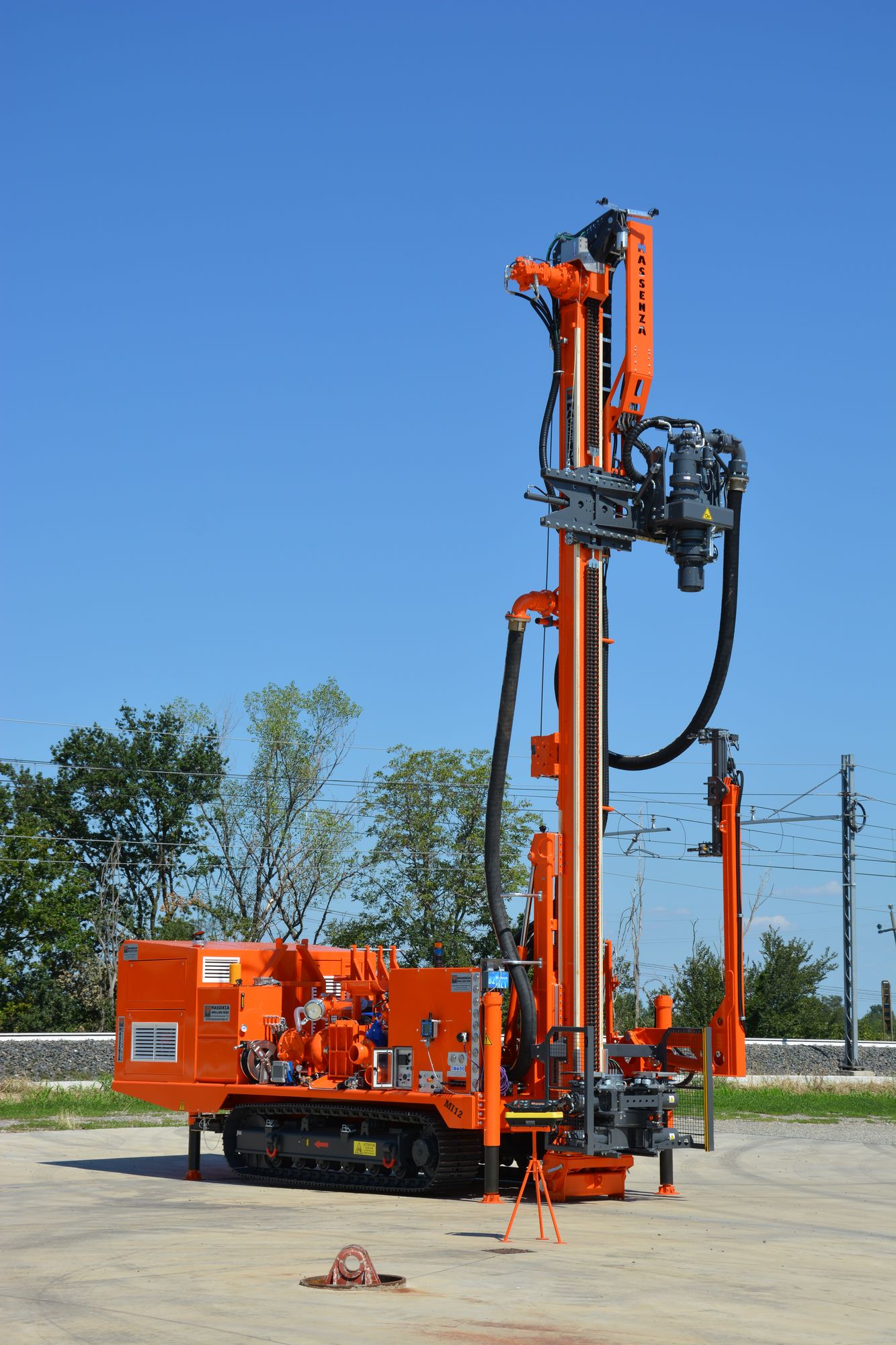

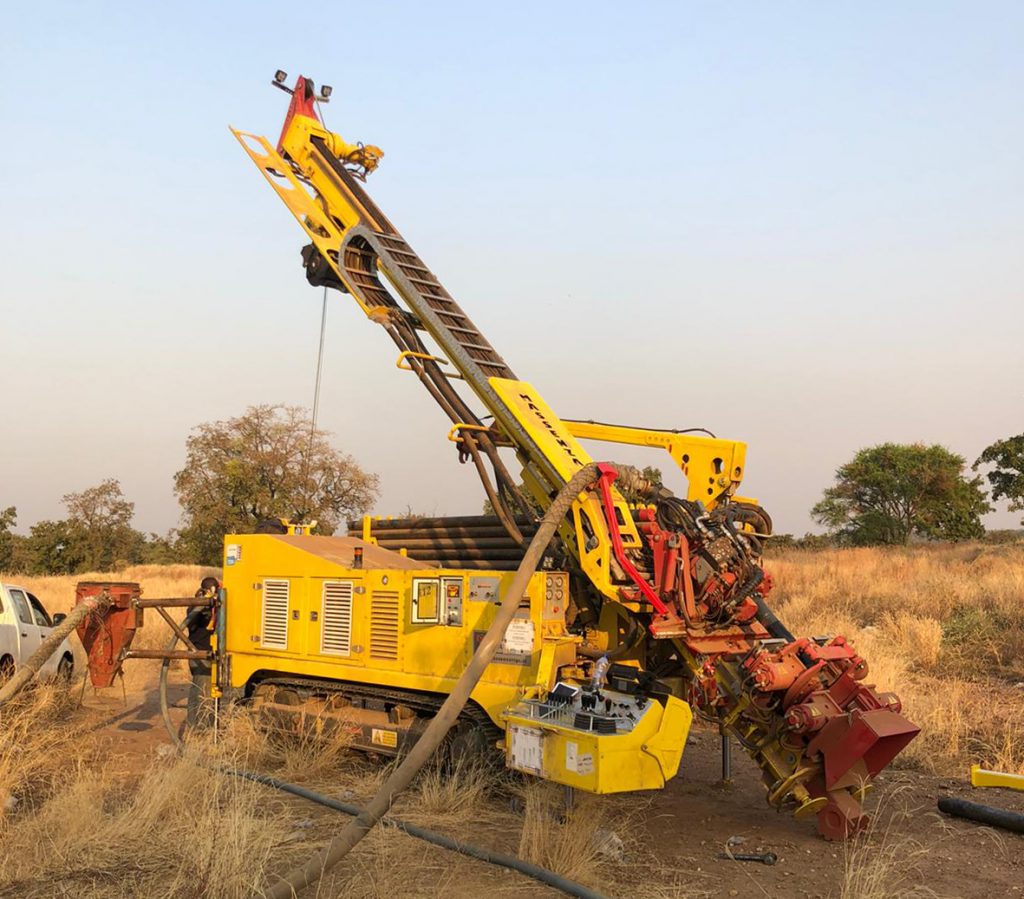

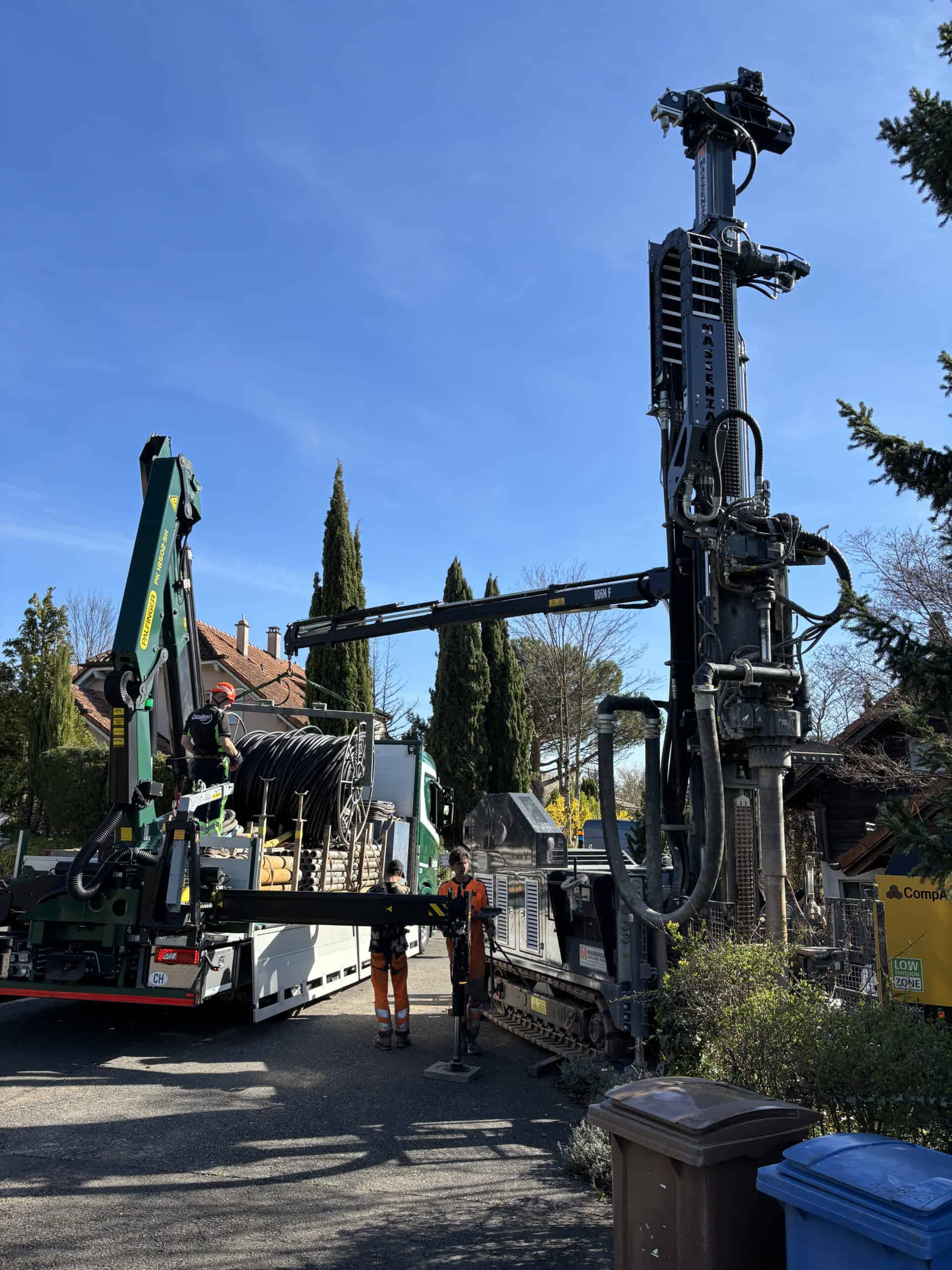

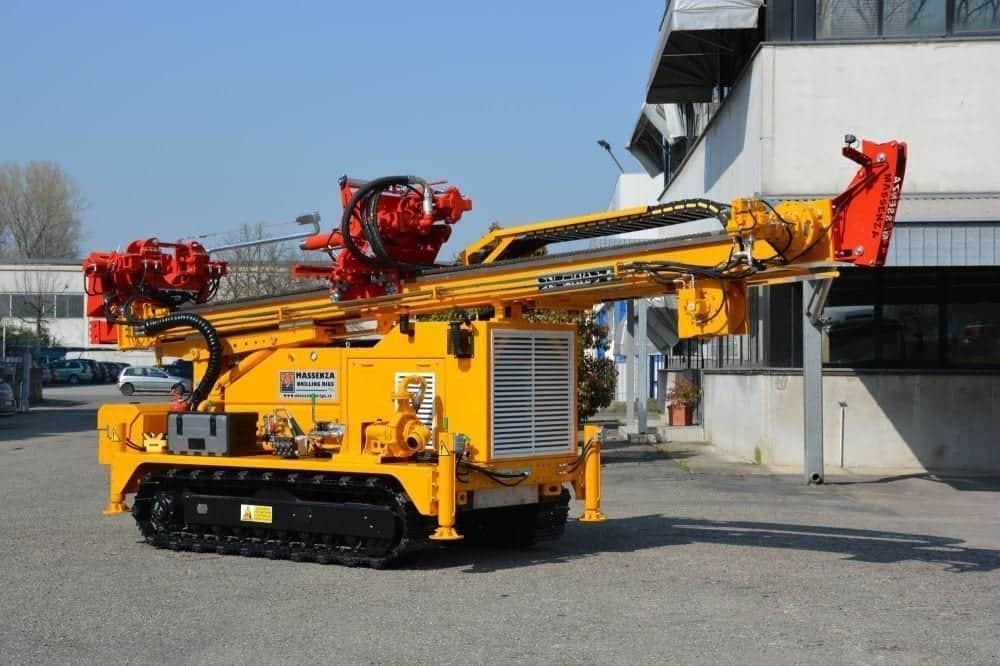

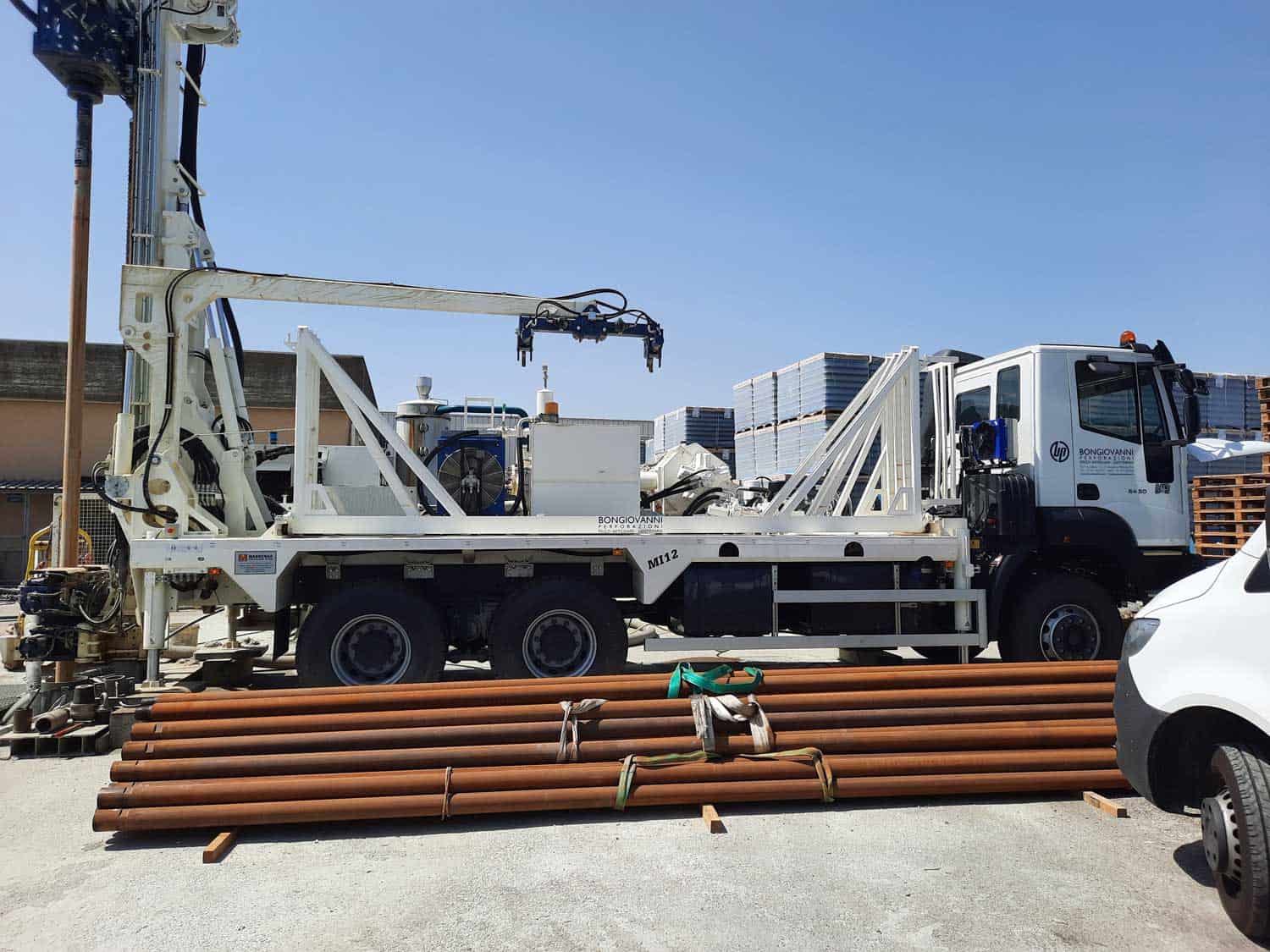

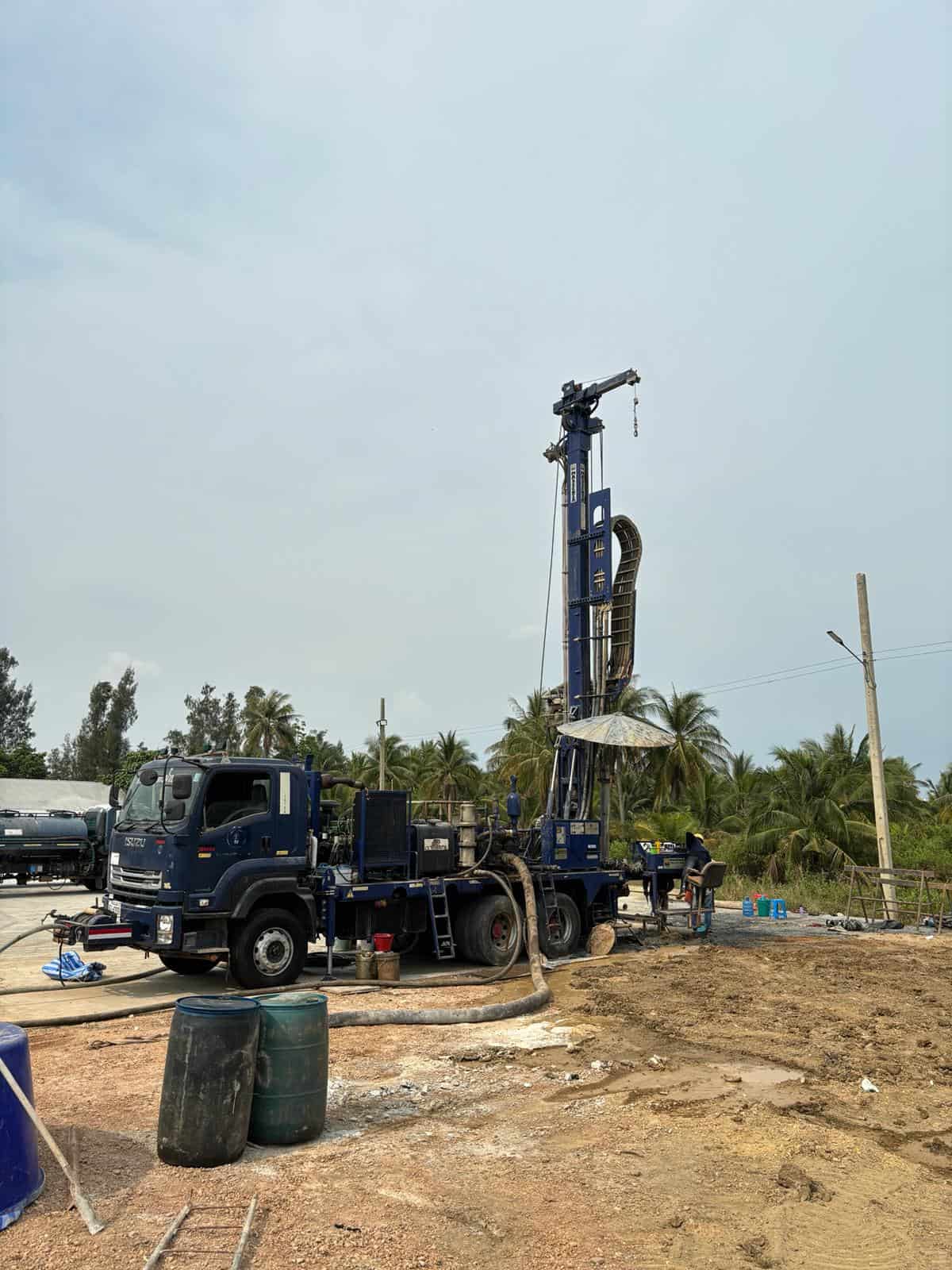

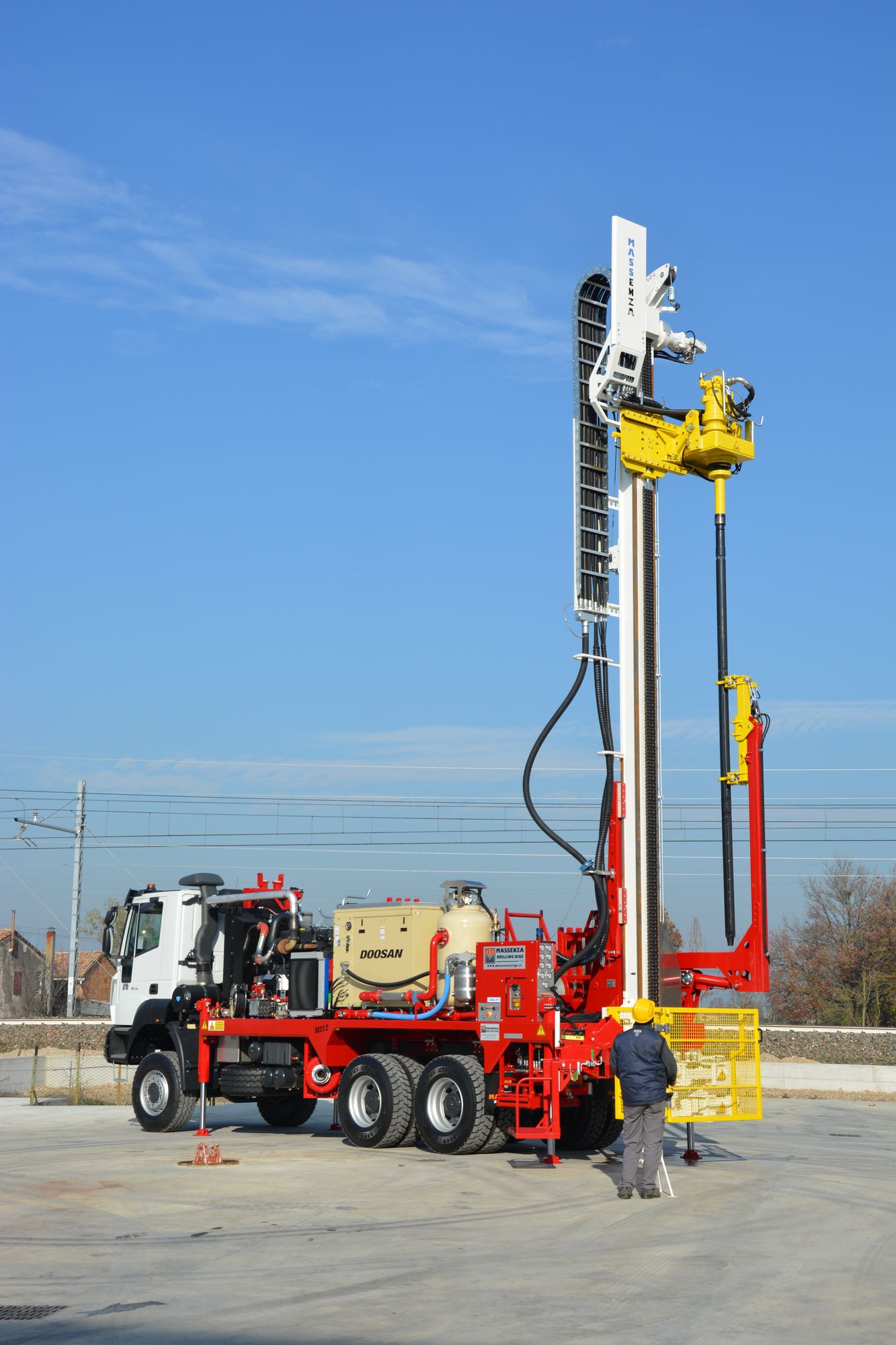

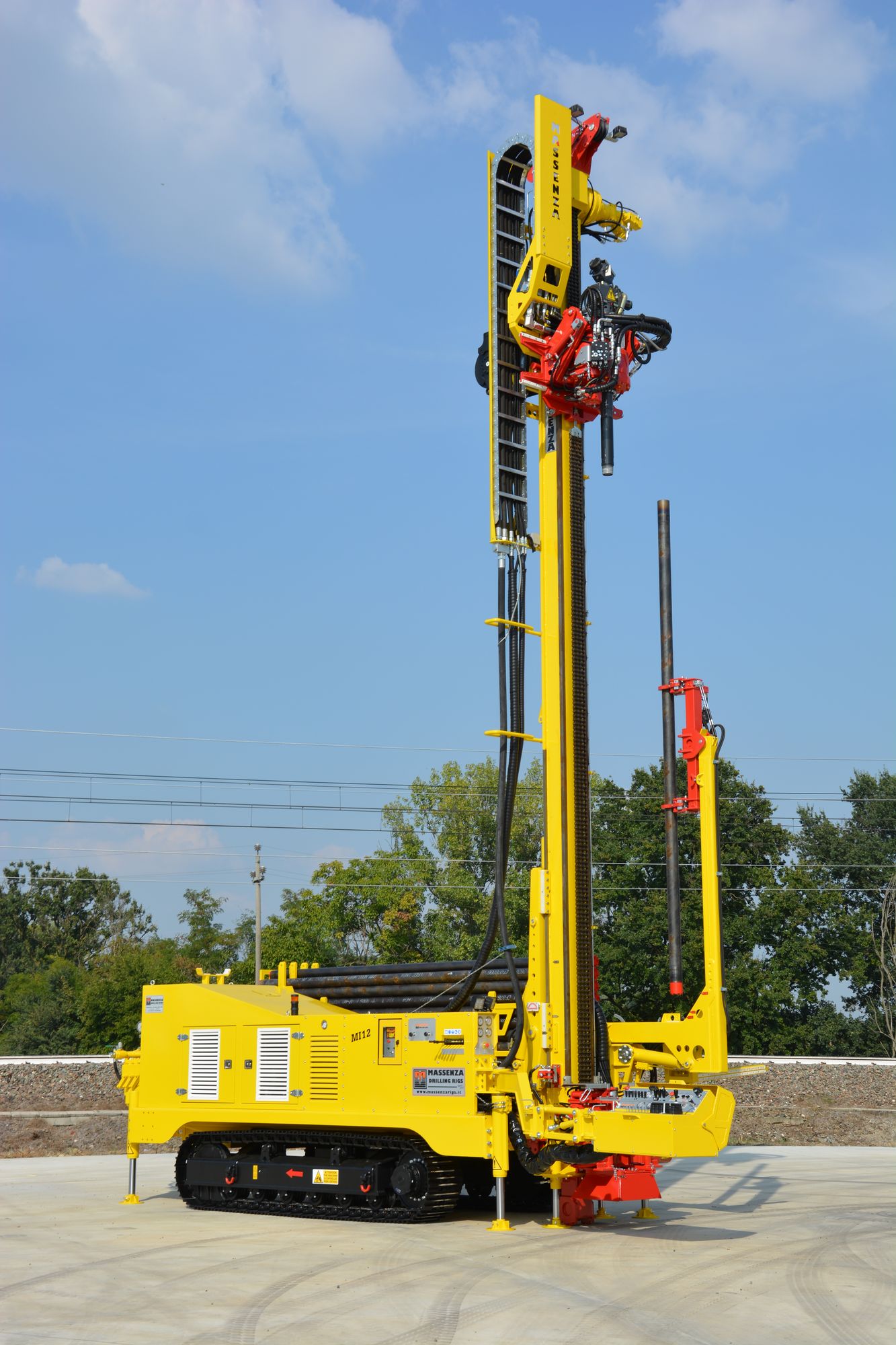

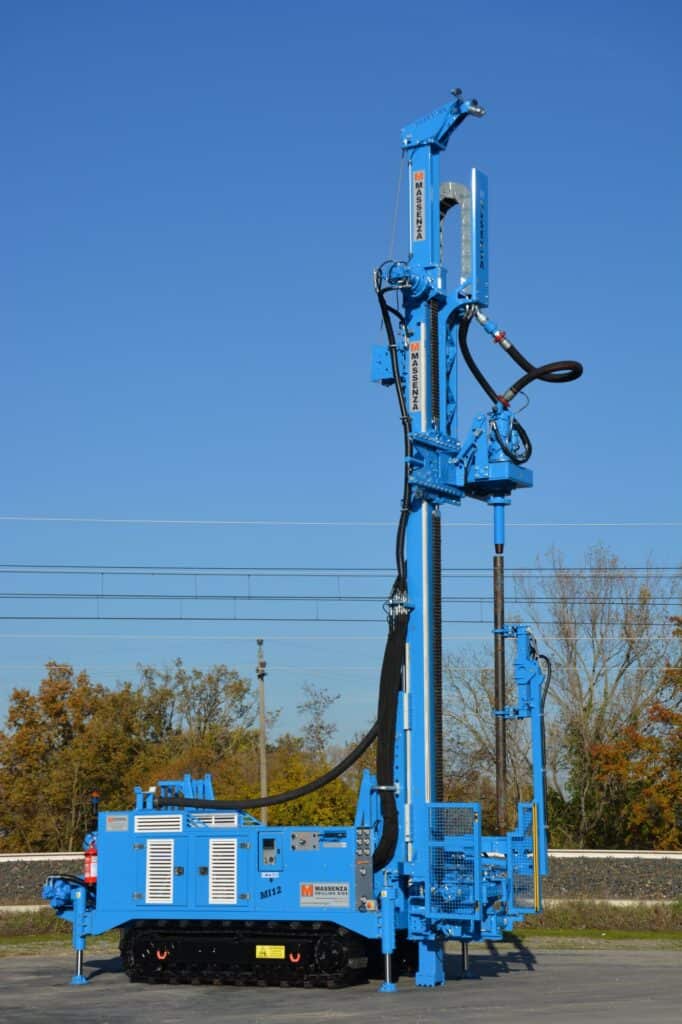

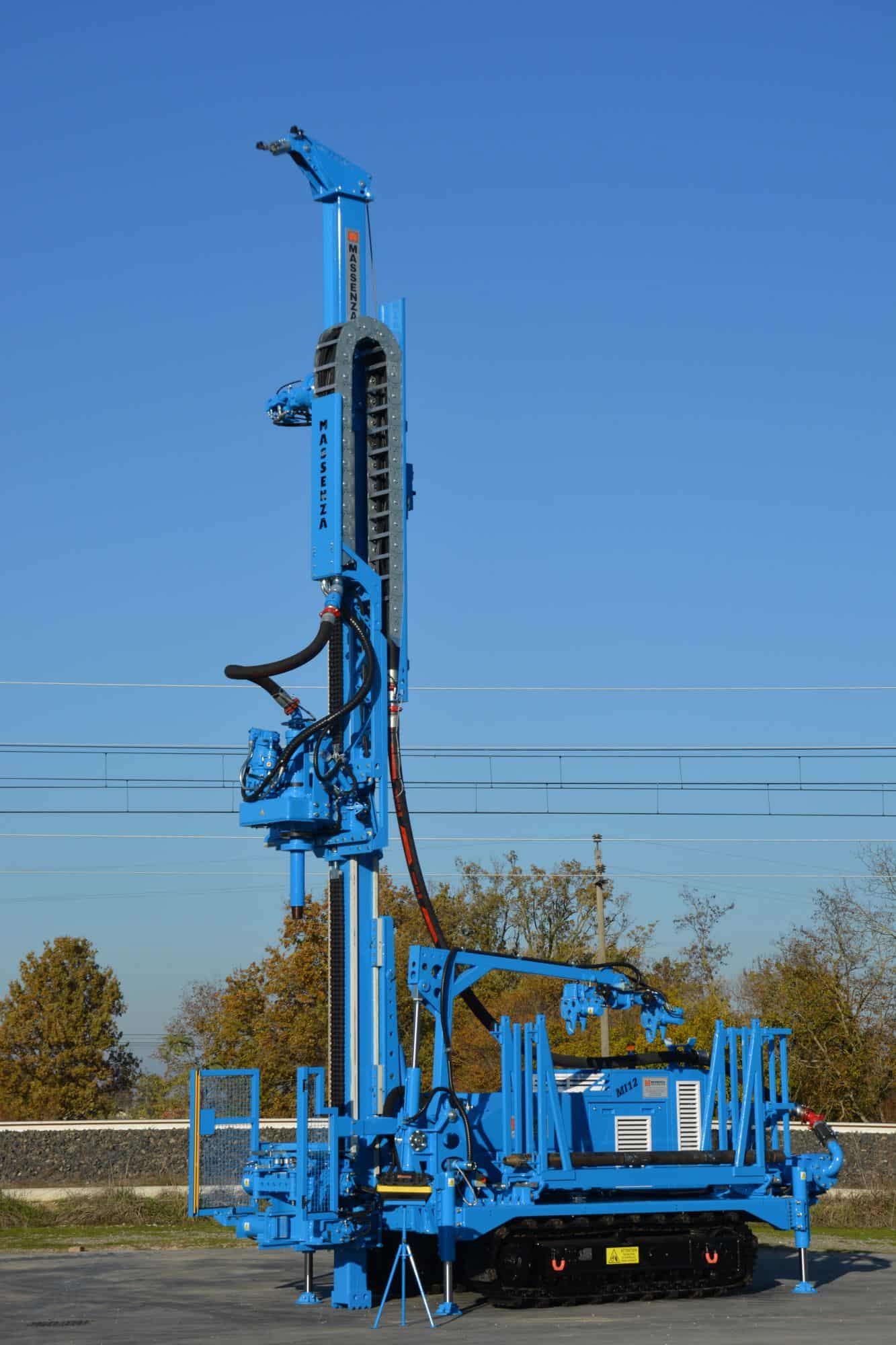

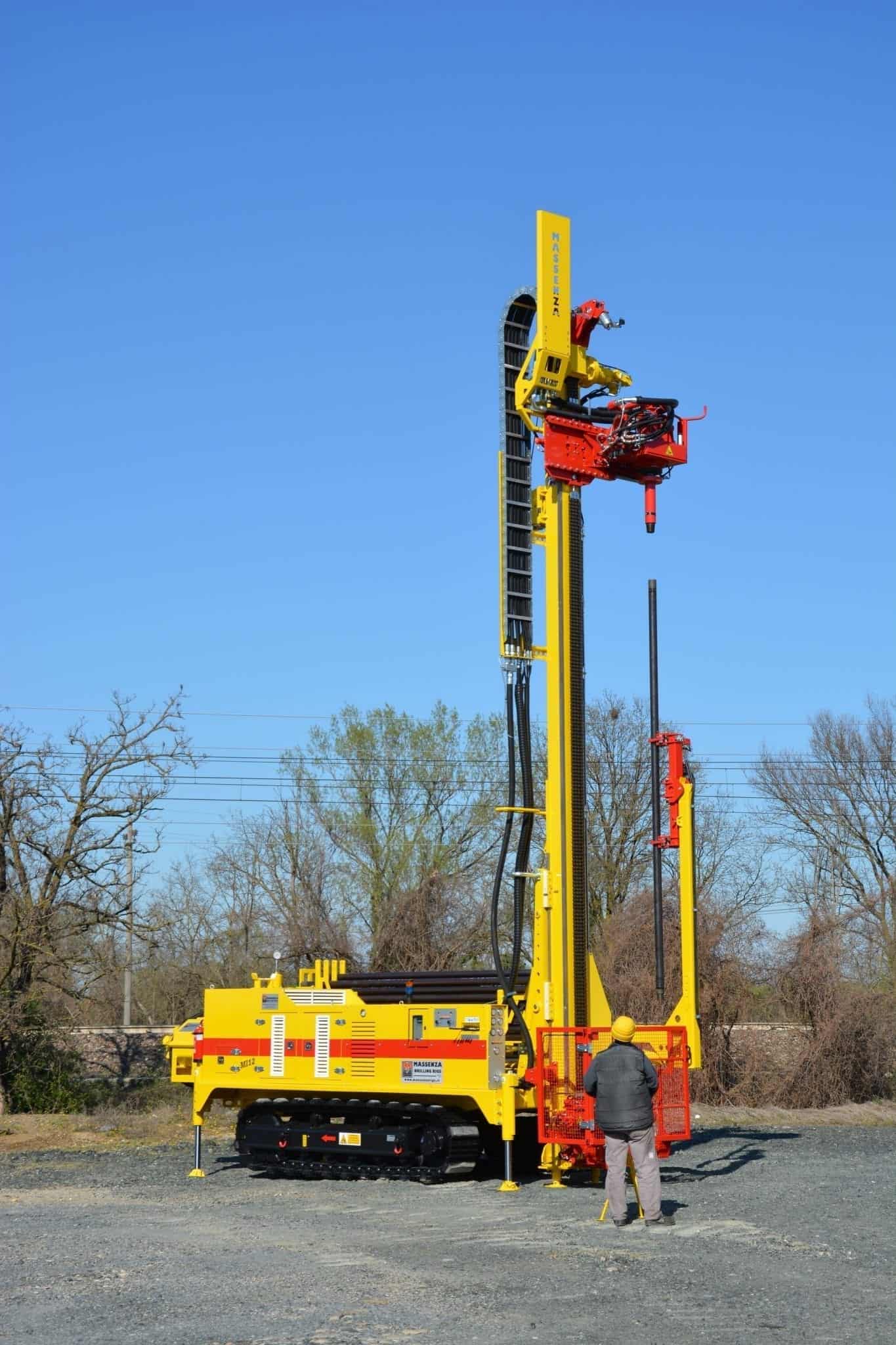

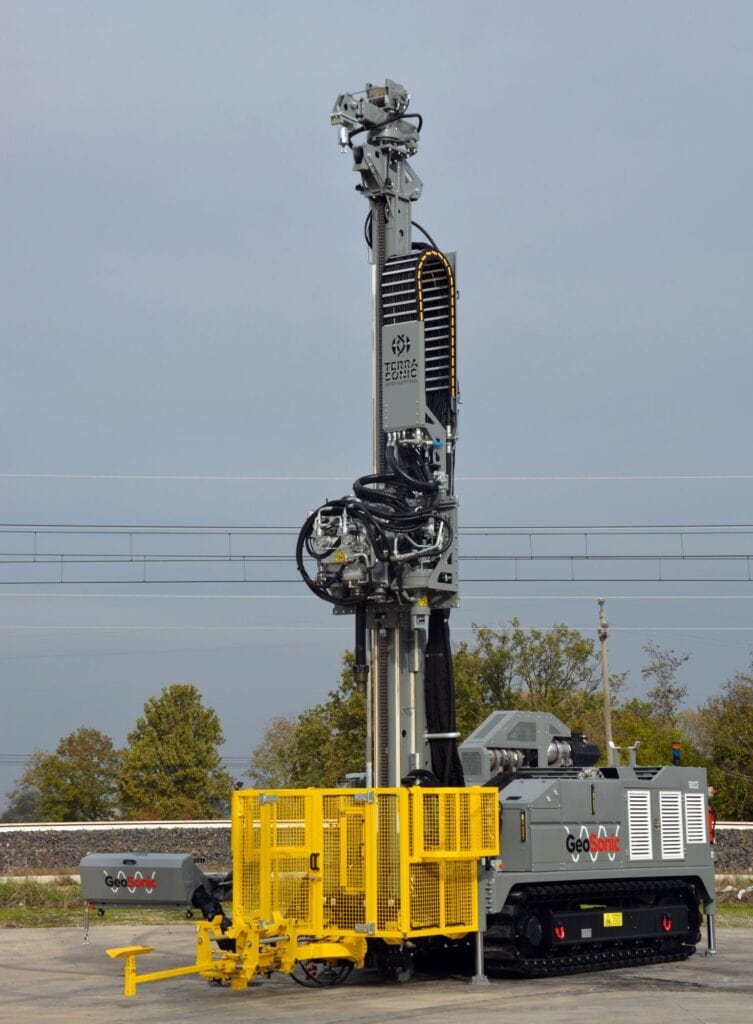

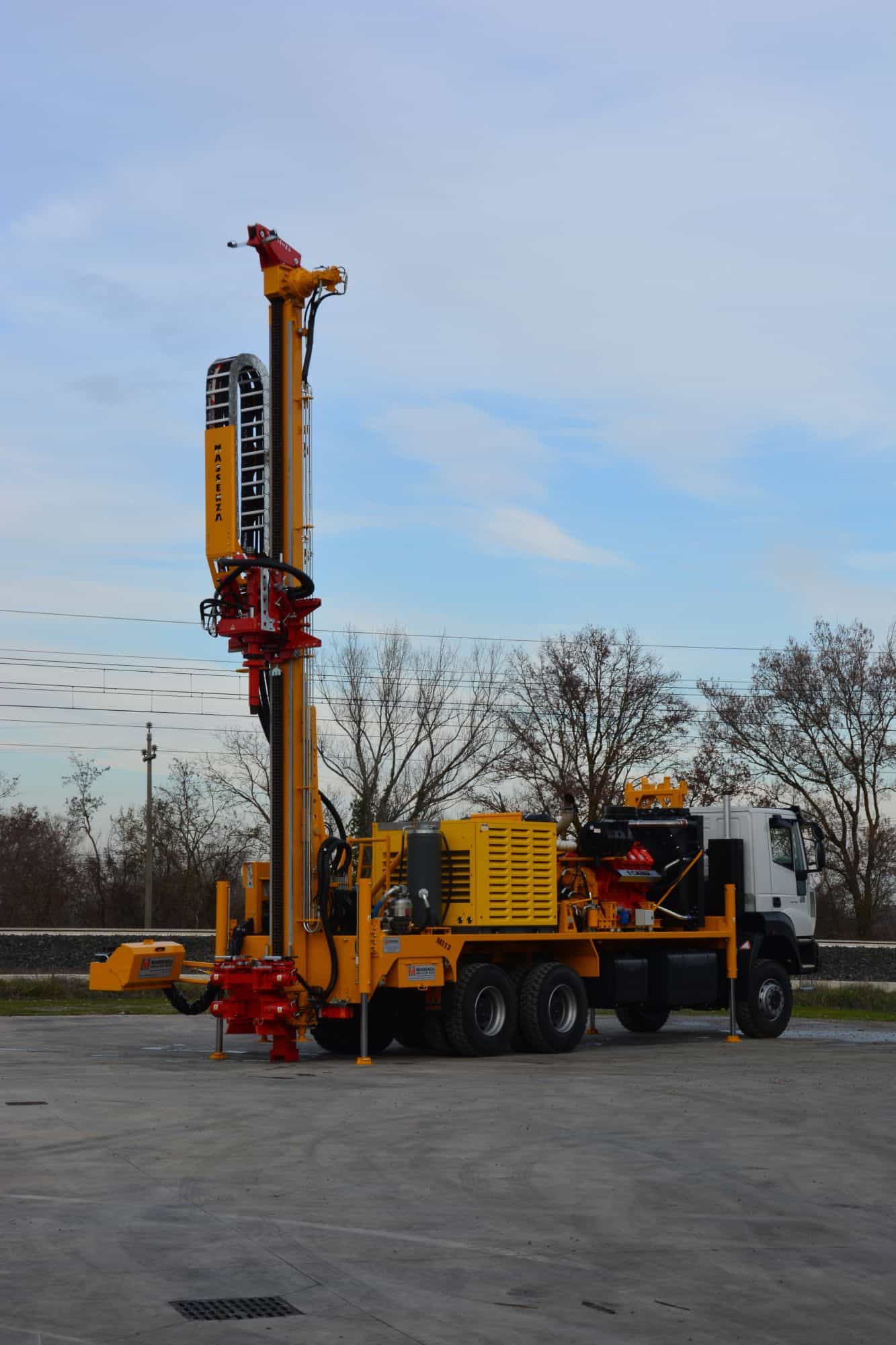

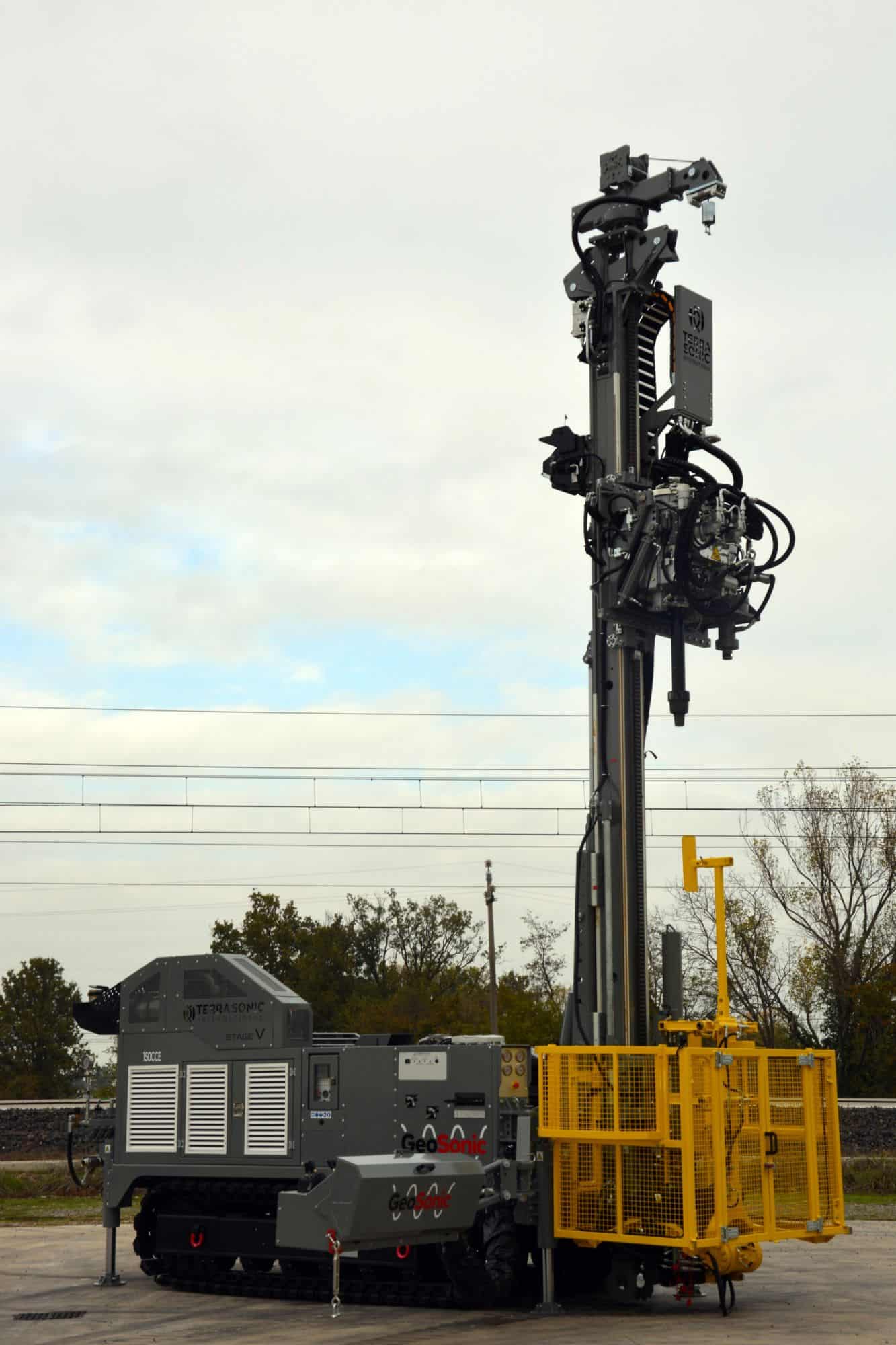

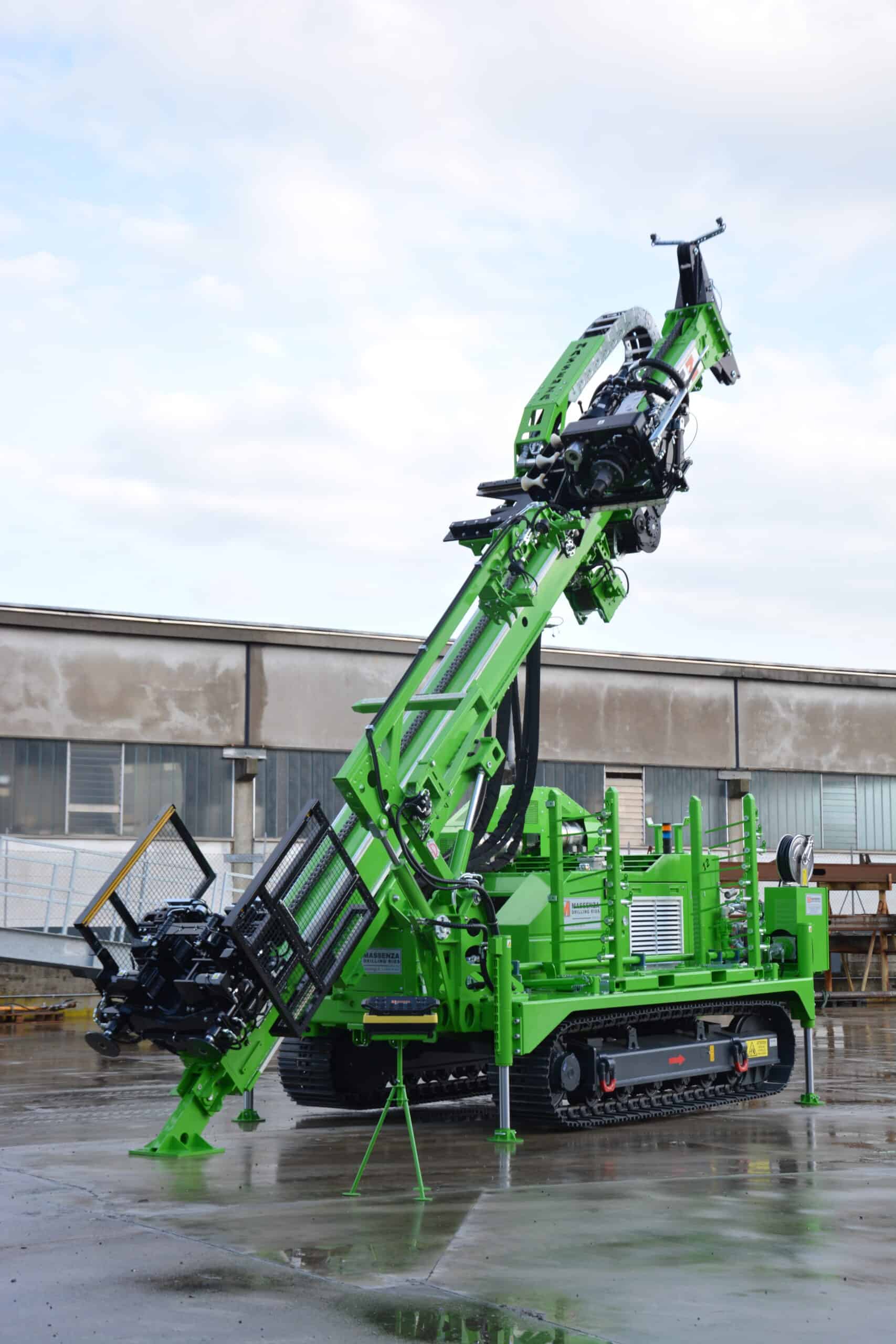

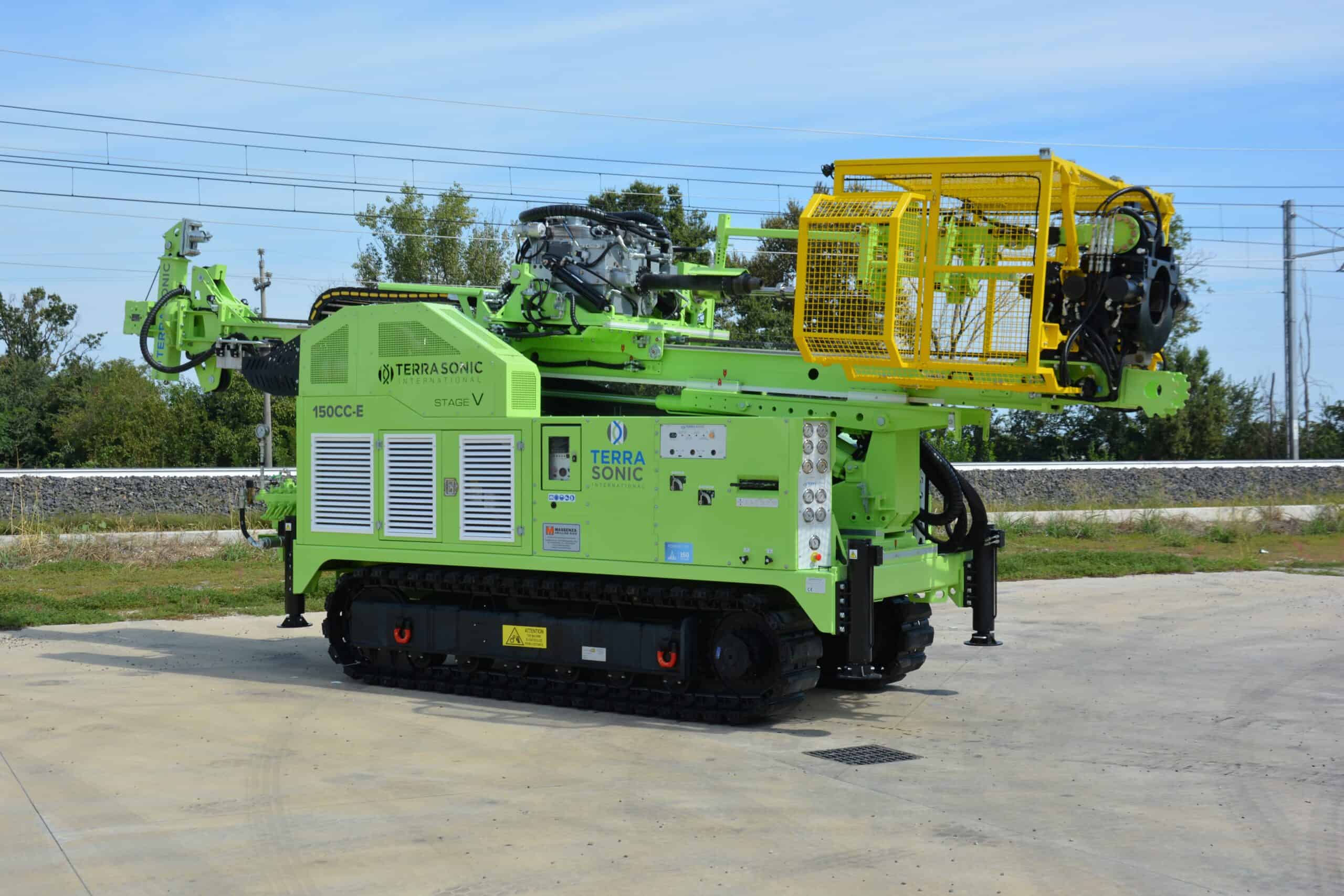

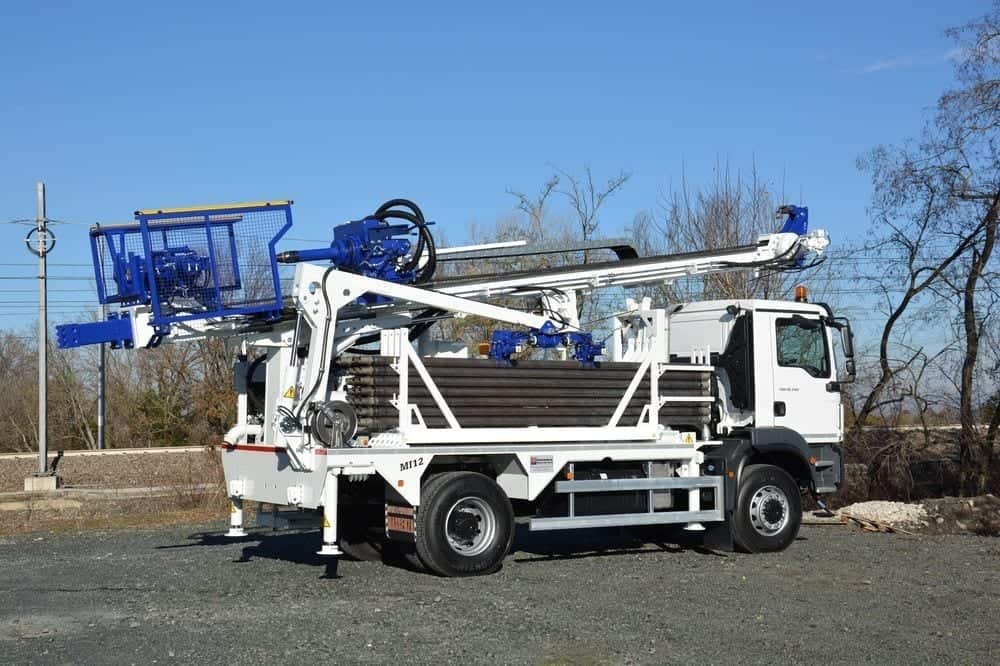

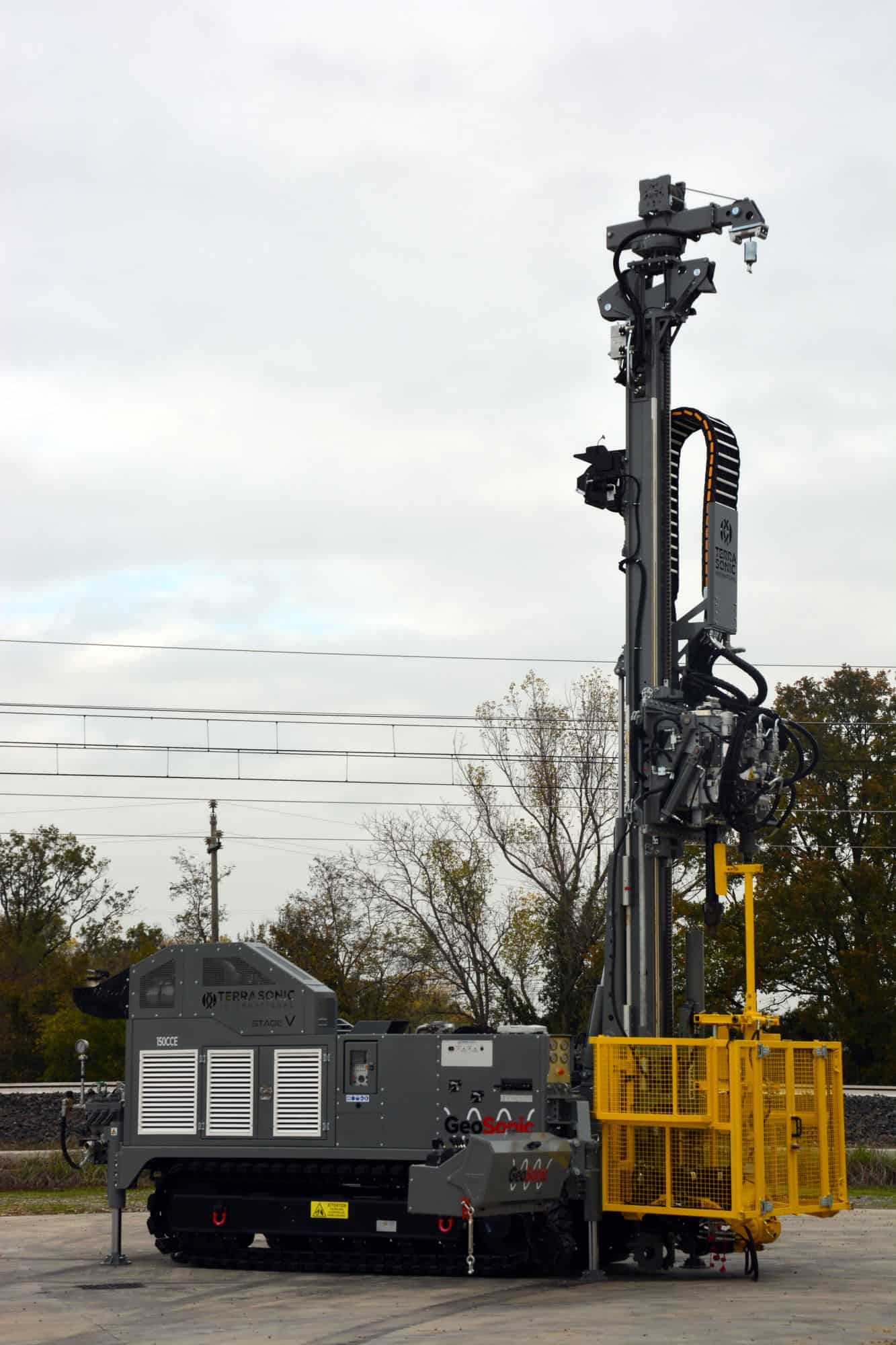

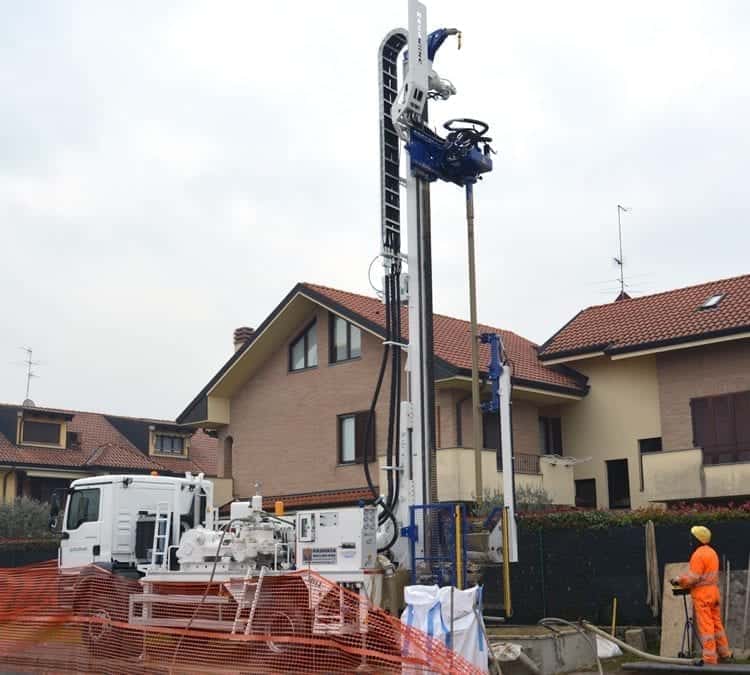

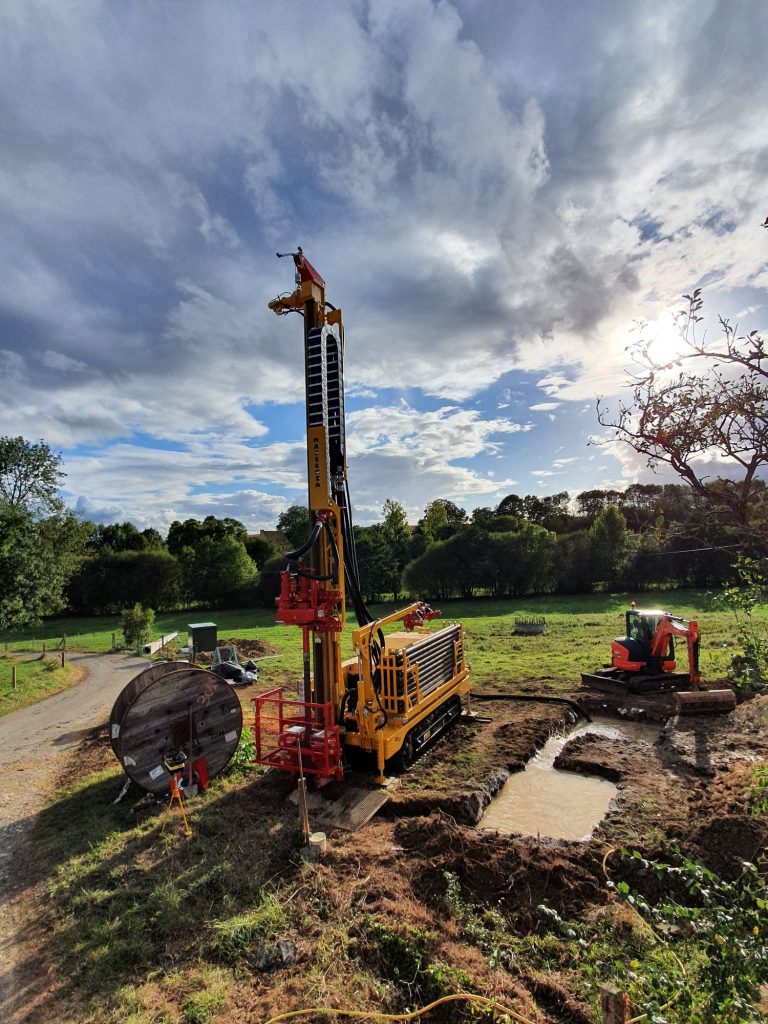

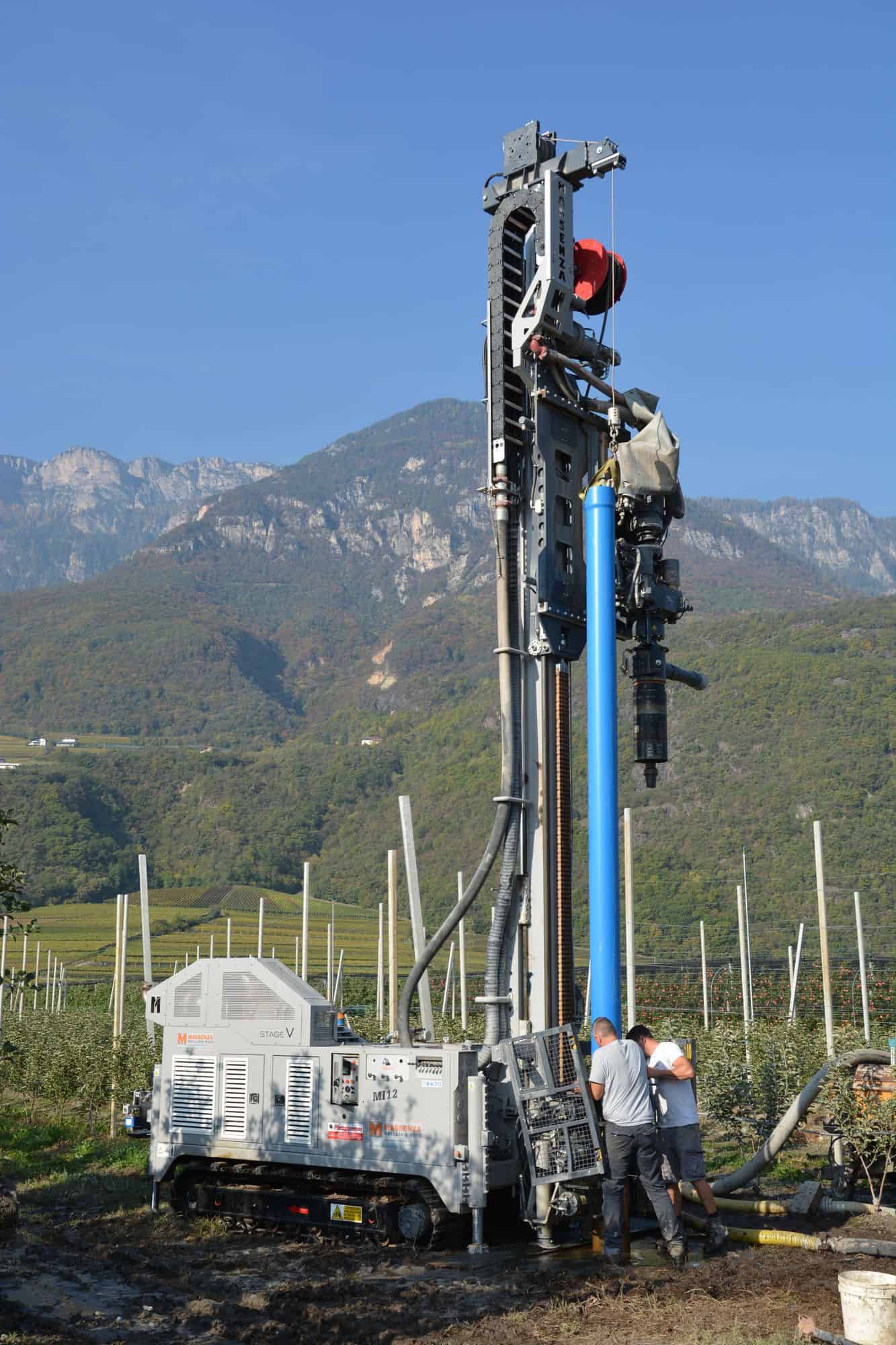

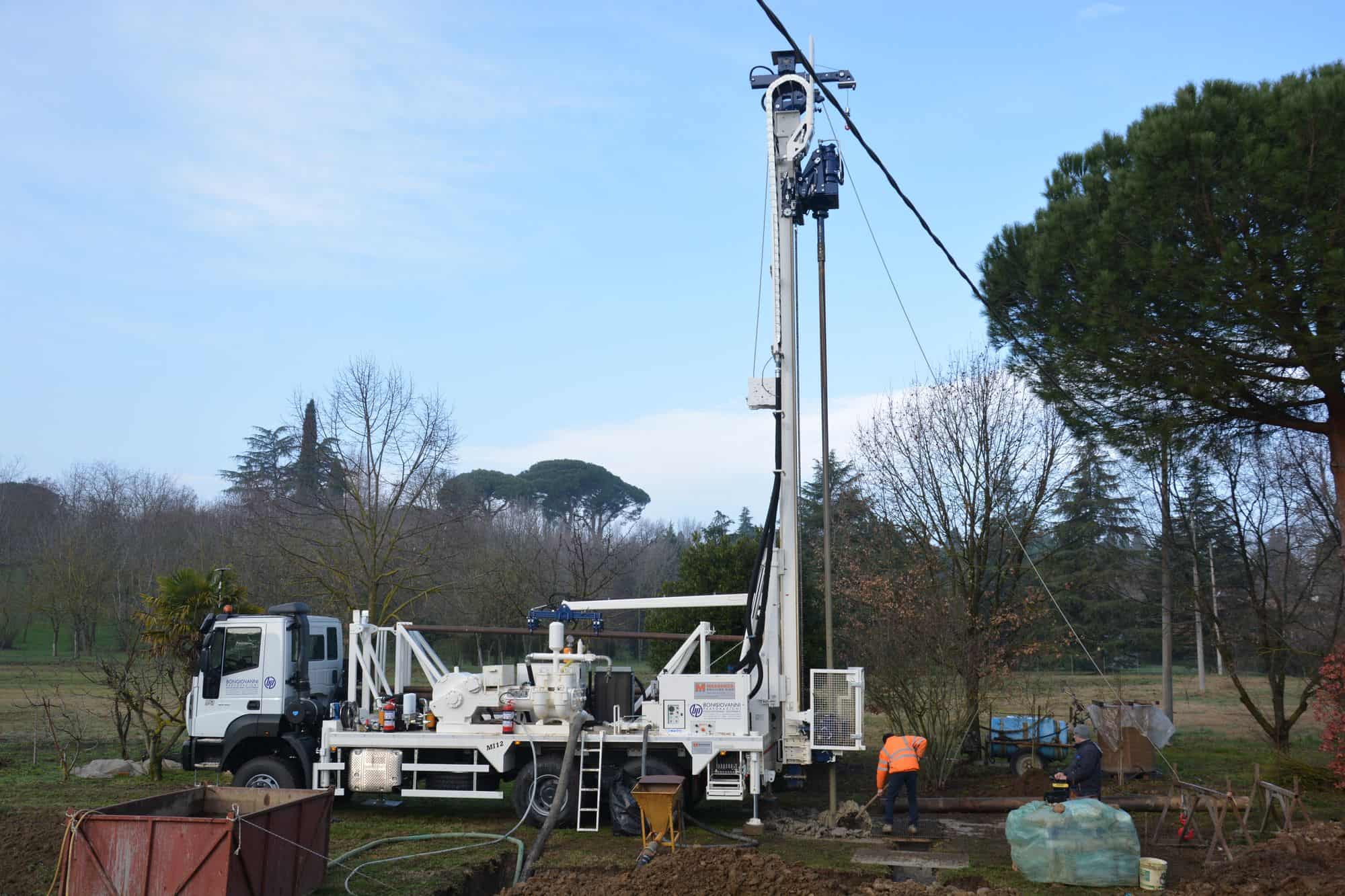

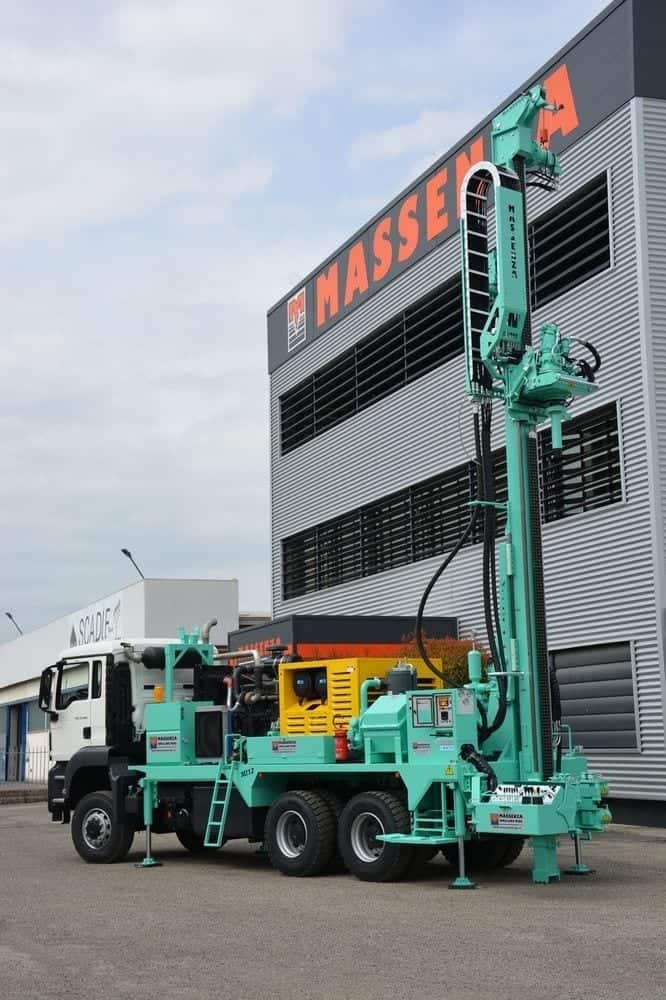

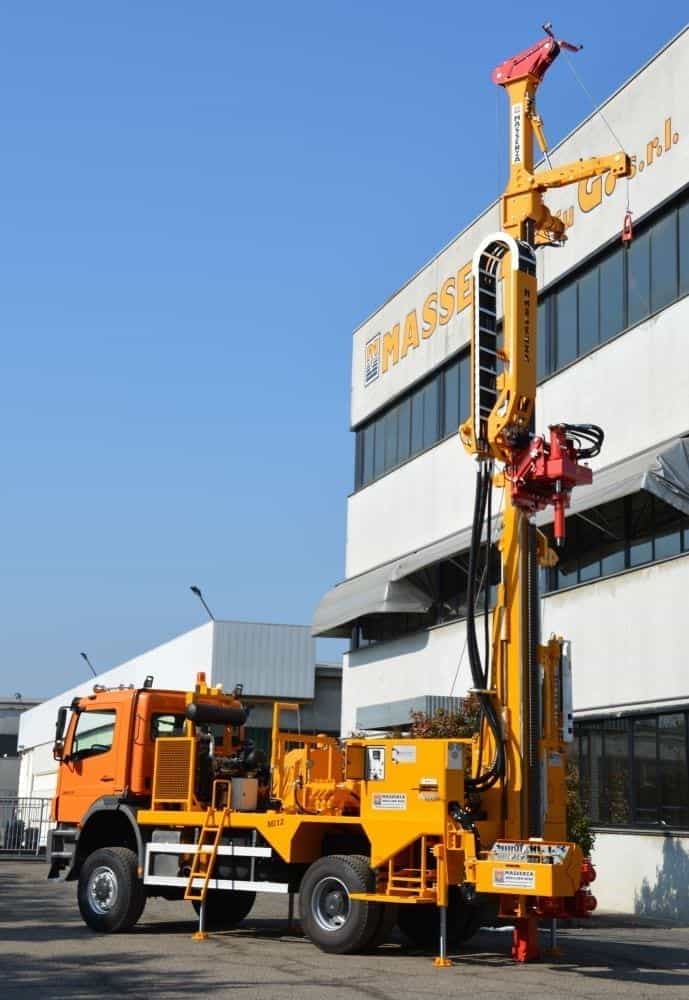

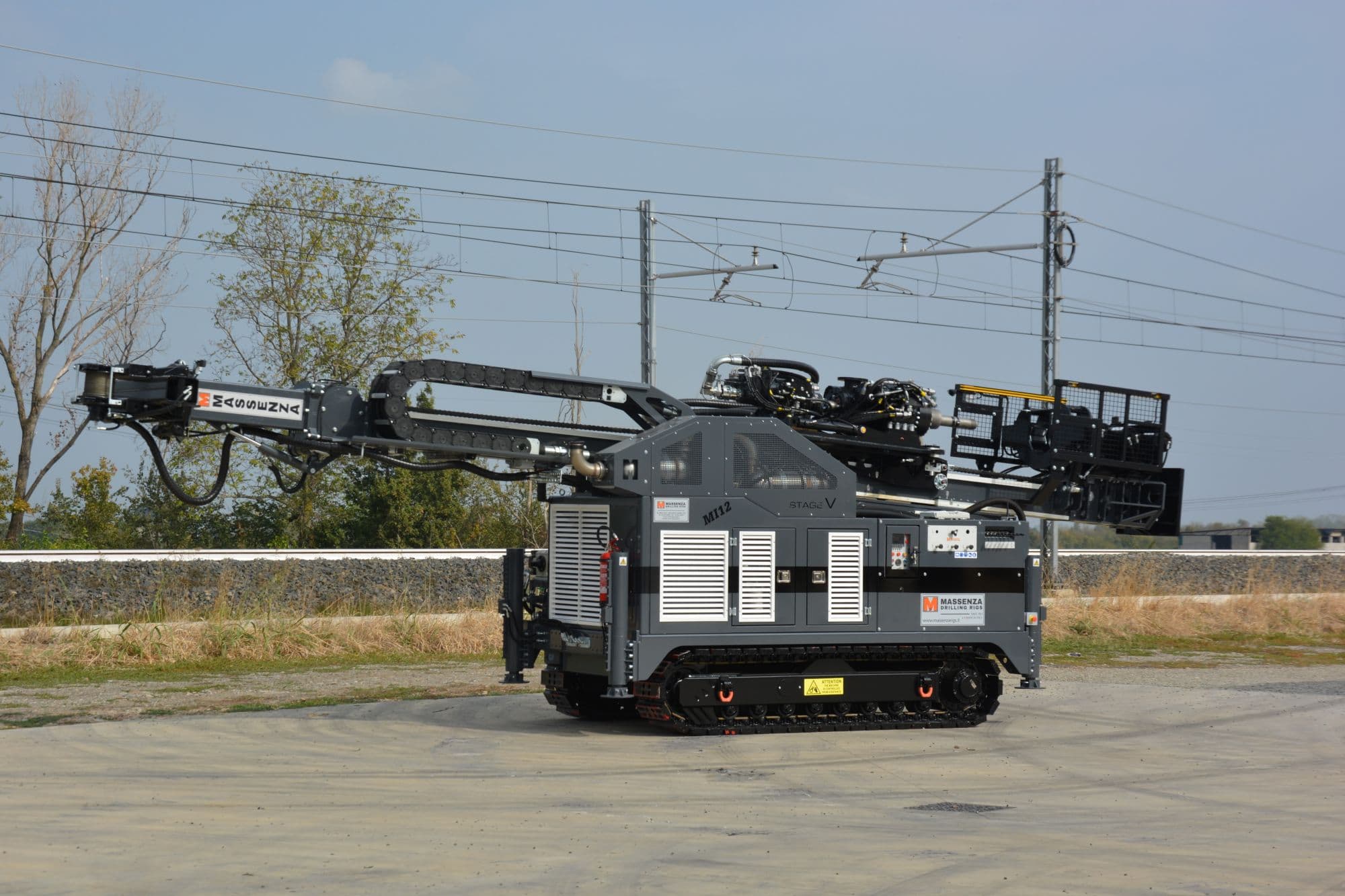

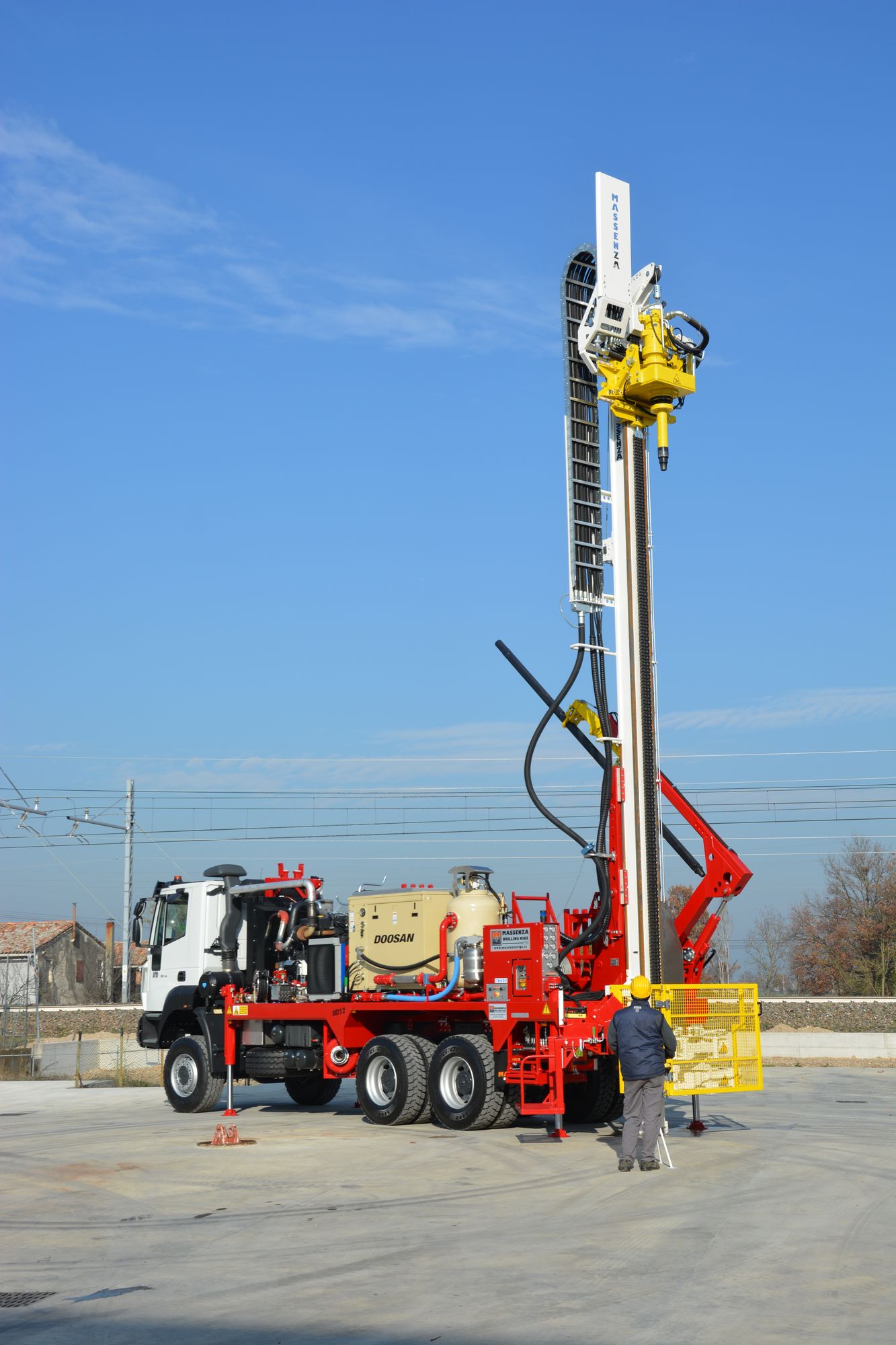

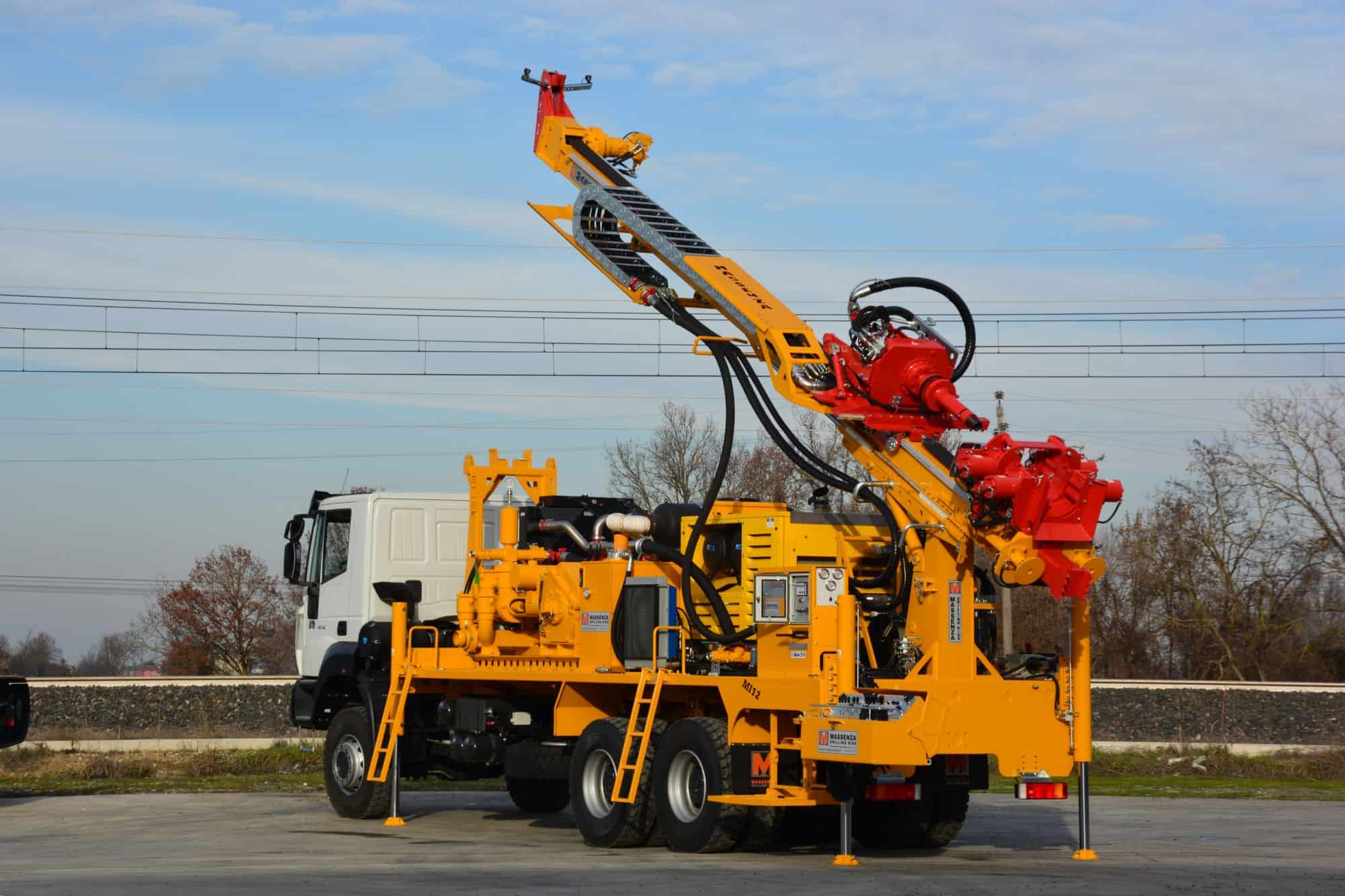

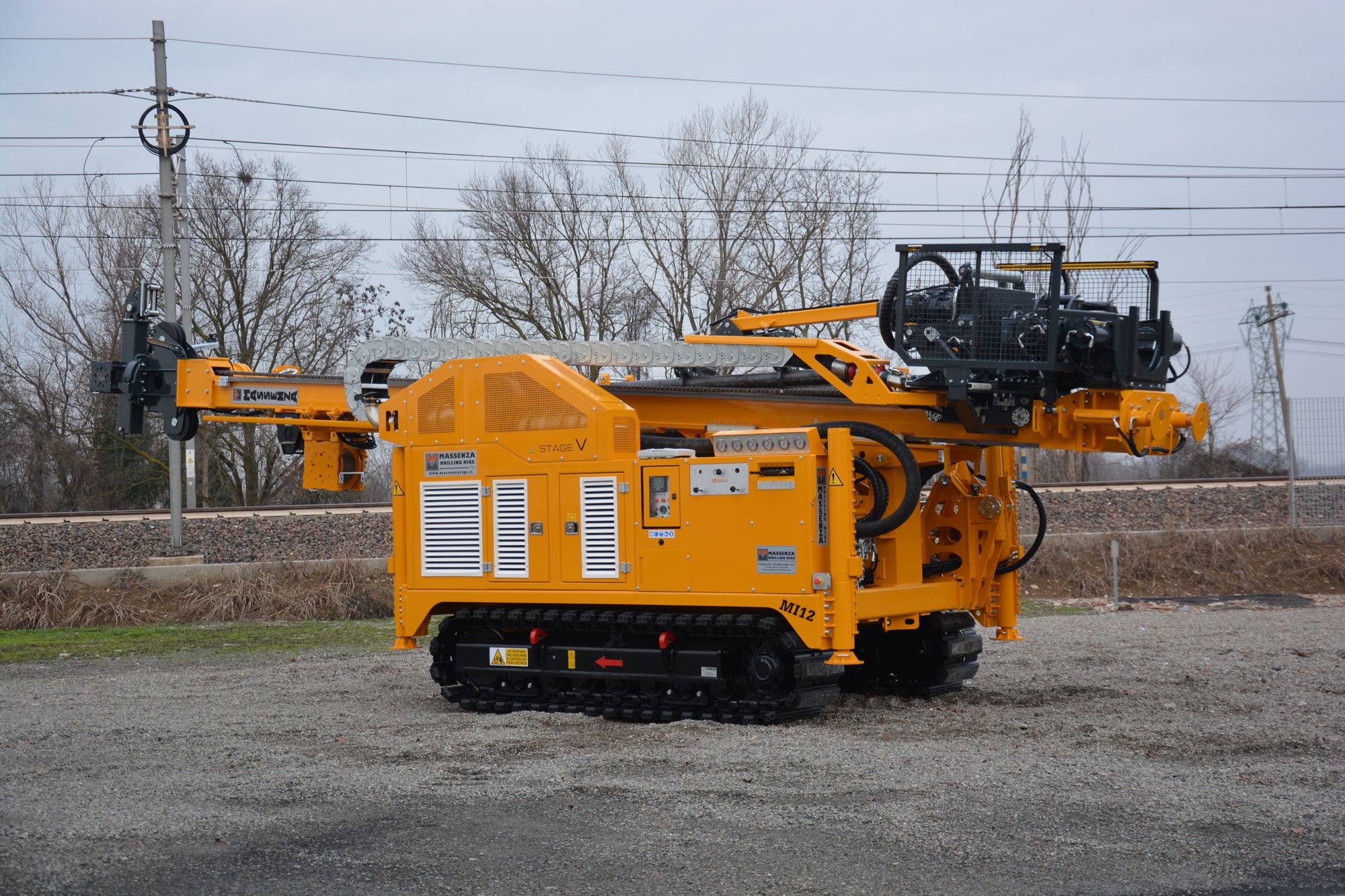

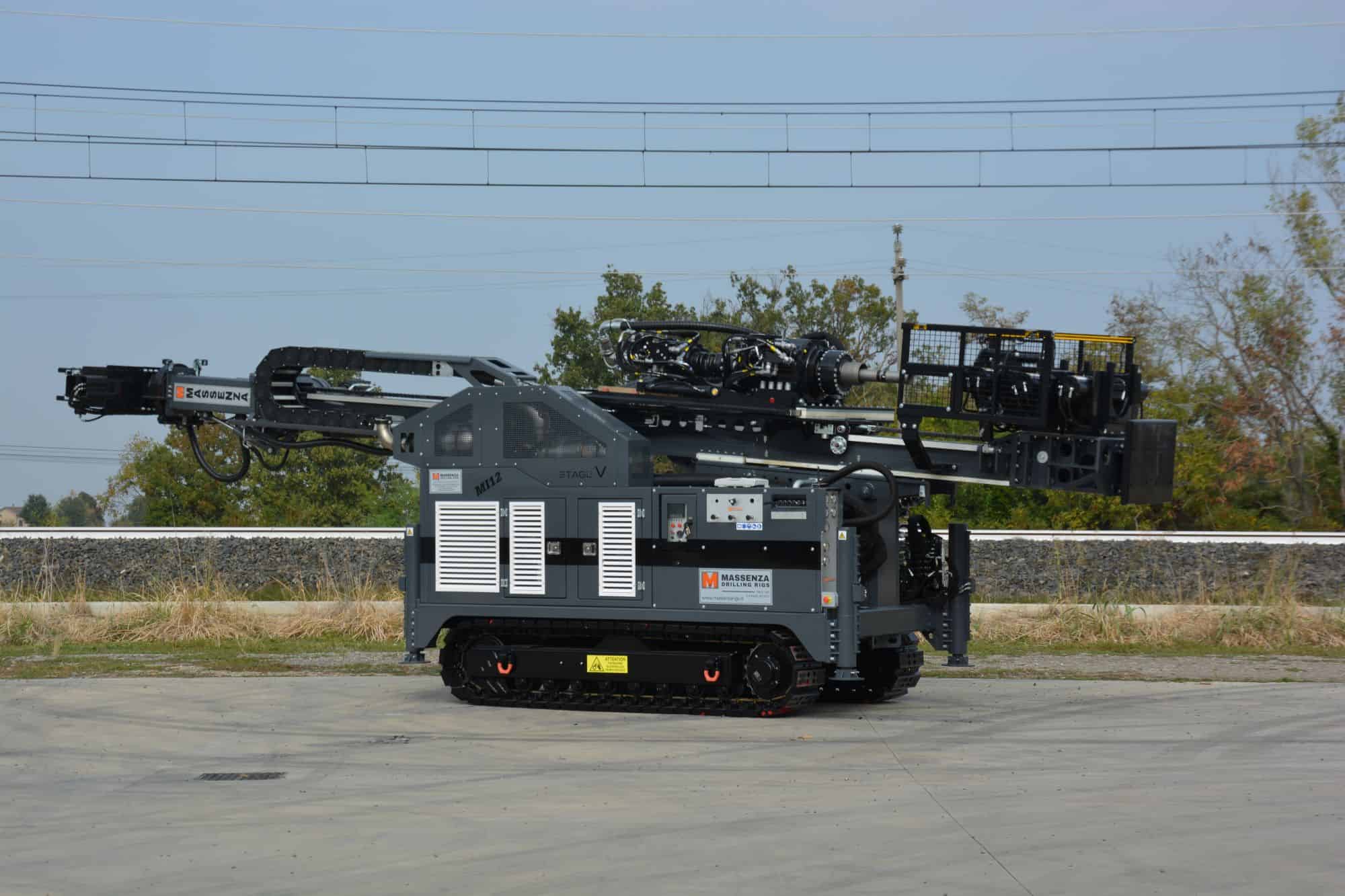

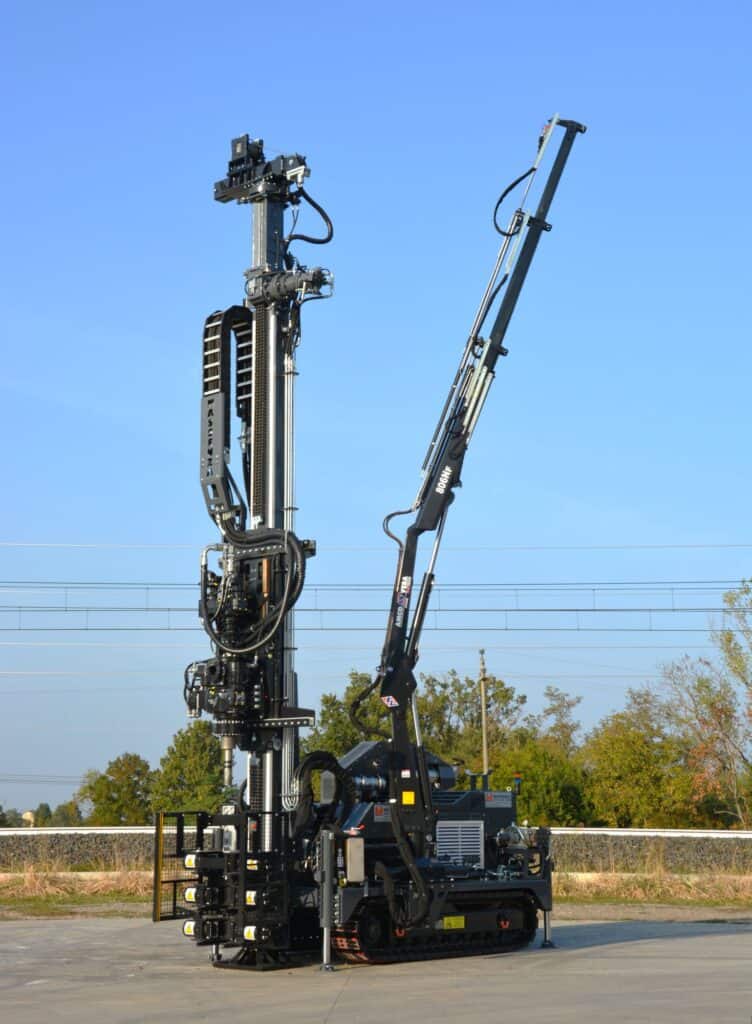

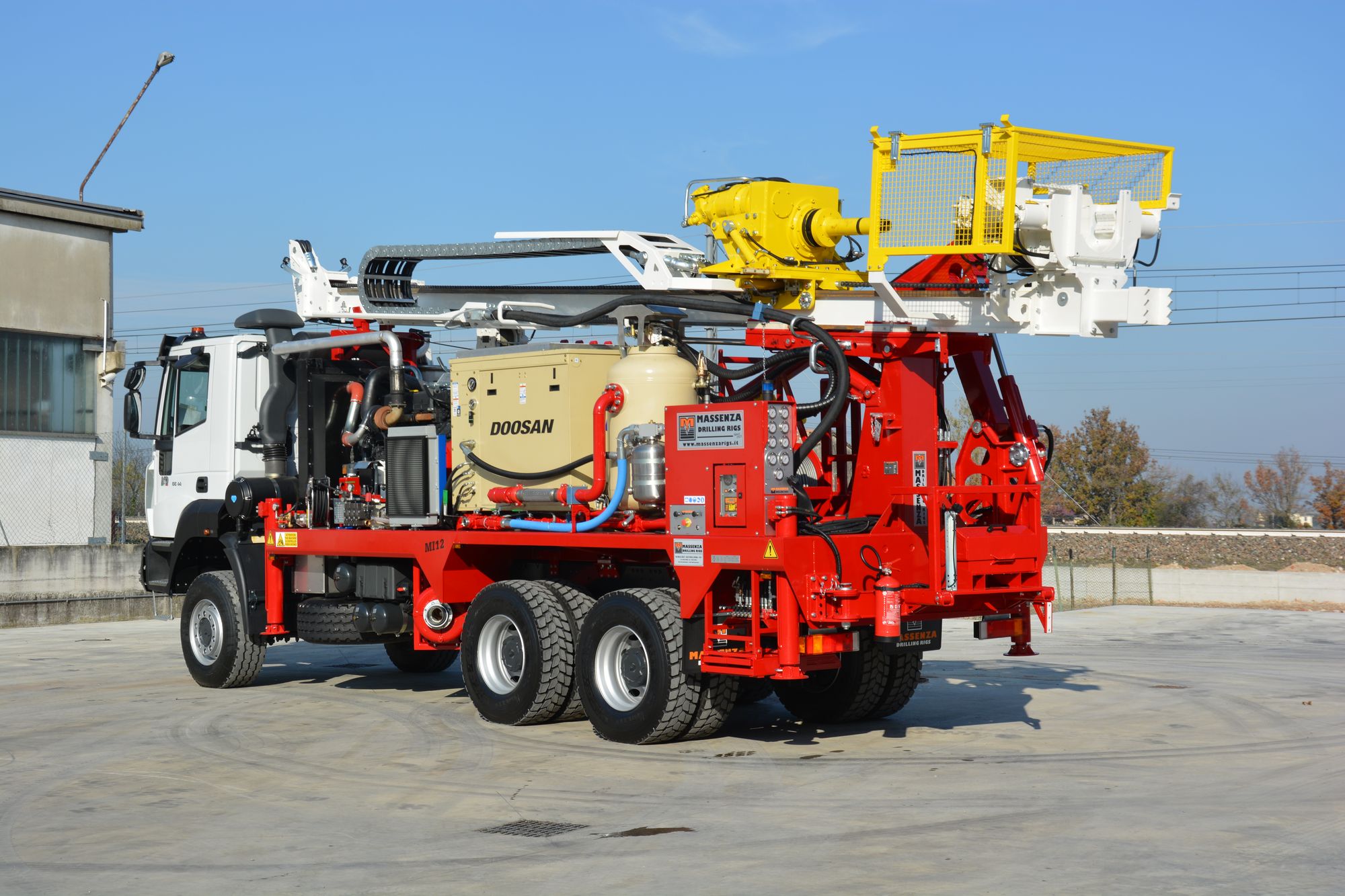

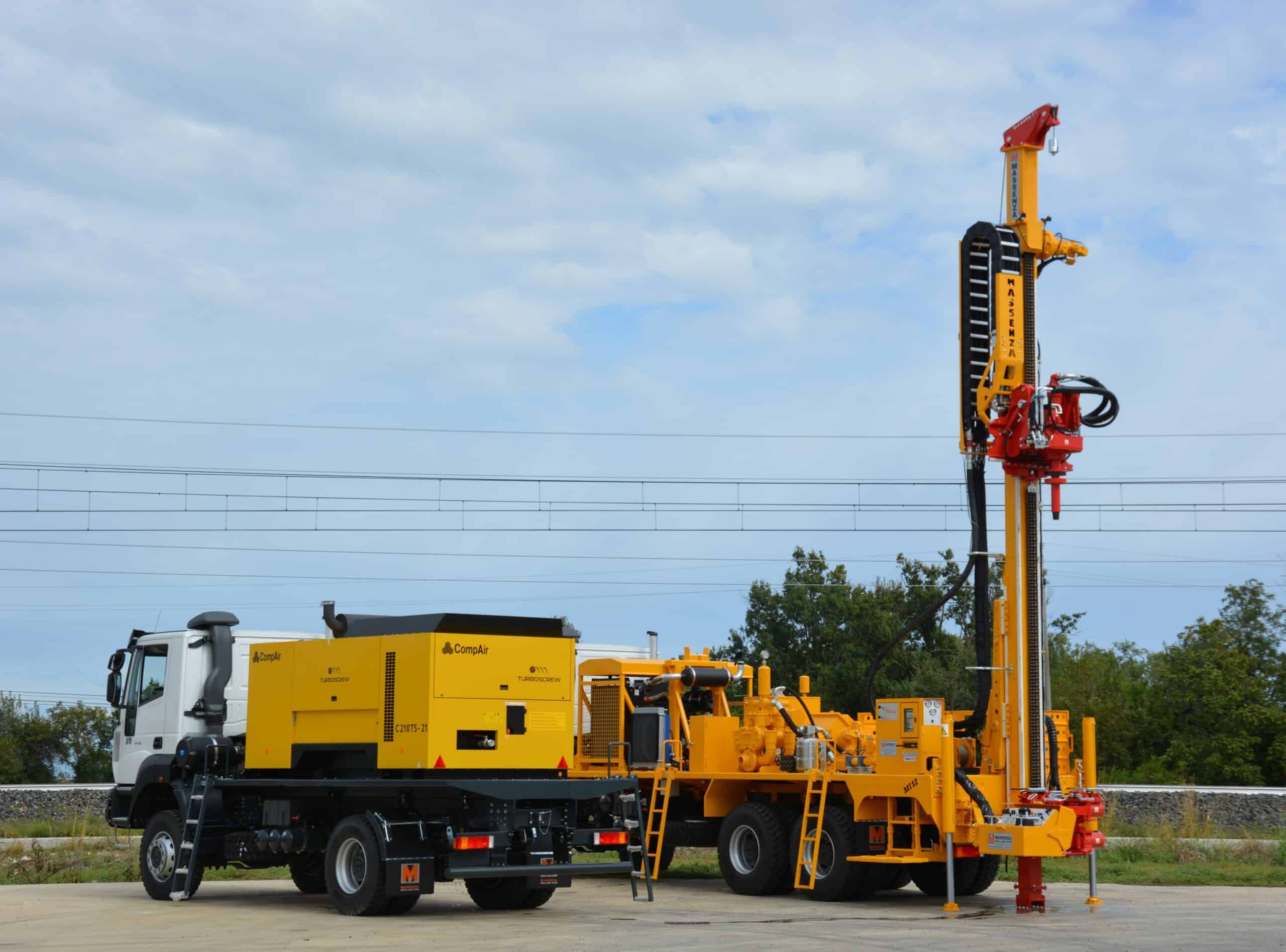

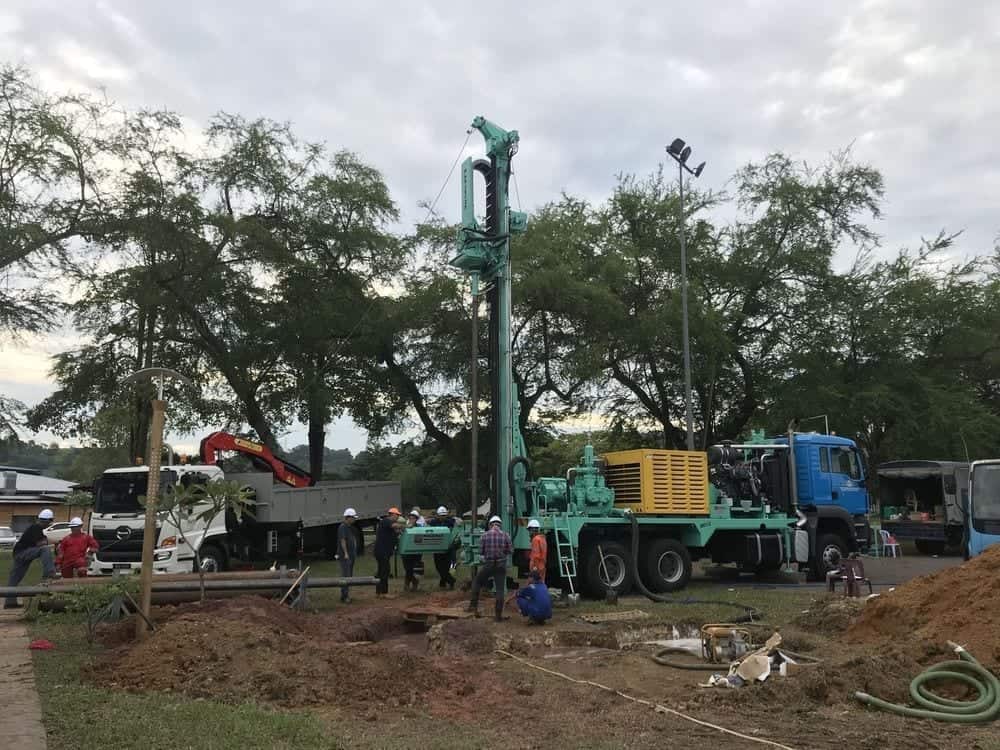

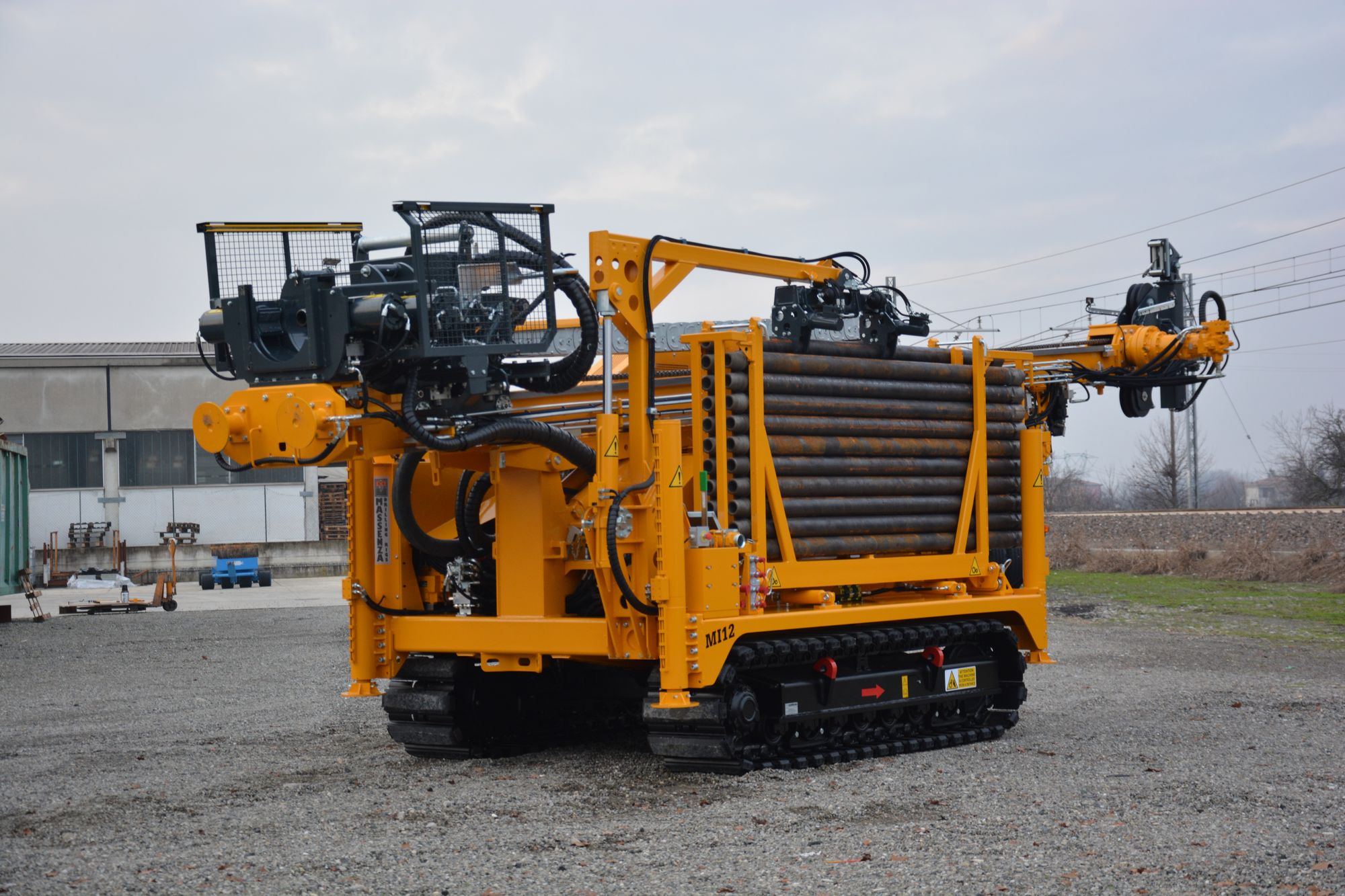

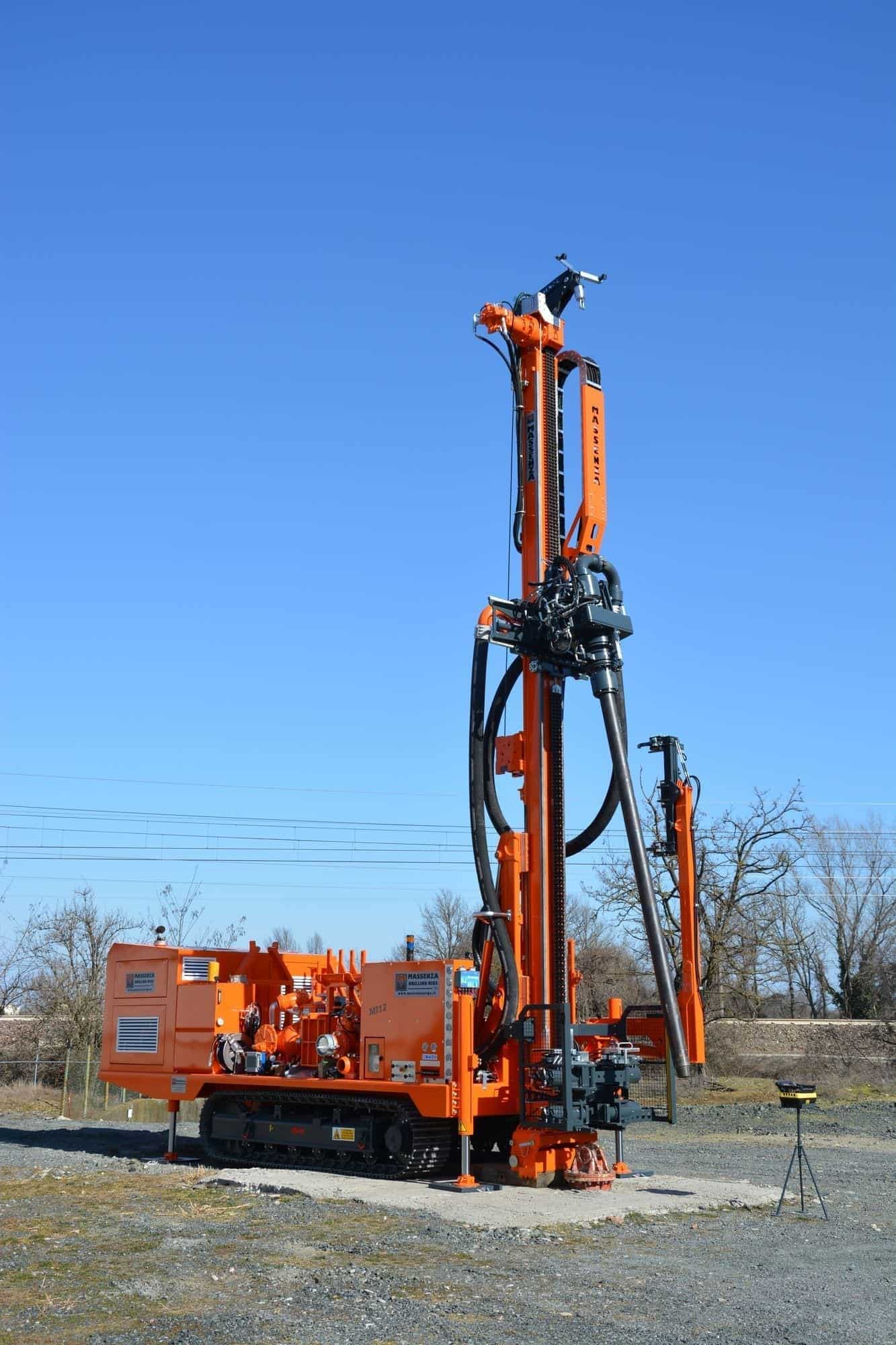

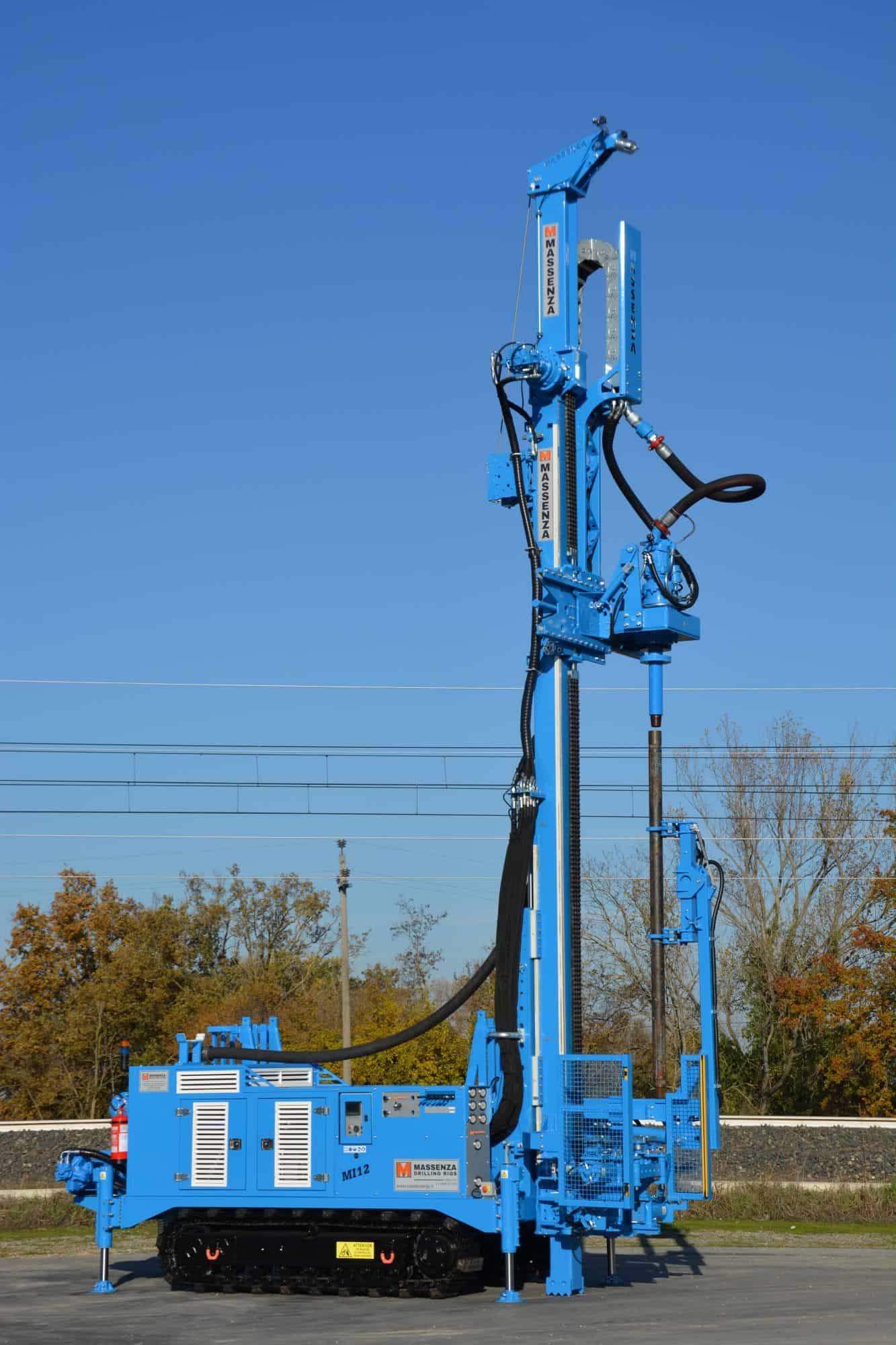

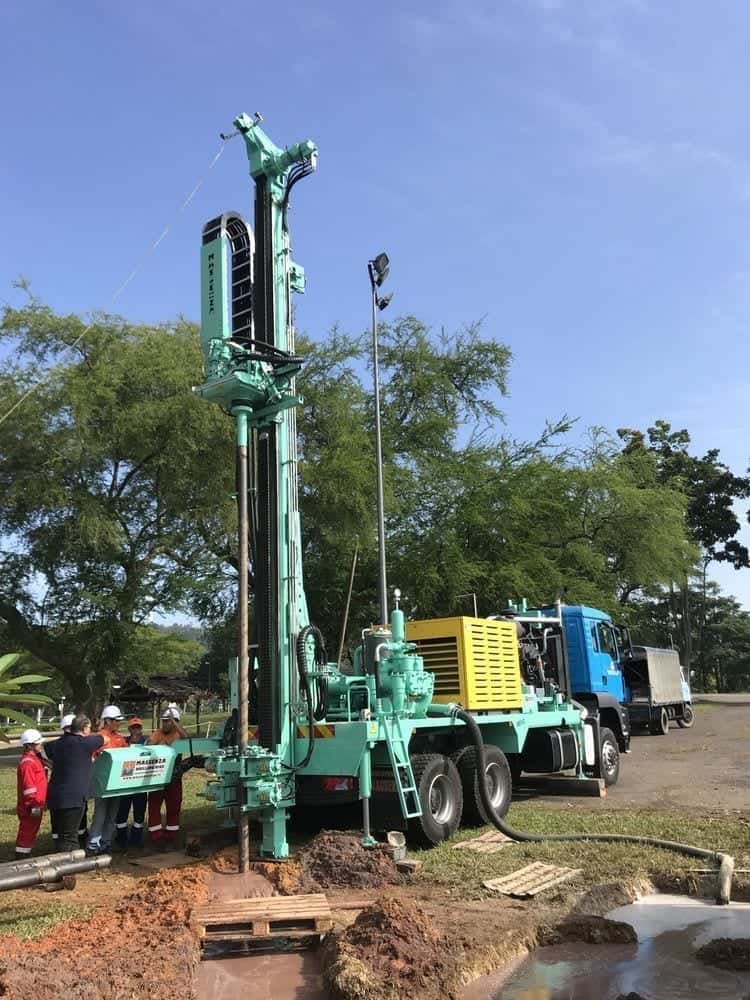

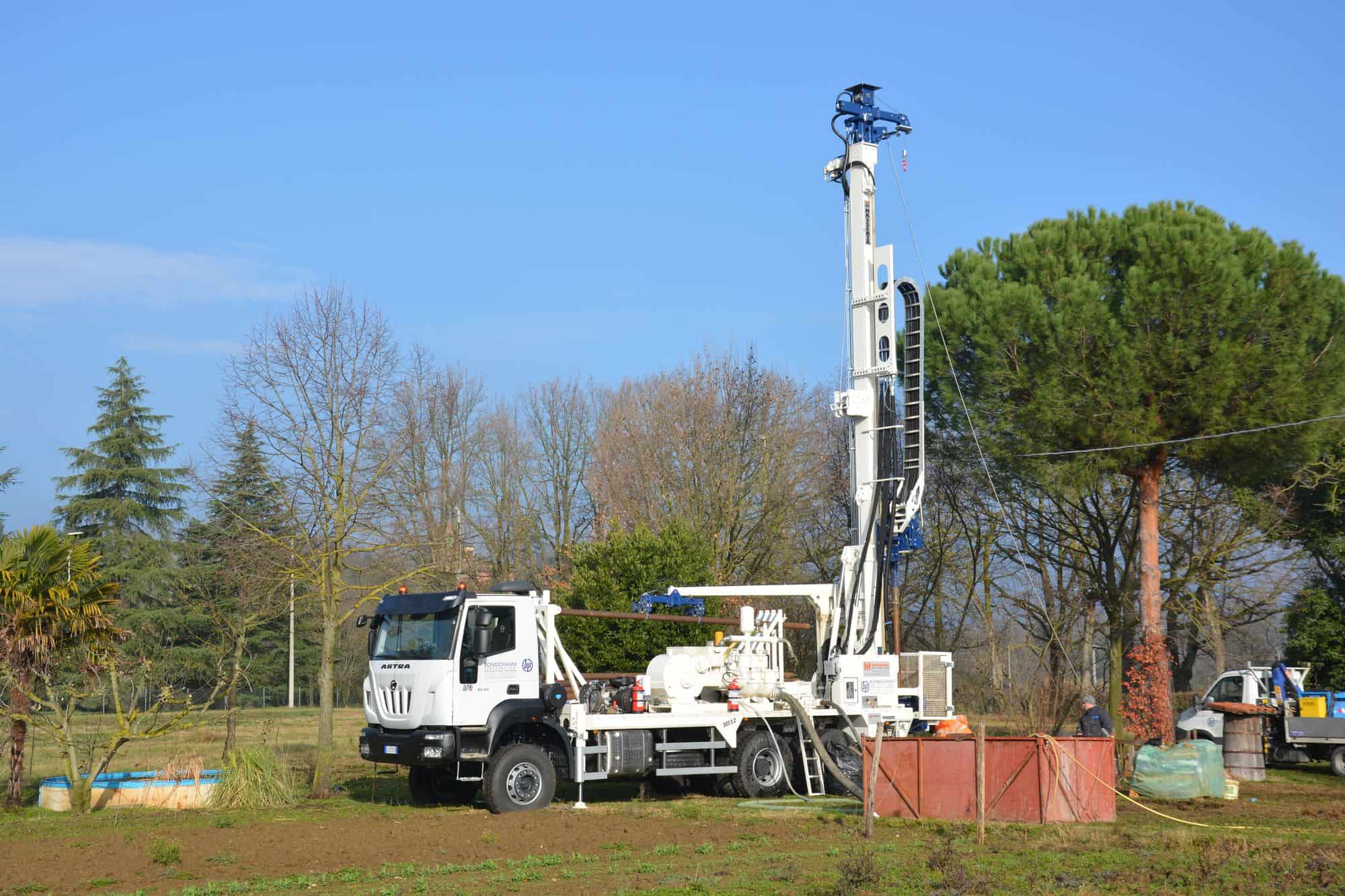

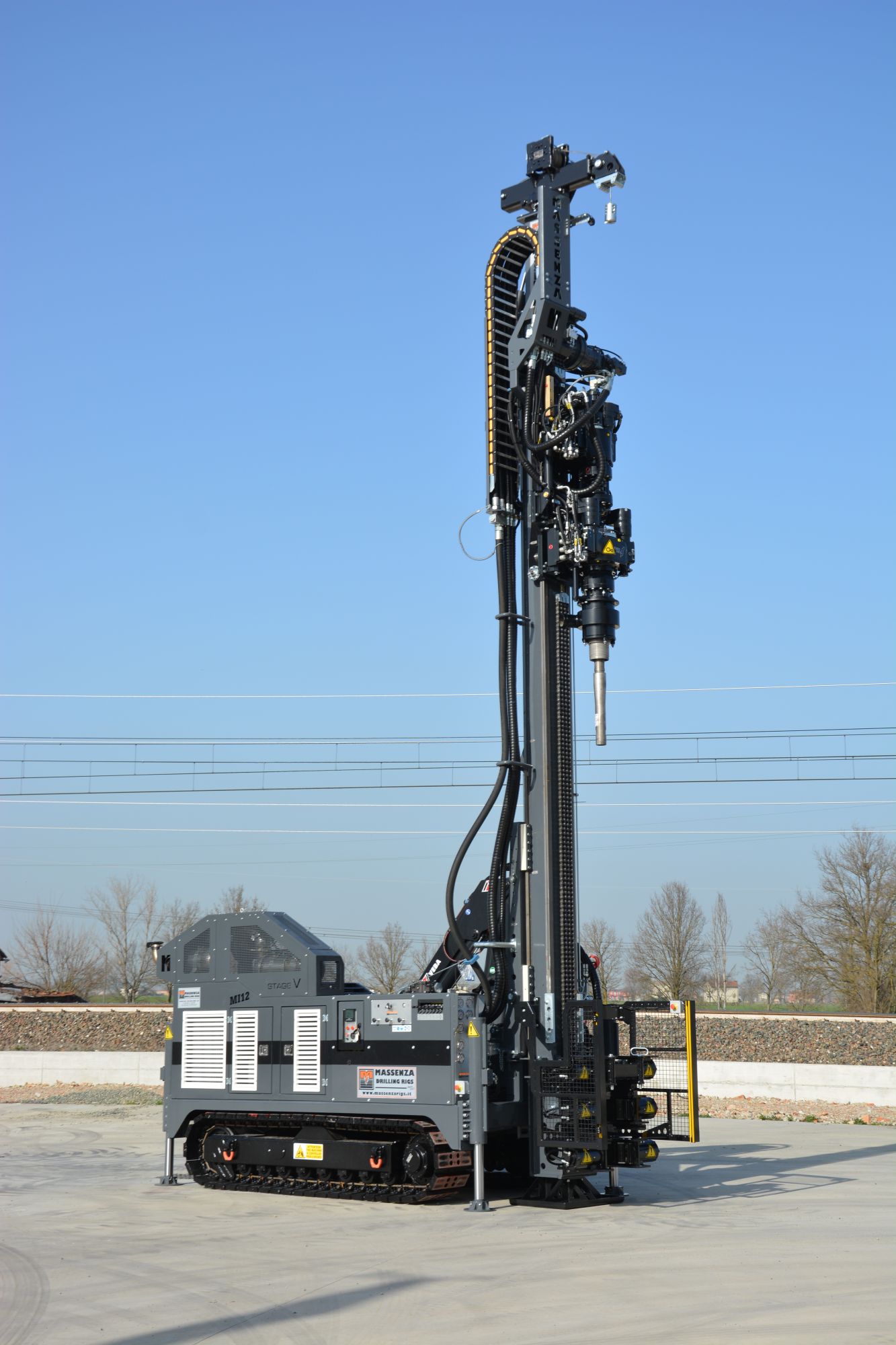

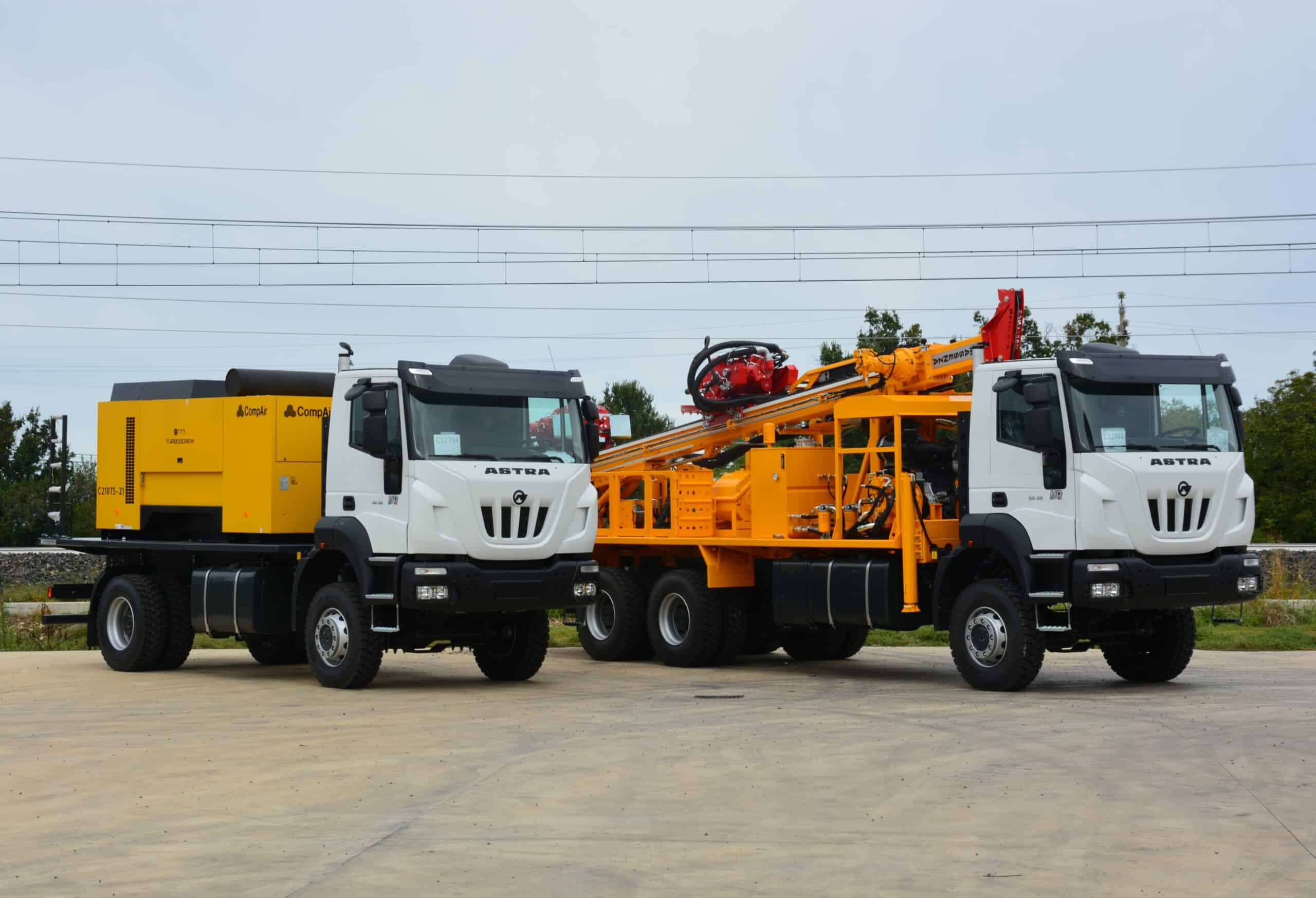

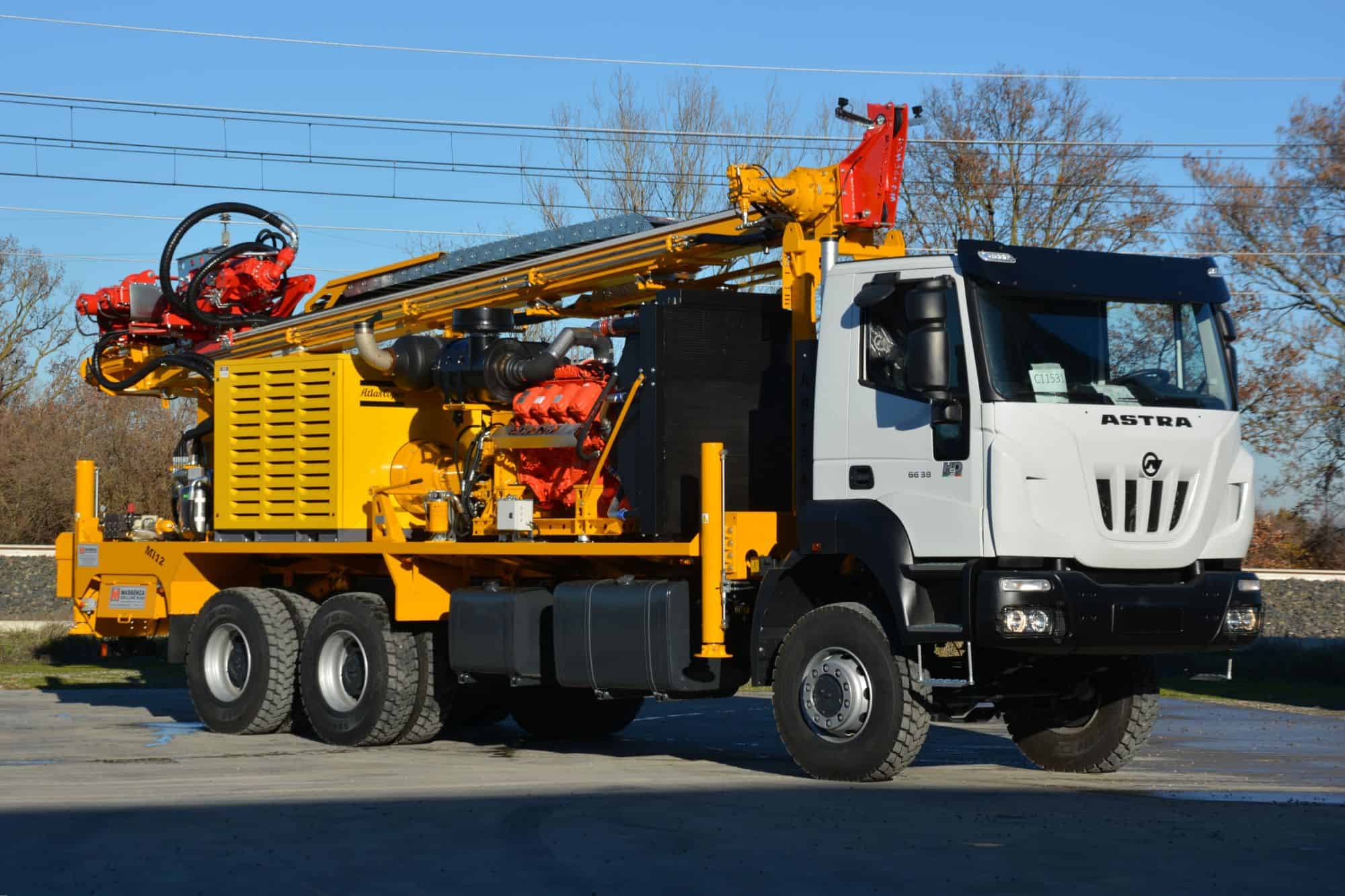

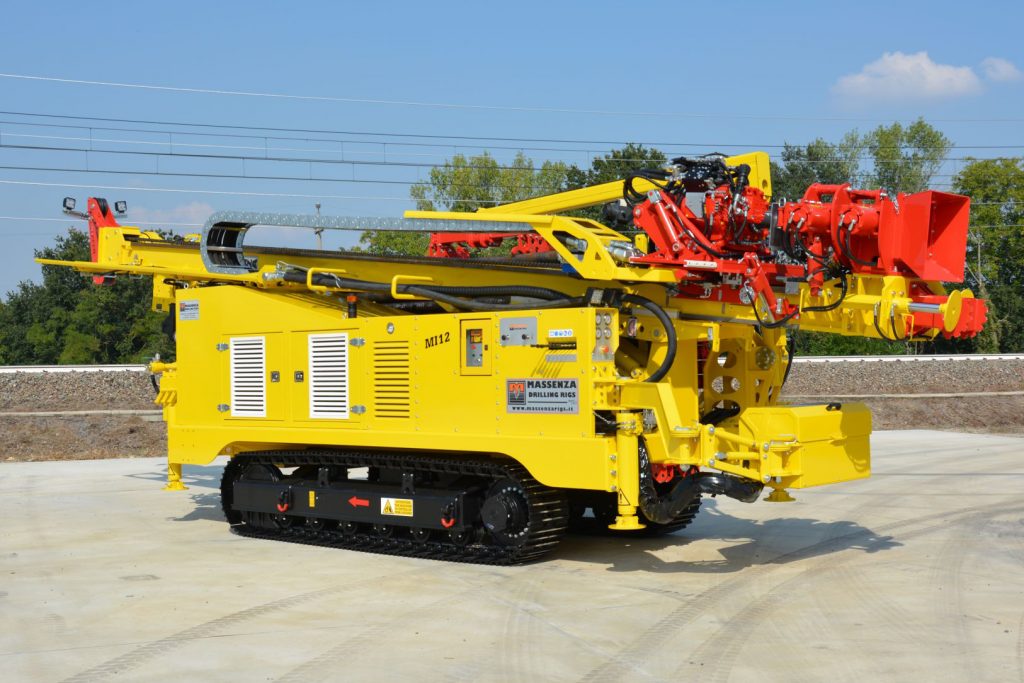

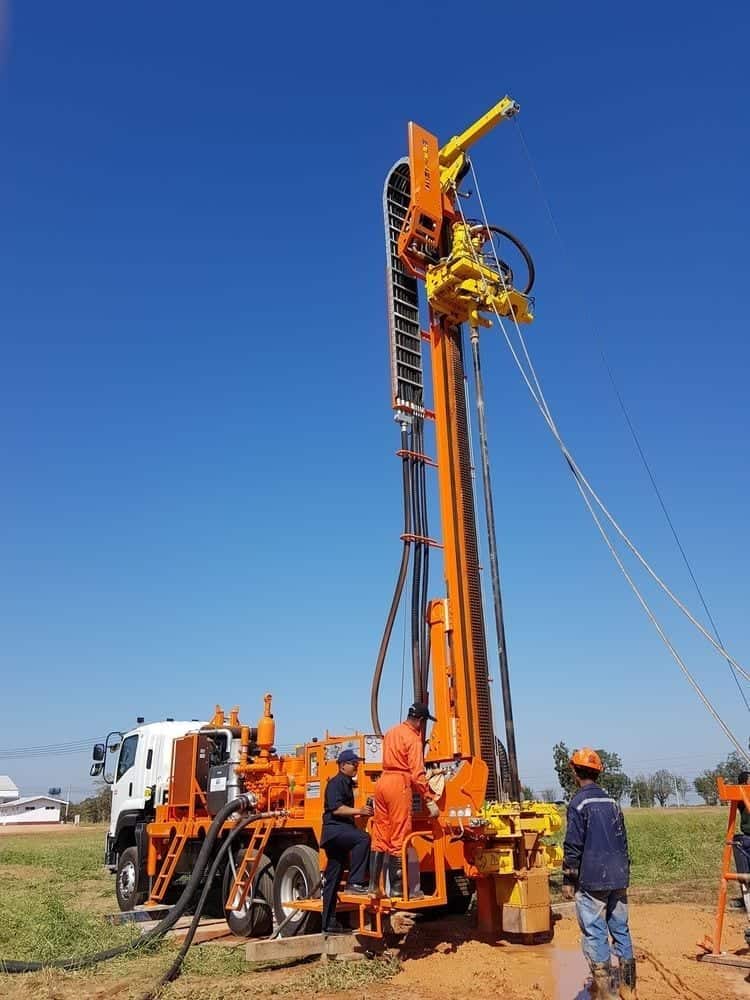

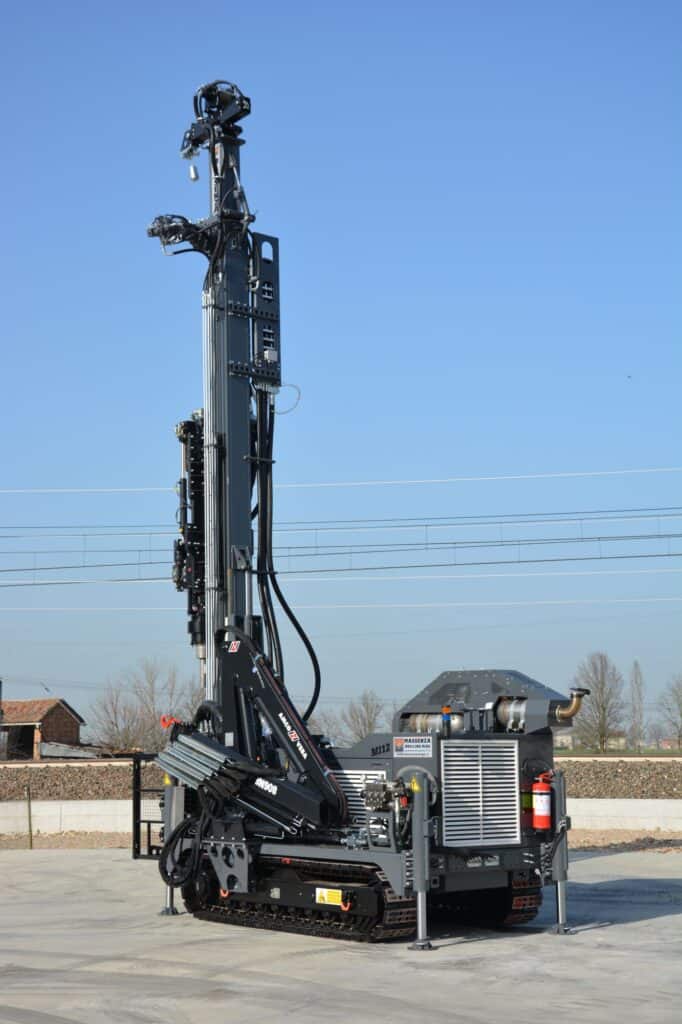

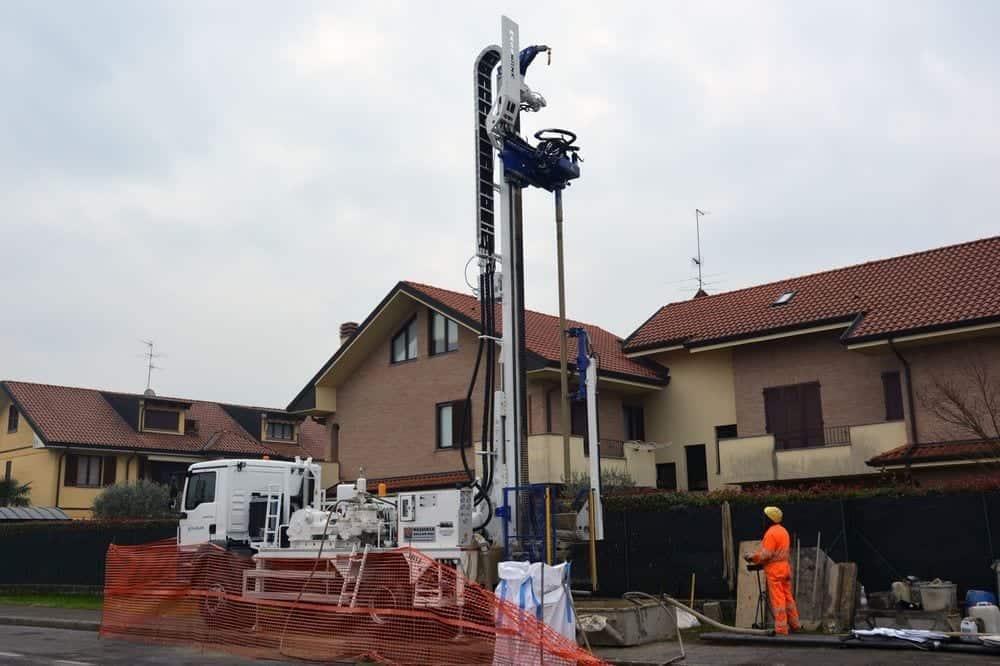

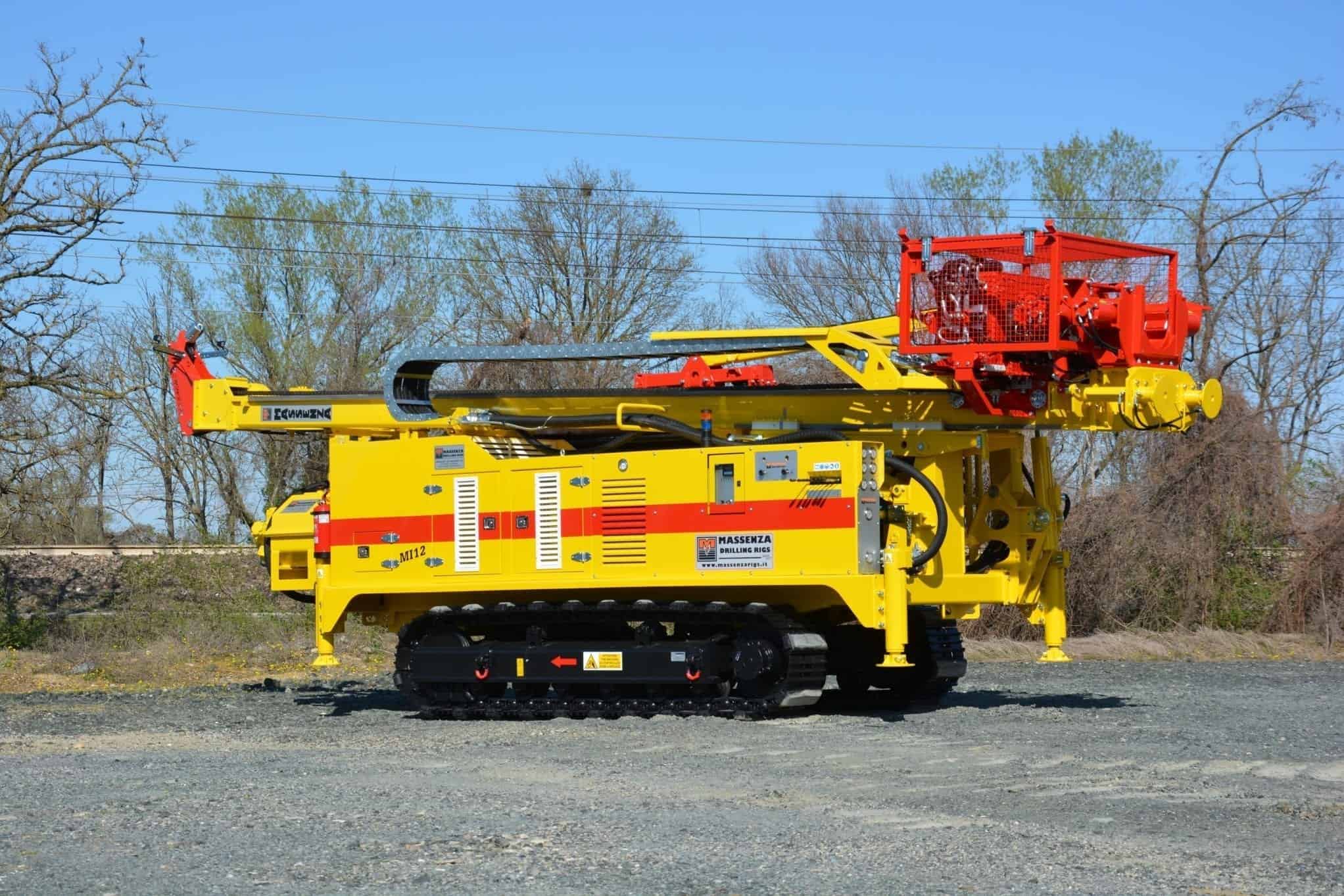

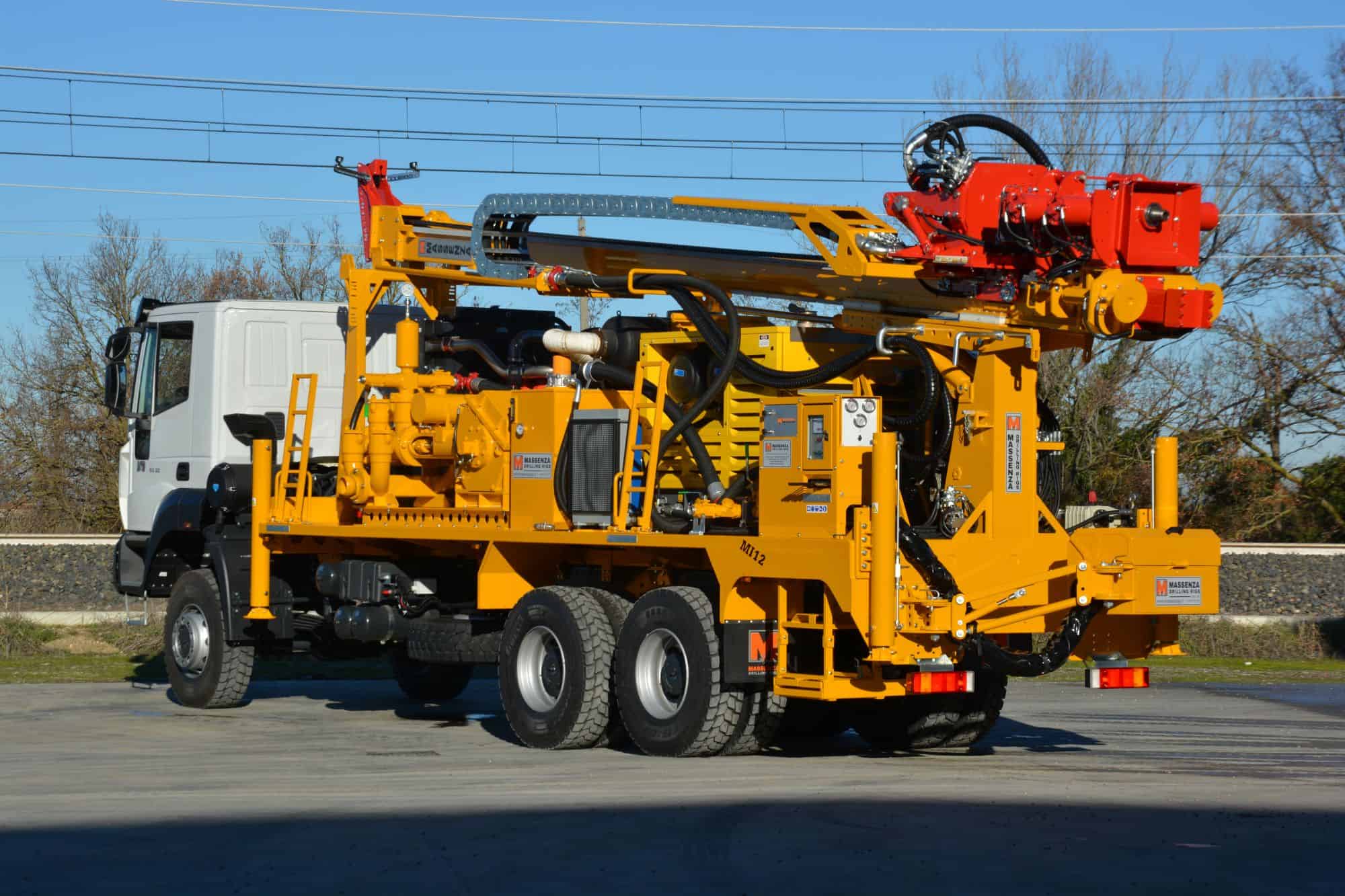

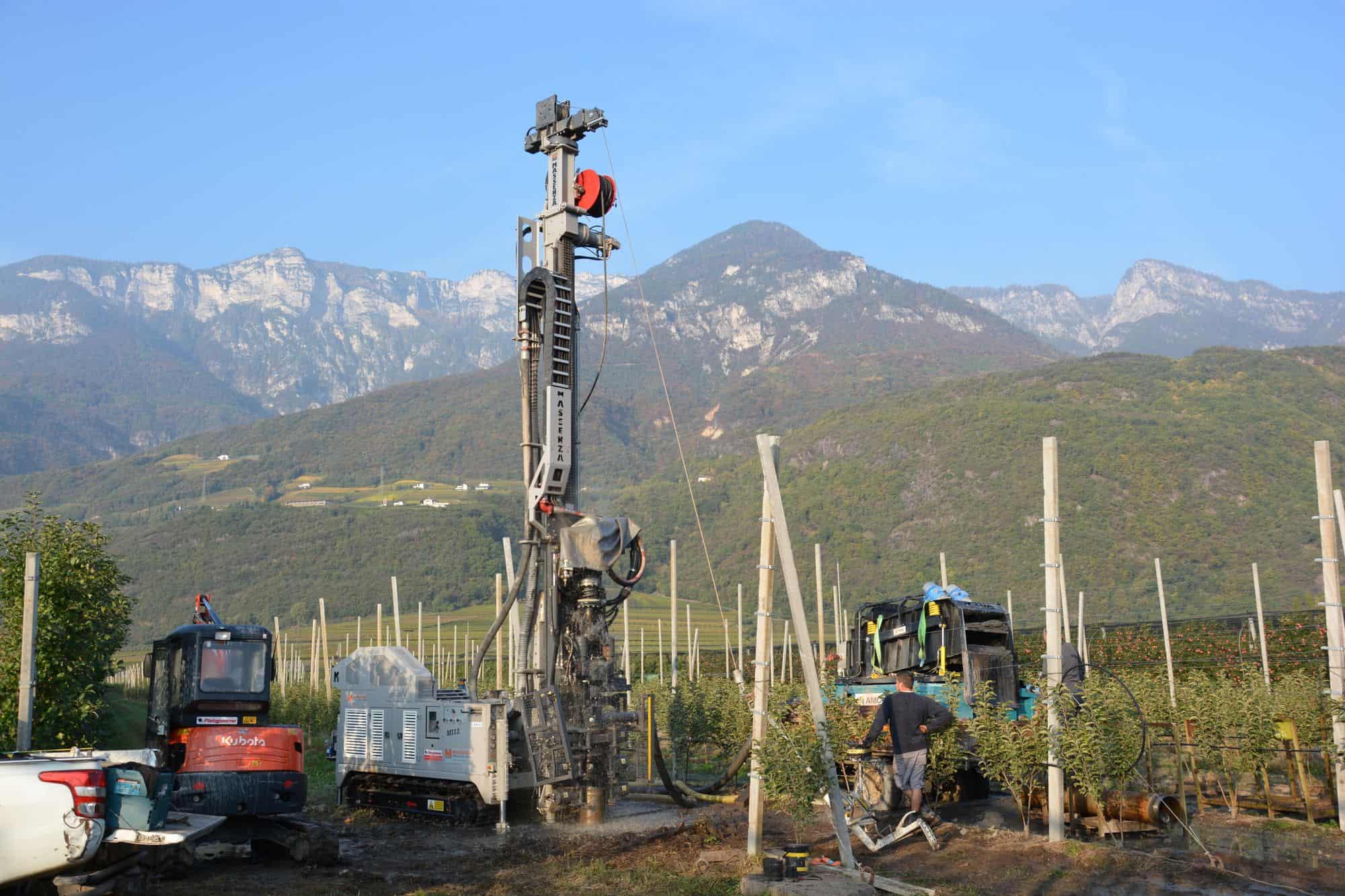

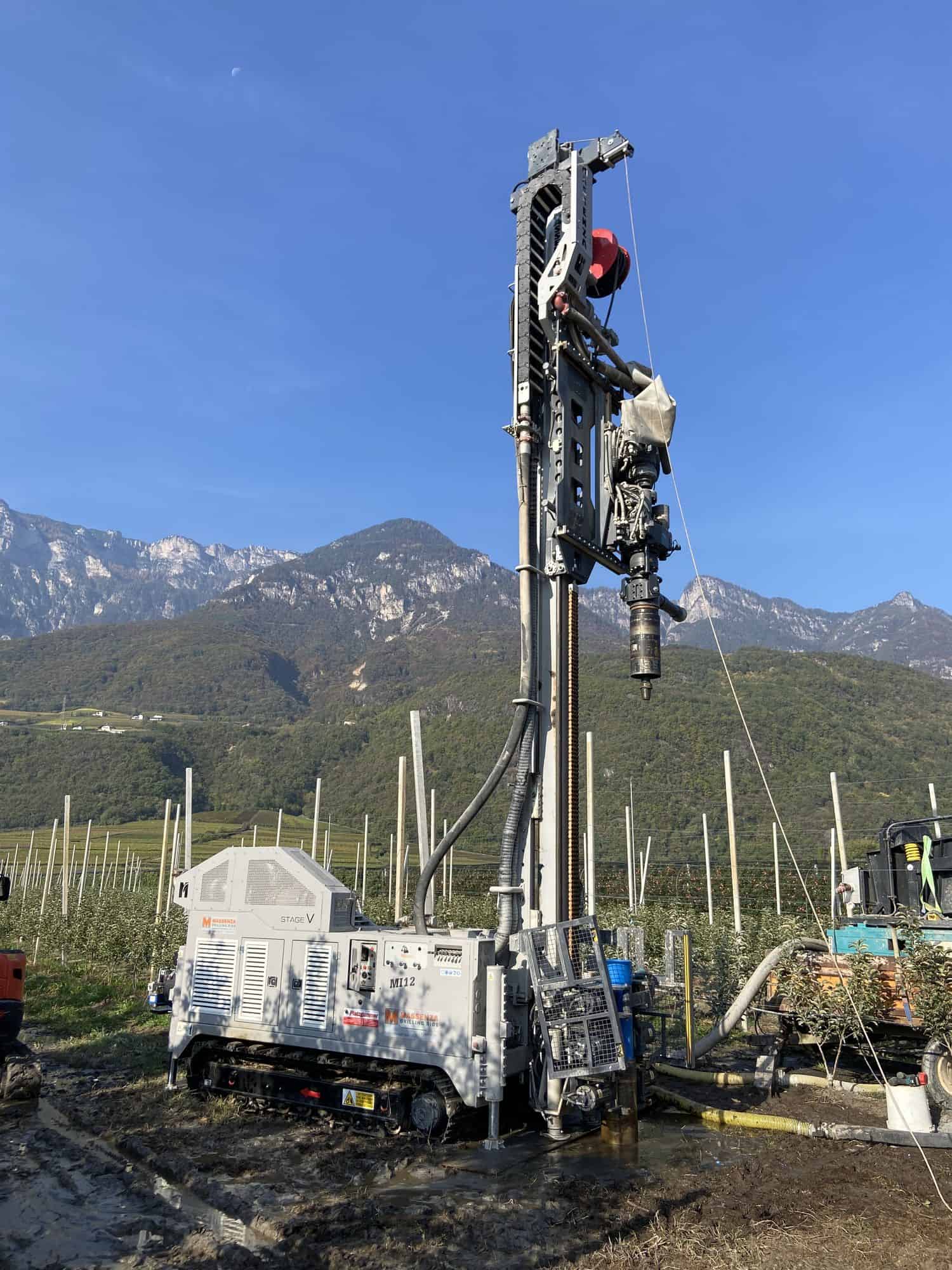

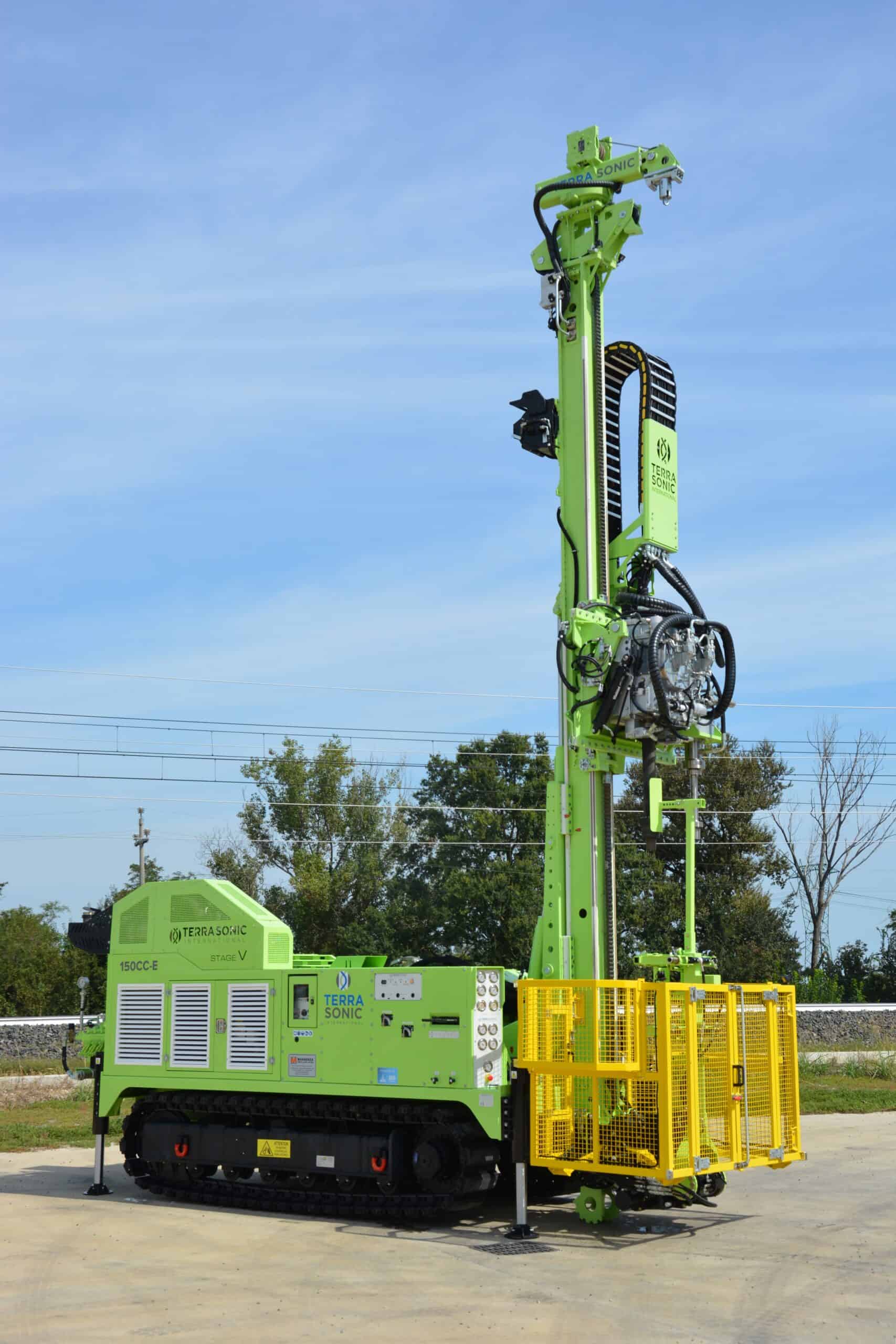

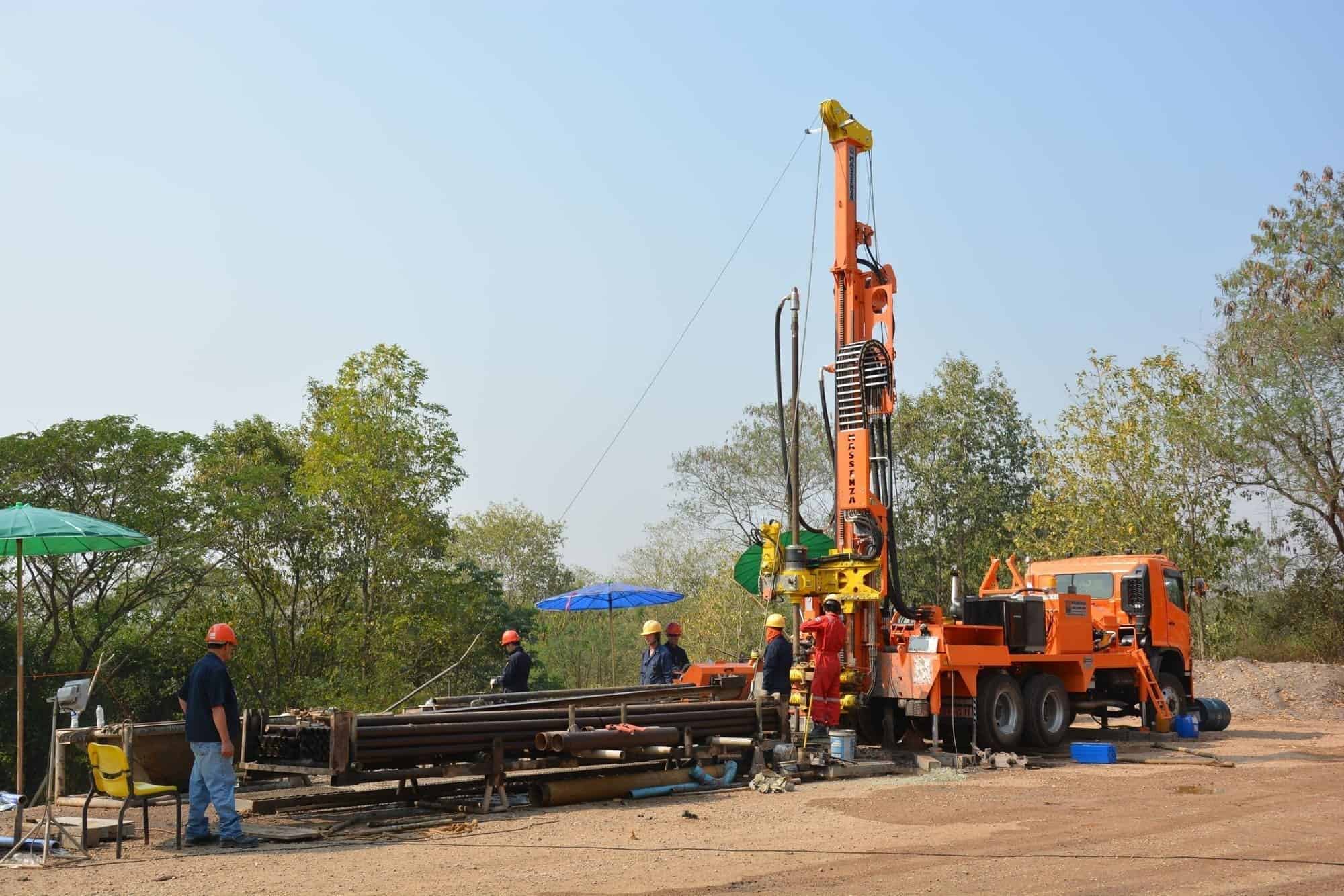

It is a very versatile drilling rig used for various applications: water wells (beyond 250 m), geothermal applications, geotechnics and seismic. The rig can be either crawler or truck mounted and he can work by all the main drilling methods: mud pump, coring, augering, down the hole hammer drilling using an adequate compressor. All controls are located for ease of operation and safety with the rig positioning controls on a fixed panel and the drilling controls on a remote rotating arm or extension cable.| WORK METHODS |
|---|
| - Rotation with direct circulation - Nucleus destruction with bleeding by water, mud and foam - Rotation with down the hole hammer - Rotation with down the hole hammer - Coring |
| POWER PACK |
| Engine power from 154 Hp (115 kW) to 579 Hp (432 kW) |
| FUEL TANK |
| Standard: capacity 150 litri (39.6 gal) Optional: capacity 500 litri (132 gal) |
| SLIDING MAST |
| Stroke 1,000 mm (3 ft 3”) |
| MAST |
|---|
| Maximum stroke of rotary head 6.7 m (12 ft 2”) Maximum pull up and down 15,000 daN (33,721 lbf) |

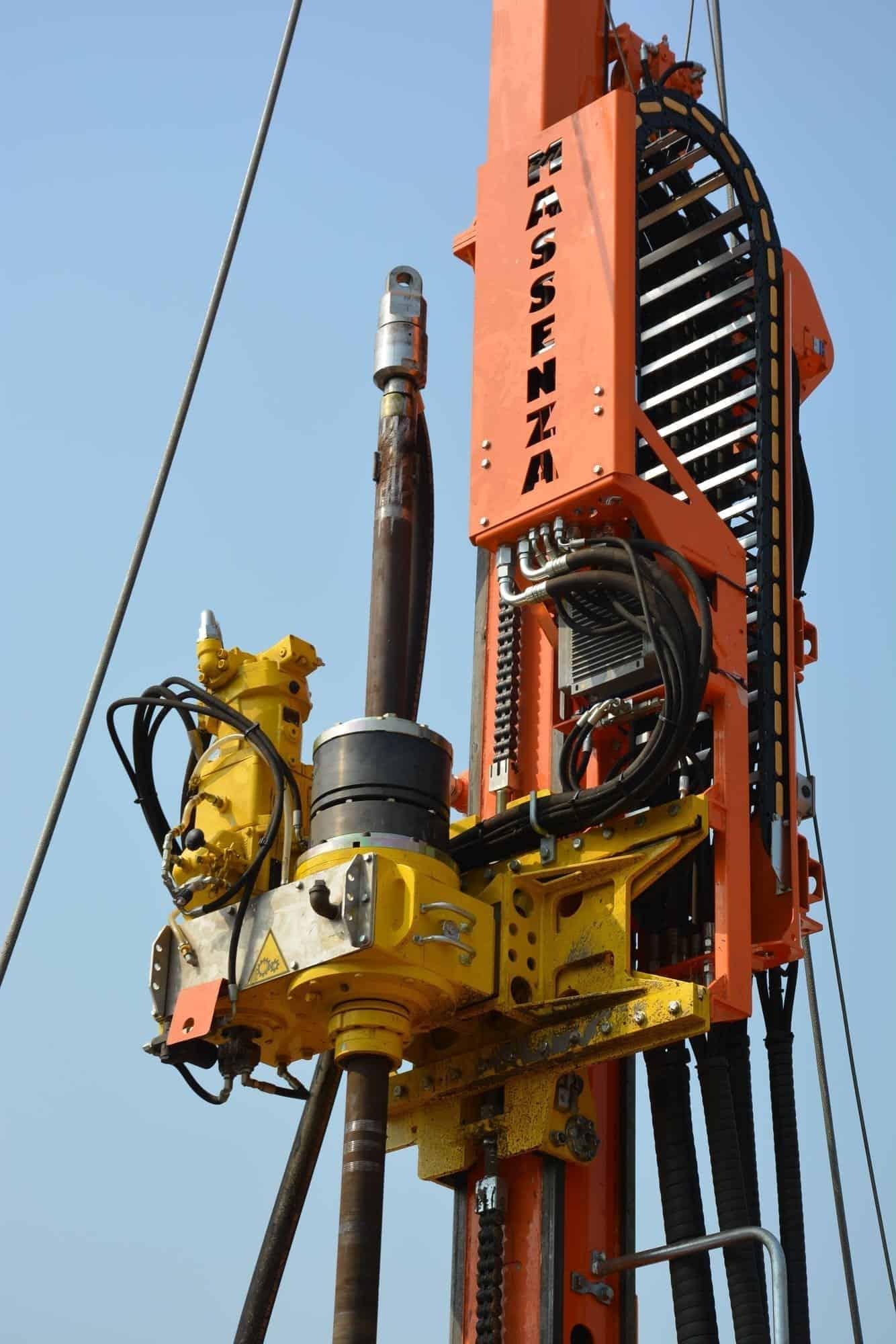

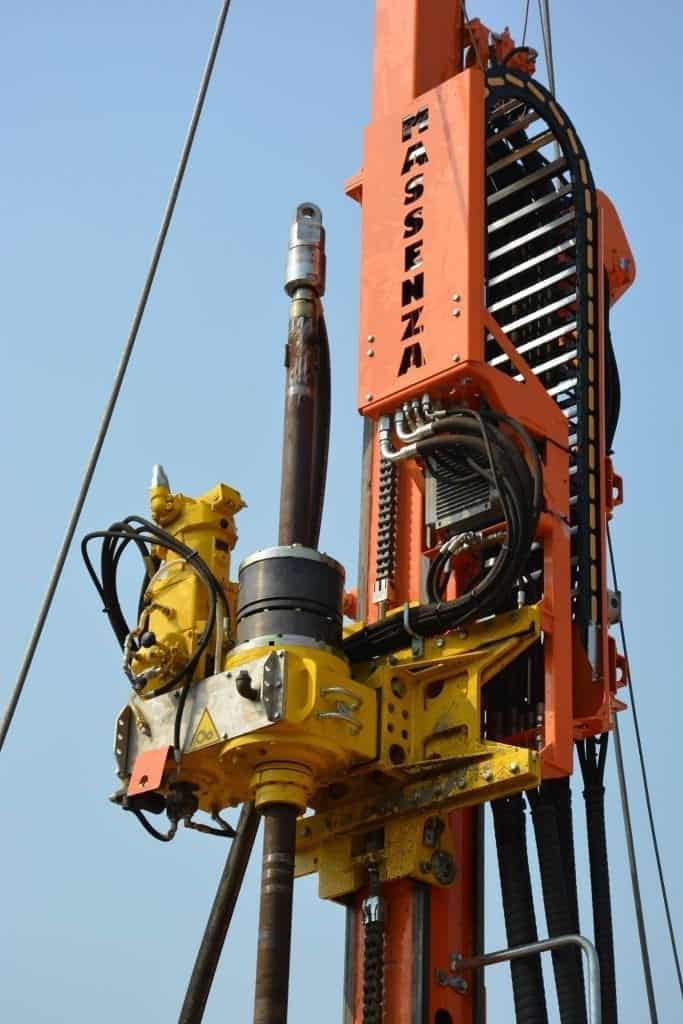

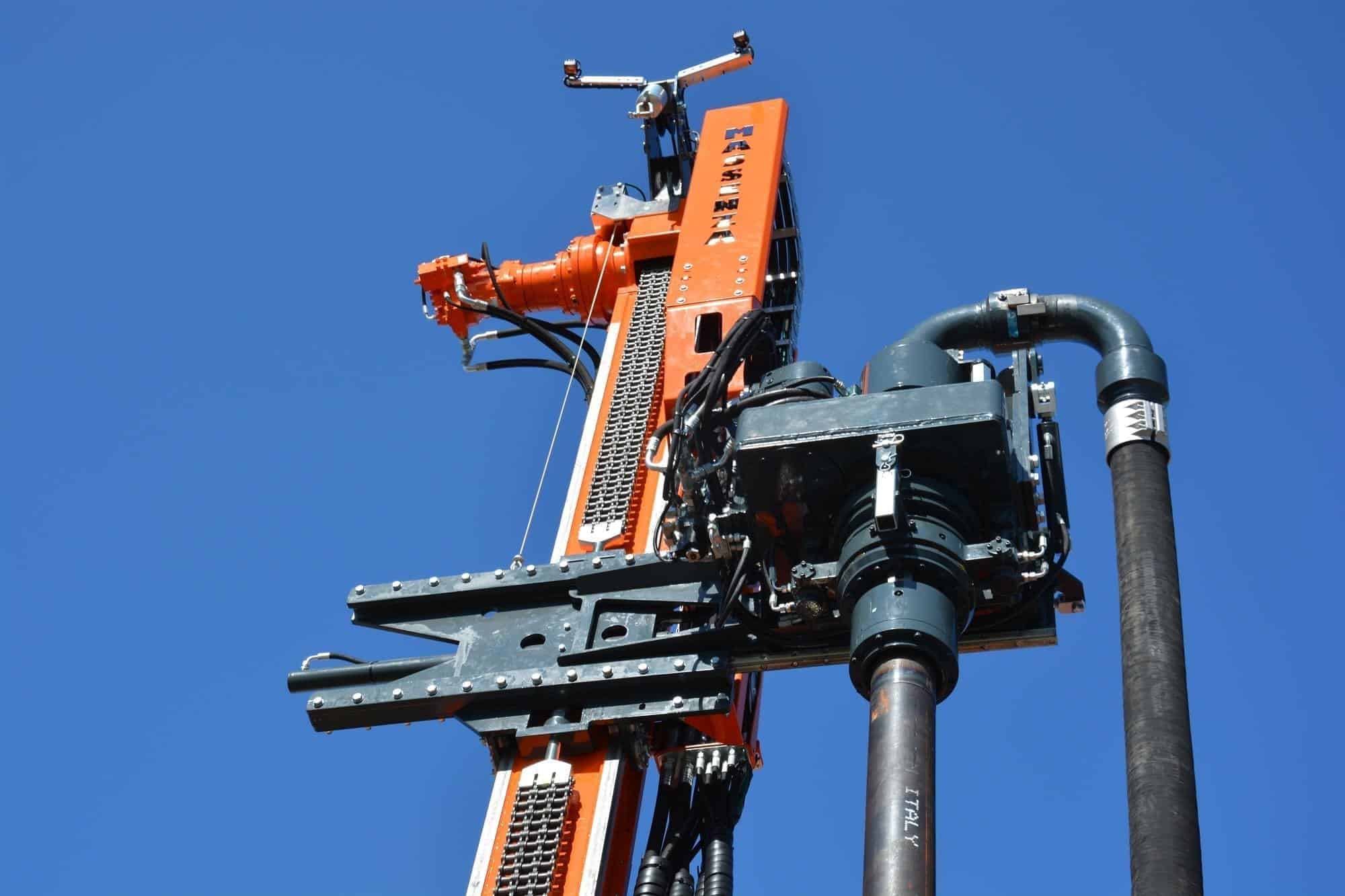

| ROTARY HEAD |
| Maximum torque 18,307 Nm (13,502 lbf•ft) Maximum speed 1.345 Rpm |
| WINCH |
| Standard: Maximum line pull 3.100 daN (6,970 lbf) Optional: Maximum line pull 4.300 daN (9,967 lbf) Wire-line: Maximum line pull 600 daN (1,350 lbf) – 464 m (1,522 ft) of rope – 110 m/min (351 ft/min) |

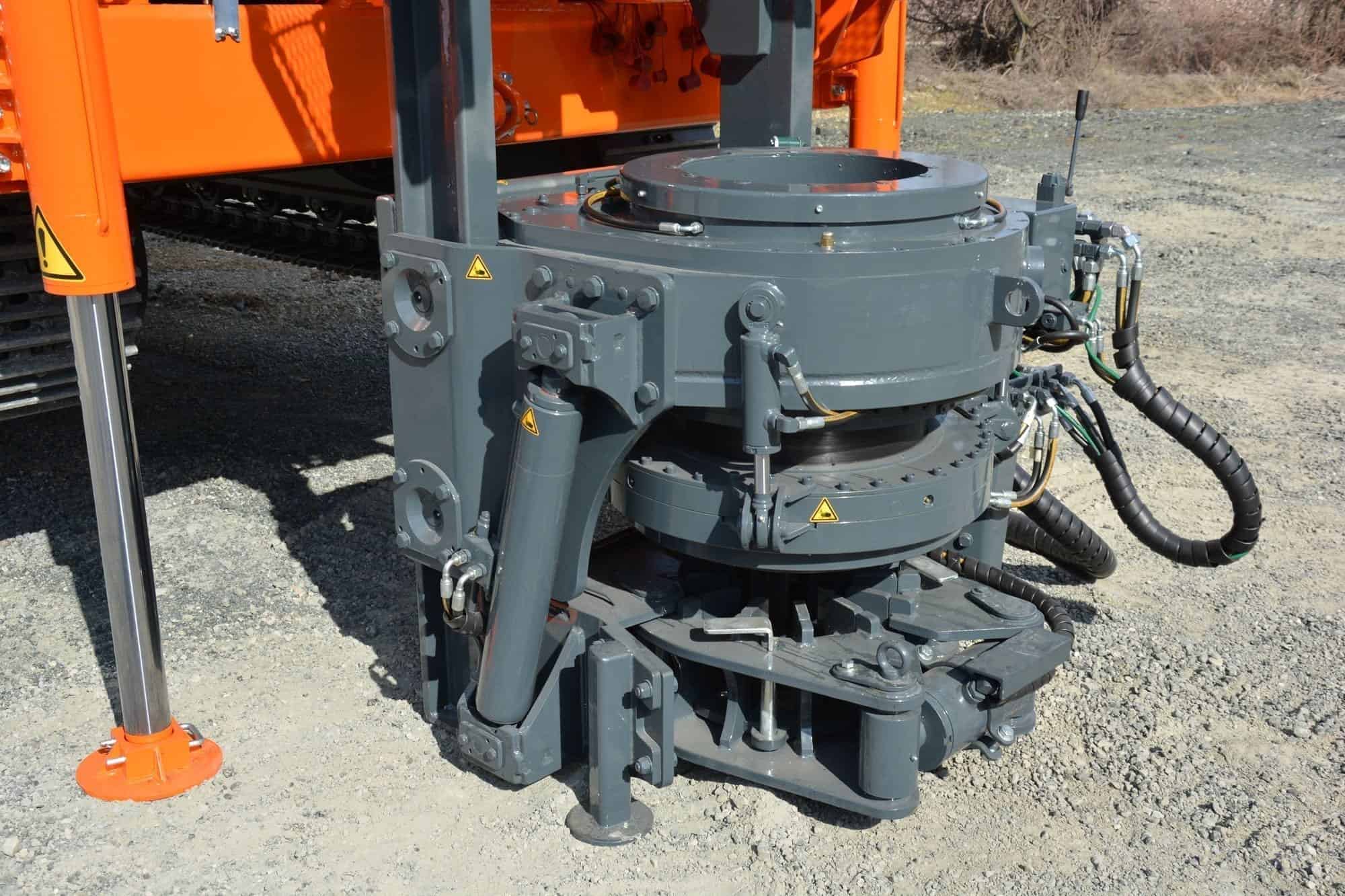

| DOUBLE HYDRAULIC CLAMP |
| Model MS360: Maximum passage 360 mm (14”) Model MS410: Maximum passage 410 mm (16”) |
