Mineral exploration drilling rigs


Massenza mineral exploration drilling rigs are perfect for mineral research and core drilling in mine: we can provide different solutions depending on the depth, the hole diameter and type of soil to be analyzed.


October 10, 2018

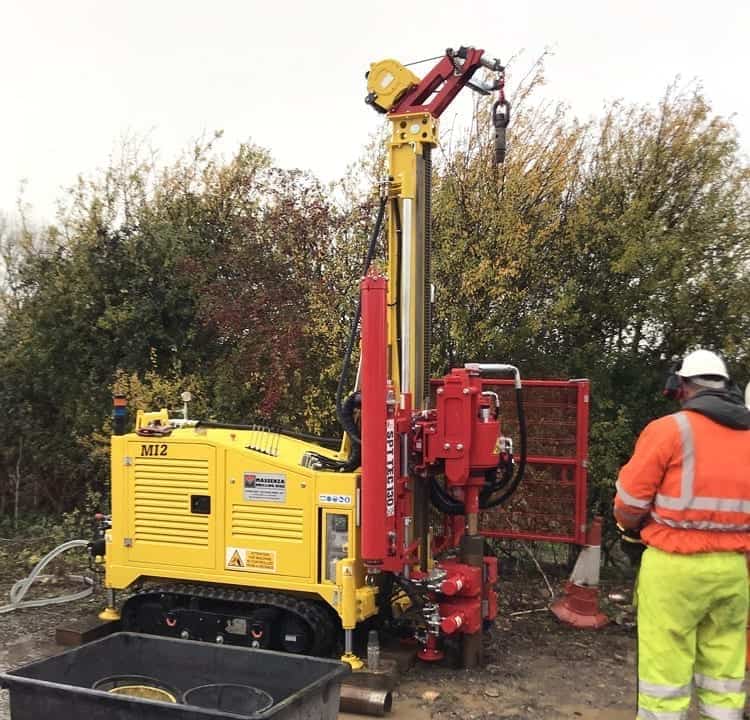

Drilling Rig MI2

- Pull up 2,650 daN (5,958 lbf)
- Maximum torque 5,490 Nm (4,049 lbfft)
- Maximum speed 756 Rpm
October 10, 2018

Drilling Rig MI3

- Pull up 3,600 daN (8,093 lbf)
- Maximum torque 6,000 Nm (4,425 lbf ft)
- Maximum speed 798 Rpm
October 25, 2018

Drilling Rig MI5

- Pull up 8.000 daN (17,984 lbf)
- Maximum torque 14,460 Nm (10,665 lbfft)
- Maximum speed 1,001 Rpm
October 26, 2018

Drilling Rig MI20

- Pull up 24,000 daN (53,954 lbf)
- Maximum torque 27,000 Nm (19,914 lbfft)
- Maximum speed 1,400 Rpm
October 26, 2018

Drilling Rig MI28

- Pull up 34,300 daN (77,109 lbfft)
- Maximum torque 35,380 Nm (26,094 lbfft)
- Maximum speed 1,400 Rpm
October 26, 2018

Drilling Rig MI40

- Pull up 38,000 daN (85,432 lbf)
- Maximum torque 35,380 Nm (26,094 lbfft)
- Maximum speed 1,400 Rpm
October 26, 2018

Drilling Rig MI45

- Pull up 45,000 daN (101,170 lbf)
- Maximum torque 35,380 Nm (26,094 lbfft)
- Maximum speed 1,200 Rpm
October 30, 2018

Drilling Rig MI50

- Pull up 50,000 daN (112,410 lbf)
- Maximum torque 35,380 Nm (26.094 lbfft)
- Maximum speed 1,200 Rpm
October 30, 2018

Drilling Rig MI55

- Pull up 56,000 daN (125,900 lbf)
- Maximum torque 35,380 Nm (26.094 lbfft)
- Maximum speed 1,200 Rpm
October 30, 2018

Drilling Rig MI60

- Pull up 58.500 daN (131.520 lbf)
- Maximum torque 37.500 Nm (27.658 lbfft)
- Maximum speed 1.500 Rpm
