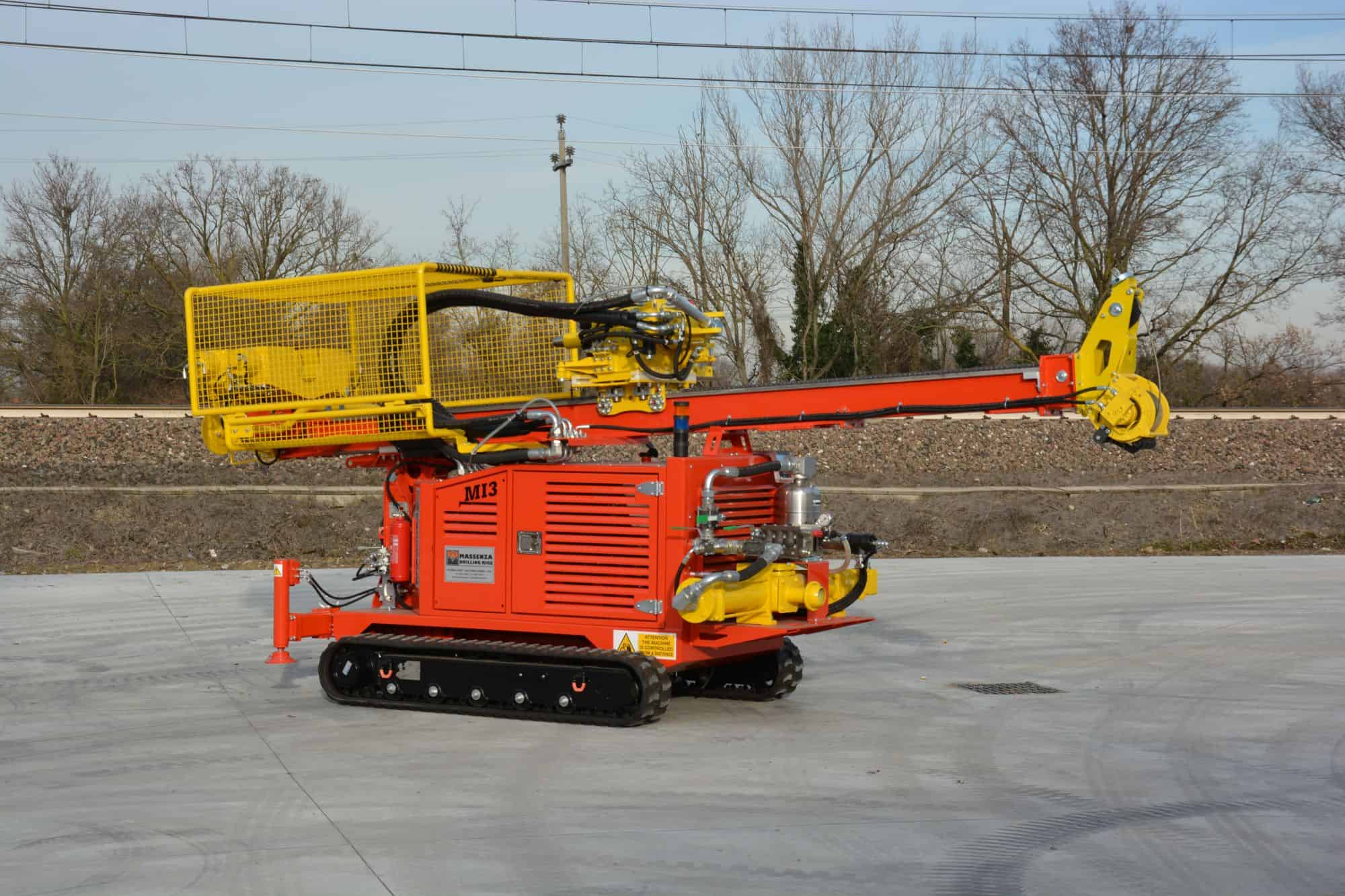

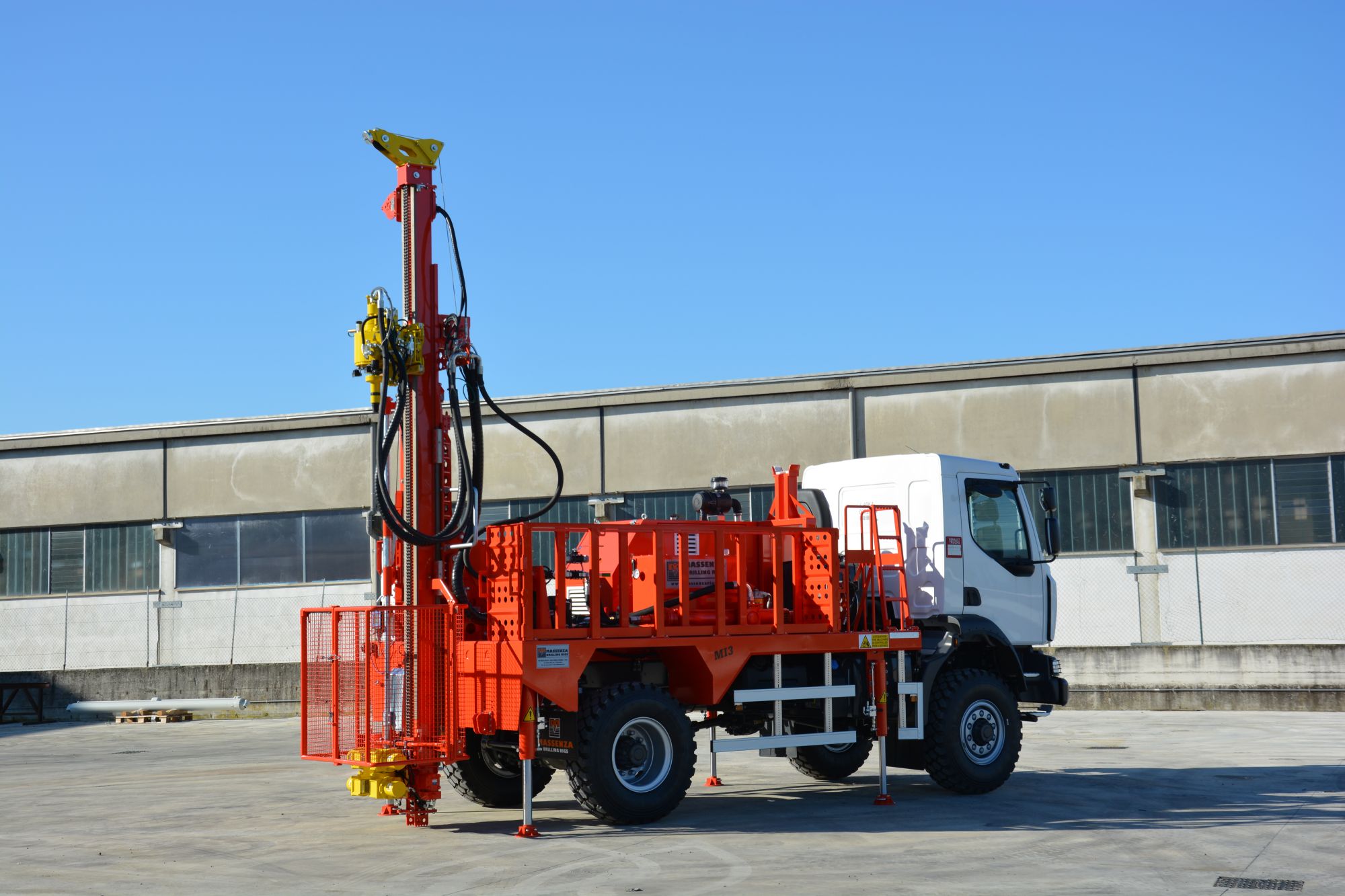

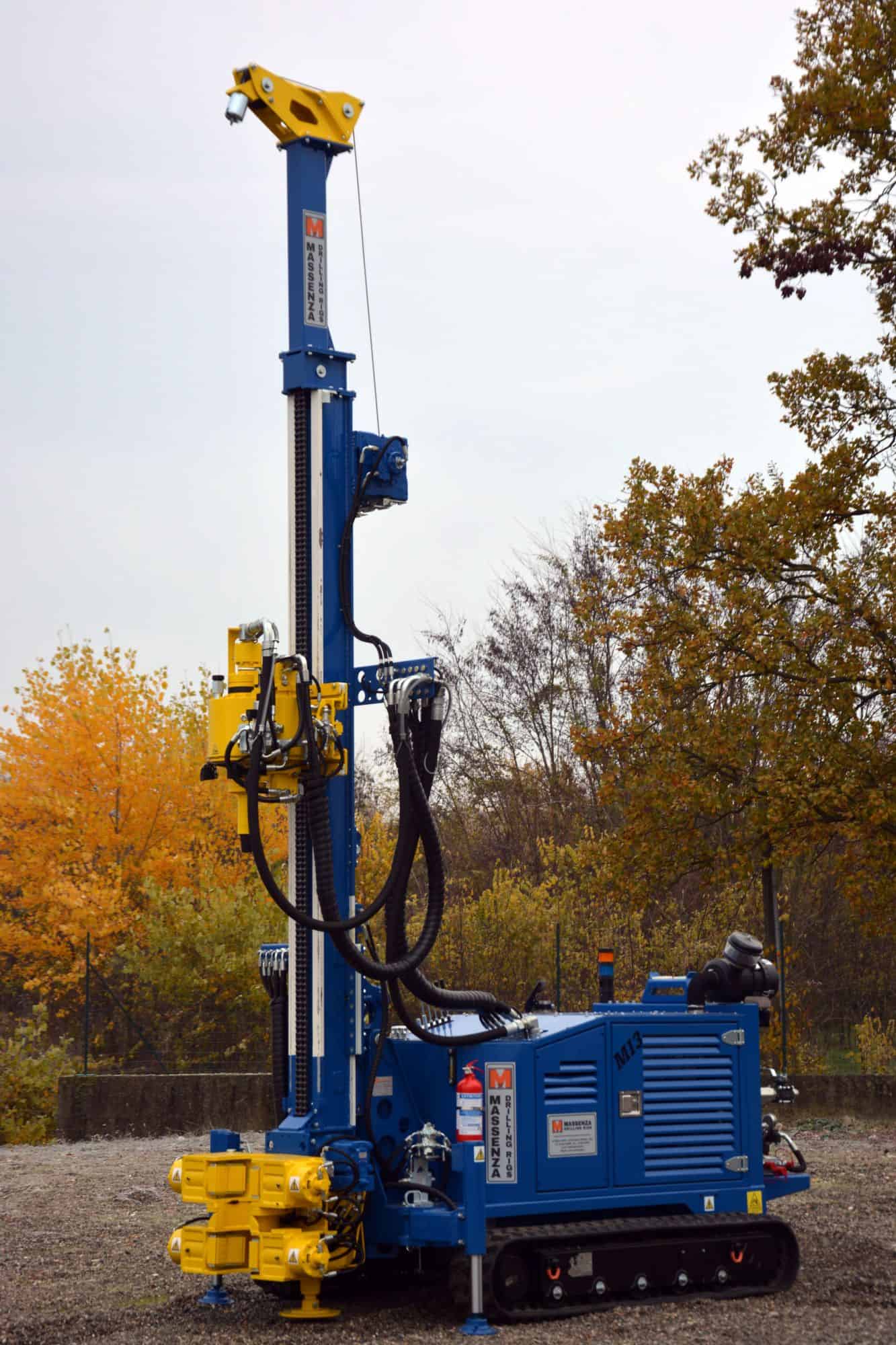

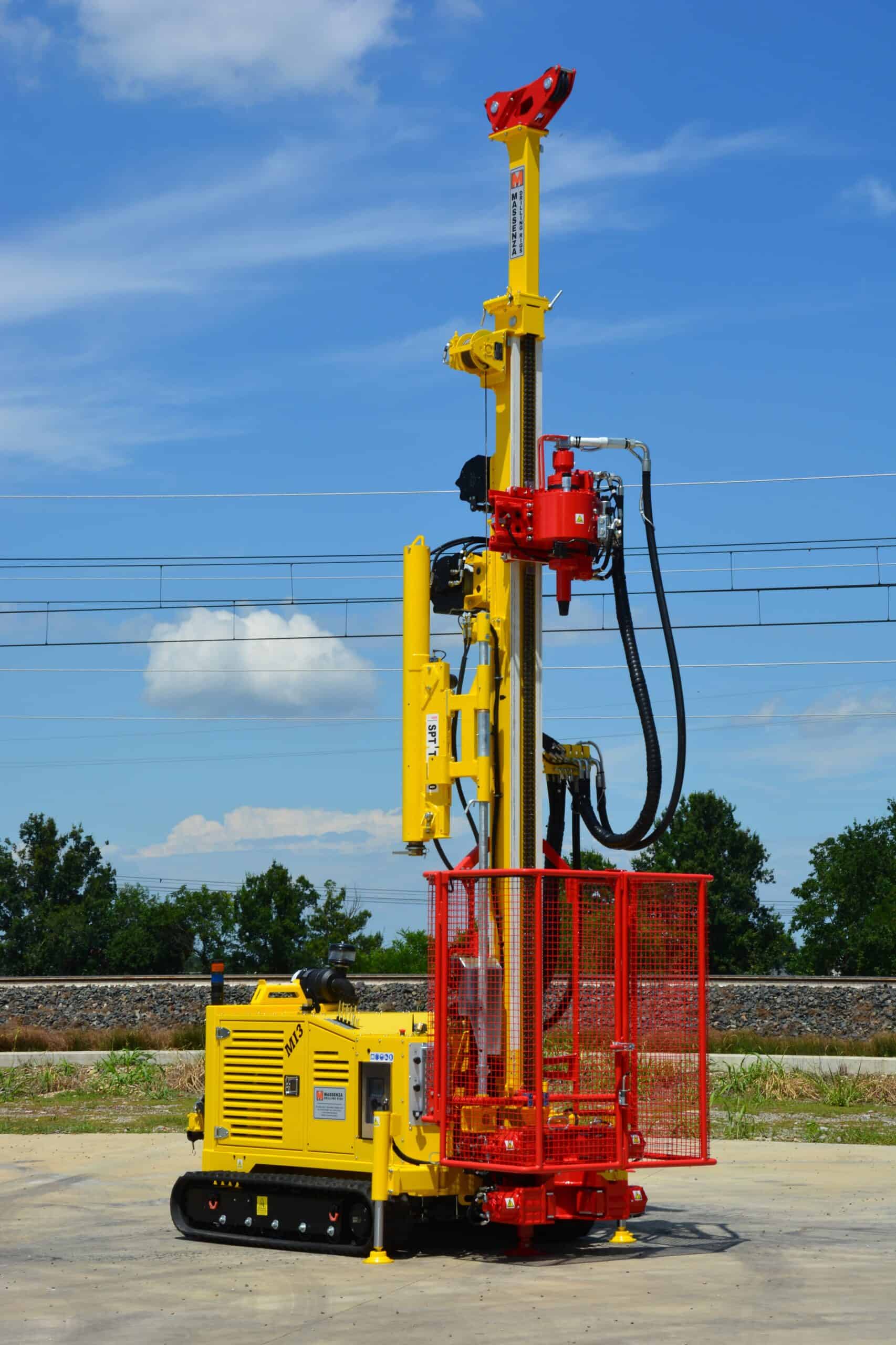

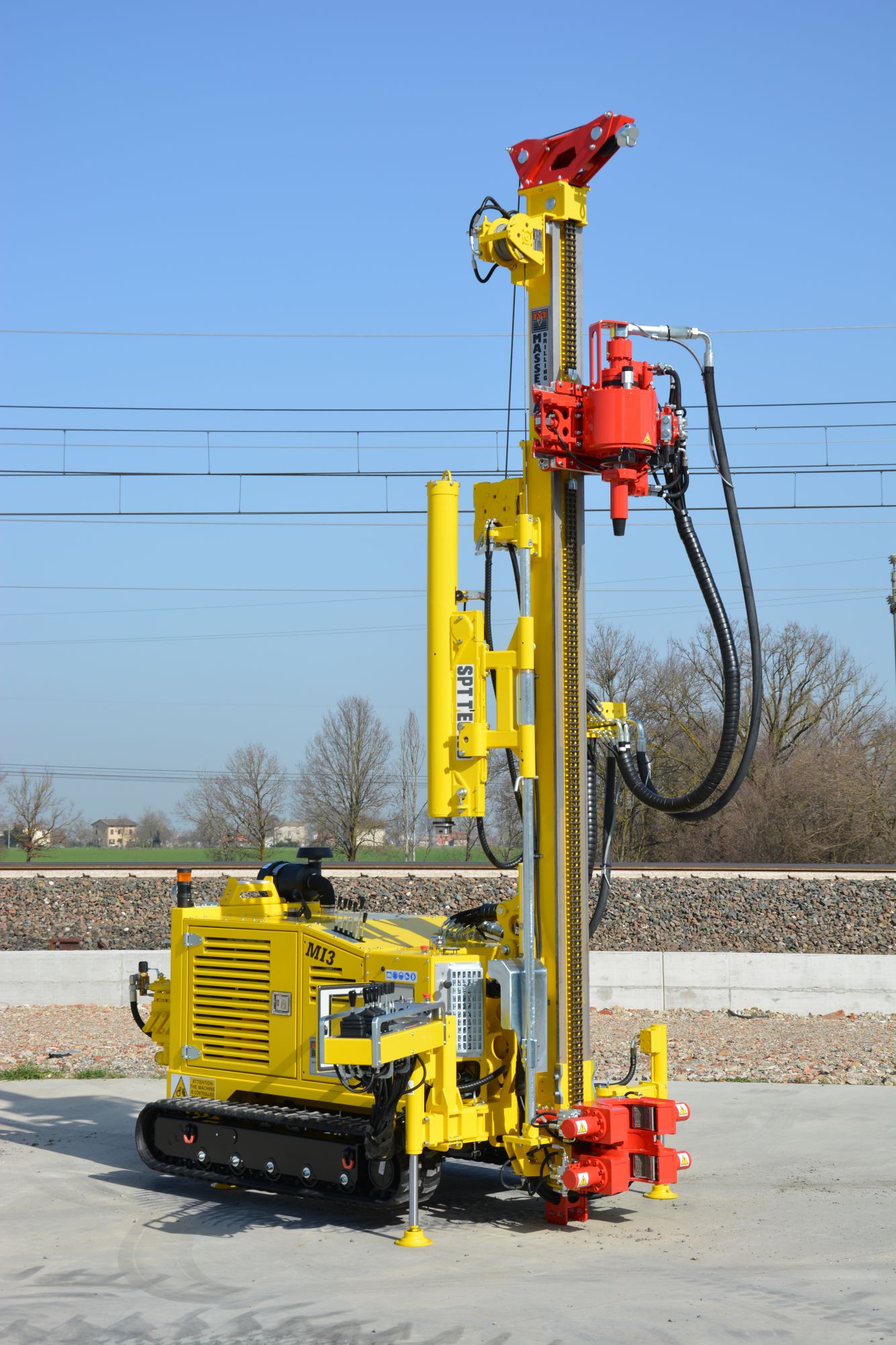

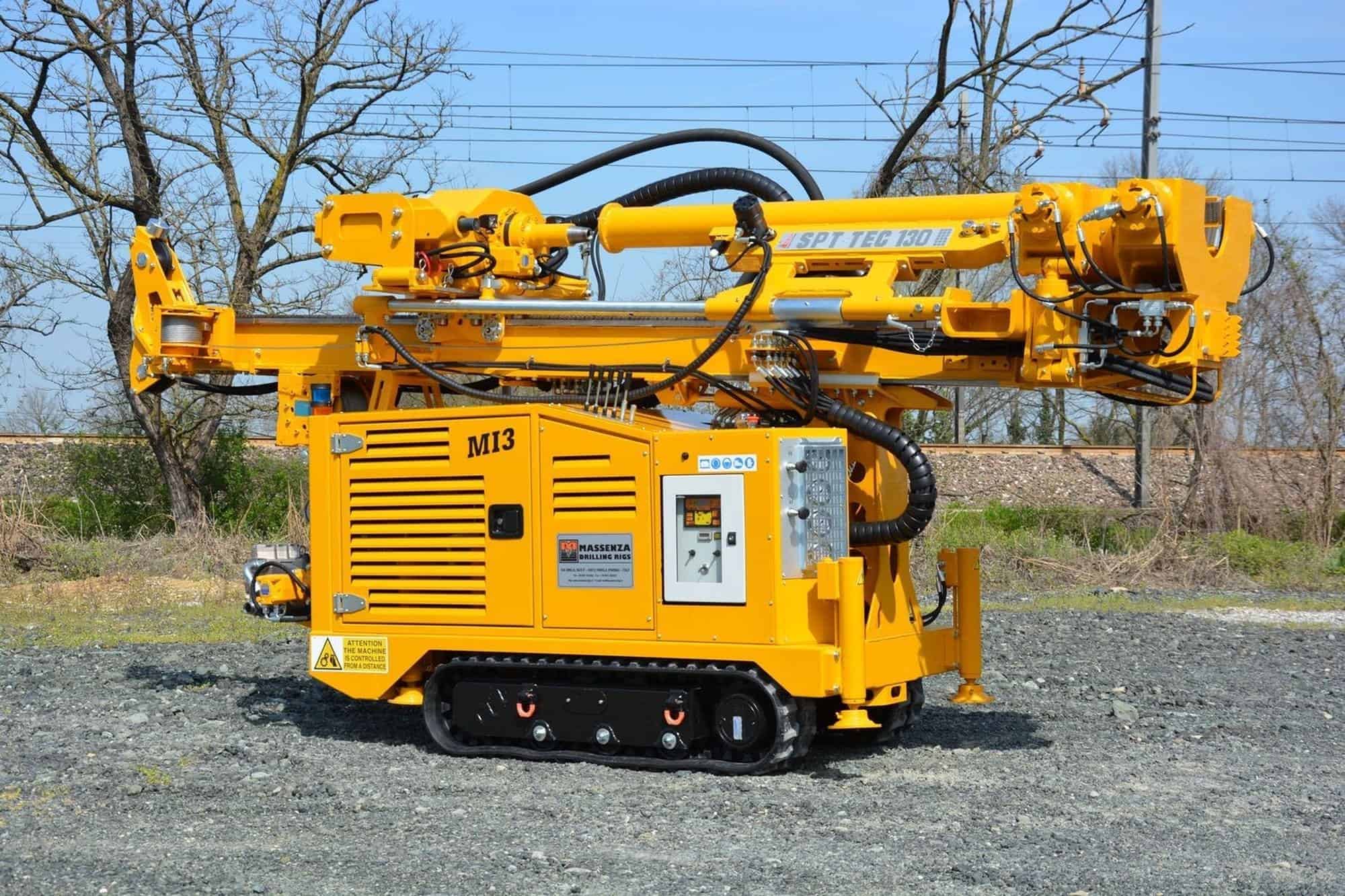

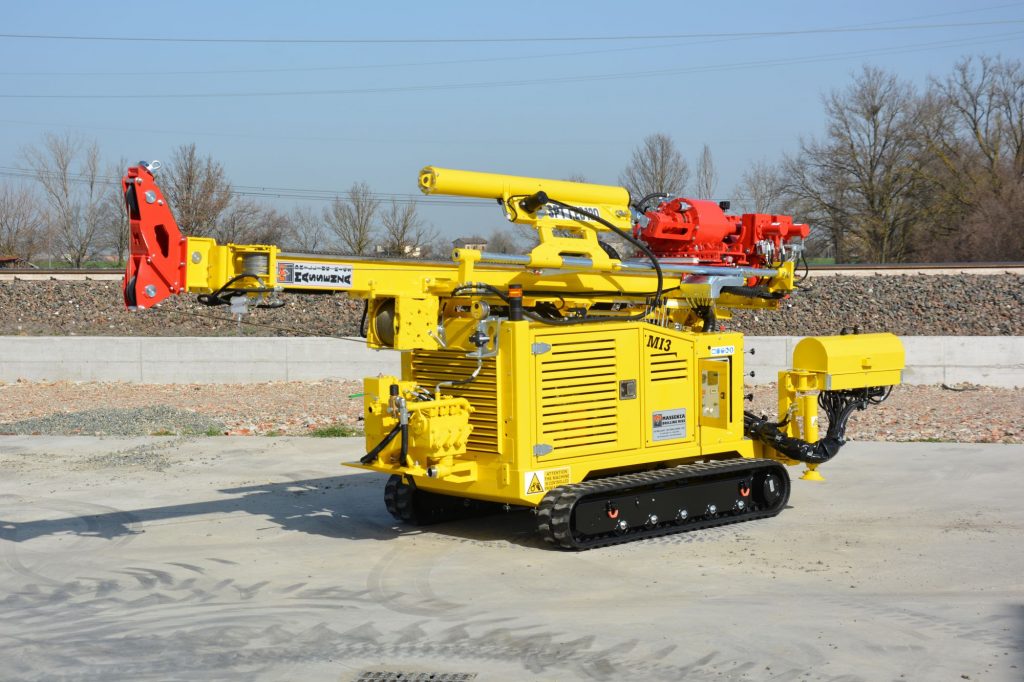

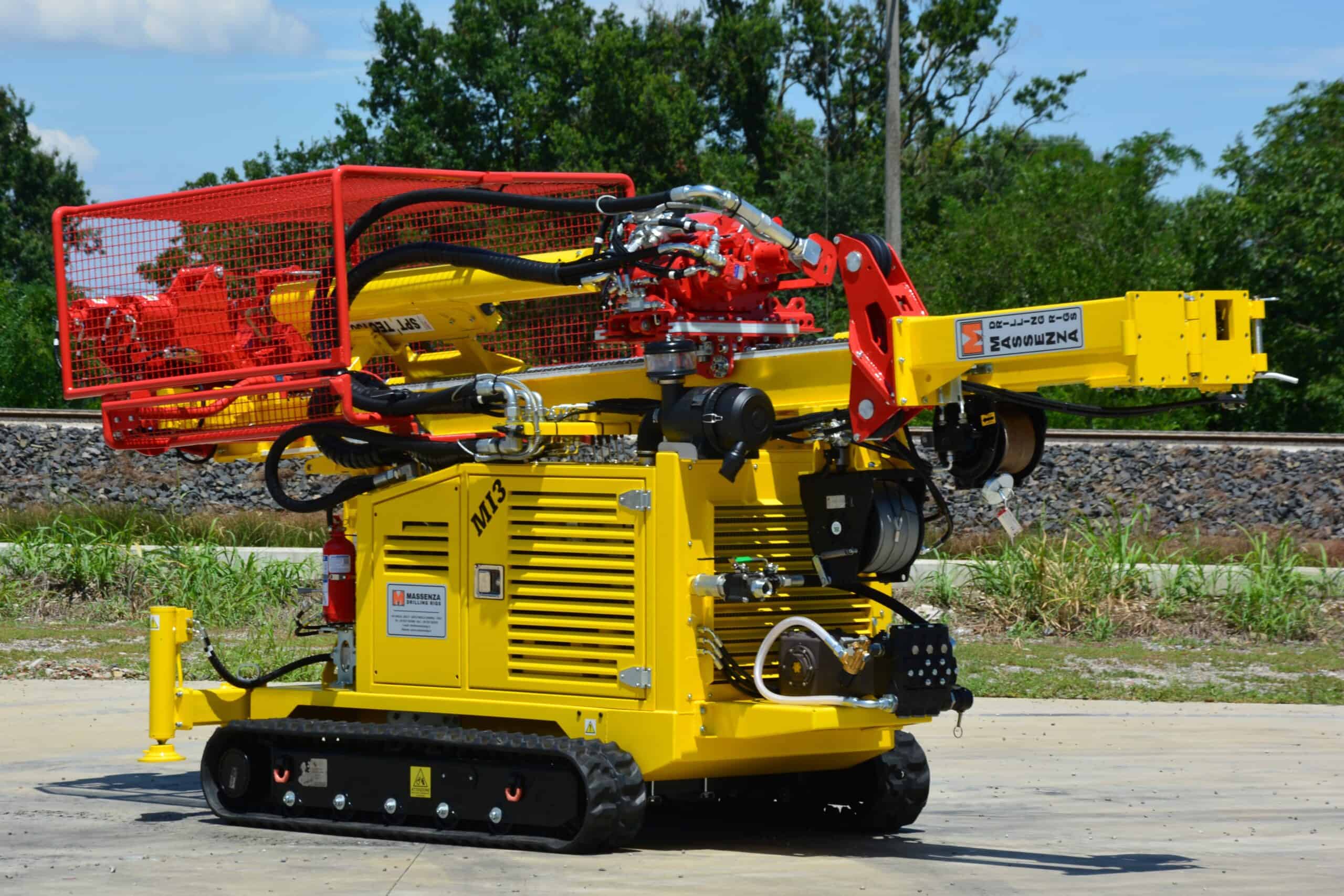

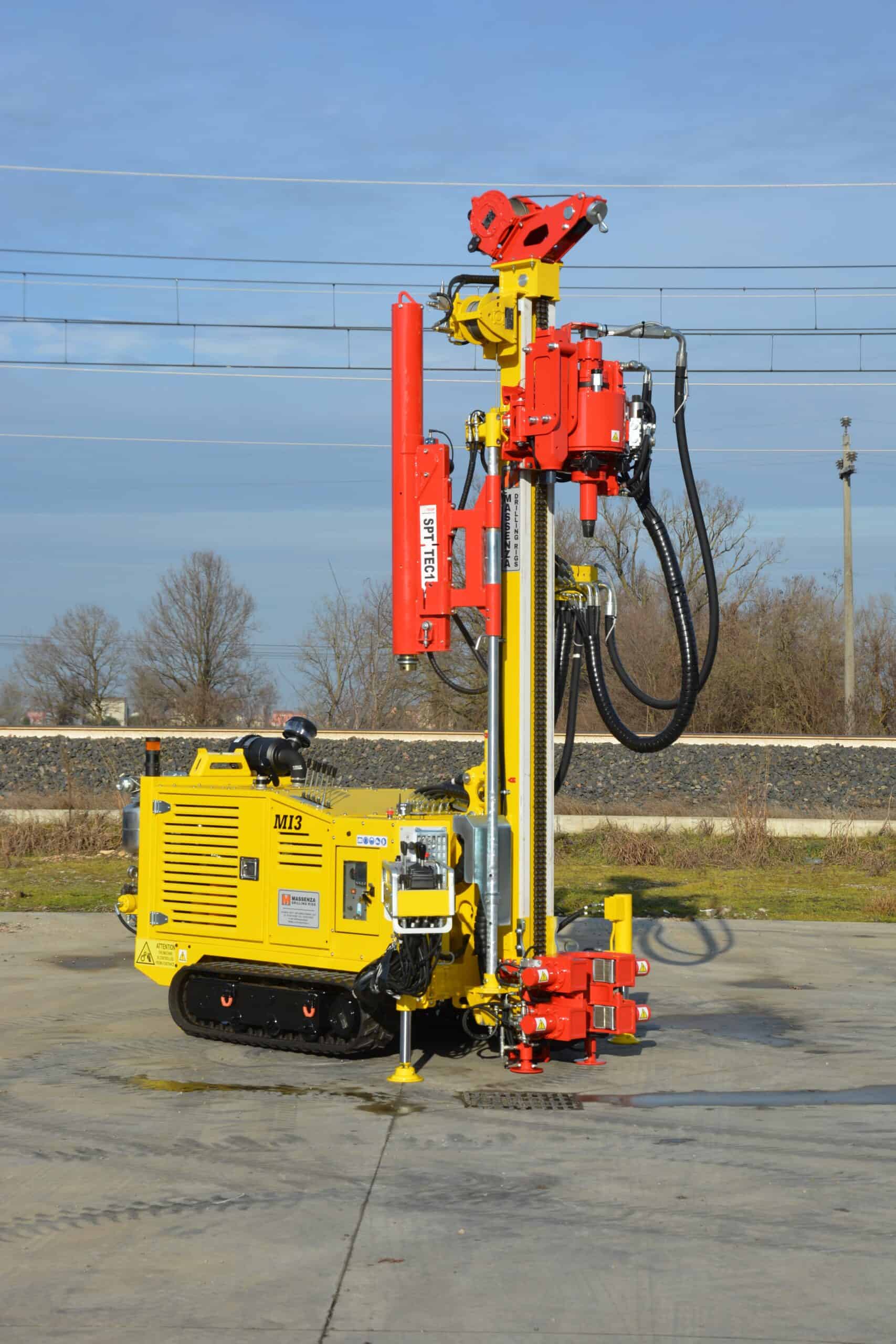

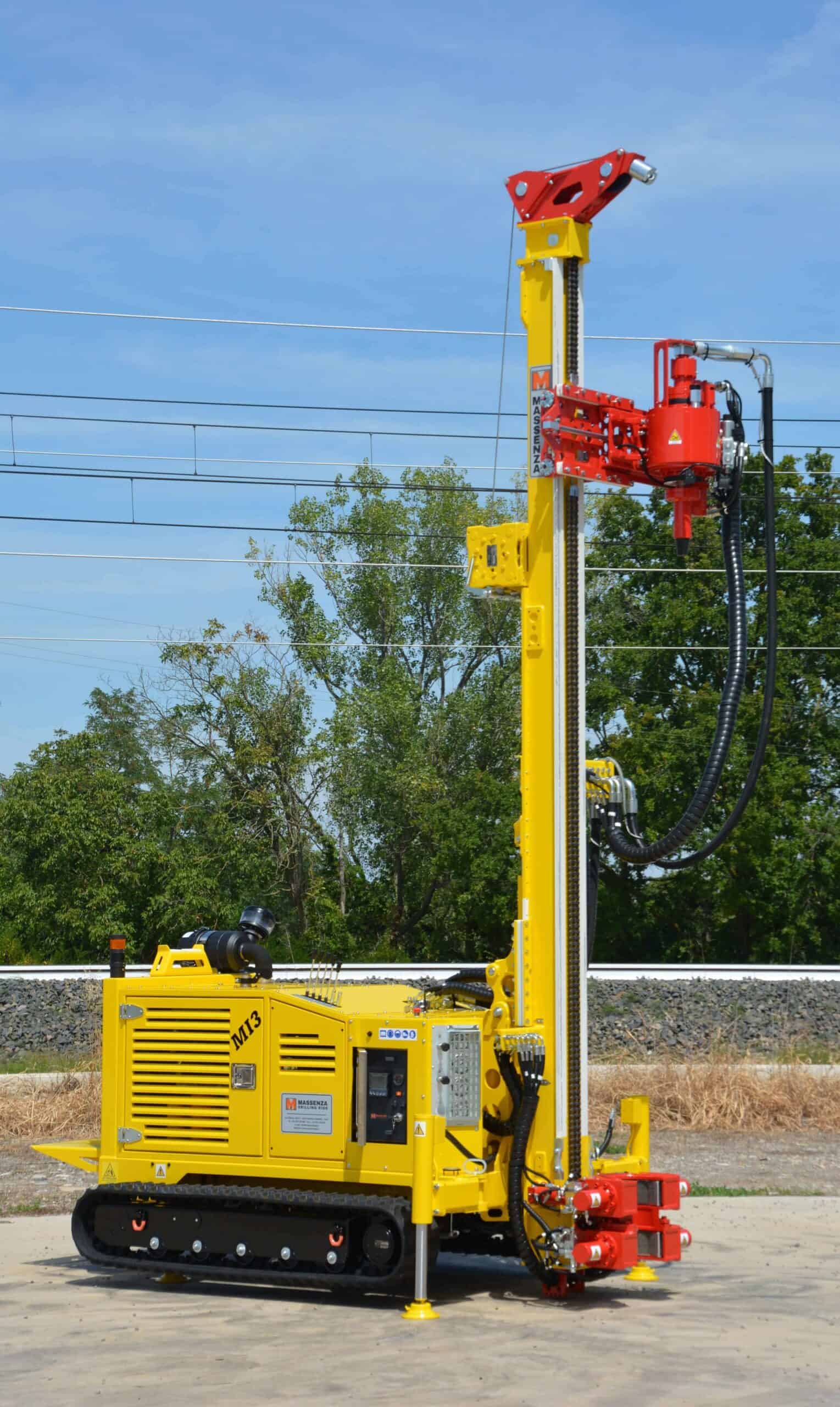

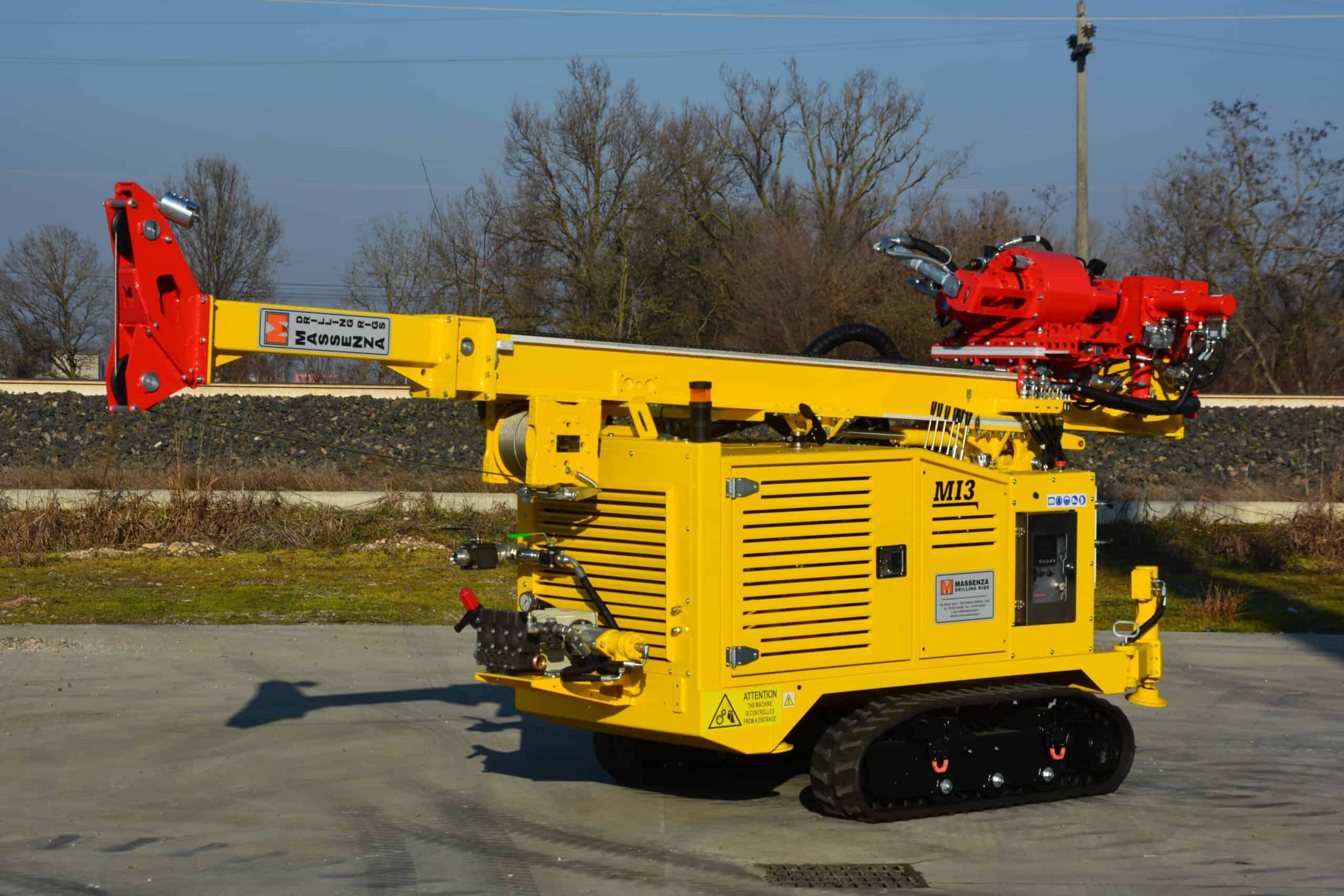

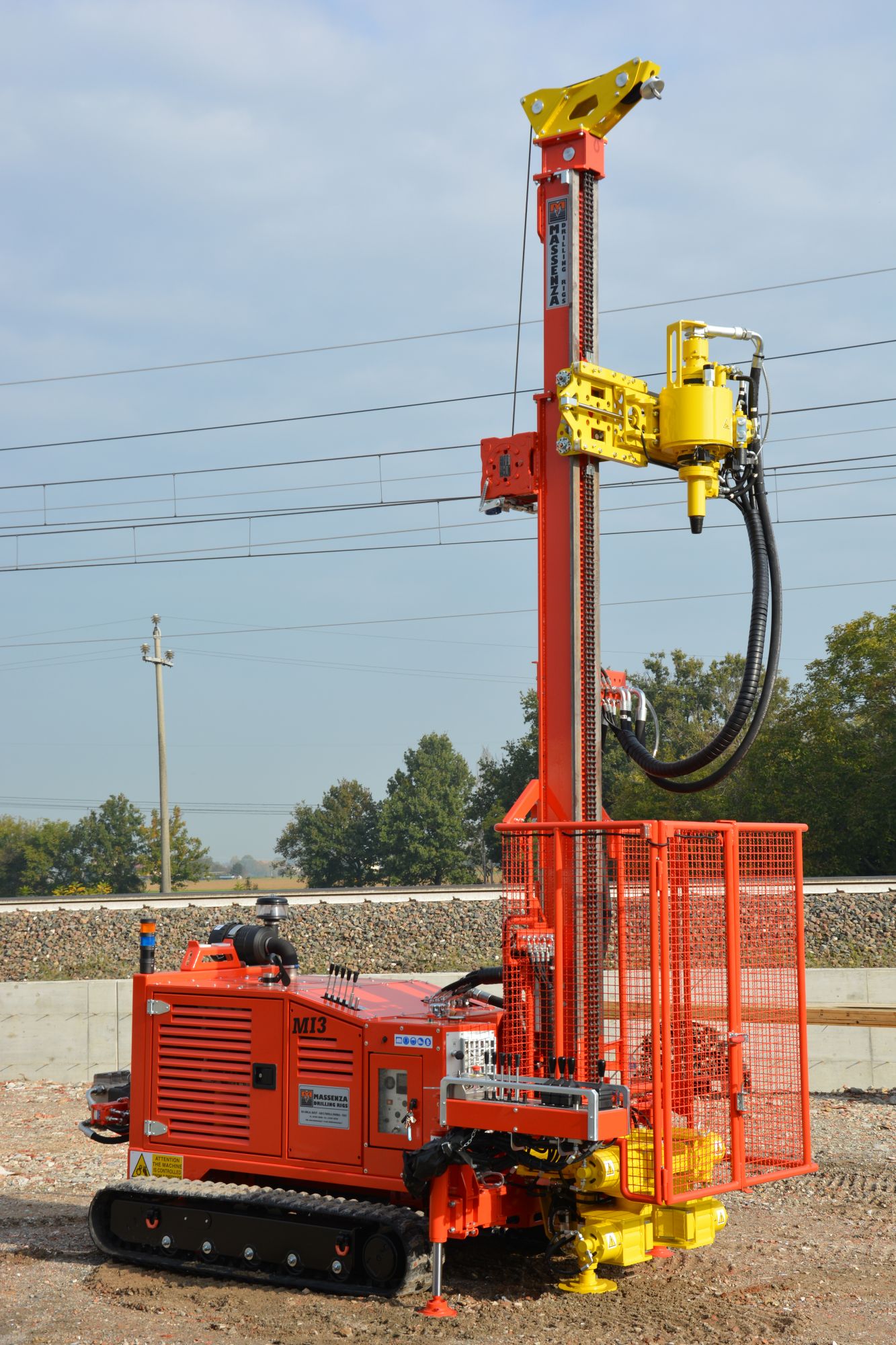

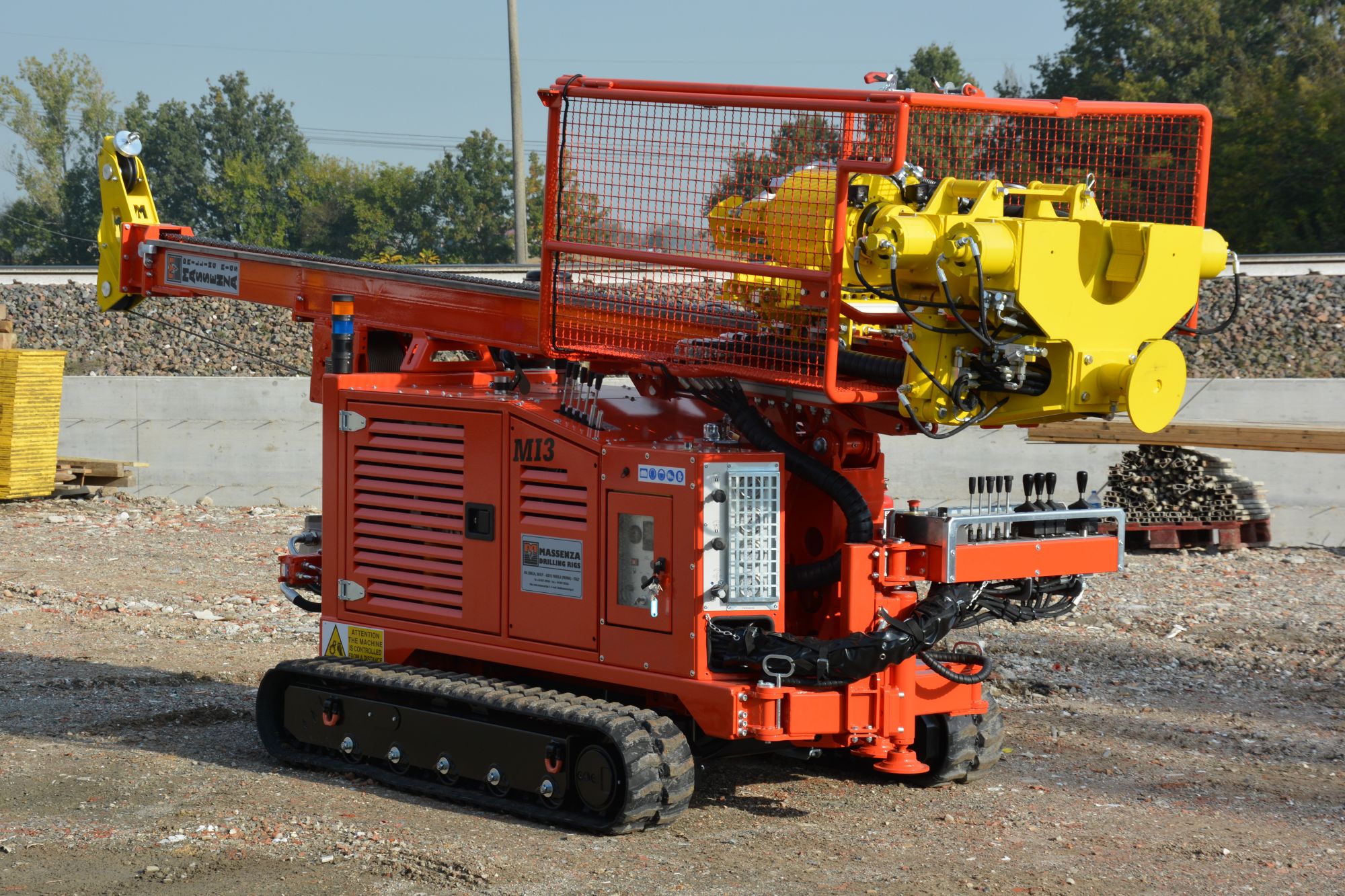

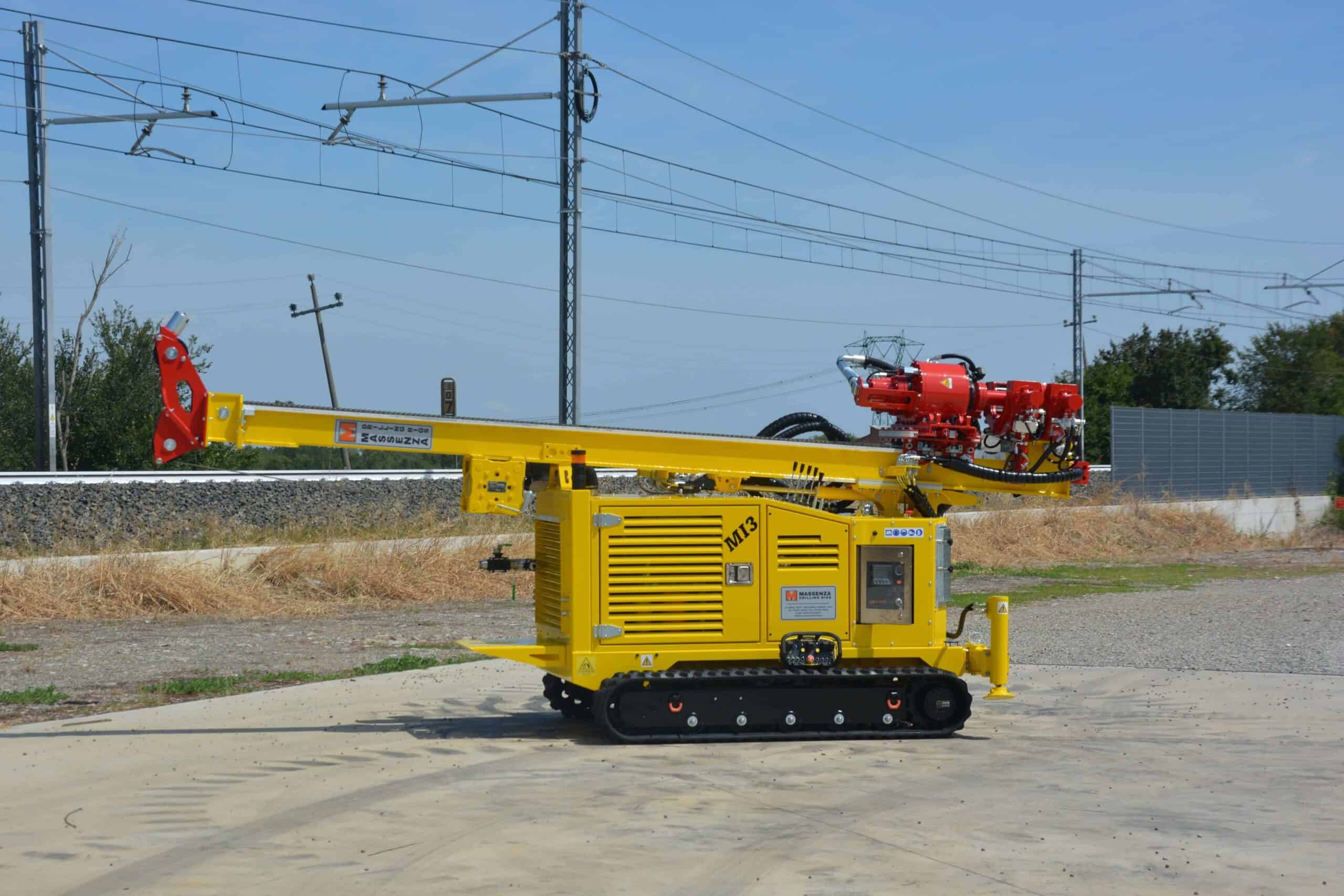

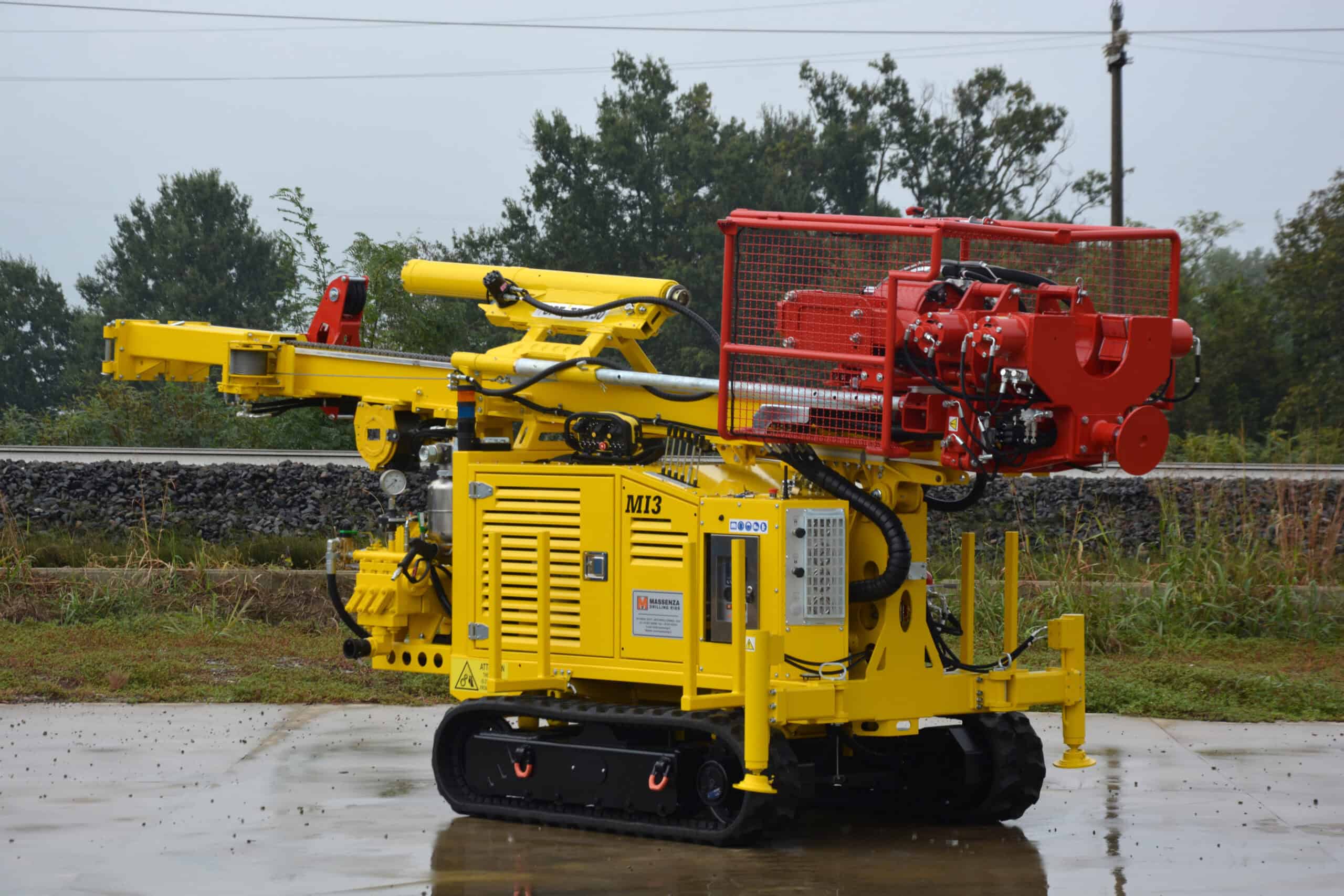

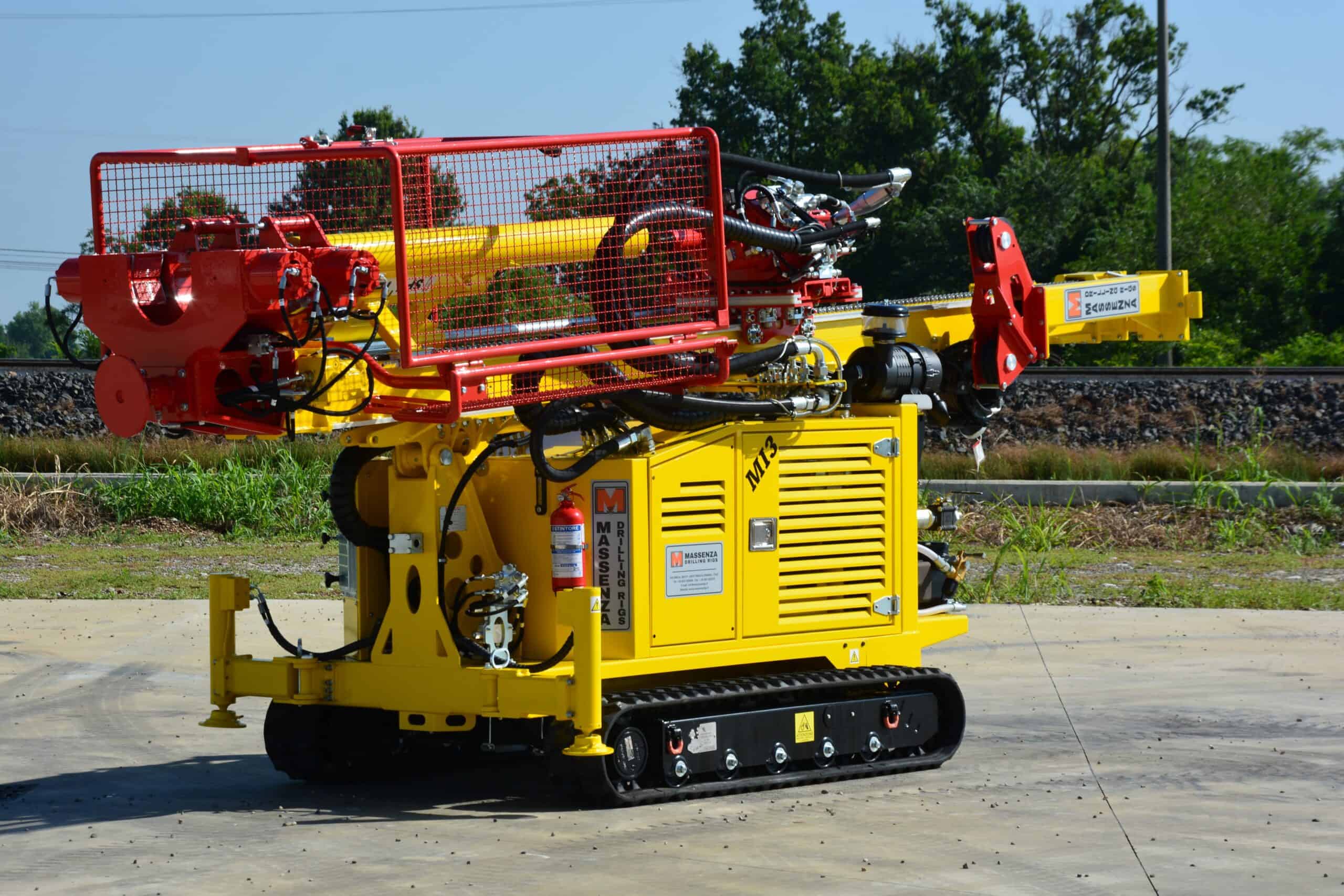

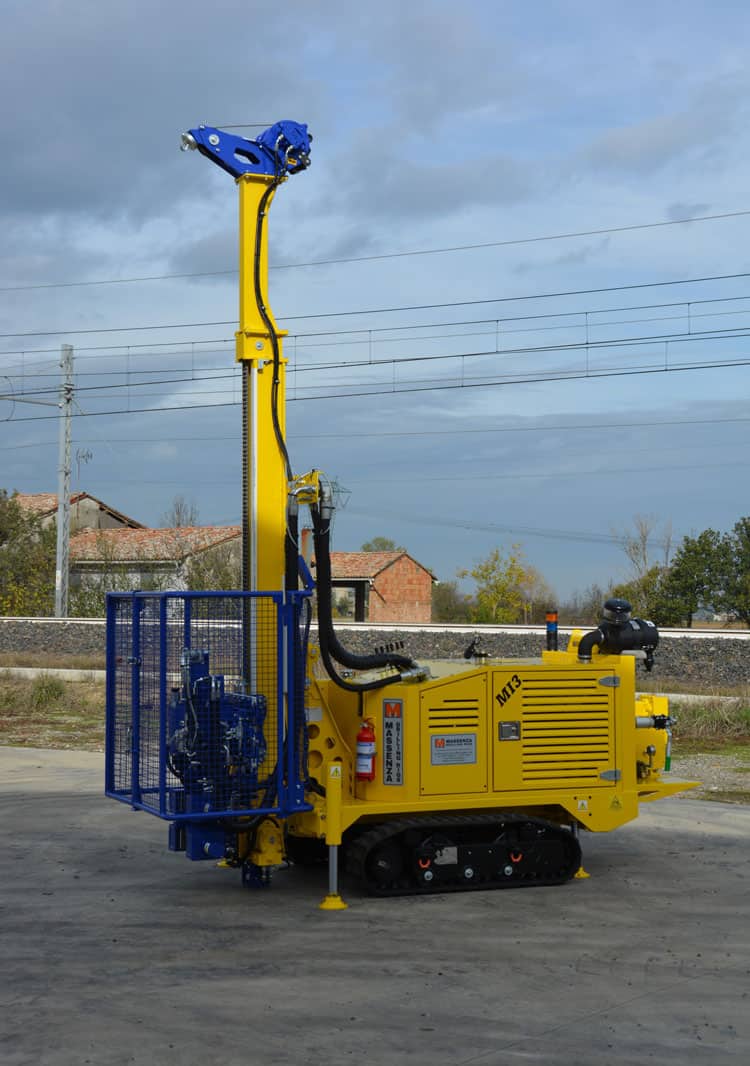

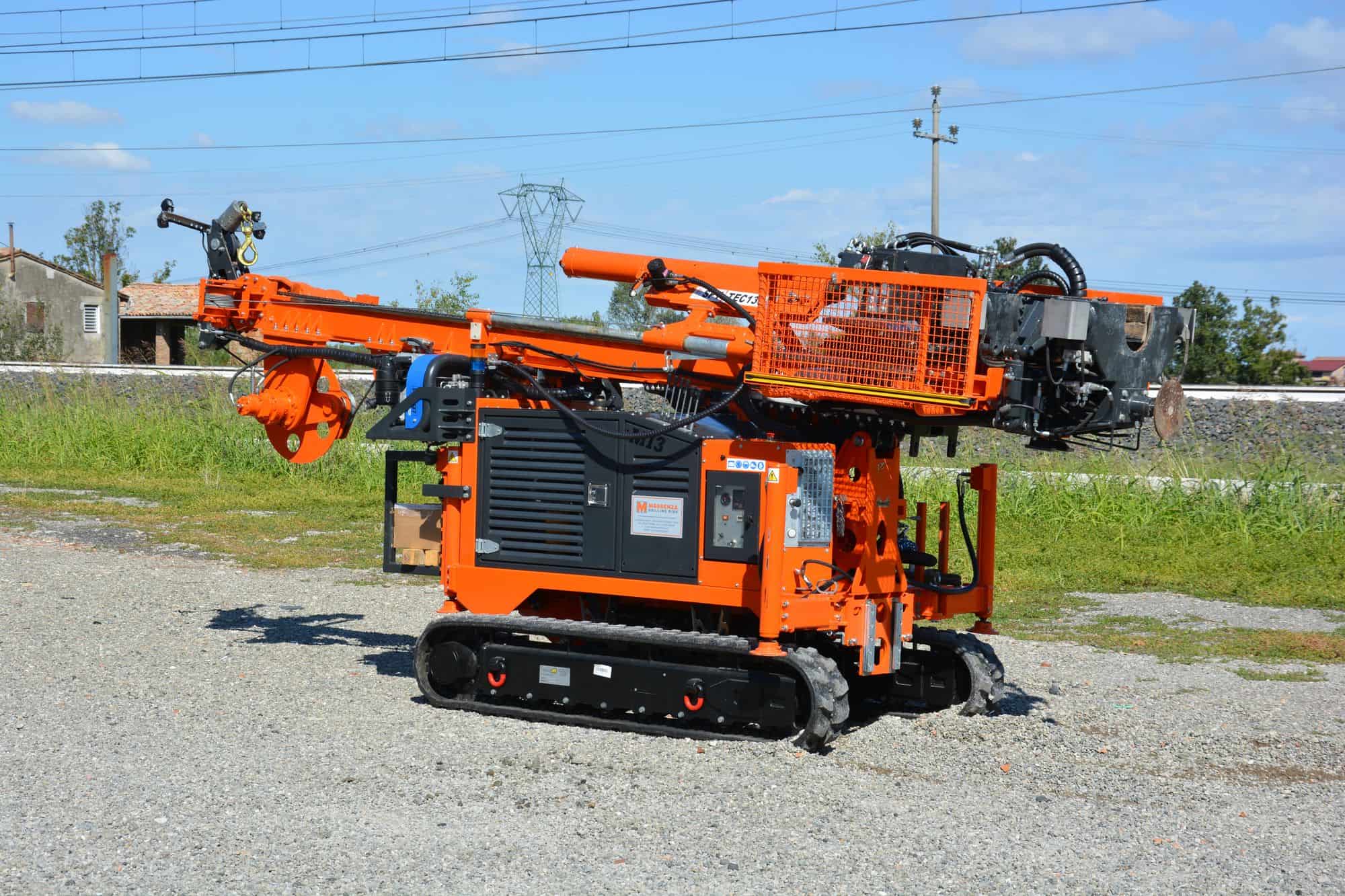

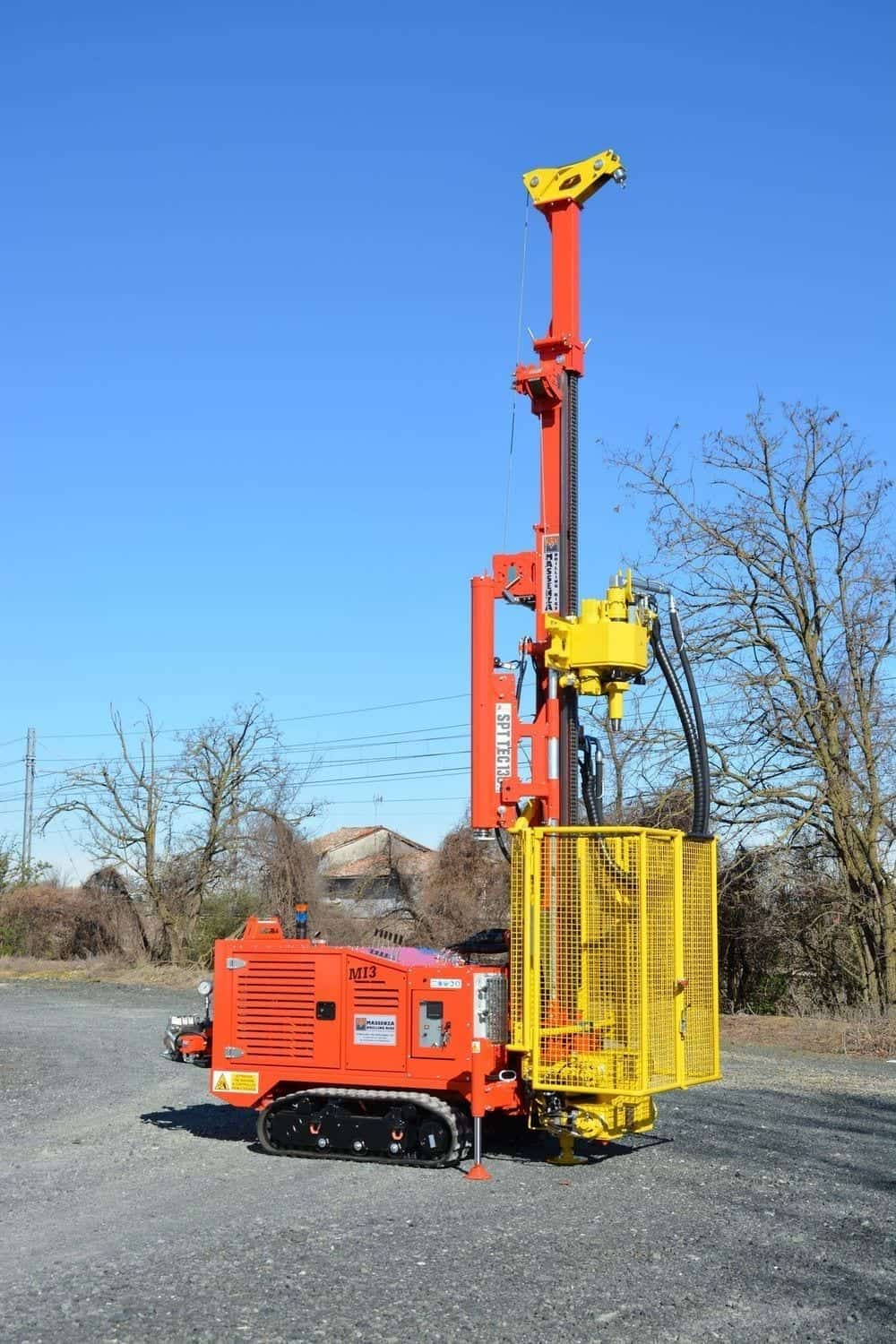

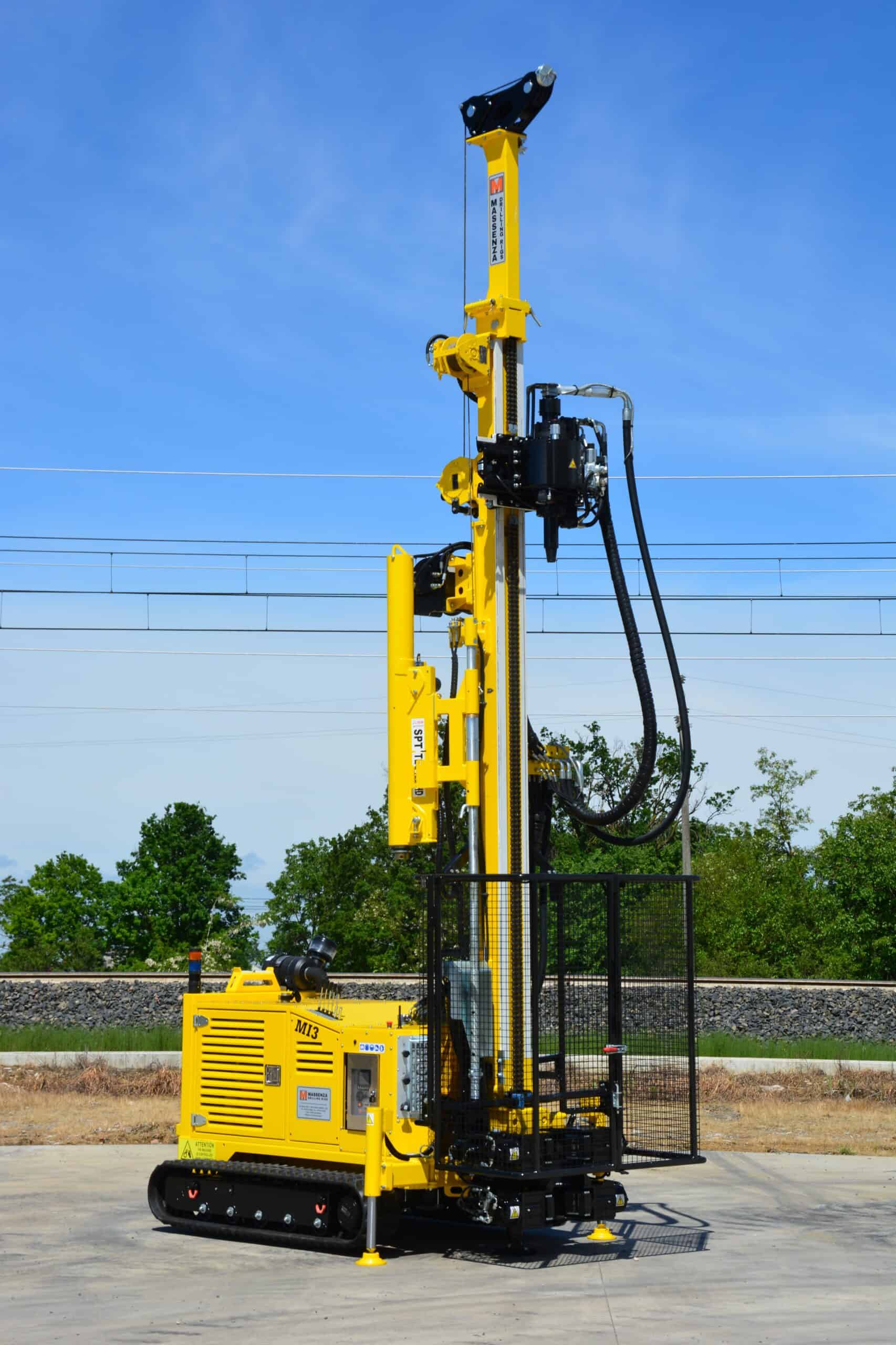

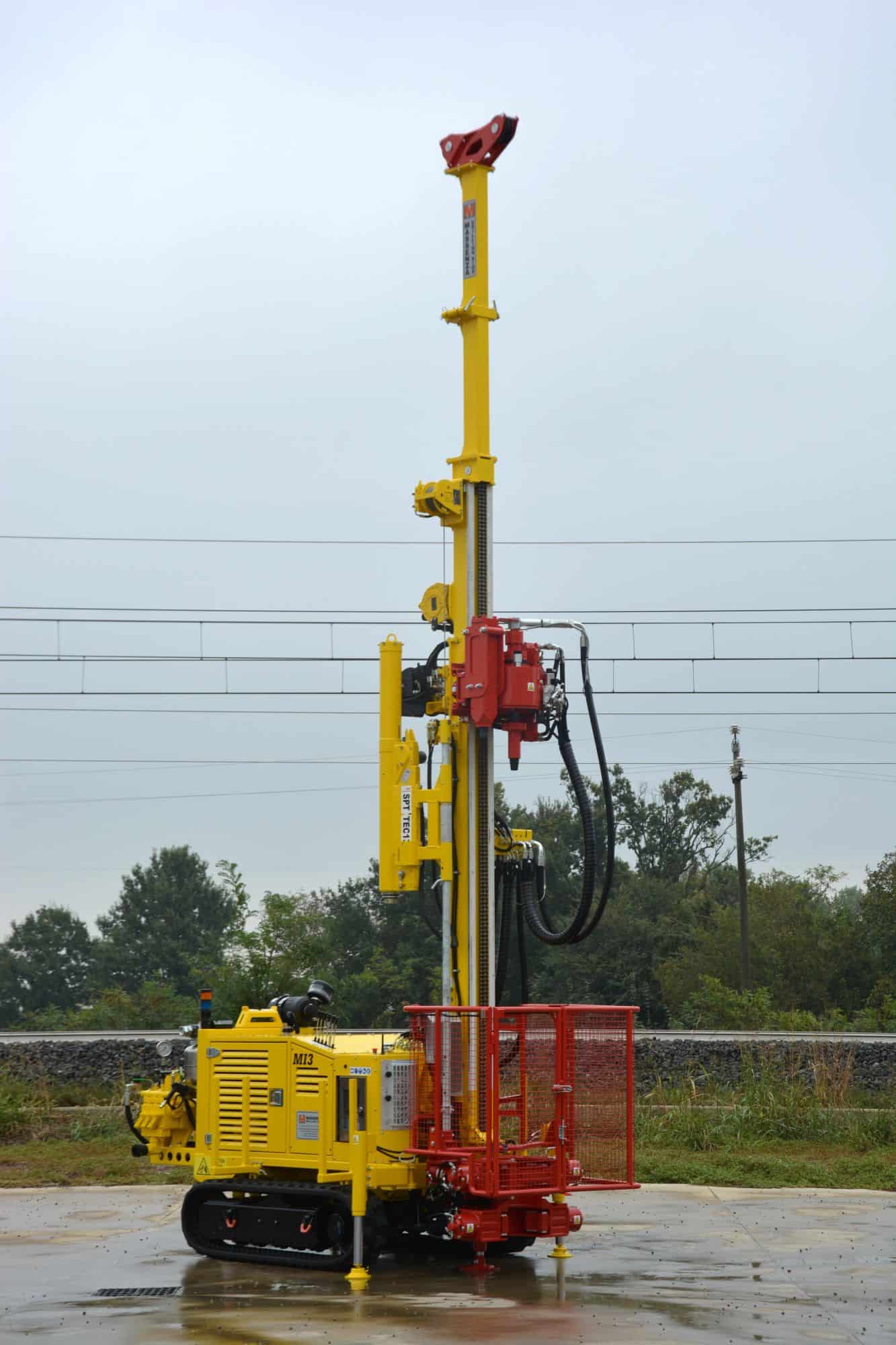

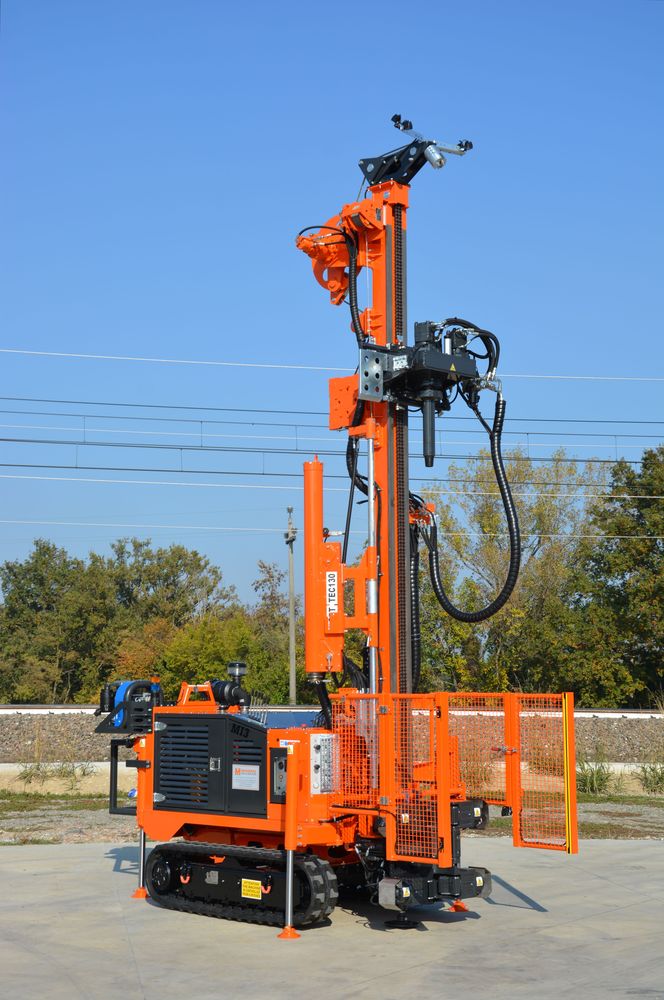

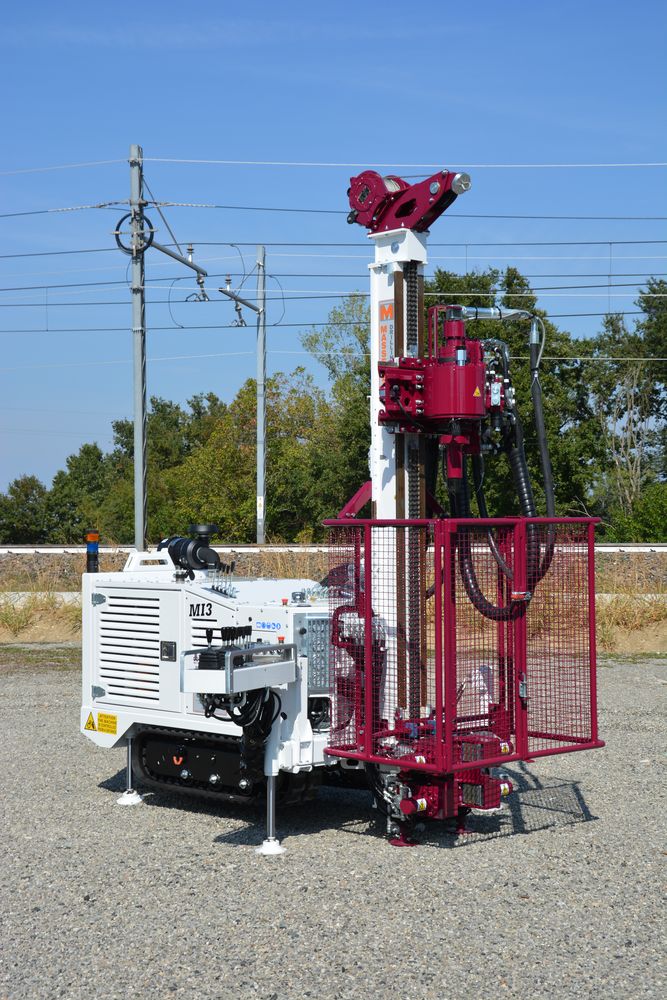

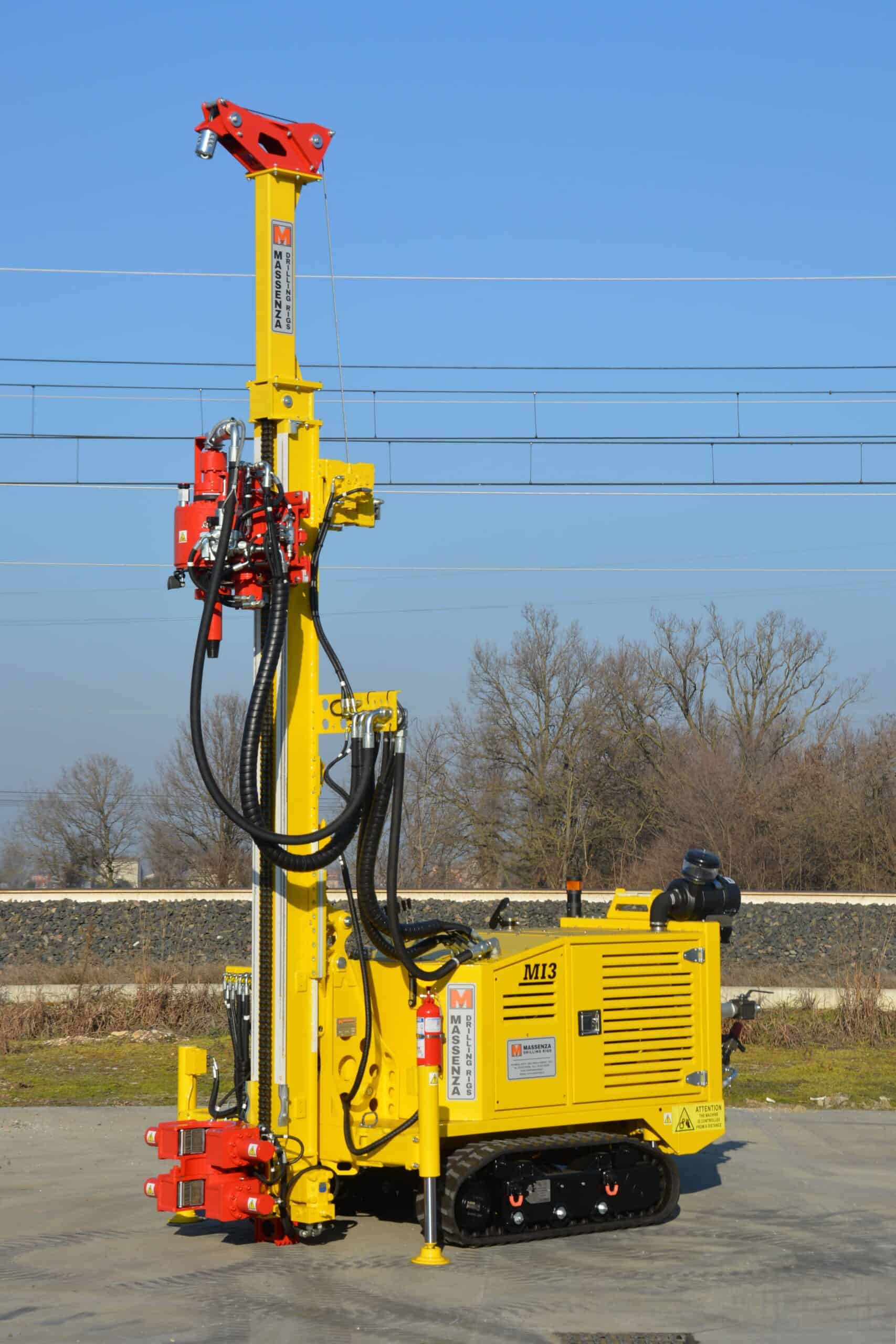

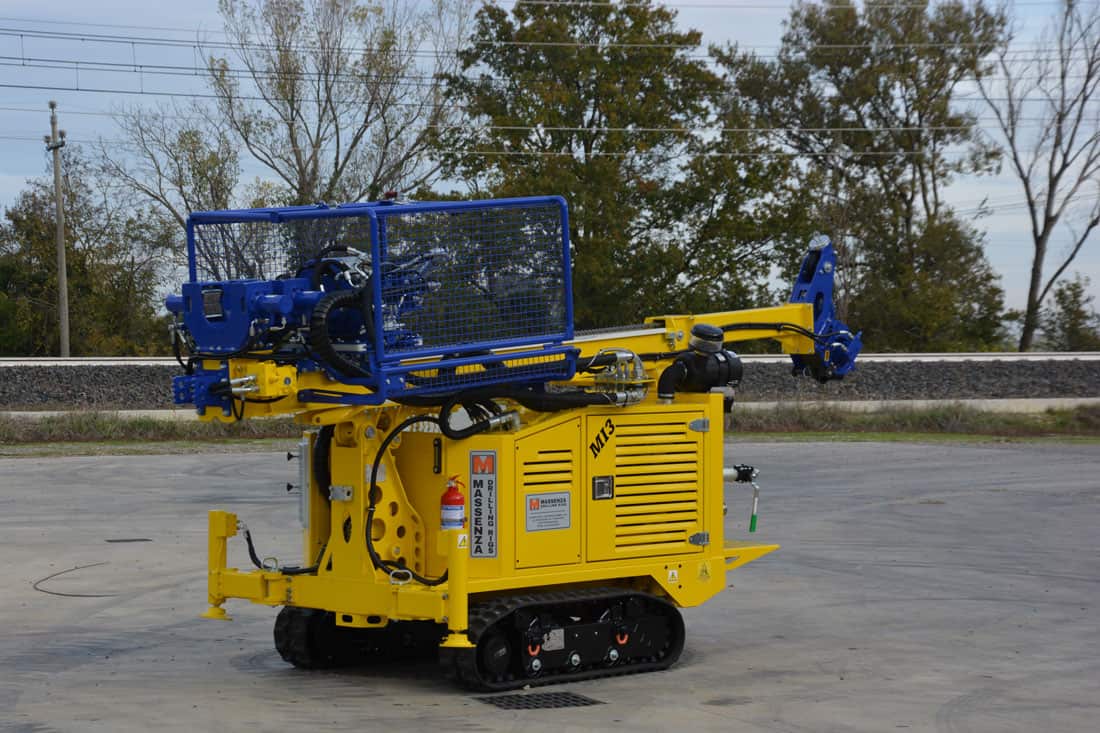

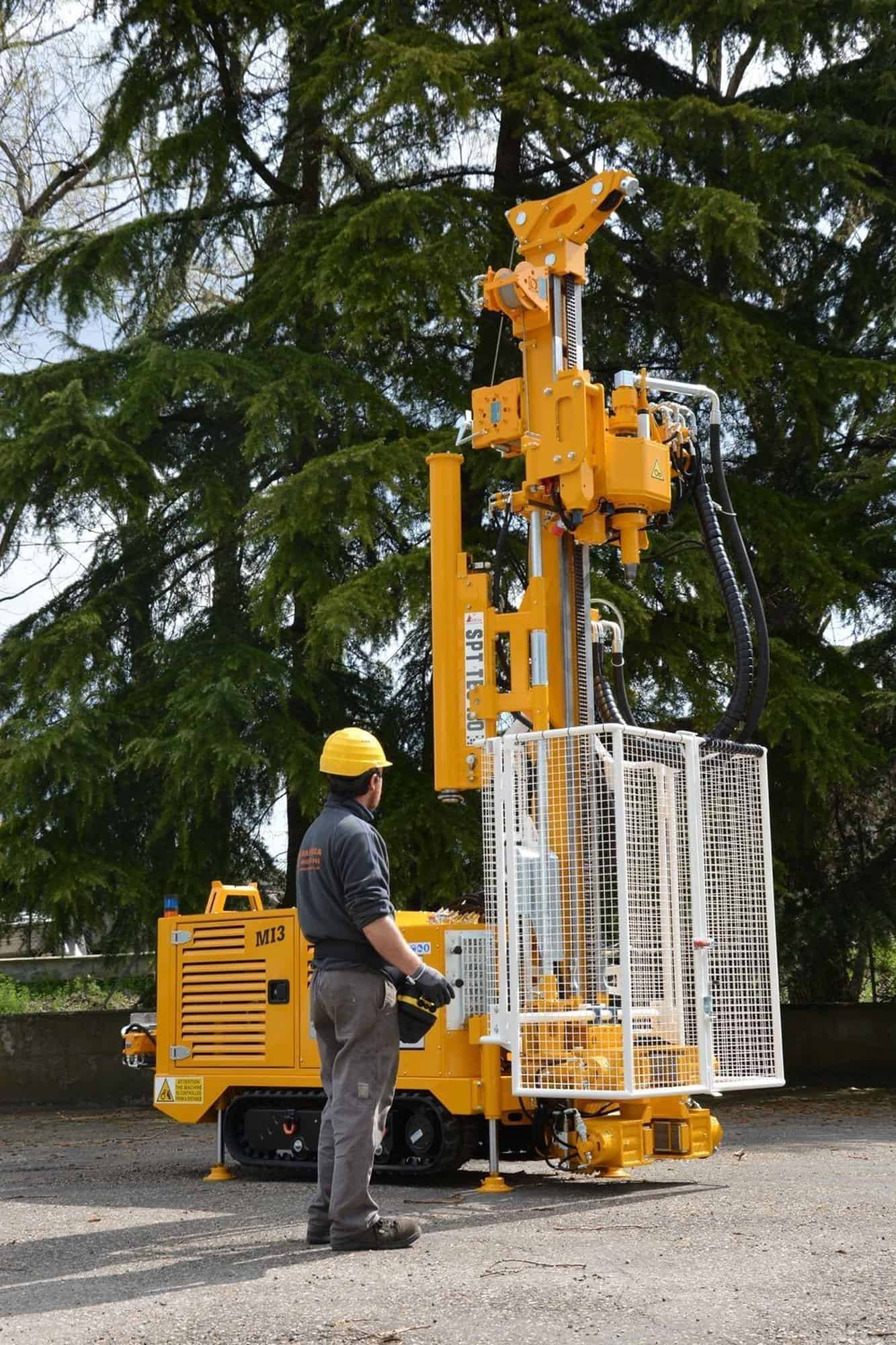

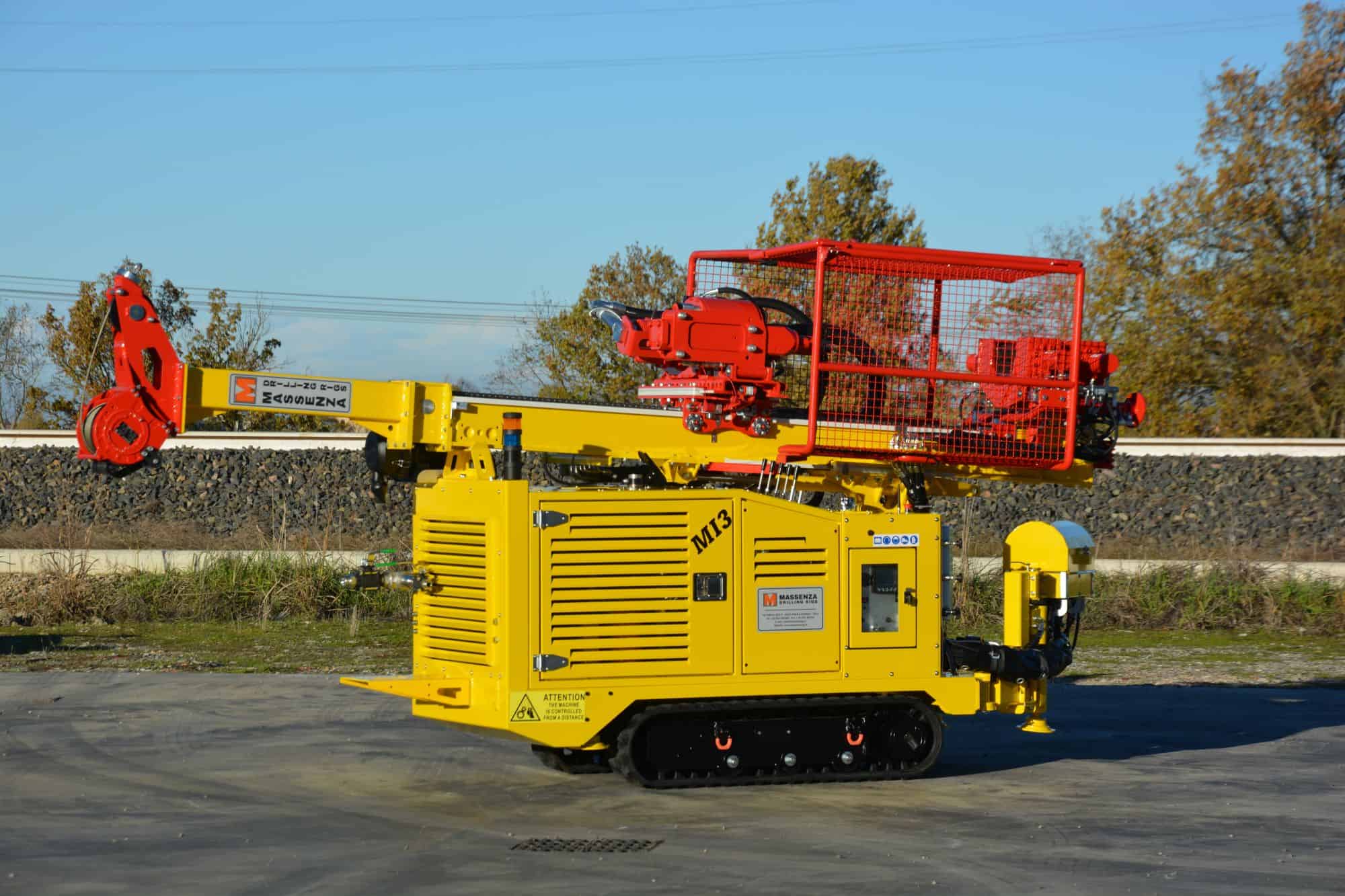

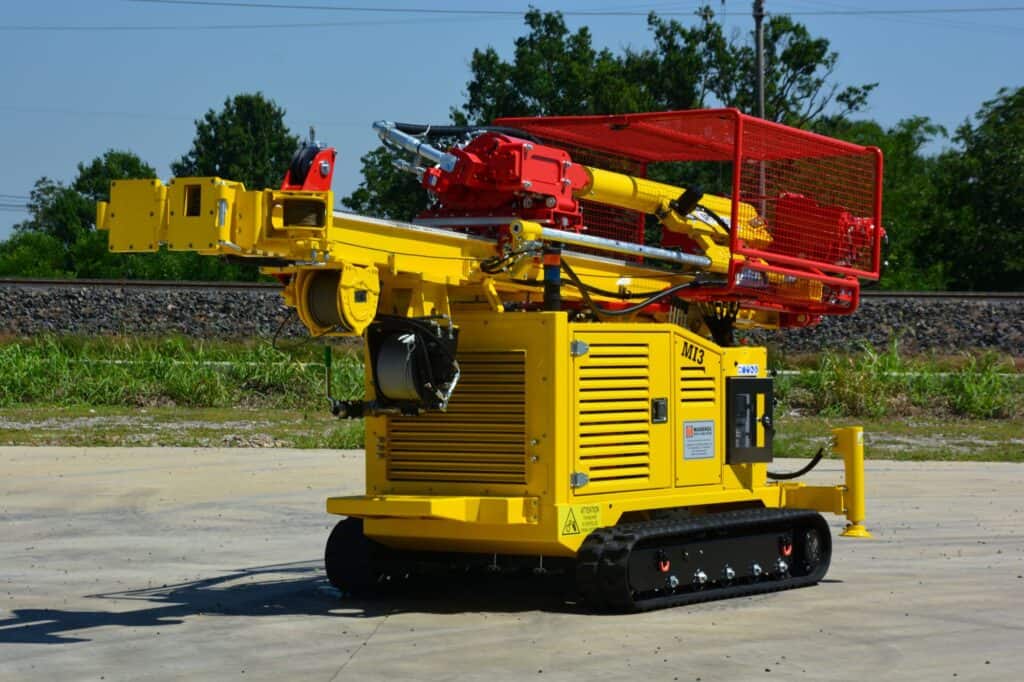

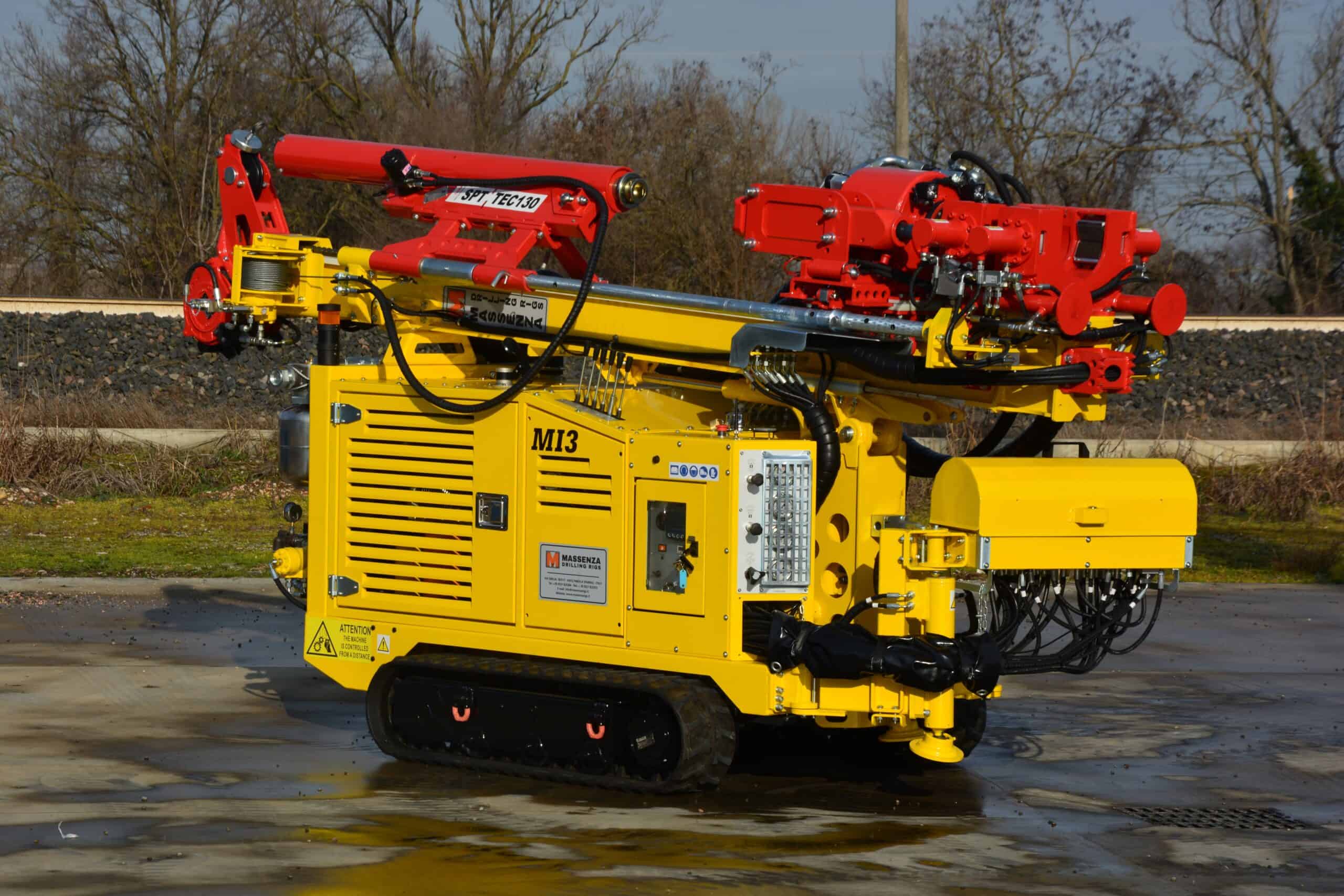

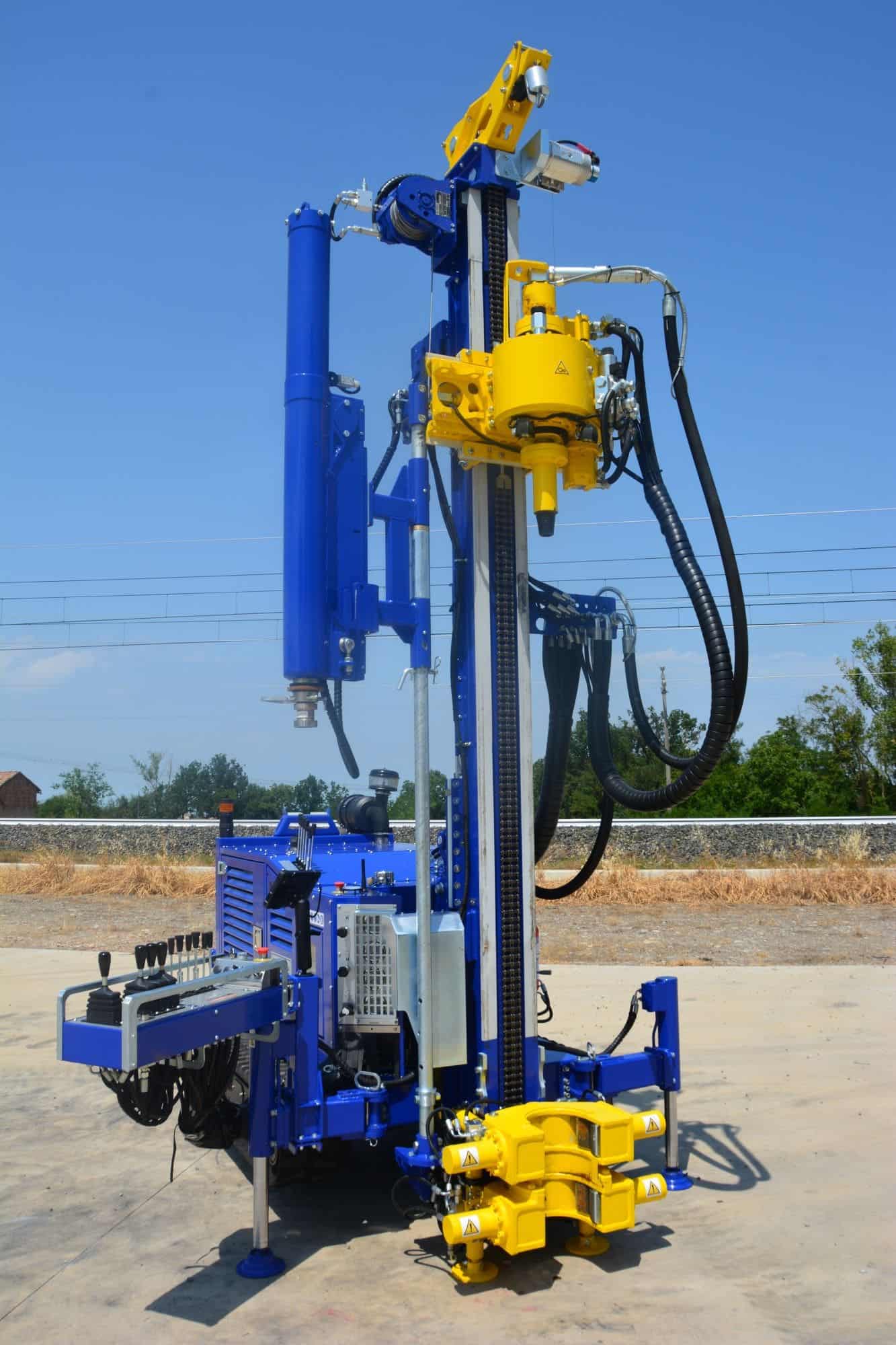

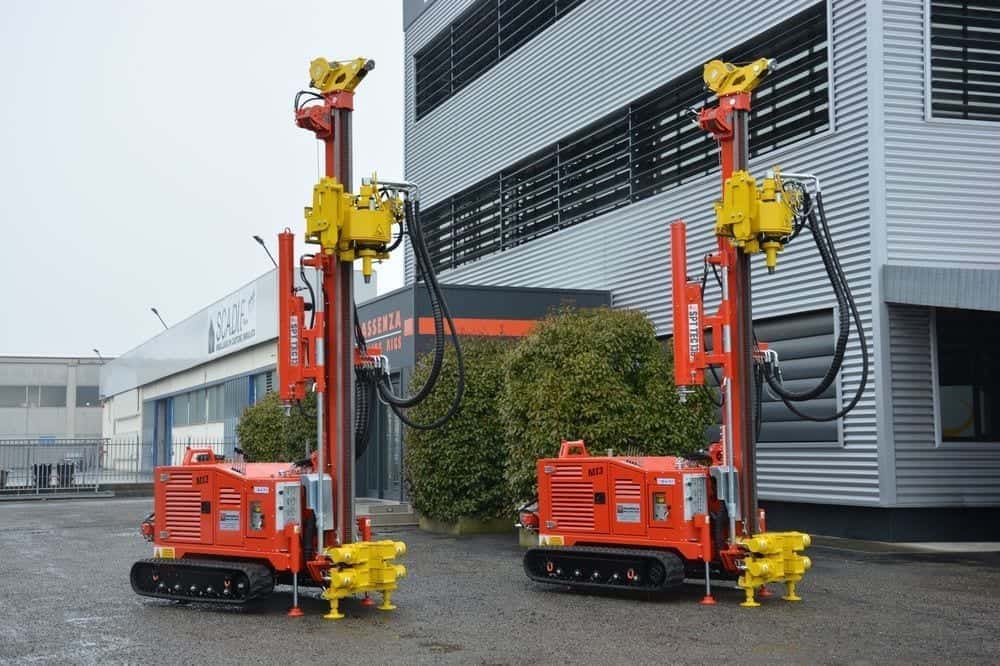

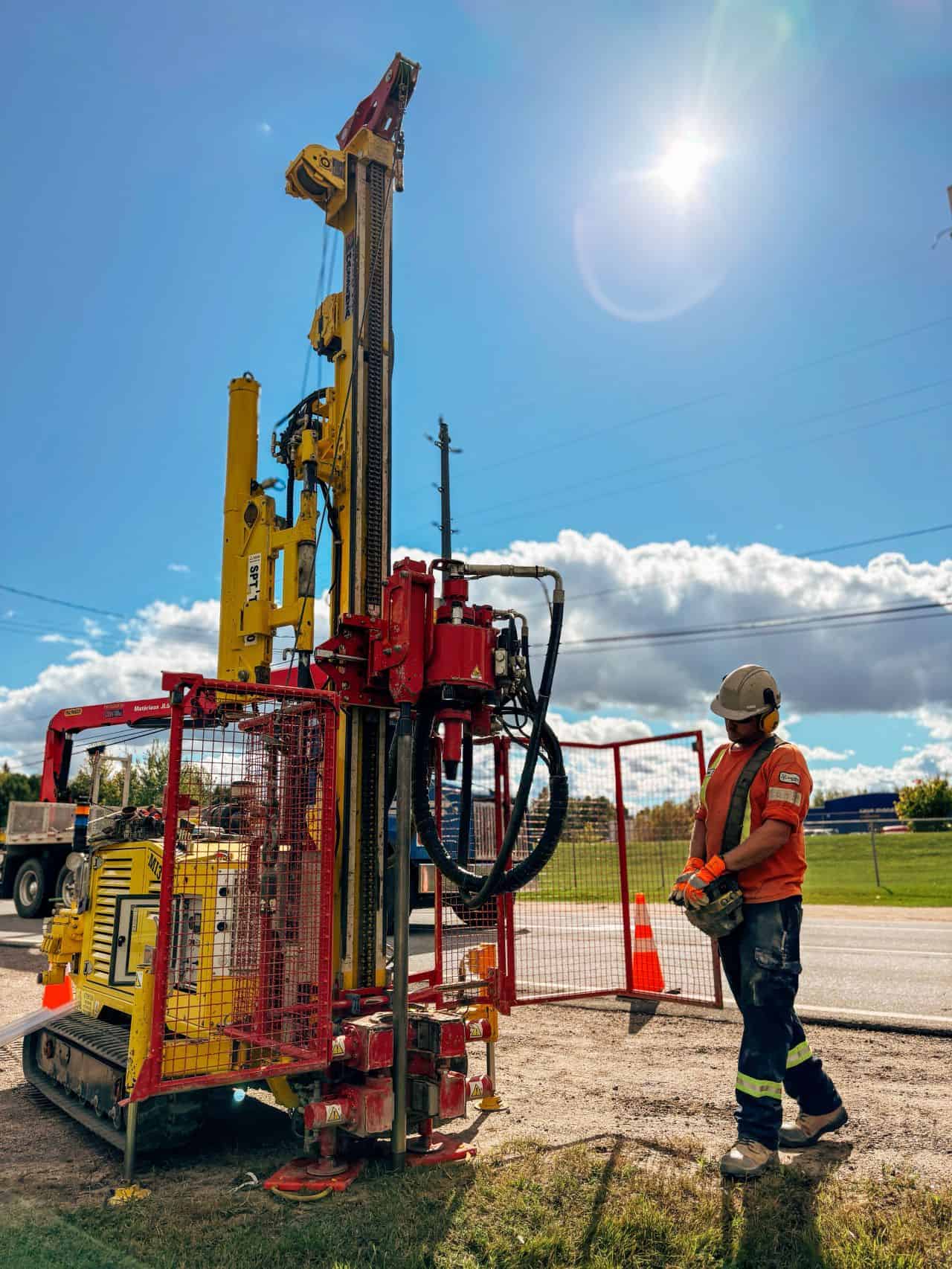

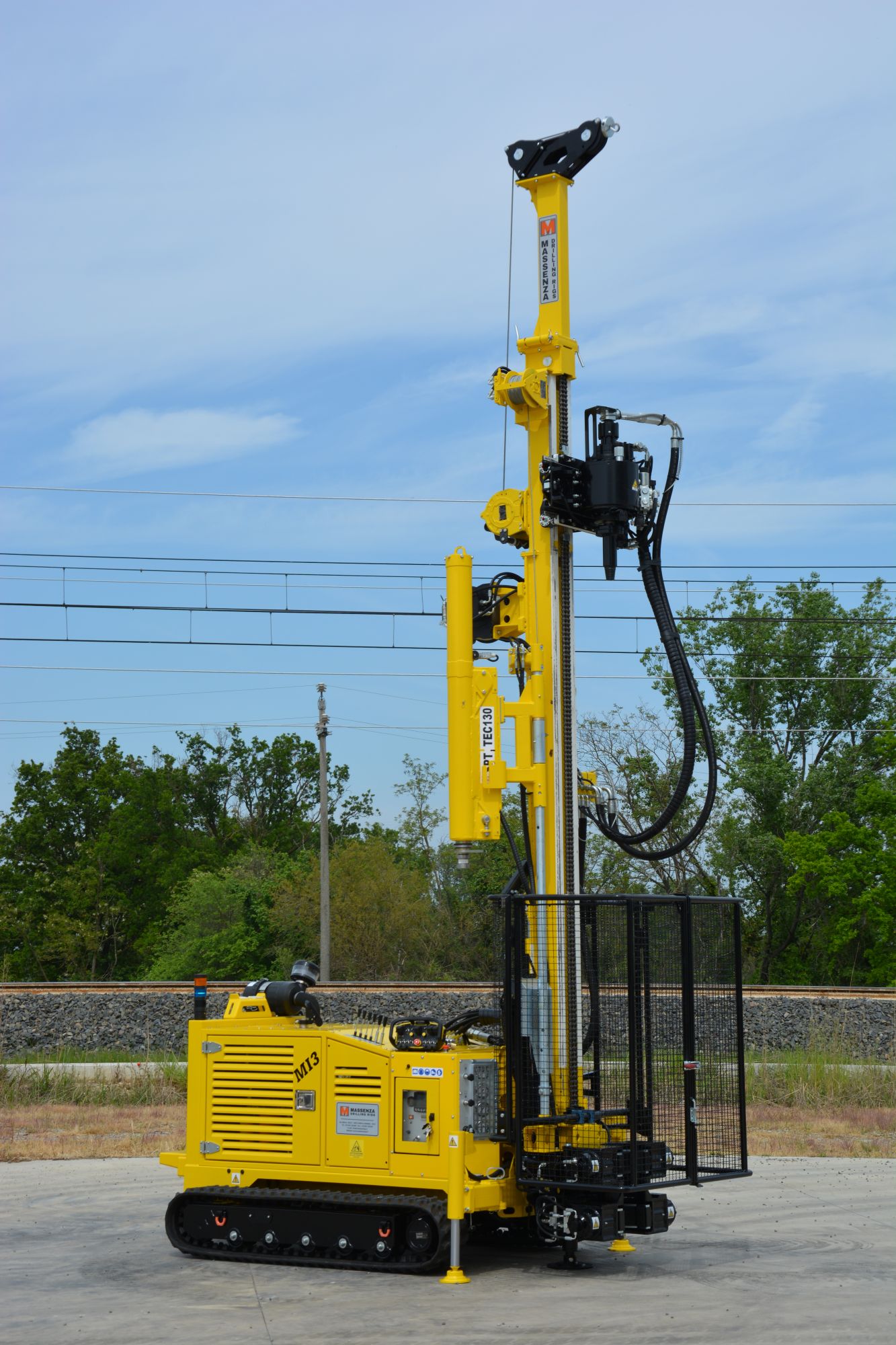

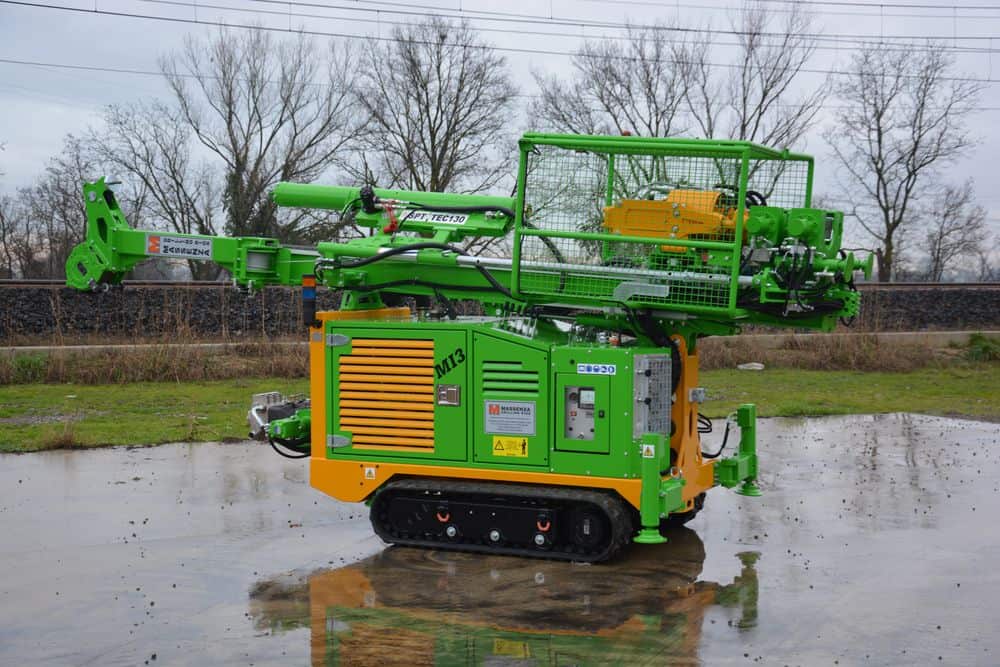

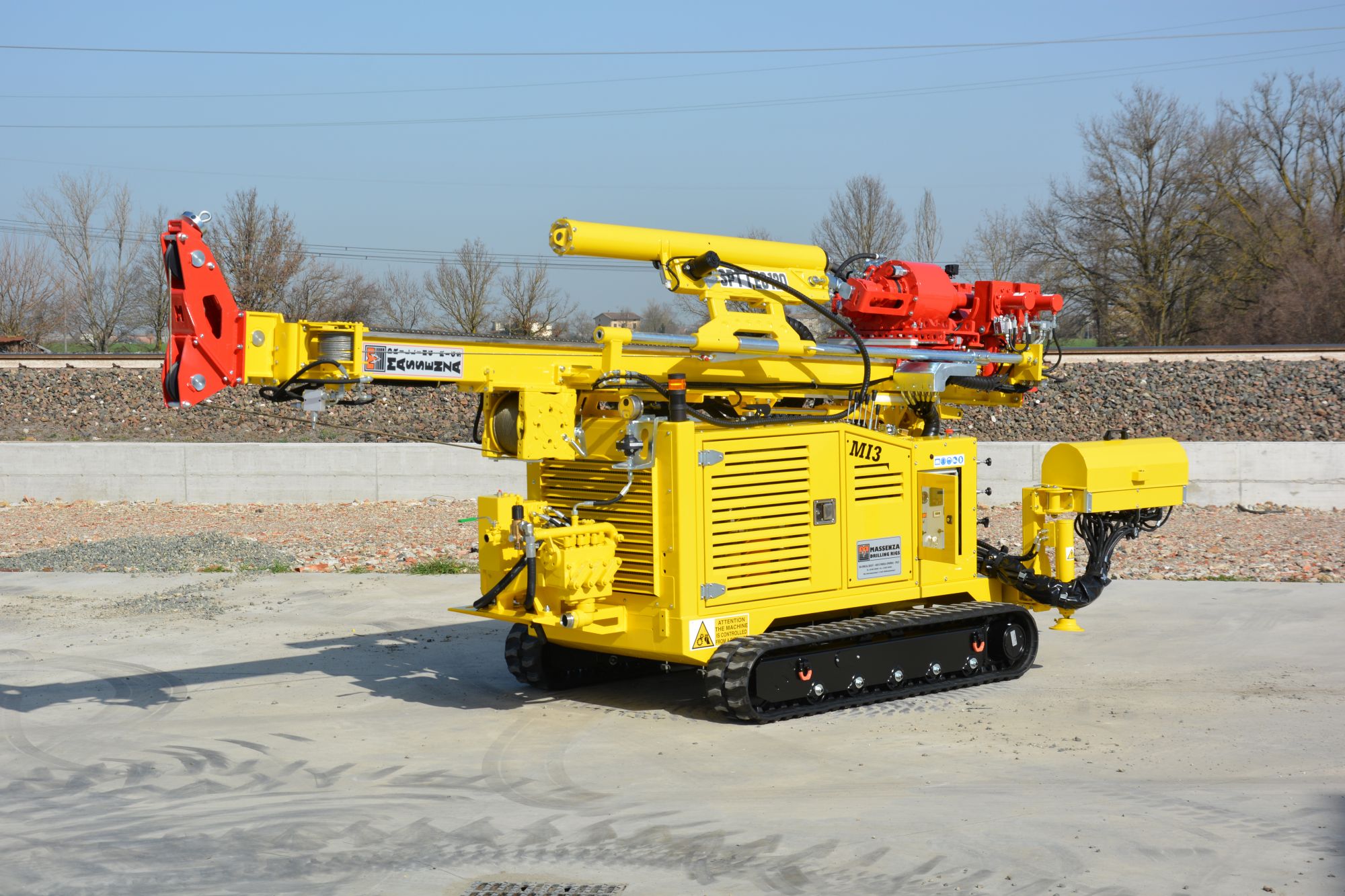

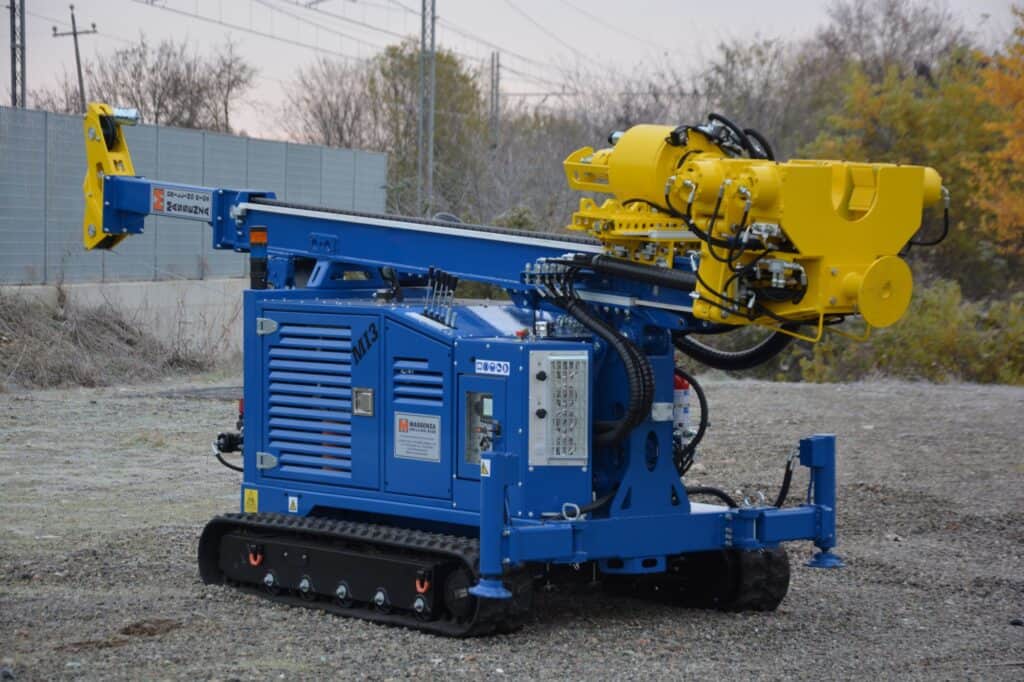

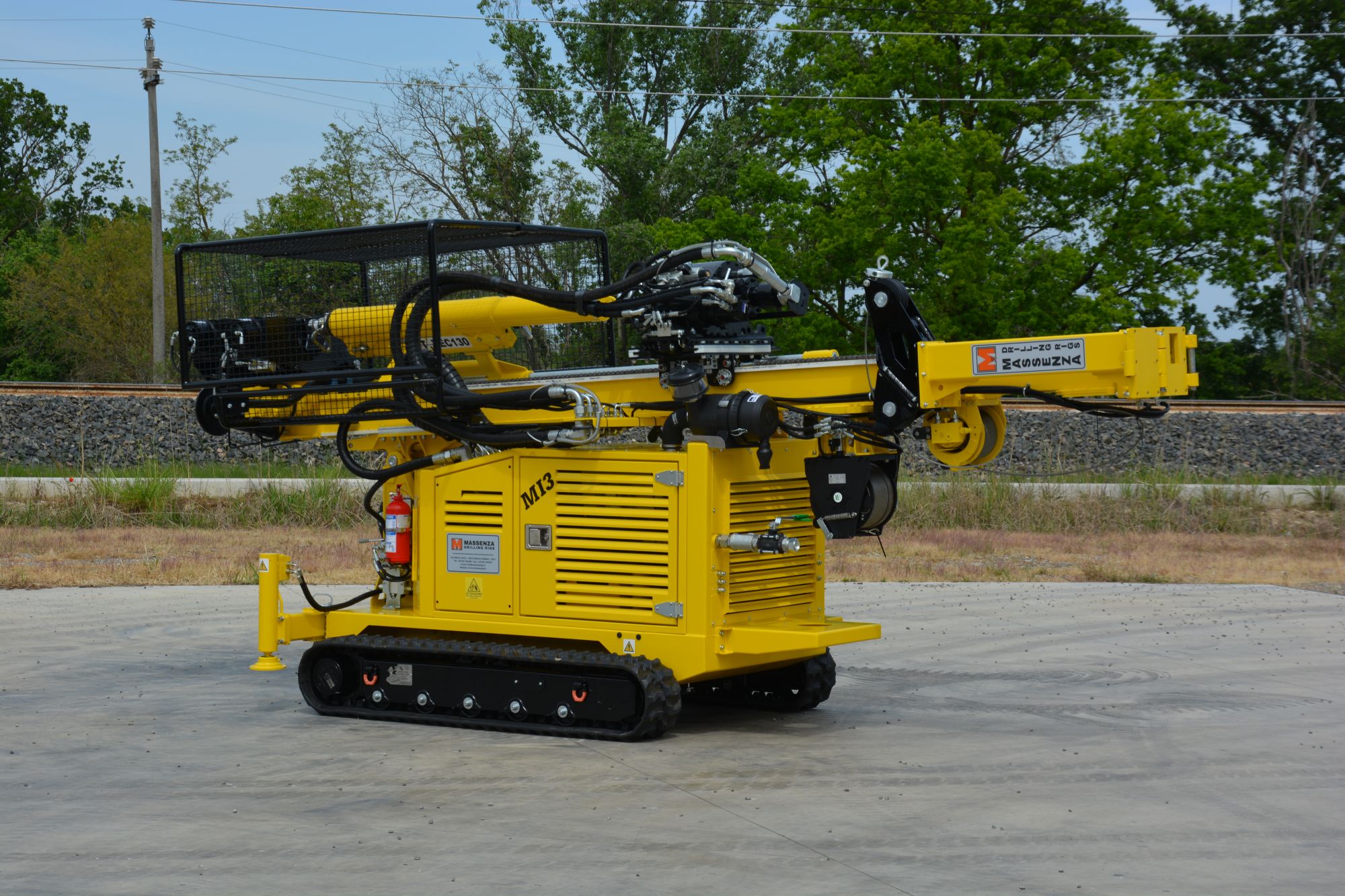

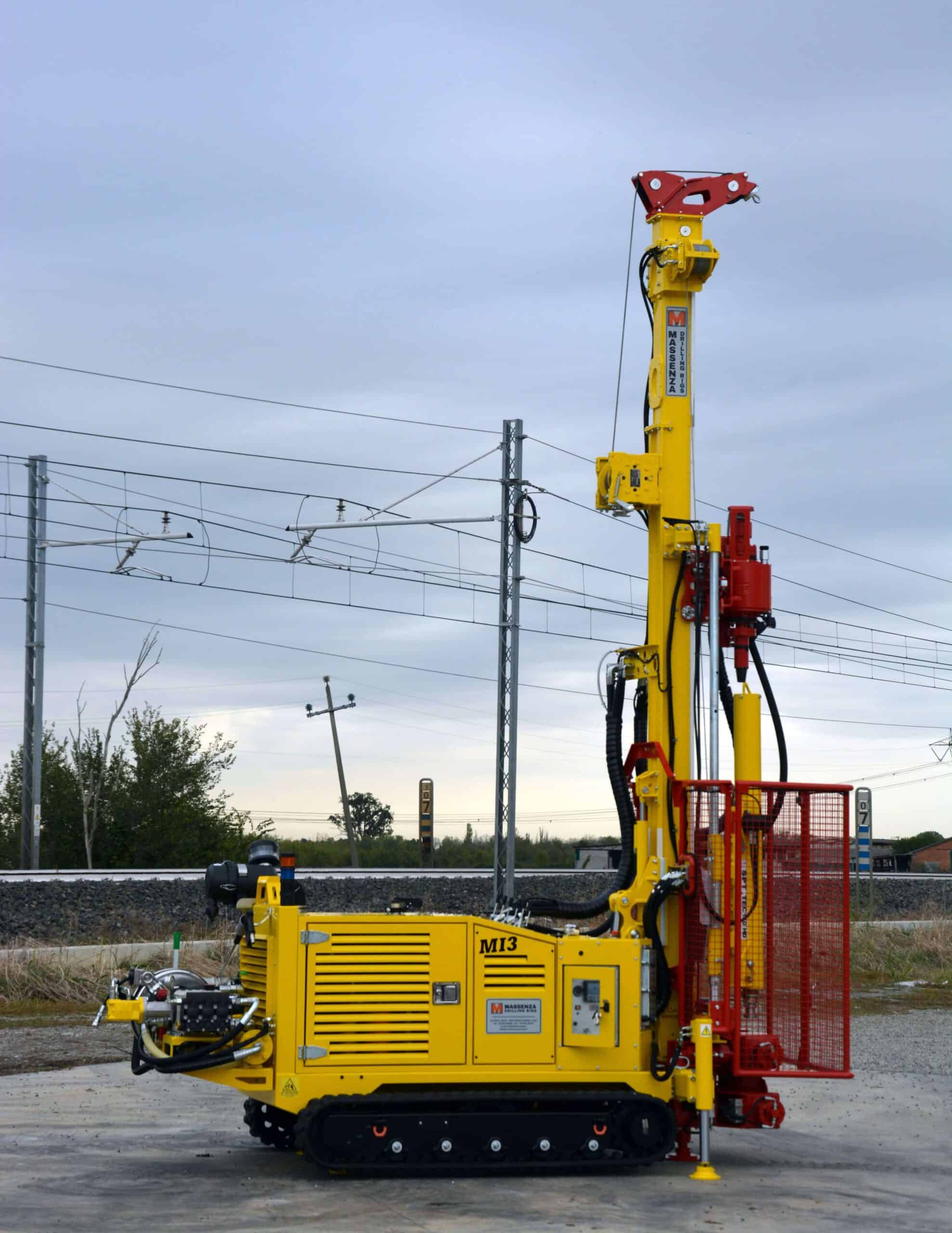

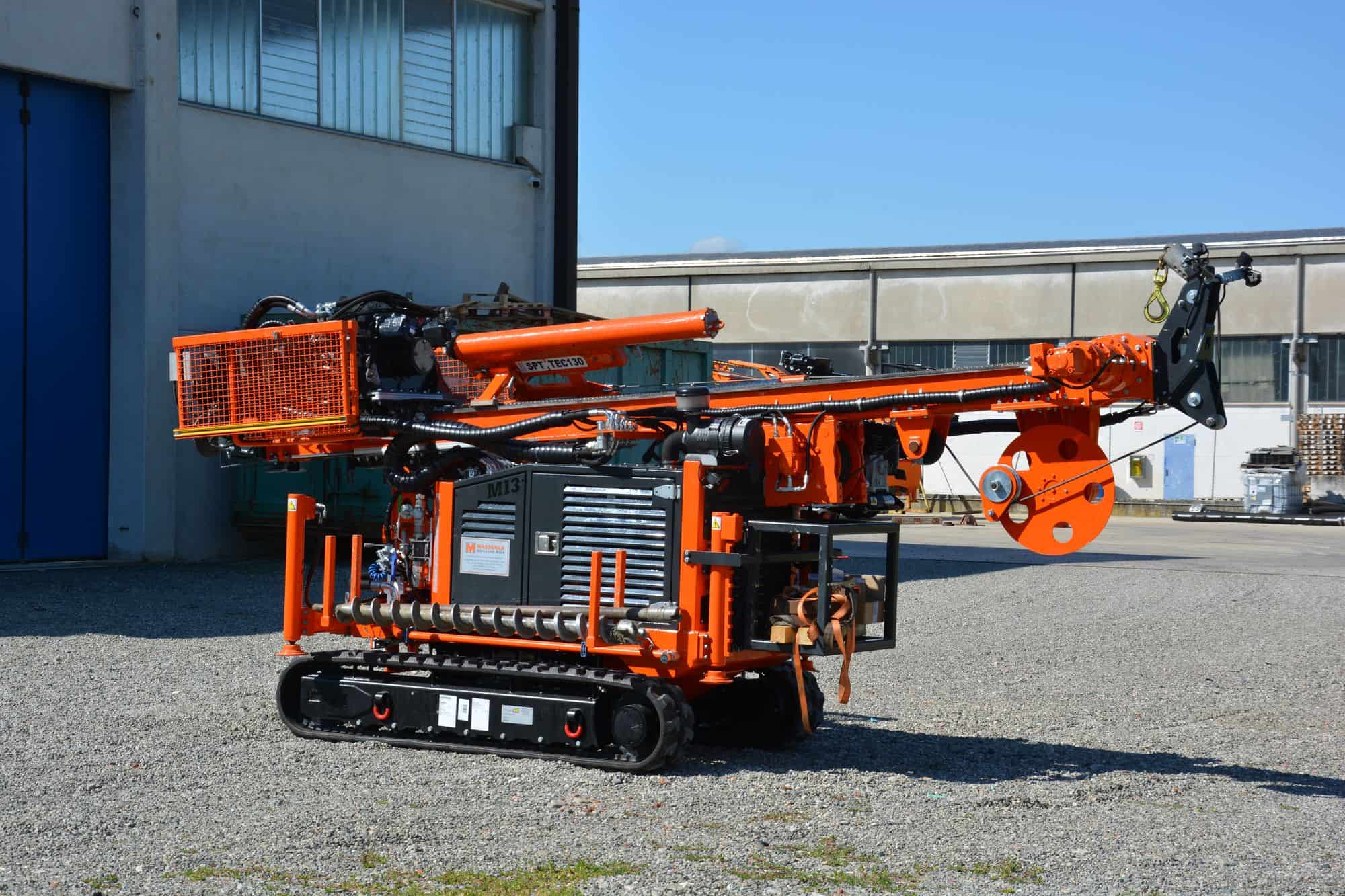

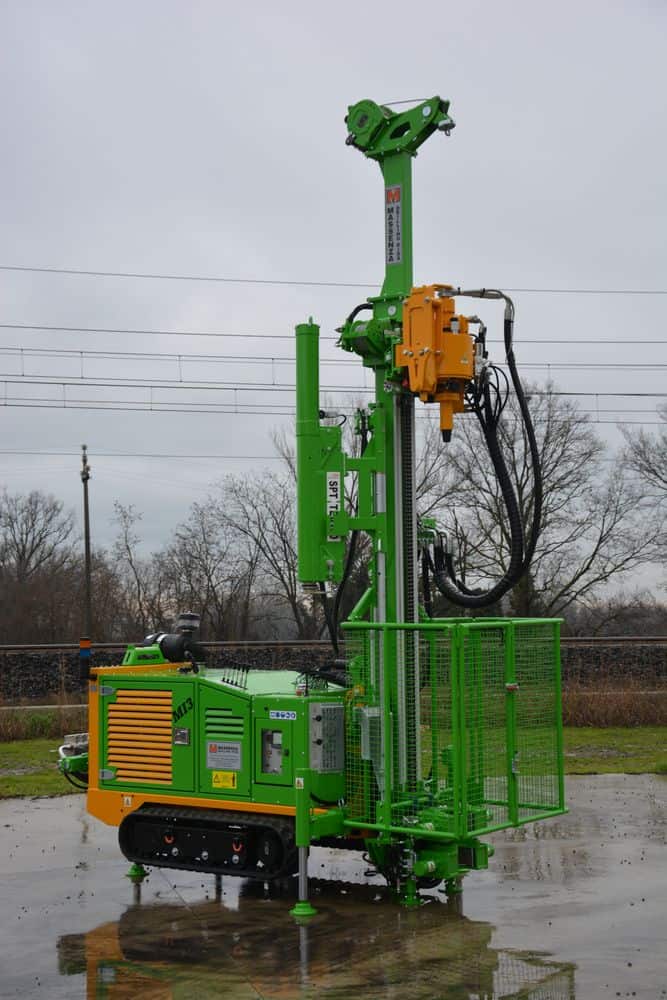

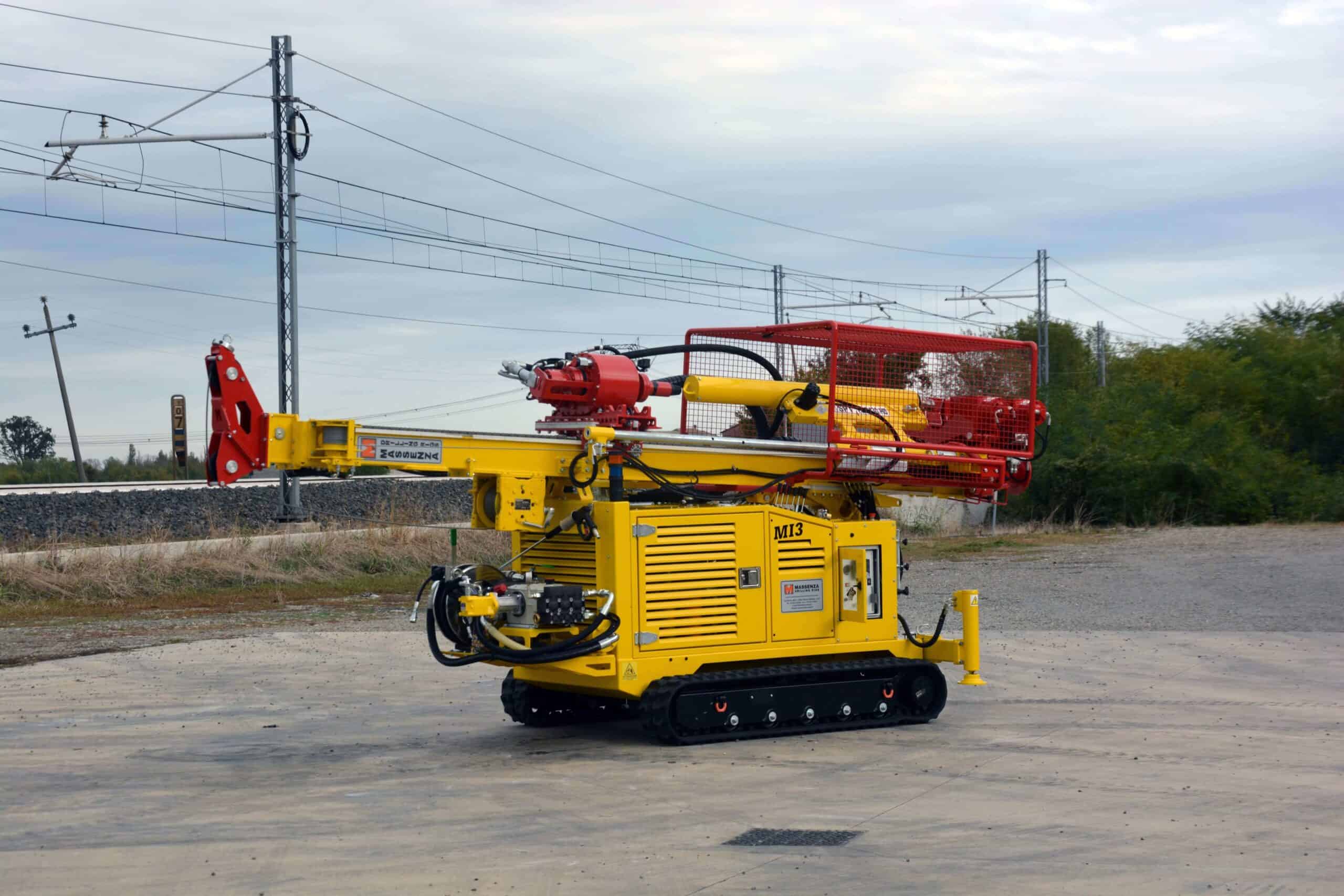

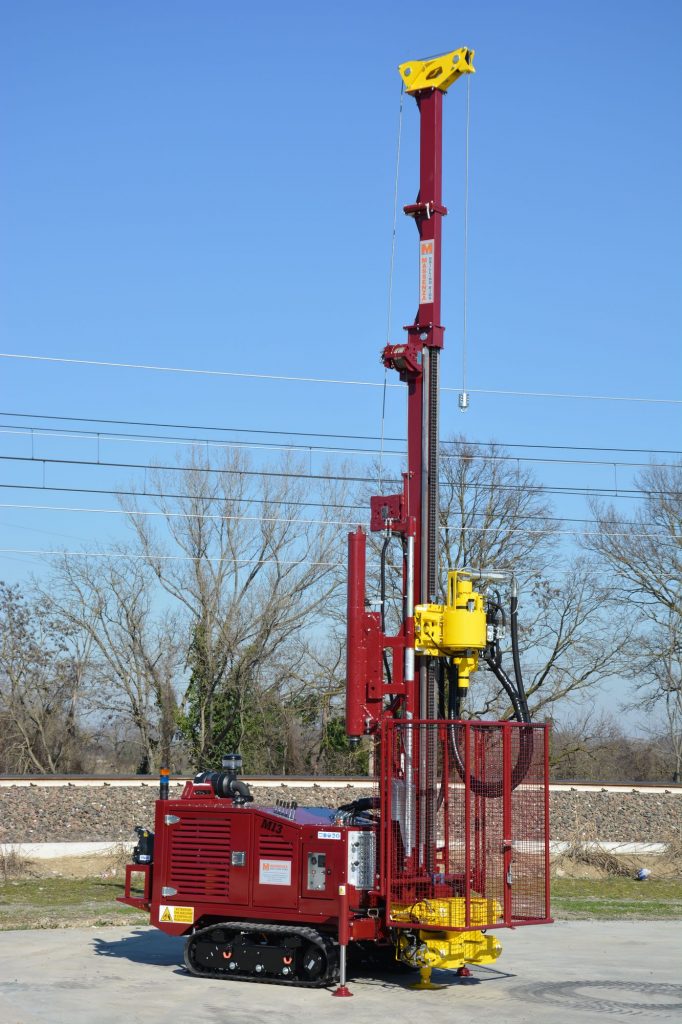

DRILLING RIG Mi3
DESCRIPTION

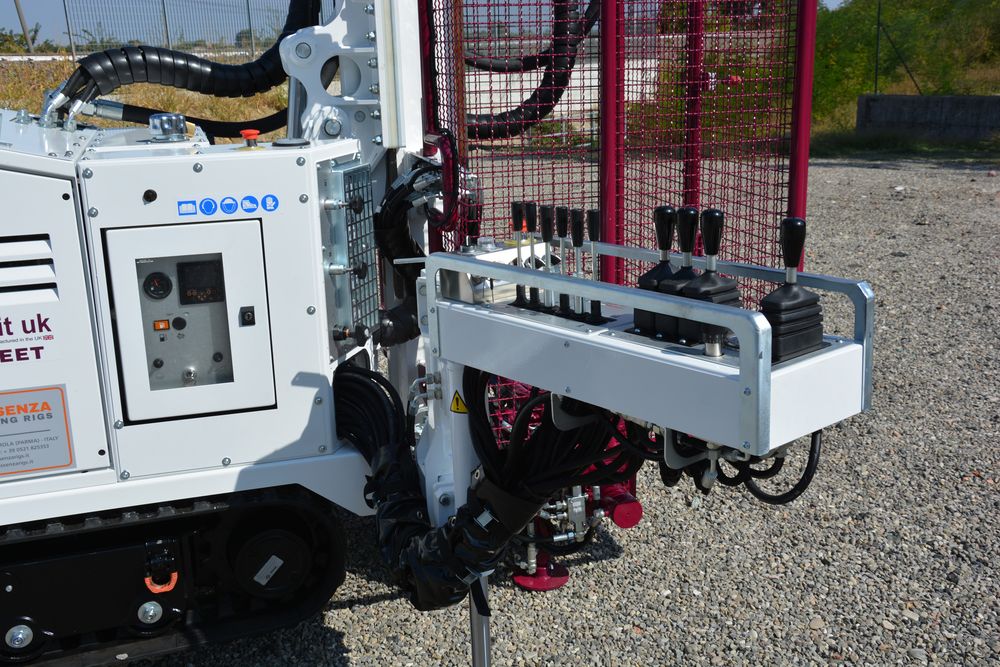

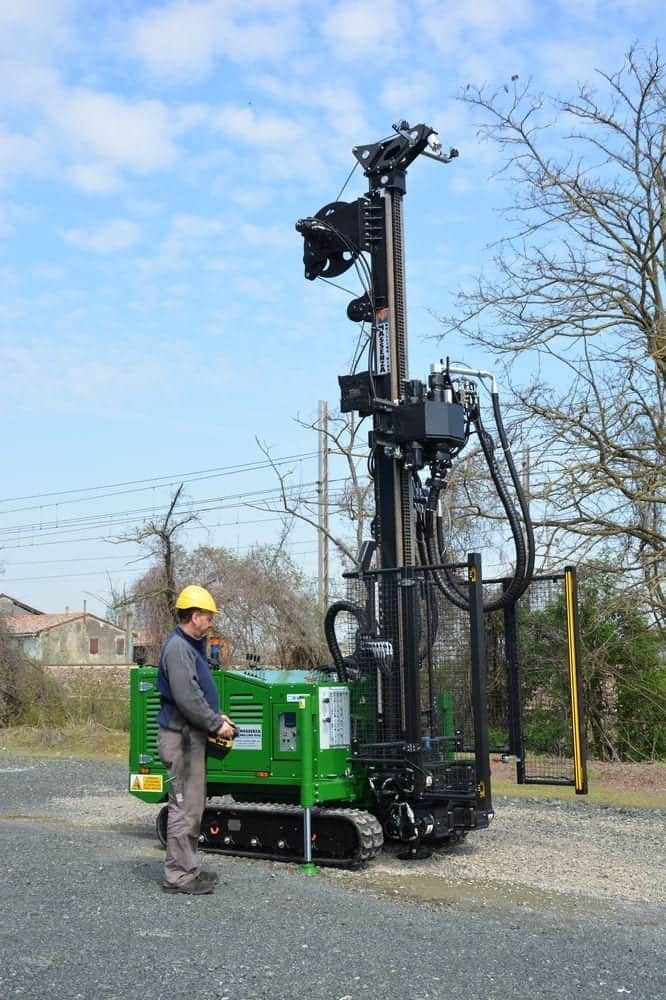

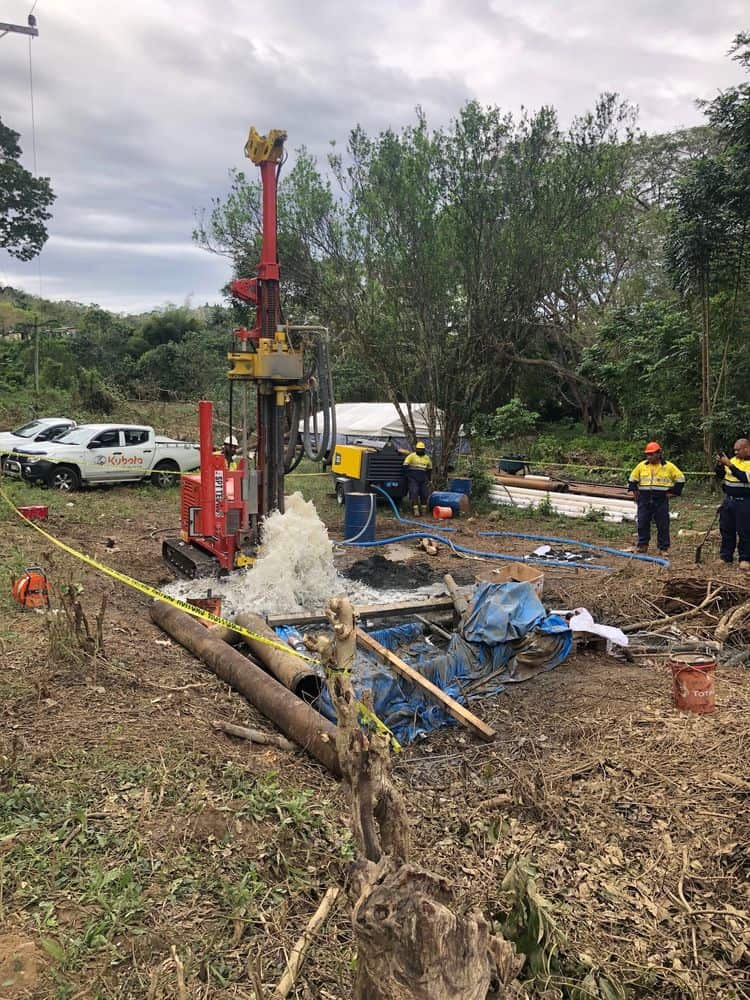

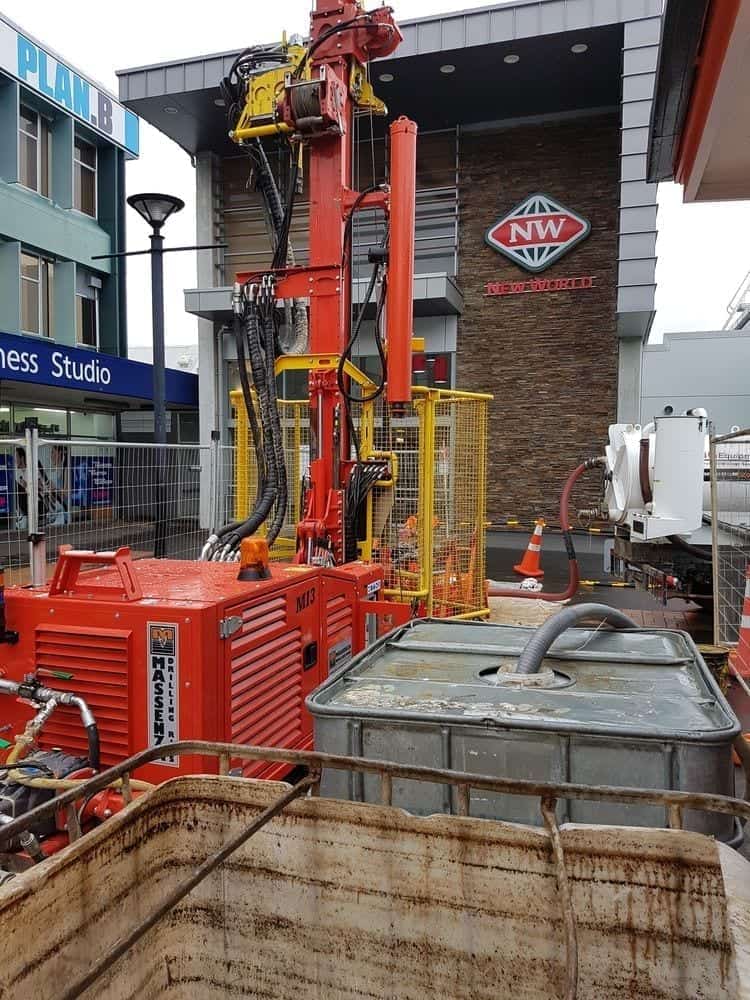

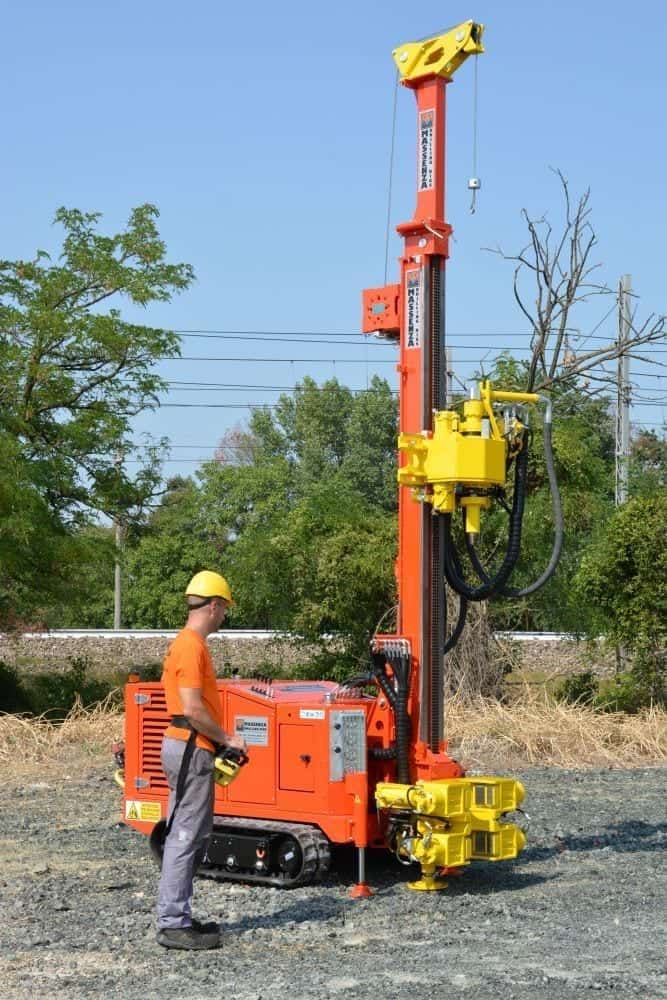

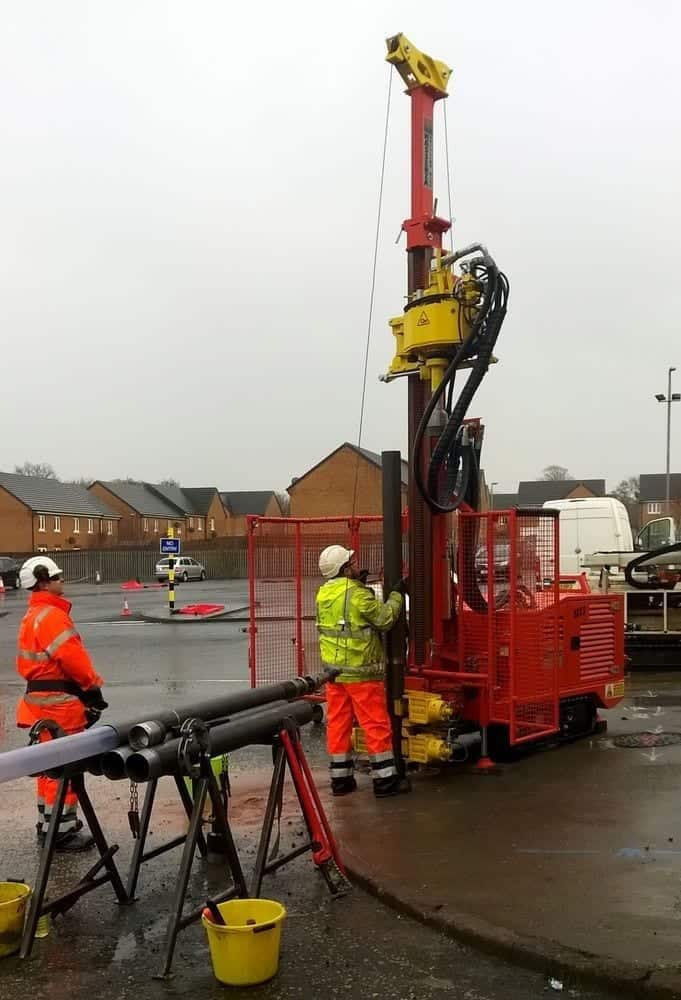

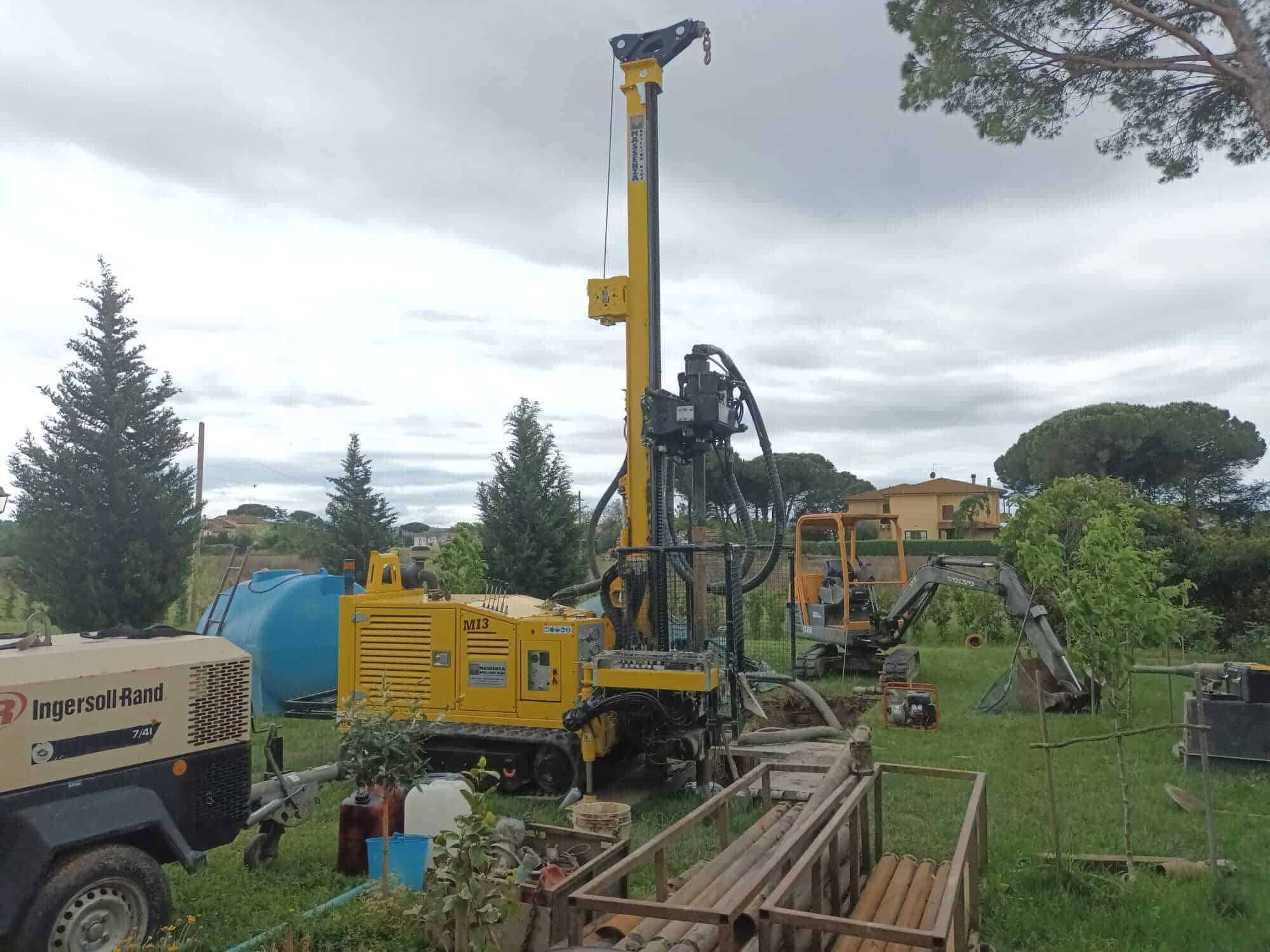

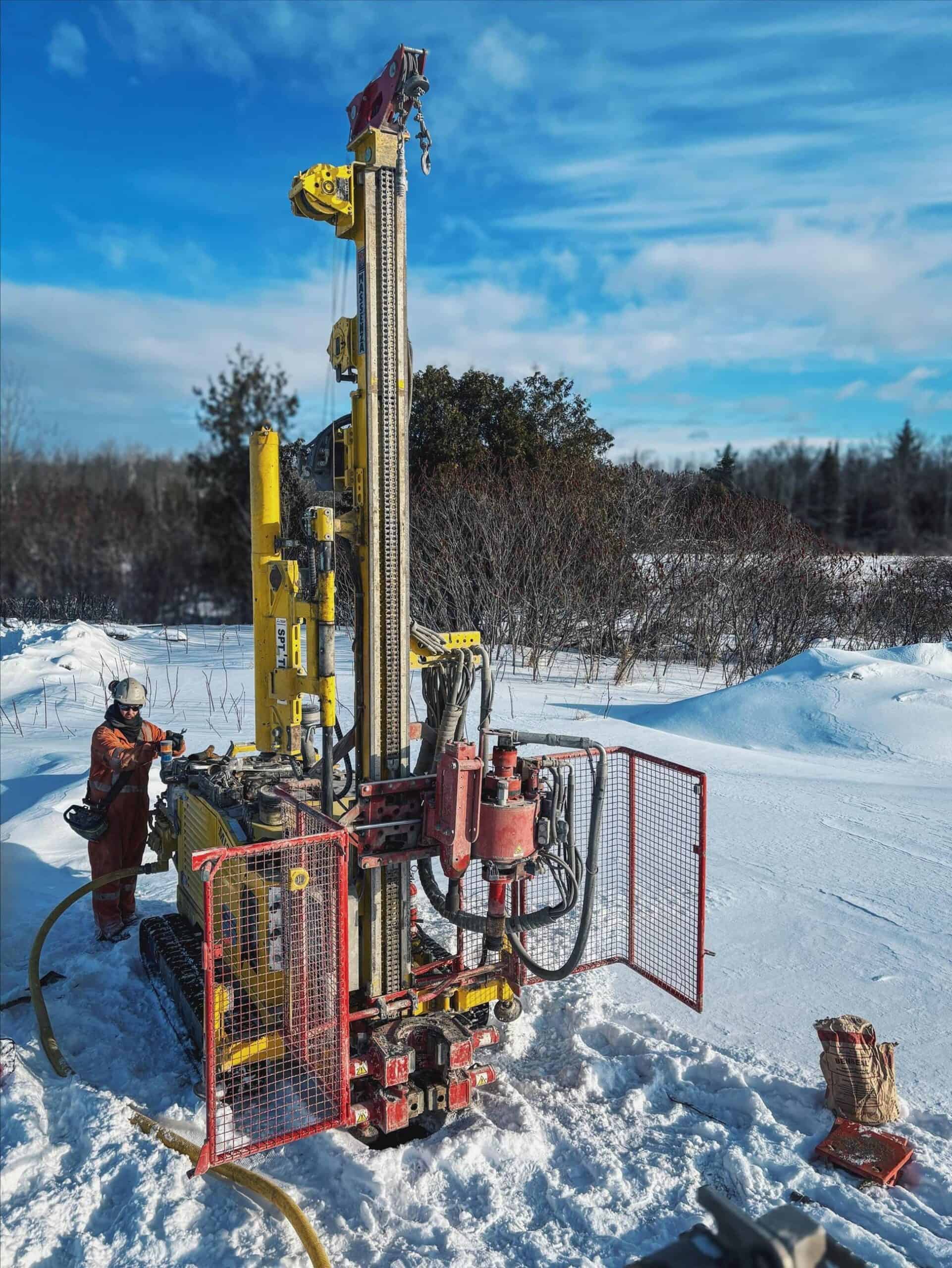

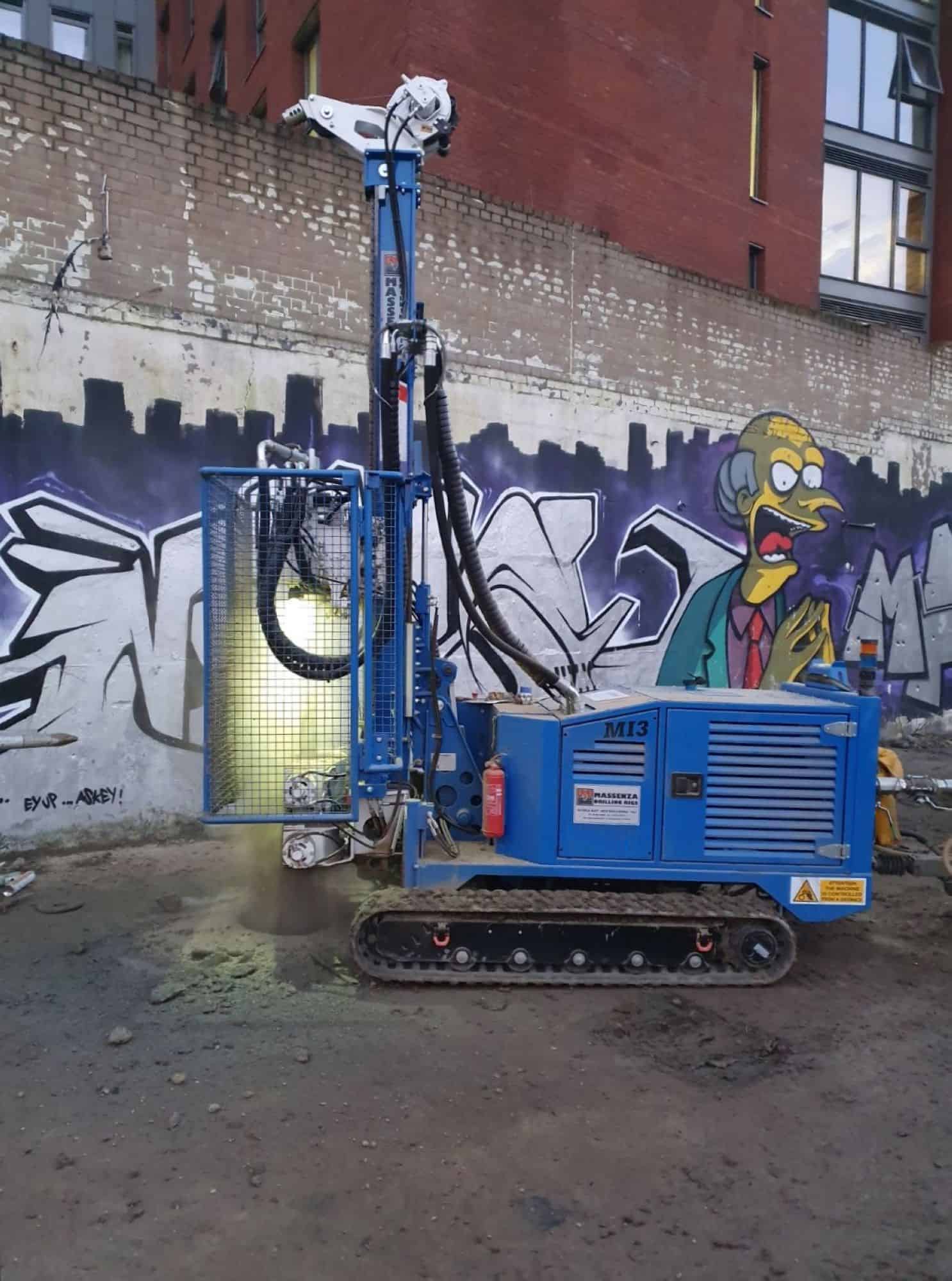

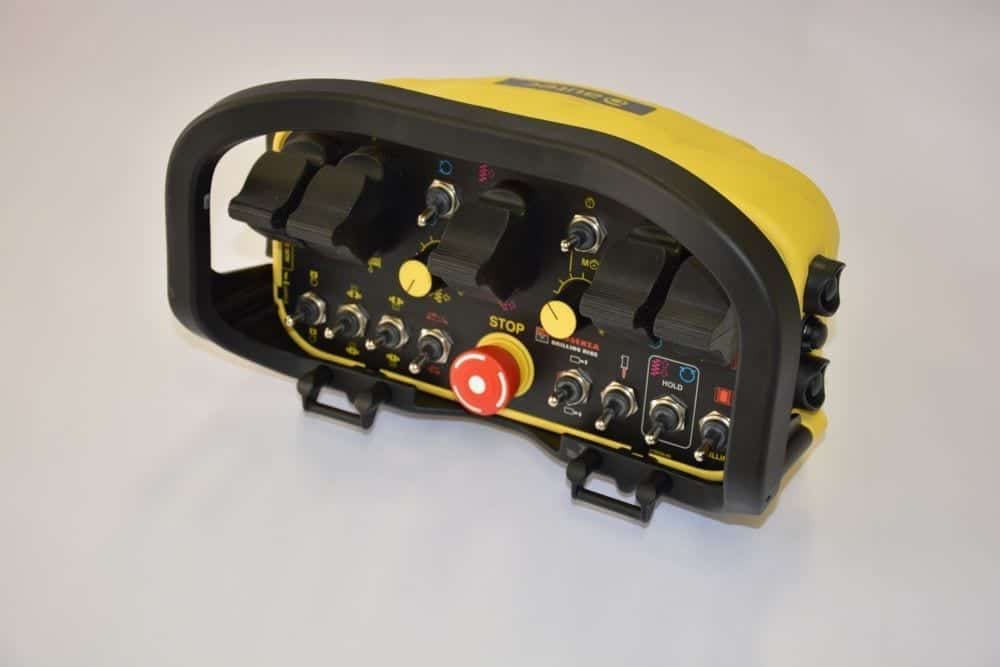

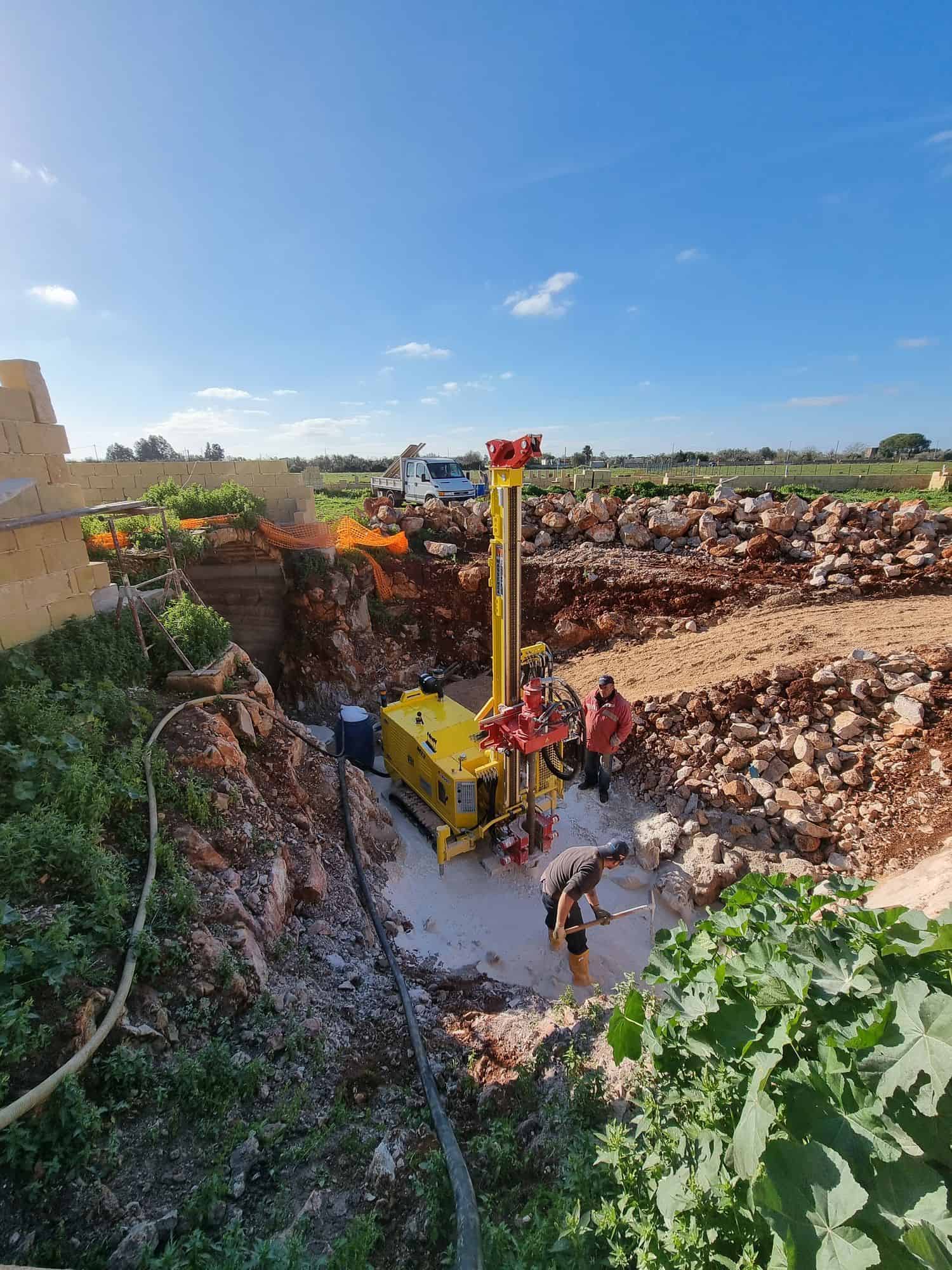

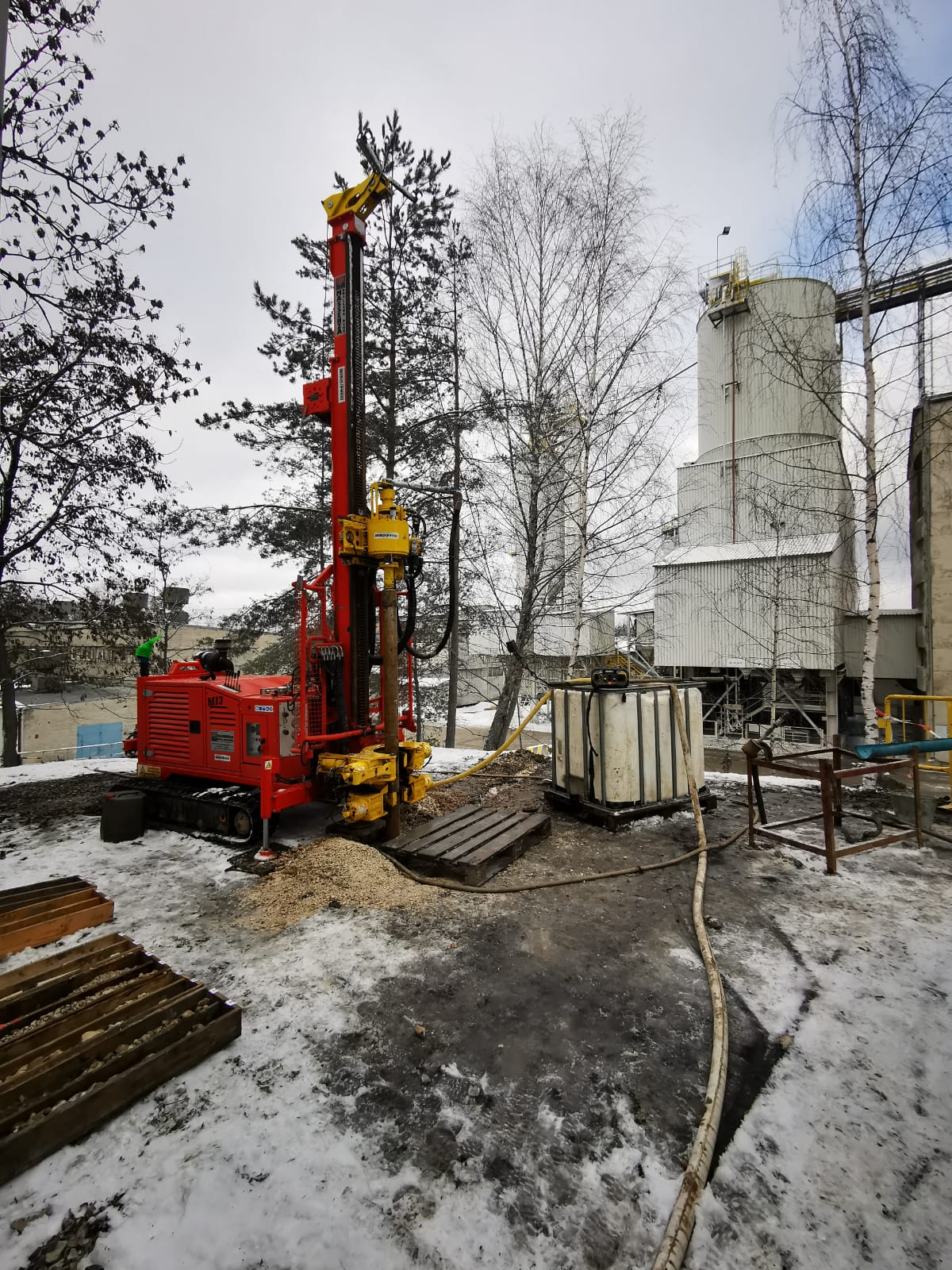

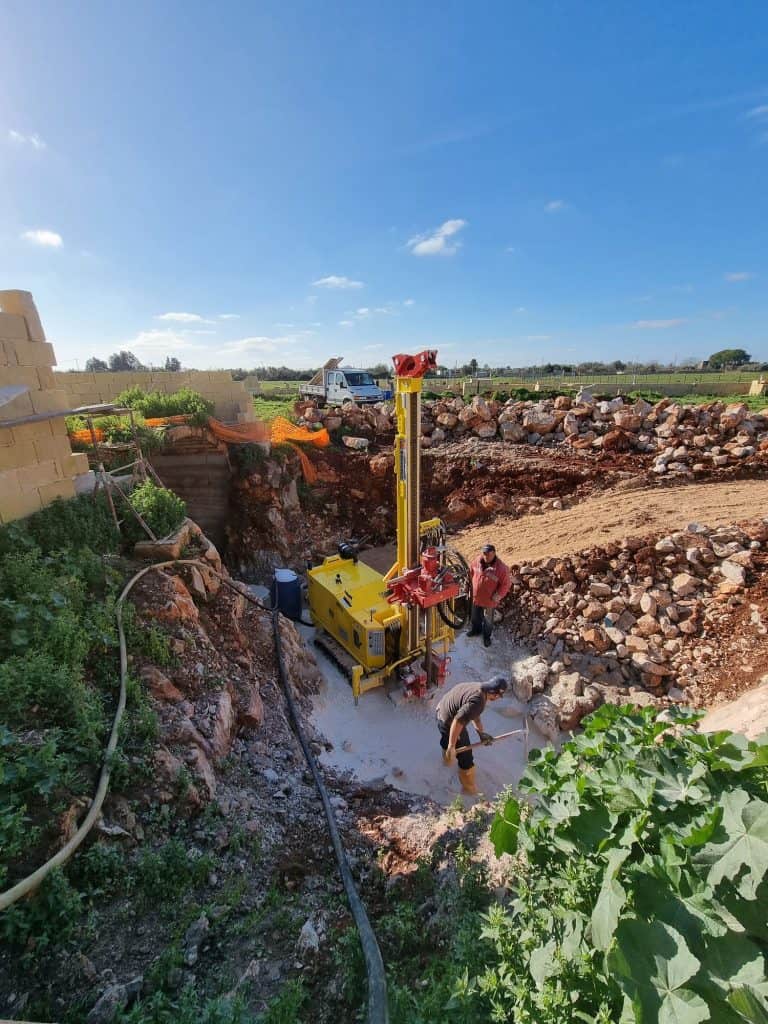

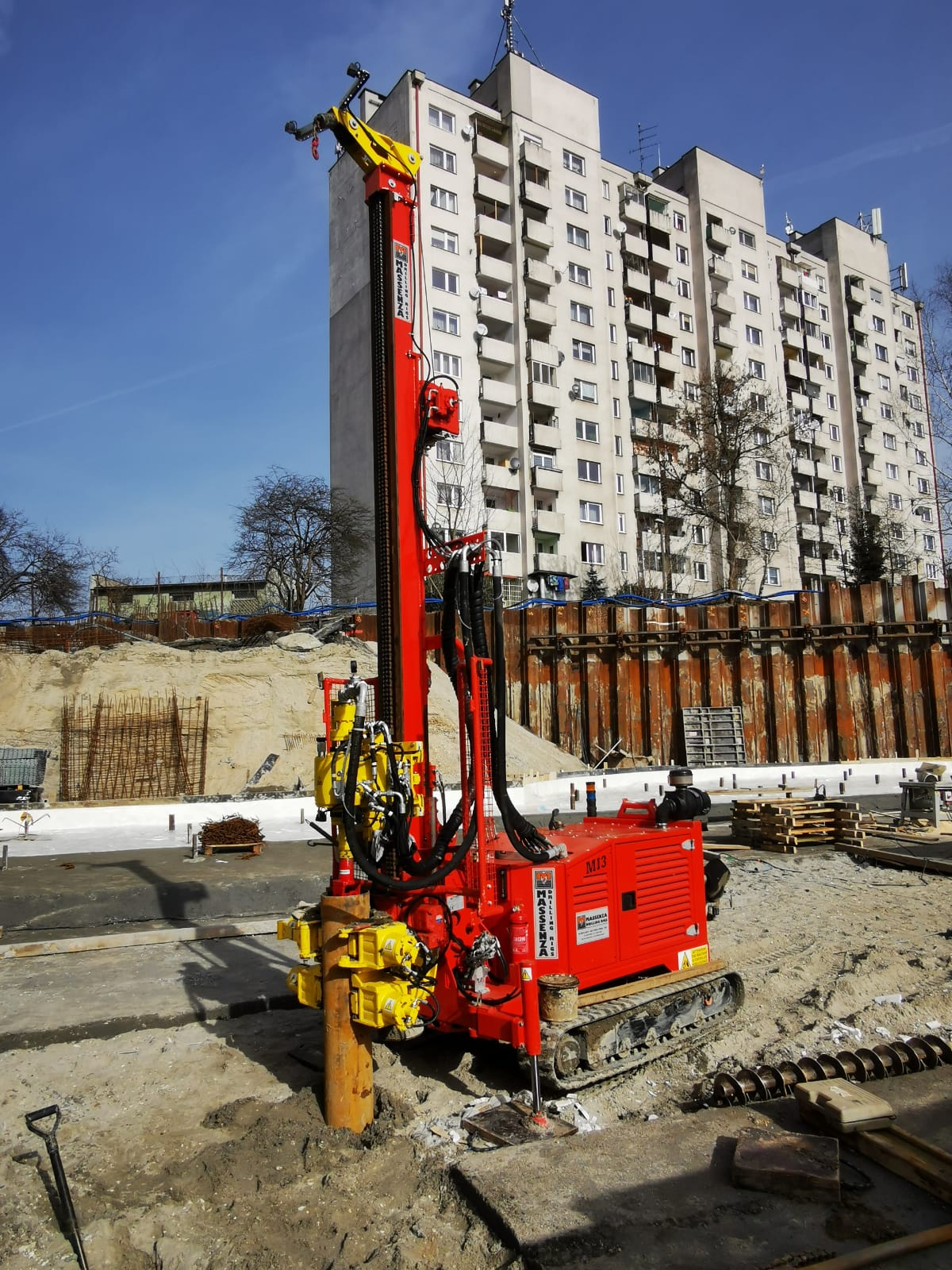

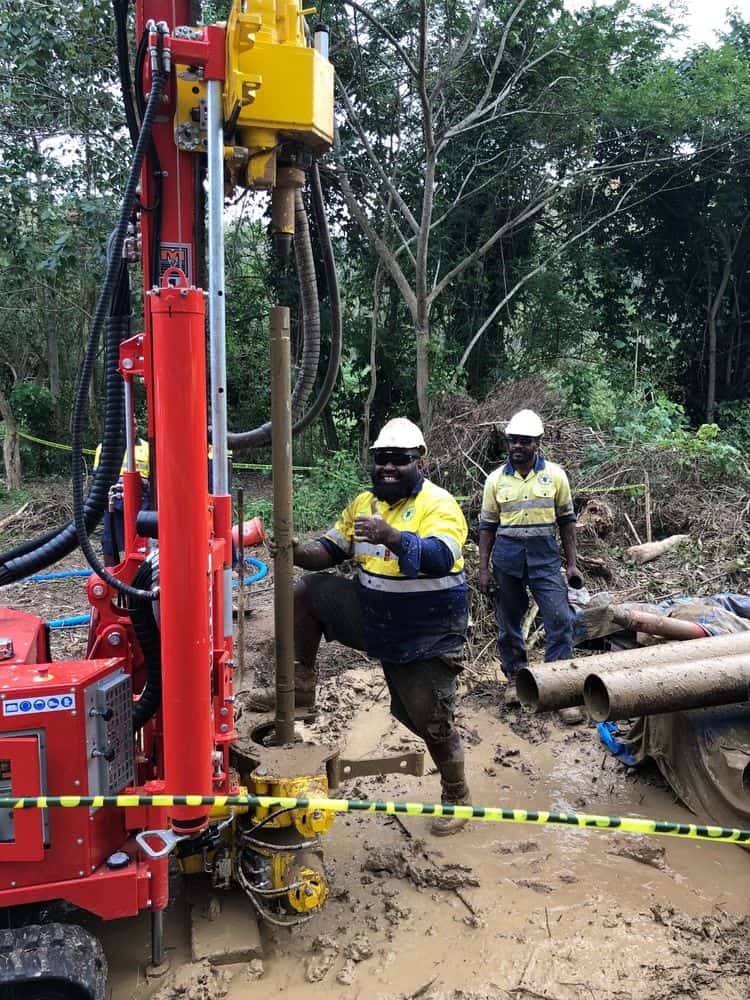

Solidly constructed and versatile the rig is used for various applications: small water wells, geothermal applications, soil investigations, coring and micro piles. The rig is designed for working safely with various drilling methods: direct circulation, down the hole hammer drilling and augering. Thanks to the remote radio control the rig can be completely move from the ideal working position, for a perfect sight of the drilling movements. Numerous options are available to personalize the rig for every drilling requirements.| WORK METHODS |
|---|
| - Rotation with direct circulation. - Nucleus destruction with bleeding by water, mud and foam. - Rotation with down the hole hammer. - Coring - Percussion drilling |
| POWER PACK |
| Engine power 73.4 Hp (54 kW) STAGE 5 / TIER 4 FINAL |
| FUEL TANK |
| Capacity 45 litri (12 gal) |

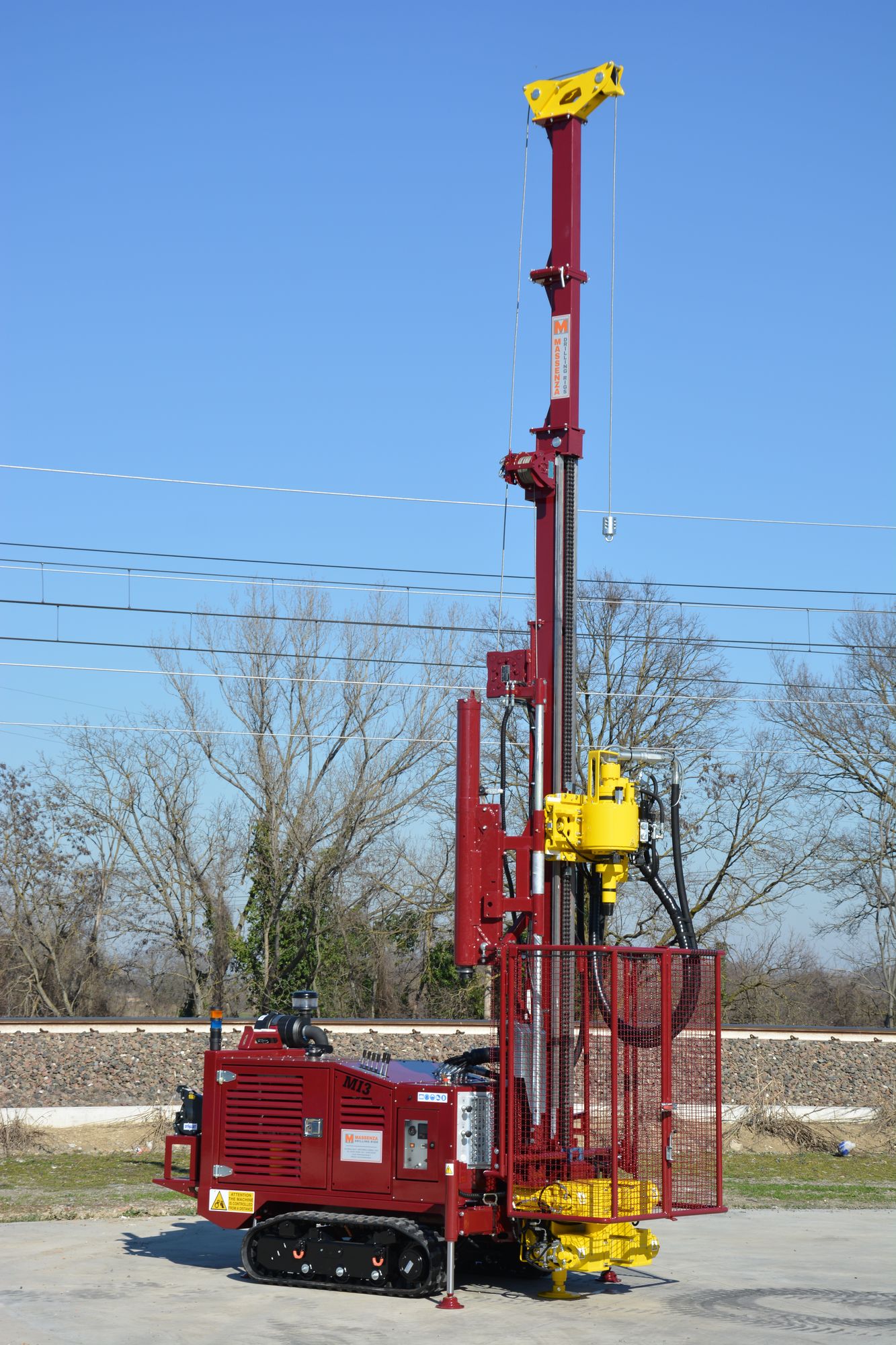

| SLIDING MAST |
| Stroke 400 mm (1.3 ft) |

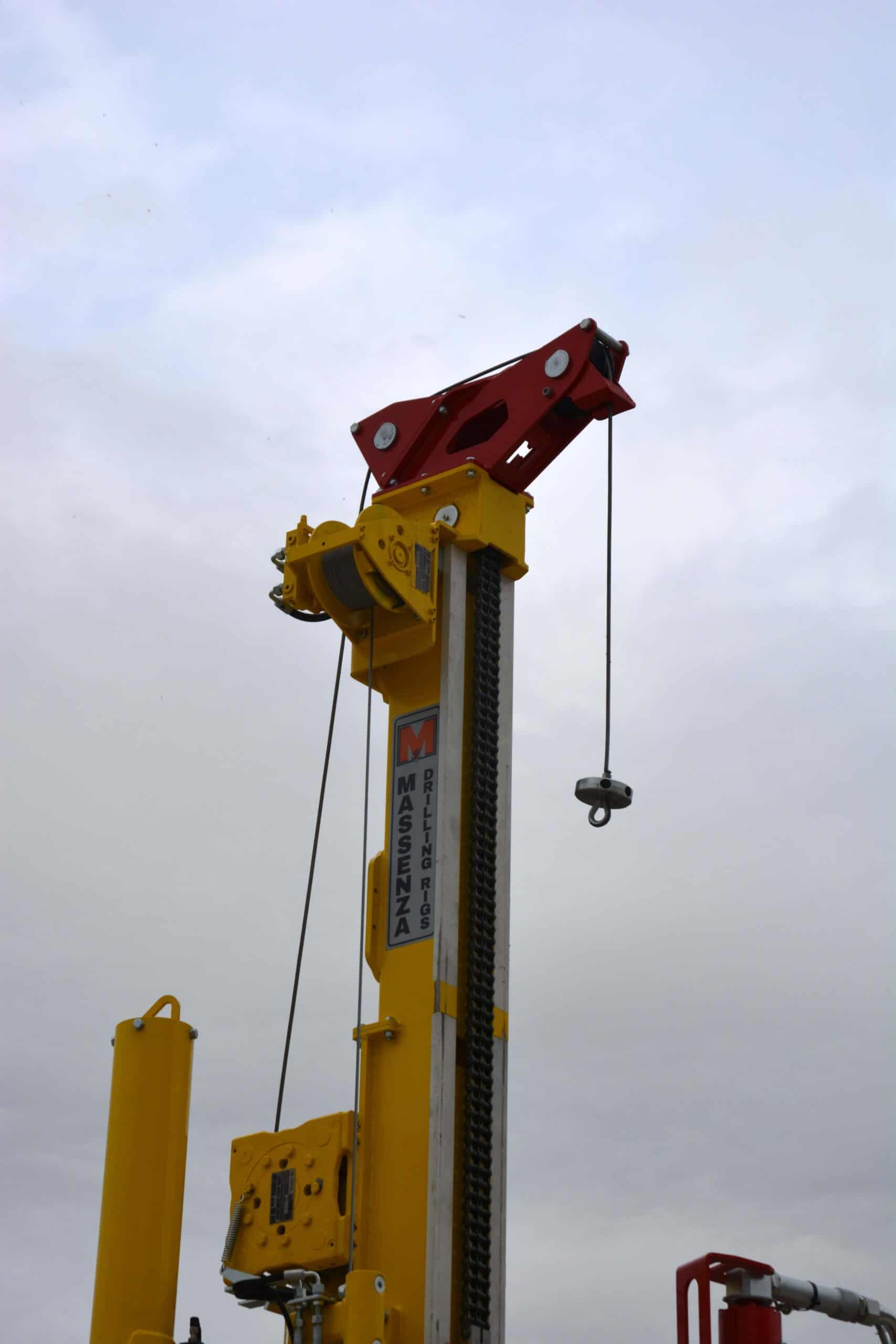

| MAST |
|---|
| Maximum stroke of rotary head 3.4 m (11 ft 2") Standard: Pull up and down 3,100 daN (6,970 lbf) Optional: Pull up and down 4,000 daN (8,093 lbf)< |

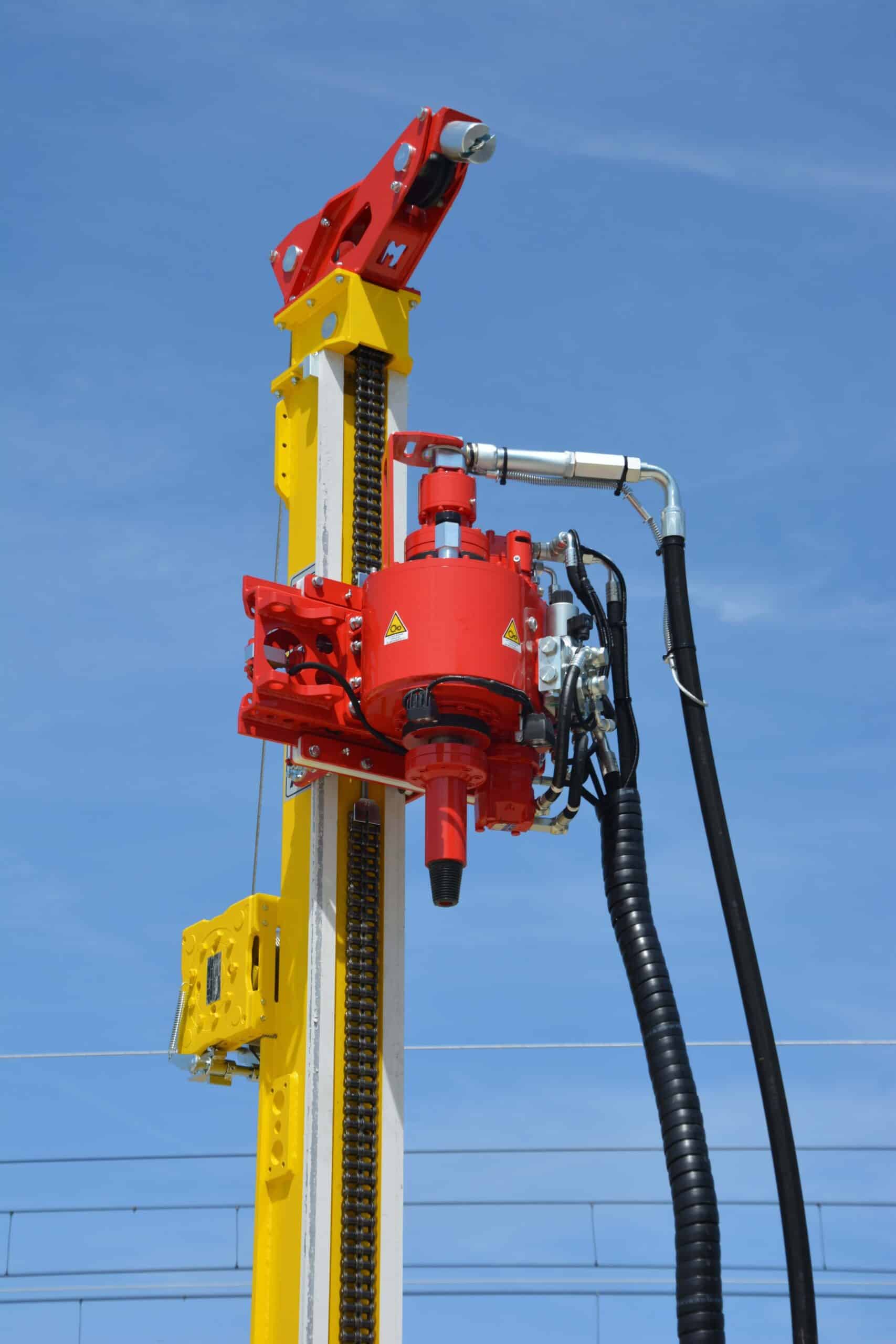

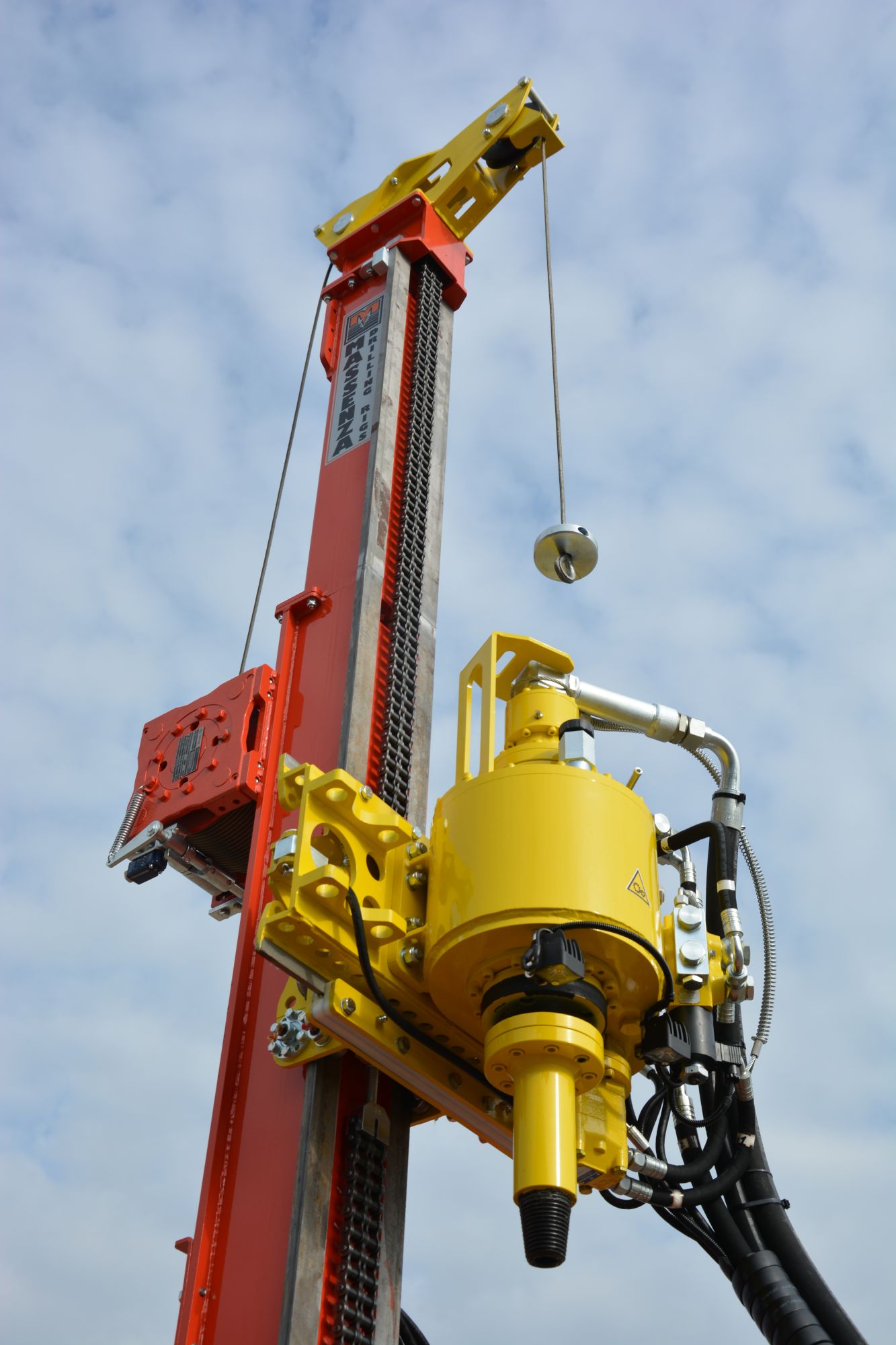

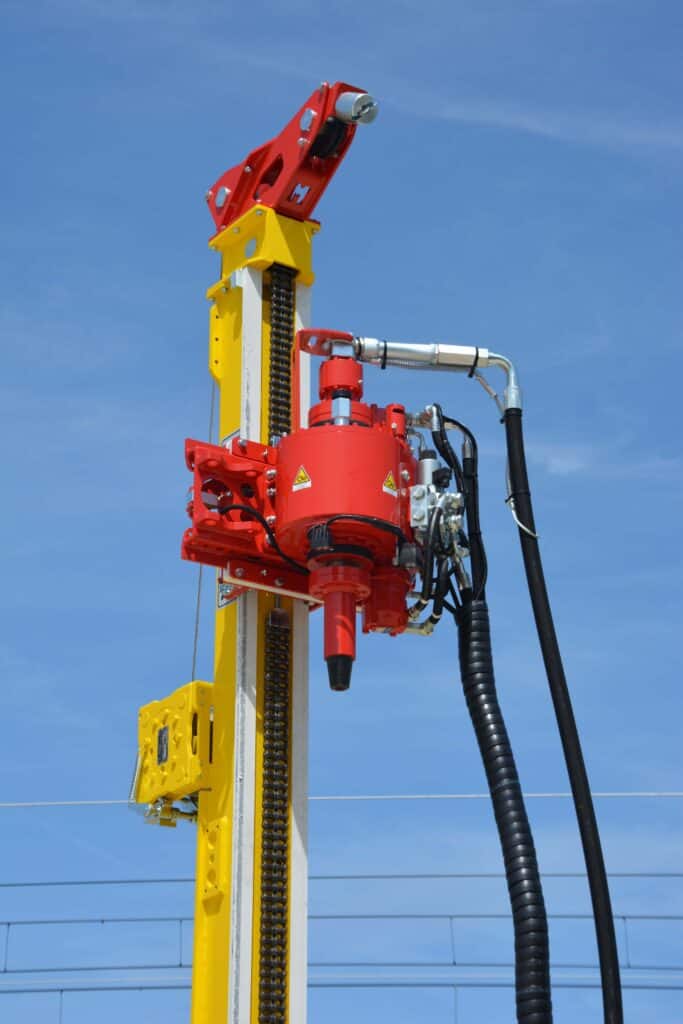

| ROTARY HEAD |
| Model TM1C3: maximum torque 2,847 Nm (2,100 lbfft) maximum speed 798 Rpm Model TM1C6: maximum torque 5,693 Nm (4,199 lbfft) maximum speed 399 Rpm |
| WINCH |
| Maximum line pull 1,100 daN (2,248 lbf) |
| DOUBLE HYDRAULIC CLAMP |
| Model MS205: max passage Ø 205 mm (8") Model MS225: max passage Ø 225 mm (9") Model MS225: max passage Ø 280 mm (11") |
DO YOU NEED INFORMATIONS
ABOUT DRILLING RIG Mi3?
Video

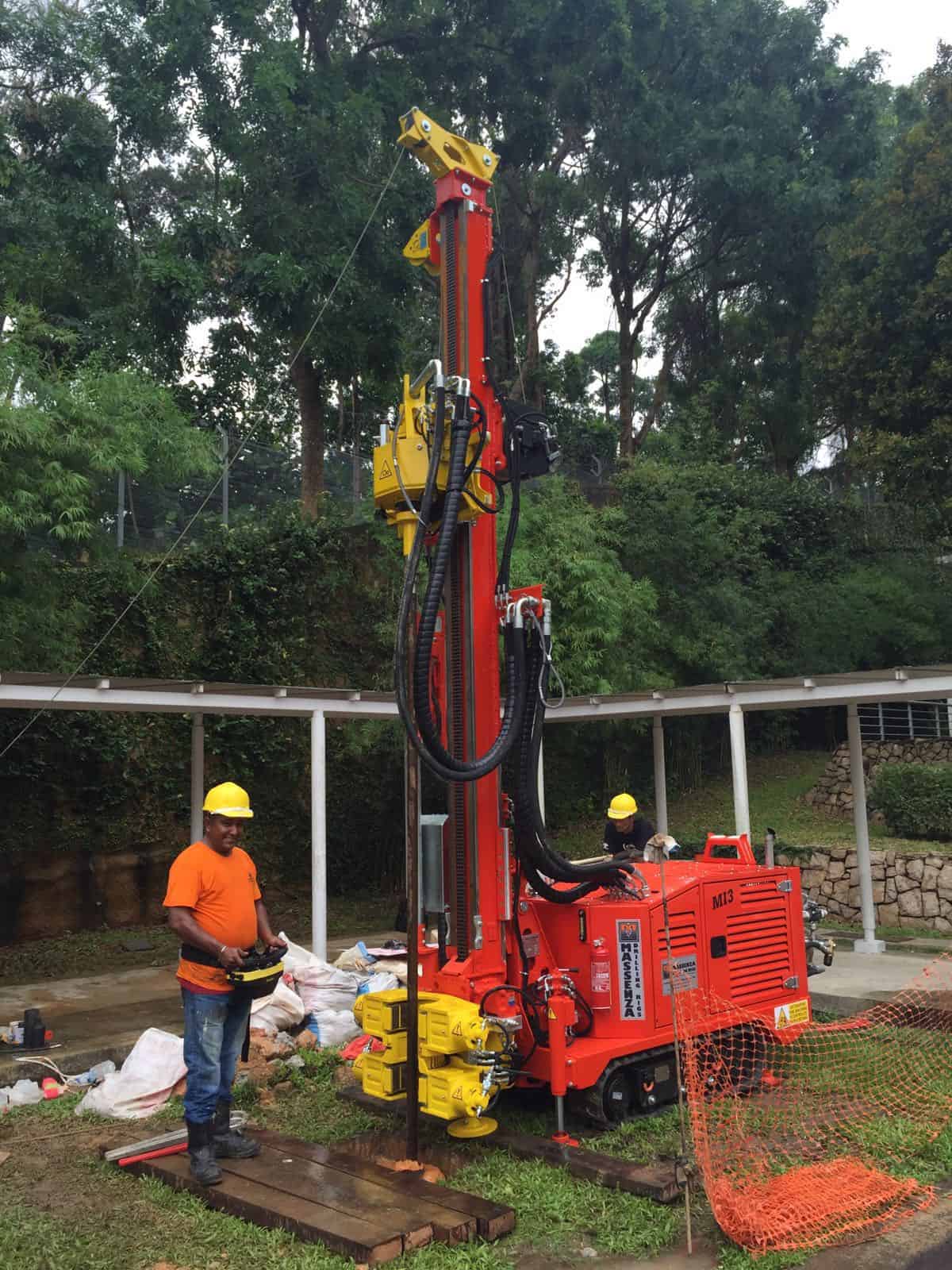

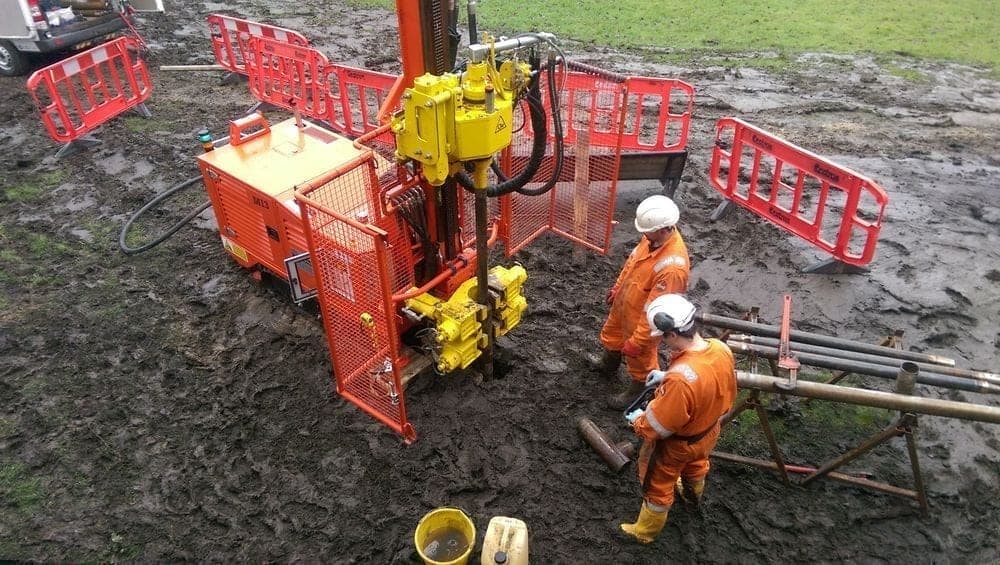

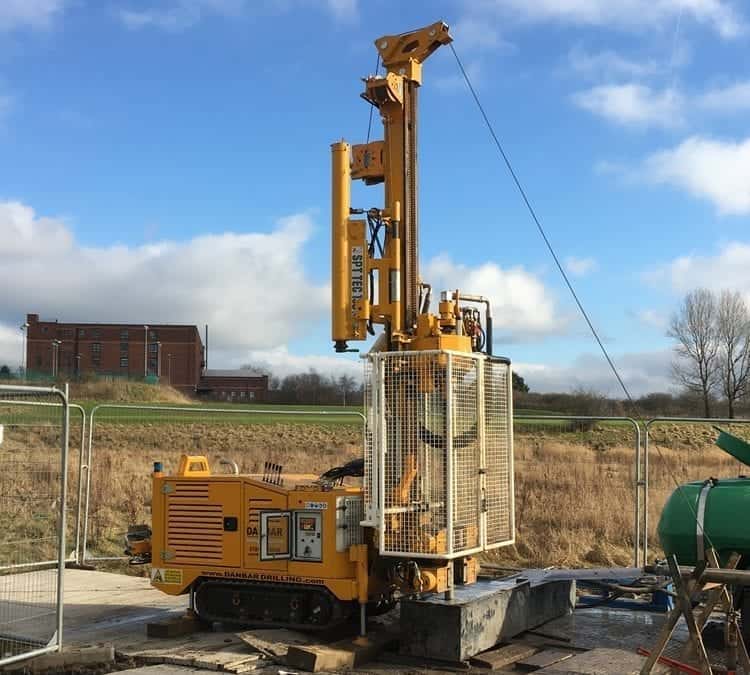

Mi3, fully radio remote drilling rig for geotechnical investigations and small water wells
Designed specifically to be light enough to be trailered to save on mobilisation costs at under 2,7 tonnes. This small machine really packs a punch with a powerful 70HP EC Stage 3 engine to the carry out the many tasks that your clients require when you get to site.
