New MSPT Probing Rig, the dynamic, practical and portable solution
The continuous dialogue with our customers made us understand the need for the creation of a new product that stands out from our classic drilling rigs and is characterized by practicality and ease of use, but at the same time reliable, robust and of immediate use.
With these assumptions we created MSPT, the new solution of the Massenza family for the geotechnical field.
The innovative Massenza Penetrometer is the answer to the need for an instrument of immediate use for SPT, DPL, DPM and DPH tests and for percussion sampling.
This versatility is assured by a system of different removable drop weights and variable drop height (500-750 mm).

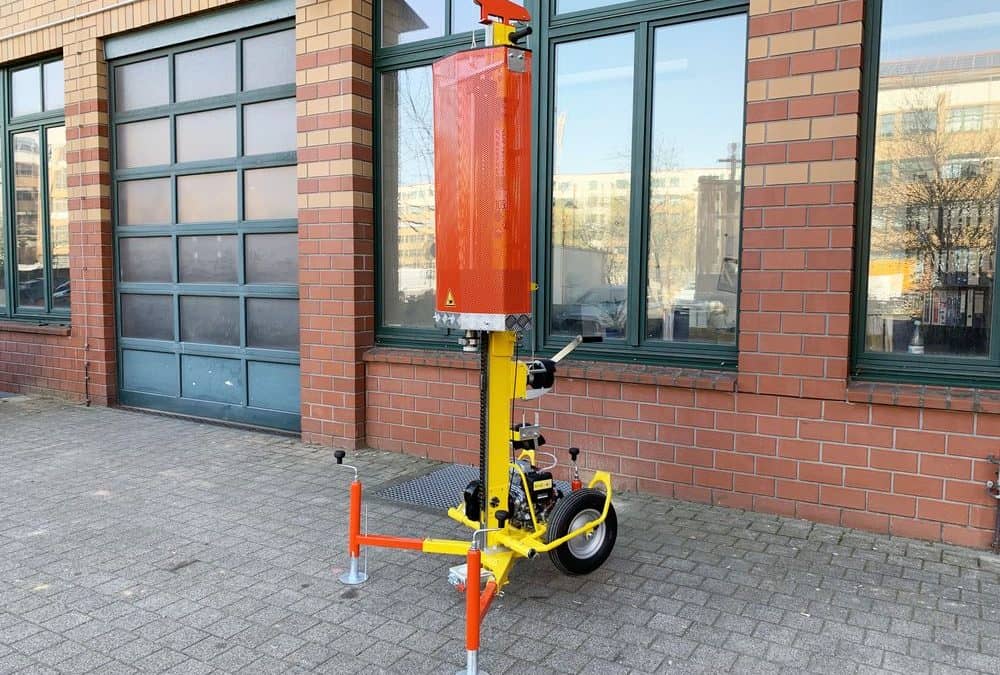

Powered by a 4-stroke Honda engine, the MSPT comes on rubberwheels, with a mast foldable for transport and a three-legged foot for stability on the job site. It can also be equipped with a hydraulic power pack for complete autonomy and manual or hydraulic rod puller.
• Split Spoon Sampling
• Window Sampling
• Liner Sampling
• Or in alternative with hydraulic power pack: 160 bar system pressure
• Length: 785 mm
• Height: 1400 mm in transport position
• Mast Height: 2600 mm in working position
• Weight: 227 kg
• Manual rod puller (6 tons lifting force)
• Hydraulic rod puller (9 tons lifting force)
• Ball clamp
• Safety cage
• Assembly on trailer
With these assumptions we created MSPT, the new solution of the Massenza family for the geotechnical field.
The innovative Massenza Penetrometer is the answer to the need for an instrument of immediate use for SPT, DPL, DPM and DPH tests and for percussion sampling.
This versatility is assured by a system of different removable drop weights and variable drop height (500-750 mm).
Powered by a 4-stroke Honda engine, the MSPT comes on rubberwheels, with a mast foldable for transport and a three-legged foot for stability on the job site. It can also be equipped with a hydraulic power pack for complete autonomy and manual or hydraulic rod puller.
DRILLING TASKS
• Modular drop weight system and adjustable drop height for DPL, DPM, DPH and SPT tests (total 63.5 kg)• Split Spoon Sampling
• Window Sampling
• Liner Sampling
CONFIGURATION
• With combustion 4-Honda engine: power 2.8 HP (2.1 kW)• Or in alternative with hydraulic power pack: 160 bar system pressure
DIMENSIONS
• Width: 780 mm• Length: 785 mm
• Height: 1400 mm in transport position
• Mast Height: 2600 mm in working position
• Weight: 227 kg
ACCESSORIES
• Wheel clamp• Manual rod puller (6 tons lifting force)
• Hydraulic rod puller (9 tons lifting force)
• Ball clamp
• Safety cage
• Assembly on trailer
