New MI3 Drilling rig - Continuous evolution

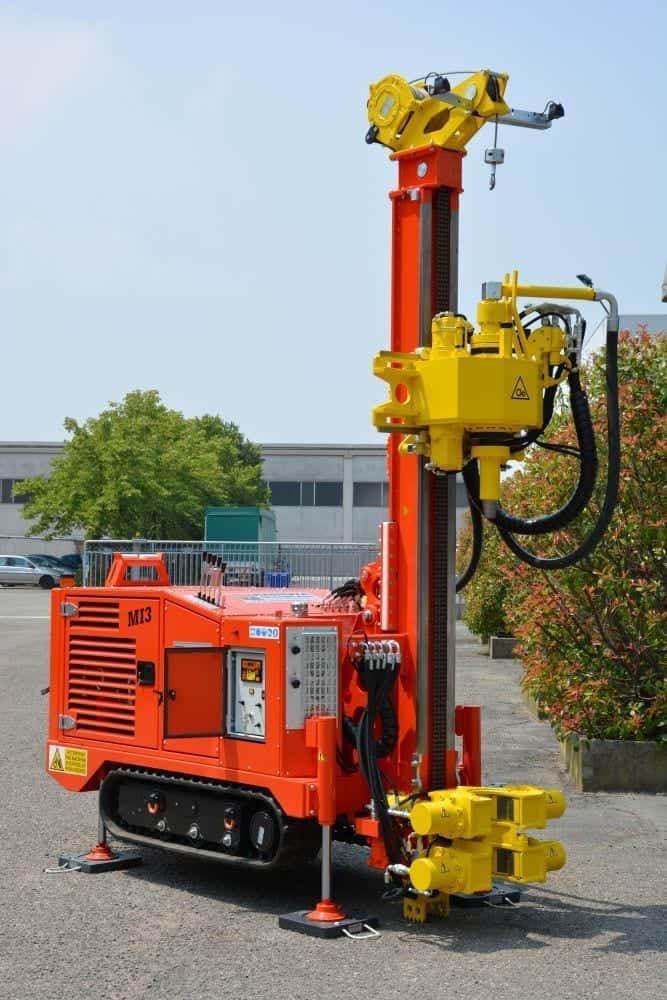

The company is pleased to announce the launch of the new Massenza MI3: a sturdy and performing perforator, but with extremely reduced dimensions, for small water wells, geothermal applications, geotechnical and environmental surveys, cores and micropiles.
MI3 was born from the evolution of MI2, to which the technical department of the Massenza managed to give:
MORE POWER with a 51.5 kW motor
MORE THROW choosing between 3,100 kg, 3,600 or 4,000 kg MORE PAIR up to 800 kg ∙ m (maximum speed 712 rpm)

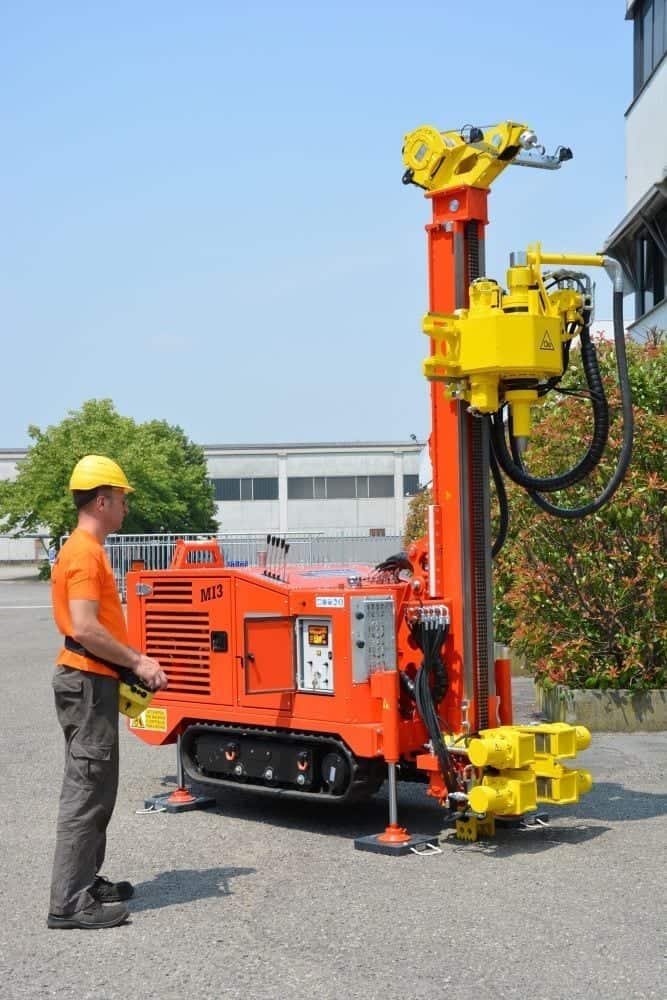

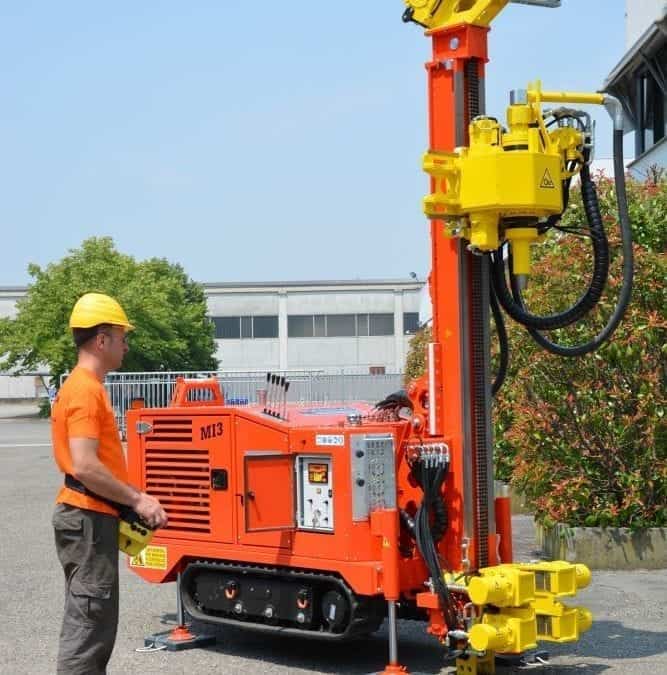

WEIGHT and REDUCED DIMENSIONS, with only 2,700 kg of weight you can load the drilling machine on a small trailer The MI3 is designed to work with different drilling systems: direct circulation of fluids, hammer bottom hole and with rods with continuous propeller, all in conditions of absolute safety thanks to the radio control with which to control the entire drilling machine, for a perfect view of all drilling maneuvers.

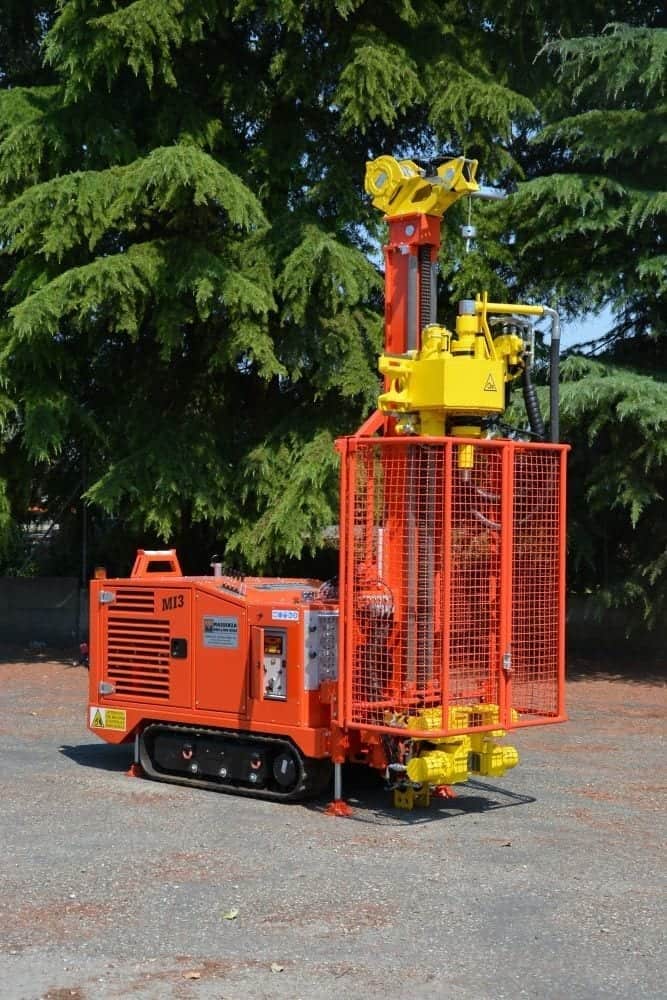

On request, numerous options are available, such as SPT, hydraulic hammer, triplex pump, safety cage complying with CE standards and inclinable antenna of ± 35 °, to be able to customize the system.
WORK METHODS
- Direct circulation rotation.
- Core destruction with purging water, mud, foam.
- Rotation with bottom-hole hammer.
- Coring
- Percussion

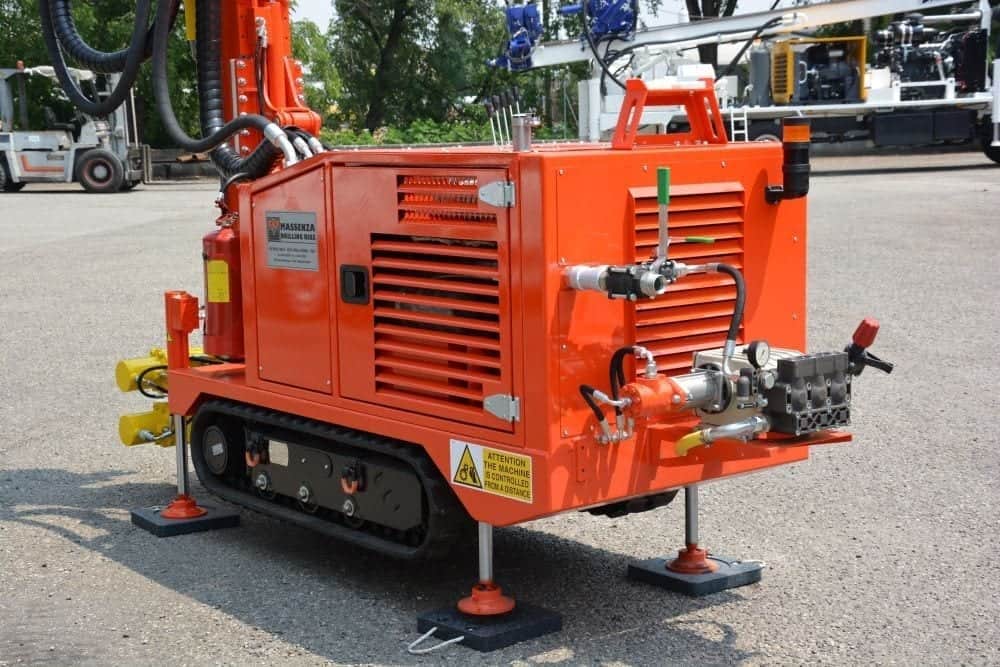

AUXILIARY ENGINE
Maximum power 70 Hp (51.5 kW)
FUEL TANK
Capacity 60 liters
SLIDING ANTENNA
Stroke 400 mm
MAST
Maximum rotation head travel 2,4 m
Standard: pull up and down 3,100 daN
Optional:pull up and down 3,600 daN
Optional: pull up and down 4,000 daN

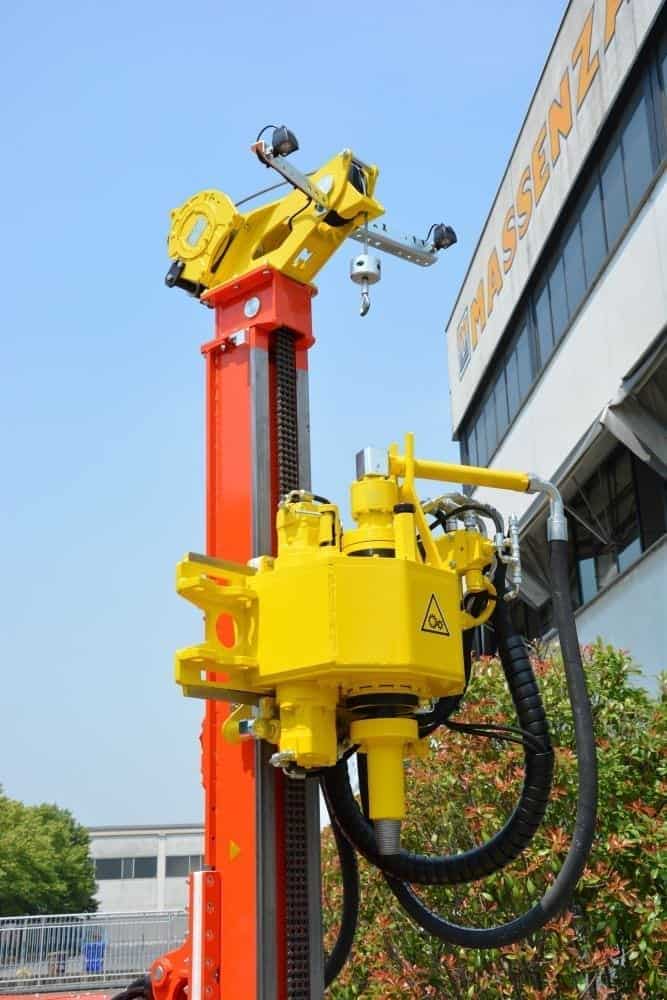

4-speed ROTARY HEAD
Model TM3C1: max torque 4,200 Nm - max speed 400 Rpm
Model TM3C3: max torque 2,350 Nm - max speed 714 Rpm
FIXED SIZE WITH SERVICE WINCH
Standard: direct shot max 1.000 daN

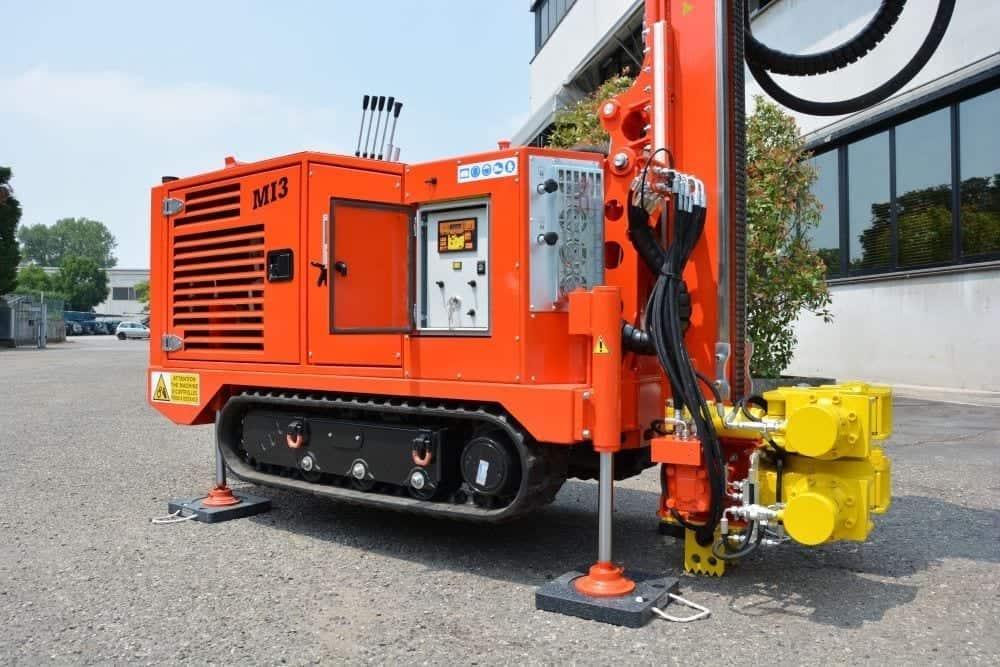

DOUBLE HYDRAULIC CLAMP
Standard: model MS175, max passage diameter 175 mm
Optional: model MS225, max passage diameter 225 mm
