ASIA - New Massenza MI12 for deep core drilling in mines

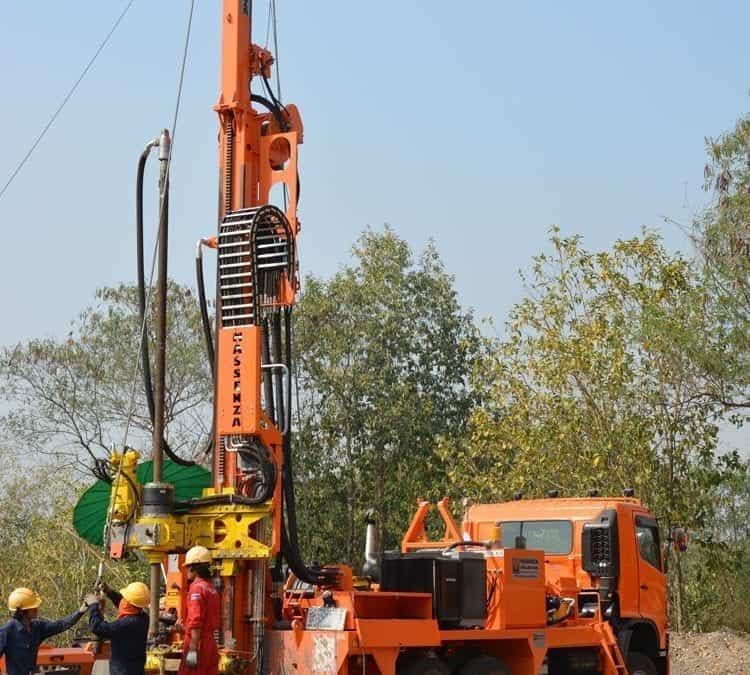

We have just delivered two new MI12 drilling rigs to Asia for mining research.

Thanks to the special rotating head, to a 10.2 Tons pull and to the P2 Mass Duplex mud pump, the new MI12 are able to drill up to 580 m with HQ shafts, to carry out deep drillings in a coal mine.

The drill head has 8 speeds, a maximum torque of 10,484 Nm and a maximum speed of 1,200 RPM. Furthermore, it is equipped with a hydraulic spindle with 12 Tons of capacity.

WORK METHODS
- Direct and inverse circulation rotation, with water, mud and air - Rotopercussione with hammer bottom-hole
- Cores

AUXILIARY ENGINE
Max power 175 Hp (129.9 kW)

FUEL TANK
Capacity 200 liters

SLIDING MAST: 1500 mm stroke

MAST: Rotation head travel 3700 mm
Maximum pull up: 100 kN (10.2 Tons)
Maximum pull down: 47 kN (4.8 Tons)

ROTARY HEAD
8 speed
Maximum torque: 10.484 Nm
Maximum speed: 1,200 Rpm

HYDRAULIC MANDREL
Maximum capacity: 12 Tons

MAIN WINCH
Maximum direct shot 80 kN (8.150 kg)

WIRELINE WINCH
Direct shot maximum 600 daN (600 kg)
Cable capacity: 630 m
Maximum speed: 40 m / min

AUXILIARY WINCH
Maximum direct shooting 13 kN

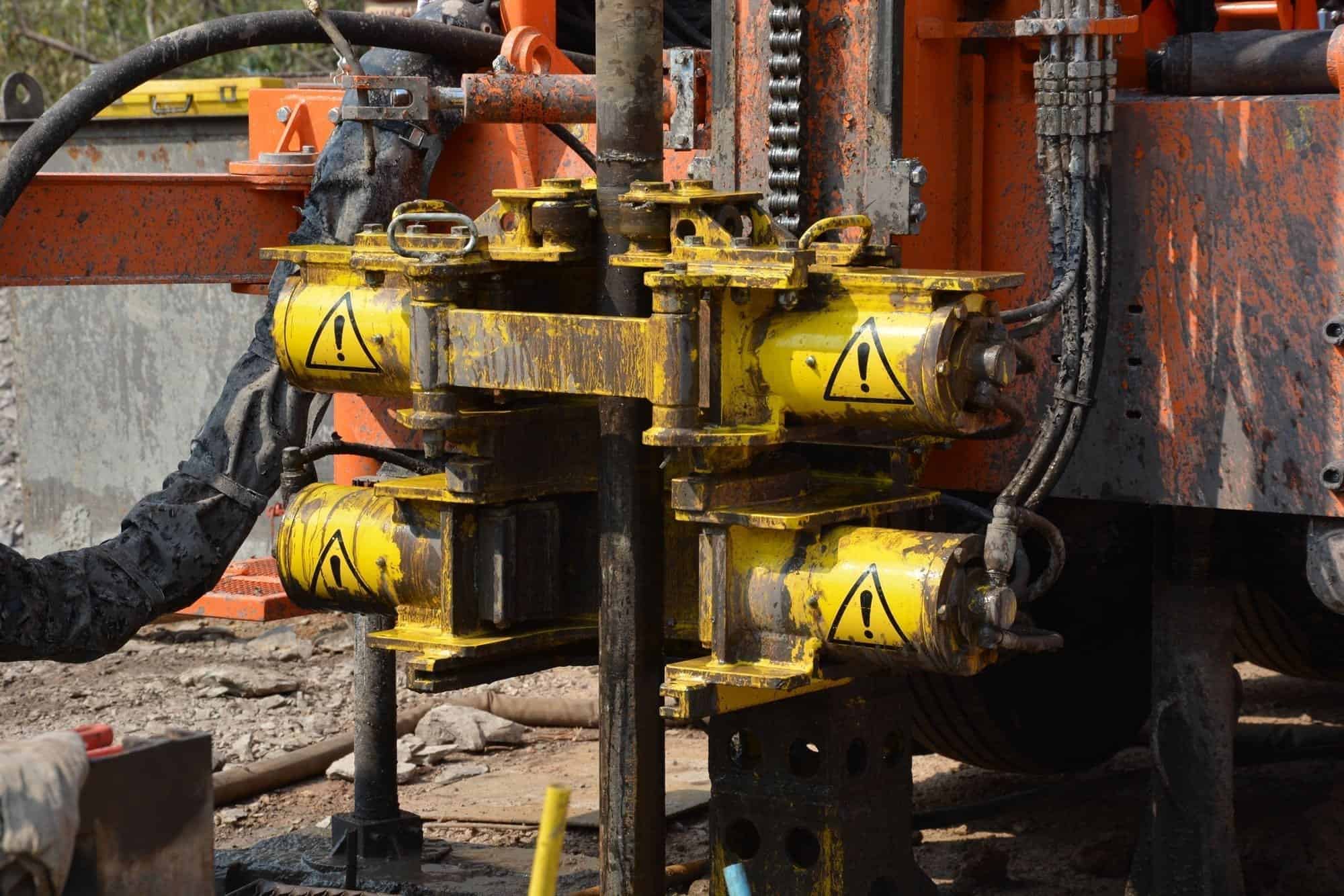

DOUBLE HYDRAULIC CLAMP MS300
Maximum diameter of passage 310 mm

PUMP MUD DUPLEX MASSENZA P2
Maximum flow rate 1200 l / min (317 GPM)
Pressure max 80 Bar (1,136 PSI)
