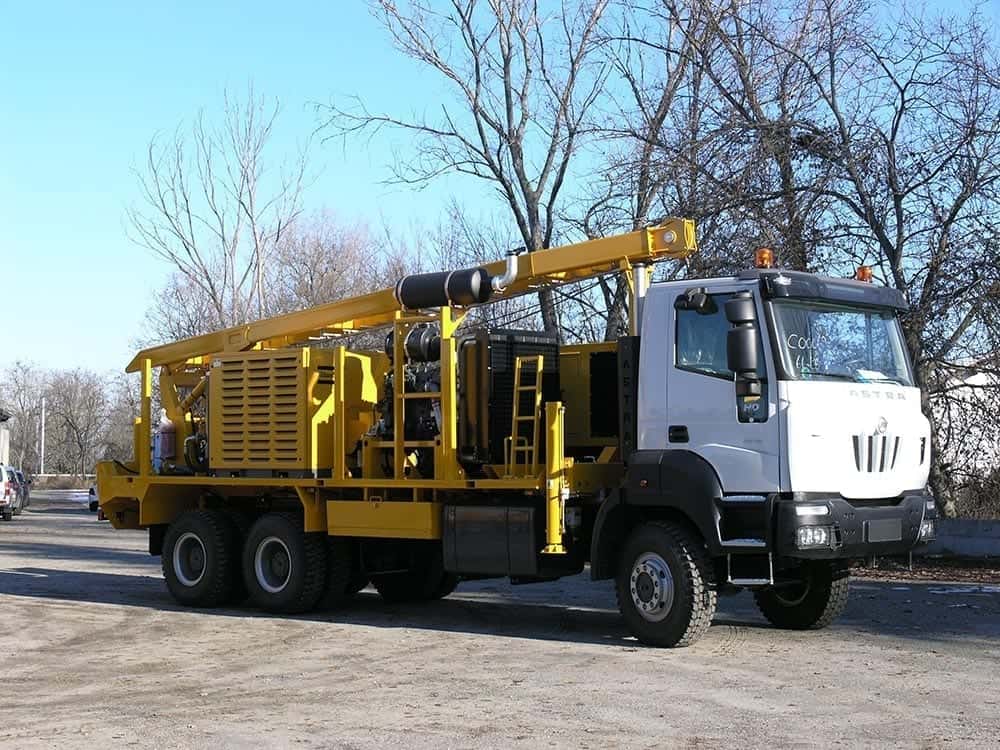

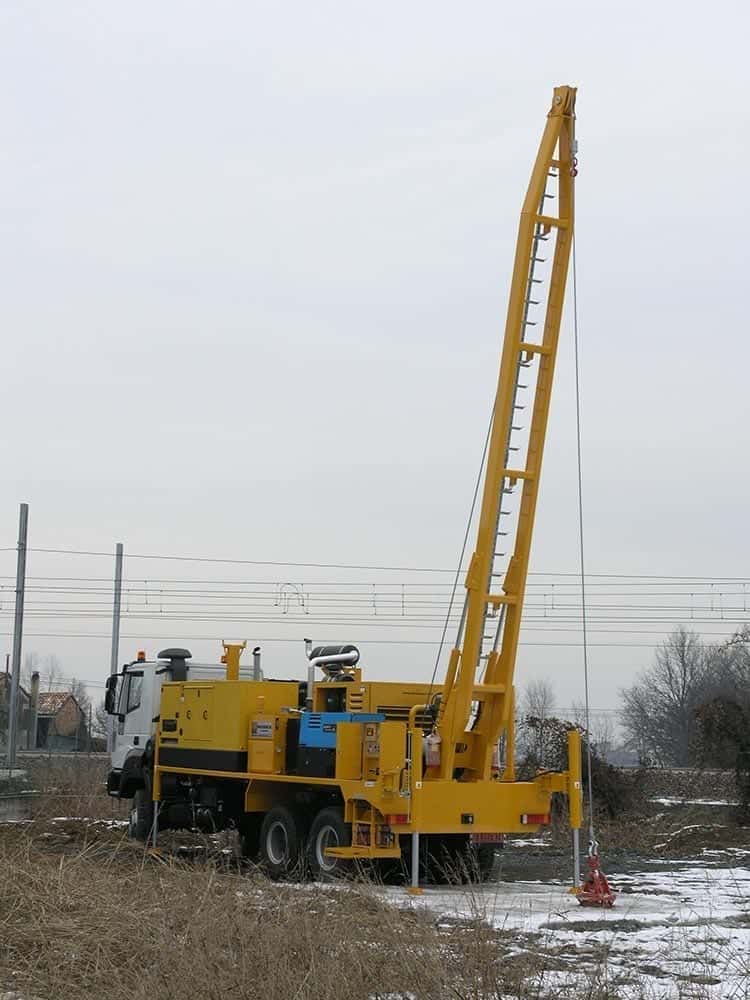

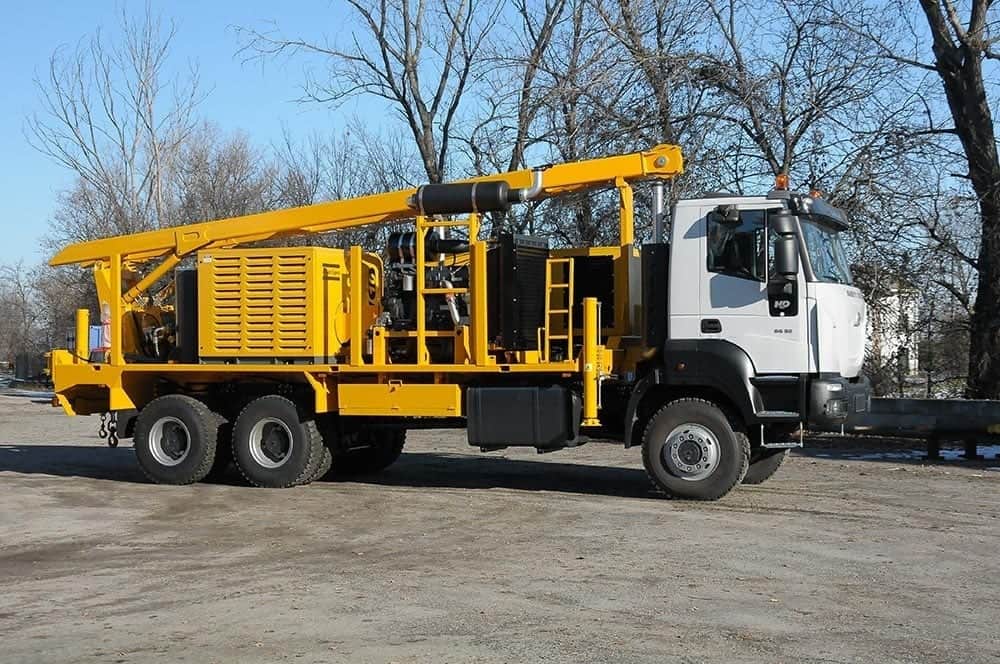

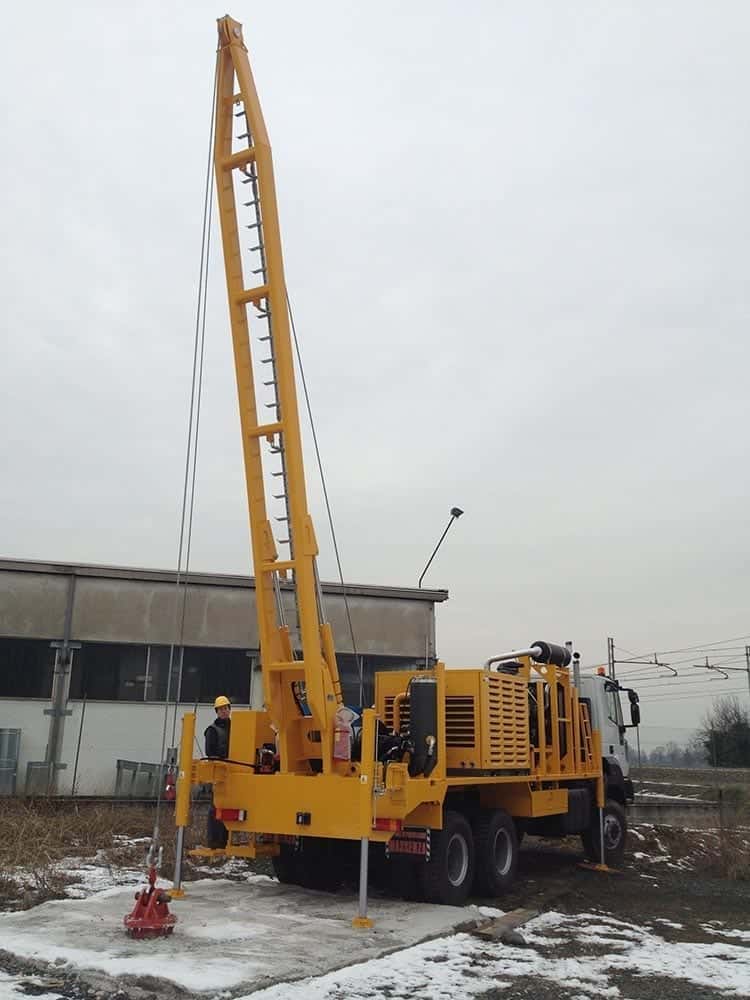

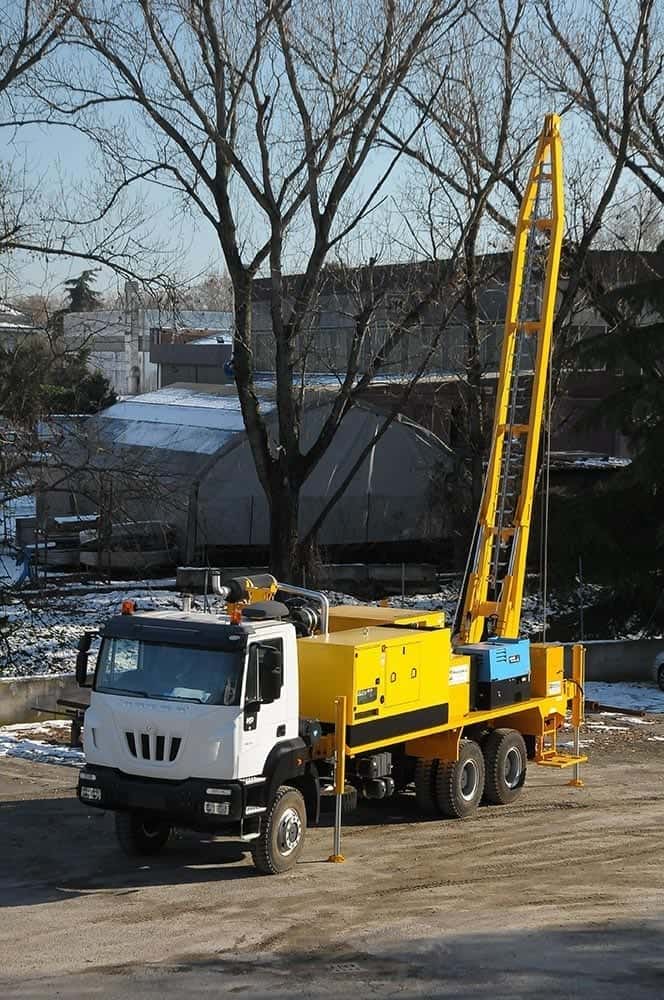

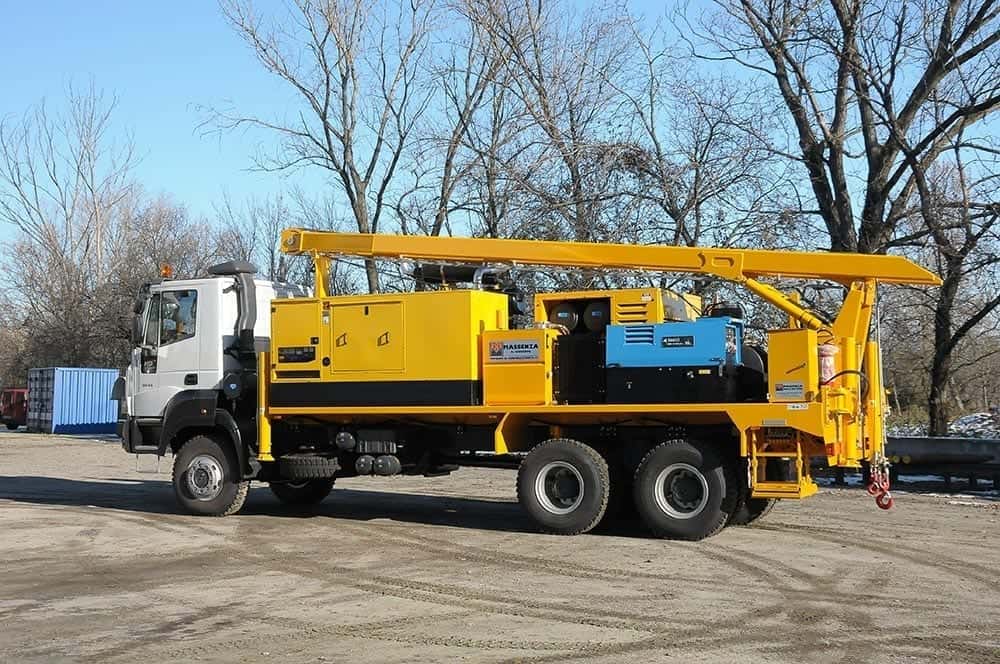

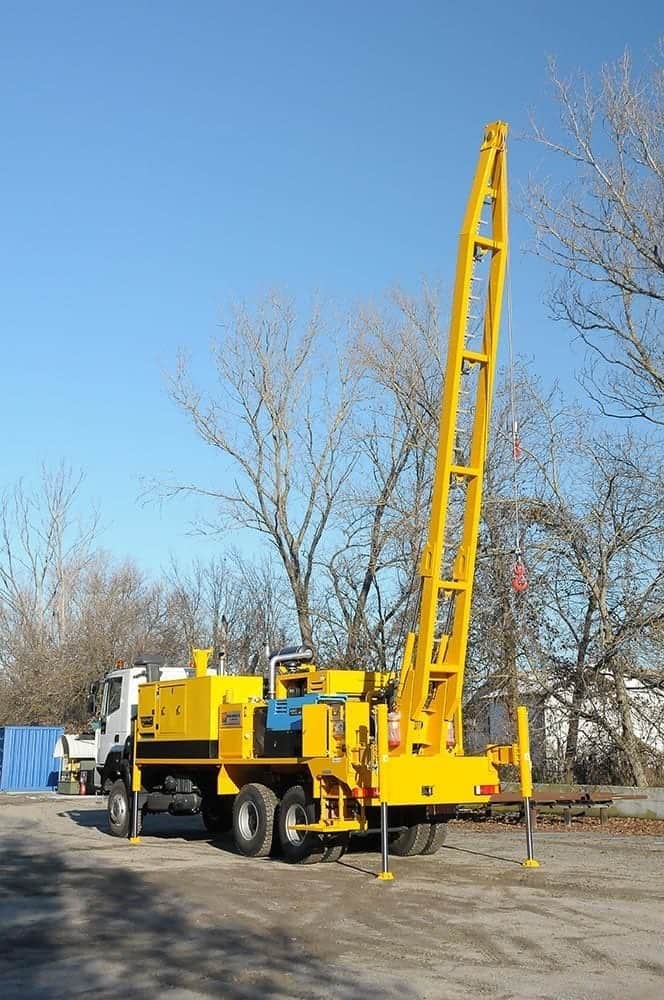

Service rig used for rehabilitation of water wells, cleaning, fishing, pump testing and bore hole washing. The rig can be supplied with various optional based on the customer's specific requests. All the accessories needed for completing the well can be mounted onboard. Among the numerous optional there is the electrical generator, the welding machine, the air compressor, water and foam pump. The rig can be supplied also with different types of winch: the one with high pullback capacity, the wireline type with up to 800 meter of wire or the free fall type and fixed or hydraulically tilting drill pipe boxes.
MSR12 TRUCK: 4x4, 6x4 o 6x6 DIESEL ENGINE: PTO of the truck MAST: Capacity 12.000 kg (26460 lbf) AIR COMPRESSOR: 28,3 m³/min (1000 cfm) at 25 bar (365 psi)

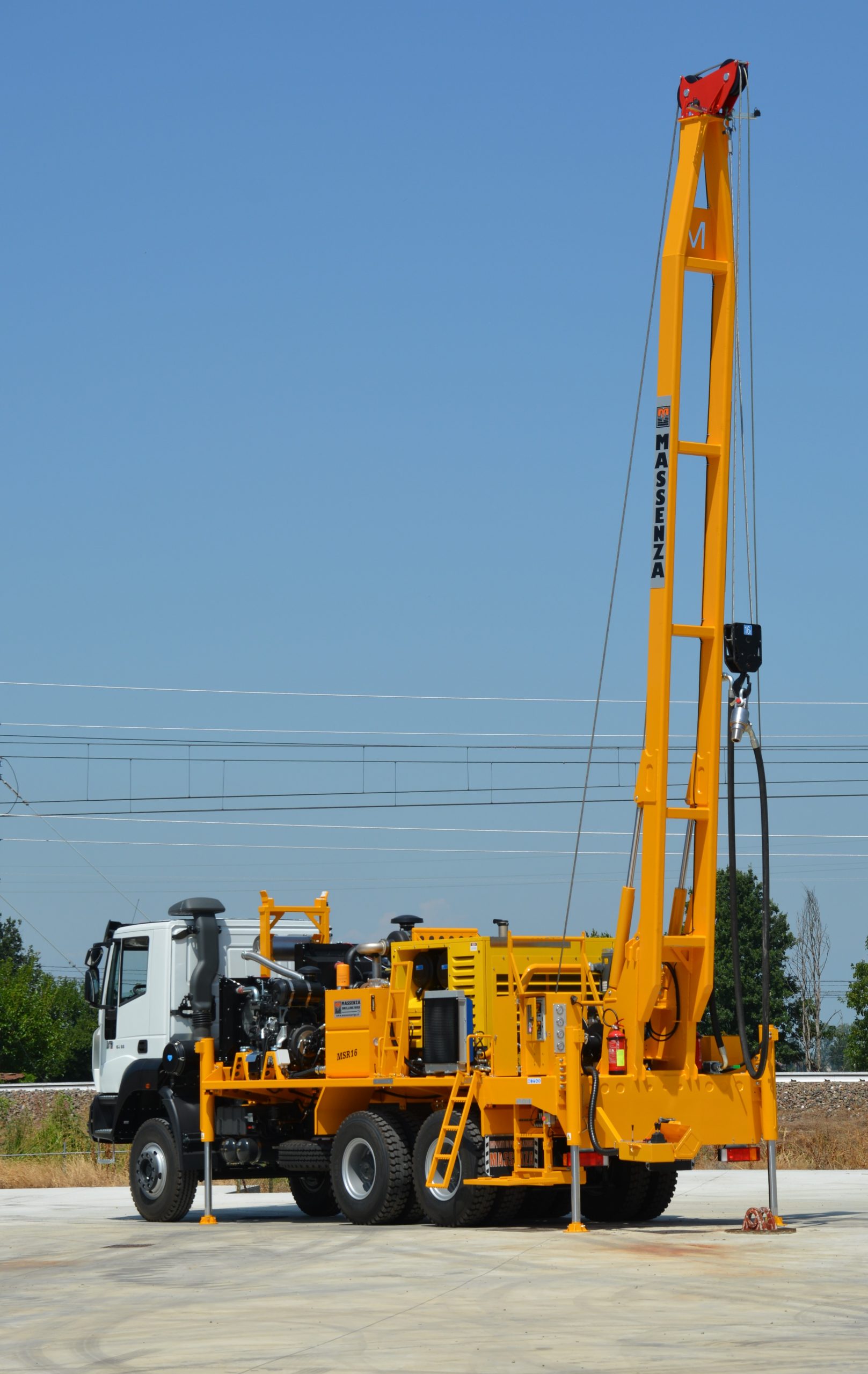

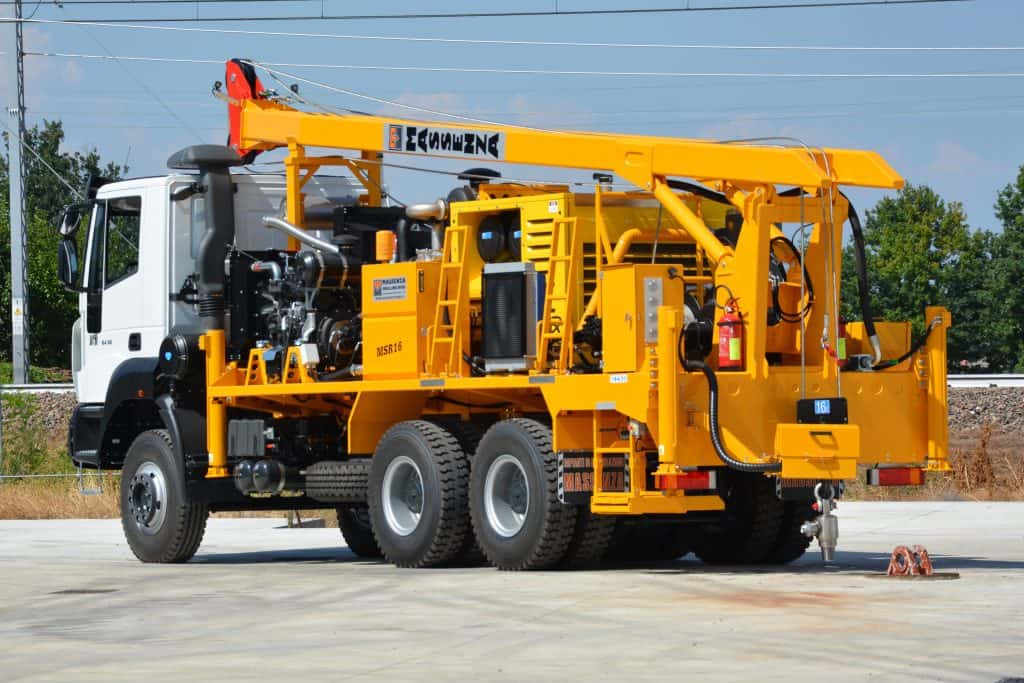

MSR16 TRUCK: 4x4, 6x4 o 6x6 DIESEL ENGINE: Iveco N45, 101 CV (74 kW) MAST: Capacity 17.000 kg AIR COMPRESSOR: 28,3 m³/min a 25 bar

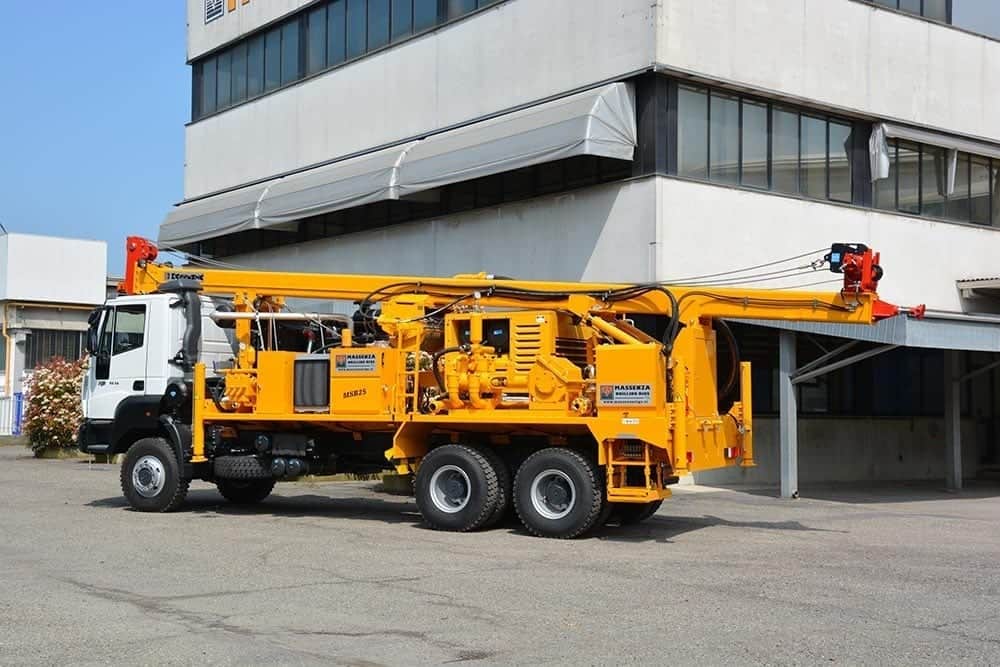

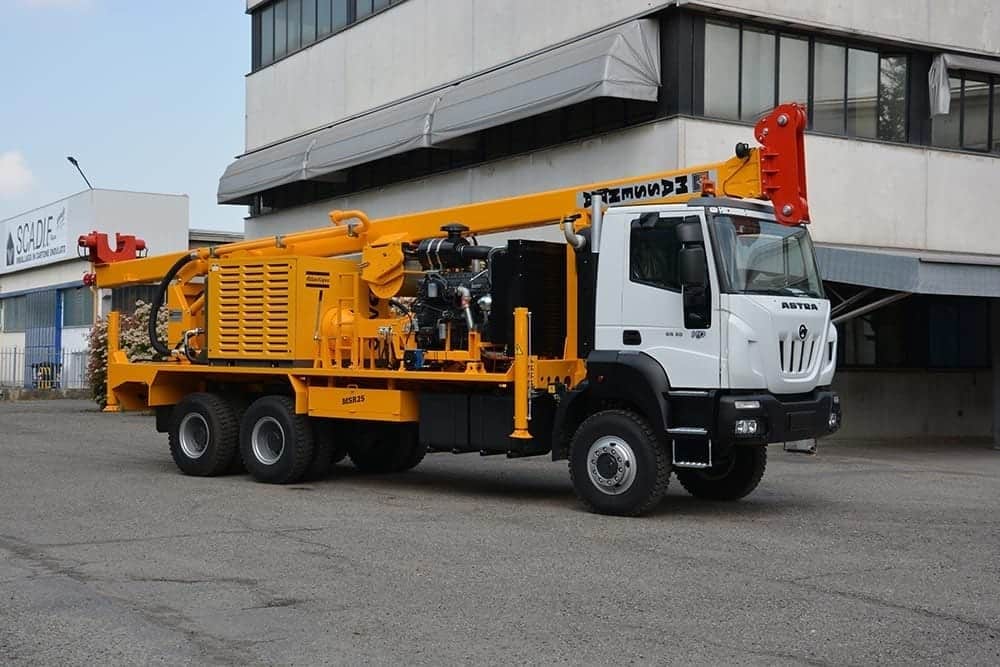

MSR25 TRUCK: 4x4, 6x4 o 6x6 DIESEL ENGINE: Iveco N45, 126 CV (93 kW) MAST: Capacity 25.000 kg AIR COMPRESSOR: 28,3 m³/min a 25 bar
