PROBING RIG MSPT MODULAR
DESCRIPTION

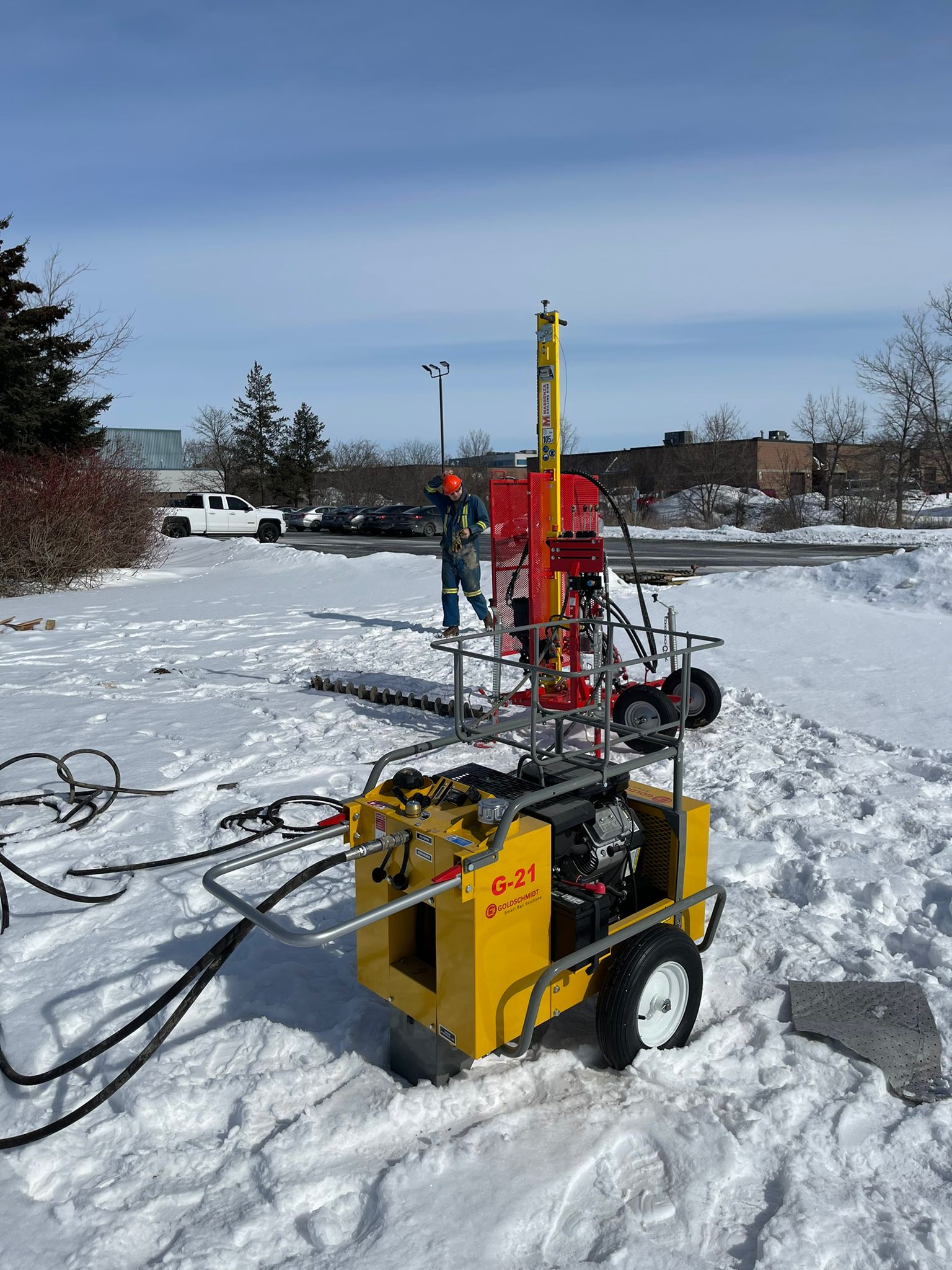

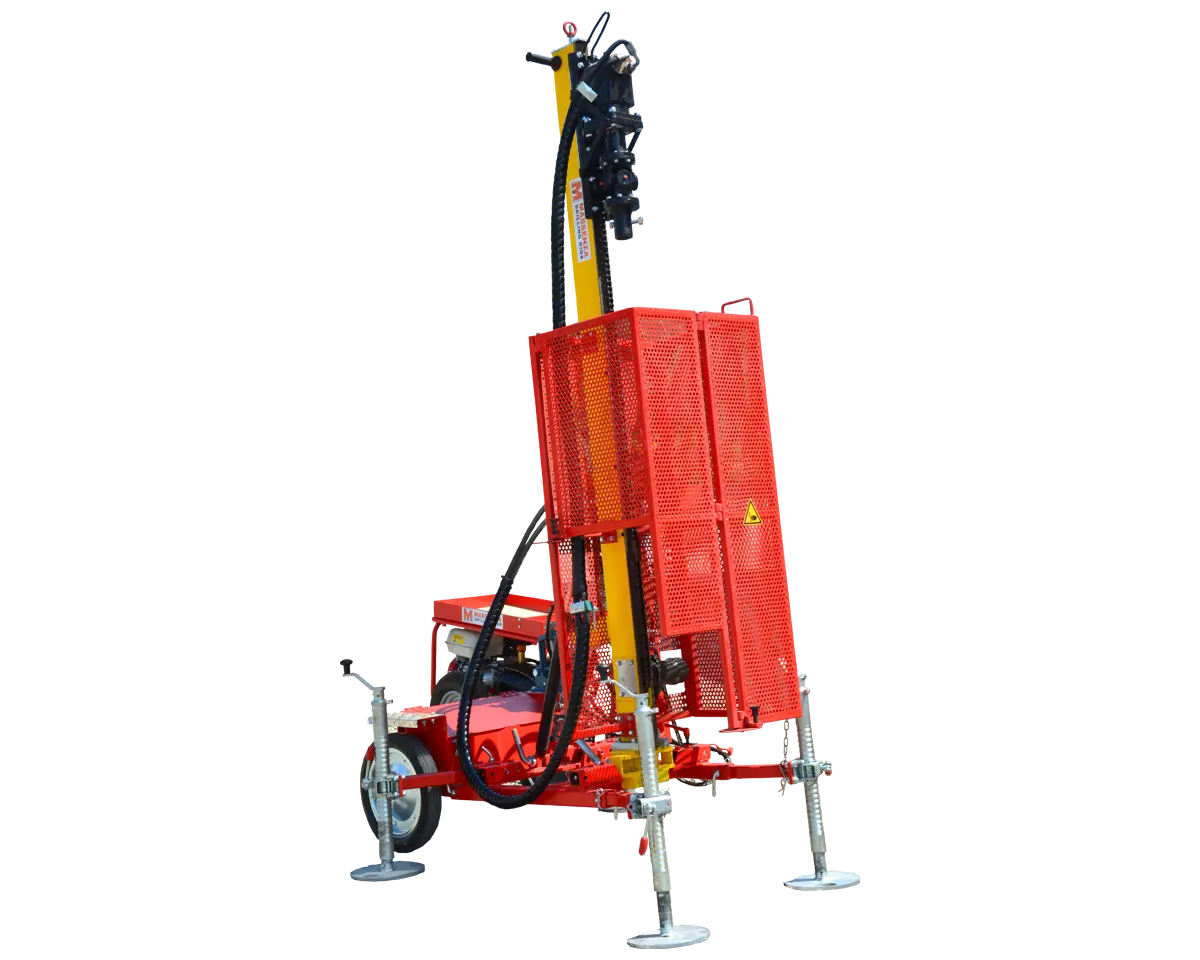

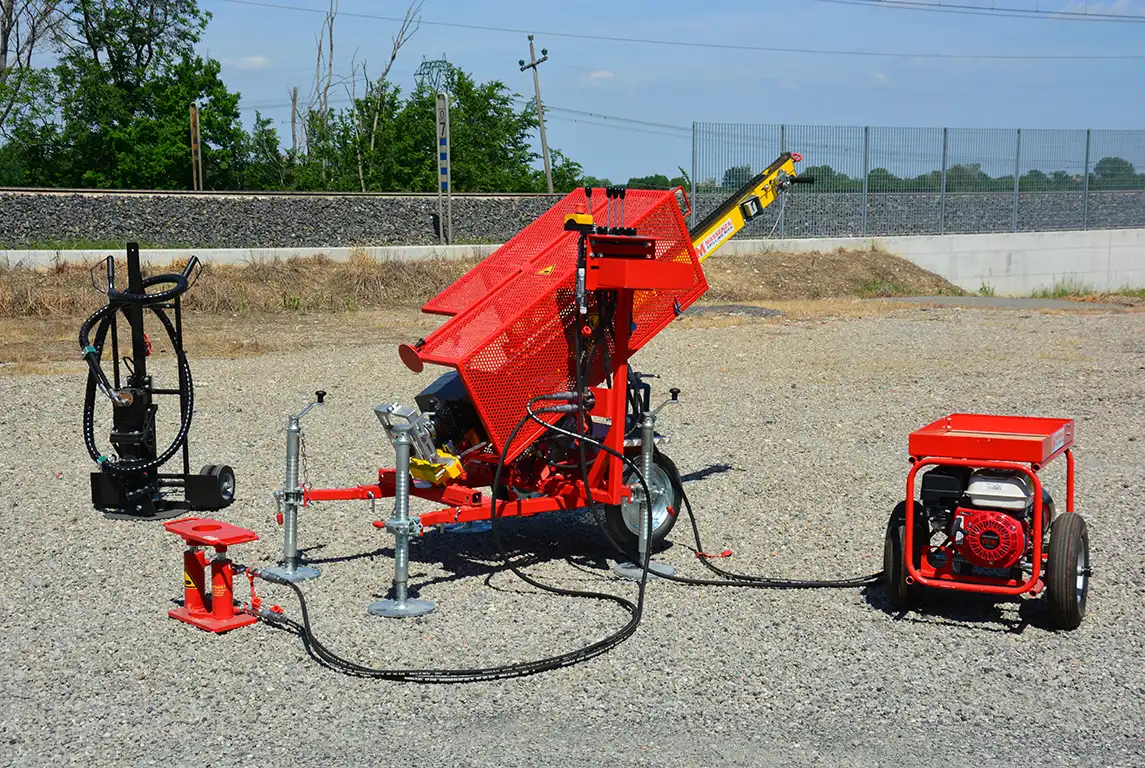

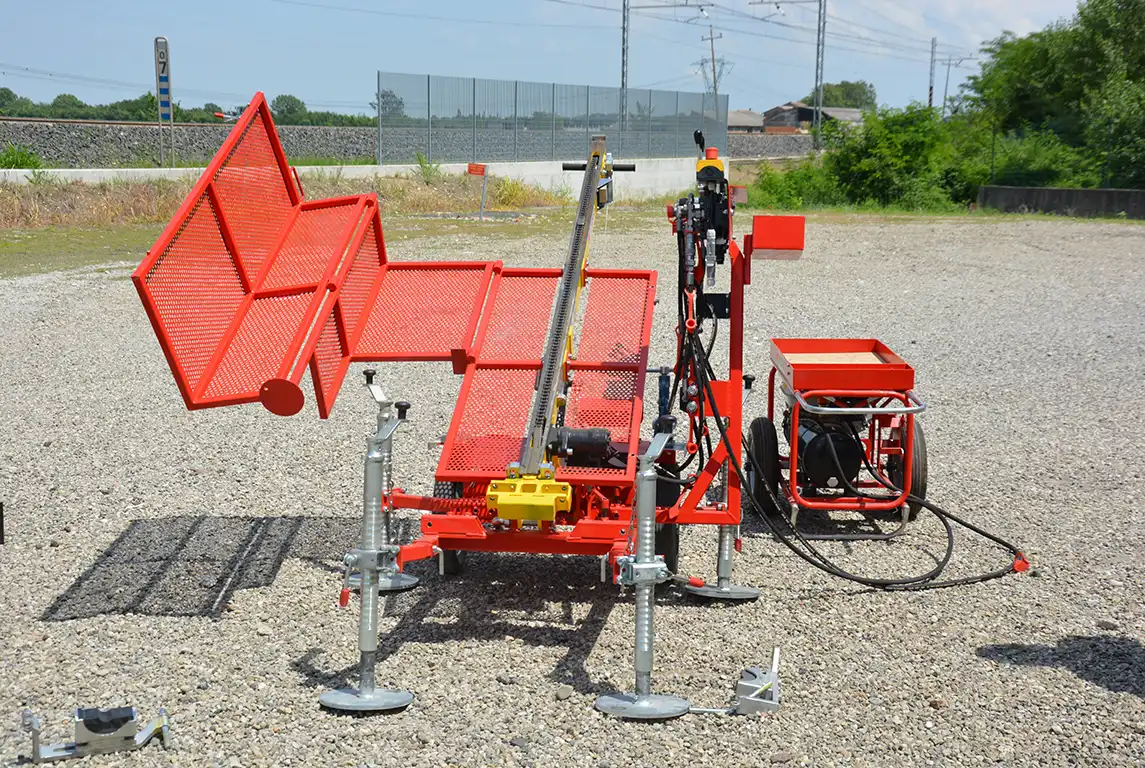

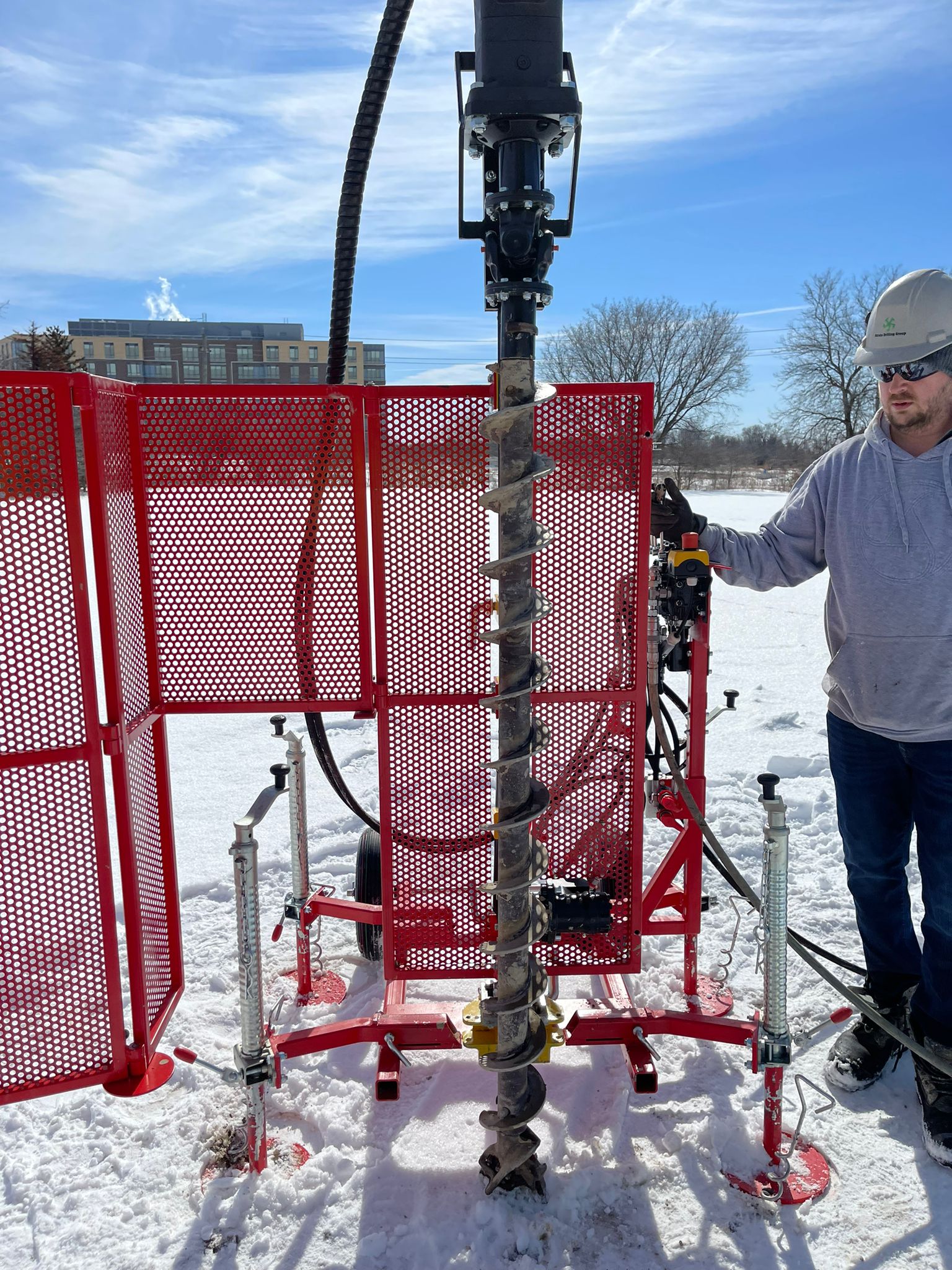

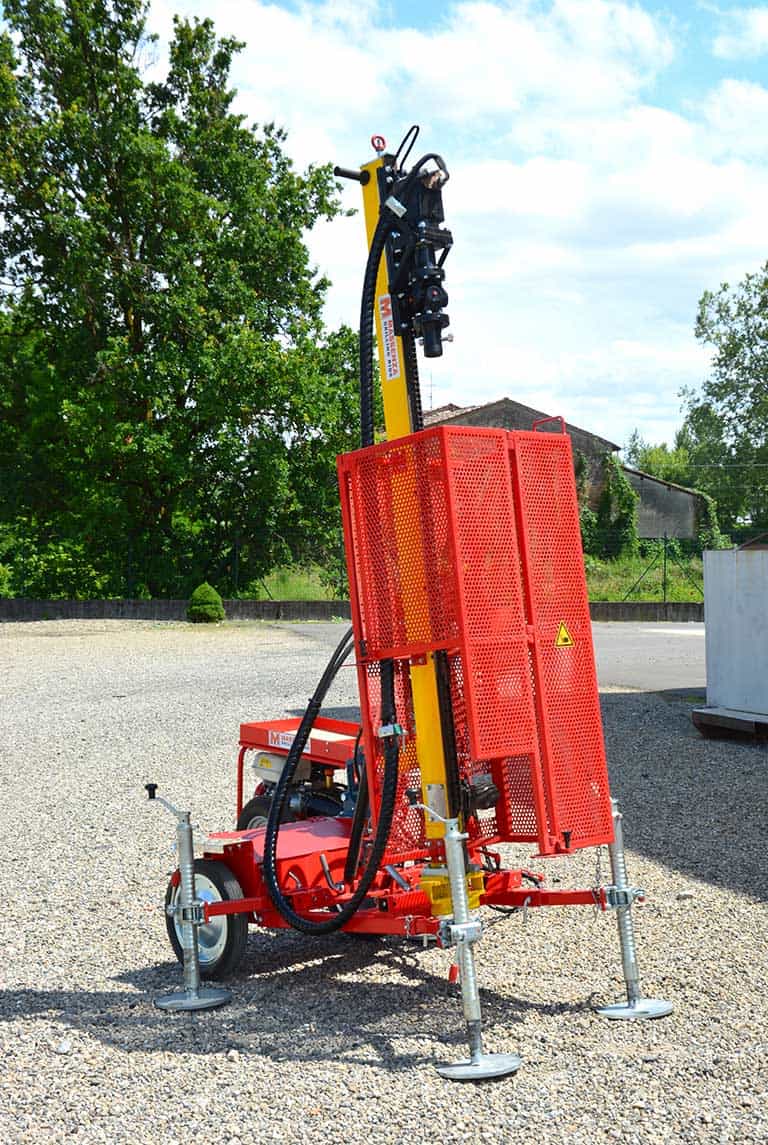

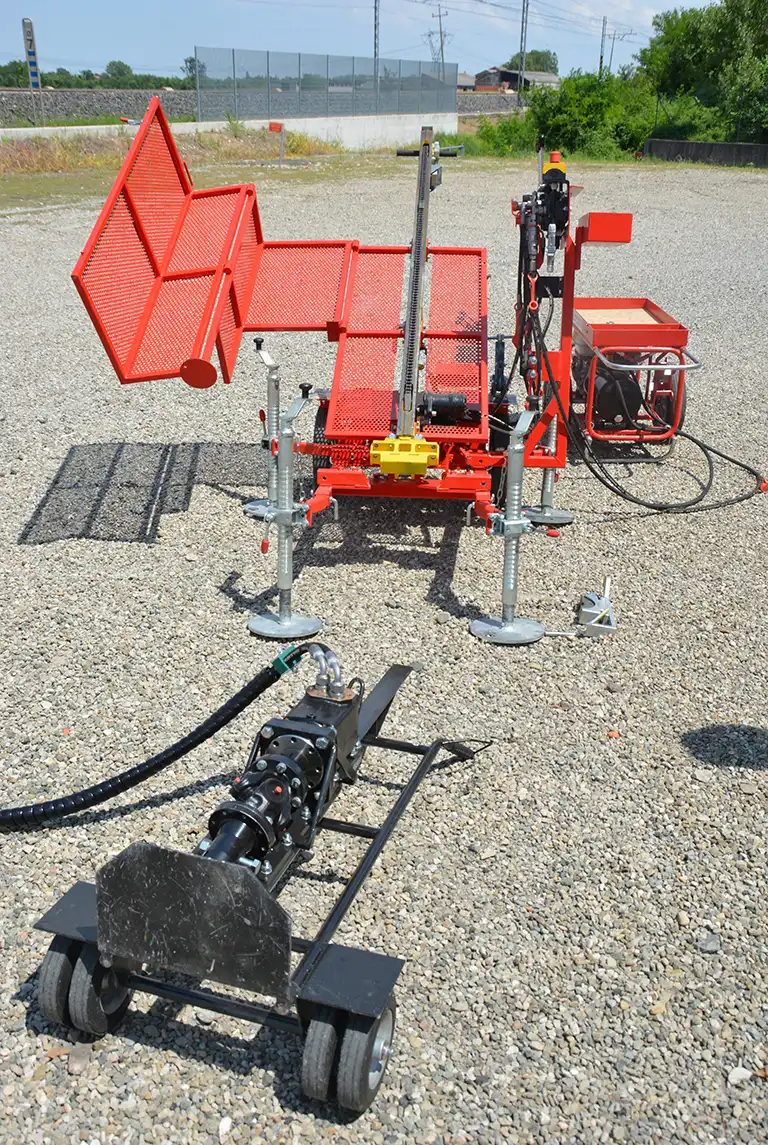

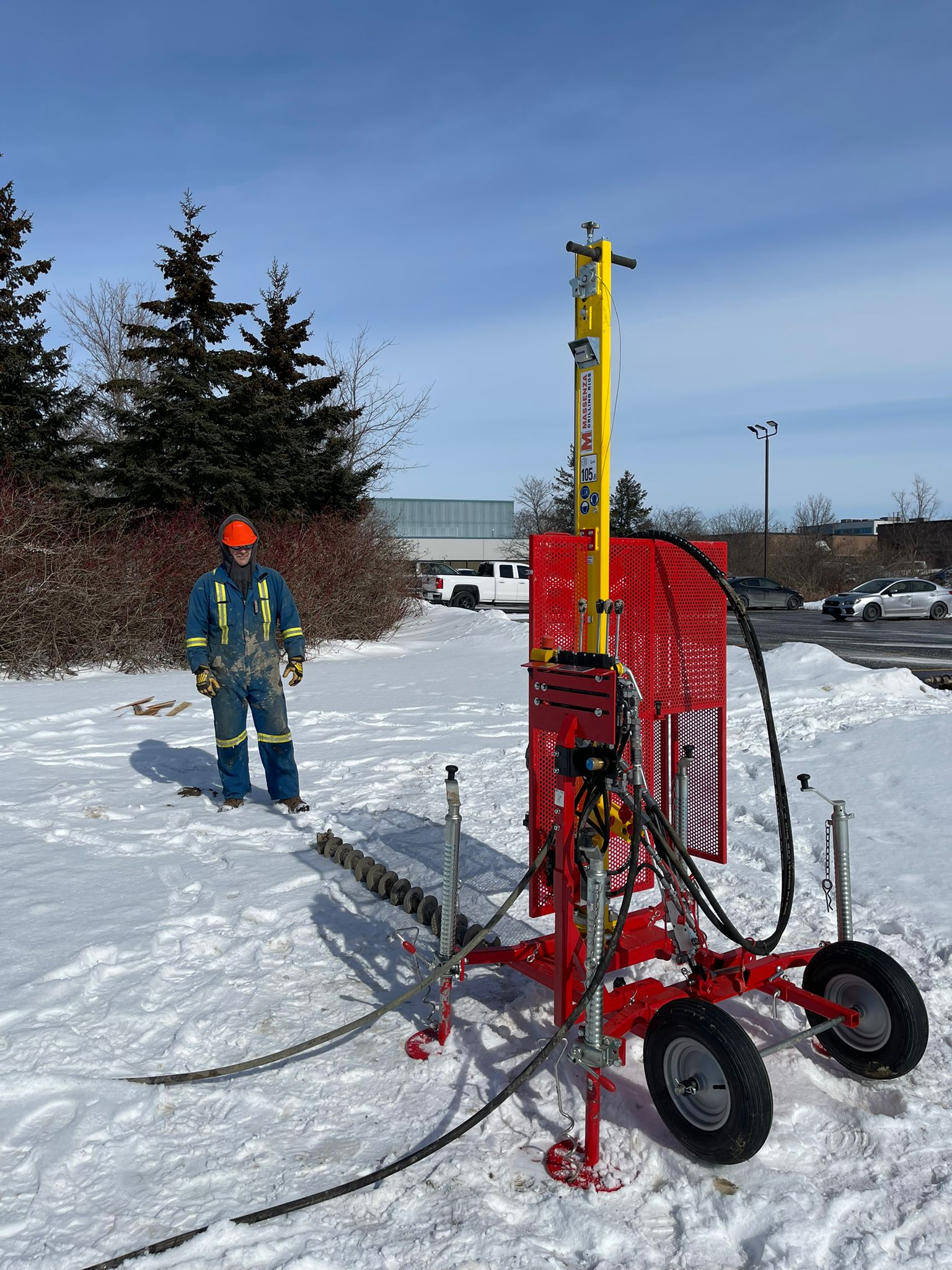

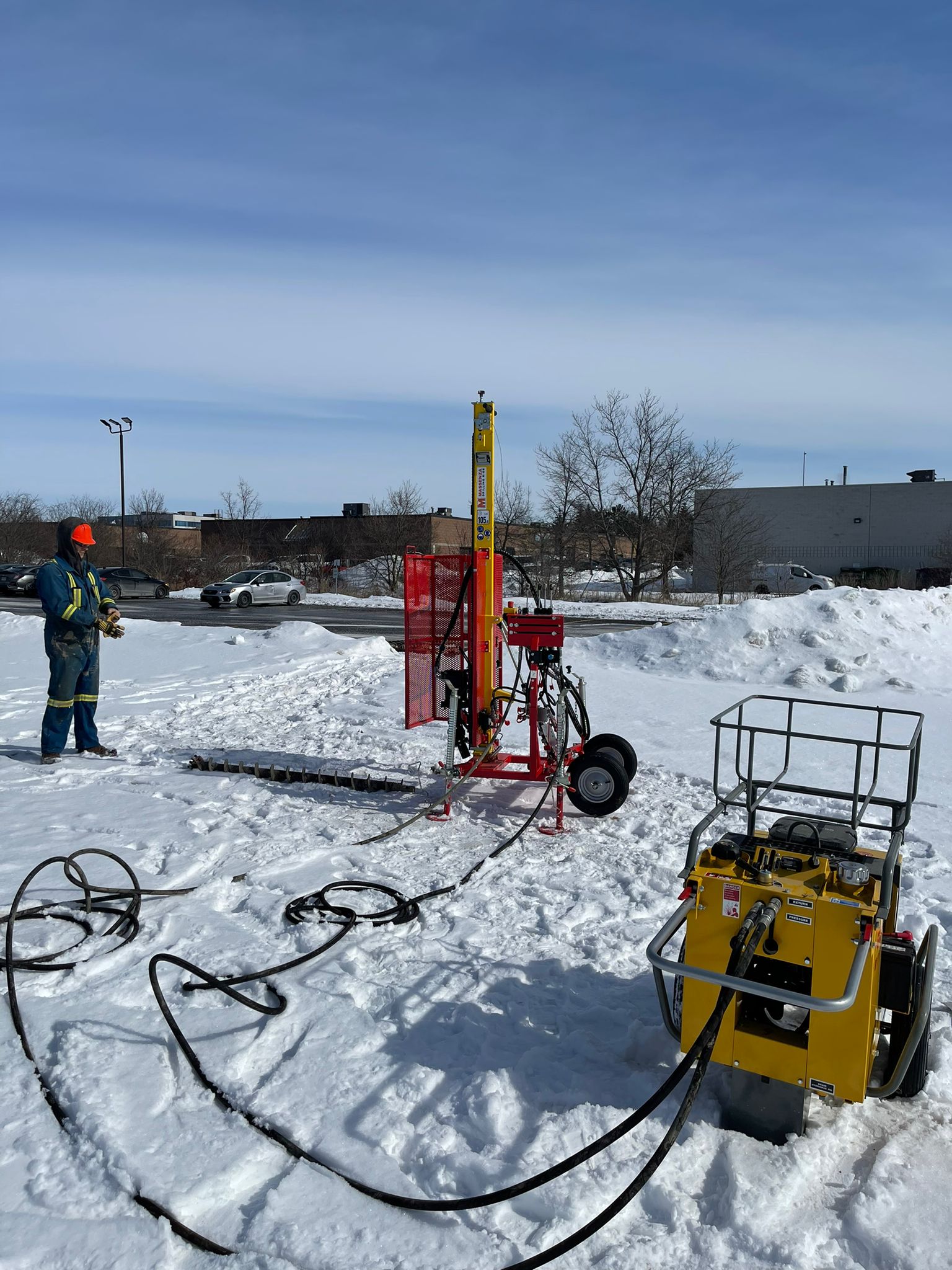

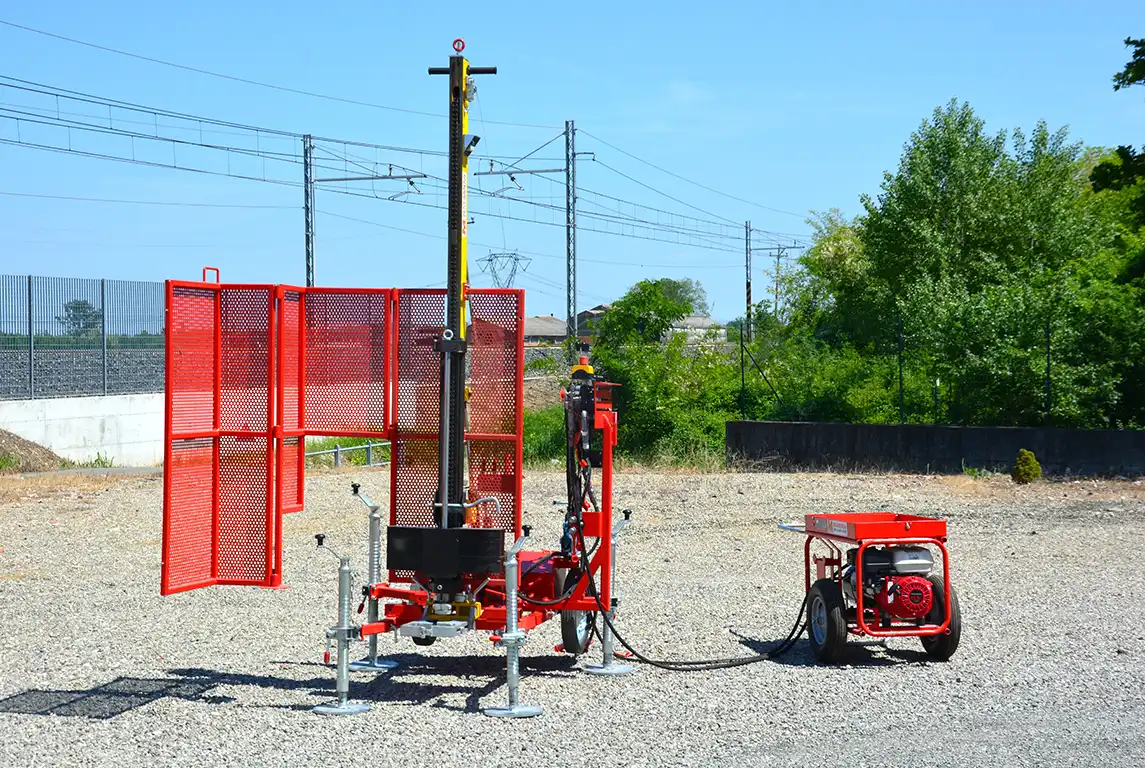

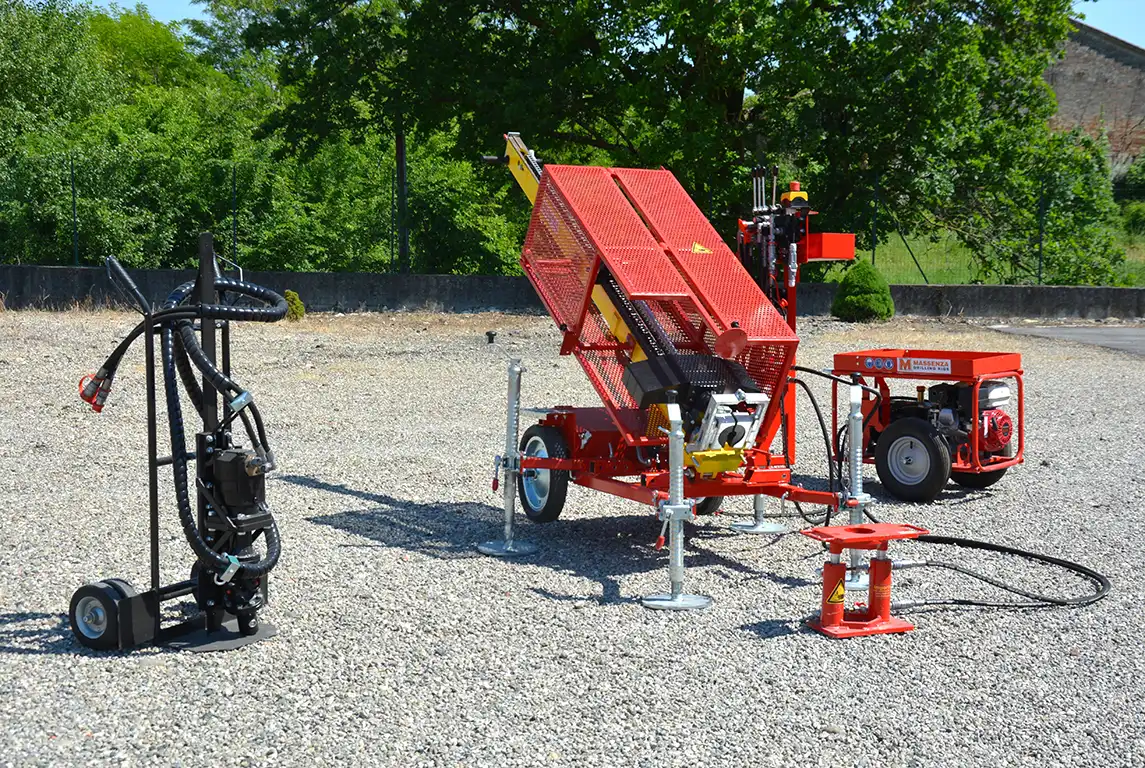

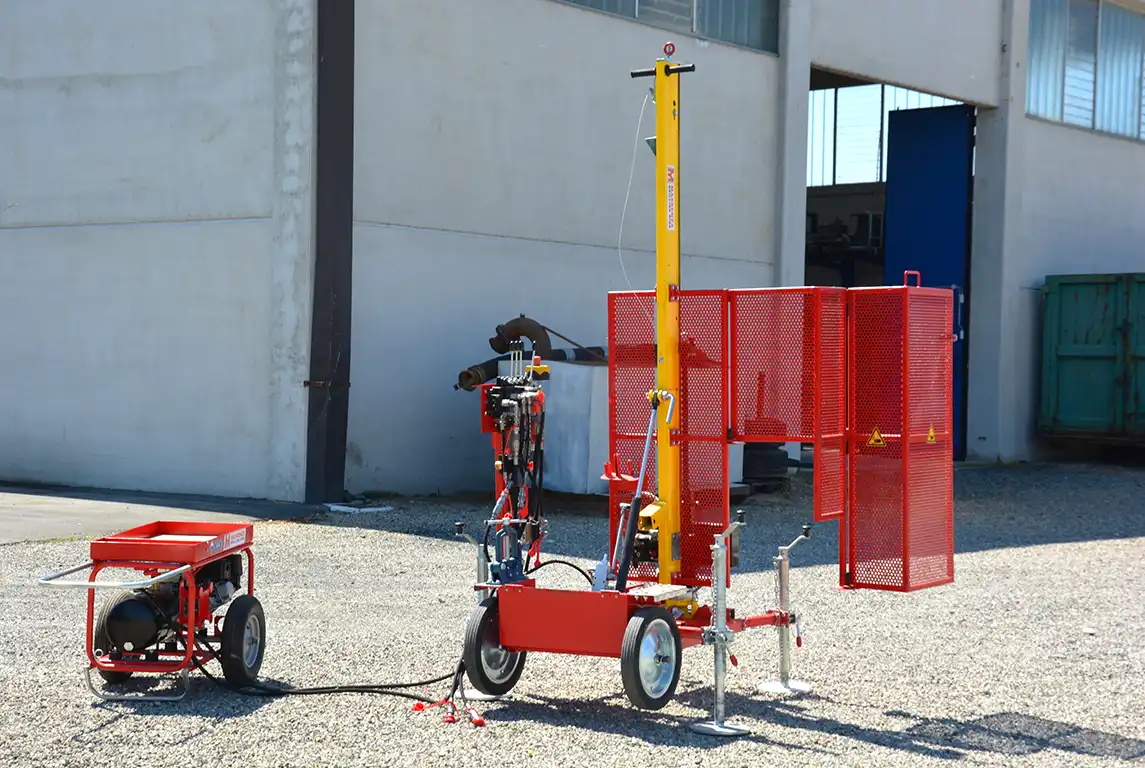

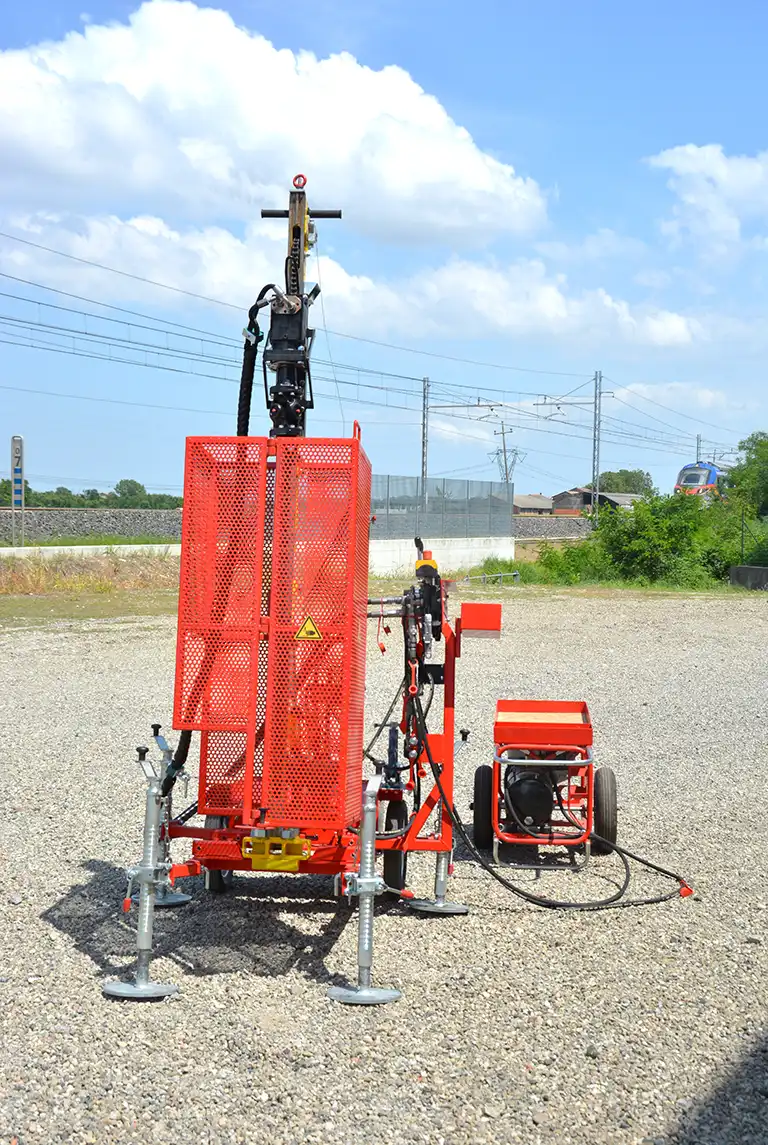

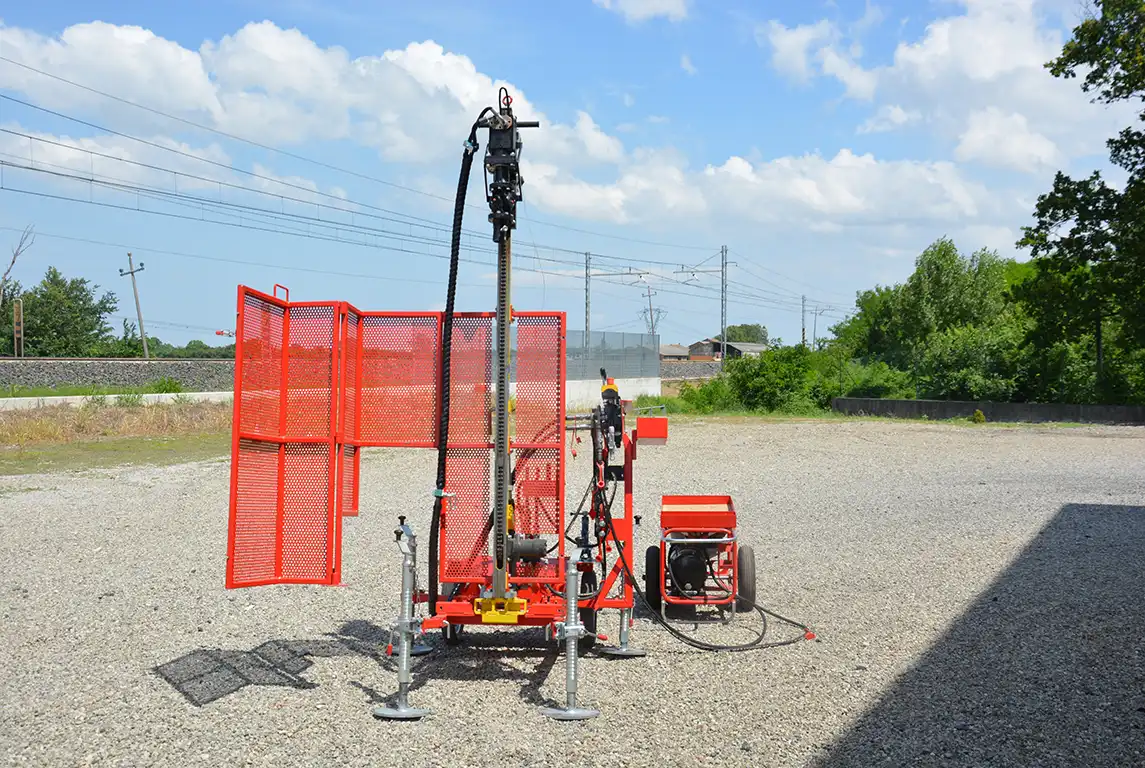

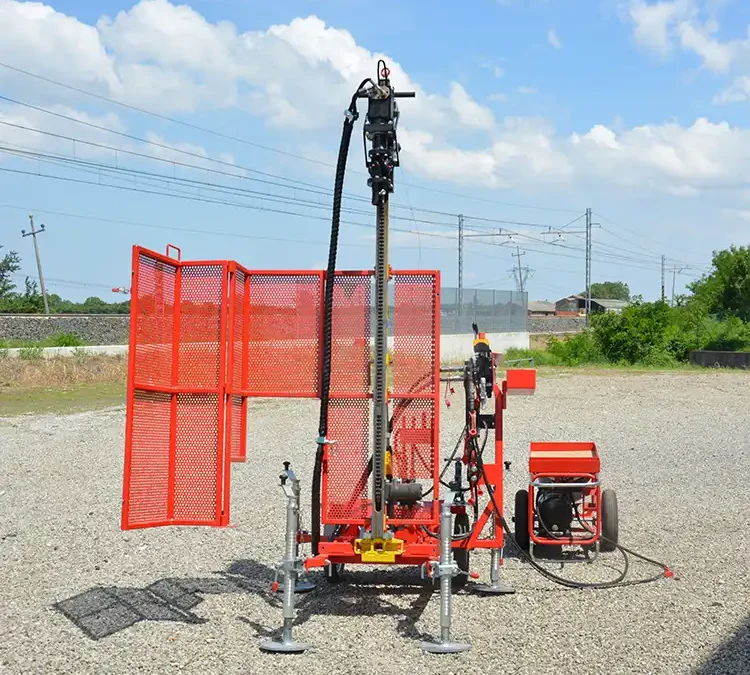

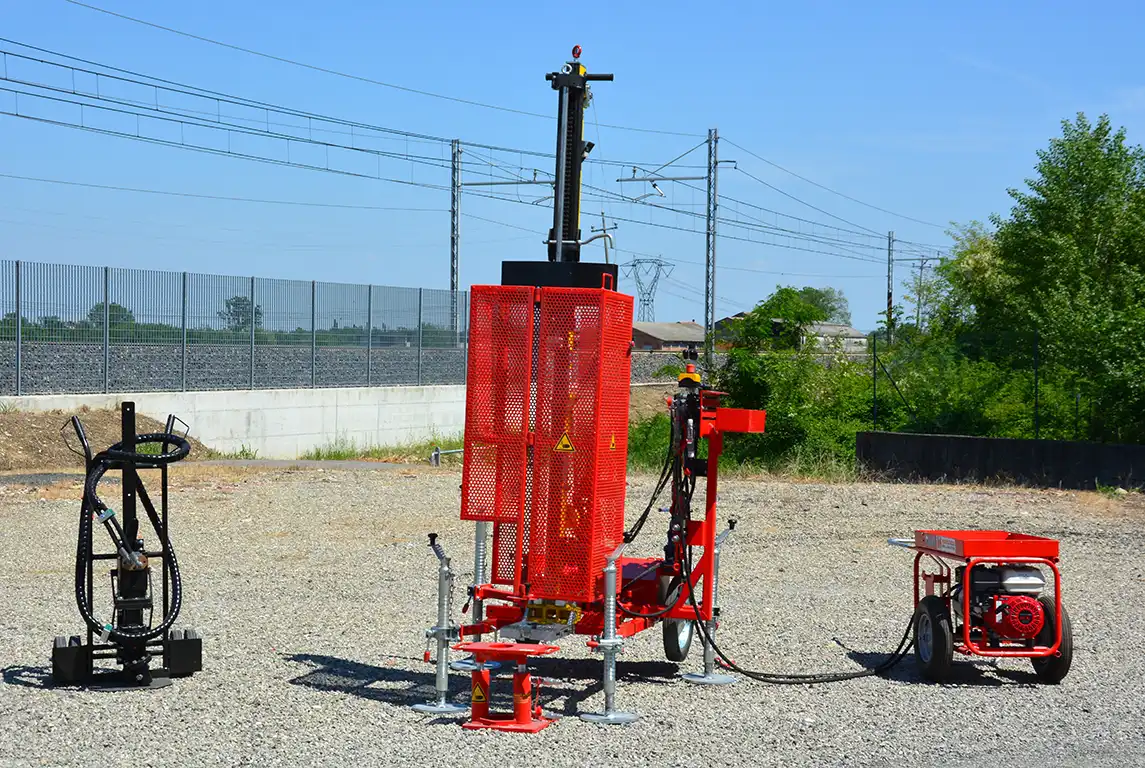

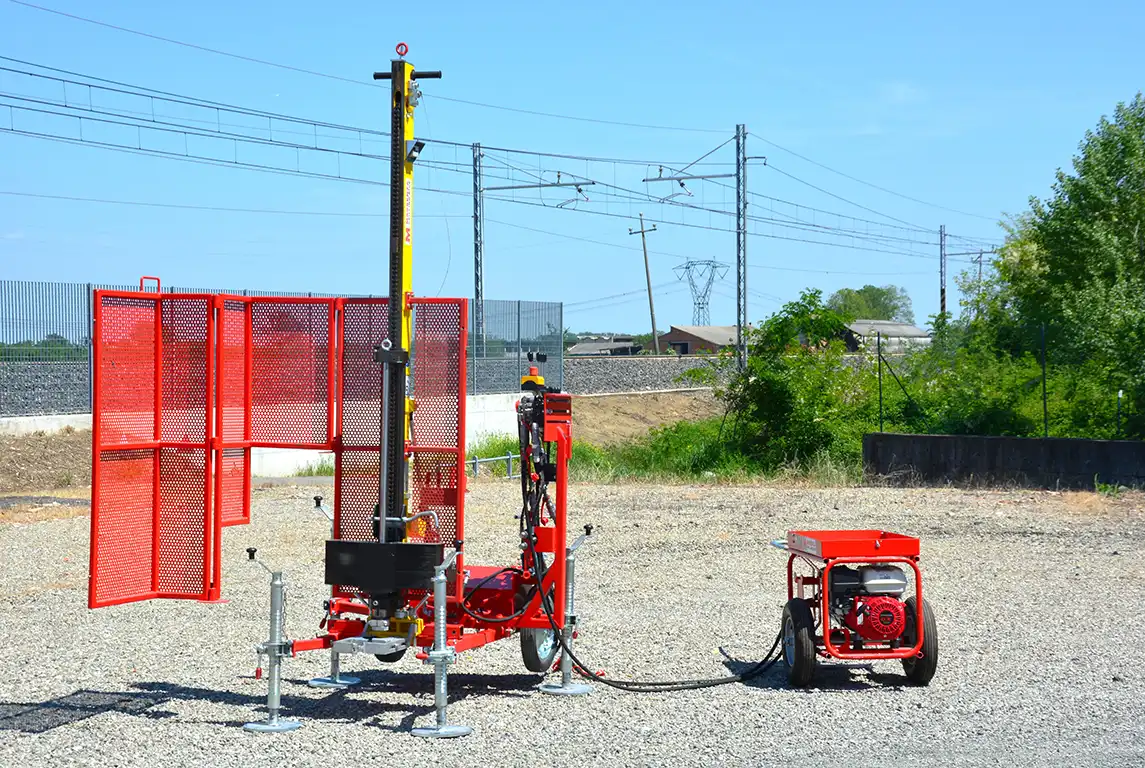

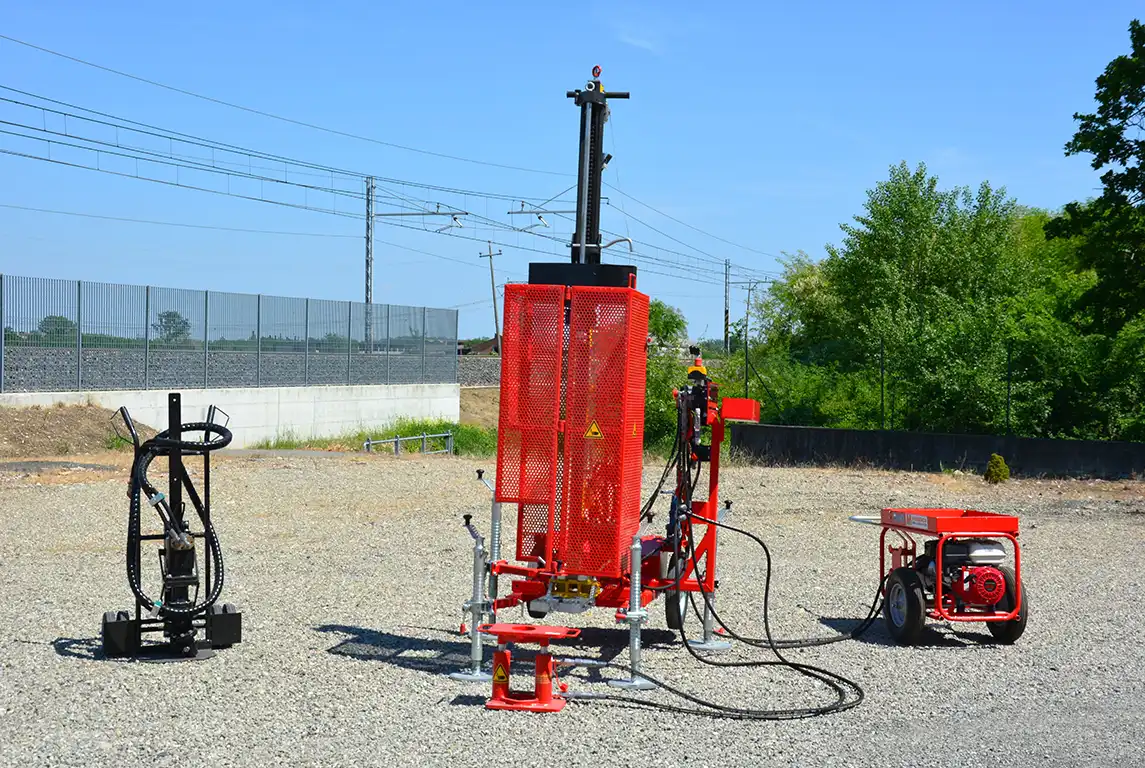

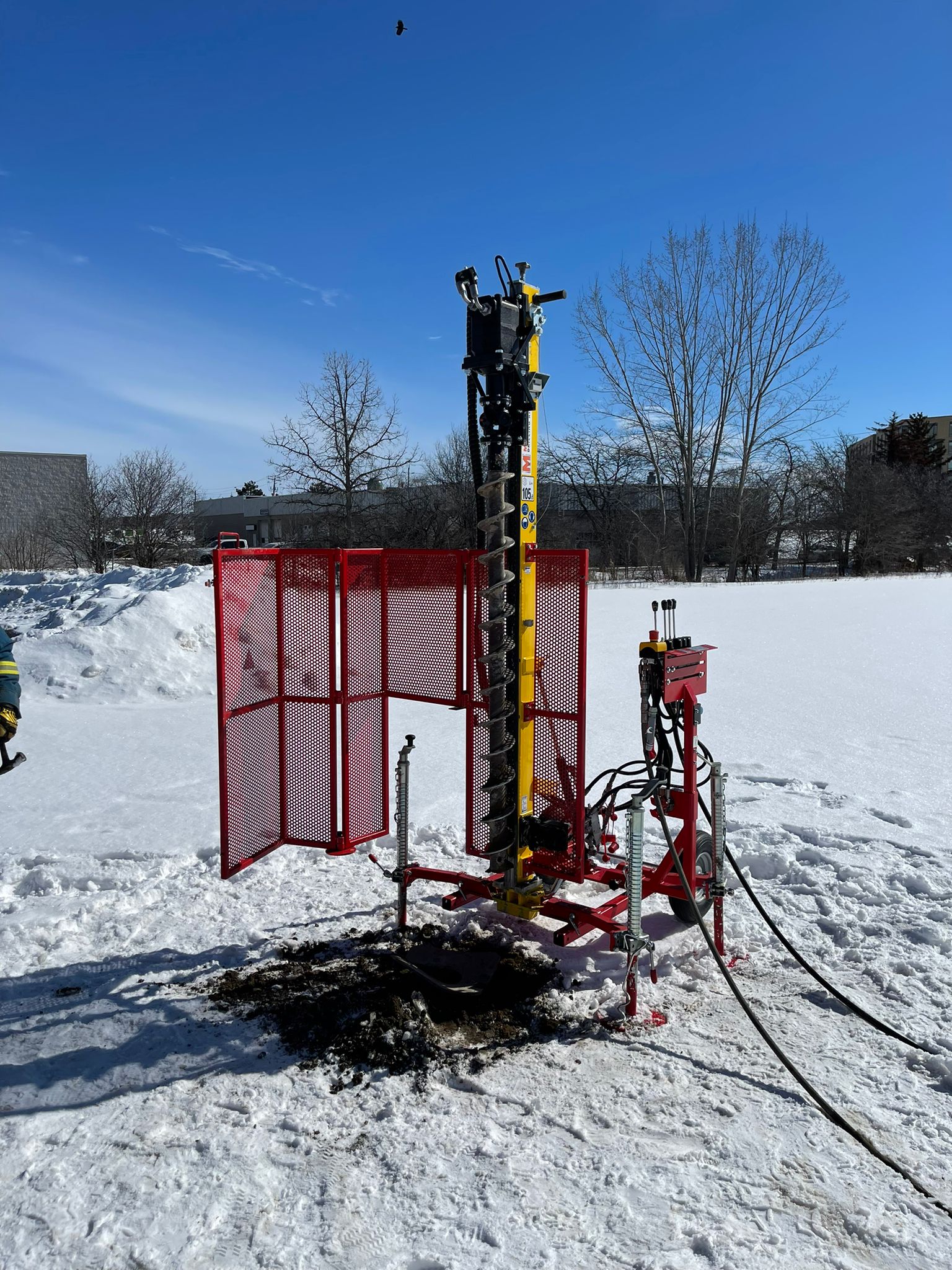

The Modular MSPT dynamic probing rig is highly functional for geotechnical investigations and allows dynamic penetration tests to be performed.
The system is mounted on a rigid tubular steel frame that supports four cranked legs positioned at the corners to erect and level the unit.
The modular MSPT is powered by a hydraulic motor fed by a separate power pack. It can be used for soil bearing capacity tests, compaction tests, and soil sampling.
Dynamic probing tests can be conducted according to the DP-L, DP-M, DP-H, DP-SH standards, as well as SPT.
The adaptation for different drop weights is done by removing or adding weight bodies to the drop mechanism. The drop height can be adjusted between 500 mm and 750 mm via an adapter bracket.
The mobility of the antenna allows for easy soil sample collection, with its movements controlled hydraulically.
The modular MSPT can be considered a hybrid version between the Massenza Drilling Rigs MSPT Standard penetrometer and the Massenza Drilling Rigs Mi1 drilling rig.
It features a larger distributor and control unit than the MSPT model and has modular weights, reaching up to 63.5 kg.
The modular MSPT probing rig is the ideal choice for work in confined spaces, such as closed rooms, tight construction sites, mining pits, railways, slopes, and areas with limited access.
Motor: The distributor is always used as the connection between the structure/chain – extractor cylinder – hydraulic power pack.
Configurable with:
- Hydraulic impact hammer
- Rotating head
| DRILLING SYSTEMS |
|---|
| -Modular drop mass system with adjustable stroke for DPL 10 kg, DPM 30 kg, DPH 50 kg tests, and SPT (total weight 63.5 kg) - Dynamic sampling |
| MOTOR |
| - Honda GX 120 motor |
| TANK |
| - Capacity: 6.1 liters |
| DIMENSIONS |
| - Antenna height: 2300 mm - Weight: 260 kg (entire unit) - Working area: 1m x 1m |
| ACCESSORIES |
|---|
| - Hydraulic Power Pack 11/12 V2 – weight 60 kg – diesel engine Engine: 4.04 kW – 3600 rpm - Hydraulic Jack Extractor 120/15 – weight 27 kg – diameter 120 mm Push capacity: 15 t |
| ADDITIONAL INFORMATION |
| - Performance at 3600 rpm: 2.1 kW / 3 HP - Torque at 3000 rpm: 5.7 Nm - Oil tank: 0.4 l - Number of blows: 15 - 30 hits per minute - Dropping height: 500 mm / 750 mm - Window sampling: up to 80 mm in diameter |
