PROBING RIG Mi1
DESCRIPTION

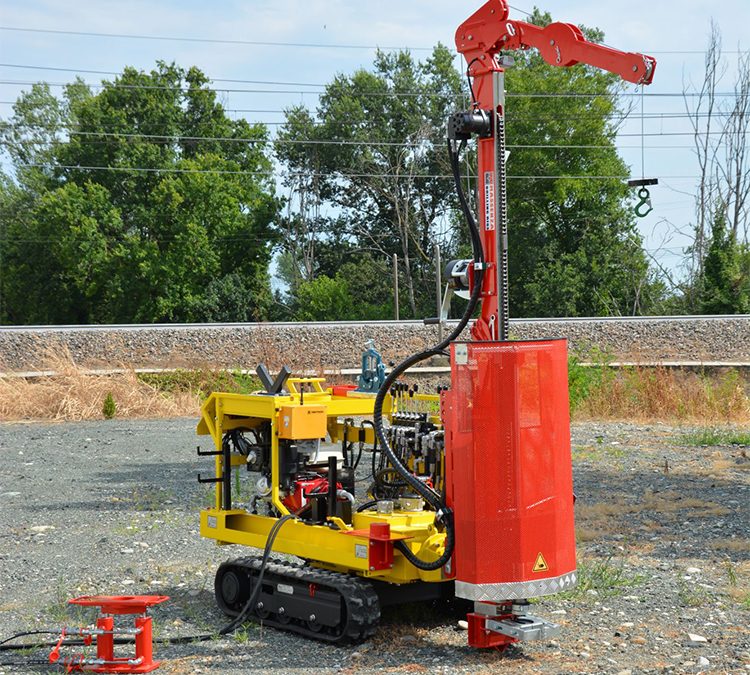

Small and compact soil investigation rig, fully hydraulic on crawler chassis.
Operated by a Honda GX 390 engine with 8.7 kW of power, the new Massenza MI1 can carry out dynamic sampling, DPL, DPM, DPH and SPT tests (up to 63.5 kg drop weight), undisturbed sampling (up to 128 kg drop weight), window sampling and Direct Push with hydraulic breaker hammer, but it can also mount a rotary drive head for shallow core, mud and auger drilling.

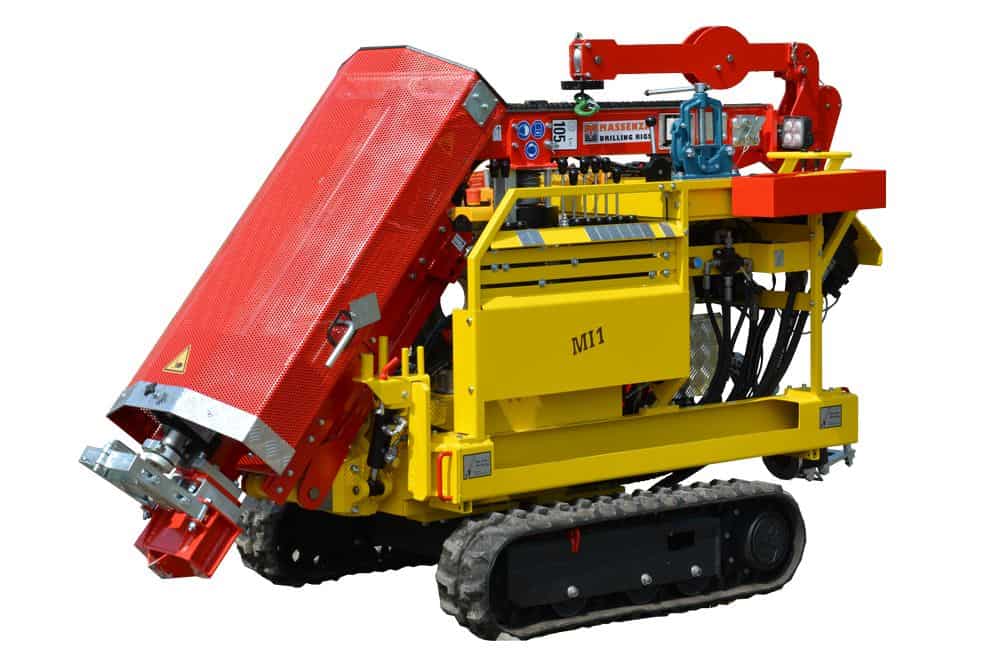

All these tasks with a total weight of only 780 kg and incredibly compant size in transport position thanks to its foldable mast.
DRILLING TASKS
– Modular drop weight system and adjustable drop height for DPL, DPM, DPH and SPT tests (total 63.5 kg)
– Hydraulic Breakers Hammer weight 25 kg (1500 blow/min, single blow energy 95 J) for window and undisturbed sampling
– Drop Weight Unit 128 kg for sampling at higher depths
– Diamond coring device (up to 350 mm diameter)
– Rotary Head (max torque 1350 Nm, max speed 300 rpm)
POWER PACK
– Honda GX 390 engine
– Power 11.6 Hp (8.7 kW) at 3600 Rpm
FUEL TANK
– Capacity 6.1 litres (1.6 US gal)
MAST
– Foldable for transport position and with optional extension for up to 2 m tooling
DIMENSIONS
– Width: 790 mm
– Length: 2400 mm
– Height: 1400 mm
– Mast Height: 2900 mm (in working position)
– Weight: 780 kg (without drop weight and tooling)
ROD EXTRACTION JACK
– Double cylinder extraction unit with up to 15 tons lifting force
ACCESSORIES
– Mast extension
– Autoreverse Valve
– Foldaway Cantilever Arm
– Manual, Electric or Hydraulic Winch
– Drop Weight DIN 50 kg
– Safety Basket for Drop Weight
– Extendable Crawler
– Lateral Rod Boxes
– Bracket for Hydraulic Breaker
– Radio Remote Control
THE MSPT PENETROMETER IS AVAILABLE IN 2 VERSIONS:
Mi1
Mi1SPT
