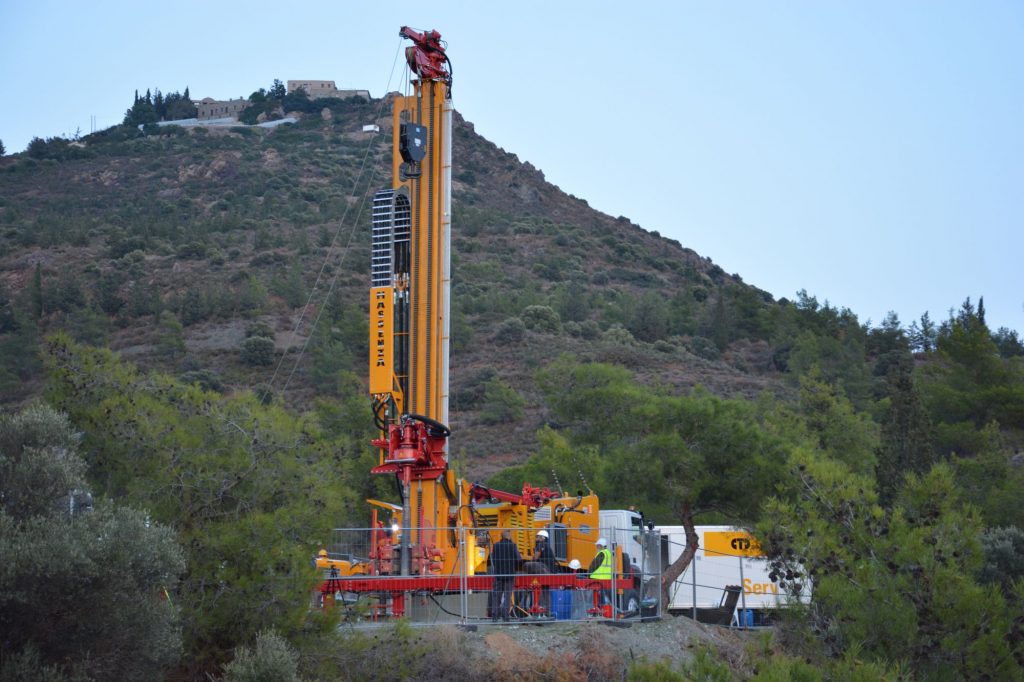

Drilling Rig MI55
DESCRIZIONE
Powerful and innovative drilling rig. Perfect for water wells, mineral researches, geothermal applications and coring at great depths.Thanks to its pull up of 55 tons and a rotary head torque of 23.500 Nm, the MI55 can indeed arrive up to 1400 m.
Like all Massenza drill rigs, this model as well is completely customizable: it can be mounted on a truck or semi-trailer, it can be equipped to work by direct and reverse circulation systems, with mud or air, but not only, many other options are available on request.
Available also in the electric version with zero emissions.
It can be in fact driven by two electric motors, mounted on the machine, themselves driven by a separate generator.
The benefits of this innovative solution are many:
- - Zero emissions, since there is no diesel engine
- - No problem also with regulations in the city centers: the generator which powers the electric motors can indeed be rented from time to time. In this way you can always hire the latest generation model and meet the requirements of the moment.
- - The drilling rig is really silent, which is a benefit for drillers on the jobsite and solves the problems of noise in the city.
| WORK METHODS |
|---|
| - Rotation with direct circulation and reverse with air,mud and foam - Carotaggi |
| DIESEL ENGINE |
| Power up to 620 kW (831 HP) |
| In alternative ELECTRIC MOTORS |
| Power 160 kW and 200 kW at 1490 RPM |
| MAST: |
| Stroke of rotary head 8,40 m Maximum capacity 60 tons For handling 12 m casing tubes |
| FEED SYSTEM: |
| Maximum pull up 54.600 daN Maximum pull down 29.400 daN |
| EXTENDABLE TOWER EXTENSION: |
| hydraulically foldable complete with hydraulic arm, drain and bucket |
| SUMMIT TOWER: |
| Maximum capacity 60 tons |
| ROTARY HEAD MASSENZA model TM55 |
|---|
| Maximum torque 35.380 Nm (26,094 lbf•ft) Maximum speed 132Rpm |
| DOUBLE HYDRAULIC CLAMP MASSENZA model MS520: |
| Max passage 520 mm Minimum clamping diameter Ø 76 mm Maximum clamping force 355 kN Minimum torque 77.000 Nm |
| OPENING CLAMP SUPPORT FOR MS520 |
| Maximum passage 1.100 mm (43”) |
| WINCH |
| Maximum line pull 15.600 kg Maximum speed 38 m/min |
| FREE FALL WINCH |
| AIR COMPRESSOR for RC Maximum pressure 10 bar (254 PSI) Maximum capacity 7.2 m³/min (176 CFM) |
| CENTRIFUGAL PUMP |
| Maximum capacity 1.750 l/min Maximum pressure 10,5 Bar |
| FOAM PUMP |
| Maximum delivery 89 l/min Maximum pressure 50 bar |
